Versamatic Plus

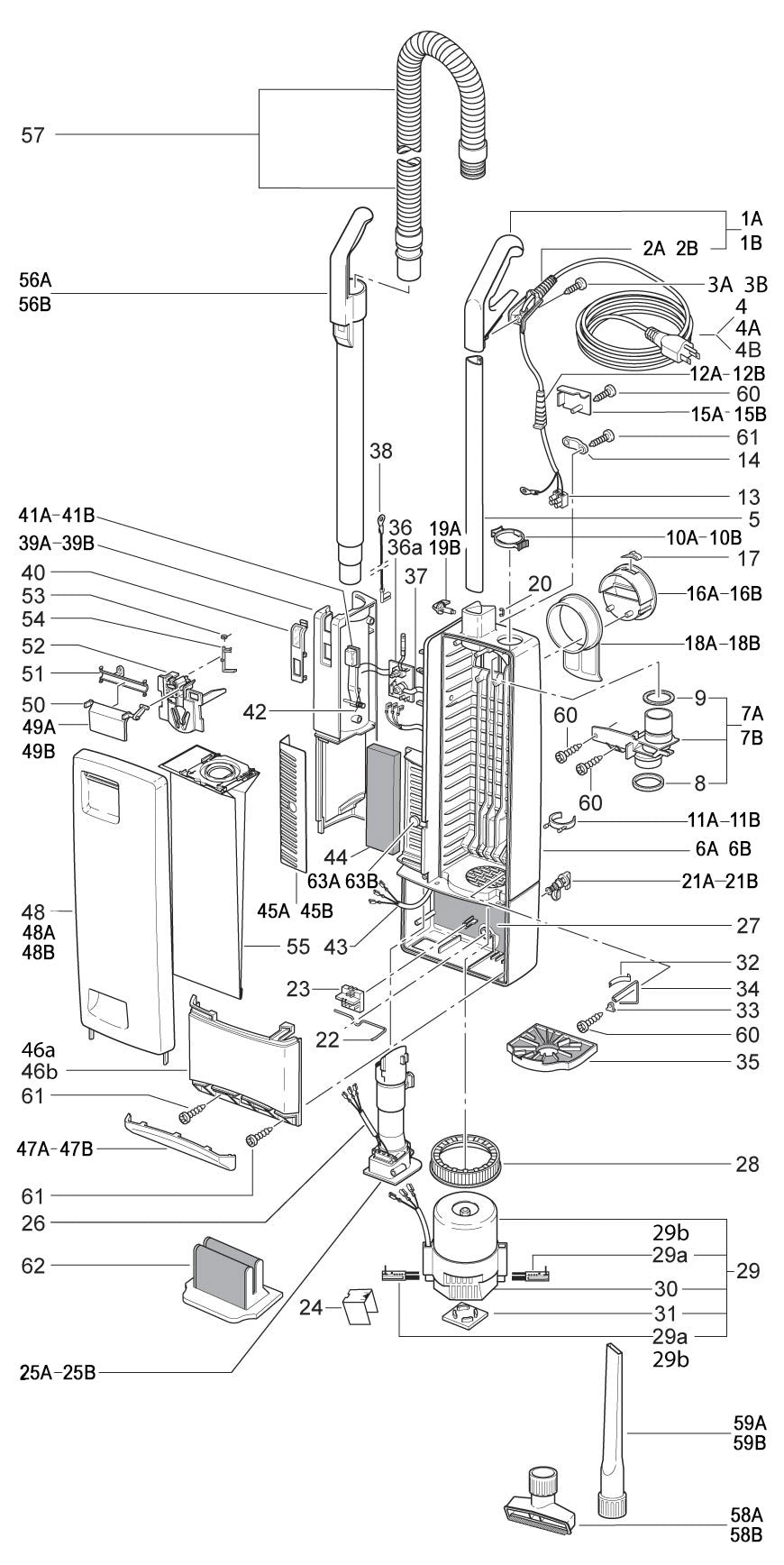

Bag Housing
Bag Housing
| Reference # |
Part # |
Description |
Add to Cart |
| 1A |
86407670 |
Black Handle Complete |
Buy Now |
| 1B |
86142050 |
Gray Handle Complete |
Buy Now |
| 2A |
86407680 |
Black Handle Cover |
Buy Now |
| 2B |
86142120 |
Gray Handle Cover |
Buy Now |
| 3A |
86144830 |
Screw |
Buy Now |
| 3B |
86147120 |
Screw |
Buy Now |
| 4 |
86407660 |
Yellow Power Cord for 18" |
Buy Now |
| 4A |
86407650 |
Yellow Power Cord for 14" |
Buy Now |
| 4B |
86135510 |
Blue Power Cord |
Buy Now |
| 5 |
86142150 |
Handle |
Buy Now |
| 6A |
86408190 |
Dark Gray Dust Bag Housing |
Buy Now |
| 6B |
86141070 |
Light Gray Dust Bag Housing |
Buy Now |
| 7A |
86408200 |
Dark Gray Internal Cover |
Buy Now |
| 7B |
86142840 |
Light Gray Internal Cover |
Buy Now |
| 8 |
86144900 |
Internal Cover Seal |
Buy Now |
| 9 |
86144930 |
Vacuum Seal |
Buy Now |
| 10A |
86144620 |
Retaining Ring |
Buy Now |
| 10B |
86408080 |
Retaining Ring |
Buy Now |
| 11A |
86319250 |
Black Dust Bag Housing Clip |
Buy Now |
| 11B |
86319250 |
Dust Bag Housing Clip |
Buy Now |
| 12a |
86319140 |
Black Grommet |
Buy Now |
| 12b |
86141970 |
Light Gray Grommet |
Buy Now |
| 13 |
6146170 |
Terminal Block |
Buy Now |
| 14 |
86139110 |
Cable Clamp |
Buy Now |
| 15A |
86408220 |
Dark Gray Brush Strip Cover |
Buy Now |
| 15B |
86140430 |
Light Gray Brush Strip Cover |
Buy Now |
| 16A |
86408230 |
Dark Gray Carrying Handle |
Buy Now |
| 16B |
86139430 |
Light Gray Carrying Handle |
Buy Now |
| 17 |
86145350 |
Stop Spring |
Buy Now |
| 18A |
86408240 |
Dark Gray Cable Hook |
Buy Now |
| 18B |
86139170 |
Light Gray Cable Hook |
Buy Now |
| 19A |
86408250 |
Dark Gray Handle Catch |
Buy Now |
| 19B |
86352680 |
Gray Handle Catch |
Buy Now |
| 20 |
86140040 |
Clip |
Buy Now |
| 21A |
86408260 |
Dark Gray Locking Catch |
Buy Now |
| 21B |
86143080 |
Locking Catch |
Buy Now |
| 22 |
86143100 |
Locking Rod |
Buy Now |
| 23 |
86146200 |
Terminal Block |
Buy Now |
| 24 |
86140420 |
Terminal Block Cover |
Buy Now |
| 25A |
86408270 |
Dark Gray Connector |
Buy Now |
| 25B |
86140220 |
Light Gray Connector |
Buy Now |
| 26 |
86141590 |
Female Contact Holder |
Buy Now |
| 27 |
86145170 |
Sound Insulation |
Buy Now |
| 28 |
86146380 |
Vacuum Motor Seal |
Buy Now |
| 29 |
86146410 |
Vacuum Motor |
Buy Now |
| 29a |
86139400 |
Carbon Brush Set |
Buy Now |
| 29b |
86139390 |
Carbon Brush set |
Buy Now |
| 29b |
86363640 |
Light Gray Latch with Spring |
Buy Now |
| 30 |
86143410 |
Motor Cover |
Buy Now |
| 31 |
86352880 |
Motor Support |
Buy Now |
| 32 |
86143010 |
Leaf Spring |
Buy Now |
| 33 |
86139970 |
Clamp |
Buy Now |
| 34 |
86140230 |
Connecting Rod |
Buy Now |
| 35 |
86143430 |
Motor Filter |
Buy Now |
| 36 |
86143760 |
PC Board Cover |
Buy Now |
| 36a |
86139950 |
Circuit Board |
Buy Now |
| 37 |
86141680 |
Fitting |
Buy Now |
| 38 |
86141990 |
Grounding Wire |
Buy Now |
| 39A |
86146470 |
Light Gray Vac Tube Cover |
Buy Now |
| 39B |
86408280 |
Dark Gray Vac Tube Cover |
Buy Now |
| 40 |
86143040 |
Bag Light Indicator Lens |
Buy Now |
| 41A |
86408290 |
Yellow Switch Button |
Buy Now |
| 41B |
86145580 |
Switch Button |
Buy Now |
| 42 |
86145220 |
Spring |
Buy Now |
| 43 |
86142830 |
Internal Cable |
Buy Now |
| 44 |
86141370 |
Exhaust Filter |
Buy Now |
| 45A |
86408300 |
Dark Gray Exhaust Filter Cover |
Buy Now |
| 45B |
86141360 |
Light Gray Exhaust Filter Cover |
Buy Now |
| 46a |
86408310 |
Dark Gray Motor Cover |
Buy Now |
| 46b |
86143480 |
Light Gray Motor Cover |
Buy Now |
| 47A |
86408320 |
Dark Gray Dust Bag Bumper |
Buy Now |
| 47B |
86141050 |
Light Gray Dust Bag Bumper |
Buy Now |
| 48 |
86408330 |
Dark Gray Bag Front Cover Complete |
Buy Now |
| 48A |
86408310 |
Dark Gray Dual Motor Cover |
Buy Now |
| 48B |
86141840 |
Front Cover Seal |
Buy Now |
| 49A |
86408340 |
Yellow Cover Release |
Buy Now |
| 49B |
86140440 |
Blue Cover Release |
Buy Now |
| 50 |
86144970 |
Release Cover Seal |
Buy Now |
| 51 |
86143940 |
Plastic Axle Cover |
Buy Now |
| 52 |
86138040 |
Bag Holder Complete |
Buy Now |
| 53 |
86144760 |
Safety Catch Spring |
Buy Now |
| 54 |
86144750 |
Safety Catch |
Buy Now |
| 55 |
5300HEPA |
HEPA Replacement Bags |
Buy Now |
| 56A |
86319200 |
Black Extension Tube |
Buy Now |
| 56B |
86141550 |
Light Gray Extension Tube |
Buy Now |
| 57 |
86142650 |
Hose |
Buy Now |
| 58A |
86319290 |
Black Upholstery Tool |
Buy Now |
| 58B |
86146310 |
Light Gray Upholstery Tool |
Buy Now |
| 59A |
86319300 |
Black Crevice Tool |
Buy Now |
| 59B |
86319300 |
Light Gray Crevice Tool |
Buy Now |
| 60 |
86147030 |
Screw |
Buy Now |
| 61 |
86147040 |
Screw |
Buy Now |
| 62 |
86142690 |
Motor Filter |
Buy Now |
| 63A |
86144610 |
Retaining Button |
Buy Now |
| 63B |
86408350 |
Dark Gray Retaining Button |
Buy Now |

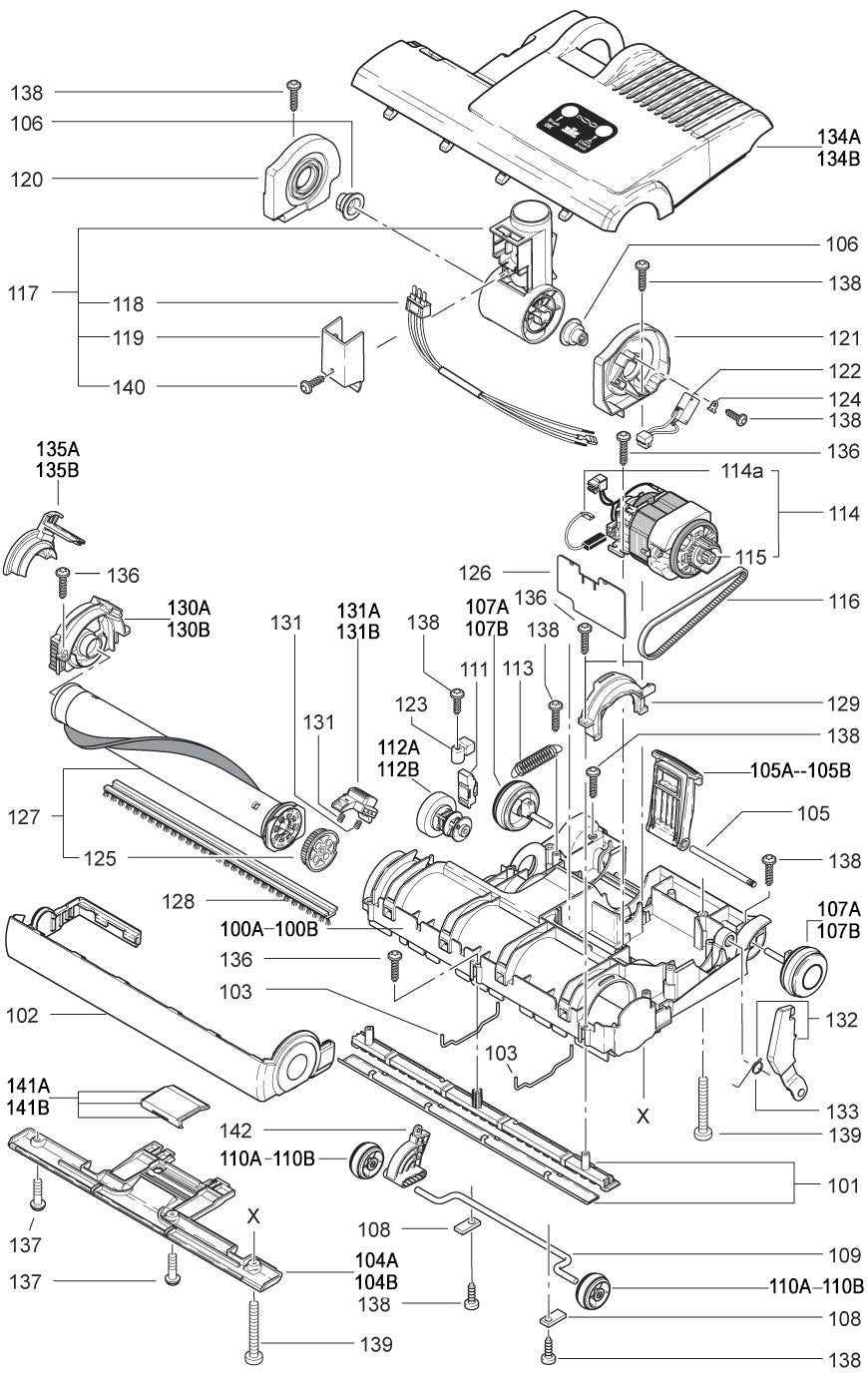

14" Powerhead
Windsor Versamatic Plus 14" Powerhead
| Reference # |
Part # |
Description |
Add to Cart |
| 100A |
86407840 |
Dark Gray 14" Chassis |
Buy Now |
| 100B |
86363130 |
Light Gray 14" Chassis |
Buy Now |
| 101 |
86363140 |
Front Bottom Plate |
Buy Now |
| 102 |
86363150 |
14" Bumper |
Buy Now |
| 103 |
86363160 |
Retaining Bracket |
Buy Now |
| 104A |
86407860 |
Dark Gray Rear Bottom Plate |
Buy Now |
| 104B |
86363170 |
Light Gray Rear Bottom Plate |
Buy Now |
| 105 |
86378430 |
Foot Pedal Axle |
Buy Now |
| 105A |
86407870 |
Yellow Foot Pedal |
Buy Now |
| 105B |
86363180 |
Orange Foot Pedal |
Buy Now |
| 106 |
86363190 |
Swivel Neck Bearing |
Buy Now |
| 107A |
86322280 |
Black Wheel |
Buy Now |
| 107B |
86146600 |
Gray Wheel |
Buy Now |
| 108 |
86140000 |
Clamp Connecting Rod |
Buy Now |
| 109 |
86363210 |
Pile Adjustment Axle |
Buy Now |
| 110A |
86407880 |
Black Pile Adjustment Wheel |
Buy Now |
| 110B |
86146610 |
Gray Pile Adjustment Wheel |
Buy Now |
| 111 |
86146220 |
Thrust Member |
Buy Now |
| 112A |
86407890 |
Yellow Adjustment Knob |
Buy Now |
| 112B |
86363220 |
Gray Adjustment Knob |
Buy Now |
| 113 |
86145270 |
Spring |
Buy Now |
| 114 |
86363500 |
Brush Motor 120V |
Buy Now |
| 114a |
86138390 |
Carbon Brush Set |
Buy Now |
| 115 |
86309030 |
Brush Motor Pulley |
Buy Now |
| 116 |
86138220 |
Belt |
Buy Now |
| 117 |
86363680 |
Swivel Neck Assembly |
Buy Now |
| 118 |
86363250 |
Complete Wire Set |
Buy Now |
| 119 |
86145820 |
Swivel Neck Cover |
Buy Now |
| 120 |
86363260 |
Swivel Neck Support |
Buy Now |
| 121 |
86363270 |
Swivel Neck Support Left |
Buy Now |
| 122 |
86143050 |
Control Lever |
Buy Now |
| 123 |
86363410 |
Leaf |
Buy Now |
| 124 |
86139970 |
Clamp |
Buy Now |
| 125 |
86363280 |
Brush Pulley |
Buy Now |
| 126 |
86363290 |
Circuit Board |
Buy Now |
| 127 |
86363300 |
14" Brush Assembly |
Buy Now |
| 128 |
86002440 |
Brush Strip |
Buy Now |
| 129 |
86363310 |
Bearing Block Left |
Buy Now |
| 130A |
86407900 |
Dark Gray Bearing Block Right |
Buy Now |
| 130B |
86363320 |
Light Gray Bearing Block Right |
Buy Now |
| 131 |
86363340 |
Spring |
Buy Now |
| 131A |
86407910 |
Gray Brush Roller Release |
Buy Now |
| 131B |
86363330 |
Light Gray Brush Roller Release |
Buy Now |
| 132 |
86145440 |
Support Lever |
Buy Now |
| 133 |
86345580 |
Spring Return |
Buy Now |
| 134 |
86363730 |
14" Power Head Cover |
Buy Now |
| 135A |
86407930 |
Black Side Plate |
Buy Now |
| 135B |
86363360 |
Gray Side Plate |
Buy Now |
| 136 |
86144790 |
Screw |
Buy Now |
| 137 |
86144850 |
Screw |
Buy Now |
| 138 |
86363370 |
Screw |
Buy Now |
| 139 |
86147170 |
Screw |
Buy Now |
| 140 |
86147030 |
Screw |
Buy Now |
| 141A |
86407940 |
Yellow Access Door |
Buy Now |
| 141B |
86363390 |
Orange Access Door |
Buy Now |
| 142 |
86363400 |
Lever |
Buy Now |
18" Powerhead
Windsor Versamatic Plus 18" Powerhead
| Reference # |
Part # |
Description |
Add to Cart |
| 100 |
86408130 |
18" Chassis |
Buy Now |
| 101a |
86408140 |
Gray Front Bottom Plate |
Buy Now |
| 101b |
86363470 |
Front Bottom Plate |
Buy Now |
| 102a |
86408150 |
Black 18" Bumper |
Buy Now |
| 102b |
86363480 |
Light Gray 18" Bumper |
Buy Now |
| 103 |
86363160 |
Retaining Bracket |
Buy Now |
| 104A |
86408160 |
Dark Gray Rear Bottom Plate |
Buy Now |
| 104B |
86363490 |
Light Gray Rear Bottom Plate |
Buy Now |
| 105 |
86378430 |
Foot Pedal Axle |
Buy Now |
| 105A |
86407870 |
Yellow Foot Pedal |
Buy Now |
| 105B |
86363180 |
Orange Foot Pedal |
Buy Now |
| 106 |
86363190 |
Swivel Neck Bearing |
Buy Now |
| 107A |
>86322280 |
Black Wheel |
Buy Now |
| 107B |
86146600 |
Gray Wheel |
Buy Now |
| 108 |
86140000 |
Clamp Connecting Rod |
Buy Now |
| 109 |
86363210 |
Pile Adjustment Axle |
Buy Now |
| 110A |
86407880 |
Black Pile Adjustment Wheel |
Buy Now |
| 110B |
86146610 |
Gray Pile Adjustment Wheel |
Buy Now |
| 111 |
86146220 |
Thrust Member |
Buy Now |
| 112A |
86407890 |
Yellow Adjustment Knob |
Buy Now |
| 112B |
86363220 |
Gray Adjustment Knob |
Buy Now |
| 113 |
86145270 |
Spring |
Buy Now |
| 114 |
86363500 |
Brush Motor 120V |
Buy Now |
| 114a |
86138390 |
Carbon Brush Set |
Buy Now |
| 115 |
86309030 |
Brush Motor Pulley |
Buy Now |
| 116 |
86138220 |
Belt |
Buy Now |
| 117 |
86363680 |
Swivel Neck Assembly |
Buy Now |
| 118 |
86363250 |
Complete Wire Set |
Buy Now |
| 119 |
86145820 |
Swivel Neck Cover |
Buy Now |
| 120 |
86363260 |
Swivel Neck Support |
Buy Now |
| 121 |
86363270 |
Swivel Neck Support Left |
Buy Now |
| 122 |
86143050 |
Control Lever |
Buy Now |
| 123 |
86145240 |
Leaf Spring |
Buy Now |
| 124 |
86139970 |
Clamp |
Buy Now |
| 125 |
86363280 |
Brush Pulley |
Buy Now |
| 126a |
86363290 |
Circuit Board |
Buy Now |
| 126b |
86401620 |
Printed Circuit Board |
Buy Now |
| 127 |
86372960 |
18" Brush Assembly |
Buy Now |
| 128 |
86001640 |
18" Brush Strip |
Buy Now |
| 129 |
86363310 |
Bearing Block Left |
Buy Now |
| 130A |
86407900 |
Dark Gray Bearing Block Right |
Buy Now |
| 130B |
86363320 |
Light Gray Bearing Block Right |
Buy Now |
| 131a |
86407910 |
Gray Brush Roller Release |
Buy Now |
| 131b |
86363330 |
Light Gray Brush Roller Release |
Buy Now |
| 131c |
86363340 |
Spring |
Buy Now |
| 131d |
86363340 |
Light Gray Brush Roller Release |
Buy Now |
| 132 |
86145440 |
Support Lever |
Buy Now |
| 133 |
86345580 |
Spring Return |
Buy Now |
| 134 |
86363750 |
18" Power Head Cover |
Buy Now |
| 135A |
86407930 |
Black Side Plate |
Buy Now |
| 135B |
86363360 |
Gray Side Plate |
Buy Now |
| 136 |
86144790 |
Screw |
Buy Now |
| 137 |
86144850 |
Screw |
Buy Now |
| 138 |
86363370 |
Screw |
Buy Now |
| 139 |
86147170 |
Screw |
Buy Now |
| 140 |
86147030 |
Screw |
Buy Now |
| 141A |
86407940 |
Yellow Access Door |
Buy Now |
| 141B |
86363390 |
Orange Access Door |
Buy Now |
| 142 |
86363400 |
Lever |
Buy Now |
Tools, Bags, Filters
Windsor Versamatic Plus Tools, Bags & Filters
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86319290 |
Black Upholstery Tool |
Buy Now |
| 2 |
86319300 |
Black Crevice Tool |
Buy Now |
| 1 |
2003REP |
REP Filter Bags |
Buy Now |
| 2 |
86141370 |
Gray Exhaust Filter |
Buy Now |
| 3 |
86143430 |
Motor Filter |
Buy Now |
| 4 |
86142690 |
Motor Filter |
Buy Now |
| 1 |
86137690 |
Extension Hose |
Buy Now |
| 2 |
86409690 |
Black Extension Tube |
Buy Now |
| 3 |
86409700 |
Round Dusting Brush |
Buy Now |
