Karcher Puzzi 10/1
Water Tank
Karcher Puzzi 10-1 Water Tank

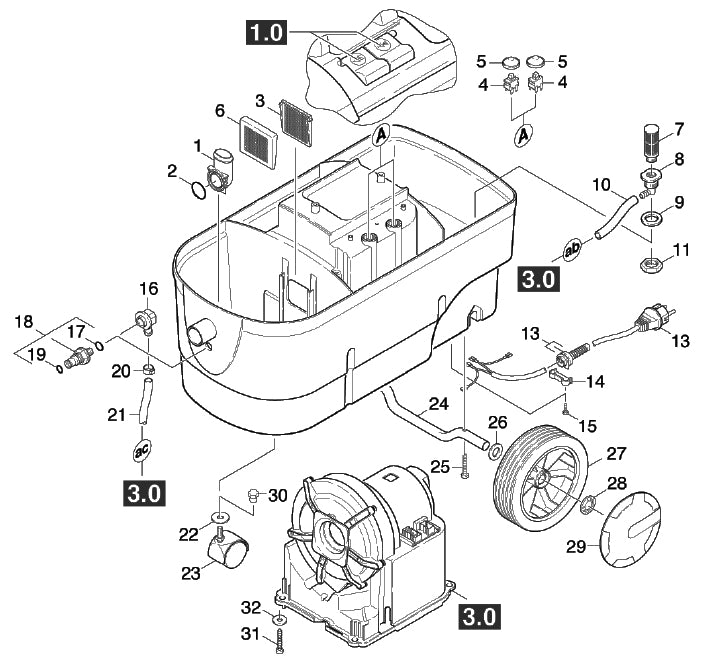

Body Parts
Karcher Puzzi 10-1 Body Parts
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
54026050 |
Connector |
Buy Now |
| 2 |
63625260 |
O-Ring |
Buy Now |
| 3 |
57340870 |
Strainer |
Buy Now |
| 4 |
66304370 |
On/Off Switch |
Buy Now |
| 5 |
53914610 |
Protection Part |
Call to Order |
| 6 |
57340890 |
Filter |
Buy Now |
| 7 |
64140270 |
Filter |
Buy Now |
| 8 |
54432460 |
Hose Stem |
Buy Now |
| 9 |
53631080 |
Joint Ring |
Buy Now |
| 10 |
54427220 |
Tubing |
Buy Now |
| 11 |
63100040 |
Hexagon Nut |
Buy Now |
| 13 |
66479670 |
Power Cable |
Buy Now |
| 14 |
50440840 |
Holder |
Call to Order |
| 15 |
73030840 |
Screw |
Buy Now |
| 16 |
54434370 |
Hose Stem |
Buy Now |
| 17 |
63627970 |
O-Ring |
Buy Now |
| 18 |
44090010 |
Nipple Complete |
Buy Now |
| 19 |
28831510 |
Spare O-Ring |
Buy Now |
| 20 |
63899920 |
Hose Clip |
Call to Order |
| 21 |
63902200 |
Hose |
Buy Now |
| 22 |
73122850 |
Washer |
Buy Now |
| 23 |
64350390 |
Oil Resistant Wheel |
Call to ORder |
| 24 |
51052520 |
Axle |
Call to Order |
| 25 |
73030860 |
Screw |
Buy Now |
| 26 |
73120570 |
Washer |
Buy Now |
| 27 |
64351960 |
Wheel |
Buy Now |
| 28 |
63431680 |
Lock Washer |
Buy Now |
| 29 |
64353490 |
Wheel Cab |
Buy Now |
| 30 |
51106590 |
Bushing |
Buy Now |
| 31 |
63032850 |
Screw |
Buy Now |
| 32 |
53633970 |
Joint Ring |
Buy Now |

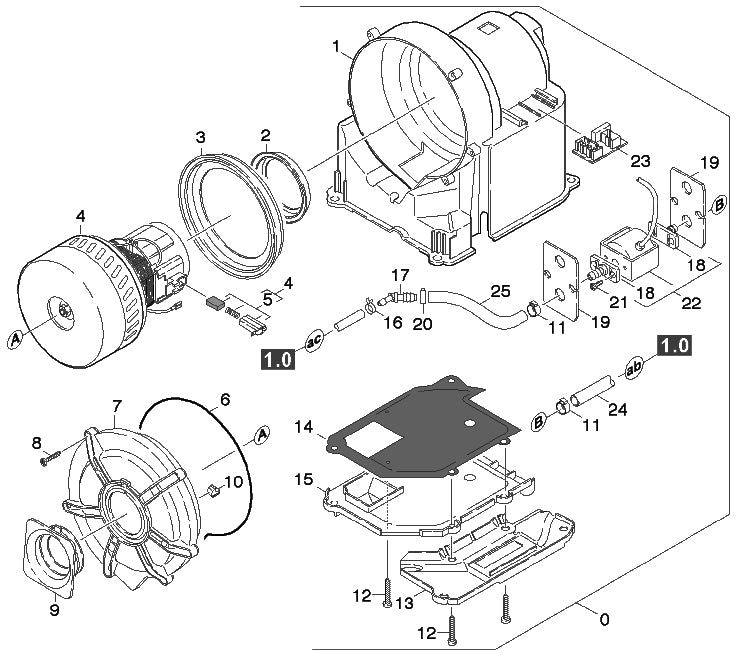

Housing Drawer
Karcher Puzzi 10-1 Housing Drawer
| Reference # |
Part # |
Description |
Add to Cart |
| 0 |
46050780 |
Housing Drawer Complete |
Call to Order |
| 1 |
56052910 |
Housing Turbine |
Call to Order |
| 2 |
53633950 |
Seal |
Buy Now |
| 3 |
53633930 |
Seal |
Buy Now |
| 4 |
46100480 |
Vacuum Motor Complete |
Buy Now |
| 5 |
66102070 |
Carbon Brush Set |
Call to Order |
| 6 |
62731620 |
Cellular Rubber |
Buy Now |
| 7 |
50638630 |
Turbine Cover |
Call to Order |
| 8 |
73030840 |
Screw |
Buy Now |
| 9 |
53633920 |
Seal |
Buy Now |
| 10 |
53634050 |
Seal |
Call to Order |
| 11 |
63886830 |
Hose Clip |
Buy Now |
| 12 |
73030860 |
Screw |
Buy Now |
| 13 |
- |
Discontinued Part |
Discontinued Part |
| 14 |
53642330 |
Flat Gasket |
Buy Now |
| 15 |
50330970 |
Washer |
Call to Order |
| 16 |
63885550 |
Hose Clip |
Buy Now |
| 17 |
54092610 |
Nipple |
Buy Now |
| 18 |
54434560 |
Hose Stem |
Buy Now |
| 19 |
50314680 |
Bearing Pump |
Buy Now |
| 20 |
63887010 |
Hose Clip |
Call to Order |
| 21 |
73062360 |
Screw |
Call to Order |
| 22 |
64733870 |
Motor Pump |
Buy Now |
| 23 |
66823910 |
Circuit Board |
Buy Now |
| 24 |
54427220 |
Tubing |
Buy Now |
| 25 |
54429240 |
Tubing |
Buy Now |
| 26 |
50443200 |
Hose Stem Pump |
Call to Order |
| 27 |
63625330 |
O-Ring |
Buy Now |

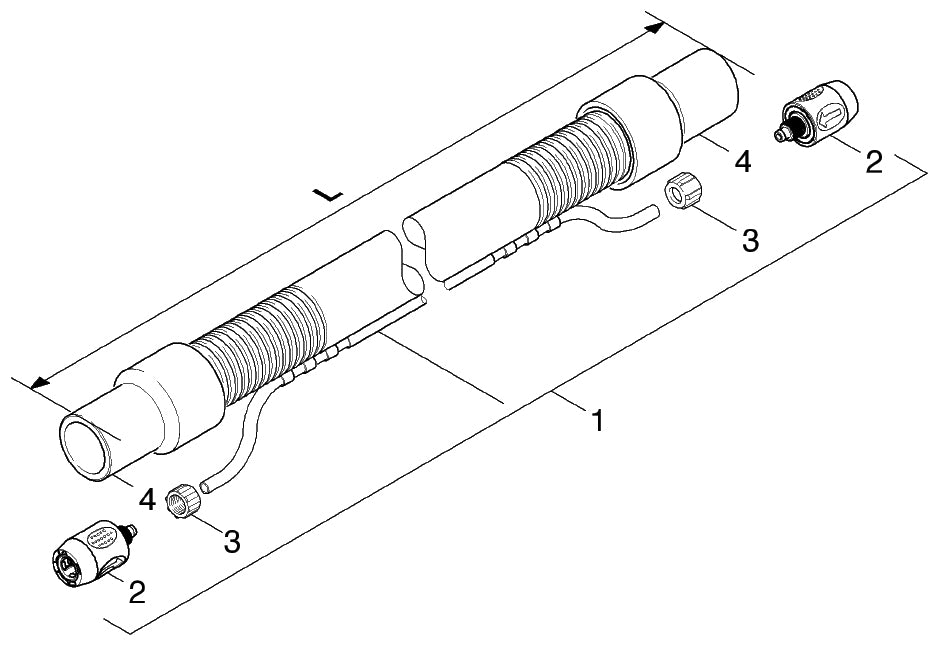

Suction Hose
Karcher Puzzi 10-1 Suction Hose
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
40715160 |
Suction Hose |
Buy Now |
| 2 |
44460190 |
Hose Coupling |
Buy Now |
| 3 |
63883810 |
Union Nut |
Buy Now |
| 4 |
69067130 |
Sleeve |
Call to Order |

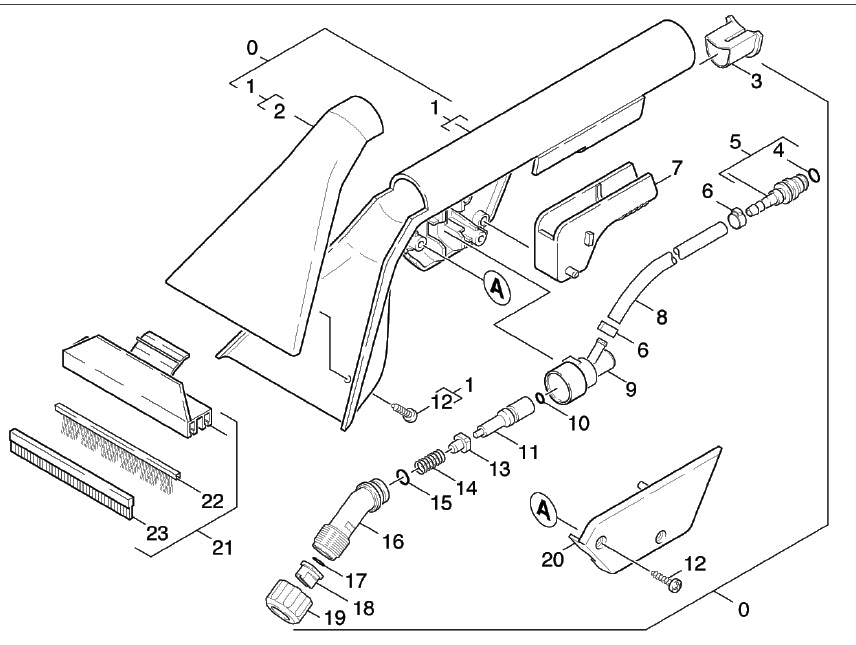

Hand Nozzle
Karcher Puzzi 10-1 Hand Nozzle
| Reference # |
Part # |
Description |
Add to Cart |
| 0 |
41301160 |
Hand Nozzle |
Buy Now |
| 1 |
41301260 |
Hand Nozzle with Cover |
Buy Now |
| 2 |
51302230 |
Cover |
Buy Now |
| 3 |
51125720 |
Bushing |
Call to Order |
| 4 |
63624980 |
O-Ring |
Buy Now |
| 5 |
44430190 |
Hose Stem |
Buy Now |
| 6 |
63902570 |
Hose Clip |
Buy Now |
| 7 |
54811570 |
Lever |
Buy Now |
| 8 |
63902370 |
Hose |
Buy Now |
| 9 |
55871390 |
Valve Housing |
Buy Now |
| 10 |
63624010 |
O-Ring |
Buy Now |
| 11 |
55840330 |
Valve Pin |
Buy Now |
| 12 |
73031160 |
Screw |
Call to Order |
| 13 |
55840340 |
Valve Pin |
Buy Now |
| 14 |
53320820 |
Helical Spring |
Buy Now |
| 15 |
63624020 |
O-Ring |
Buy Now |
| 16 |
54013350 |
Screw Connection |
Call to Order |
| 17 |
63621130 |
O-Ring |
Buy Now |
| 18 |
64153400 |
Nozzle Mouthpiece |
Buy Now |
| 19 |
53100430 |
Nut |
Buy Now |
| 20 |
50637730 |
Cover |
Buy Now |
| 21 |
47622190 |
Hard Surface Adapter |
Buy Now |
| 22 |
69592820 |
Brush Strip |
Buy Now |
| 23 |
69592830 |
Rubber Strip |
Buy Now |

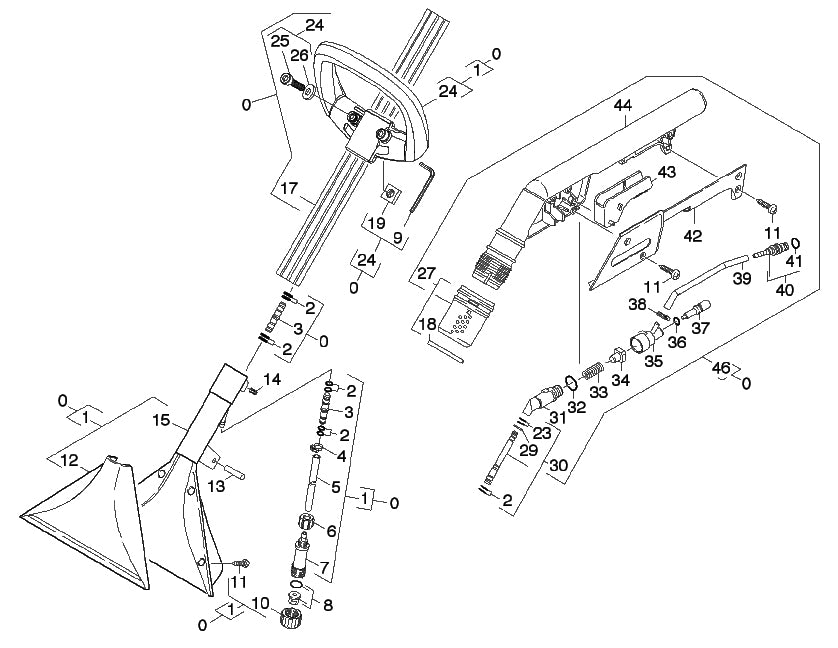

Floor Tool
Karcher Puzzi 10-1 Floor Tool
| Reference # |
Part # |
Description |
Add to Cart |
| 0 |
41303940 |
Metal Nozzle |
Buy Now |
| 1 |
41303980 |
Metal Floor Tool |
Buy Now |
| 2 |
63624720 |
O-Ring |
Buy Now |
| 3 |
51270210 |
Extension |
Buy Now |
| 4 |
63898820 |
Hose Clip |
Buy Now |
| 5 |
63883260 |
Hose |
Call to Order |
| 6 |
63883810 |
Union Nut |
Buy Now |
| 7 |
54010530 |
Screw Connection |
Buy Now |
| 8 |
28845460 |
Nozzle Set |
Buy Now |
| 9 |
78151310 |
Crank Key |
Call to Order |
| 10 |
53100430 |
Nut |
Buy Now |
| 11 |
73031160 |
Screw |
Call to Order |
| 12 |
57770270 |
Suction Nozzle Cover |
Buy Now |
| 13 |
73146590 |
Straight Grooved Pin |
Buy Now |
| 14 |
73070300 |
Threaded Pin |
Call to Order |
| 15 |
41303980 |
Metal Floor Tool |
Buy Now |
| 16 |
63627270 |
O-Ring |
Call to Order |
| 17 |
50328220 |
Suction Tubing |
Buy Now |
| 18 |
53430140 |
Locking Ring |
Buy Now |
| 19 |
73115710 |
Square Nut |
Buy Now |
| 23 |
63627610 |
O-Ring |
Call to Order |
| 24 |
43211860 |
Hand Grip |
Buy Now |
| 25 |
73060240 |
Cylindrical Head Screw |
Buy Now |
| 26 |
73122920 |
Washer |
Buy Now |
| 27 |
43100100 |
Nut |
Buy Now |
| 29 |
73432010 |
Lock Washer |
Buy Now |
| 30 |
41270090 |
Extension |
Buy Now |
| 31 |
50306700 |
Molded Part |
Buy Now |
| 32 |
63624020 |
O-Ring |
Buy Now |
| 33 |
53320820 |
Helical Spring |
Buy Now |
| 34 |
55840340 |
Valve Pin |
Buy Now |
| 35 |
55871390 |
Valve Housing |
Buy Now |
| 36 |
63624010 |
O-Ring |
Buy Now |
| 37 |
55840330 |
Valve Pin |
Buy Now |
| 38 |
63902570 |
Hose Clip |
Buy Now |
| 39 |
63902370 |
Hose |
Buy Now |
| 40 |
44430190 |
Hose Stem |
Buy Now |
| 41 |
63624910 |
O-Ring |
Buy Now |
| 42 |
50310380 |
Molded Part |
Call to Order |
| 43 |
54811570 |
Lever |
Buy Now |
| 44 |
53215690 |
Handhold |
Buy Now |
| 46 |
43211010 |
Handhold Complete |
Buy Now |
