Windsor Saber Blade 12

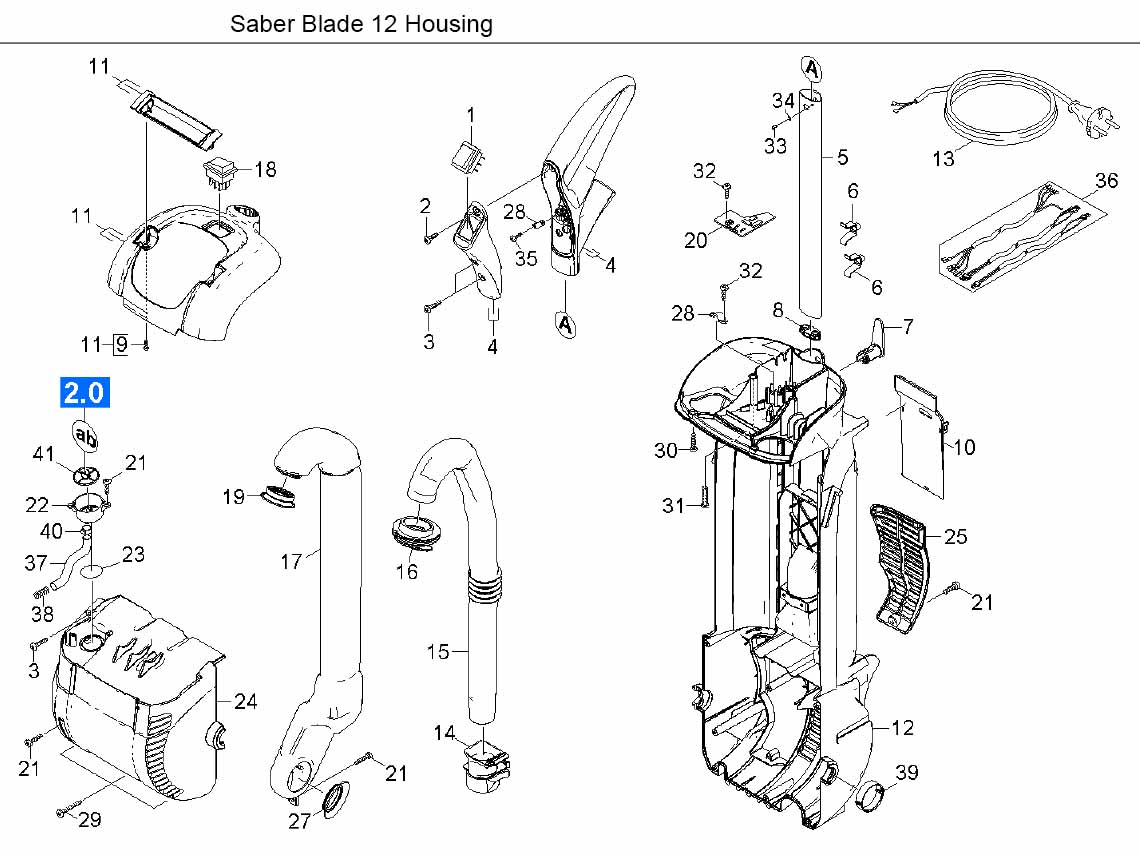

Housing

Windsor Saber Blade 12 Housing

Reference # Part # Description Add to Cart
1 66304340 Switch Two-Pole Call to Order
2 73032120 Screw Buy Now
3 73031180 Screw Buy Now
4 40331700 Handhold Complete Replacement Buy Now
5 50332280 Handle Call to Order
6 50331950 Spring Handle Buy Now
7 50334940 Catch for Cable Call to Order
8 50331960 Plug Handle Call to Order
9 73031070 Screw Buy Now
10 50331750 Covering Cap Cable Buy Now
11 40331620 Covering Cap Housing Replacement Buy Now
12 50331720 Housing Buy Now
13 66496000 Power Cable Buy Now
14 50334960 Sleeve Suction Tube Call to Order
15 50331790 Suction Pipe Tank Call to Order
16 53636880 Sealing Lip Buy Now
17 50331780 Suction Pipe Turbine Call to Order
18 66303850 Switch Buy Now
19 53636870 Sealing Lip Buy Now
20 66829740 Distribution Circuit Board Buy Now
21 73031040 Screw Buy Now
22 50331900 Funnel Valve Buy Now
23 63626040 O-Ring Seal Call to Order
24 50331730 Motor Housing Call to Order
25 50331740 Flap Ventilation Call to Order
27 53636890 Sealing Lip Vac Motor Call to Order
28 63733190 Cable Clamp Buy Now
29 73032680 Screw Call to Order
30 73030860 Screw Buy Now
31 63032940 Screw Call to Order
32 73030950 Screw Buy Now
33 73030300 Screw Call to Order
34 73122300 Serrated Lock Washer Buy Now
35 73031020 Screw Buy Now
36 48225400 Cable Harness Buy Now
37 54410740 Piece of Tube Buy Now
38 53329730 Spring Buy Now
39 42500790 Bearing Shell Buy Now
40 63887010 Hose Clip with Insert Buy Now
41 50332740 Strainer Insert Funnel Buy Now

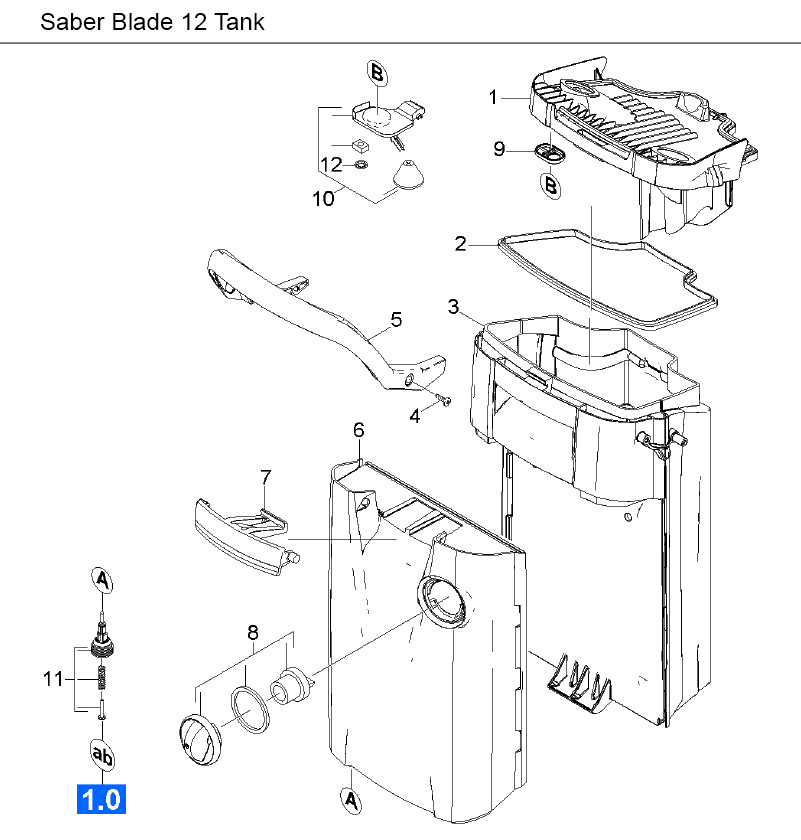

Tank

Windsor Saber Blade 12 Tank

Reference # Part # Description Add to Cart
1 50331810 Cover Waste Water Tank Buy Now
2 53637110 Seal Cover Tank Buy Now
3 50334910 Waste Water Tank Call to Order
4 73031070 Screw Buy Now
5 50331830 Carrier Handle Tank Buy Now
6 40334920 Fresh Water Tank Replacement Call to Order
7 50331860 Notch Fresh Water Tank Call to Order
8 40331870 Fuel Tank Filler Cap Replacement Buy Now
9 53637020 Seal Float Buy Now
10 40331820 Float Replacement Call to Order
11 41902580 Valve Fresh Water Tank Call to Order
12 63431490 Quick-Fastener Buy Now

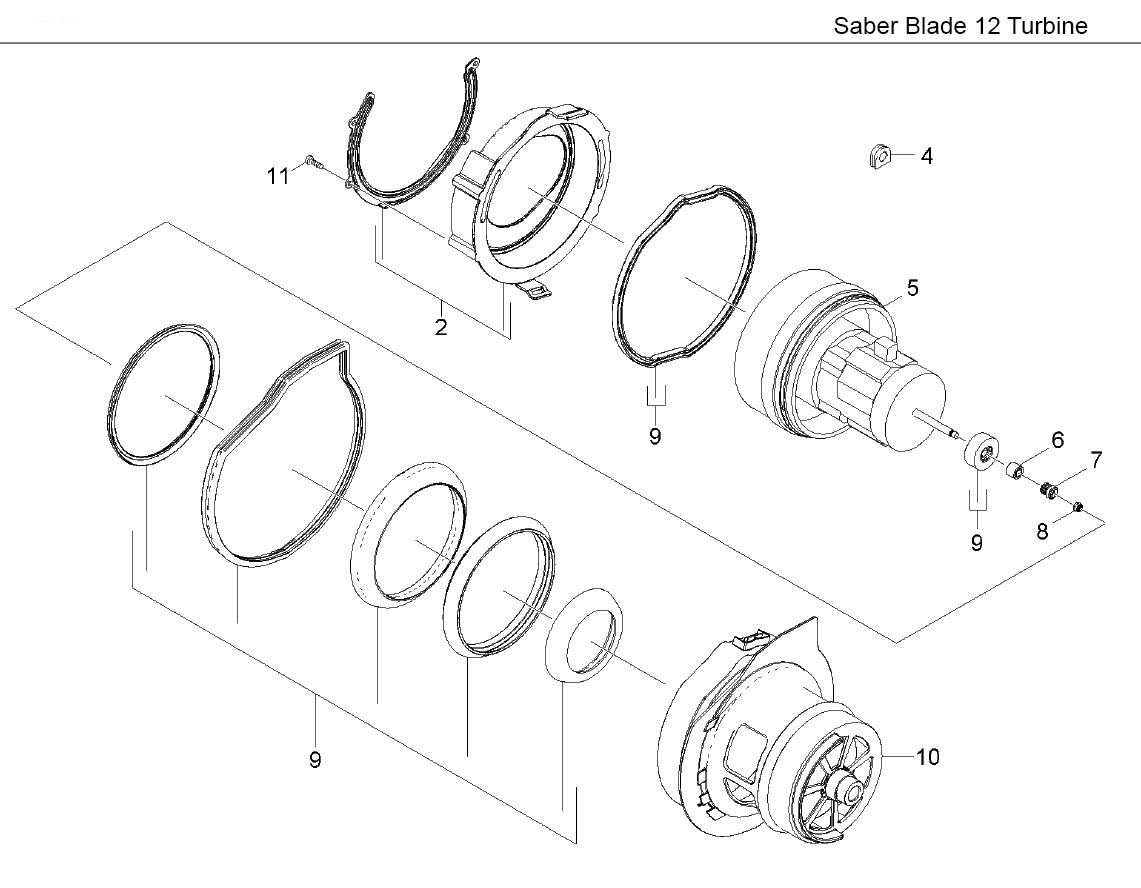

Turbine

Windsor Saber Blade 12 Turbine

Reference # Part # Description Add to Cart
2 40331760 Cover Enclosure Replacement Call to Order
4 66480640 Cable Bushing Call to Order
5 44902430 Turbine Set Buy Now
6 50331940 Flanged Pulley Pinion Buy Now
7 50332630 Motor Pinion Buy Now
8 73110650 Hexagon Nut Buy Now
9 43636900 Set of Gaskets Buy Now
10 50331760 Enclosure Motor Call to Order
11 73031040 Screw Buy Now

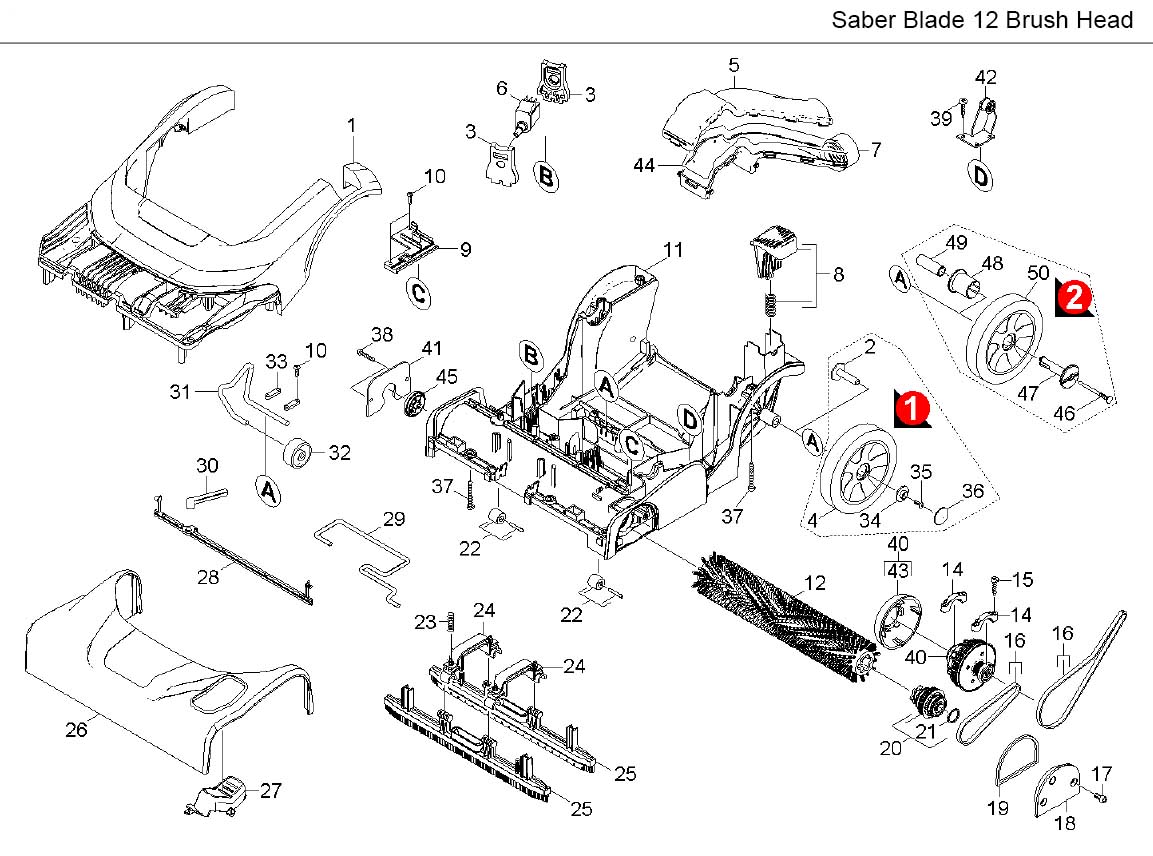

Brush Head

Windsor Saber Blade 12 Brush Head

Reference # Part # Description Add to Cart
1 50334860 Covering Cap Brush-Head Call to Order
2 50332080 Snap-Fit Wheel Buy Now
3 53636940 Rubber Pump Call to Order
4 55153420 Wheel Buy Now
5 50332580 Suction Channel Top Part Buy Now
6 64735350 Pump Buy Now
7 50332070 Suction Channel Brush-Head Buy Now
8 44810000 Foot Pedal Complete Buy Now
9 50332380 Covering Cap Plate Switch Call to Order
10 73030260 Screw Buy Now
11 50332000 Housing Brush-Head Buy Now
12 47624280 Roller Brush Complete Call to Order
12 47624520 Roller Brush Complete Buy Now
12 47624530 Roller Microfibre Complete Buy Now
14 50332220 Coupler Clamp Block Call to Order
15 73030960 Screw Call to Order
16 43484500 Toothed Belt Set Buy Now
17 73032120 Screw Buy Now
18 50332230 Cover Retainer Transmission Call to Order
19 53637130 Seal Buy Now
20 37630980 Assembly Group Brushes Drive Buy Now
21 73430010 Locking Ring Buy Now
22 48800580 Roller Set Buy Now
23 53329520 Spring Buy Now
24 50332240 Web Suction Bar Buy Now
25 47773200 Suction Bar Complete Call to Order
25 47773240 Suction Bar Complete Oil Resistant Buy Now
26 40332020 Bumper Replacement Buy Now
27 50334930 Pedal Suction Bar Call to Order
28 51902550 Strip Water Distributor Buy Now
29 50348030 Retaining Bracket Suction Bar Call to Order
30 53636980 Hose Nozzle Buy Now
31 50348260 Retaining Bracket Height Adjustment Call to Order
32 55150690 Wheel Call to Order
33 66475130 Strain Relief Buy Now
34 51005910 Washer Wheel Buy Now
35 73061810 Screw Buy Now
36 63432240 Quick-Fastener Buy Now
37 73032680 Screw Call to Order
38 73032690 Countersunk Screw Call to Order
39 73031040 Screw Buy Now
40 44700430 Coupler Complete Buy Now
41 50094150 Bracket Brush Buy Now
42 44700400 Pressure Roller Complete Call to Order
43 50332690 Cap Coupler Buy Now
44 62730370 Seal String Cellular Rubber Buy Now
45 50332300 Thread Deflector Buy Now
46 50332790 Pin Snap-Fit Wheel Buy Now
47 50332080 Snap-Fit Wheel Buy Now
48 50332640 Plain Bearing with Collar Buy Now
49 51128630 Bush Buy Now
50 55153380 Wheel Call to Order

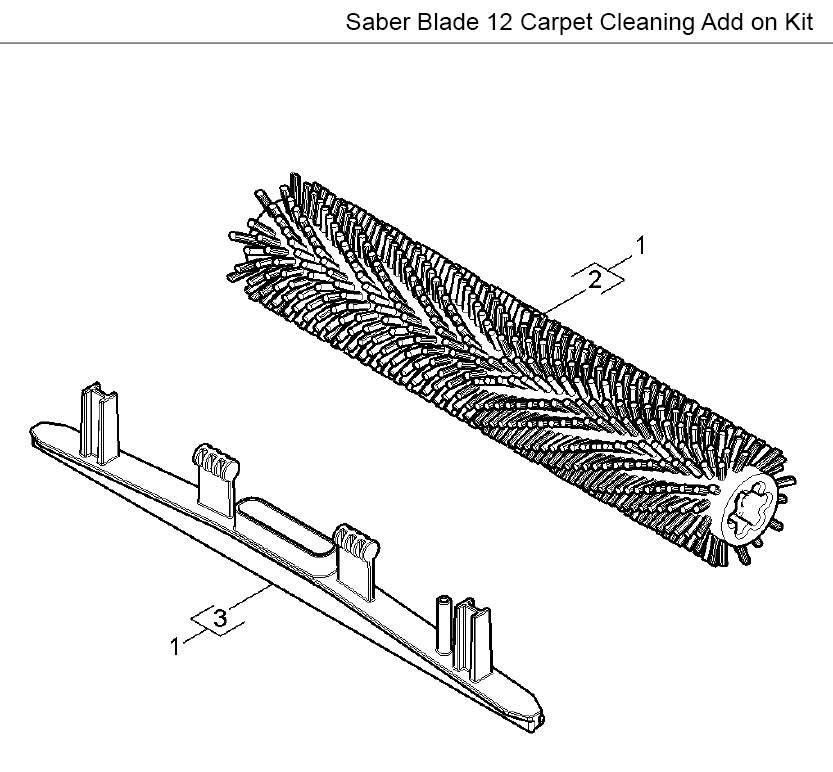

Add-On Kit Carpet Cleaning

Windsor Saber Blade 12 Add-On Kit Carpet Cleaning

Reference # Part # Description Add to Cart
1 27830050 Add-On Kit Carpet Cleaning Buy Now
2 47624990 Roller Brush Complete Buy Now
3 50332750 Suction Bar Carpet Cleaning Buy Now
