Windsor Radius Mini

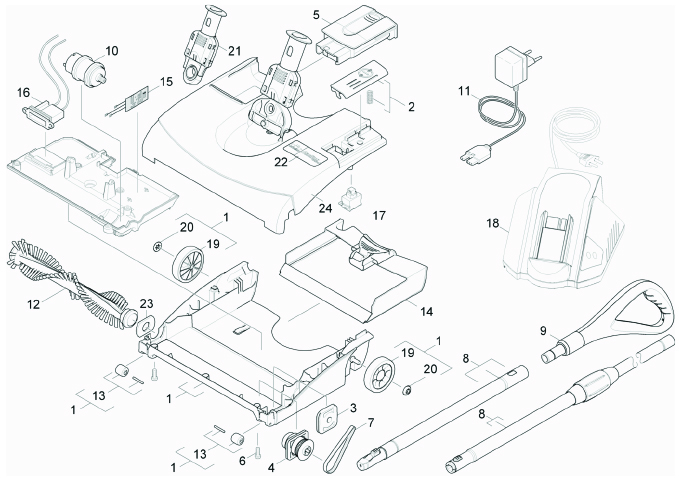

Individual Parts

Windsor Radius Mini Individual Parts

Reference # Part # Description Add to Cart
1 40810030 Complete Bottom Part Buy Now
2 43240240 Pushbutton with Spring Buy Now
3 52501470 Bearing Right Buy Now
4 44540010 Transmission Call to Order
5 66543280 Accumulator - Rechargable Li-Ion Battery Buy Now
6 73031290 Screw Buy Now
7 63484270 Toothed Belt Buy Now
8 40705980 Tube Complete Buy Now
9 40706060 Hand Grip Complete Buy Now
10 46237500 Motor Complete Buy Now
11 66466700 Mains-Adapter Buy Now
12 47624010 Red Roller Brush Buy Now
12 47624000 Roller Brush Buy Now
13 48800580 Roller Set Buy Now
14 40705880 Sweep Tank Complete Buy Now
15 46820920 Electronics Complete Buy Now
16 48224340 Electrical Small Parts Complete Buy Now
17 66304130 Switch Buy Now
18 66541970 Rechargeable battery Changer Carton Four Buy Now
19 55153180 Wheel Buy Now
20 63431870 Lock Washer Buy Now
21 46721810 Locking Part Complete Buy Now
22 53920800 Label Buy Now
23 50087750 Left Bearing Plate Buy Now
24 50800230 Top Part Buy Now

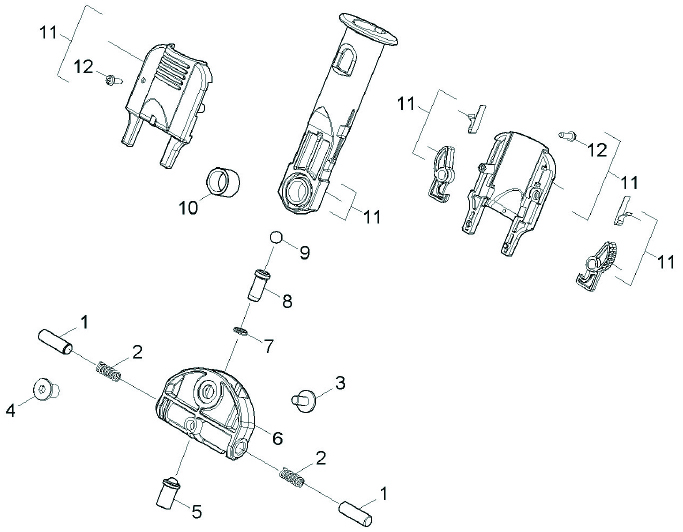

Locking Part Complete

Windsor Radius Mini Locking Part Complete

Reference # Part # Description Add to Cart
1 51004970 Bolt Bearing Buy Now
2 53325430 Pressure Spring Buy Now
3 63034920 Screw Buy Now
4 63110160 Nut Buy Now
5 41100130 Thrust Piece Spring Buy Now
6 56053140 Joint Buy Now
7 53325510 Pressure Spring Buy Now
8 51127740 Ball Bushing Buy Now
9 74019160 Sphere Buy Now
10 51127730 Spacer Sleeve Buy Now
11 46721810 Locking Part Complete Buy Now
12 63033180 Screw Buy Now
