Windsor Radius Manual

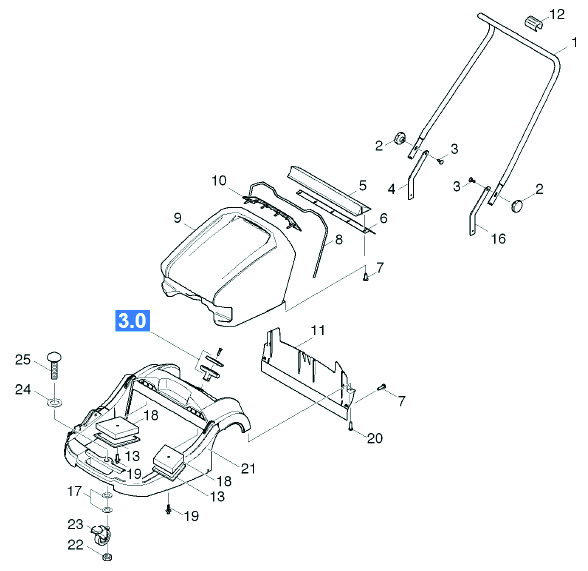

Individual Parts
Windsor Radius Manual Individual Parts
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
51287750 |
Tube Shearing Shackle |
Call to Order |
| 2 |
63211770 |
Turning Knob |
Buy Now |
| 3 |
73031940 |
Saucer-Head Screw |
Call to Order |
| 4 |
50589470 |
Sheet Metal Component |
Call to Order |
| 5 |
69038000 |
Holder Ground Lips Sweep Tank |
Buy Now |
| 6 |
69038010 |
Ground Lip |
Buy Now |
| 7 |
73031070 |
Screw |
Buy Now |
| 8 |
53641640 |
Seal Rubber |
Buy Now |
| 9 |
40706330 |
Sweep Tank Complete |
Call to Order |
| 10 |
50641630 |
Cover |
Call to Order |
| 11 |
50326410 |
Moulded Part |
Call to Order |
| 12 |
63738670 |
Clamp |
Buy Now |
| 13 |
50327300 |
Covering Cap |
Call to Order |
| 16 |
50589480 |
Sheet Metal Component |
Call to Order |
| 17 |
73120050 |
Washer |
Call to Order |
| 18 |
57316160 |
Filter Cartridge |
Call to Order |
| 19 |
63859340 |
Plug |
Call to Order |
| 20 |
73030860 |
Screw |
Buy Now |
| 21 |
50502440 |
Frame |
Call to Order |
| 22 |
73115110 |
Hexagon Nut |
Call to Order |
| 23 |
69660510 |
Castor |
Call to Order |
| 24 |
73122620 |
Washer |
Call to Order |
| 25 |
73032220 |
Saucer-Head Screw |
Buy Now |

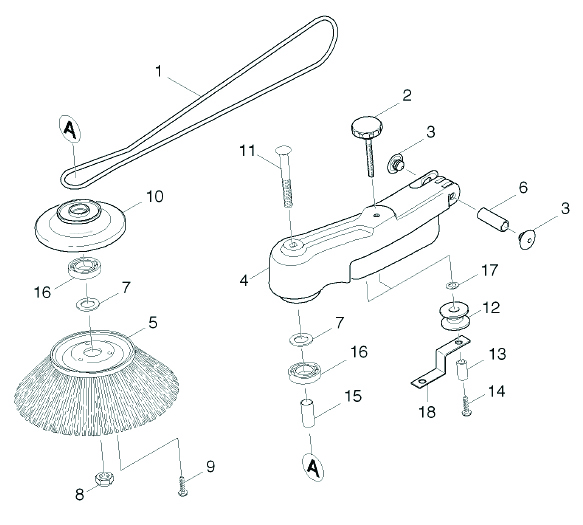

Side Broom Right
Windsor Radius Manual Side Broom Right
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
63482290 |
Belt |
Buy Now |
| 2 |
63211760 |
Turning Knob |
Buy Now |
| 3 |
63859350 |
Plug |
Buy Now |
| 4 |
50326380 |
Arm Side Broom |
Buy Now |
| 5 |
69660050 |
Broom |
Buy Now |
| 6 |
51161190 |
Sleeve |
Buy Now |
| 7 |
73121530 |
Washer |
Buy Now |
| 8 |
73115110 |
Hexagon Nut |
Call to Order |
| 9 |
73031120 |
Screw |
Call to Order |
| 10 |
69660020 |
Flange |
Call to Order |
| 11 |
73032080 |
Saucer-Head Screw |
Buy Now |
| 12 |
69660070 |
Deflection Pulley |
Call to Order |
| 13 |
69660090 |
Tube |
Call to Order |
| 14 |
73031140 |
Screw |
Call to Order |
| 15 |
69660200 |
Spacer Sleeve |
Call to Order |
| 16 |
74010080 |
Ball Bearing |
Call to Order |
| 17 |
73122760 |
Washer |
Call to Order |
| 18 |
70613560 |
Sheet Metal Component Belt Side Broom |
Call to Order |

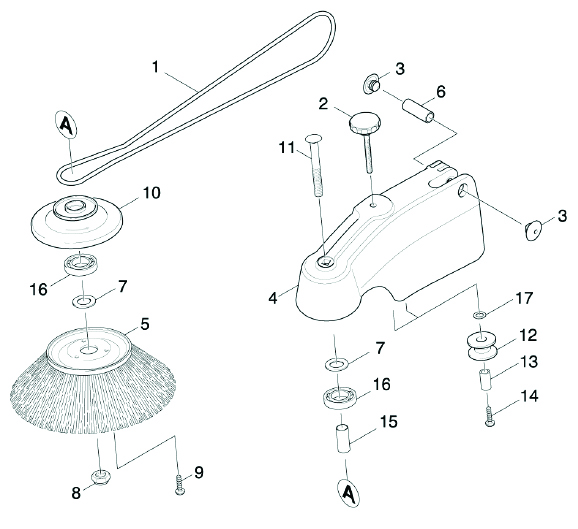

Side Broom Left
Windsor Radius Manual Side Broom Left
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
63482290 |
Belt |
Buy Now |
| 2 |
63211760 |
Turning Knob |
Buy Now |
| 3 |
63859350 |
Plug |
Buy Now |
| 4 |
50326710 |
Arm Side Broom Left |
Buy Now |
| 5 |
69660050 |
Broom |
Buy Now |
| 6 |
51161190 |
Sleeve |
Buy Now |
| 7 |
73121530 |
Washer |
Buy Now |
| 8 |
73115110 |
Hexagon Nut |
Call to Order |
| 9 |
73031120 |
Screw |
Call to Order |
| 10 |
69660020 |
Flange |
Call to Order |
| 11 |
73032080 |
Saucer-Head Screw |
Buy Now |
| 12 |
69660070 |
Deflection Pulley |
Call to Order |
| 13 |
69660090 |
Tube |
Call to Order |
| 14 |
73031140 |
Screw |
Call to Order |
| 15 |
69660200 |
Spacer Sleeve |
Call to Order |
| 16 |
74010080 |
Ball Bearing |
Call to Order |
| 17 |
73122760 |
Washer |
Call to Order |

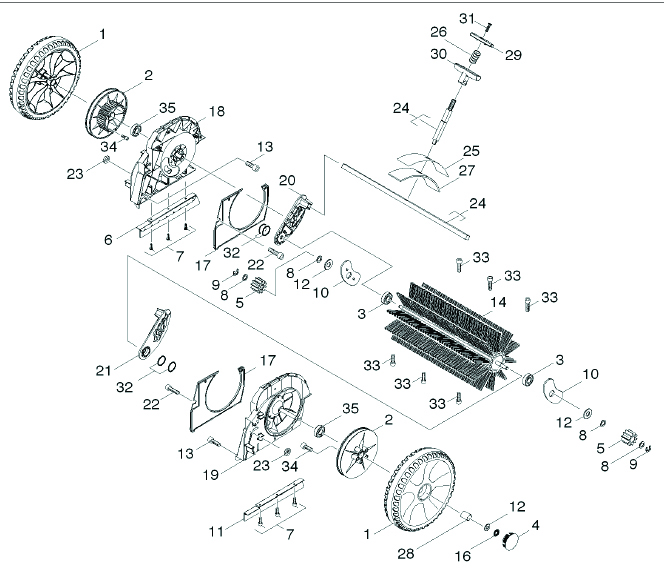

Transmission
Windsor Radius Manual Transmission
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
45152790 |
Wheel Complete |
Buy Now |
| 2 |
56254510 |
Belt Pulley |
Buy Now |
| 3 |
74010080 |
Ball Bearing |
Call to Order |
| 4 |
53920380 |
Wheel Cab |
Call to Order |
| 5 |
43520120 |
Pinion with Sprag Clutch |
Buy Now |
| 6 |
53944710 |
Skirting Right |
Buy Now |
| 7 |
73031070 |
Screw |
Buy Now |
| 8 |
73432160 |
Shim Ring |
Call to Order |
| 9 |
73433020 |
Lock Washer |
Buy Now |
| 10 |
63653600 |
Gasket Disc |
Buy Now |
| 11 |
53944720 |
Apron Links |
Call to Order |
| 12 |
51156280 |
Washer |
Buy Now |
| 13 |
73031130 |
Screw |
Call to Order |
| 14 |
69060410 |
Reversing Rolling Mill |
Buy Now |
| 16 |
63431800 |
Quick Fastener |
Buy Now |
| 17 |
50326530 |
Covering Cap |
Buy Now |
| 18 |
50326390 |
Axle Drum Right |
Buy Now |
| 19 |
50326440 |
Axle Drum Left |
Buy Now |
| 20 |
50326400 |
Stub Axle Right |
Buy Now |
| 21 |
50326430 |
Stub Axle Left |
Buy Now |
| 22 |
73061180 |
Screw |
Call to Order |
| 23 |
73112000 |
Hexagon Nut |
Call to Order |
| 24 |
40211710 |
Square |
Call to Order |
| 25 |
53636300 |
Seal |
Buy Now |
| 26 |
53324810 |
Helical Spring |
Call to Order |
| 27 |
50082500 |
Plate |
Call to Order |
| 28 |
64030060 |
Plain Bearing |
Buy Now |
| 29 |
53260280 |
Button |
Buy Now |
| 30 |
53217360 |
Handle |
Buy Now |
| 31 |
73050500 |
Countersunk Screw |
Call to Order |
| 32 |
63623660 |
O-Ring |
Call to Order |
| 33 |
73032100 |
Screw |
Buy Now |
| 34 |
73031080 |
Screw |
Buy Now |
| 35 |
64013630 |
Ball Bearing |
Buy Now |

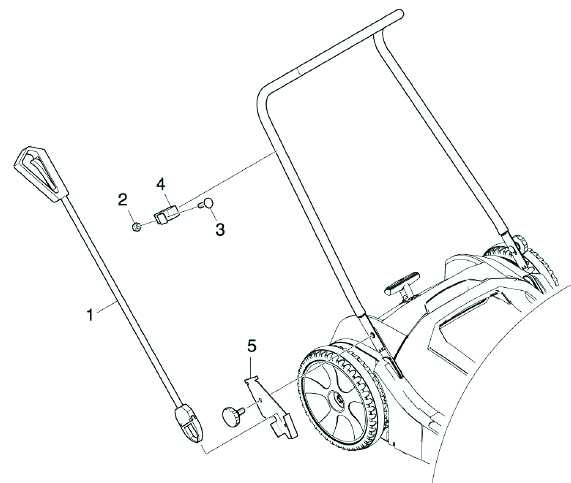

Add-On Kit Waste Gripper
Windsor Radius Manual Add-On Kit Waste Gripper
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
63699310 |
Accessories Waste Gripper |
Call to Order |
| 2 |
73110290 |
Hexagon Nut |
Call to Order |
| 3 |
63032240 |
Saucer-Head Screw |
Call to Order |
| 4 |
50574480 |
Sheet Metal Component Waste Gripper Above |
Call to Order |
| 5 |
50574470 |
Sheet Metal Component Waste Gripper Bottom |
Call to Order |

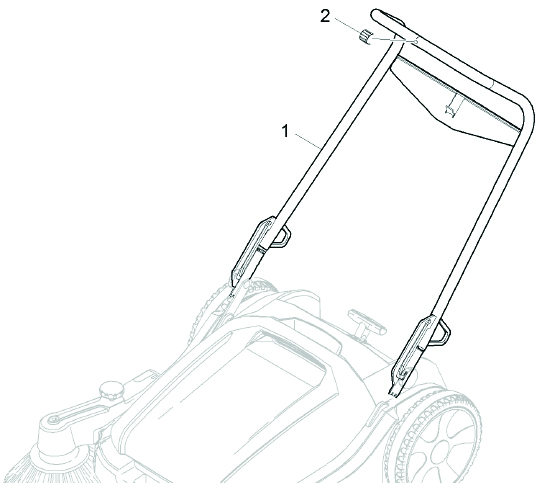

Shearing Shackle
Windsor Radius Manual Shearing Shackle
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
26409710 |
Add-On Kit Shearing Shackle Stackable |
Call to Order |
| 2 |
63738670 |
Clamp |
Buy Now |
