Windsor Karcher Armada BRC 40/22

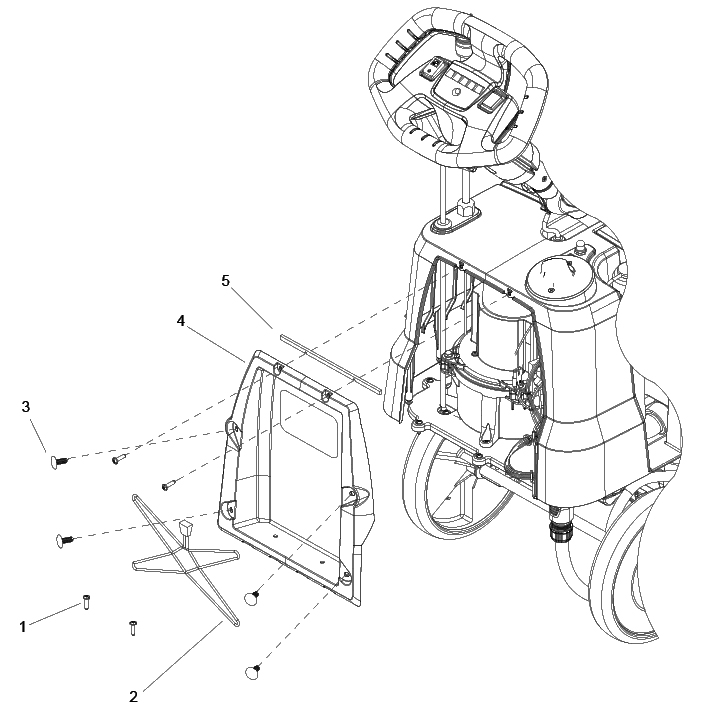

Access Cover
Windsor Karcher Armada BRC 40/22 Access Cover
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86403350 |
Screw |
Buy Now |
| 2 |
86403000 |
Cargo Net |
Buy Now |
| 3 |
86397130 |
Tower Door Cover |
Buy Now |
| 4 |
86379330 |
Black X-Mas Tree Clip |
Buy Now |
| 5 |
86413120 |
Access Panel Gasket |
Buy Now |

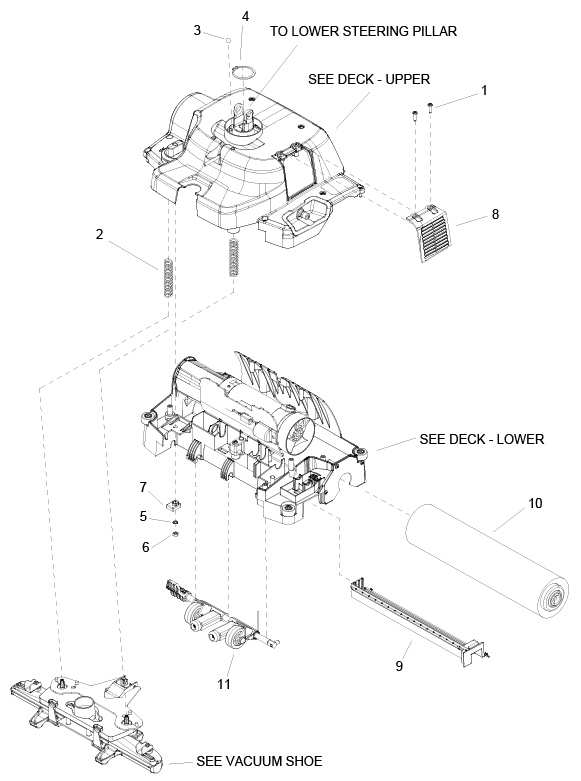

Deck
Windsor Karcher Armada BRC 40/22 Deck

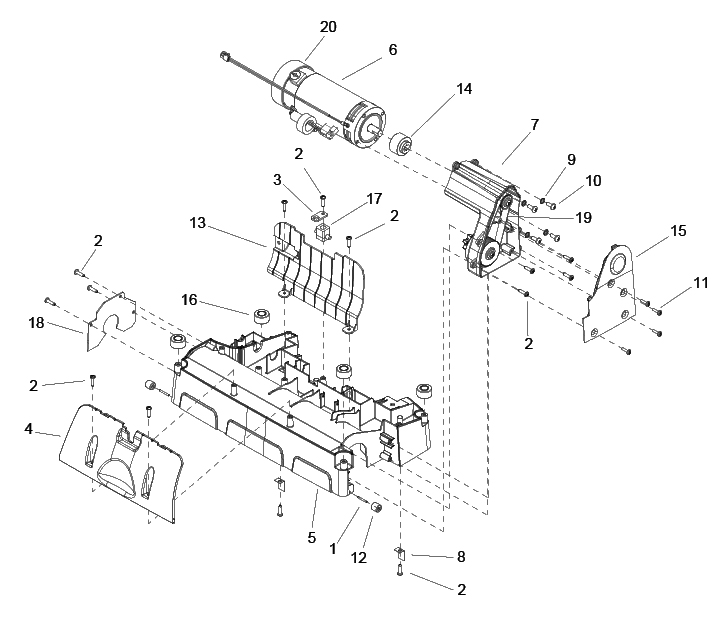

Deck Lower
Windsor Karcher Armada BRC 40/22 Deck Lower
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86409470 |
Roller Axle |
Buy Now |
| 2 |
86403350 |
Screw |
Buy Now |
| 3 |
86403210 |
Pivot Reinforcement Plate |
Buy Now |
| 4 |
86402130 |
Spray Shield |
Buy Now |
| 5 |
86397180 |
Lower Deck |
Buy Now |
| 6 |
86411250 |
Brush Motor Assembly |
Buy Now |
| 7 |
40370330 |
Gear Case Replacement |
Buy Now |
| 8 |
50370080 |
Stop Plate |
Buy Now |
| 9 |
73122320 |
Serrated Lock Washer |
Buy Now |
| 10 |
73060900 |
Screw |
Buy Now |
| 11 |
73030390 |
Screw |
Buy Now |
| 12 |
55152770 |
Roller Wheel |
Buy Now |
| 13 |
50373400 |
Brush Head Baffle Plate |
Buy Now |
| 14 |
50373130 |
Coupler |
Buy Now |
| 15 |
50372750 |
Gear Case Cover |
Buy Now |
| 16 |
50372620 |
Deflector Roll |
Buy Now |
| 17 |
50372600 |
Retraction Swivel Joint |
Buy Now |
| 18 |
50372590 |
Brush Holder Plate |
Buy Now |
| 19 |
63484800 |
Toothed Belt |
Buy Now |
| 20 |
86385340 |
Brush Motor Fan |
Buy Now |
Gear Case
Windsor Karcher Armada BRC 40/22 Gear Case
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
74011150 |
Ball Bearing |
Buy Now |
| 30 |
73432310 |
Locking Ring |
Buy Now |
| 40 |
51006860 |
Spacer Sleeve |
Call to Order |
| 50 |
63632920 |
Joint Ring |
Buy Now |
| 60 |
51005710 |
Driveshaft 59mm |
Buy Now |
| 70 |
50372740 |
Shaft Gear |
Buy Now |
| 80 |
63041800 |
Screw |
Buy Now |
| 90 |
80378740 |
Belt Pulley |
Call to Order |
| 100 |
73122920 |
Washer |
Buy Now |
| 110 |
50372760 |
Belt Pulley |
Buy Now |
| 120 |
63484800 |
Toothed Belt |
Buy Now |
Brush Transmision
Windsor Karcher Armada BRC 40/22 Brush Transmission
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86397040 |
Guide Plate |
Call to Order |
| 2 |
86389570 |
Pulley |
Call to Order |
| 3 |
86389560 |
Pulley |
Call to Order |
| 4 |
86389420 |
Housing Brush, Transmission |
Call to Order |
| 5 |
86385580 |
Spacer Sleeve |
Call to Order |
| 6 |
86385570 |
Seal Ring |
Call to Order |
| 7 |
86385560 |
Ball Bearing |
Call to Order |
| 8 |
51005710 |
Driveshaft 59mm |
Buy Now |
| 8 |
86384460 |
Driveshaft 59x33 |
Call to Order |
| 9 |
86384450 |
Pinion Shaft |
Call to Order |
| 10 |
86172990 |
Screw |
Buy Now |
| 11 |
73432310 |
Locking Ring |
Buy Now |
| 12 |
73122920 |
Washer |
Buy Now |
| 13 |
86279140 |
Washer |
Call to Order |

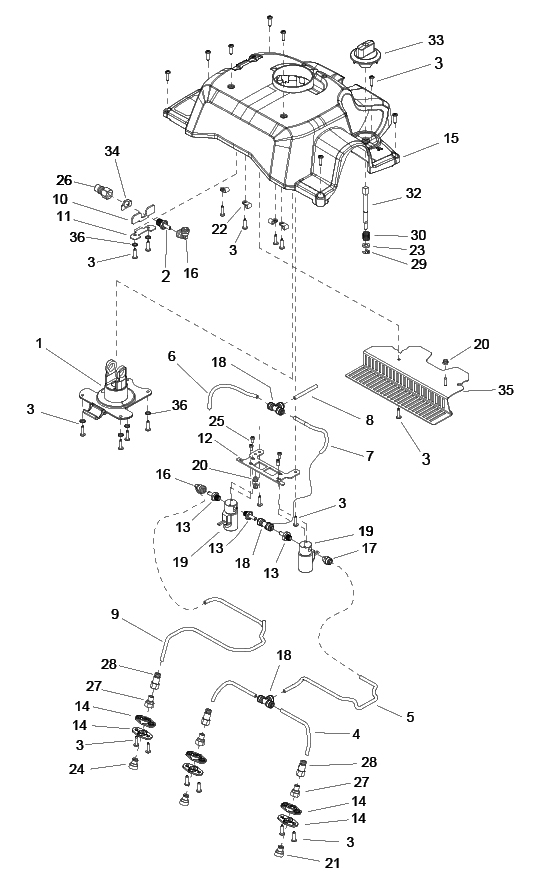

Deck Upper
Windsor Karcher Armada BRC 40/22 Deck Upper

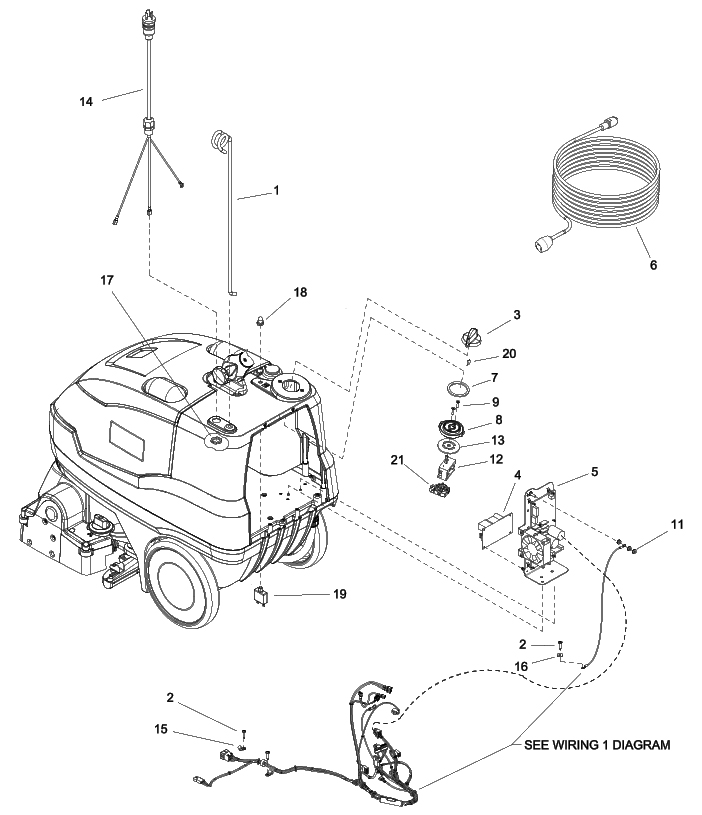

Electrical
Windsor Karcher Armada BRC 40/22 Electrical
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86409790 |
Painted Cord Holder Rod |
Buy Now |
| 2 |
86403350 |
Screw |
Buy Now |
| 3 |
53217380 |
Control Knob |
Buy Now |
| 4 |
86403090 |
Power Supply |
Buy Now |
| 5 |
86387520 |
PCB Assembly |
Buy Now |
| 6 |
86234110 |
Extractor Cord Set |
Buy Now |
| 7 |
86354810 |
Rotary Switch Gasket |
Buy Now |
| 8 |
86354560 |
Rotary Switch Bezel |
Buy Now |
| 9 |
86349400 |
Screw |
Buy Now |
| 10 |
86274570 |
Screw |
Buy Now |
| 11 |
86005700 |
Nut |
Buy Now |
| 12 |
66832700 |
Easy Operation Switch |
Buy Now |
| 13 |
86423570 |
Plate Switch Spacer |
Buy Now |
| 14 |
86234320 |
Extractor Cord Assembly |
Buy Now |
| 15 |
86198440 |
Plastic Cable Clamp |
Buy Now |
| 16 |
86173330 |
Washer |
Buy Now |
| 17 |
86005670 |
Conduit Nut |
Buy Now |
| 18 |
86002010 |
Circuit Breaker Boot |
Buy Now |
| 19 |
86001730 |
Breaker |
Buy Now |
| 20 |
63130140 |
Spring Element |
Buy Now |
| 21 |
66832710 |
Easy Operation Switch |
Buy Now |

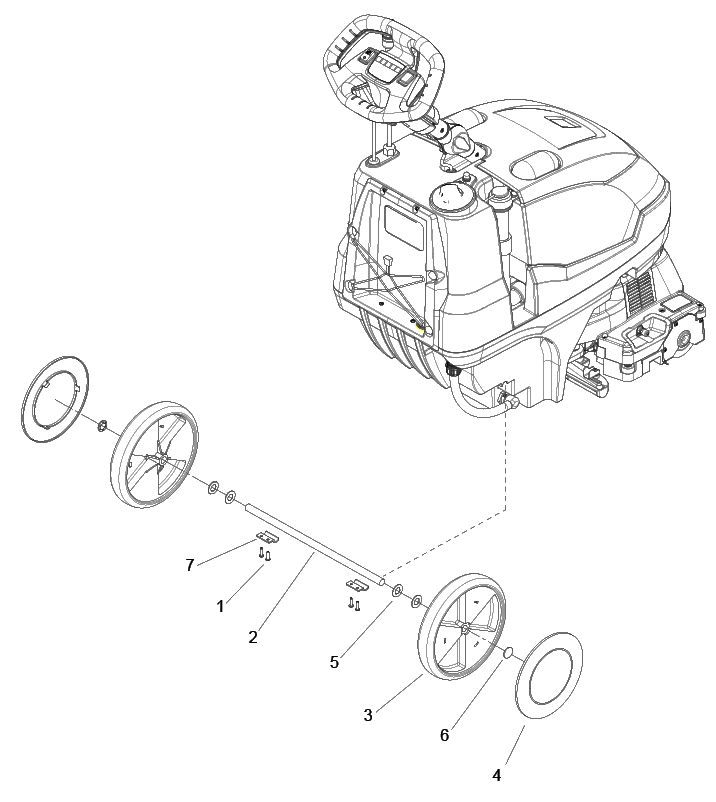

Frame
Windsor Karcher Armada BRC 40/22 Frame

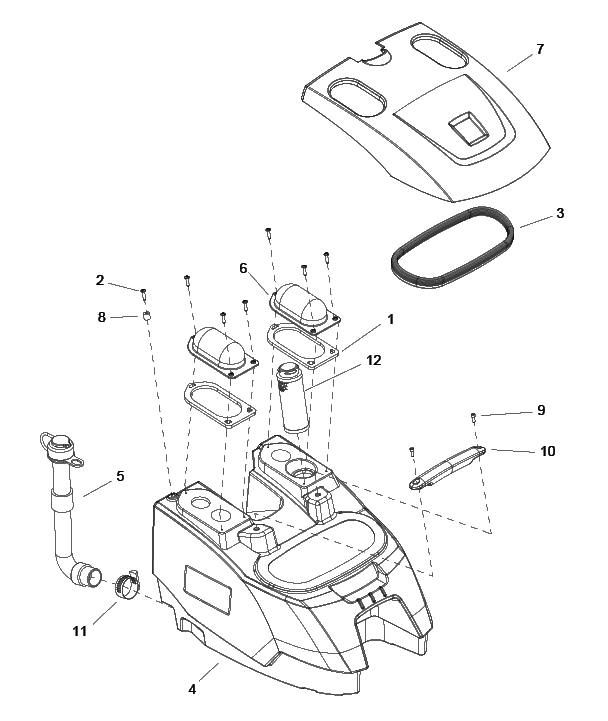

Recovery
Windsor Karcher Armada BRC 40/22 Recovery
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86403410 |
Dome Gasket |
Buy Now |
| 2 |
86403350 |
Screw |
Buy Now |
| 3 |
86402850 |
Gasket |
Buy Now |
| 4 |
86402740 |
Trimmed Recovery Tank |
Buy Now |
| 5 |
86402570 |
Recovery Drain Hose |
Buy Now |
| 6 |
86397190 |
Clear Recovery Dome |
Buy Now |
| 7 |
86397140 |
Recovery Dome Lid |
Buy Now |
| 8 |
86278390 |
Nylon Spacer |
Buy Now |
| 9 |
86273540 |
Screw |
Buy Now |
| 10 |
86218530 |
Recovery Tank |
Buy Now |
| 11 |
86177050 |
Hose Clamp |
Buy Now |
| 12 |
86003630 |
Shut-Off Float |
Buy Now |

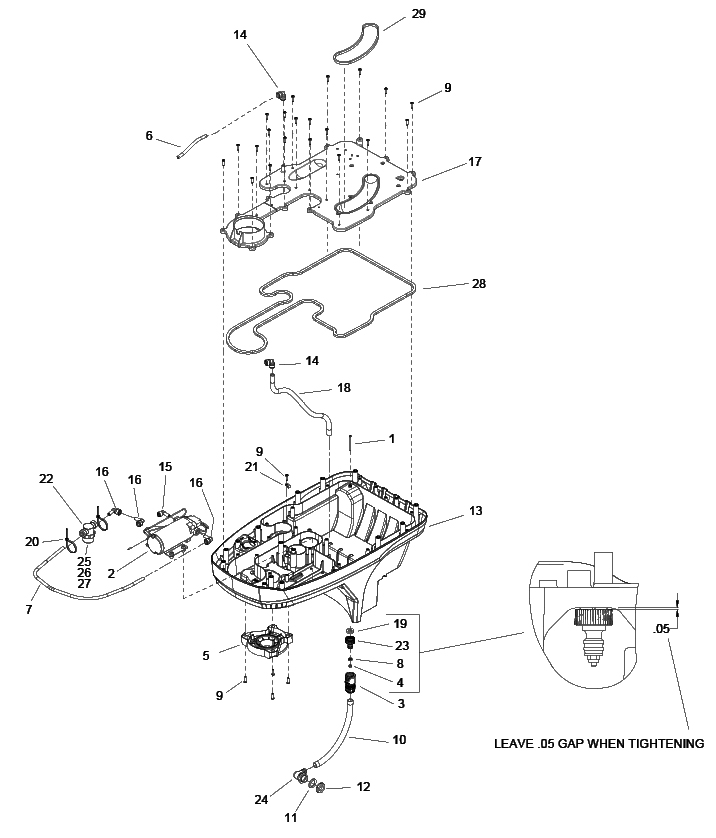

Solution
Windsor Karcher Armada BRC 40/22 Solution

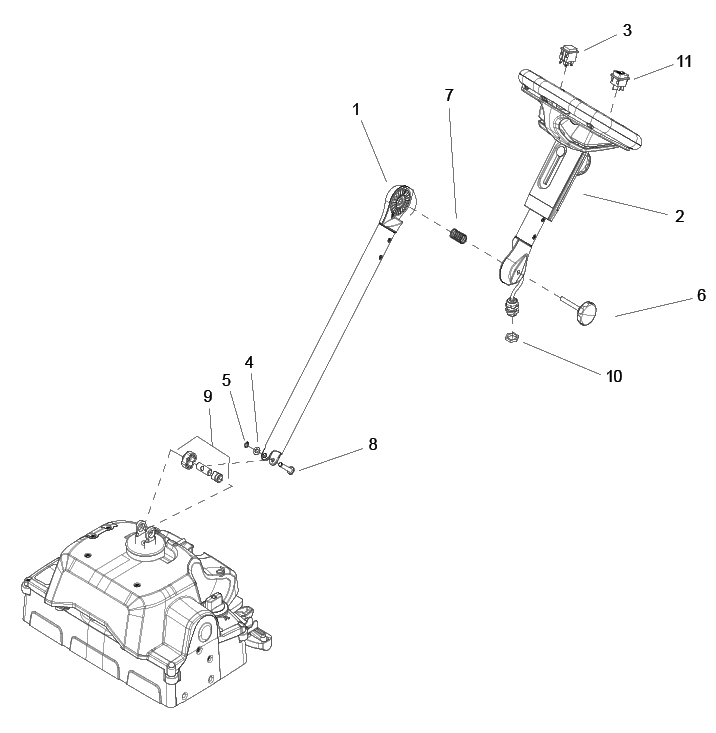

Steering
Windsor Karcher Armada BRC 40/22 Steering
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86404710 |
Lower Steering Pillar |
Buy Now |
| 2 |
86403430 |
Upper Steering Pillar |
Buy Now |
| 3 |
86403520 |
Rocker Switch |
Buy Now |
| 4 |
86173300 |
Washer |
Buy Now |
| 5 |
73430140 |
Locking Ring |
Buy Now |
| 6 |
63211790 |
Star Grip |
Buy Now |
| 7 |
53329810 |
Pressure Spring |
Buy Now |
| 8 |
50373180 |
Steering Shaft Pin |
Buy Now |
| 9 |
40370040 |
Bearing Set |
Buy Now |
| 10 |
66484160 |
Black Locknut |
Buy Now |
| 11 |
66325420 |
Switch Pump |
Buy Now |

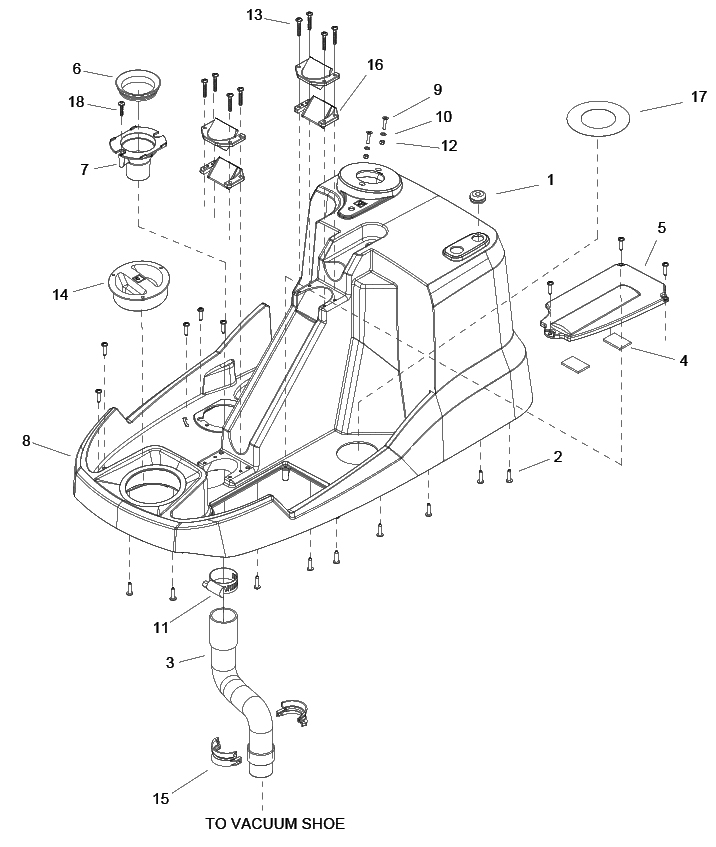

Tower
Windsor Karcher Armada BRC 40/22 Tower

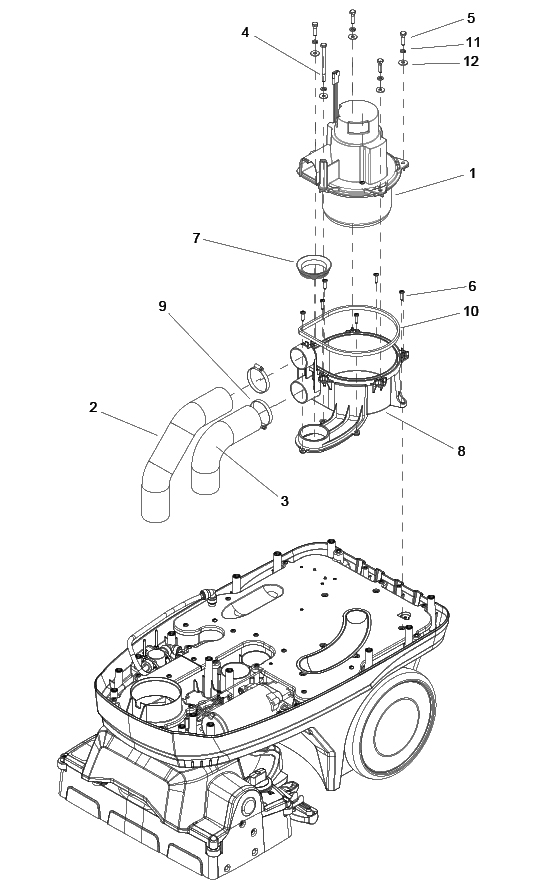

Vacuum
Windsor Karcher Armada BRC 40/22 Vacuum

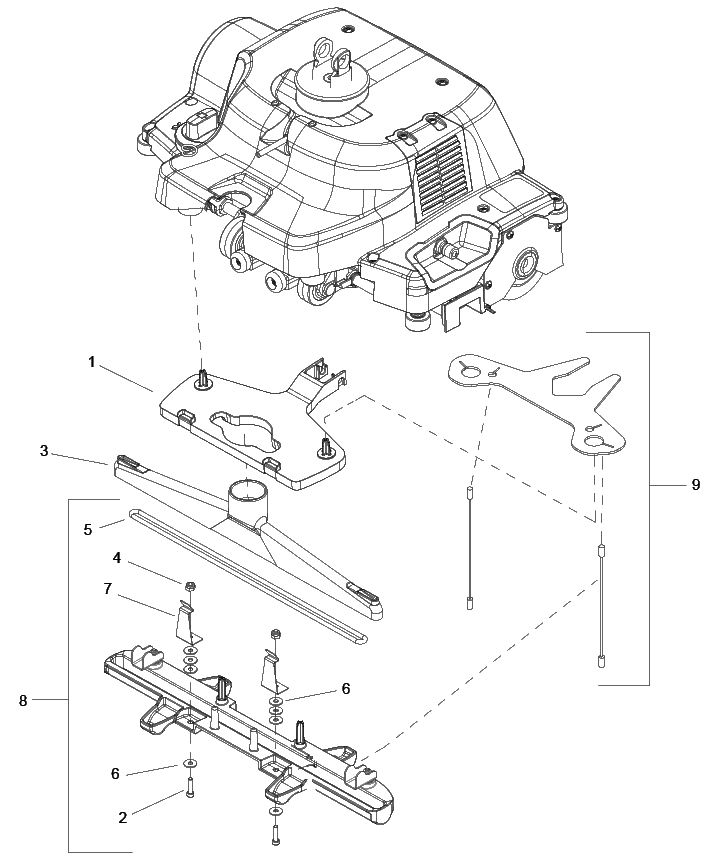

Vacuume Shoe
Windsor Karcher Armada BRC 40/22 Vacuum Shoe
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86397230 |
Vacuum Shoe Linkage |
Buy Now |
| 2 |
86275080 |
Screw |
Buy Now |
| 3 |
86397210 |
Vacuum Shoe Cover |
Buy Now |
| 4 |
86270990 |
Hexagon Nylock Nut |
Buy Now |
| 5 |
86371770 |
Foam O-Ring |
Buy Now |
| 6 |
86173330 |
Washer |
Buy Now |
| 7 |
86340850 |
Debris Tray Spring Clip |
Buy Now |
| 8 |
86412470 |
Vacuum Shoe Service Assembly |
Buy Now |
| 9 |
86417270 |
Vacuum Shoe Field Repair Kit |
Buy Now |
