Windsor iCapsolMini
Brush

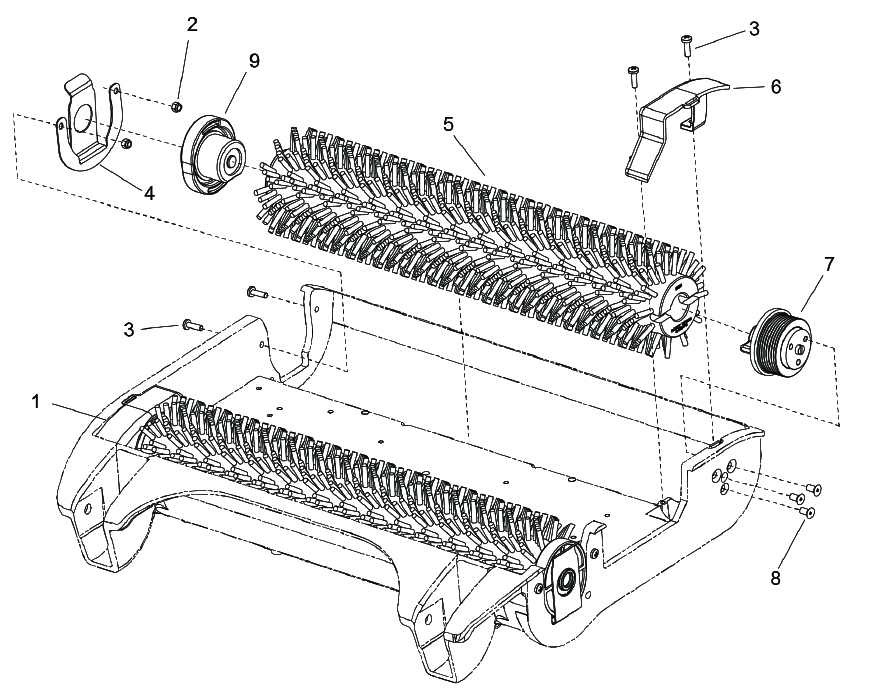

Windsor iCapsol Mini Brush
Reference # |
Part # |
Description |
Add to Cart |
1 |
86217340 |
Right Belt Cover |
Buy Now |
2 |
86172630 |
Lock Nut |
Buy Now |
3 |
86172870 |
Screw |
Buy Now |
4 |
86323440 |
Brush Clip Kit |
Buy Now |
5 |
86402590 |
Brush & Hub Assembly |
Buy Now |
6 |
86217330 |
Left Belt Cover |
Buy Now |
7 |
86345210 |
Brush Drive Assembly |
Buy Now |
8 |
86172840 |
Screw |
Buy Now |
9 |
86214840 |
Brush Coast Assembly |
Buy Now |
Brush Lift
/>

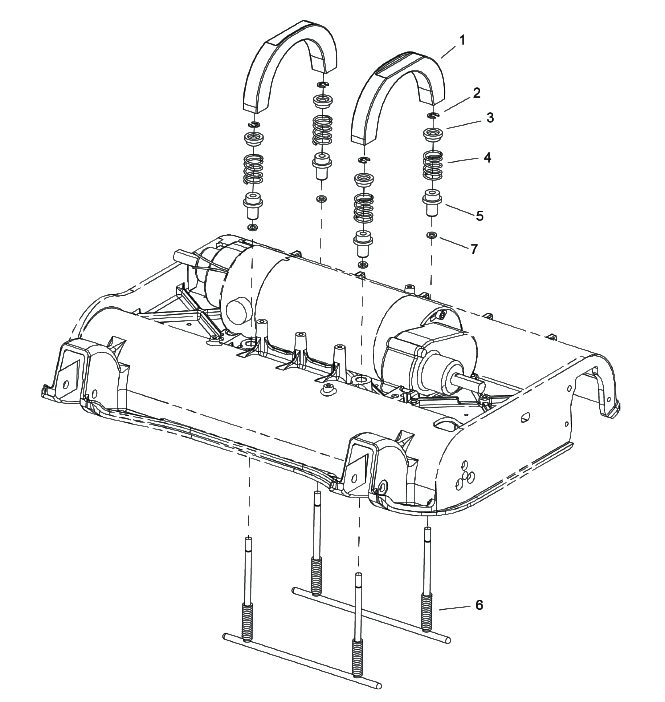

Windsor iCapsol Mini Brush Lift
Reference # |
Part # |
Description |
Add to Cart |
1 |
86215580 |
Crossover Push Bracket |
Buy Now |
2 |
86172700 |
5mm E-Type Ring |
Buy Now |
3 |
86215750 |
Flanged Bearing |
Buy Now |
4 |
86348880 |
Compression Spring |
Buy Now |
5 |
86215740 |
Flanged Bearing |
Buy Now |
6 |
86223620 |
Lifting Rod |
Buy Now |
7 |
86348900 |
6mm Rod Wiper Washer |
Buy Now |
Electrical
/>

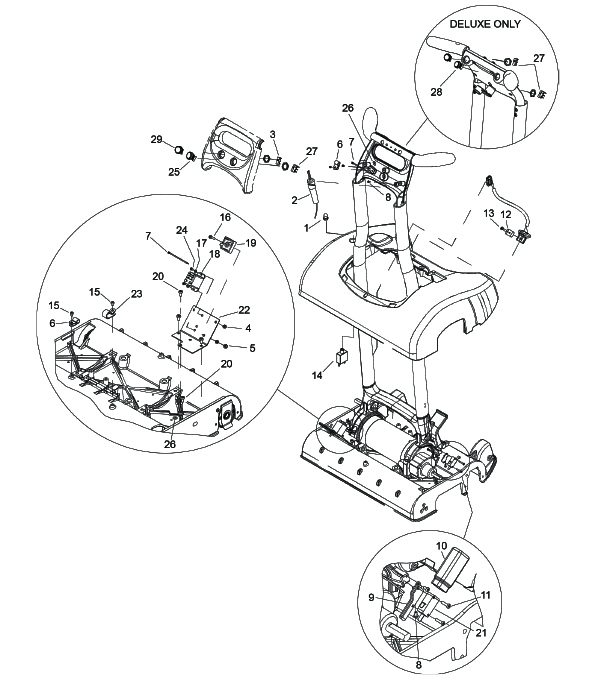

Windsor iCapsol Mini Electrical
Reference # |
Part # |
Description |
Add to Cart |
1 |
86002010 |
Circuit Breaker Boot |
Buy Now |
2 |
86401120 |
Cord Set |
Buy Now |
3 |
86314630 |
Switch with Coupler |
Buy Now |
4 |
86329030 |
Nut |
Buy Now |
5 |
86172630 |
Lock Nut |
Buy Now |
6 |
86198450 |
Nylon Clamp |
Buy Now |
8 |
86173100 |
Screw |
Buy Now |
9 |
86291470 |
Motor Bracket Switch Cover |
Buy Now |
10 |
86291490 |
Switch Bracket Cover |
Buy Now |
11 |
86291880 |
Screw |
Buy Now |
12 |
86216800 |
Clamp Cable |
Buy Now |
13 |
86277600 |
Screw |
Buy Now |
14 |
86215670 |
Breaker |
Buy Now |
15 |
86172880 |
Screw |
Buy Now |
16 |
86173200 |
Screw |
Buy Now |
17 |
86225850 |
Washer |
Buy Now |
18 |
86223400 |
Relay |
Buy Now |
19 |
86223390 |
Rectifier |
Buy Now |
20 |
86173210 |
Screw |
Buy Now |
21 |
86291860 |
Switch |
Buy Now |
22 |
86222680 |
Base Plate Electrical Box |
Buy Now |
23 |
86216740 |
Clamp |
Buy Now |
24 |
86223850 |
Screw |
Call to Order |
25 |
86295180 |
Green Button |
Buy Now |
26 |
86299320 |
Label |
Call to Order |
27 |
86313930 |
Switch with Coupler |
Buy Now |
28 |
86295190 |
Blue Button |
Buy Now |
29 |
86295150 |
Red Button |
Buy Now |
Frame

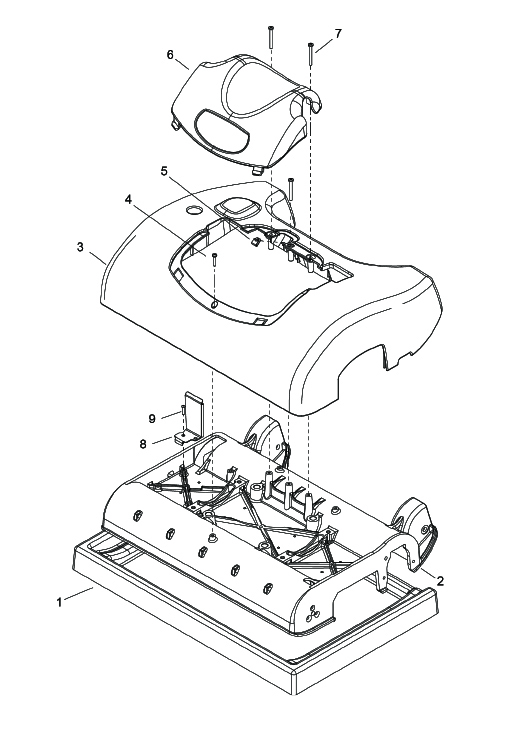

Windsor iCapsol Mini Frame
Reference # |
Part # |
Description |
Add to Cart |
1 |
86225340 |
Tray |
Buy Now |
2 |
86217930 |
Single Motor Frame |
Buy Now |
3 |
86214820 |
Cover Assembly |
Buy Now |
4 |
86277600 |
Screw |
Buy Now |
5 |
86222360 |
U-Clamp Nut |
Buy Now |
6 |
86214830 |
Dome Insulation Assembly |
Buy Now |
7 |
86173050 |
Screw |
Buy Now |
8 |
86348890 |
Splash Guard Plate |
Buy Now |
9 |
86173210 |
Screw |
Buy Now |
Handle

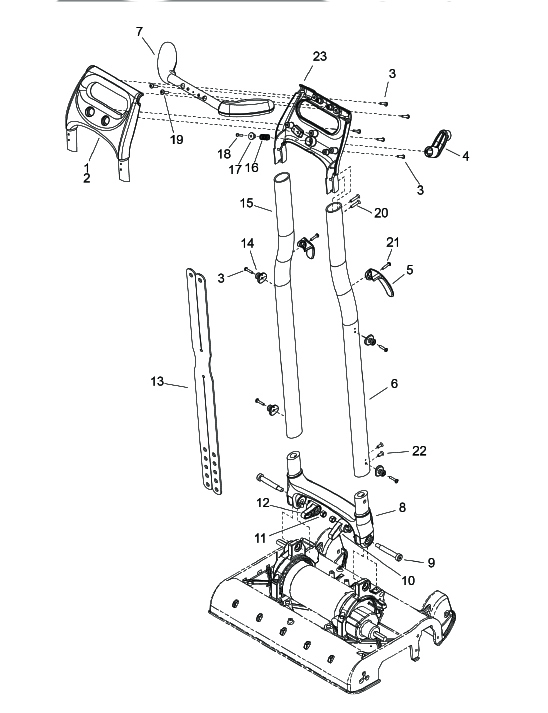

Windsor iCapsol Mini Handle
Reference # |
Part # |
Description |
Add to Cart |
1 |
86011380 |
Handle Grip |
Call to Order |
2 |
86059580 |
Console, Bottom |
Call to Order |
3 |
86277600 |
Screw |
Buy Now |
4 |
86217230 |
Upper Cord Hook |
Buy Now |
5 |
86217220 |
Lower Cord Hook |
Buy Now |
6 |
86218510 |
Left Handle Extrusion |
Buy Now |
7 |
86173070 |
Screw |
Buy Now |
8 |
86222650 |
Pivot Casting |
Buy Now |
9 |
86173180 |
Screw |
Buy Now |
10 |
86221800 |
Left Lifting Cam |
Buy Now |
11 |
86172640 |
Nylock Nut |
Buy Now |
12 |
86221810 |
Right Lifting Cam |
Buy Now |
13 |
86224970 |
Sprayer Hold Down Strap |
Buy Now |
14 |
86223640 |
Rubber Strap Hook |
Buy Now |
15 |
86218520 |
Right Handle Extrusion |
Buy Now |
16 |
86224680 |
Compression Spring |
Buy Now |
17 |
86223450 |
Cord Hook Spring Retainer |
Buy Now |
18 |
86012940 |
Screw |
Buy Now |
19 |
86172820 |
Screw |
Buy Now |
20 |
86216890 |
Console Top |
Buy Now |
21 |
86172870 |
Screw |
Buy Now |
22 |
86294260 |
Screw with Loctite |
Buy Now |
23 |
86012940 |
Screw |
Buy Now |
25 |
86293340 |
Top Console |
Buy Now |
Hopper

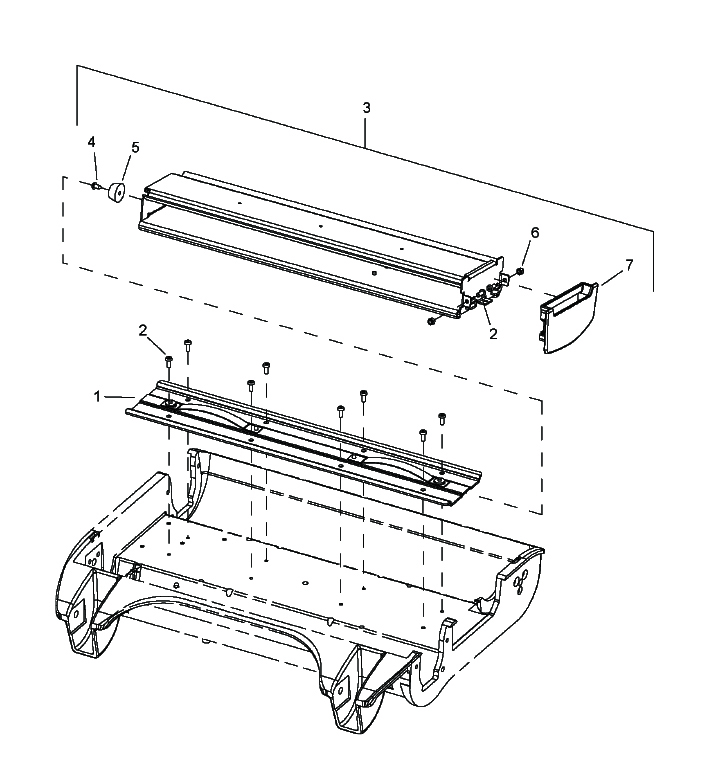

Windsor iCapsol Mini Hopper
Reference # |
Part # |
Description |
Add to Cart |
1 |
86214790 |
Hopper Guide Assembly |
Buy Now |
2 |
86173040 |
Screw |
Buy Now |
3 |
86214800 |
Hopper Frame and Plate Assembly |
Buy Now |
4 |
86173080 |
Screw |
Buy Now |
5 |
86216310 |
Hopper Stop Bumper |
Buy Now |
6 |
86172630 |
Lock Nut |
Buy Now |
7 |
86217450 |
Cover Front |
Buy Now |
Motor

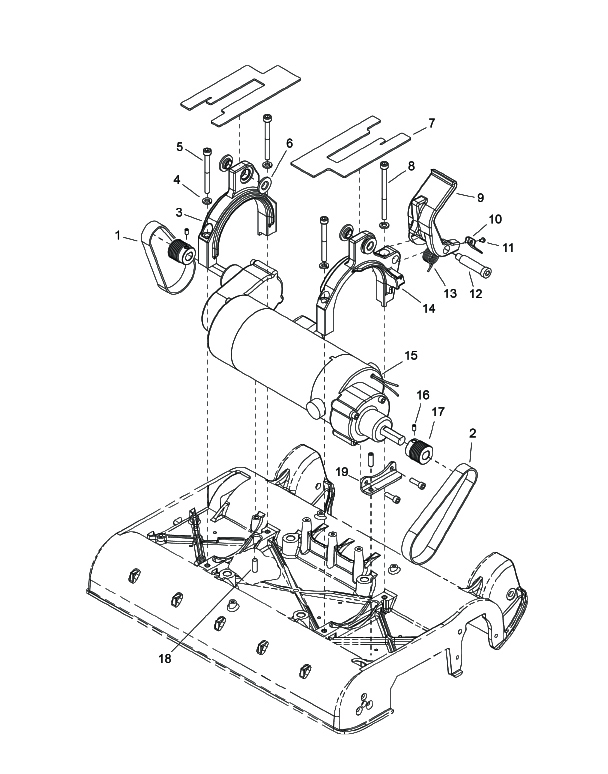

Windsor iCapsol Mini Motor
Reference # |
Part # |
Description |
Add to Cart |
1 |
86343290 |
Flex-V Belt |
Buy Now |
2 |
86343300 |
Flex-V Belt |
Buy Now |
3 |
86215960 |
Right Hand Motor Mount Bracket |
Buy Now |
4 |
86173310 |
Spring Lock Washer |
Buy Now |
5 |
86173060 |
Screw |
Buy Now |
6 |
86217890 |
Pivot Casting Flange Bearing |
Buy Now |
7 |
86217590 |
Thick Plastic Cover Plate |
Buy Now |
8 |
86173090 |
Screw |
Buy Now |
9 |
86222530 |
Foot Pedal, Handle Release |
Buy Now |
10 |
86291480 |
Foot Pedal Switch Bracket |
Buy Now |
11 |
86173100 |
Screw |
Buy Now |
12 |
86173180 |
Screw |
Buy Now |
13 |
86224620 |
Torion Spring |
Buy Now |
14 |
86215950 |
Left Hand Motor Mount Bracket |
Buy Now |
15 |
86222200 |
3.5 Inch Single Motor |
Buy Now |
16 |
86290790 |
Screw |
Buy Now |
17 |
86343270 |
Pulley |
Buy Now |
18 |
86253200 |
Set Screw |
Buy Now |
19 |
86343310 |
Motor Adjustment Bracket |
Buy Now |
20 |
86215320 |
60 Tooth Right Hand Belt |
Buy Now |
Rear Wheel

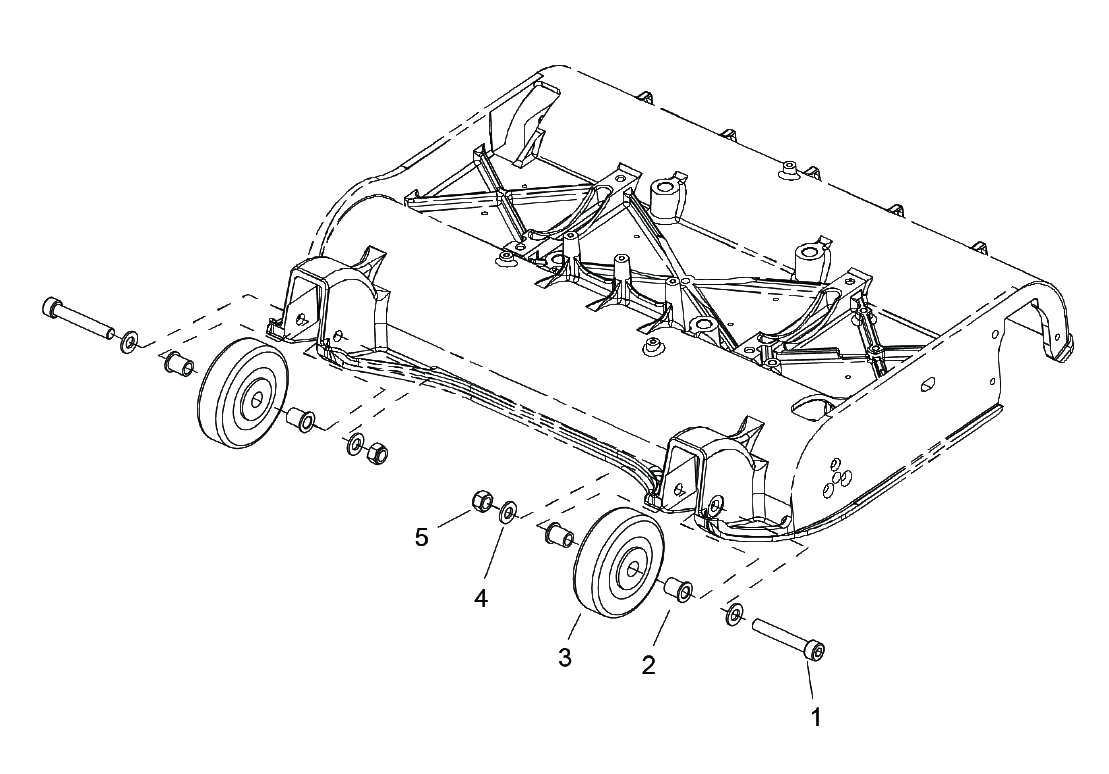

Windsor iCapsol Mini Rear Wheel
Reference # |
Part # |
Description |
Add to Cart |
1 |
86172790 |
Screw |
Buy Now |
2 |
86216450 |
Bushing |
Buy Now |
3 |
86011020 |
Cushion Rubber Wheel |
Buy Now |
4 |
86173300 |
Washer |
Buy Now |
5 |
86172640 |
Nylock Nut |
Buy Now |
