Windsor Clipper 12

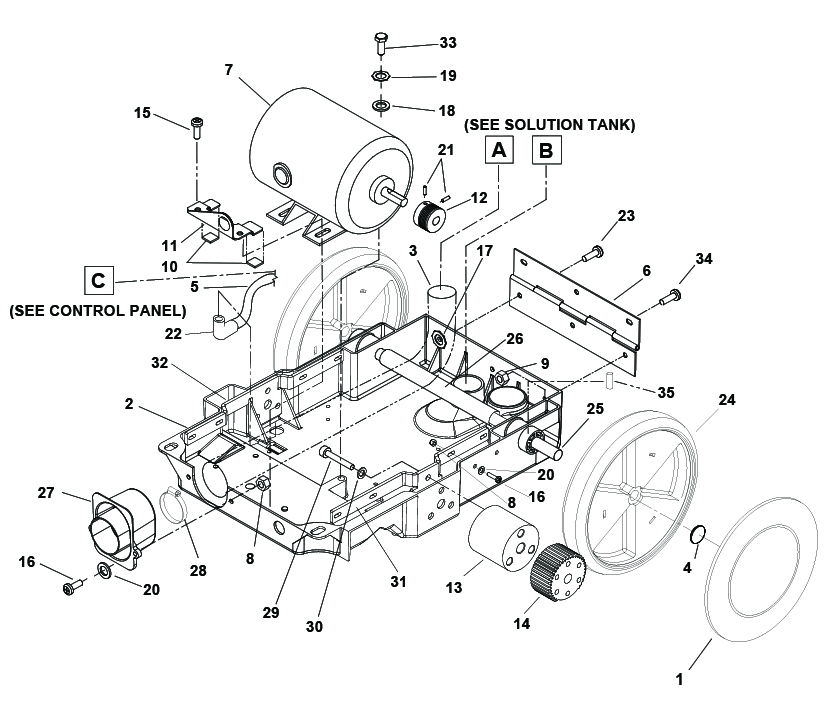

Frame Assembly
Windsor Clipper 12 Frame Assembly

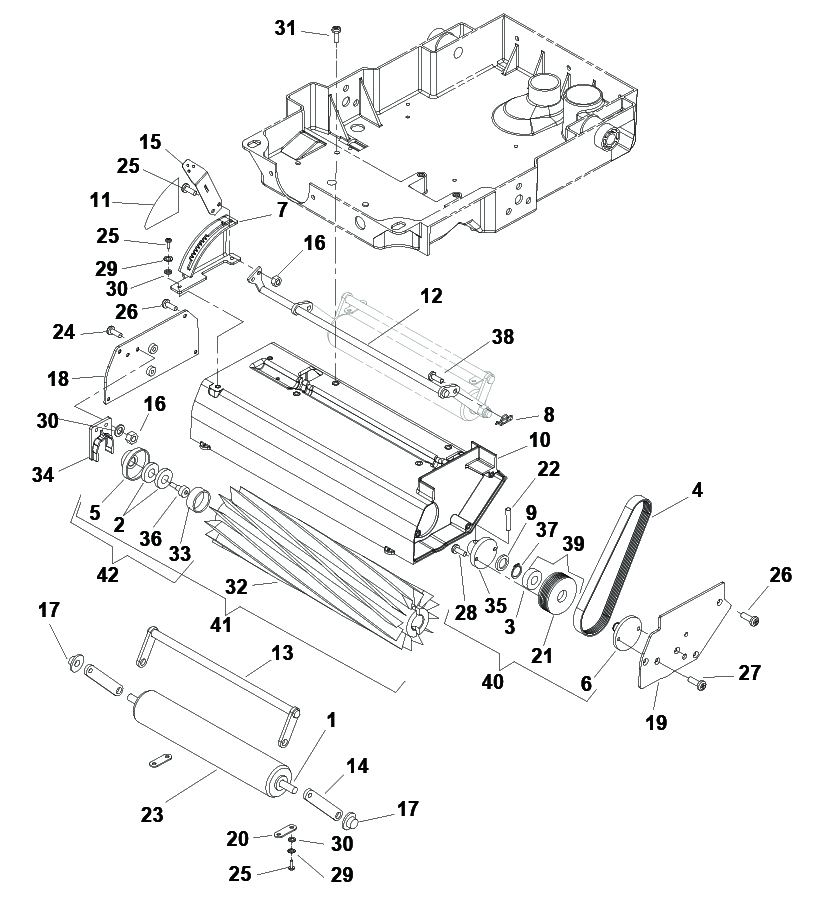

Brush Assembly
Windsor Clipper 12 Brush Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86000730 |
Roller Axle |
Buy Now |
| 2 |
86228890 |
Bearing |
Buy Now |
| 3 |
86000900 |
Bearing |
Buy Now |
| 4 |
86001100 |
Extractor Belt |
Buy Now |
| 5 |
86227150 |
Brush Bridge Adapter |
Buy Now |
| 6 |
86001300 |
Brush Pulley Bracket |
Buy Now |
| 7 |
86001310 |
Brush Height Bracket |
Buy Now |
| 8 |
86008650 |
Rue Cotter Ring |
Buy Now |
| 9 |
86342240 |
Spacer |
Buy Now |
| 10 |
86240970 |
Brush Housing |
Buy Now |
| 11 |
86396740 |
Brush Height Label |
Buy Now |
| 12 |
86093080 |
Brush Height Linkage Assembly |
Buy Now |
| 13 |
86005110 |
Roller Support Linkage Assembly |
Buy Now |
| 14 |
86005120 |
Front Roller Link |
Buy Now |
| 15 |
86005130 |
Height Adjustment Lever |
Buy Now |
| 16 |
86005640 |
Hexagon Nylock Nut |
Buy Now |
| 17 |
86005850 |
Nut |
Buy Now |
| 18 |
86249410 |
Brush Housing RH Plate |
Buy Now |
| 19 |
86249420 |
Brush Housing Left Hand Plate |
Buy Now |
| 20 |
86005930 |
Axle Retainer Plate |
Buy Now |
| 21 |
86250680 |
Pulley |
Buy Now |
| 22 |
86006220 |
Roll Pin |
Buy Now |
| 23 |
86006430 |
Roller |
Buy Now |
| 24 |
86006510 |
Screw |
Buy Now |
| 25 |
86006590 |
Screw |
Buy Now |
| 26 |
86006650 |
Screw |
Buy Now |
| 27 |
86006700 |
Screw |
Buy Now |
| 28 |
86275530 |
Screw |
Buy Now |
| 29 |
86010640 |
Lock Star Washer |
Buy Now |
| 30 |
86010650 |
Washer |
Buy Now |
| 31 |
86007030 |
Screw |
Buy Now |
| 32 |
86230630 |
Brush Roller |
Buy Now |
| 33 |
86251710 |
Tolerance Ring |
Buy Now |
| 34 |
86003070 |
Bearing Clip |
Buy Now |
| 35 |
86003370 |
Brush Driver |
Buy Now |
| 36 |
86278130 |
Shoulder Bolt |
Buy Now |
| 37 |
86272770 |
Snap Ring |
Buy Now |
| 38 |
86272510 |
Clevis Pin |
Buy Now |
| 39 |
86006030 |
Brush Pulley Assembly |
Buy Now |
| 40 |
86003390 |
Brush Driver Assembly |
Buy Now |
| 41 |
86001150 |
Brush Assembly 18" |
Buy Now |
| 42 |
86004750 |
Extractor Bearing Adapter |
Buy Now |

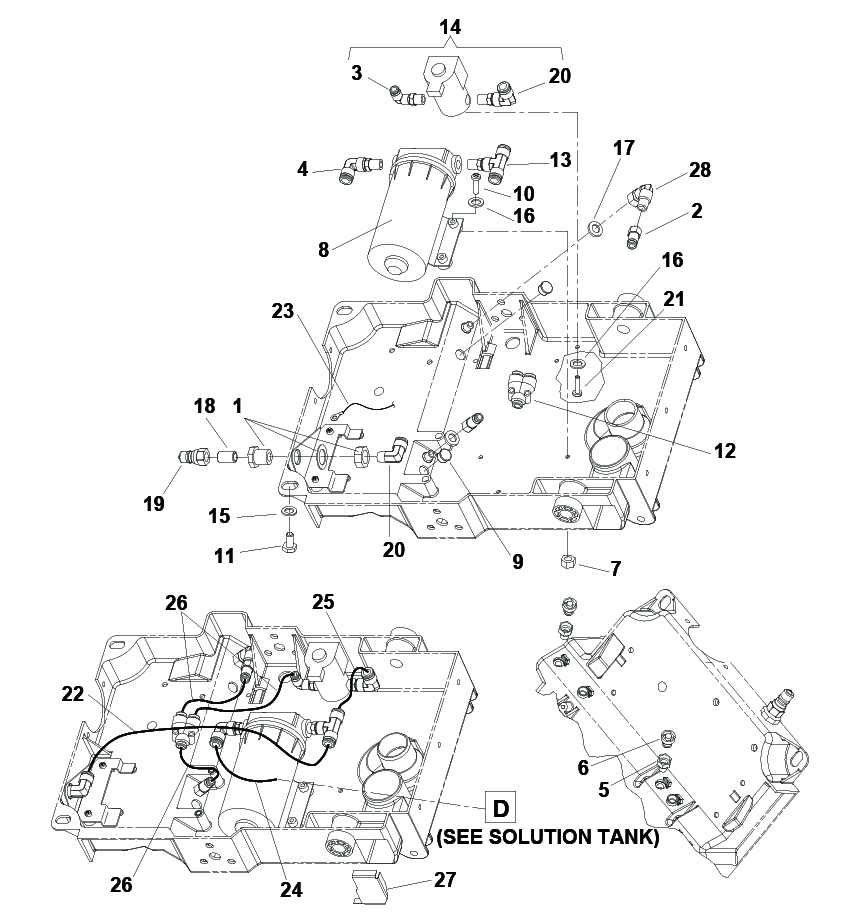

Pump
Windsor Clipper 12 Pump

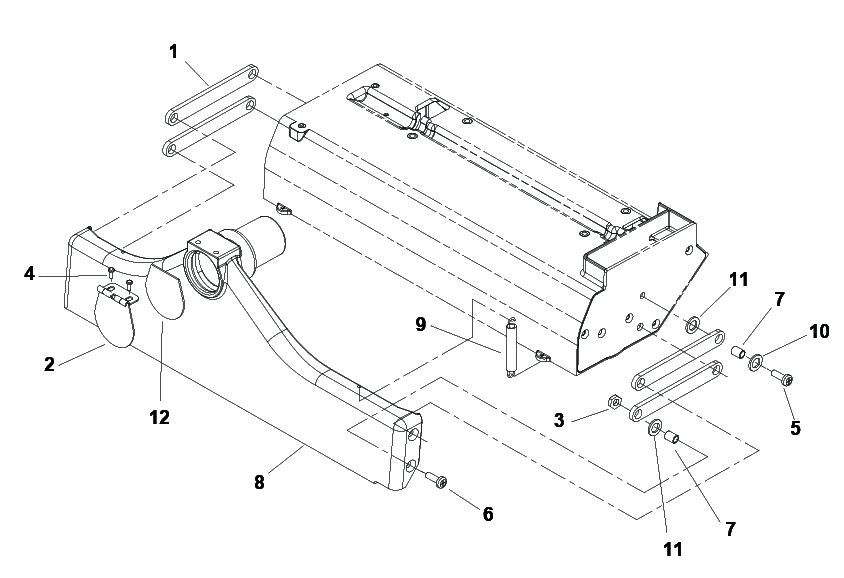

Vacuum Shoe
Windsor Clipper 12 Vacuum Shoe

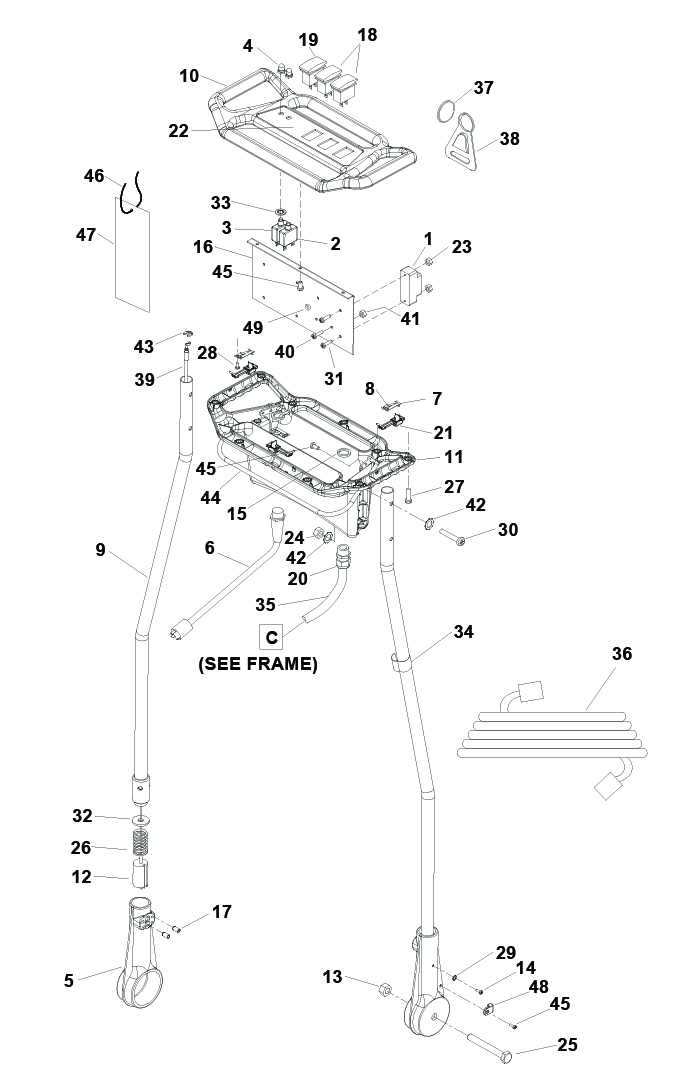

Control Panel
Windsor Clipper 12 Control Panel
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86001240 |
Terminal Block |
Buy Now |
| 2 |
86001980 |
Extractor Breaker |
Buy Now |
| 3 |
86230210 |
Extractor Breaker |
Buy Now |
| 4 |
86002010 |
Circuit Breaker Boot |
Buy Now |
| 5 |
86240890 |
Handle Pivot Housing |
Buy Now |
| 6 |
86234320 |
Cord Assembly |
Buy Now |
| 7 |
86003130 |
Electrical Contact Flat |
Buy Now |
| 8 |
86003140 |
Electrical Contact Bent |
Buy Now |
| 9 |
86004090 |
Welded Handle |
Buy Now |
| 10 |
86004100 |
Control Panel Front Handle |
Buy Now |
| 11 |
86004110 |
Control Panel Rear Handle |
Buy Now |
| 12 |
86005010 |
Handle Position Lock |
Buy Now |
| 13 |
86005790 |
Hexagon Nylock Nut |
Buy Now |
| 14 |
86273990 |
Screw |
Buy Now |
| 15 |
86005670 |
Conduit Nut |
Buy Now |
| 16 |
86081530 |
Control Panel Plate |
Buy Now |
| 17 |
86277980 |
Screw Set |
Buy Now |
| 18 |
86007140 |
Position 2 Rocker Switch |
Buy Now |
| 19 |
86007200 |
3-Position Rocker Switch |
Buy Now |
| 20 |
86256180 |
Strain Relief |
Buy Now |
| 21 |
86401390 |
Switch Trigger |
Buy Now |
| 22 |
86395800 |
Control Panel Label |
Buy Now |
| 23 |
86005760 |
Extractor Nut with Star Washer |
Buy Now |
| 24 |
86005810 |
Nut |
Buy Now |
| 25 |
86276510 |
Screw |
Buy Now |
| 26 |
86226840 |
Compression Spring |
Buy Now |
| 27 |
86006870 |
Screw |
Buy Now |
| 28 |
86006620 |
Stainless Steel Screw |
Buy Now |
| 29 |
86279020 |
Lock Extension Star |
Buy Now |
| 30 |
86274150 |
Screw |
Buy Now |
| 31 |
86006710 |
Nylon Screw |
Buy Now |
| 32 |
86010720 |
Washer |
Buy Now |
| 33 |
86010750 |
Lock Thin Washer |
Buy Now |
| 34 |
86198480 |
Power Cord Clip |
Buy Now |
| 35 |
86238820 |
Harness Main |
Buy Now |
| 36 |
86234110 |
Cord Set |
Buy Now |
| 37 |
86272840 |
Split Ring |
Buy Now |
| 38 |
86256170 |
Cord Hook Strain Relief |
Buy Now |
| 39 |
86003120 |
Stainless Steel Cable |
Buy Now |
| 40 |
86006830 |
Screw |
Buy Now |
| 41 |
86005700 |
Nut |
Buy Now |
| 42 |
86010660 |
Washer |
Buy Now |
| 43 |
86006410 |
Klip Ring |
Buy Now |
| 44 |
86092980 |
Handle Adjustment Lever Assembly |
Buy Now |
| 45 |
86006790 |
Screw |
Buy Now |
| 46 |
86002870 |
Cord |
Buy Now |
| 47 |
86396900 |
Instruction Card |
Buy Now |
| 48 |
86002370 |
Nylon Clamp |
Buy Now |
| 49 |
86245040 |
Ground Symbol Label |
Buy Now |

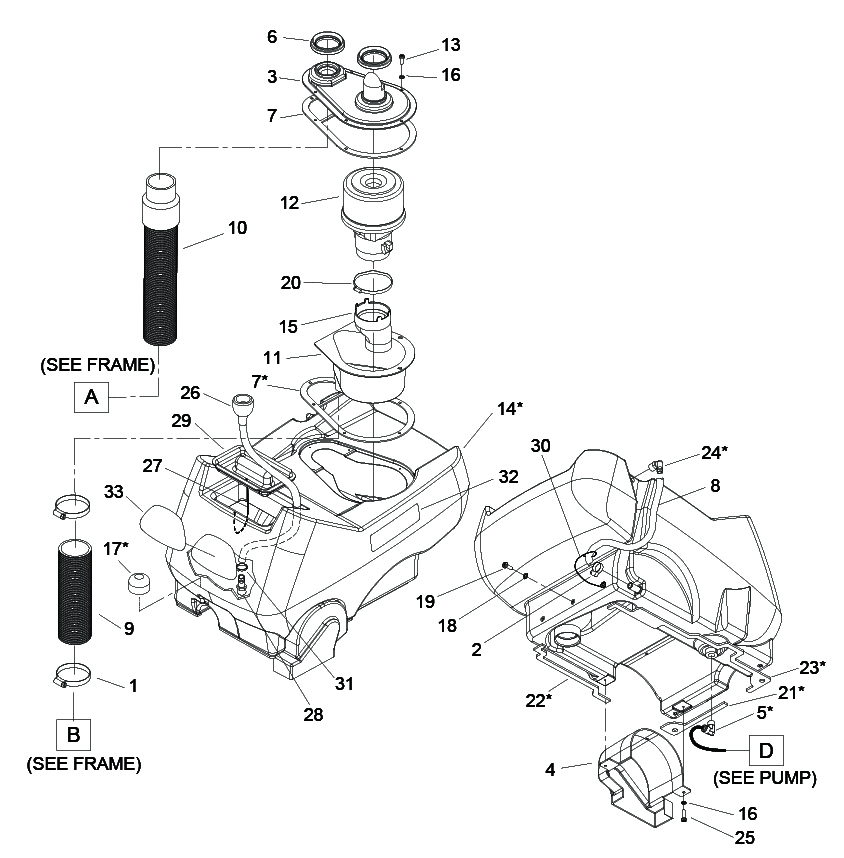

Solution Tank & Vacuum
Windsor Clipper 12 Solution Tank & Vacuum

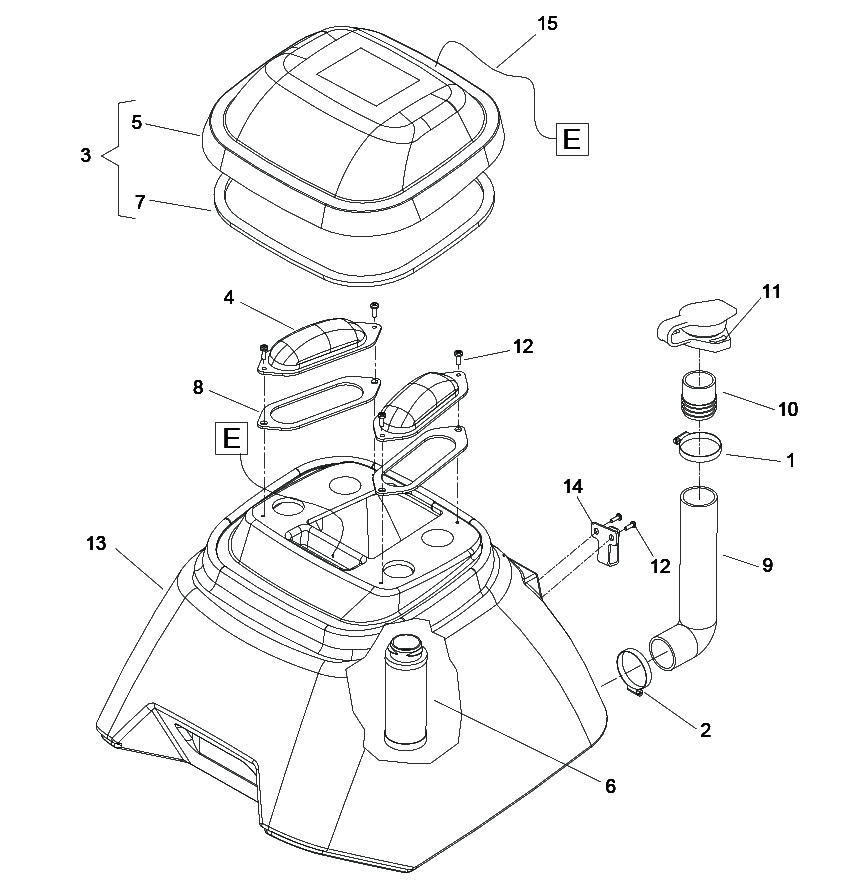

Recovery Tank
Windsor Clipper 12 Recovery Tank
