Chariot iVac 24 ATV
Bumper
Chariot iVac 24 ATV Bumper
Back Panel
Chariot iVac 24 ATV Back Panel
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86345080 |
Vac Bag Lower Bracket |
Buy Now |
| 2 |
86345070 |
Vac Bag Upper Bracket |
Buy Now |
| 3 |
86386630 |
Vac Enclosure Gasket |
Buy Now |
| 4 |
86341040 |
Vac Bag (10 Pack) |
Buy Now |
| 5 |
86355280 |
Vac Bag Housing |
Buy Now |
| 6 |
86327910 |
Screw |
Buy Now |
| 7 |
86327590 |
Lanyard |
Buy Now |
| 8 |
86334210 |
Back Panel |
Buy Now |
| 9 |
86173330 |
Washer |
Buy Now |
| 10 |
86173140 |
Screw |
Buy Now |
| 11 |
86161800 |
Latch and Concealed Keeper |
Buy Now |
| 12 |
86351660 |
Screw |
Buy Now |
Brush Deck Debris Tray
Chariot iVac 24 ATV Brush Deck Debris Tray
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86014990 |
Screw |
Buy Now |
| 2 |
86342400 |
Debris Tray End Gasket |
Buy Now |
| 3 |
86340290 |
Debris Tray Mount |
Buy Now |
| 4 |
86408760 |
Debris Tray Spring Clip |
Buy Now |
| 5 |
86173350 |
Washer |
Buy Now |
| 6 |
86024750 |
Hexagon Nylock Nut |
Buy Now |
| 7 |
73031040 |
Screw |
Buy Now |
| 8 |
86340280 |
Debris Tray |
Buy Now |
| 9 |
86350590 |
Debris Tray Inlet Assembly |
Buy Now |
| 10 |
86342390 |
Debris Tray Gasket |
Buy Now |

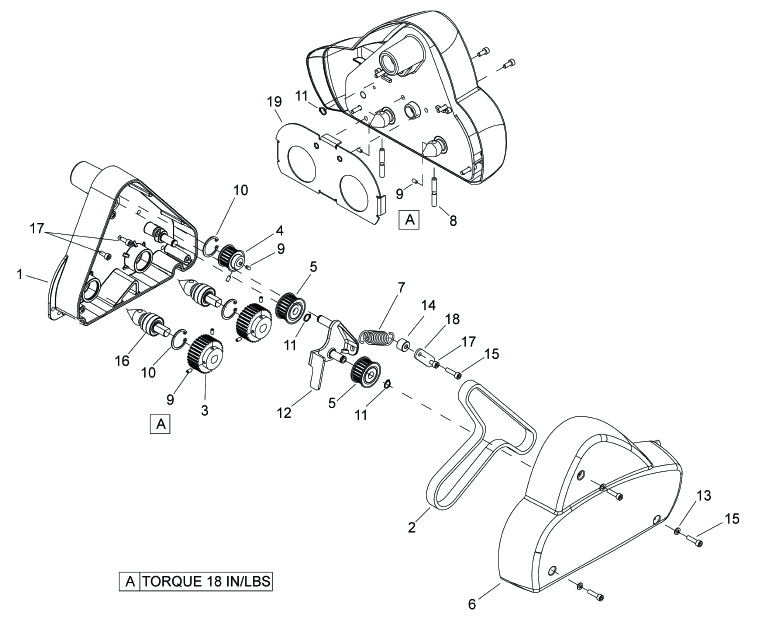

Brush Deck Drive
Chariot iVac 24 ATV Brush Deck Drive

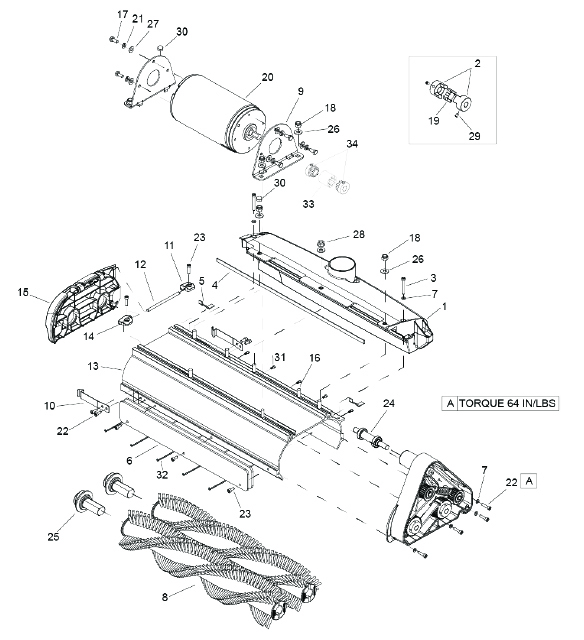

Brush Deck
Chariot iVac 24 ATV Brush Deck

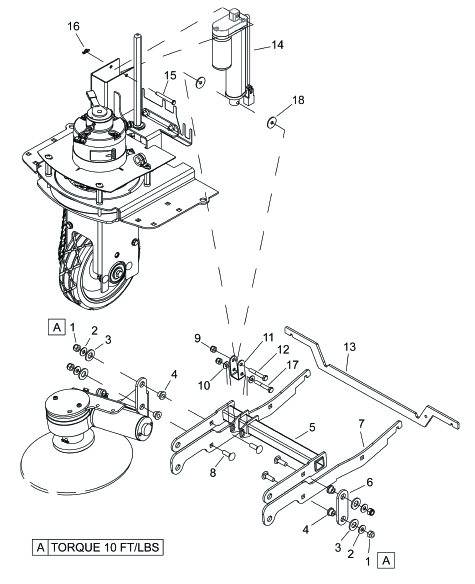

Brush Deck Lift 1
Chariot iVac 24 ATV Brush Deck Lift 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86270830 |
Hexagon Nylock Nut |
Buy Now |
| 2 |
86010670 |
Washer |
Buy Now |
| 3 |
86259420 |
Washer |
Buy Now |
| 4 |
86228990 |
Bushing |
Buy Now |
| 5 |
86340820 |
Deck Lifter |
Buy Now |
| 6 |
86340920 |
Lift Linkage Plate |
Buy Now |
| 7 |
86340910 |
Deck Lift Arm |
Buy Now |
| 8 |
86277130 |
Screw |
Buy Now |
| 9 |
86005810 |
Hexagon Nylock Nut |
Buy Now |
| 10 |
86010630 |
Washer |
Buy Now |
| 11 |
86341320 |
Actuator Link Channel |
Buy Now |
| 12 |
86276680 |
Screw |
Buy Now |
| 13 |
86340930 |
Spring Mount Bracket |
Call to Order |
| 14 |
86341920 |
Actuator |
Buy Now |
| 15 |
86328040 |
Clevis Pin |
Buy Now |
| 16 |
86008650 |
Cotter Ring Pin |
Buy Now |
| 17 |
86273850 |
Screw |
Buy Now |
| 18 |
86354750 |
Washer |
Buy Now |
Brush Deck Lift 2
Chariot iVac 24 ATV Brush Deck Lift 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86270830 |
Hexagon Nylock Nut |
Buy Now |
| 2 |
86010670 |
Washer |
Buy Now |
| 3 |
86259420 |
Washer |
Buy Now |
| 4 |
86228990 |
Bushing |
Buy Now |
| 5 |
86340820 |
Deck Lifter |
Buy Now |
| 6 |
86340920 |
Lift Linkage Plate |
Buy Now |
| 7 |
86340910 |
Deck Lift Arm |
Buy Now |
| 8 |
86277130 |
Screw |
Buy Now |
| 9 |
86005810 |
Hexagon Nylock Nut |
Buy Now |
| 10 |
86010630 |
Washer |
Buy Now |
| 11 |
86341320 |
Actuator Link Channel |
Buy Now |
| 12 |
86276680 |
Screw |
Buy Now |
| 13 |
86340930 |
Spring Mount Bracket |
Call to Order |
| 14 |
86341920 |
Actuator |
Buy Now |
| 15 |
86328040 |
Clevis Pin |
Buy Now |
| 16 |
86008650 |
Cotter Ring Pin |
Buy Now |
| 17 |
86273850 |
Screw |
Buy Now |
| 18 |
86354750 |
Washer |
Buy Now |

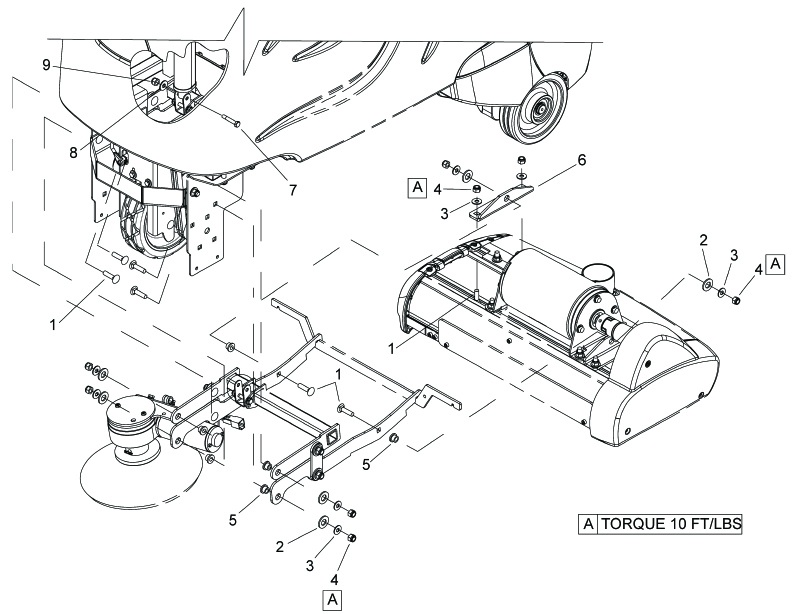

Brush Deck and Lift Mounting
Chariot iVac 24 ATV Brush Deck and Lift Mounting
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86277130 |
Screw |
Buy Now |
| 2 |
86259420 |
Washer |
Buy Now |
| 3 |
86010670 |
Washer |
Buy Now |
| 4 |
86270830 |
Hexagon Nylock Nut |
Buy Now |
| 5 |
86228990 |
Bushing |
Buy Now |
| 6 |
86341310 |
Brush Deck Pivot Bracket |
Buy Now |
| 7 |
86276680 |
Screw |
Buy Now |
| 8 |
86010630 |
Washer |
Buy Now |
| 9 |
86005810 |
Hexagon Nylock Nut |
Buy Now |

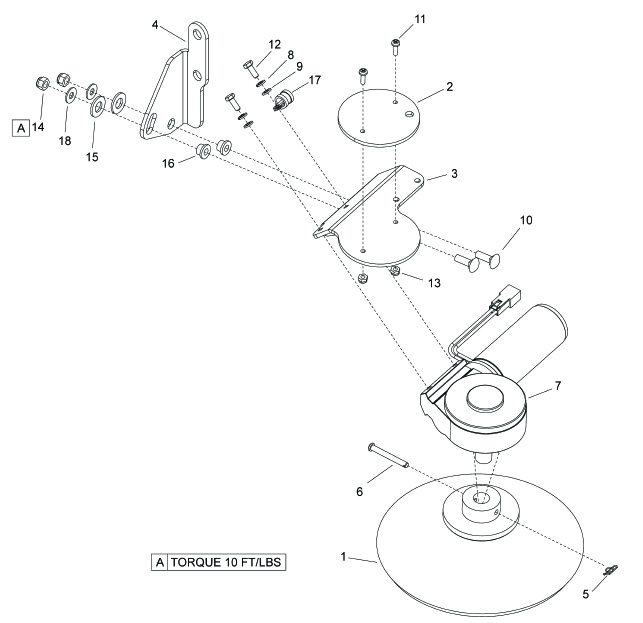

Brush Deck - Side Broom
Chariot iVac 24 ATV Brush Deck - Side Broom
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86342160 |
Nylon Brush |
Buy Now |
| 2 |
86341960 |
Weight Plate |
Buy Now |
| 3 |
86341070 |
Bracket Side Brush |
Buy Now |
| 4 |
86341060 |
Holder Side Brush |
Buy Now |
| 5 |
86008650 |
Cotter Ring Pin |
Buy Now |
| 6 |
86328040 |
Clevis Pin |
Buy Now |
| 7 |
86322470 |
Motor |
Buy Now |
| 8 |
86279140 |
Washer |
Buy Now |
| 9 |
86279070 |
Washer |
Buy Now |
| 10 |
86277130 |
Screw |
Buy Now |
| 11 |
86275470 |
Screw |
Buy Now |
| 12 |
86274700 |
Screw |
Buy Now |
| 13 |
86270990 |
Hexagon Nylock Nut |
Buy Now |
| 14 |
86270830 |
Hexagon Nylock Nut |
Buy Now |
| 15 |
86259410 |
Washer |
Buy Now |
| 16 |
86228990 |
Bushing |
Buy Now |
| 17 |
86177090 |
Cable Clamp |
Call to Order |
| 18 |
86010670 |
Washer |
Buy Now |
Console
Chariot iVac 24 ATV Console
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86346600 |
Spacer |
Call to Order |
| 2 |
86005810 |
Hexagon Nylock Nut |
Buy Now |
| 3 |
86346090 |
Thick Gasket |
Buy Now |
| 4 |
86355250 |
Trim Console |
Buy Now |
| 5 |
86349280 |
Screw |
Call to Order |
| 6 |
86238460 |
Strap Hook |
Buy Now |
| 7 |
86341700 |
No Bag Switch Bracket |
Buy Now |
| 8 |
86340740 |
Bag Inlet Retainer Plate |
Call to Order |
| 9 |
86010630 |
Washer |
Buy Now |
| 10 |
86340650 |
Vac Bag Inlet |
Buy Now |
| 11 |
86327830 |
Gasket |
Buy Now |
| 12 |
86327680 |
Interlock Switch |
Buy Now |
| 13 |
86273740 |
Screw |
Buy Now |
| 14 |
86239720 |
Horn |
Buy Now |
| 15 |
86279520 |
Washer |
Buy Now |
| 16 |
86276330 |
Screw |
Buy Now |
| 17 |
86274520 |
Screw |
Buy Now |
| 18 |
86228790 |
Bushing |
Buy Now |
| 19 |
86326200 |
Vacuum Intake Gasket |
Buy Now |

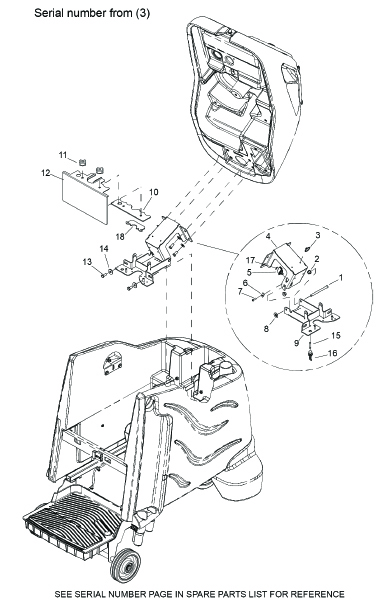

Console Mounting 1
Chariot iVac 24 ATV Console Mounting 1
Console Mounting 2
Chariot iVac 24 ATV Console Mounting 2
Control Panel 1
Chariot iVac 24 ATV Control Panel 1
Control Panel 2
Chariot iVac 24 ATV Control Panel 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86332510 |
Seal Push Button Boot |
Buy Now |
| 2 |
86001260 |
Boot |
Buy Now |
| 3 |
86348640 |
Bag Full Indicator LED |
Buy Now |
| 4 |
86348960 |
Battery Indicator LED |
Buy Now |
| 5 |
53217380 |
Handhold Operational Concept |
Buy Now |
| 6 |
86293930 |
Switch Button Body |
Buy Now |
| 7 |
86313950 |
Arrow Switch |
Buy Now |
| 8 |
86292590 |
Switch |
Buy Now |
| 9 |
86292780 |
Micro Switch |
Buy Now |
| 10 |
86007170 |
Two Position Key Switch |
Buy Now |
| 11 |
86371410 |
Screw |
Buy Now |
| 12 |
86255900 |
Standoff |
Buy Now |
| 13 |
86315470 |
Hour Meter |
Buy Now |
| 14 |
86316160 |
Breaker |
Buy Now |
| 15 |
86353680 |
Magnetic Breaker |
Buy Now |
| 16 |
86354870 |
Rotary Switch |
Buy Now |
| 17 |
86354560 |
Rotary Switch Bezel |
Buy Now |
| 18 |
86354810 |
Rotary Switch Gasket |
Buy Now |
| 19 |
86358430 |
Screw |
Buy Now |
| 20 |
86358440 |
O-Ring |
Buy Now |
| 21 |
63130140 |
Spring Element |
Buy Now |
Drive Lower 1
Chariot iVac 24 ATV Drive Lower 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86411170 |
Traction Motor |
Buy Now |
| 2 |
86409960 |
Chain Wheel Transmission |
Buy Now |
| 3 |
86409950 |
Chain Wheel Transmission |
Buy Now |
| 4 |
86409940 |
Chain Wheel Transmission |
Buy Now |
| 5 |
86405910 |
Bolt |
Buy Now |
| 6 |
86384110 |
Nut |
Buy Now |
| 7 |
86405390 |
Retaining Plate |
Buy Now |
| 8 |
86405380 |
Axle Drive Wheel |
Buy Now |
| 9 |
86405370 |
Distance Holder |
Buy Now |
| 10 |
86405360 |
Chain |
Buy Now |
| 11 |
86405350 |
Distance Holder |
Buy Now |
| 12 |
86405330 |
Distance Holder |
Buy Now |
| 13 |
86405320 |
Retaining Plate |
Buy Now |
| 14 |
86405310 |
Housing Transmission |
Buy Now |
| 15 |
73122890 |
Washer |
Buy Now |
| 16 |
86369170 |
Wheel |
Buy Now |
| 17 |
86326710 |
Key |
Buy Now |
| 18 |
86321670 |
Washer |
Buy Now |
| 19 |
86276070 |
Screw |
Buy Now |
| 20 |
86274700 |
Screw |
Buy Now |
| 21 |
86274620 |
Screw |
Call to Order |
| 22 |
86273750 |
Screw |
Buy Now |
| 23 |
86270830 |
Hexagon Nylock Nut |
Buy Now |
| 24 |
86219640 |
Key |
Buy Now |
| 25 |
86384120 |
Screw |
Call to Order |
| 26 |
86137330 |
Washer |
Buy Now |
| 27 |
86136640 |
Screw |
Buy Now |
| 28 |
86010810 |
Washer |
Buy Now |
| 29 |
86010670 |
Washer |
Buy Now |
| 30 |
86010630 |
Washer |
Buy Now |
| 31 |
86008610 |
Flanged Bearing |
Buy Now |
| 32 |
86005810 |
Hexagon Nylock Nut |
Buy Now |
| 33 |
86001030 |
Ball Bearing |
Buy Now |
| 34 |
86405540 |
Spacer Sleeve |
Buy Now |
| 35 |
86386910 |
Brake Traction Motor |
Buy Now |
Drive Lower 2
Chariot iVac 24 ATV Drive Lower 2

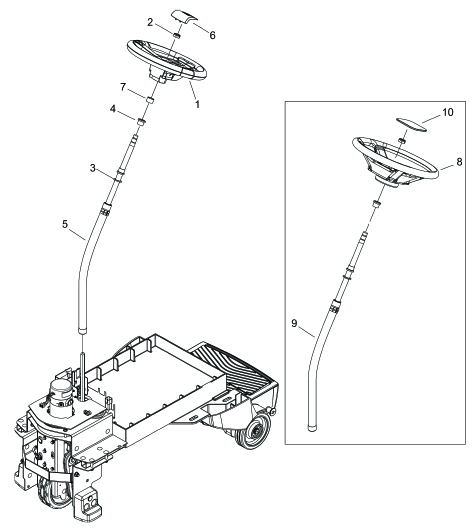

Slew/Steering
Chariot iVac 24 ATV Slew/Steering

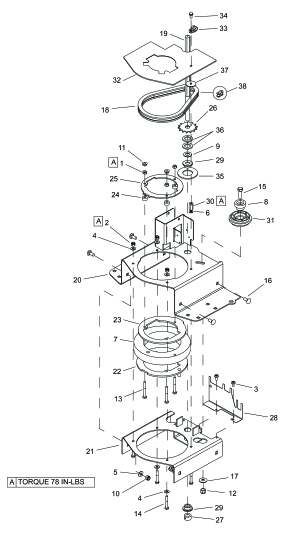

Drive Chain
Chariot iVac 24 ATV Drive Chain

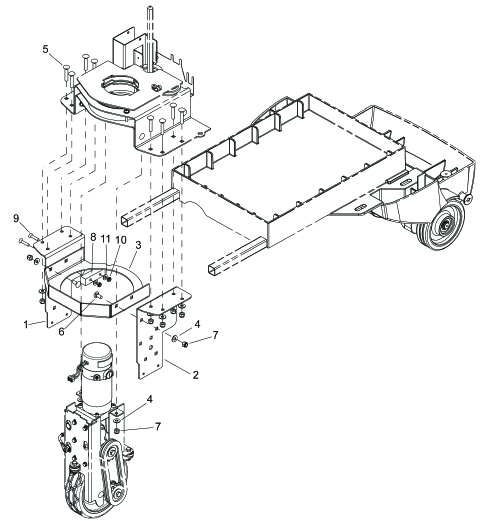

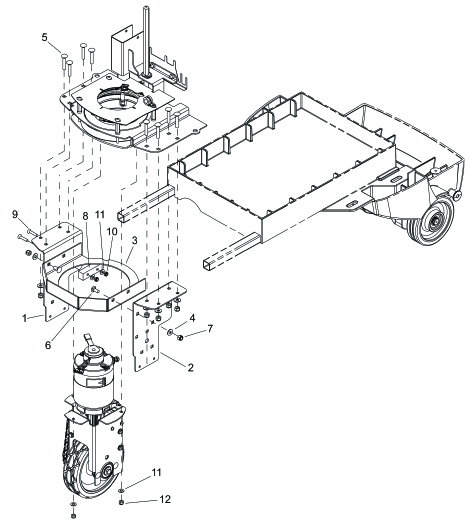

Drive Mounting 1
Chariot iVac 24 ATV Drive Mounting 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86344620 |
Linkage Mount Bracket |
Buy Now |
| 2 |
86319730 |
Left Linkage Mount Bracket |
Buy Now |
| 3 |
86405410 |
Lower Support Bracket |
Call to Order |
| 4 |
86010670 |
Washer |
Buy Now |
| 5 |
86276690 |
Screw |
Buy Now |
| 6 |
86276070 |
Screw |
Buy Now |
| 7 |
86270830 |
Hexagon Nylock Nut |
Buy Now |
| 8 |
86344630 |
Motor Lifter Block |
Buy Now |
| 9 |
86277650 |
Screw |
Buy Now |
| 10 |
86271870 |
Nut |
Buy Now |
| 11 |
86010630 |
Washer |
Buy Now |
| 12 |
86005810 |
Nut |
Buy Now |
Drive Mounting 2
Chariot iVac 24 ATV Drive Mounting 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86344620 |
Linkage Mount Bracket |
Buy Now |
| 2 |
86319730 |
Left Linkage Mount Bracket |
Buy Now |
| 3 |
86331630 |
Roller Guide Bracket |
Buy Now |
| 4 |
86010670 |
Washer |
Buy Now |
| 5 |
86276690 |
Screw |
Buy Now |
| 6 |
86276070 |
Screw |
Buy Now |
| 7 |
86270830 |
Hexagon Nylock Nut |
Buy Now |
| 8 |
86344630 |
Motor Lifter Block |
Buy Now |
| 9 |
86277650 |
Screw |
Buy Now |
| 10 |
86271870 |
Nylock Nut |
Buy Now |
| 11 |
86010630 |
Washer |
Buy Now |
Frame and Rear Wheels

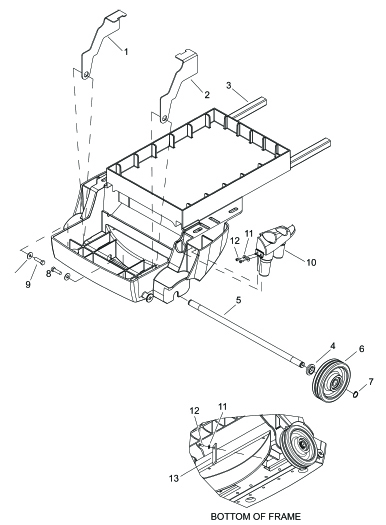

Chariot iVac 24 ATV Frame and Rear Wheels
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86326260 |
Frame Left Bracket |
Call to Order |
| 2 |
86326250 |
Frame Right Bracket |
Call to Order |
| 3 |
86355230 |
Assembly Frame |
Buy Now |
| 4 |
86326220 |
Spacer |
Buy Now |
| 5 |
86318030 |
Axle |
Buy Now |
| 6 |
86369160 |
Wheel |
Buy Now |
| 7 |
86223470 |
Ring |
Buy Now |
| 8 |
86278910 |
Washer |
Buy Now |
| 9 |
86340950 |
Screw |
Buy Now |
| 10 |
86355680 |
Accessory Housing |
Buy Now |
| 11 |
86173330 |
Washer |
Buy Now |
| 12 |
73031040 |
Screw |
Buy Now |
| 13 |
86256130 |
Static Strap |
Buy Now |
Main Cover
Chariot iVac 24 ATV Main Cover
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86002400 |
Clamp |
Buy Now |
| 2 |
86399470 |
Trim Cover |
Buy Now |
| 2 |
86376910 |
Trim Cover |
Call to Order |
| 3 |
86345730 |
Hose Assembly |
Buy Now |
| 4 |
86345360 |
Roller Bracket |
Call to Order |
| 5 |
86345200 |
Brace Bracket |
Call to Order |
| 6 |
86345120 |
Hose Hanger |
Call to Order |
| 7 |
86346000 |
Extension Spring |
Buy Now |
| 8 |
86341570 |
Spring Mount Bracket |
Call to Order |
| 9 |
86340780 |
Roller Hose |
Buy Now |
| 10 |
86340310 |
Hose |
Buy Now |
| 11 |
86259410 |
Washer |
Buy Now |
| 12 |
86010630 |
Washer |
Buy Now |
| 13 |
86005810 |
Nut |
Buy Now |
| 14 |
86275180 |
Screw |
Buy Now |
| 15 |
86006750 |
Screw |
Buy Now |
| 16 |
86273980 |
Screw |
Buy Now |
| 17 |
86006760 |
Screw |
Buy Now |
| 18 |
86340950 |
Screw |
Buy Now |
| 19 |
86270310 |
Eyebolt |
Buy Now |
| 20 |
86259400 |
Washer |
Buy Now |
| 21 |
86002380 |
Clamp |
Buy Now |
| 22 |
86228990 |
Bushing |
Buy Now |
| 23 |
86173140 |
Screw |
Buy Now |
| 24 |
86010670 |
Washer |
Buy Now |
| 25 |
86010650 |
Washer |
Buy Now |
| 26 |
86279630 |
Washer |
Buy Now |
| 27 |
86277480 |
Screw |
Buy Now |
| 28 |
86352410 |
Plate Extension Spring |
Buy Now |
| 29 |
86352420 |
Plate Extension Spring Left |
Buy Now |
Pedal Platform
Chariot iVac 24 ATV Pedal Platform
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86007110 |
Switch |
Buy Now |
| 2 |
86172980 |
Screw |
Buy Now |
| 3 |
86264930 |
Cable Tie |
Buy Now |
| 4 |
86326150 |
Linear Pot Bracket |
Buy Now |
| 5 |
86326140 |
Dowel Pin |
Buy Now |
| 6 |
86334240 |
Heel Pedal |
Buy Now |
| 7 |
86334690 |
Accelerator Pedal |
Buy Now |
| 8 |
86334230 |
Operator Platform |
Buy Now |
| 9 |
86311560 |
Potentiometer |
Buy Now |
| 10 |
86254970 |
Comp Spring |
Buy Now |
| 11 |
86173330 |
Washer |
Buy Now |
Pedal Platform Mounting

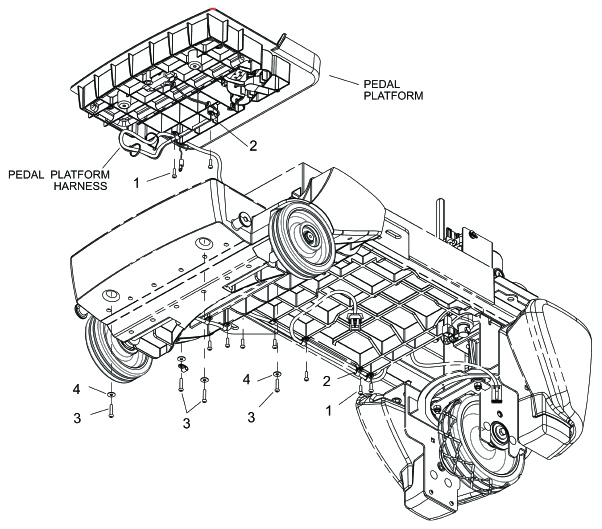

Chariot iVac 24 ATV Pedal Platform Mounting
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
73031040 |
Screw |
Buy Now |
| 2 |
86198440 |
Cable Clamp |
Buy Now |
| 3 |
86327910 |
Screw |
Buy Now |
| 4 |
86173330 |
Washer |
Buy Now |
Steering
Chariot iVac 24 ATV Steering
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
64357990 |
Steering Wheel |
Buy Now |
| 2 |
86271610 |
Nylock Nut |
Buy Now |
| 3 |
86279420 |
Washer |
Buy Now |
| 4 |
86228790 |
Bushing |
Buy Now |
| 5 |
86355690 |
Steering Shaft |
Buy Now |
| 6 |
66403530 |
Cap Steering Wheel |
Buy Now |
| 7 |
86333950 |
Bushing |
Buy Now |
| 8 |
86259610 |
Wheel Steering |
Buy Now |
| 9 |
86378370 |
Steering Shaft Assembly |
Call to Order |
| 10 |
86234810 |
Steering Wheel Cover |
Buy Now |
Vacuum

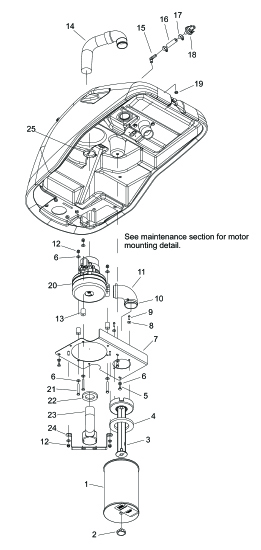

Chariot iVac 24 ATV Vacuum
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86345270 |
Spunbound Filter |
Buy Now |
| 1 |
86345290 |
Carbon Filter |
Buy Now |
| 1 |
86345280 |
Spunbound Carbon Filter |
Call to Order |
| 2 |
86345610 |
Star Grip |
Buy Now |
| 3 |
86340760 |
Post Filter Mount |
Buy Now |
| 4 |
86237440 |
Seal |
Buy Now |
| 5 |
86275890 |
Screw |
Buy Now |
| 6 |
86010630 |
Washer |
Buy Now |
| 7 |
86340710 |
Vac Mount Bracket |
Call to Order |
| 8 |
86173330 |
Washer |
Buy Now |
| 9 |
86014530 |
Screw |
Buy Now |
| 10 |
86002380 |
Clamp |
Buy Now |
| 11 |
86344760 |
Hose |
Buy Now |
| 12 |
86005810 |
Hexagon Nylock Nut |
Buy Now |
| 13 |
86327500 |
Bushing |
Buy Now |
| 14 |
86344740 |
Hose |
Buy Now |
| 15 |
86197590 |
Hosebarb |
Buy Now |
| 16 |
86281680 |
Hose |
Buy Now |
| 17 |
86233090 |
Hose Clamp |
Buy Now |
| 18 |
86257160 |
Switch Vacuum |
Buy Now |
| 19 |
86346530 |
Nut |
Call to Order |
| 20 |
86012210 |
Vac Motor |
Buy Now |
| 21 |
86273850 |
Screw |
Buy Now |
| 22 |
86326200 |
Vacuum Intake Gasket |
Buy Now |
| 23 |
86340660 |
Vac Motor Intake |
Call to Order |
| 24 |
86345190 |
Vac Motor Bracket |
Call to Order |
| 25 |
86002400 |
Clamp |
Buy Now |
Vacuum Diverter Valve
Chariot iVac 24 ATV Vacuum Diverter Valve
Vacuum Accessories

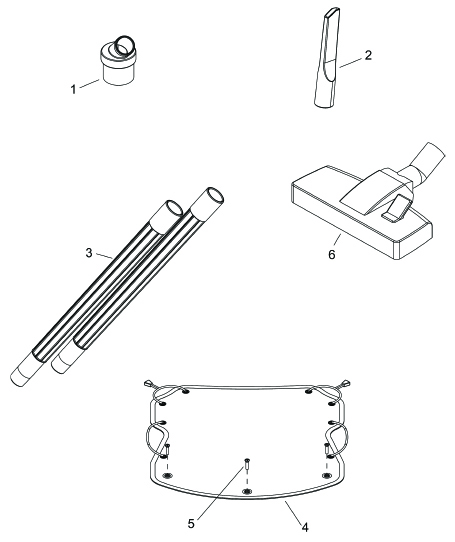

Chariot iVac 24 ATV Vacuum Accessories
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86344870 |
Dust Brush |
Buy Now |
| 2 |
69034030 |
Crevice Nozzle |
Buy Now |
| 3 |
86000090 |
Tube Extension |
Buy Now |
| 4 |
86355330 |
Console Cover |
Buy Now |
| 5 |
86349130 |
Screw |
Call to Order |
| 6 |
69069540 |
Combination Nozzle |
Buy Now |
Accessory Hose
Chariot iVac 24 ATV Accessory Hose
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86349210 |
Accessory Hose Assembly |
Buy Now |
| 2 |
86350200 |
Hose Support Bracket |
Buy Now |
| 3 |
86006870 |
Screw |
Buy Now |
Wand Bracket

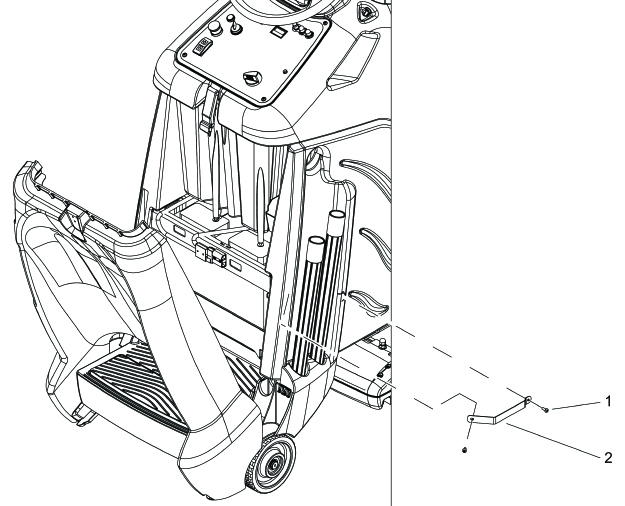

Chariot iVac 24 ATV Wand Bracket
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86345300 |
Wand Support Bracket |
Buy Now |
| 2 |
86006870 |
Screw |
Buy Now |
Wiring Battery
Chariot iVac 24 ATV Wiring Battery
Onboard Charger

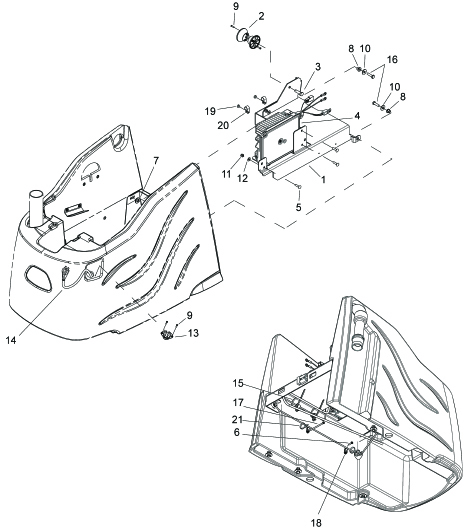

Chariot iVac 24 ATV Onboard Charger
