Windsor Chariot 3 CV 86
Brush Deck
Windsor Chariot 3 CV 86 Brush Deck
Windsor Chariot 3 CV 86 Brush Deck - Debris Tray
Windsor Chariot 3 CV 86 Brush Deck - Debris Tray
Brush Deck Drive

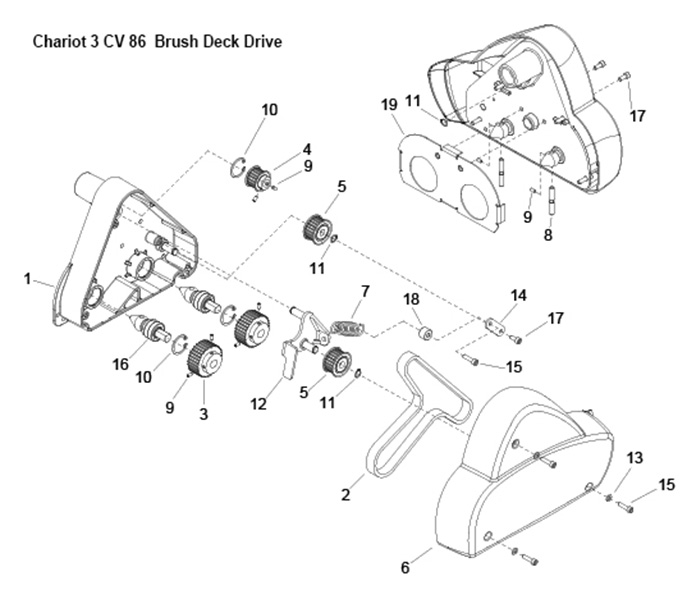

Windsor Chariot 3 CV 86 Brush Deck Drive
Brush Deck Lift
Windsor Chariot 3 CV 86 Brush Deck Lift
Brush Deck Lift Mounting

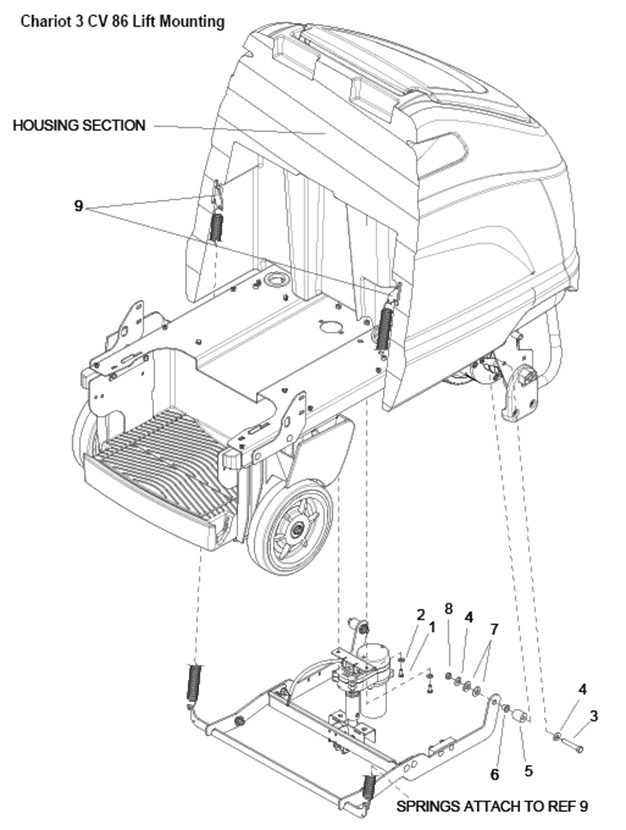

Windsor Chariot 3 CV 86 Brush Deck Lifting Mounting
Brush Deck Mounting
Windsor Chariot 3 CV 86 Brush Deck Mounting
Brush Deck Side Broom

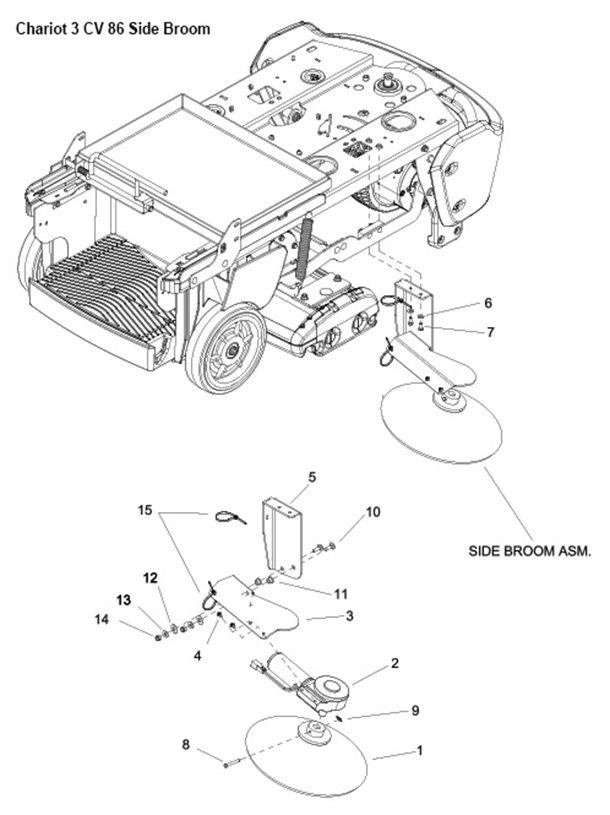

Windsor Chariot 3 CV 86 Brush Deck Side Broom

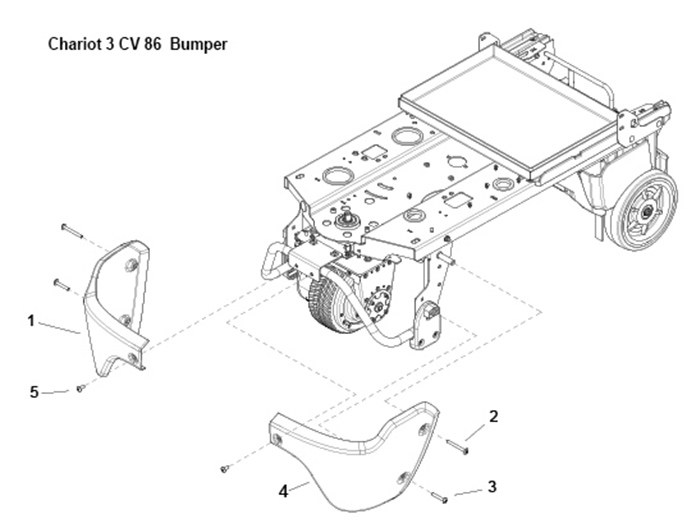

Bumper
Windsor Chariot 3 CV 86 Bumper
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86399640 |
Bumper |
Buy Now |
| 2 |
86361960 |
Screw |
Buy Now |
| 3 |
86361950 |
Screw |
Buy Now |
| 4 |
86358990 |
Bumper |
Call to Order |
| 5 |
86276890 |
Screw |
Buy Now |
Control Panel - Lower

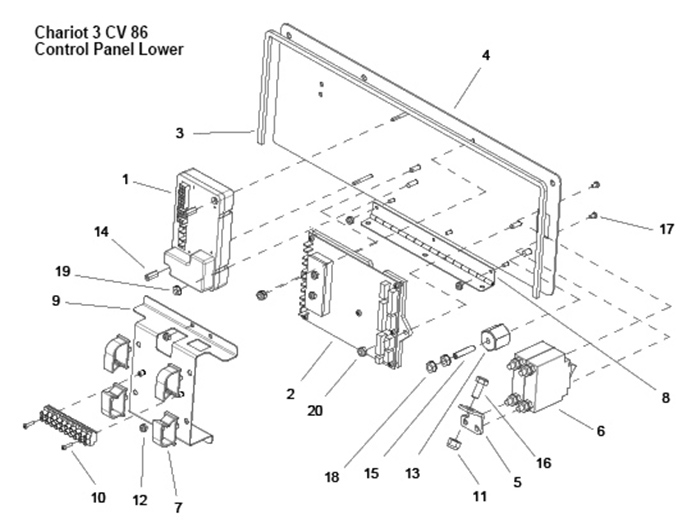

Windsor Chariot 3 CV 86 Control Panel - Lower
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86409760 |
Controller |
Buy Now |
| 2 |
86413520 |
PCB Assembly |
Call to Order |
| 3 |
86408670 |
Gasket |
Buy Now |
| 4 |
86403660 |
Lower Control Panel |
Call to Order |
| 5 |
86369480 |
Bracket |
Buy Now |
| 6 |
86369020 |
Breaker |
Buy Now |
| 7 |
86361520 |
Cable Entry Clip |
Buy Now |
| 8 |
86361420 |
Panel Hinge |
Call to Order |
| 9 |
86360880 |
Control Board Cover |
Buy Now |
| 10 |
86275260 |
Screw |
Buy Now |
| 11 |
86271910 |
Nut |
Buy Now |
| 12 |
86270920 |
Nut |
Buy Now |
| 13 |
86255910 |
Standoff |
Buy Now |
| 14 |
86255900 |
Distance Pin |
Buy Now |
| 15 |
86006850 |
Screw |
Buy Now |
| 16 |
86006760 |
Screw |
Buy Now |
| 17 |
86006620 |
Screw |
Buy Now |
| 18 |
86005710 |
Nut |
Buy Now |
| 19 |
86005700 |
Nut |
Buy Now |
| 20 |
86005640 |
Nut |
Buy Now |

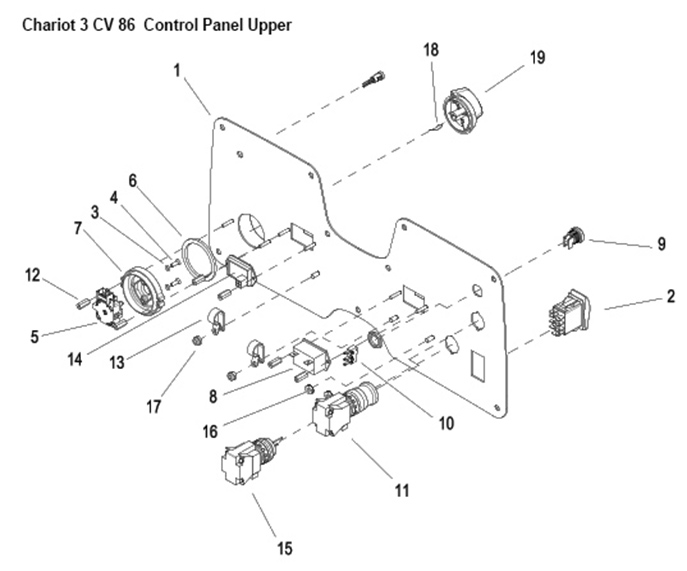

Control Panel - Upper
Windsor Chariot 3 CV 86 Control Panel - Upper
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86403670 |
Upper Control Panel |
Call to Order |
| 2 |
86362590 |
Switch |
Buy Now |
| 3 |
86358440 |
O-Ring |
Buy Now |
| 4 |
86358430 |
Screw |
Buy Now |
| 5 |
86354870 |
Rotary Switch |
Buy Now |
| 6 |
86354810 |
Rotary Switch Gasket |
Buy Now |
| 7 |
86354560 |
Rotary Switch Bezel |
Buy Now |
| 8 |
86315470 |
Meter |
Buy Now |
| 9 |
86295200 |
Button Assembly |
Buy Now |
| 10 |
86292780 |
Micro Switch |
Buy Now |
| 11 |
86292590 |
Switch |
Buy Now |
| 12 |
86255900 |
Distance Pin |
Buy Now |
| 13 |
86198460 |
Clamp |
Call to Order |
| 14 |
86012670 |
Meter |
Buy Now |
| 15 |
86007190 |
Ignition Lock |
Buy Now |
| 16 |
86005700 |
Nut |
Buy Now |
| 17 |
86005640 |
Nut |
Buy Now |
| 18 |
63130140 |
Spring Element |
Buy Now |
| 19 |
53217380 |
Handhold Operational Concept |
Buy Now |

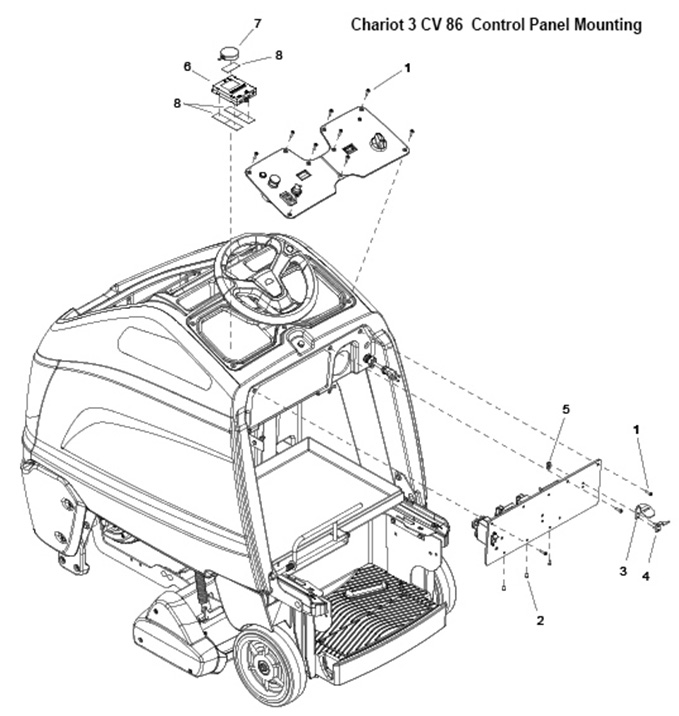

Control Panel - Mounting
Windsor Chariot 3 CV 86 Control Panel - Mounting
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86371410 |
Screw |
Buy Now |
| 2 |
86172980 |
Screw |
Buy Now |
| 3 |
86361440 |
Strap Cord |
Buy Now |
| 4 |
86361430 |
Bracket Cord |
Buy Now |
| 5 |
86005640 |
Nut |
Buy Now |
| 6 |
46830270 |
Fleet Management |
Call to Order |
| 7 |
66820170 |
Antenna |
Buy Now |
| 8 |
86415940 |
Tape |
Call to Order |
Decals

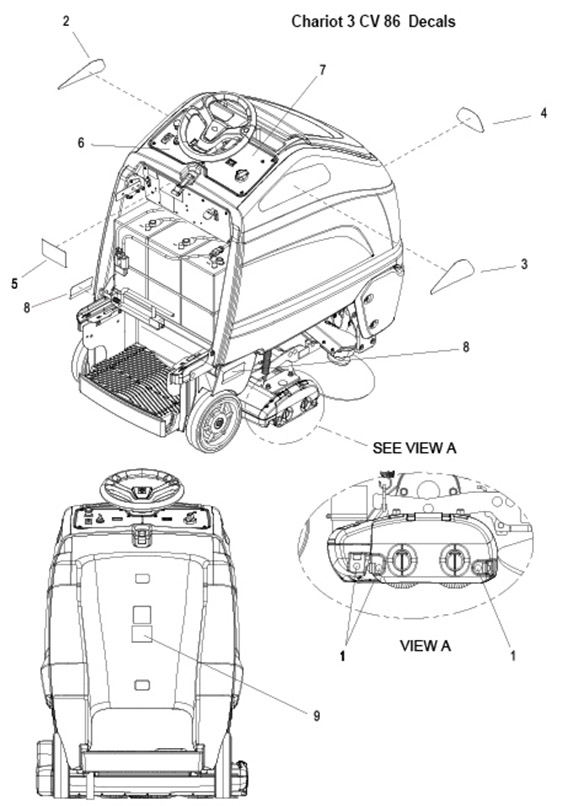

Windsor Chariot 3 CV 86 Decals
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86409210 |
Yellow Maintenance Label |
Call to Order |
| 2 |
86409190 |
Left Side Label |
Call to Order |
| 3 |
86409180 |
Right Side Label |
Call to Order |
| 4 |
86395400 |
Windsor Logo Domed Label |
Buy Now |
| 5 |
86362940 |
Battery Cabling Label |
Buy Now |
| 6 |
86395410 |
Control Label Left |
Buy Now |
| 7 |
86409200 |
Control Label Right |
Call to Order |
| 8 |
86334860 |
HEPA Filtration Label |
Buy Now |
| 9 |
86415350 |
CRI Label |
Call to Order |

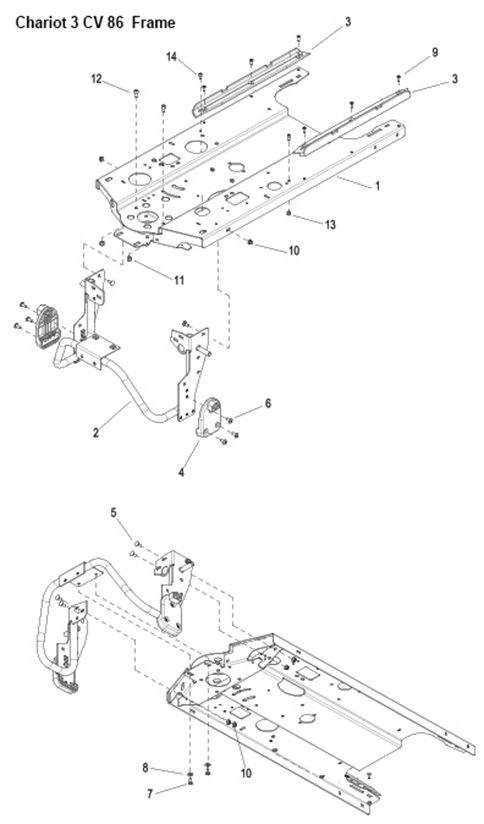

Frame
Windsor Chariot 3 CV 86 Frame
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86403680 |
Frame |
Call to Order |
| 2 |
86360710 |
Wheel Guard Assembly |
Buy Now |
| 3 |
86358190 |
Battery Tray Glide |
Buy Now |
| 4 |
86357950 |
Tip Pad |
Buy Now |
| 5 |
86276070 |
Screw |
Buy Now |
| 6 |
86276890 |
Screw |
Buy Now |
| 7 |
86276490 |
Screw |
Buy Now |
| 8 |
86010670 |
Washer |
Buy Now |
| 9 |
86400810 |
Screw |
Buy Now |
| 10 |
86368240 |
Nut |
Buy Now |
| 11 |
86005770 |
Nut |
Buy Now |
| 12 |
86361210 |
Screw |
Buy Now |
| 13 |
86270830 |
Nut |
Buy Now |
| 14 |
86006640 |
Screw |
Call to Order |
Front Drive

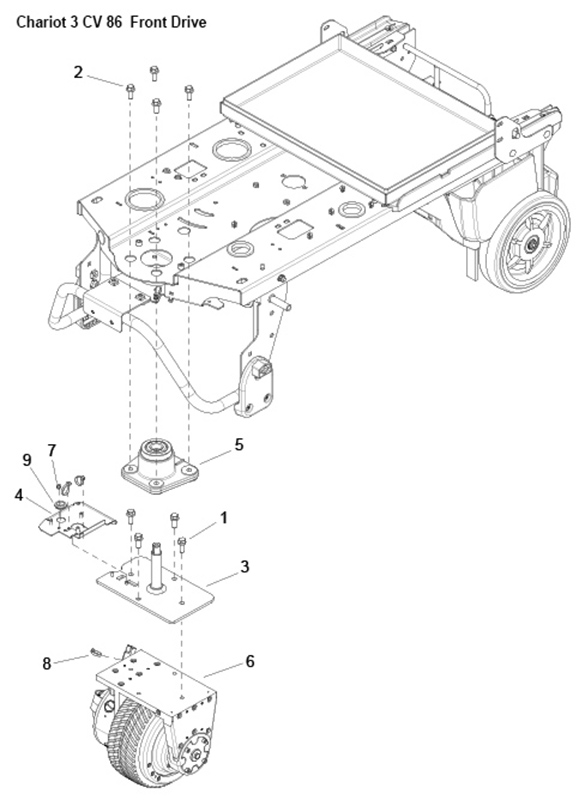

Windsor Chariot 3 CV 86 Front Drive
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86366140 |
Screw |
Buy Now |
| 2 |
86366130 |
Screw |
Call to Order |
| 3 |
86364130 |
Shaft Drive Motor Assembly |
Buy Now |
| 4 |
86361070 |
Drive Unit Bracket |
Call to Order |
| 5 |
86357870 |
Front Drive Assembly |
Buy Now |
| 6 |
86357120 |
Drive Wheel |
Buy Now |
| 7 |
86270990 |
Nut |
Buy Now |
| 8 |
86264940 |
Cable Tie |
Buy Now |
| 9 |
86218360 |
Grommet |
Buy Now |
Main Housing

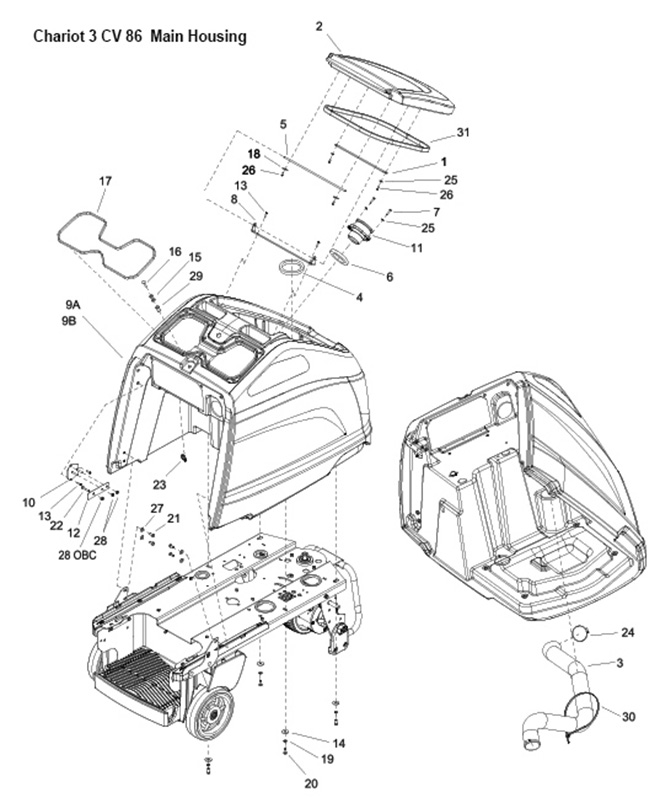

Windsor Chariot 3 CV 86 Main Housing
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86409430 |
Bag Storage Strap |
Buy Now |
| 2 |
86408990 |
Trimmed Lid |
Buy Now |
| 3 |
86408930 |
Hose |
Buy Now |
| 4 |
86408730 |
Lower Vac Seal Gasket |
Buy Now |
| 5 |
86408660 |
Shaft |
Call to Order |
| 6 |
86408650 |
Vacuum Adapter Gasket |
Call to Order |
| 7 |
86408580 |
Screw |
Buy Now |
| 8 |
86404420 |
Hinge Lid Bracket |
Call to Order |
| 9A |
86403960 |
Main Housing |
Call to Order |
| 9B |
86416110 |
Main Housing |
Call to Order |
| 10 |
86403930 |
Battery Connector Mount |
Call to Order |
| 11 |
86403690 |
Vacuum Bag Adapter |
Call to Order |
| 12 |
86371560 |
Lock Plate |
Buy Now |
| 13 |
86371410 |
Screw |
Buy Now |
| 14 |
86367250 |
Washer |
Buy Now |
| 15 |
86361770 |
Washer |
Buy Now |
| 16 |
86361760 |
Screw |
Buy Now |
| 17 |
86360700 |
Gasket |
Buy Now |
| 18 |
86279170 |
Washer |
Buy Now |
| 19 |
86279130 |
Washer |
Buy Now |
| 20 |
86276780 |
Screw |
Buy Now |
| 21 |
86276490 |
Screw |
Buy Now |
| 22 |
86273740 |
Screw |
Buy Now |
| 23 |
86264940 |
Cable Tie |
Buy Now |
| 24 |
86233120 |
Clamp |
Buy Now |
| 25 |
86173330 |
Washer |
Buy Now |
| 26 |
86172980 |
Screw |
Buy Now |
| 27 |
86010670 |
Washer |
Buy Now |
| 28 |
86005810 |
Nut |
Buy Now |
| 29 |
86005620 |
Nut |
Buy Now |
| 30 |
86002830 |
Cable Tie |
Buy Now |
| 31 |
86409370 |
Gasket |
Buy Now |

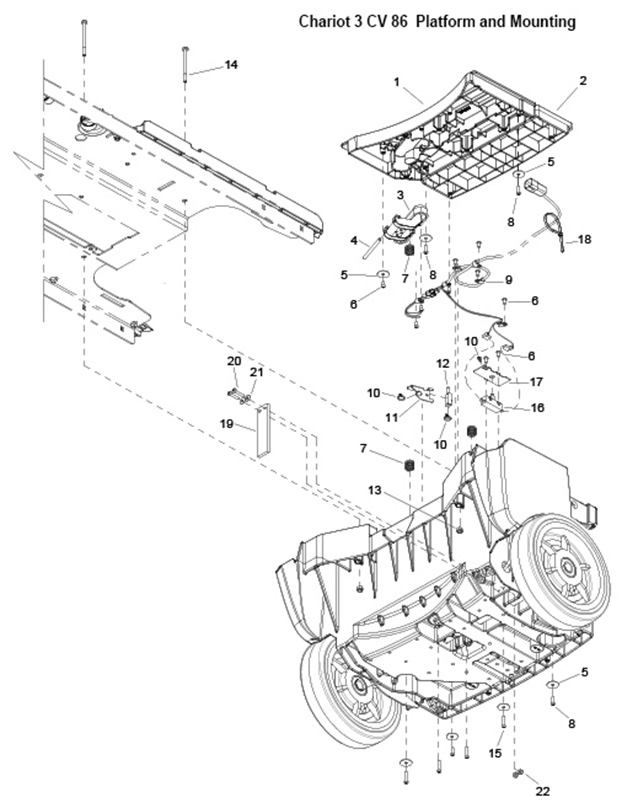

Platform and Mounting
Windsor Chariot 3 CV 86 Platform and Mounting
Platform and Wheels
Windsor Chariot 3 CV 86 Platform and Wheels
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86361130 |
Platform Support Plate |
Call to Order |
| 2 |
86271840 |
Nut |
Buy Now |
| 3 |
86361140 |
Spacer |
Call to Order |
| 4 |
86408920 |
Platform |
Call to Order |
| 5 |
86361120 |
Collar |
Buy Now |
| 6 |
86357990 |
Axle Rear |
Buy Now |
| 7 |
86008710 |
Washer |
Buy Now |
| 8 |
86322590 |
Wheel |
Buy Now |
| 9 |
86326490 |
Screw |
Buy Now |
| 10 |
86361150 |
Tank Support Plate |
Call to Order |
| 11 |
86224320 |
Spacer Washer |
Buy Now |
Rear Cover
Windsor Chariot 3 CV 86 Rear Cover
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86277620 |
Screw |
Buy Now |
| 2 |
86161800 |
Snap Fastener |
Buy Now |
| 3 |
86399960 |
Rear Cover Panel |
Buy Now |
| 4 |
86272020 |
Nut |
Buy Now |

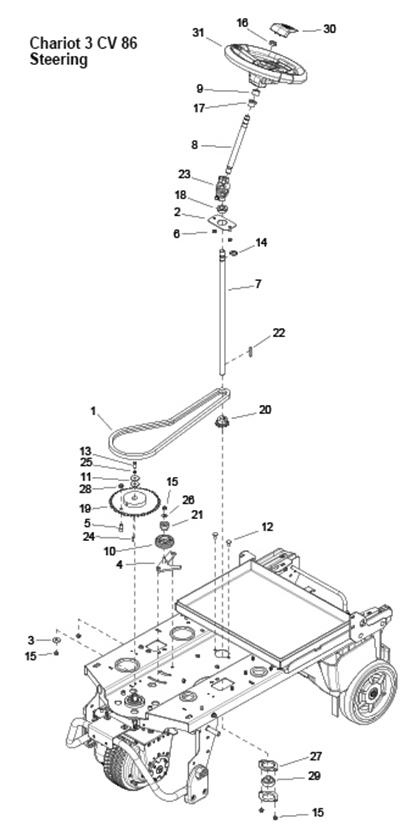

Steering
Windsor Chariot 3 CV 86 Steering
Vacuum
Windsor Chariot 3 CV 86 Vacuum
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86414350 |
Bag Support Bracket |
Call to Order |
| 2 |
86409360 |
Gasket |
Buy Now |
| 3 |
86408980 |
Spacer |
Buy Now |
| 4 |
86408970 |
Spacer |
Buy Now |
| 5 |
86408750 |
Gasket |
Buy Now |
| 6 |
86408740 |
Vacuum Chamber Gasket |
Buy Now |
| 7 |
86408720 |
Vacuum Mount Plate |
Buy Now |
| 8 |
86408710 |
Vacuum Intake Filter |
Buy Now |
| 9 |
86408700 |
Vac Motor Assembly |
Buy Now |
| 10 |
86408690 |
Vacuum Motor Mount |
Call to Order |
| 11 |
86371410 |
Screw |
Buy Now |
| 12 |
86360310 |
Nut |
Buy Now |
| 13 |
86346530 |
Nut |
Call to Order |
| 14 |
86281030 |
Hose |
Buy Now |
| 15 |
86264940 |
Cable Tie |
Buy Now |
| 16 |
86257160 |
Switch Vacuum |
Buy Now |
| 17 |
86247660 |
Sound Muffler |
Buy Now |
| 18 |
86236190 |
Muffler Adapter Fitting |
Buy Now |
| 19 |
86173330 |
Washer |
Buy Now |
| 20 |
86002830 |
Cable Tie |
Buy Now |
| 21 |
86002380 |
Clamp |
Buy Now |
Wiring Batteries 1

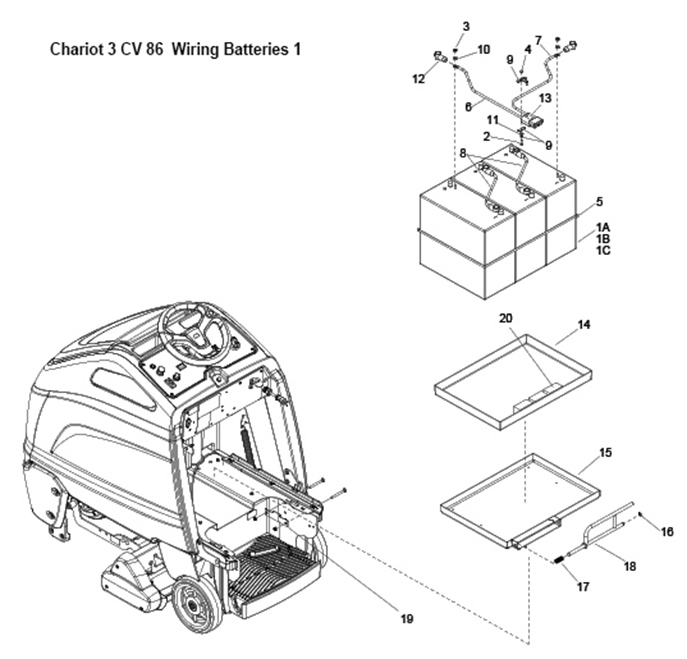

Windsor Chariot 3 CV 86 Wiring Batteries 1
Wiring Batteries 2
Windsor Chariot 3 CV 86 Wiring Batteries 2

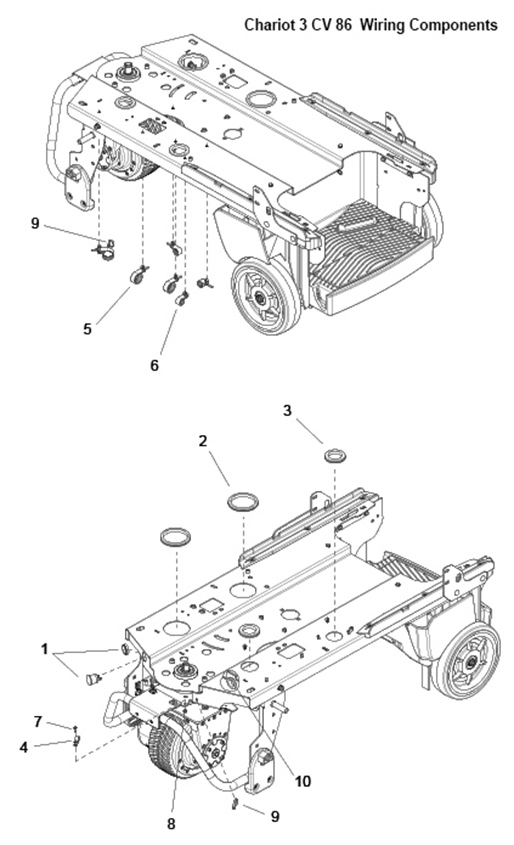

Wiring Components
Windsor Chariot 3 CV 86 Wiring Components
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86239720 |
Horn |
Buy Now |
| 2 |
86238450 |
Grommet |
Buy Now |
| 3 |
86238500 |
Grommet |
Call to Order |
| 4 |
86198460 |
Clamp |
Call to Order |
| 5 |
86361220 |
Clamp |
Call to Order |
| 6 |
86361230 |
Clamp |
Call to Order |
| 7 |
86006980 |
Screw |
Buy Now |
| 8 |
86270990 |
Nut |
Buy Now |
| 9 |
86264940 |
Cable Tie |
Buy Now |
| 10 |
86238430 |
Grommet |
Buy Now |
Battery Exchange 1
Windsor Chariot 3 CV 86 Battery Exchange 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86359450 |
Bracket |
Call to Order |
| 2 |
86359400 |
Tray Catch Bracket |
Call to Order |
| 3 |
86359390 |
Bracket |
Call to Order |
| 4 |
86359380 |
Frame Assembly |
Call to Order |
| 5 |
86358190 |
Battery Tray Glide |
Buy Now |
| 6 |
86277470 |
Screw |
Buy Now |
| 7 |
86276790 |
Screw |
Buy Now |
| 8 |
86276710 |
Screw |
Buy Now |
| 9 |
86276690 |
Screw |
Buy Now |
| 10 |
86276070 |
Screw |
Buy Now |
| 11 |
86270830 |
Nut |
Buy Now |
| 12 |
86259420 |
Washer |
Buy Now |
| 13 |
86254890 |
Spring |
Buy Now |
| 14 |
86232590 |
Caster |
Buy Now |
| 15 |
86231090 |
Rubber Bumper |
Buy Now |
| 16 |
86228840 |
Bearing |
Buy Now |
| 17 |
86199430 |
Caster |
Buy Now |
| 18 |
86078890 |
Caster Spacer Plate |
Call to Order |
| 19 |
86076600 |
Battery Cart Handle |
Call to Order |
| 20 |
86011020 |
Wheel |
Buy Now |
| 21 |
86010670 |
Washer |
Buy Now |
| 22 |
86007020 |
Screw |
Buy Now |
| 23 |
86400810 |
Screw |
Buy Now |
| 24 |
86004070 |
Polisher Handle Grip |
Buy Now |
| 25 |
86001350 |
Spanner Bushing |
Buy Now |
| 26 |
86244280 |
Battery Cart Operation Label |
Call to Order |
Battery Exchange 2
Windsor Chariot 3 CV 86 Battery Exchange 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86359440 |
Bracket Pedal |
Call to Order |
| 2 |
86359430 |
Latch Link Plate |
Call to Order |
| 3 |
86359420 |
Pedal Link Plate |
Call to Order |
| 4 |
86359410 |
Latch Plate |
Call to Order |
| 5 |
86277470 |
Screw |
Buy Now |
| 6 |
86276070 |
Screw |
Buy Now |
| 7 |
86270830 |
Nut |
Buy Now |
| 8 |
86259420 |
Washer |
Buy Now |
| 9 |
86259410 |
Washer |
Buy Now |
| 10 |
86259400 |
Washer |
Buy Now |
| 11 |
86254280 |
Spacer |
Buy Now |
| 12 |
86231150 |
Bearing |
Buy Now |
| 13 |
86228840 |
Bearing |
Buy Now |
| 14 |
86226830 |
Spring |
Buy Now |
| 15 |
86010670 |
Washer |
Buy Now |
| 16 |
86007020 |
Screw |
Buy Now |
| 17 |
86006560 |
Screw |
Buy Now |

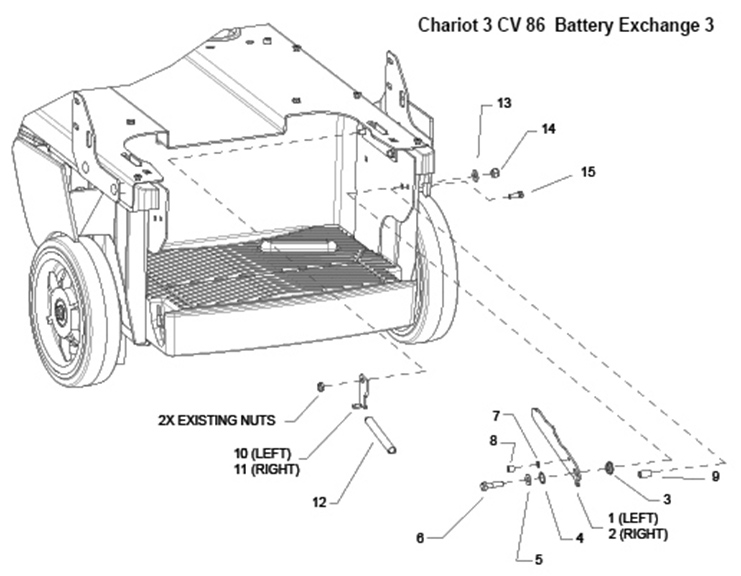

Battery Exchange 3
Windsor Chariot 3 CV 86 Battery Exchange 3
Onboard Charger
Windsor Chariot 3 CV 86 Onboard Charger
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86403910 |
Plate Mount |
Call to Order |
| 2 |
86371540 |
Interrupt Wire |
Call to Order |
| 3 |
86371530 |
Terminal Wire |
Call to Order |
| 4 |
86371520 |
Terminal Wire |
Call to Order |
| 5 |
86366080 |
Standoff |
Call to Order |
| 6 |
86363800 |
Cord Assembly |
Buy Now |
| 7 |
86005700 |
Nut |
Buy Now |
| 8 |
86005670 |
Nut |
Buy Now |
| 9 |
86360460 |
Charger |
Buy Now |
| 10 |
86307990 |
Wire |
Call to Order |
| 11 |
86277640 |
Screw |
Buy Now |
| 12 |
86264940 |
Cable Tie |
Buy Now |
| 13 |
86256180 |
Strain Relief |
Buy Now |
| 14 |
86255910 |
Standoff |
Buy Now |
| 15 |
86006850 |
Screw |
Buy Now |
| 16 |
86005710 |
Nut |
Buy Now |
