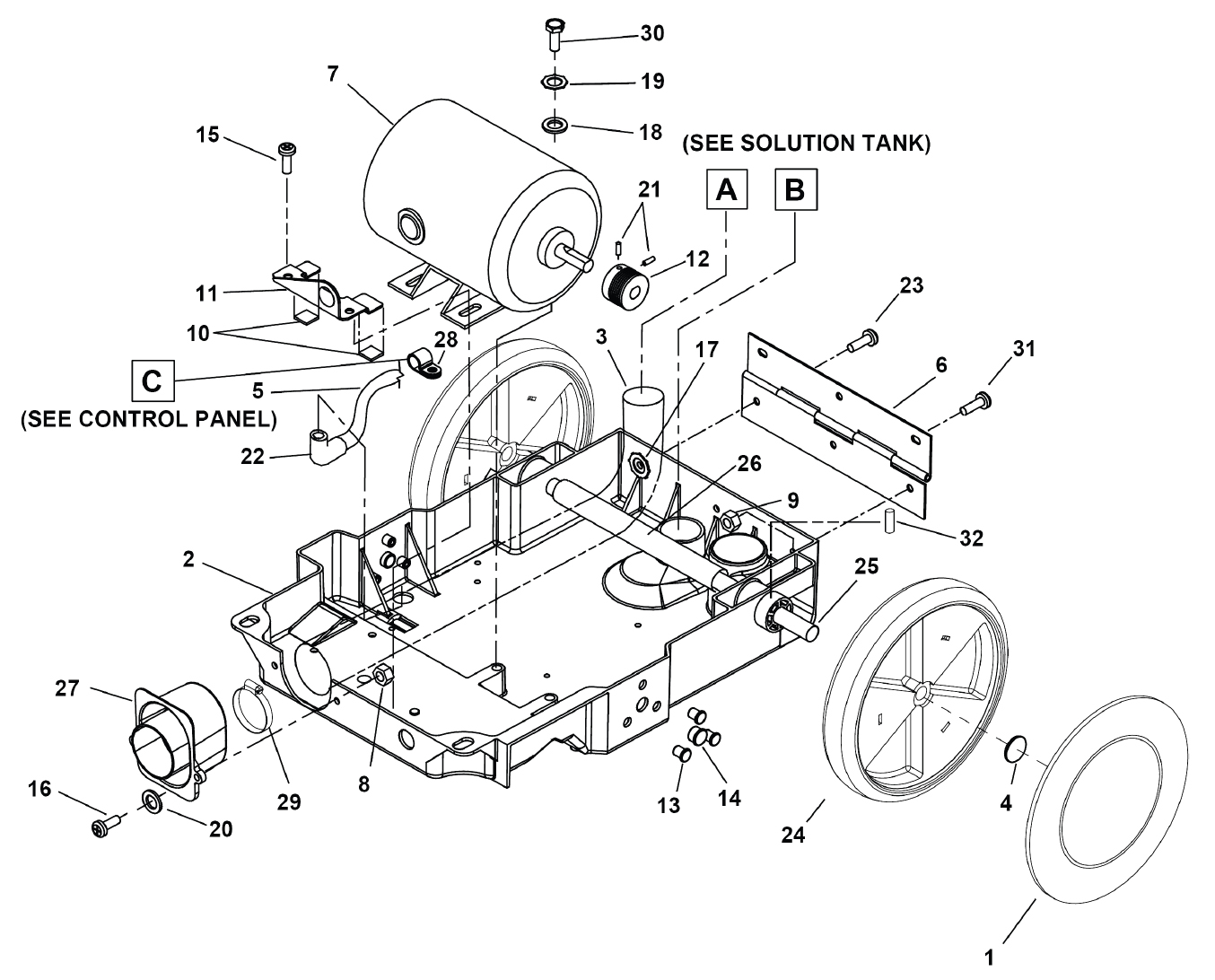

Frame Assembly
Windsor Admiral 8 Frame Assembly
Brush Assembly
Windsor Admiral 8 Brush Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86000730 |
Roller Axle |
Buy Now |
| 2 |
86228890 |
Bearing |
Buy Now |
| 3 |
86319050 |
Sheilded Bearing |
Buy Now |
| 4 |
86001100 |
Extractor Belt |
Buy Now |
| 5 |
86227150 |
Machined Brush Adapter |
Buy Now |
| 6 |
86001300 |
Brush Pulley Bracket |
Buy Now |
| 7 |
86001310 |
Brush Height Bracket |
Buy Now |
| 8 |
86008650 |
Pin, Cotter Ring |
Buy Now |
| 9 |
86342240 |
Spacer |
Buy Now |
| 10 |
86004470 |
15in Brush Housing |
Buy Now |
| 11 |
86396740 |
Brush Height Label |
Call to Order |
| 12 |
87589340 |
Brush Height Linkage |
Buy Now |
| 13 |
87589350 |
Roller Support Linkage Assembly |
Call to Order |
| 14 |
89293340 |
Extractor Front Roller Link |
Buy Now |
| 15 |
86005130 |
Height Adjustment Lever |
Buy Now |
| 16 |
86005640 |
Hexagon Nylock Nut |
Buy Now |
| 17 |
86005850 |
Nut |
Buy Now |
| 18 |
86249410 |
Brush Housing RH Plate |
Buy Now |
| 19 |
86249420 |
Brush Housing LH Plate |
Buy Now |
| 20 |
86005930 |
Axle Retainer Plate |
Buy Now |
| 21 |
86250680 |
Pulley |
Buy Now |
| 22 |
86006220 |
Roll Pin |
Buy Now |
| 23 |
86006430 |
Roller |
Buy Now |
| 24 |
86006510 |
Screw |
Buy Now |
| 25 |
86006590 |
Screw |
Buy Now |
| 26 |
86006650 |
Screw |
Buy Now |
| 27 |
86006700 |
Screw |
Buy Now |
| 28 |
86275530 |
Screw |
Buy Now |
| 29 |
86010640 |
Lock Star Washer |
Buy Now |
| 30 |
86010650 |
Washer |
Buy Now |
| 31 |
86007030 |
Screw |
Buy Now |
| 32 |
86230620 |
Brush |
Buy Now |
| 33 |
86251710 |
Tolerance Ring |
Buy Now |
| 34 |
86003070 |
Bearing Clip |
Buy Now |
| 35 |
86003370 |
Brush Driver |
Buy Now |
| 36 |
86278330 |
Shoulder Bolt |
Buy Now |
| 37 |
86272770 |
Snap Ring |
Buy Now |
| 38 |
86272510 |
Clevis Pin |
Buy Now |
| 39 |
86006030 |
Rue Cotter Ring |
Buy Now |
| 40 |
86003390 |
Pinion Complete brush |
Buy Now |
| 41 |
86001140 |
Brush Pulley Assembly |
Buy Now |
| 42 |
86004750 |
Adapter Kit |
Buy Now |

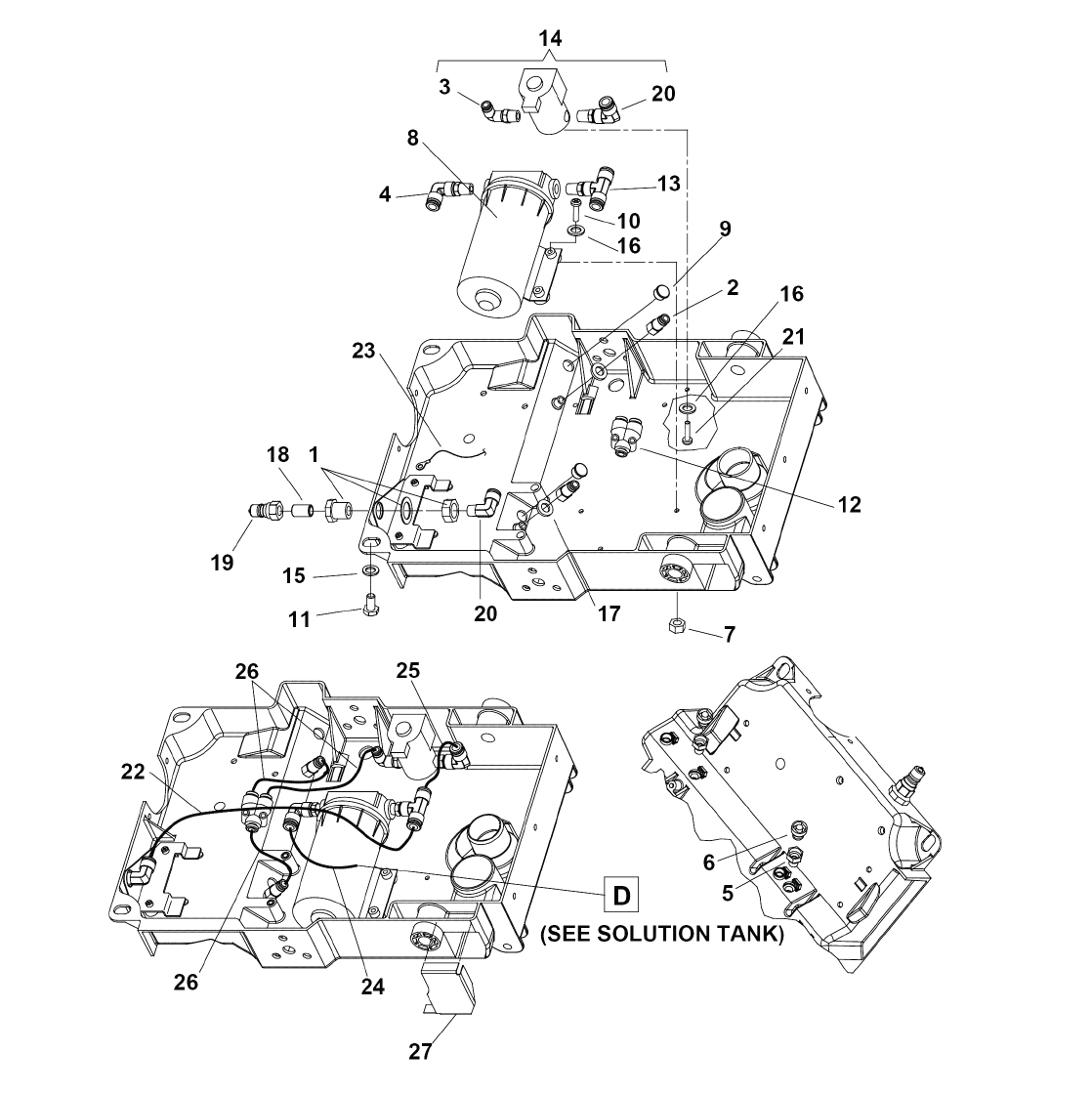

Pump Assembly
Windsor Admiral 8 Pump Assembly
Vacuum Shoe
Windsor Admiral 8 Pump Assembly

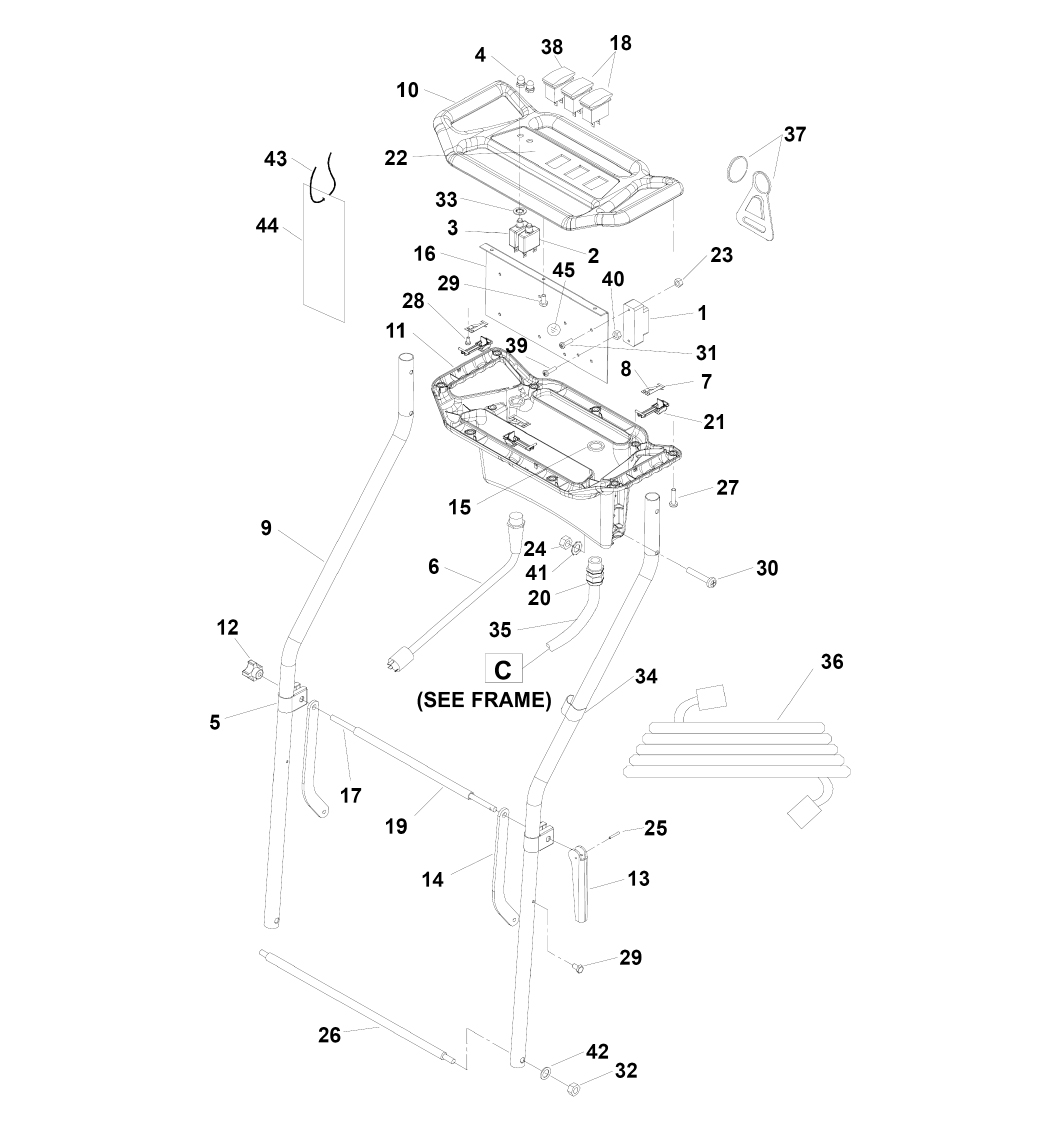

Control Panel
Windsor Admiral 8 Control Panel
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86001240 |
Extractor Terminal Block |
Buy Now |
| 2 |
86001980 |
Extractor Breaker |
Buy Now |
| 3 |
86230210 |
Extractor Breaker |
Buy Now |
| 4 |
86002010 |
Circuit Breaker Boot |
Buy Now |
| 5 |
86233240 |
Handle Lock Clamp |
Buy Now |
| 6 |
86234320 |
Extractor Cord Assembly |
Buy Now |
| 7 |
86003130 |
Electrical Contact, Flat |
Buy Now |
| 8 |
86003140 |
Electrical Contact, Bent |
Buy Now |
| 9 |
86076550 |
Handle |
Buy Now |
| 10 |
86004100 |
Handle, Control Panel Front |
Buy Now |
| 11 |
86004110 |
Handle, Control Panel Rear |
Buy Now |
| 12 |
86004790 |
Knob |
Buy Now |
| 13 |
86246300 |
Handle Clamp Lever |
Buy Now |
| 14 |
89293360 |
Handle Adjustment Link |
Buy Now |
| 15 |
86005670 |
Conduit Nut |
Buy Now |
| 16 |
86081530 |
Control Panel Plate |
Buy Now |
| 17 |
86264270 |
Handle Lock Rod |
Buy Now |
| 18 |
86007140 |
Rocker Switch |
Buy Now |
| 19 |
86087410 |
Spacer |
Buy Now |
| 20 |
86256180 |
Strain Relief |
Buy Now |
| 21 |
86401390 |
Switch Trigger |
Buy Now |
| 22 |
86395800 |
Control Panel Label |
Buy Now |
| 23 |
86005760 |
Extractor Nut with Star Washer |
Buy Now |
| 24 |
86005810 |
Nut |
Buy Now |
| 25 |
86272190 |
Roll Pin |
Buy Now |
| 26 |
86227650 |
Handle Axle |
Buy Now |
| 27 |
86006870 |
Screw |
Buy Now |
| 28 |
86006620 |
Stainless Steel Screw |
Buy Now |
| 29 |
86006790 |
Screw |
Buy Now |
| 30 |
86274150 |
Screw |
Buy Now |
| 31 |
86006710 |
Nylon Screw |
Buy Now |
| 32 |
86005750 |
Hexagon Nut |
Buy Now |
| 33 |
86010750 |
Extractor Lock Thin Washer |
Buy Now |
| 34 |
86198480 |
Power Cord Clip |
Buy Now |
| 35 |
86238820 |
Harness Main |
Buy Now |
| 36 |
86234110 |
Cord |
Buy Now |
| 37 |
86272840 |
Split Ring |
Buy Now |
| 38 |
86007200 |
Switch, rocker |
Buy Now |
| 39 |
86006830 |
Screw |
Buy Now |
| 40 |
86005700 |
Nut |
Buy Now |
| 41 |
86005700 |
Nut |
Buy Now |
| 42 |
86010670 |
Washer |
Buy Now |
| 43 |
86002870 |
Cord |
Buy Now |
| 45 |
86245040 |
Ground Symbol Label |
Buy Now |
Solution Tank
Windsor Admiral 8 Solution Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86233140 |
Clamp |
Buy Now |
| 2 |
86233150 |
Hose Clamp |
Buy Now |
| 3 |
86003080 |
Vacuum Motor Cover |
Buy Now |
| 4 |
86003090 |
Belt Cover |
Buy Now |
| 5 |
86235500 |
Plastic Elbow Tube |
Buy Now |
| 6 |
86003790 |
Gasket |
Buy Now |
| 7 |
86003920 |
Vacuum Cover Gasket |
Buy Now |
| 8 |
86281880 |
Clear Hose |
Buy Now |
| 9 |
86240090 |
Hose |
Buy Now |
| 10 |
86004340 |
Vacuum Hose Assembly |
Buy Now |
| 11 |
86240980 |
Motor Housing |
Buy Now |
| 12 |
86026880 |
Vacuum Motor Assembly |
Buy Now |
| 12a |
86135340 |
Brush Set |
Buy Now |
| 13 |
86275690 |
Screw |
Buy Now |
| 14 |
86032260 |
Admiral Solution Tank |
Buy Now |
| 15 |
86259060 |
Cooling Air Vent |
Buy Now |
| 16 |
86010650 |
Washer |
Buy Now |
| 17 |
86007970 |
Mesh Strainer |
Buy Now |
| 18 |
86010630 |
Washer |
Buy Now |
| 19 |
86223740 |
Screw |
Buy Now |
| 20 |
86233260 |
Clamp |
Buy Now |
| 21 |
86003950 |
Tank Gasket |
Buy Now |
| 22 |
86003960 |
Tank Gasket |
Buy Now |
| 23 |
86003970 |
Tank Gasket Right Hand |
Buy Now |
| 24 |
86197940 |
Hose Barb |
Buy Now |
| 25 |
86275120 |
Screw |
Buy Now |
| 26 |
86010660 |
Washer |
Buy Now |
| 27 |
86006600 |
Screw |
Buy Now |
| 28 |
87589360 |
Handle Pivot Weldment |
Call to Order> |
| 29 |
86271870 |
Nut |
Buy Now |
| 30 |
86260690 |
Fill Hose Assembly |
Buy Now |
| 31 |
86233090 |
Hose Clamp |
Buy Now |
| 32 |
86197920 |
Hose Barb |
Buy Now |
| 33 |
86026670 |
Hose Barb |
Buy Now |
| 34 |
86395790 |
Label |
Call to Order> |
| 35 |
86395400 |
Label |
Call to Order> |
Recovery Tank
Windsor Admiral 8 Recovery Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86002400 |
Clamp |
Buy Now |
| 2 |
86233140 |
Clamp |
Buy Now |
| 3 |
86003330 |
Clamp |
Buy Now |
| 4 |
86003110 |
Recovery Tank Cover |
Buy Now |
| 5 |
86235280 |
Dome |
Buy Now |
| 6 |
86003630 |
Shut-Off Float |
Buy Now |
| 7 |
86003910 |
Dome Gasket |
Buy Now |
| 8 |
86003930 |
Port Cover Gasket |
Buy Now |
| 9 |
86004200 |
Drain Hose |
Buy Now |
| 10 |
86004510 |
Insert Hose |
Buy Now |
| 11 |
86004500 |
Hose Cap |
Buy Now |
| 12 |
86006600 |
Screw |
Buy Now |
| 13 |
86032270 |
Recovery Tank |
Buy Now |
| 14 |
86001370 |
Hose Hook Bracket |
Buy Now |
| 15 |
86002870 |
Cord |
Buy Now |
| 16 |
86431490 |
Label |
Call to Order
|
