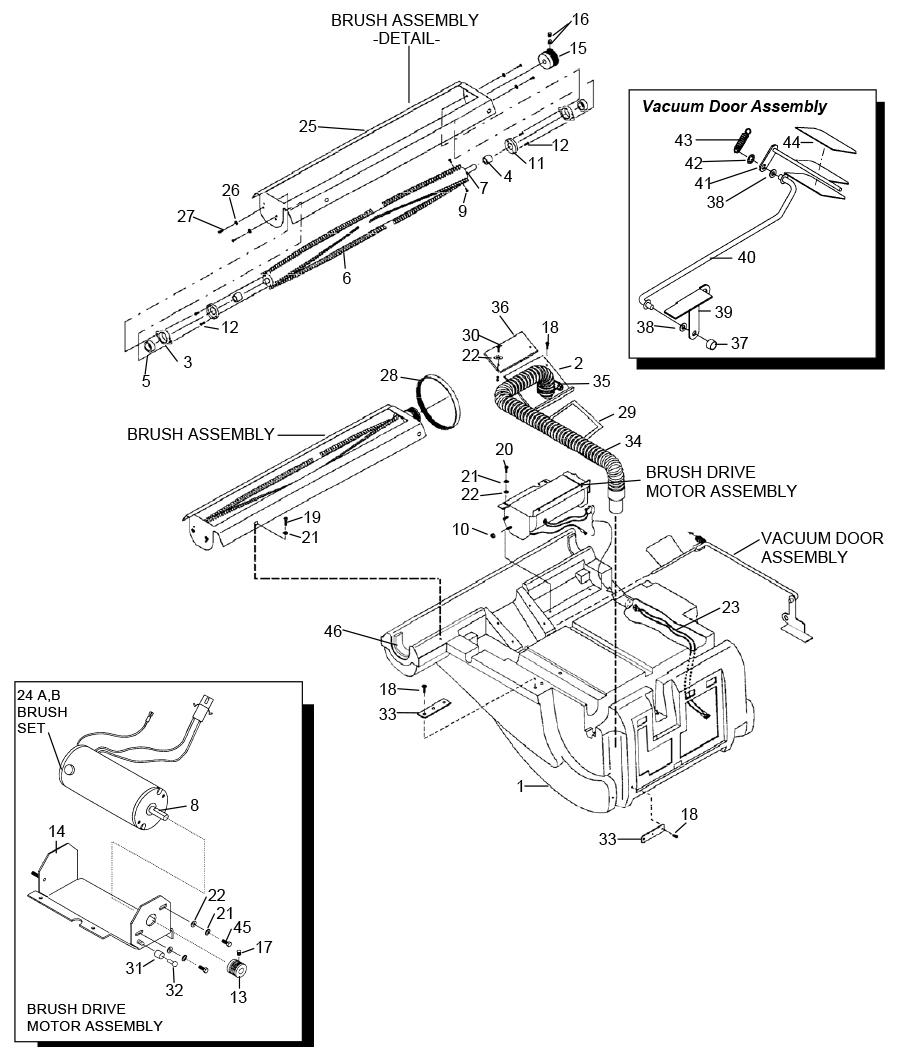

Brush & Drive

Windsor Wave Brush & Drive

Windsor Wave Brush & Drive

Reference # Part # Description Add to Cart
1 86031700 Wave Body Buy Now
2 86011010 Hose Connect Weldment Buy Now
3 86229050 Bearing Block Buy Now
4 86008210 Spacer Buy Now
5 86000900 Bearing Buy Now
6 86001130 Brush Buy Now
7 86000740 Axle Buy Now
8 86026100 Brush Drive Motor Buy Now
9 86006510 Screw Buy Now
10 86005710 Hexagon w/ Star Washer Nut Buy Now
11 86004080 Thread Guard Buy Now
12 86007060 Screw Buy Now
13 86250420 Motor Pulley Buy Now
14 86081840 Motor Mounting Plate Buy Now
15 86006040 Pulley Brush Buy Now
16 86277930 Set Screw Buy Now
17 86006550 Set Screw Buy Now
18 86006600 Screw Buy Now
19 86276700 Screw Buy Now
20 86275570 Screw Buy Now
21 86010660 Washer Buy Now
22 86010740 Washer Buy Now
23 86010840 Brush Motor Wire Assembly Buy Now
24 86001250 Motor Brush Set Buy Now
25 86087030 Vac Shoe Buy Now
26 86010640 Lock Star Washer Buy Now
27 86006800 Screw Buy Now
28 86001090 Belt Buy Now
29 86198530 Gasket Foam Tape Buy Now
30 86276040 Screw Buy Now
31 86008200 Spacer Buy Now
32 86005860 Nut Buy Now
33 86080950 Vac Hose Retainer Plate Buy Now
34 86004270 Black Vacuum Hose Assembly Buy Now
35 86002380 Worm Gear Clamp Buy Now
36 86006300 Access Plate Buy Now
37 86002810 Shaft Collar Buy Now
38 86010680 Washer Buy Now
39 86006280 Pedal Buy Now
40 86005060 Linkage Buy Now
41 86003380 Flapper Door Buy Now
42 86270910 Nut Buy Now
43 86007690 Spring Buy Now
44 86305040 Flapper Gasket Buy Now
45 86274750 Screw Buy Now
46 86133710 Tape Buy Now

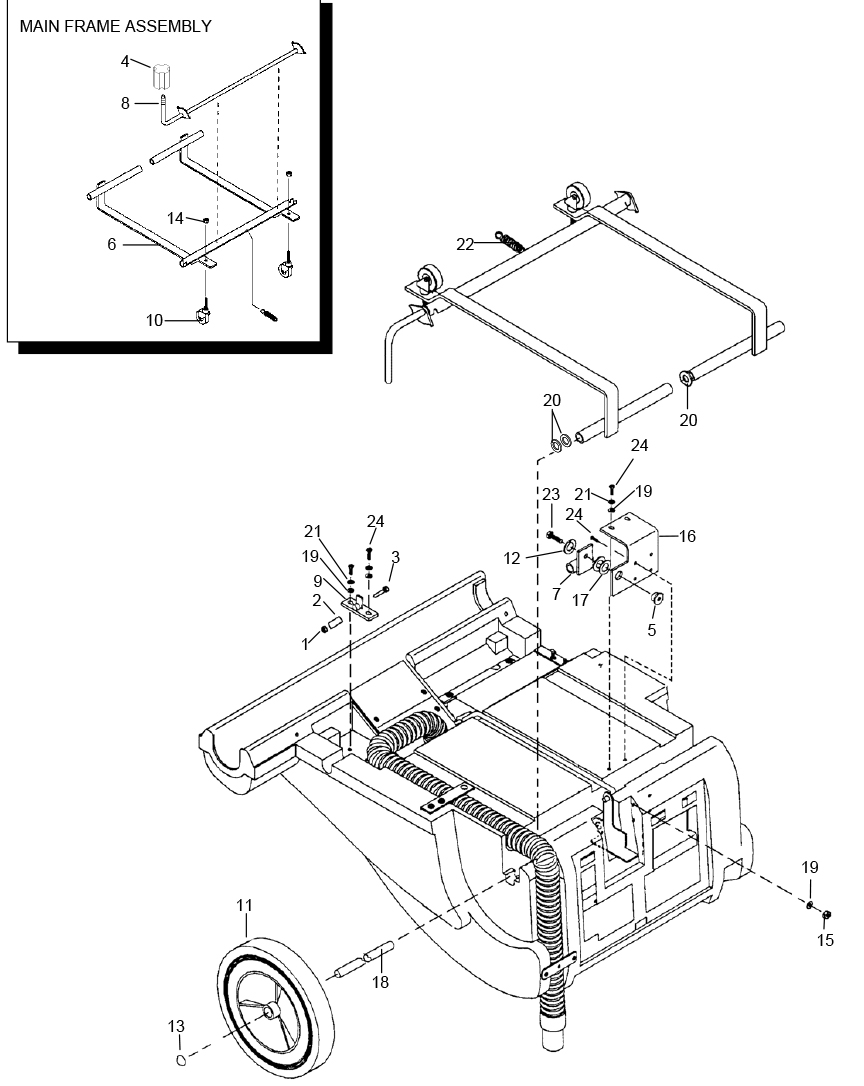

Brush Height & Wheels

Windsor Wave Brush Height & Wheels

Windsor Wave Brush Height & Wheels

Reference # Part # Description Add to Cart
1 86005860 Nut Buy Now
2 86008200 Spacer Buy Now
3 86006660 Screw Buy Now
4 86008750 Knob Buy Now
5 86001170 Bushing Buy Now
6 86279290 Frame Weldment Buy Now
7 86001220 Axle Hanger Bracket Buy Now
8 86091480 Height Adjustment Bar Buy Now
9 86092030 Height Adjustment Right Bracket Buy Now
10 86010910 Caster Wheel Buy Now
11 86259960 Wheel Buy Now
12 86010790 Washer Buy Now
13 86001660 Hubcap Buy Now
14 86270880 Nut Buy Now
15 86005680 Nut Buy Now
16 86080800 Axle Mounting Plate Buy Now
17 86279420 Washer Buy Now
18 86000390 Rod Buy Now
19 86010740 Washer Buy Now
20 86010730 Washer Buy Now
21 86010660 Washer Buy Now
22 86007740 Spring Buy Now
23 86006920 Screw Buy Now
24 86275570 Screw Buy Now

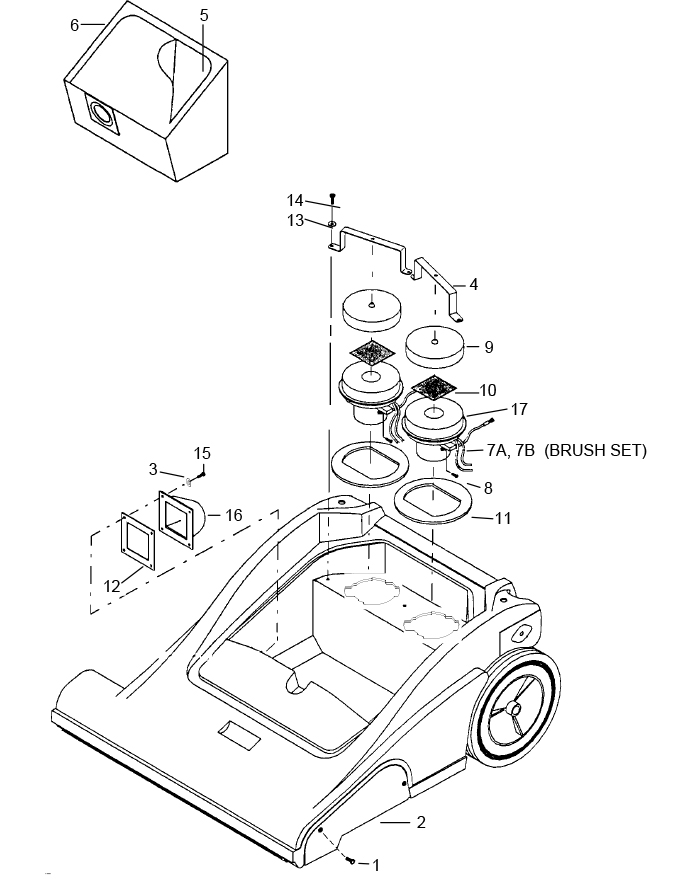

Vacuum

Windsor Wave Vacuum

Windsor Wave Vacuum

Reference # Part # Description Add to Cart
1 86276040 Screw Buy Now
2 86394070 Belt Guard Buy Now
3 86010650 Washer Buy Now
4 86068760 Vacuum Motor Mounting Bracket Buy Now
5 86215090 Paper Bag Buy Now
6 86001200 Cloth Bag Buy Now
7 86135260 Vacuum Motor Brush Set Buy Now
8 86006770 Screw Buy Now
9 86003510 Wave Filter Buy Now
10 86086800 Screen Buy Now
11 86237580 Gasket Buy Now
12 86003820 Filter Bag Neck Gasket Buy Now
13 86010660 Washer Buy Now
14 86275570 Screw Buy Now
15 86299320 Screw Call to Order
16 86062690 Debris Chute Buy Now
17 86026850 Vac Motor Buy Now





Handle

Windsor Wave Handle

Windsor Wave Handle

Reference # Part # Description Add to Cart
1 86274640 Screw Buy Now
2 86076510 Main Handle Buy Now
3 86268300 Wire Buy Now
4 86091470 Brush Switch Bar Assembly Buy Now
5 86069190 Switch Mounting Bracket Buy Now
6 86198480 Power Cord Clip Buy Now
7 86004490 Wand Holster Buy Now
8 86246320 Handle Lock Lever Buy Now
9 86238290 Handle Adjustment Grip Buy Now
10 86005630 Nut Buy Now
11 86005710 Hexagon w/ Star Washer Nut Buy Now
12 86008650 Rue Cotter Ring Buy Now
13 86272300 Clevis Pin Buy Now
14 86005020 Handle Adjustment Lock Buy Now
15 86006380 Handle Adjustment Rod Buy Now
16 86256170 Cord Hook Strain Relief Buy Now
17 86005050 Handle Lock Buy Now
18 86010710 Washer Buy Now
19 86271240 Cap Nut Buy Now
20 86007050 Screw Buy Now
21 86006720 Screw Buy Now
22 86006800 Screw Buy Now
23 86007100 Switch Buy Now
24 86007820 Spacer Buy Now
25 86255250 Torsion Spring Buy Now
26 86089370 Handle Adjustment Tube Buy Now
27 86010640 Lock Star Washer Buy Now
28 86010650 Washer Buy Now
29 86010690 Washer Buy Now
30 86006510 Screw Buy Now
31 86271280 Nut Buy Now
32 86249500 Switch Box Insulator Plate Buy Now
33 86146430 Spring Steel Lever Buy Now
34 86006810 Screw Buy Now
35 86007010 Screw Buy Now
36 86010660 Washer Buy Now
37 86279220 Nut Buy Now

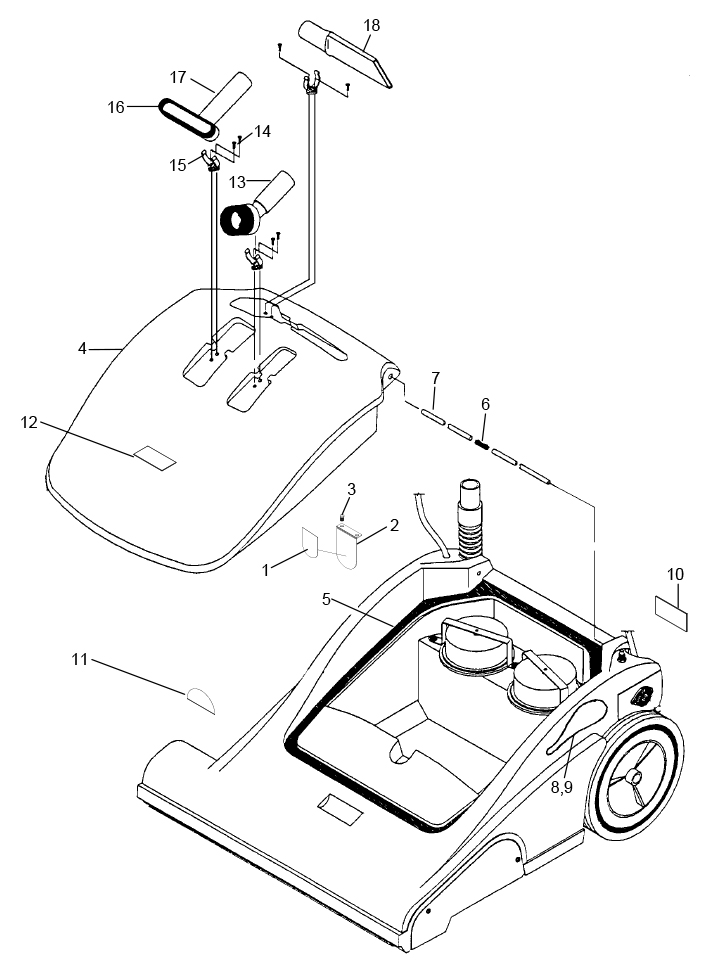

Lid & Decals

Windsor NuWave Decals

Windsor Wave Lid & Decals

Reference # Part # Description Add to Cart
1 86003780 Access Port Cover Gasket Buy Now
2 86234760 Accessory Port Cover Buy Now
3 86006500 Screw Buy Now
4 86031930 Lid Buy Now
5 86237590 Foam Gasket Buy Now
6 86255240 Spring Buy Now
7 86006290 Pin Buy Now
8 86245590 Label Right Call to Order
9 86245580 Label Left Call to Order
10 86246560 Warning Label Call to Order
11 86245620 Brush Height Adjustment Lable Buy Now
12 86245600 Windsor Label Call to Order
13 86000070 Dust Brush Buy Now
14 86274520 Screw Buy Now
15 86002990 Plastic Clip Buy Now
16 86283600 86283600 Buy Now
17 86000080 Upholstery Tool Buy Now
18- 86000160 Crevice Tool Call to Order

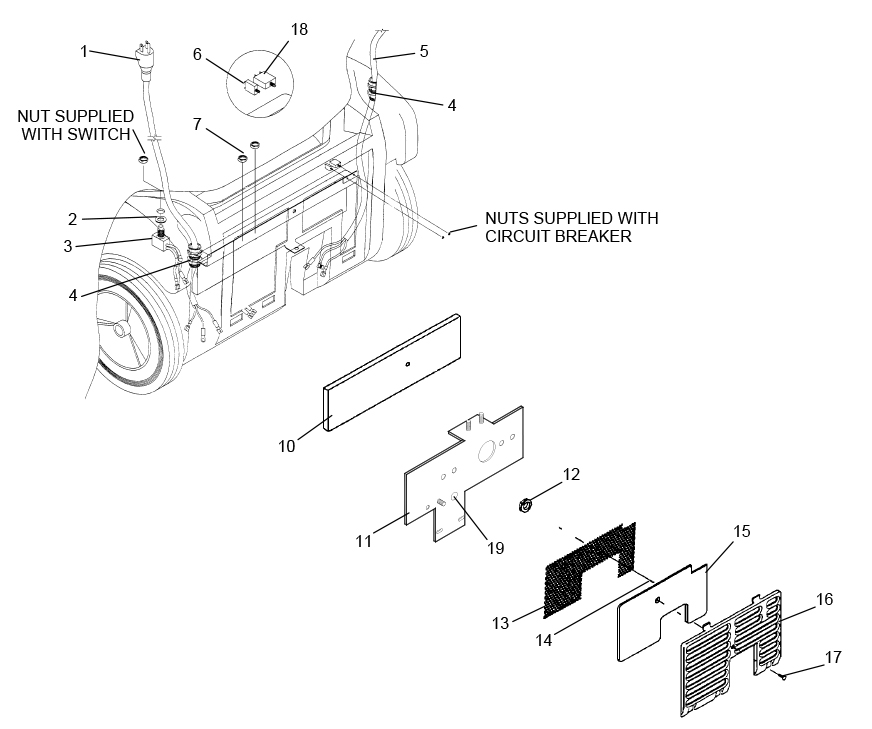

Electrical

Windsor NuWave Frame

Windsor Wave Electrical

Reference # Part # Description Add to Cart
1 86234300 Cord Assembly Buy Now
2 86279220 Washer Buy Now
3 86261560 Main Wiring Assembly Buy Now
4 86005670 Conduit Nut Buy Now
5 86261570 Brush, Handle, Switch Wiring Assembly Buy Now
6 86230120 Circuit Breaker Buy Now
7 86005680 Nut Buy Now
10 86003550 Foam Insulation Buy Now
11 86082750 Electrical Panel Plate Buy Now
12 86238400 Grommet Buy Now
13 86086830 Exhaust Screen Buy Now
14 86006500 Screw Buy Now
15 86236080 Exhaust Filter Buy Now
16 86063720 Rear Cover Buy Now
17 86172770 Screw Buy Now
18 86230050 Breaker, 3A Thermal Circuit Buy Now
19 86245040 Ground Symbol Label Buy Now
