BD 30/4 C BP
Gear Motor
BD 30/4 C BP Gear Motor
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7.305-052.0 |
Countersunk screw M6x12 -A2-70 (In6Rd) |
Call to Order |
| 2 |
6.670-136.0 |
Seal |
Call to Order |
| 3 |
6.670-137.0 |
Label |
Call to Order |
| 4 |
6.670-120.0 |
Brushes motor |
Call to Order |
| 5 |
6.670-138.0 |
Motor bracket |
Call to Order |
| 6 |
6.670-139.0 |
Flange |
Call to Order |
| 7 |
6.670-140.0 |
Tube |
Buy Now |
| 8 |
6.670-141.0 |
Shaft |
Call to Order |
| 9 |
6.670-142.0 |
Spacer sleeve |
Call to Order |
Suction Bar
BD 30/4 C BP Suction Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
7.304-460.0 |
Hexagonal head screw M5x16-A4-70 ISO 4017 |
Buy Now |
| 3 |
7.312-052.0 |
Washer 5 -A2 ISO 7089 |
Call to Order |
| 4 |
7.313-032.0 |
Spring washer A 5-Edelstahl DIN 128 |
Call to Order |
| 5 |
6.670-153.0 |
Bush |
Call to Order |
| 11 |
7.311-124.0 |
Hexagon nut M5 8-A2E ISO 7040 |
Call to Order |
| 12 |
7.312-282.0 |
Washer 5-A2 ISO 7093-1 |
Buy Now |
| 13 |
6.670-232.0 |
Oval head screw M5x25 |
Call to Order |
| 14 |
6.670-143.0 |
Bolt |
Call to Order |
| 15 |
6.670-144.0 |
Suction Bar Holder |
Buy Now |
| 16 |
6.670-145.0 |
Support Bar Body |
Call to Order |
| 17 |
6.670-146.0 |
Support Whee |
Buy Now |
| 110 |
6.670-149.0 |
Seal |
Buy Now |
| 111 |
6.670-150.0 |
Bush |
Call to Order |
| 112 |
6.670-151.0 |
Wing Screw |
Call to Order |
| 113 |
6.670-152.0 |
Spring |
Call to Order |
| 9000 |
6.670-234.0 |
Set Suction Lips |
Buy Now |
| 9000 |
6.670-235.0 |
Set Suction Lips Linatex |
Buy Now |
Suction Beam Retraction
BD 30/4 C BP Suction Beam Retraction
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7.305-048.0 |
Countersunk screw M5x12 -A2-70 (In6Rd) |
Call to Order |
| 2 |
7.311-022.0 |
Hexagon nut M 6-A2-70 ISO 7040 |
Call to Order |
| 3 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
Buy Now |
| 4 |
7.313-032.0 |
Spring washer A 5-Edelstahl DIN 128 |
Call to Order |
| 5 |
7.306-136.0 |
Cylinder head screw M 5x35-A4-70 ISO 47 |
Call to Order |
| 6 |
6.670-156.0 |
Cover Splash Guard |
Call to Order |
| 7 |
6.670-157.0 |
Coupler Bracket |
Call to Order |
| 8 |
6.670-158.0 |
Bracket |
Call to Order |
| 9 |
6.670-159.0 |
Plug |
Call to Order |
| 10 |
6.670-160.0 |
Bush |
Buy Now |
| 11 |
6.670-161.0 |
Seal D=70x1mm |
Call to Order |
Frame
BD 30/4 C BP Frame
| Reference # |
Part # |
Description |
Add to Cart |
| 3 |
7.304-536.0 |
Hexagonal head screw M10x40-8.8-A3E ISO |
Call to Order |
| 4 |
7.304-032.0 |
Hexagonal head screw M10x40-8.8-A3E ISO |
Call to Order |
| 5 |
7.306-180.0 |
Screw M5x10-A2-70 (In6Rd) |
Call to Order |
| 7 |
7.311-511.0 |
Hexagon nut M10-8-A2E ISO 7040 |
Call to Order |
| 9 |
7.312-292.0 |
Washer 6 -A2 ISO 7093-1 |
Buy Now |
| 10 |
7.312-116.0 |
Washer 10 -200HV-ZNSH ISO 7089 |
Call to Order |
| 12 |
7.311-422.0 |
Hexagon nut M 6-1.4305 ISO 10511 |
Call to Order |
| 14 |
7.306-180.0 |
Screw M5x10-A2-70 (In6Rd) |
Call to Order |
| 15 |
6.670-137.0 |
Label |
Call to Order |
| 16 |
7.306-203.0 |
Screw M3x8 -A2-70 ISO 14853 |
Buy Now |
| 17 |
6.670-212.0 |
Wheel |
Buy Now |
| 18 |
6.670-213.0 |
Cover Plate |
Buy Now |
| 21 |
6.670-214.0 |
Frame |
Buy Now |
| 23 |
6.670-216.0 |
Covering Cap |
Buy Now |
| 25 |
6.670-218.0 |
Cover Plate Hinge |
Buy Now |
| 26 |
6.670-219.0 |
Hinge |
Buy Now |
| 29 |
6.670-222.0 |
Clamp half |
Call to Order |
| 31 |
6.670-224.0 |
Bush |
Call to Order |
| 32 |
6.670-225.0 |
Bush |
Call to Order |
| 35 |
6.670-227.0 |
Spring |
Call to Order |
| 39 |
6.670-229.0 |
Limit stop |
Call to Order |
| 40 |
6.303-557.0 |
Screw 3x12 Kombitorx T8 |
Buy Now |
| 41 |
7.303-119.0 |
Countersunk screw 3x10 -10.9-R2R (In6Rd) |
Call to Order |
| 42 |
6.670-230.0 |
Bracket |
Call to Order |
| 210 |
6.670-208.0 |
Hand Grip |
Buy Now |
| 220 |
6.670-209.0 |
Stop Lever |
Buy Now |
| 230 |
6.670-210.0 |
Bar |
Buy Now |
| 240 |
6.670-211.0 |
Lock Washer |
Buy Now |
| 250 |
6.670-239.0 |
Rubber Seal |
Buy Now |

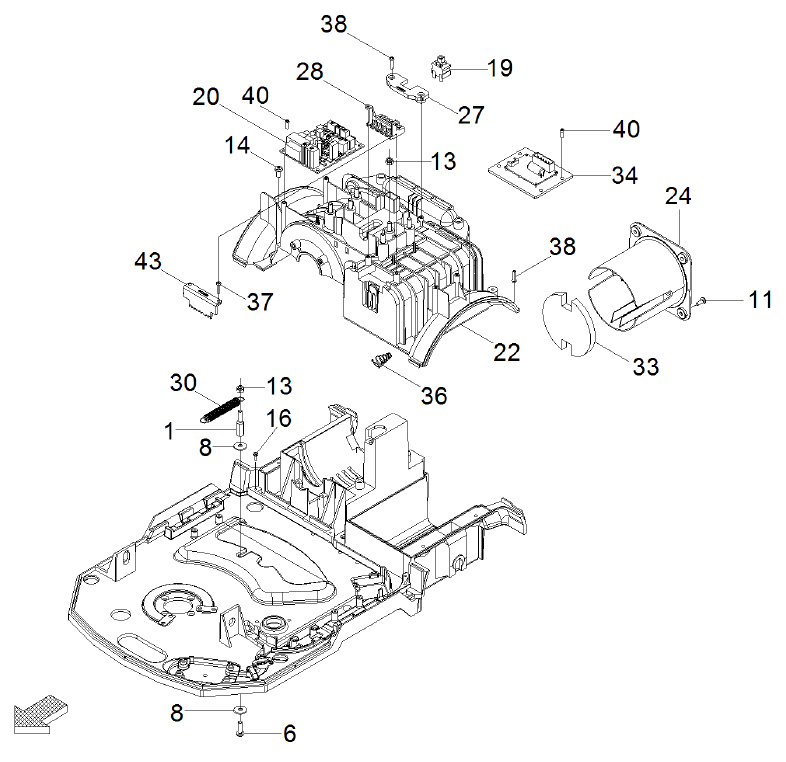

Frame 2
BD 30/4 C BP Frame 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
6.921-959.0 |
Joining piece with threaded M5 |
Call to Order |
| 6 |
7.306-182.0 |
Screw M5x16 -A2-70 ISO 14583 |
Call to Order |
| 8 |
7.312-282.0 |
Washer 5-A2 ISO 7093-1 |
Buy Now |
| 11 |
7.306-206.0 |
Screw M4x10 -A2-70 ISO 14583 |
Call to Order |
| 13 |
7.311-421.0 |
Hexagon nut M 5-04-A2E DIN 985 |
Call to Order |
| 14 |
7.306-180.0 |
Screw M5x10-A2-70 (In6Rd) |
Call to Order |
| 16 |
7.306-203.0 |
Screw M3x8 -A2-70 ISO 14853 |
Buy Now |
| 19 |
6.670-125.0 |
Switch on off |
Buy Now |
| 20 |
6.670-118.0 |
Control circuit board |
Buy Now |
| 22 |
6.670-215.0 |
Frame top part |
Call to Order |
| 24 |
6.670-217.0 |
Cover Plate |
Call to Order |
| 27 |
6.670-220.0 |
Bracket |
Call to Order |
| 28 |
6.670-221.0 |
Fixing device |
Call to Order |
| 30 |
6.670-223.0 |
Spring |
Call to Order |
| 33 |
6.670-226.0 |
Filter |
Call to Order |
| 34 |
6.670-119.0 |
Circuit board brush motor |
Call to Order |
| 36 |
6.670-228.0 |
Spring |
Call to Order |
| 37 |
7.303-102.0 |
Screw 3,5x12 -A2-70-bk (In6Rd) |
Buy Now |
| 38 |
7.303-206.0 |
Screw 3,5x16-10.9-P2R (In6Rd) |
Buy Now |
| 40 |
6.303-557.0 |
Screw 3x12 Kombitorx T8 |
Buy Now |
| 43 |
6.670-231.0 |
Clamp |
Call to Order |
Tank
BD 30/4 C BP Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
6.670-162.0 |
Valve |
Buy Now |
| 2 |
6.670-163.0 |
Cover Plate |
Buy Now |
| 3 |
6.670-164.0 |
Fresh Water Tank |
Buy Now |
| 4 |
6.670-165.0 |
Waste Water Tank |
Call to Order |
| 5 |
6.670-166.0 |
Cap Outflow |
Buy Now |
| 6 |
6.670-167.0 |
Cap Filling |
Buy Now |
| 7 |
7.303-102.0 |
Screw 3,5x12 -A2-70-bk (In6Rd) |
Buy Now |
| 8 |
7.312-067.0 |
Washer 4-A2 ISO 7089 |
Call to Order |
| 9 |
6.670-168.0 |
Spring |
Call to Order |
| 10 |
6.303-557.0 |
Screw 3x12 Kombitorx T8 |
Buy Now |
| 11 |
6.670-169.0 |
Covering Cap |
Buy Now |
| 12 |
6.670-116.0 |
Push Button |
Call to Order |
| 13 |
6.670-240.0 |
Flap Right |
Buy Now |
| 14 |
6.670-241.0 |
Flap Left |
Buy Now |
Cover Plate
BD 30/4 C BP Cover Plate
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
6.670-248.0 |
Float |
Buy Now |
Vacuum Motor
BD 30/4 C BP Vacuum Motor
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
7.306-180.0 |
Screw M5x10-A2-70 (In6Rd) |
Call to Order |
| 3 |
6.670-172.0 |
Seal |
Buy Now |
| 4 |
7.306-174.0 |
Cylinder head screw M 4x10-A4-70 DIN 91 |
Call to Order |
| 5 |
6.670-173.0 |
Suction connection |
Call to Order |
| 6 |
6.670-174.0 |
Suction tube |
Buy Now |
| 7 |
6.670-175.0 |
Bush |
Buy Now |
| 8 |
6.670-176.0 |
O-Ring seal |
Buy Now |
| 9 |
6.670-149.0 |
Seal |
Buy Now |
| 10 |
6.670-178.0 |
Suction hose |
Buy Now |
| 11 |
6.670-179.0 |
Covering cap turbine |
Call to Order |
| 110 |
6.670-170.0 |
Rubber bushing insulated |
Call to Order |
| 120 |
6.649-038.0 |
Cable tie 2,5x100 |
Call to Order |
| 130 |
6.670-171.0 |
Receptacle for tabs |
Call to Order |
| 140 |
6.670-122.0 |
Motor turbine |
Call to Order |
Water Pump
BD 30/4 C BP Water Pump
| Reference # |
Part # |
Description |
Add to Cart |
| 0 |
6.670-132.0 |
Set water pump BD 30/4 C |
Buy Now |
| 1 |
6.670-121.0 |
Water pump |
Buy Now |
| 2 |
6.670-237.0 |
Strainer fresh water tank |
Buy Now |
| 3 |
9.724-639.0 |
Valve fresh water |
Call to Order |
| 4 |
6.670-250.0 |
Temperature sensor |
Call to Order |
Handhold
BD 30/4 C BP Handhold
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7.306-134.0 |
Cylinder head screw M5x12 -A4-70 ISO 47 |
Call to Order |
| 2 |
7.306-131.0 |
Screw M6x45 -8.8-P2R (In6Rd) |
Call to Order |
| 3 |
7.305-129.0 |
Countersunk screw M6x25 -A2-70 ISO 10642 |
Call to Order |
| 4 |
7.311-425.0 |
Hexagon nut M6-04-A2E DIN 985 |
Buy Now |
| 5 |
7.312-001.0 |
Washer 4-200HV-A2K ISO 7089 |
Call to Order |
| 6 |
7.312-260.0 |
Washer 6 -100HV-A3E ISO 7094 |
Call to Order |
| 7 |
6.670-233.0 |
Cotter |
Call to Order |
| 8 |
7.306-209.0 |
Screw M 4X 20-A2-70 (In6Rd) |
Call to Order |
| 9 |
7.312-163.0 |
Toothed lock washer A4,3-FSt-PH DIN 6797 |
Call to Order |
| 10 |
7.306-056.0 |
Screw M4x8 -8.8-R2R (In6Rd) |
Call to Order |
| 11 |
6.670-177.0 |
Tube |
Buy Now |
| 12 |
6.670-180.0 |
Covering cap |
Buy Now |
| 13 |
6.670-181.0 |
Covering cap |
Buy Now |
| 14 |
6.670-182.0 |
Lever |
Call to Order |
| 15 |
6.670-183.0 |
Joint |
Call to Order |
| 16 |
6.670-184.0 |
Slide of a press |
Buy Now |
| 17 |
6.670-185.0 |
Bracket |
Call to Order |
| 18 |
6.670-186.0 |
Joint |
Call to Order |
| 19 |
6.670-187.0 |
Spring |
Call to Order |
| 20 |
6.670-188.0 |
Bar |
Call to Order |
| 21 |
6.670-189.0 |
Bolt |
Call to Order |
| 22 |
6.670-190.0 |
O-Ring seal |
Call to Order |
| 23 |
6.670-191.0 |
Hand grip bottom part |
Buy Now |
| 24 |
6.670-192.0 |
Hand grip top part |
Buy Now |
| 25 |
6.670-193.0 |
Gear wheel |
Buy Now |
| 26 |
6.303-557.0 |
Screw 3x12 Kombitorx T8 |
Buy Now |
Steering Wheel
BD 30/4 C BP Steering Wheel
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
6.670-194.0 |
Spring |
Call to Order |
| 2 |
7.777-999.0 |
Stockpiling discontinued |
Call to Order |
| 3 |
6.649-038.0 |
Cable tie 2,5x100 |
Call to Order |
| 4 |
6.670-195.0 |
Seal |
Call to Order |
| 5 |
6.670-196.0 |
Protecting Cap |
Call to Order |
| 6 |
6.670-197.0 |
Bracket |
Call to Order |
| 7 |
6.670-198.0 |
Protecting cap extraction system |
Call to Order |
| 8 |
6.670-199.0 |
Protecting cap water |
Call to Order |
| 9 |
6.670-200.0 |
Protecting cap AUTO |
Call to Order |
| 10 |
6.670-201.0 |
Covering cap |
Call to Order |
| 11 |
6.670-202.0 |
Lever |
Call to Order |
| 12 |
6.670-203-.0 |
Housing bottom part steering |
Call to Order |
| 13 |
6.670-204.0 |
Housing top part steering |
Call to Order |
| 14 |
6.670-117.0 |
Circuit board hand grip |
Buy Now |
| 15 |
6.670-205.0 |
Magnet |
Call to Order |
| 16 |
6.670-206.0 |
Spring Pin |
Call to Order |
| 17 |
6.303-557.0 |
Screw 3x12 Kombitorx T8 |
Buy Now |
| 18 |
6.670-207.0 |
Stop Display |
Call to Order |
