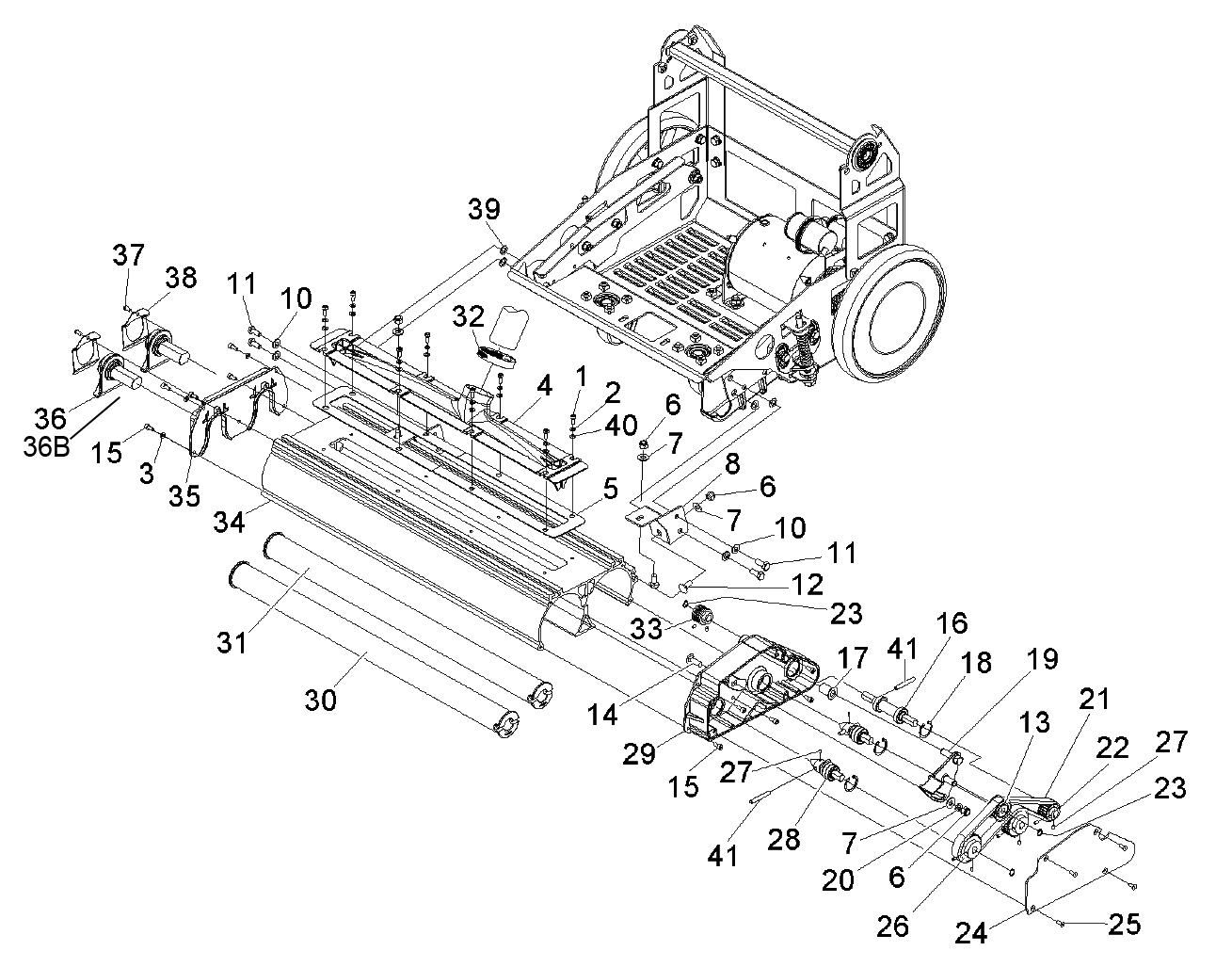

Brush Deck
Windsor NuWave Brush Deck
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86293390 |
Screw |
Buy Now |
| 2 |
86137300 |
Flat Washer |
Buy Now |
| 3 |
86173350 |
Flat SS Washer |
Buy Now |
| 4 |
86290110 |
Vacuum Deck Nozzle |
Buy Now |
| 5 |
86218140 |
Vacuum Nozzle Gasket |
Buy Now |
| 6 |
86270830 |
Hexagon Nylock Nut |
Buy Now |
| 7 |
86010670 |
Flat Stainless Steel Washer |
Buy Now |
| 8 |
86292460 |
Deck Leveling Bracket |
Buy Now |
| 10 |
86010720 |
Washer |
Buy Now |
| 11 |
86295960 |
Screw |
Buy Now |
| 12 |
86293380 |
Screw |
Buy Now |
| 13 |
86012780 |
Pulley Assembly |
Buy Now |
| 14 |
86277130 |
Screw |
Buy Now |
| 15 |
86293400 |
Screw |
Buy Now |
| 16 |
86293200 |
Jack Shaft Drive Assembly |
Buy Now |
| 17 |
86215230 |
Bronze Flanged Bearing |
Buy Now |
| 18 |
86223520 |
Ring |
Buy Now |
| 19 |
86215530 |
Belt Tensioner Bracket |
Buy Now |
| 20 |
86279130 |
Washer |
Buy Now |
| 21 |
86215310 |
Timing Belt |
Buy Now |
| 22 |
86223310 |
Pulley 5MM |
Buy Now |
| 23 |
86223490 |
Ext Snap Ring |
Buy Now |
| 24 |
86222890 |
Brush Drive Cover Plate |
Buy Now |
| 25 |
86172970 |
Screw |
Buy Now |
| 26 |
86223320 |
Pulley |
Buy Now |
| 27 |
86223780 |
Screw |
Buy Now |
| 28 |
86012790 |
Brush Drive Shaft Assembly |
Buy Now |
| 29 |
86219400 |
Brush Drive Housing |
Buy Now |
| 30 |
86216120 |
Front Brush |
Buy Now |
| 31 |
86216110 |
Rear Brush |
Buy Now |
| 32 |
86216750 |
Worm Gear Clamp |
Buy Now |
| 33 |
86291140 |
Micro-V Pulley |
Buy Now |
| 34 |
86217810 |
Dual Brush Deck Extrusion |
Buy Now |
| 35 |
86219410 |
Brush Release Clip Housing |
Buy Now |
| 36 |
86293230 |
Brush End Cap Shaft Assembly |
Buy Now |
| 36B |
86228960 |
Bearing |
Buy Now |
| 37 |
86172980 |
Screw |
Buy Now |
| 38 |
86224630 |
Brush Clip Spring |
Buy Now |
| 39 |
86295970 |
Star Lock Washer |
Buy Now |
| 40 |
86173330 |
Washer |
Buy Now |
| 41 |
86224170 |
Brush Drive Shaft |
Buy Now |

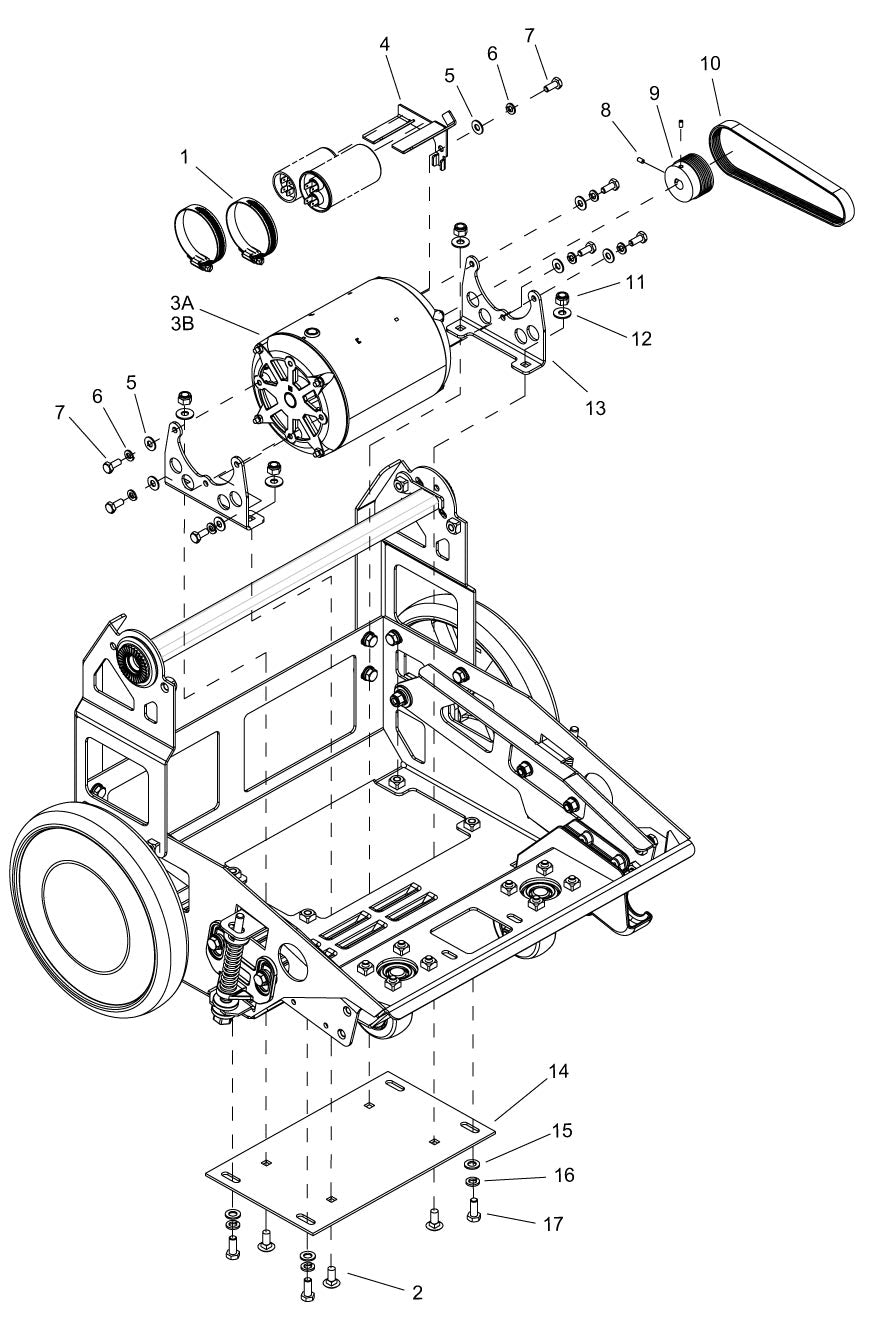

Brush Motor
Windsor NuWave Brush Motor
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86216750 |
Worm Gear Clamp |
Buy Now |
| 2 |
86293380 |
Screw |
Buy Now |
| 3A |
86222120 |
Induction Motor |
Buy Now |
| 3B |
86222150 |
230V Induction Motor |
Buy Now |
| 4 |
86012580 |
Motor Mount Capacitor Bracket |
Buy Now |
| 5 |
86010630 |
Washer |
Buy Now |
| 6 |
86173340 |
Split Lock Washer |
Buy Now |
| 7 |
86293270 |
Screw |
Buy Now |
| 8 |
86223780 |
Screw |
Buy Now |
| 9 |
86291150 |
Micro-V Pulley |
Buy Now |
| 10 |
86291380 |
Micro-V Belt |
Buy Now |
| 11 |
86270830 |
Hexagon Nylock Nut |
Buy Now |
| 12 |
86010670 |
Washer |
Buy Now |
| 13 |
86215550 |
Motor Mount Bracket |
Buy Now |
| 14 |
86222900 |
Motor Base Plate |
Buy Now |
| 15 |
86137280 |
Washer |
Buy Now |
| 16 |
86279130 |
Washer |
Buy Now |
| 17 |
86274860 |
Screw |
Buy Now |
| 18 |
86332820 |
Run Capacitor |
Buy Now |
| 19 |
86332830 |
Start Capacitor |
Buy Now |
| 20 |
86332870 |
Run Capacitor |
Buy Now |
| 21 |
86332830 |
Start Capacitor |
Buy Now |

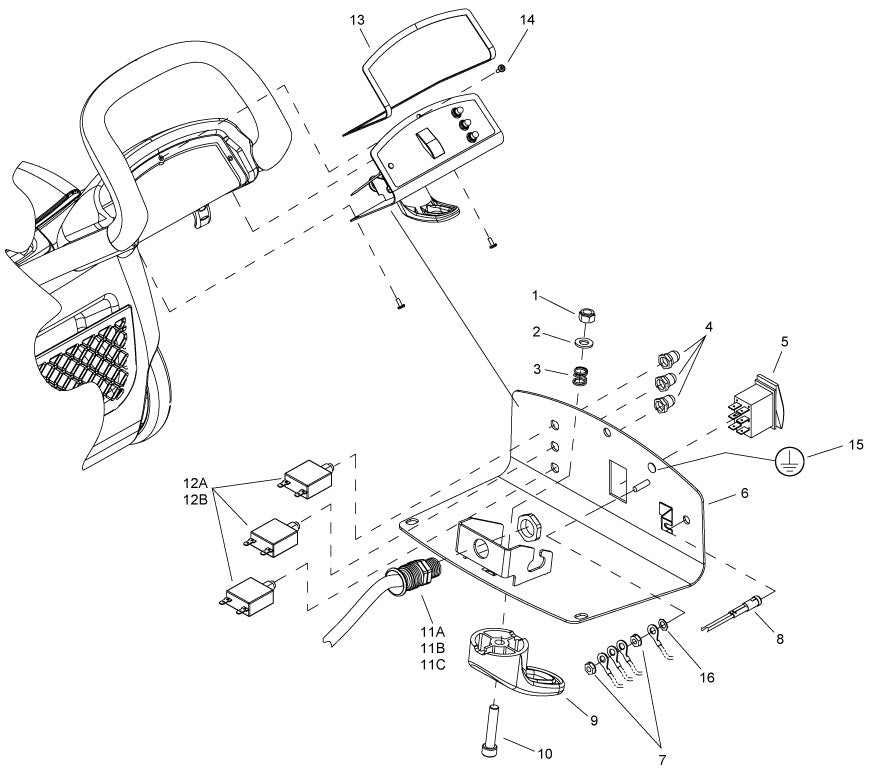

Control Panel
Windsor NuWave Control Panel
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86172640 |
Nylock Nut |
Buy Now |
| 2 |
86173300 |
Washer |
Buy Now |
| 3 |
86224730 |
Spring |
Buy Now |
| 4 |
86215410 |
Circuit Breaker |
Buy Now |
| 5 |
86007130 |
Switch |
Buy Now |
| 6 |
86225960 |
Electrical Panel Weldment |
Buy Now |
| 7 |
86005700 |
Nut |
Buy Now |
| 8 |
86221820 |
Red Indicator Light |
Buy Now |
| 9 |
86218960 |
Cord Upper Hook |
Buy Now |
| 10 |
86223830 |
Screw |
Buy Now |
| 11 |
86217150 |
Power Cord |
Buy Now |
| 12 |
86215670 |
Circuit Breaker |
Buy Now |
| 13 |
86218290 |
Handle Console Gasket |
Buy Now |
| 14 |
86276820 |
Black Screw |
Buy Now |
| 15 |
86299320 |
Label |
Call to Order |
| 16 |
86010640 |
Lock Star Washer |
Buy Now |

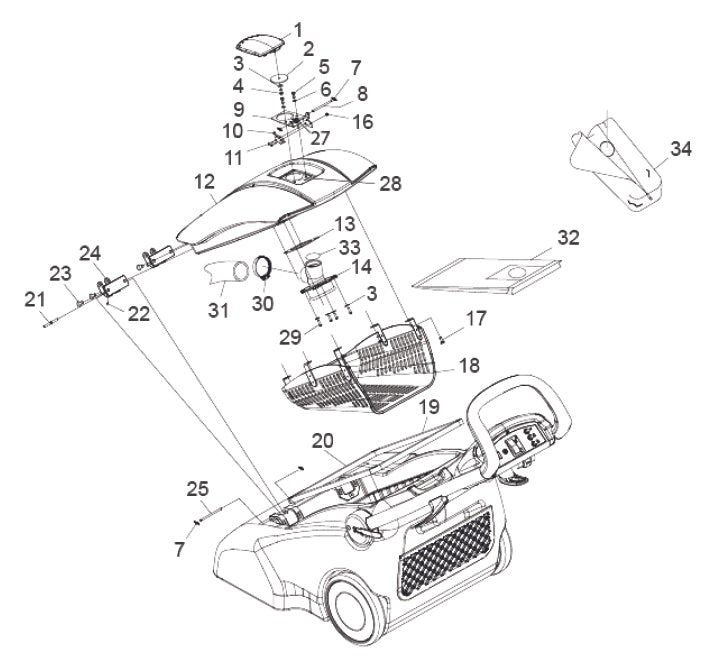

Cover
Windsor NuWave Cover
Decals
Windsor NuWave Decals
| Reference # |
Part # |
Description |
Add to Cart |
| 1- |
86221460 |
Various Decals |
Call to Order |

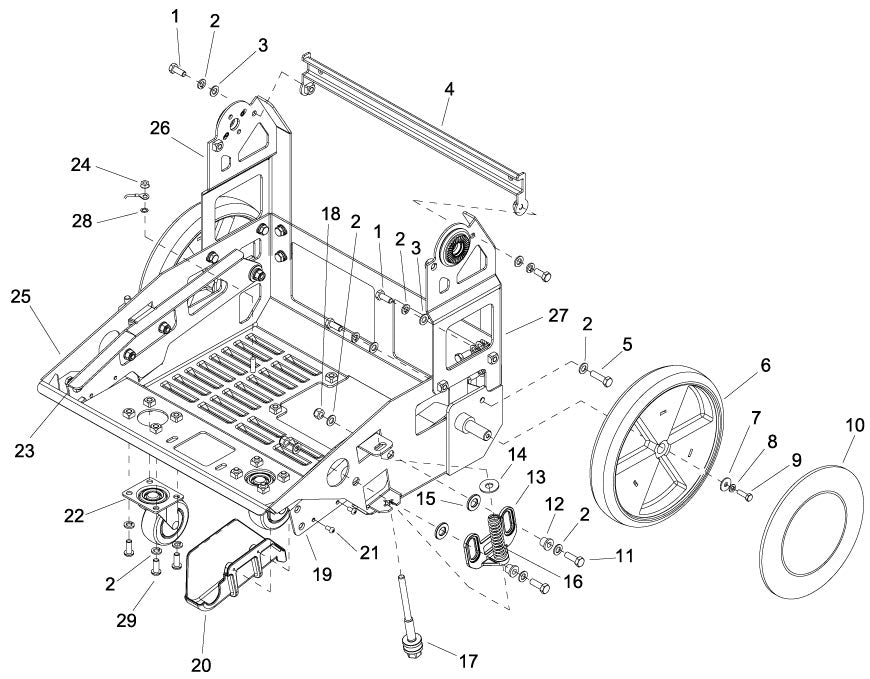

Frame
Windsor NuWave Frame

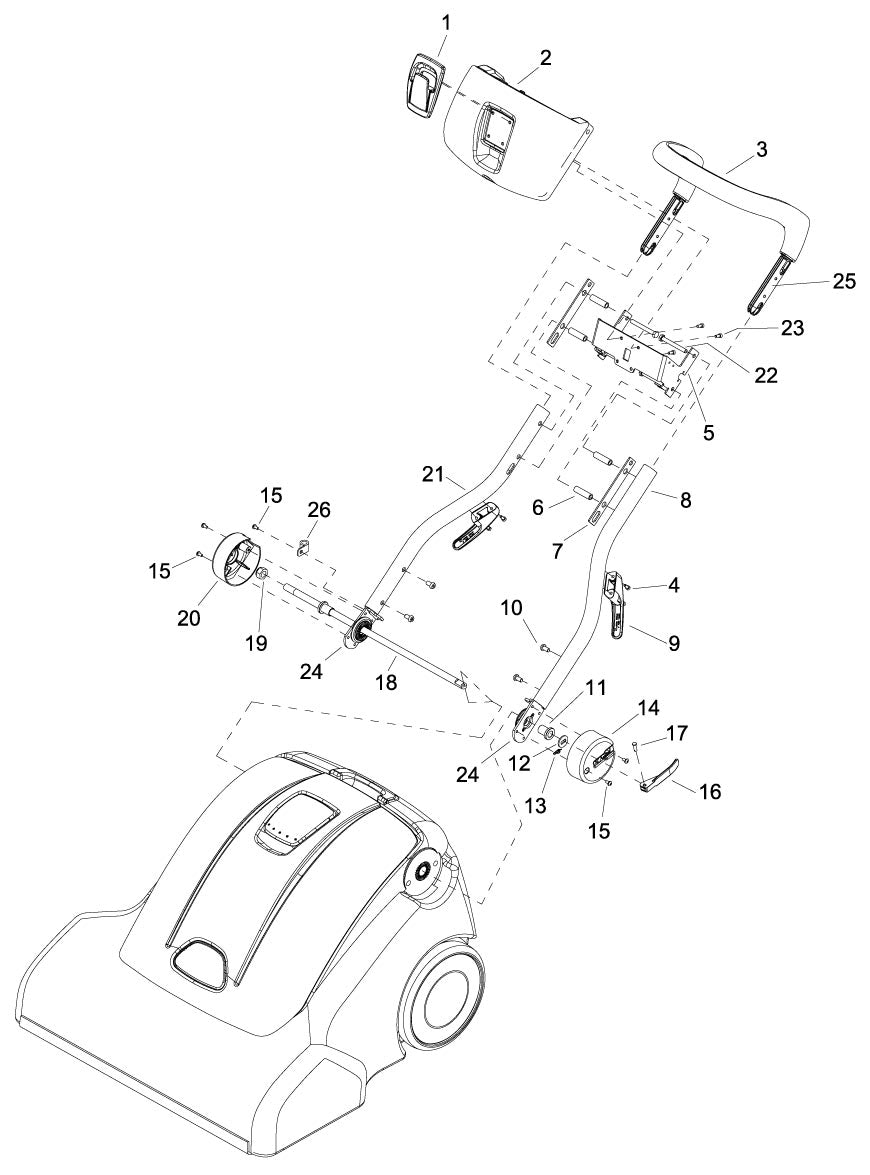

Handle
Windsor NuWave Handle
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86218970 |
Console Cord Hook |
Buy Now |
| 2 |
86298140 |
Console |
Call to Order |
| 3 |
86218600 |
Main Molded Grip Handle |
Buy Now |
| 4 |
86293400 |
Screw |
Buy Now |
| 5 |
86215630 |
Lever Console Bracket |
Buy Now |
| 6 |
86224540 |
Spacer |
Buy Now |
| 7 |
86218190 |
Console Tube Gasket |
Buy Now |
| 8 |
86218720 |
Left Handle Extrusion |
Buy Now |
| 9 |
86218950 |
Lower Cord Hook |
Buy Now |
| 10 |
86293410 |
Screw |
Buy Now |
| 11 |
86216460 |
Axle Lever Bushing |
Buy Now |
| 12 |
86225860 |
Cam Handle Lever Washer |
Buy Now |
| 13 |
86008650 |
Rue Cotter Ring |
Buy Now |
| 14 |
86216580 |
Left End Handle Cap |
Call to Order |
| 15 |
86173020 |
Screw |
Buy Now |
| 16 |
86221770 |
Cam Handle Lever |
Buy Now |
| 17 |
86292910 |
Lever Cotter Pin |
Buy Now |
| 18 |
86224180 |
Handle Pivot Axle |
Buy Now |
| 19 |
86294660 |
Lock Nut |
Buy Now |
| 20 |
86216560 |
Right Handle End Cap |
Buy Now |
| 21 |
86292910 |
Right Handle Extrusion |
Buy Now |
| 22 |
86293370 |
Screw |
Buy Now |
| 23 |
86293390 |
Screw |
Buy Now |
| 24 |
86225990 |
Mounting Plate Handle Weldment |
Buy Now |
| 25 |
86224500 |
Handle Extrusion Spacer |
Buy Now |
| 26 |
86198450 |
Clamp |
Buy Now |

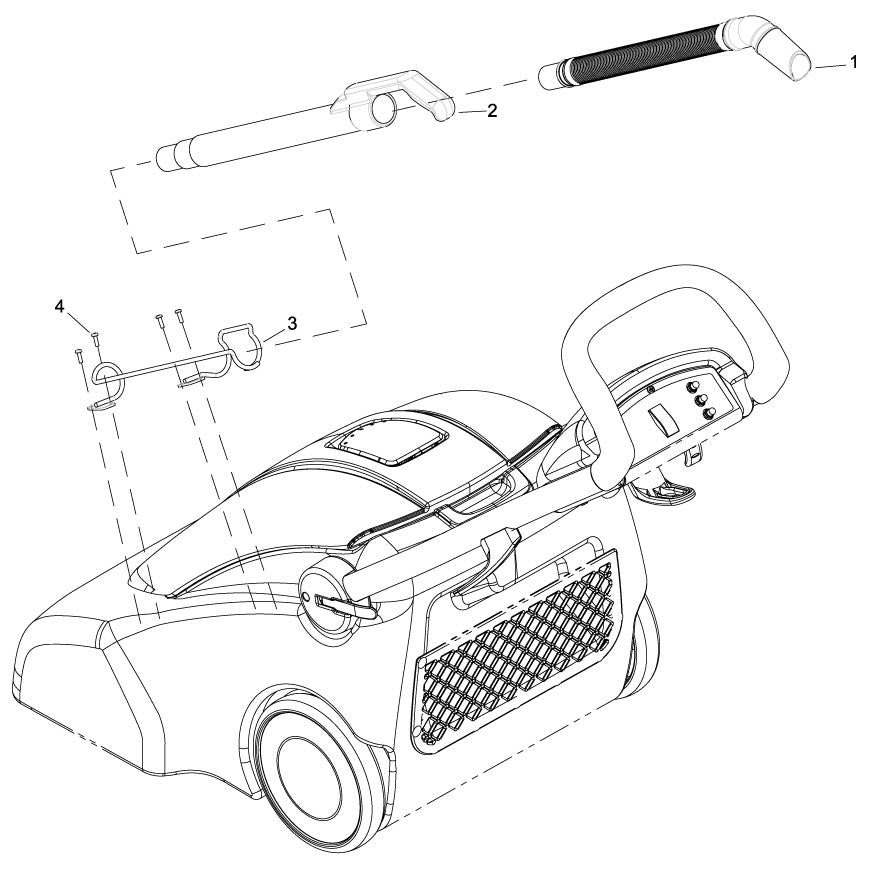

Holster (Optional)
Windsor NuWave Holster
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86308710 |
Hose Assembly |
Call to Order |
| 2 |
86141550 |
Extension Tube |
Buy Now |
| 3 |
86305100 |
Wire Form |
Buy Now |
| 4 |
86276850 |
Screw |
Buy Now |

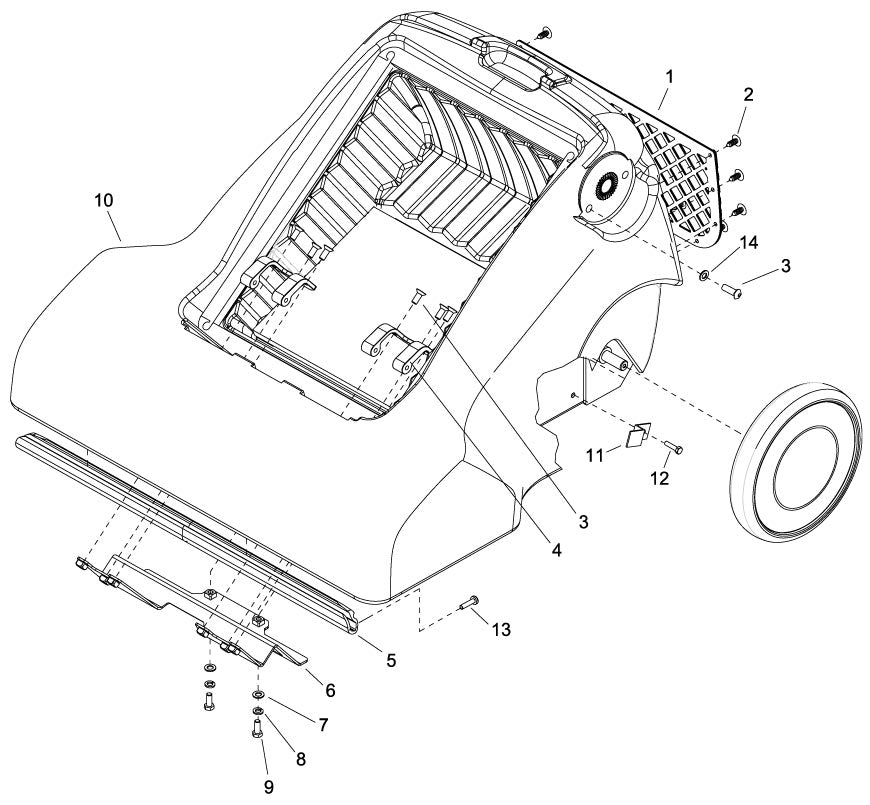

Housing
Windsor NuWave Housing

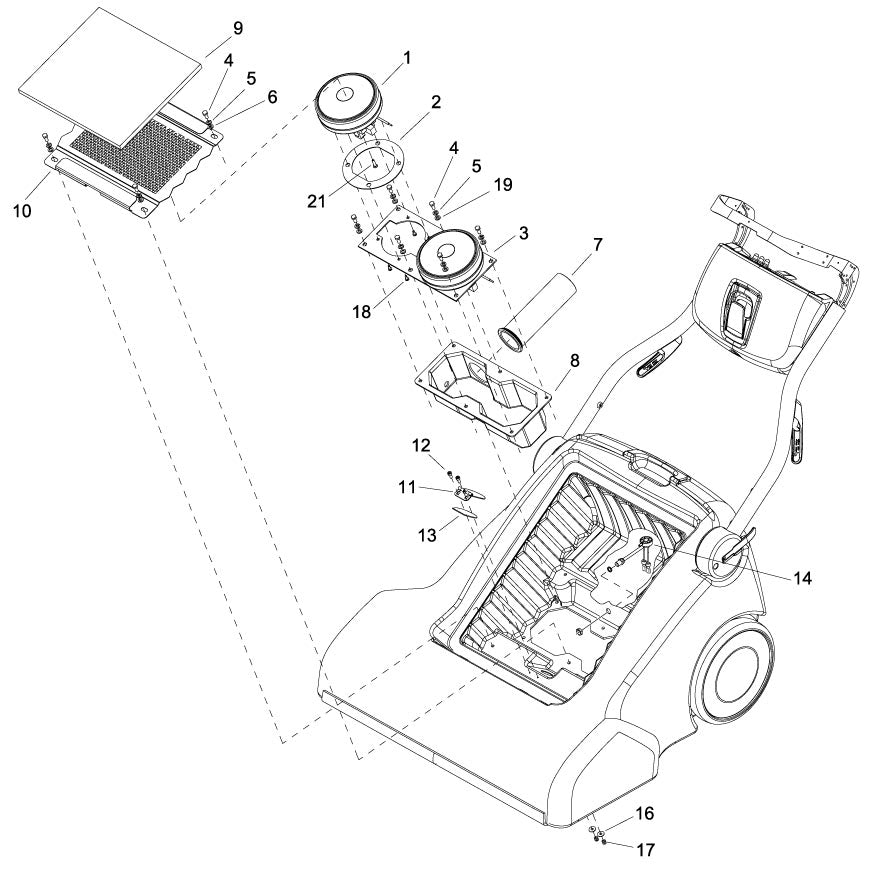

Vacuum
Windsor NuWave Vacuum
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86225510 |
Vacuum Motor |
Buy Now |
| 2 |
86218310 |
Gasket |
Buy Now |
| 3 |
86223070 |
Vac Motor Mount Plate |
Buy Now |
| 4 |
86293430 |
Screw |
Buy Now |
| 5 |
86173310 |
Spring Lock Washer |
Buy Now |
| 6 |
86279070 |
Flat Washer |
Buy Now |
| 7 |
86290450 |
Vac Chamber Exhaust Tube |
Buy Now |
| 8 |
86290120 |
Vac Motor Enclosure Box |
Buy Now |
| 9 |
86217850 |
Vacuum Chamber Filter |
Buy Now |
| 10 |
86223960 |
Vac Chamber Screen |
Buy Now |
| 11 |
86234760 |
Accessory Port Cover |
Buy Now |
| 12 |
86293390 |
Screw |
Buy Now |
| 13 |
86003780 |
Access Port Cover Gasket |
Buy Now |
| 14 |
86343510 |
Vacuum Switch |
Buy Now |
| 16 |
86173330 |
Washer |
Buy Now |
| 17 |
86024750 |
Hexagon Nylock Nut |
Buy Now |
| 18 |
86277380 |
Screw |
Buy Now |
| 19 |
86225730 |
Washer |
Buy Now |
| 21 |
86288450 |
Screw |
Buy Now |
