Nilfisk SC800
Chassis System - Disk

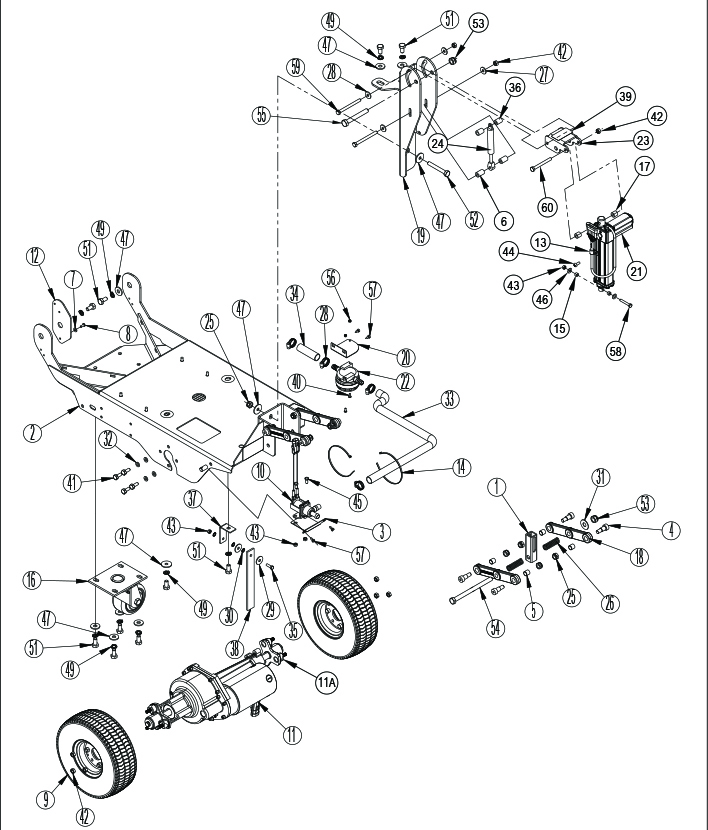

Nilfisk SC800 Chassis System - Disk
Chassis System - Cylindrical

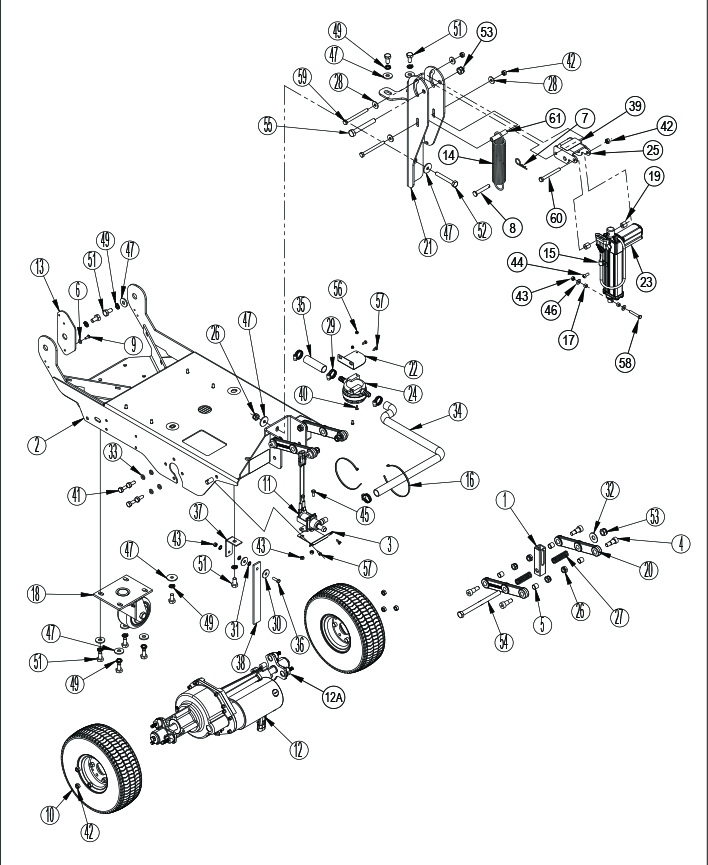

Nilfisk SC800 Chassis System - Cylindrical
Control System

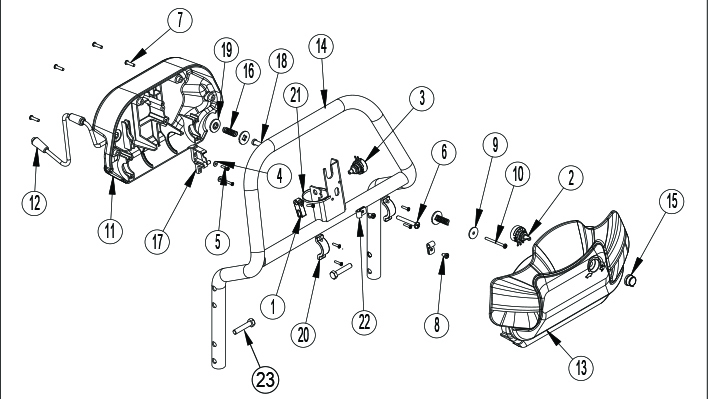

Nilfisk SC800 Control System

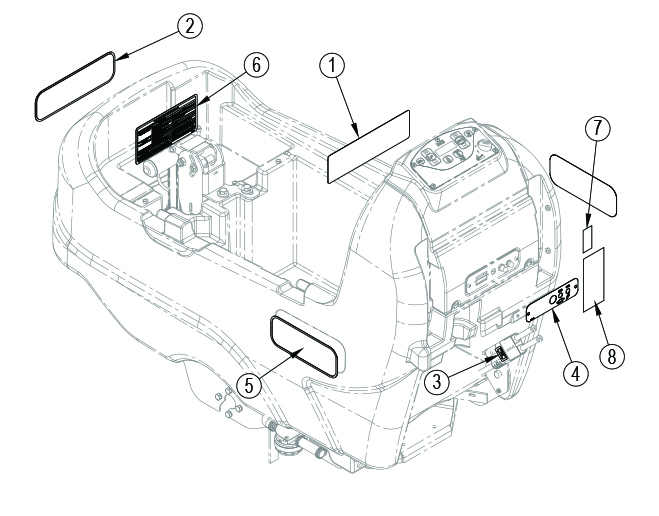

Decal System
Nilfisk SC800 Decal System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56014601 |
Caution Decal |
Buy Now |
| 2 |
56016731 |
Nilfisk Decal |
Buy Now |
| 3 |
56054192 |
Charger Decal |
Buy Now |
| 4 |
56112168 |
Circuit Breaker |
Buy Now |
| 5 |
56112531 |
Nilfisk SC800 Decal |
Call to Order |
| 5 |
56112532 |
Nilfisk SC800 EcoFlex Decal |
Call to Order |
| 6 |
56112292 |
Error Codes Decal |
Buy Now |
| 7 |
71362A |
NFSI Decal |
Buy Now |
| 8 |
56112539 |
Warning/Wiring Decal |
Buy Now |
Electrical System

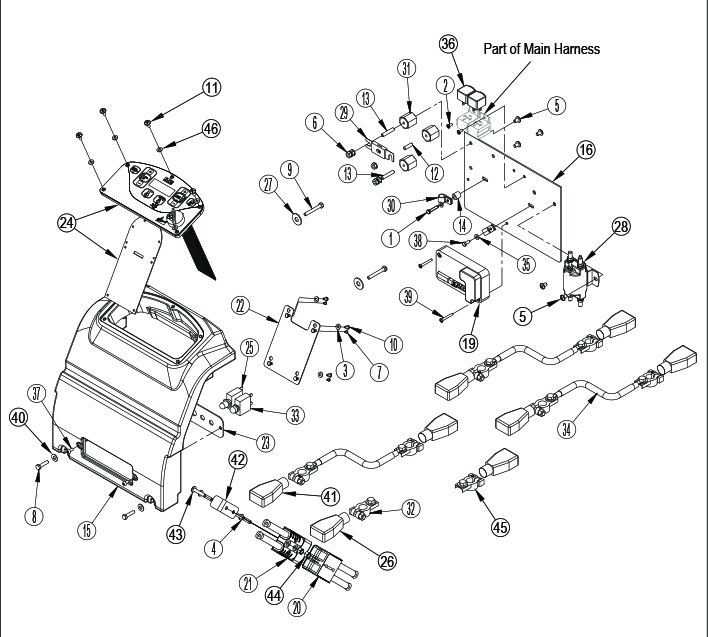

Nilfisk SC800 Electrical System
Recovery System

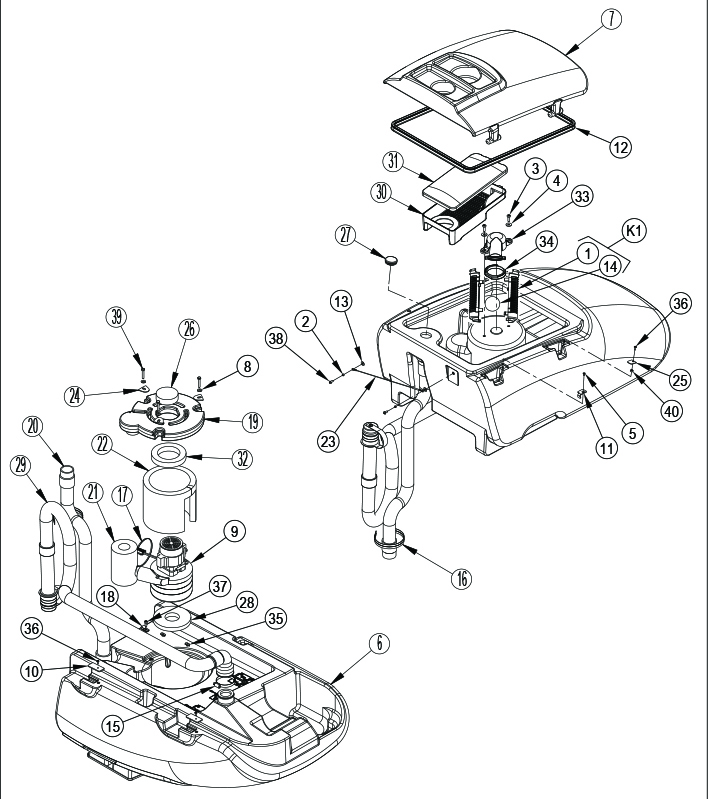

Nilfisk SC800 Recovery System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Float Cage |
Call to Order |
| 2 |
56001954 |
Washer |
Buy Now |
| 3 |
56003896 |
Screw |
Buy Now |
| 4 |
56003638 |
Washer |
Buy Now |
| 5 |
56003823 |
Screw |
Buy Now |
| 6 |
56112102 |
Recovery Tank |
Buy Now |
| 7 |
56112103 |
Recovery Lid |
Buy Now |
| 8 |
87026A |
Washer |
Buy Now |
| 9 |
56384102 |
Motor |
Buy Now |
| - |
56397098 |
Carbon Brush Set |
Buy Now |
| 10 |
56112293 |
Retainer Plate |
Buy Now |
| 11 |
56112296 |
Retainer Plate |
Buy Now |
| 12 |
56112297 |
Recovery Lid Gasket |
Buy Now |
| 13 |
56151092 |
Bushing |
Buy Now |
| 14 |
- |
Float Ball |
Call to Order |
| 15 |
56440213 |
Hose Clamp |
Buy Now |
| 16 |
56477613 |
Cable Tie |
Buy Now |
| 17 |
56478523 |
Cable Tie |
Buy Now |
| 18 |
56323260 |
Clamp |
Buy Now |
| 19 |
9100001246 |
Vacuum Motor Cover |
Buy Now |
| 20 |
56112316 |
Suction Hose |
Buy Now |
| 21 |
9096442000 |
Insulation Tube |
Buy Now |
| 22 |
9096491000 |
Acoustic Insulation Panel |
Buy Now |
| 23 |
9096634000 |
Stop Tank Cable |
Buy Now |
| 24 |
9096638000 |
Vacuum Cover Plate |
Buy Now |
| 25 |
9096643000 |
Tank Cover Plate |
Buy Now |
| 26 |
56344168 |
Filter |
Buy Now |
| 27 |
1466138000 |
Cap |
Buy Now |
| 28 |
9096918000 |
Gasket Vacuum Motor |
Buy Now |
| 29 |
56112310 |
Recovery Drain Hose |
Buy Now |
| 30 |
9097384000 |
Debris Tray |
Buy Now |
| 31 |
9097477000 |
Debris Tray Cover |
Buy Now |
| 32 |
9097555000 |
Vacuum Motor Gasket |
Buy Now |
| 33 |
9097587000 |
Support Float System |
Buy Now |
| 34 |
9100000928 |
Gasket Float Support |
Buy Now |
| 35 |
9097589000 |
Nut |
Buy Now |
| 36 |
80057A |
Screw |
Buy Now |
| 37 |
80208A |
Screw |
Buy Now |
| 38 |
80363A |
Screw |
Buy Now |
| 39 |
80410A |
Screw |
Call to Order |
| 40 |
9096679000 |
Spacer |
Buy Now |
| K1 |
56112303 |
Float Ball Cage Kit |
Buy Now |
Scrub System - Disk

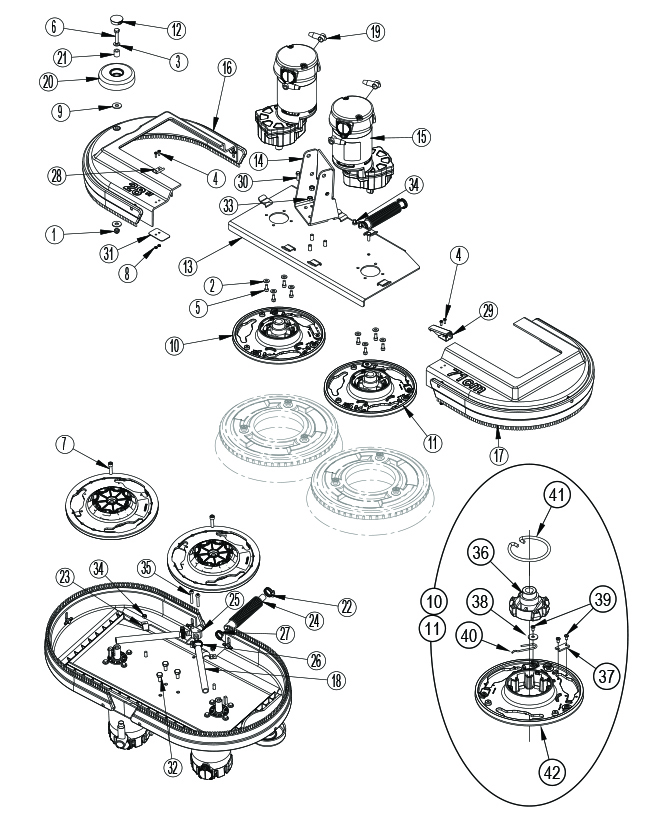

Nilfisk SC800 Scrub System - Disk
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56002851 |
Nut |
Buy Now |
| 2 |
56002859 |
Washer |
Buy Now |
| 3 |
56002938 |
Washer |
Buy Now |
| 4 |
56003997 |
Screw |
Buy Now |
| 5 |
56003425 |
Screw |
Buy Now |
| 6 |
56003455 |
Screw |
Buy Now |
| 7 |
56003798 |
Screw |
Buy Now |
| 8 |
56003949 |
Nut |
Buy Now |
| 9 |
56009213 |
Washer |
Buy Now |
| 10 |
56109651 |
Brush Plate Assembly |
Buy Now |
| 11 |
56109652 |
Brush Plate Assembly |
Buy Now |
| 12 |
56111444 |
Button Plug |
Buy Now |
| 13 |
56112757 |
Brush Plate Weldment 28D (71) |
Buy Now |
| 13 |
56112759 |
Brush Plate Weldment 34D (86) |
Buy Now |
| 13 |
56112759 |
Brush Plate Weldment 34D (86) |
Buy Now |
| 14 |
56112523 |
Linkage Bracket |
Buy Now |
| 15 |
56112240 |
Motor Gearbox Assembly |
Buy Now |
| - |
56112242 |
Carbon Brush |
Buy Now |
| 16 |
56112259 |
Left Brush Skirt Assembly 28D (71) |
Buy Now |
| 16 |
56112261 |
Left Brush Skirt Assembly 34D (86) |
Buy Now |
| 17 |
56112260 |
Right Brush Skirt Assembly 28D (71) |
Buy Now |
| 17 |
56112262 |
Right Brush Skirt Assembly 34D (86) |
Buy Now |
| - |
56112306 |
Bristle Skirt Kit 28 (71) |
Buy Now |
| - |
56112307 |
Bristle Skirt Kit 34 (86) |
Buy Now |
| 18 |
56397207 |
PVC Hose (71) |
Buy Now |
| 18 |
30453A |
Vinyl Hose (86) |
Buy Now |
| 19 |
56409538 |
Terminal Insulator |
Buy Now |
| 20 |
56601450 |
Wheel |
Buy Now |
| 21 |
56601499 |
Nylon Bushing |
Buy Now |
| 22 |
722030 |
Hose Clamp |
Buy Now |
| 23 |
782002 |
Manifold Clamp |
Buy Now |
| 24 |
30412A |
Solution Hose |
Buy Now |
| 25 |
38014A |
Solution Splitter |
Buy Now |
| 26 |
50248A |
Hose Clamp |
Buy Now |
| 27 |
53571A |
Hose Clamp |
Buy Now |
| 28 |
55451A |
Latch Keeper |
Buy Now |
| 29 |
56115427 |
Latch Assembly |
Buy Now |
| 30 |
56003942 |
Screw |
Call to Order |
| 31 |
69186A |
Brush Latch Tab |
Buy Now |
| 32 |
56003435 |
Screw |
Buy Now |
| 33 |
80198A |
Nut |
Buy Now |
| 34 |
80199A |
Nut |
Buy Now |
| 35 |
56003950 |
Screw |
Buy Now |
| 36 |
56112521 |
Gimbal Assembly |
Buy Now |
| 37 |
56366455 |
Stop Plate |
Buy Now |
| 38 |
56009002 |
Washer |
Buy Now |
| 39 |
56009247 |
Screw |
Buy Now |
| 40 |
56109653 |
Spring Retainer |
Buy Now |
| 41 |
56601056 |
Brush Holder Spring |
Buy Now |
| 42 |
56601118 |
Brush Plate |
Buy Now |

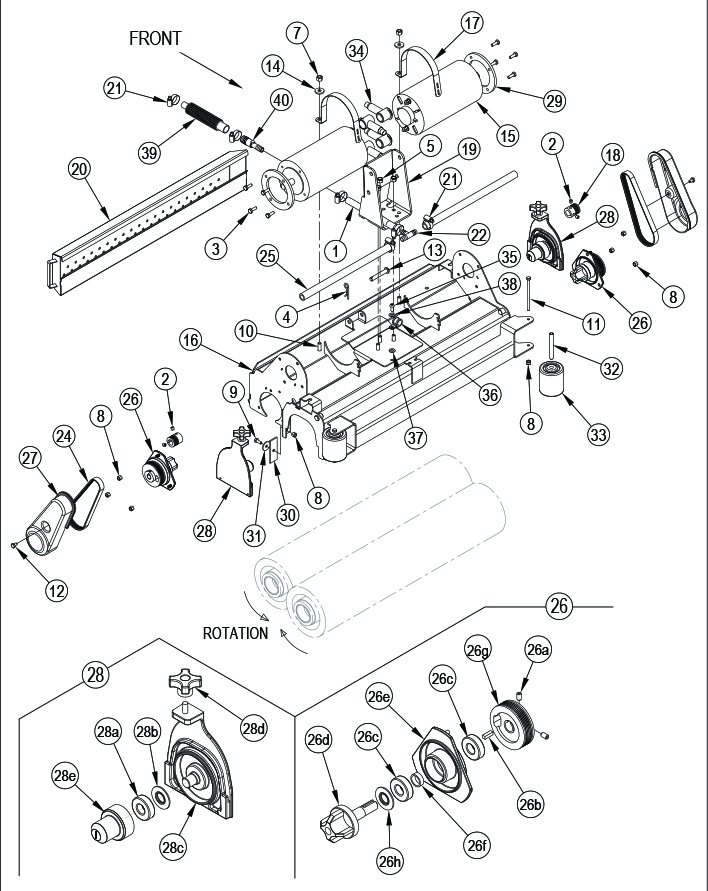

Scrub System - Cylindrical
Nilfisk SC800 Scrub System - Cylindrical

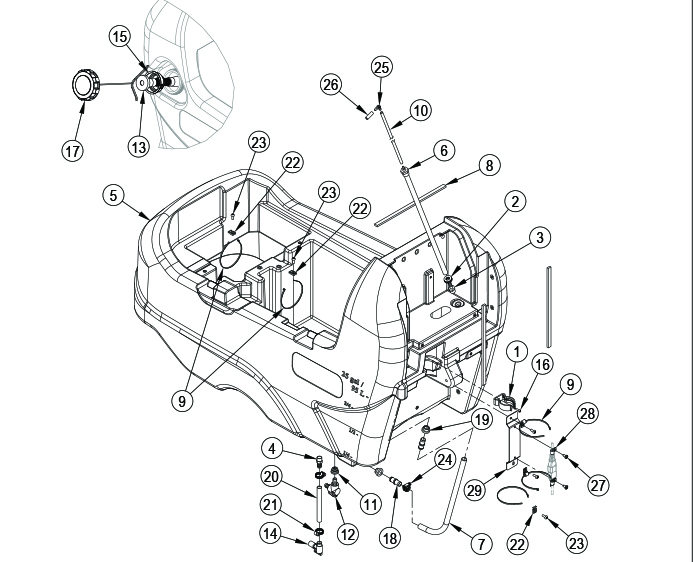

Solution System
Nilfisk SC800 Solution System
Squeegee Assembly

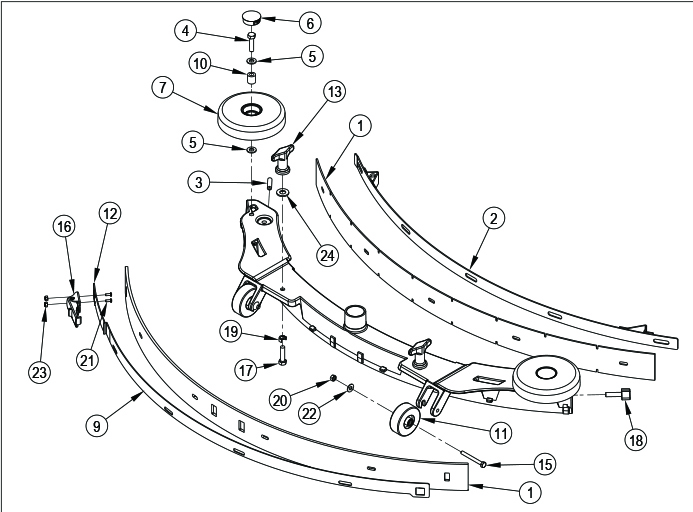

Nilfisk SC800 Squeegee Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| - |
56112313 |
Squeegee Assembly (71) |
Buy Now |
| - |
56112314 |
Squeegee Assembly (71C) |
Buy Now |
| - |
56112315 |
Squeegee Assembly (86) |
Buy Now |
| 1 |
56112330 |
Gum Squeegee Blade Kit (71) |
Buy Now |
| 1 |
56112331 |
Linatex Squeegee Blade Kit (71C) |
Buy Now |
| 1 |
56115334 |
Gum Squeegee Blade Kit (86) |
Buy Now |
| 2 |
60466A |
Front Squeegee Strap (71) |
Buy Now |
| 2 |
60546A |
Front Squeegee Strap (86) |
Buy Now |
| 3 |
88632A |
Screw |
Buy Now |
| 4 |
56003302 |
Screw |
Buy Now |
| 5 |
56002938 |
Washer |
Buy Now |
| 6 |
56111444 |
Button Plug |
Buy Now |
| 7 |
56112108 |
Wheel |
Buy Now |
| 9 |
56112213 |
Rear Squeegee Strap (71) |
Buy Now |
| - |
56115293 |
Strap Assembly (86) |
Buy Now |
| 10 |
56601499 |
Nylon Bushing |
Buy Now |
| 11 |
9099133000 |
Wheel |
Buy Now |
| 12 |
56112300 |
Rear Latch Strap |
Buy Now |
| 13 |
56370711 |
Thumb Nut |
Buy Now |
| 15 |
88629A |
Screw |
Buy Now |
| 16 |
9098321000 |
Squeegee Latch |
Buy Now |
| 17 |
56002884 |
Screw |
Buy Now |
| 18 |
54647A |
Knob |
Buy Now |
| 19 |
60564A |
Squeegee Knob Shim |
Buy Now |
| 20 |
80199A |
Nut |
Buy Now |
| 21 |
56002909 |
Screw |
Buy Now |
| 22 |
87026A |
Washer |
Buy Now |
| 23 |
56002907 |
Nut |
Buy Now |
| 24 |
56384502 |
Washer |
Buy Now |
| - |
56112330 |
Gum Squeegee Blade Kit (71) |
Buy Now |
| - |
56112331 |
Linatex Squeegee Blade Kit (71) |
Buy Now |
| - |
56112332 |
PU Squeegee Blade Kit (71) |
Buy Now |
| - |
56115334 |
Gum Squeegee Blade Kit (86) |
Buy Now |
| - |
56115333 |
Linatex Squeegee Blade Kit (86) |
Buy Now |
| - |
56115335 |
PU Squeegee Blade Kit (86) |
Buy Now |
Squeegee System
Nilfisk SC800 Squeegee System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56112770 |
Squeegee Weldment Plate |
Buy Now |
| 2 |
L08601509 |
Pivot Support |
Buy Now |
| 3 |
L08602422 |
Spacer |
Buy Now |
| 4 |
56112313 |
Squeegee Assembly (71) |
Buy Now |
| 4 |
56112314 |
Squeegee Assembly (71C) |
Buy Now |
| 4 |
56112315 |
Squeegee Assembly (86) |
Buy Now |
| 5 |
1451252000 |
Spacer |
Buy Now |
| 6 |
1458479000 |
Ball Joint |
Buy Now |
| 7 |
56384513 |
Squeegee Bracket Kit |
Buy Now |
| 8 |
9100000515 |
Support Squeegee Spring |
Call to Order |
| 9 |
9096495000 |
Shoulder Screw |
Buy Now |
| 10 |
9096497000 |
Shaft |
Buy Now |
| 11 |
9096497000 |
Push Squeegee Spring |
Buy Now |
| 12 |
9096538000 |
Push Squeegee Spring |
Buy Now |
| 13 |
9097366000 |
Squeegee Lifting Cable |
Buy Now |
| 14 |
80223A |
Nut |
Buy Now |
| 15 |
925044 |
Cotter Pin |
Buy Now |
| 16 |
56003430 |
Screw |
Buy Now |
| 17 |
980651 |
Flat Washer |
Call to Order |
| 18 |
38708A |
Spacer |
Buy Now |
| 19 |
52557A |
Lift Knob |
Buy Now |
| 20 |
54699A |
Knob |
Buy Now |
| 21 |
61952A |
Squeegee Lift Lever |
Buy Now |
| 22 |
80163A |
Nut |
Call to Order |
| 23 |
80171A |
Nut |
Buy Now |
| 24 |
80179A |
Screw |
Buy Now |
| 25 |
80198A |
Nut |
Buy Now |
| 26 |
80199A |
Nut |
Buy Now |
| 27 |
80424A |
Flat Washer |
Buy Now |
| 28 |
85389A |
Screw |
Buy Now |
| 29 |
87007A |
Washer Control Shaft |
Buy Now |
| 30 |
87613A |
Flat Washer |
Buy Now |
| 31 |
88640A |
Nut |
Buy Now |
| 32 |
9096635000 |
Self-Adhesive Sideburns |
Buy Now |
