Nilfisk Retriever 4600

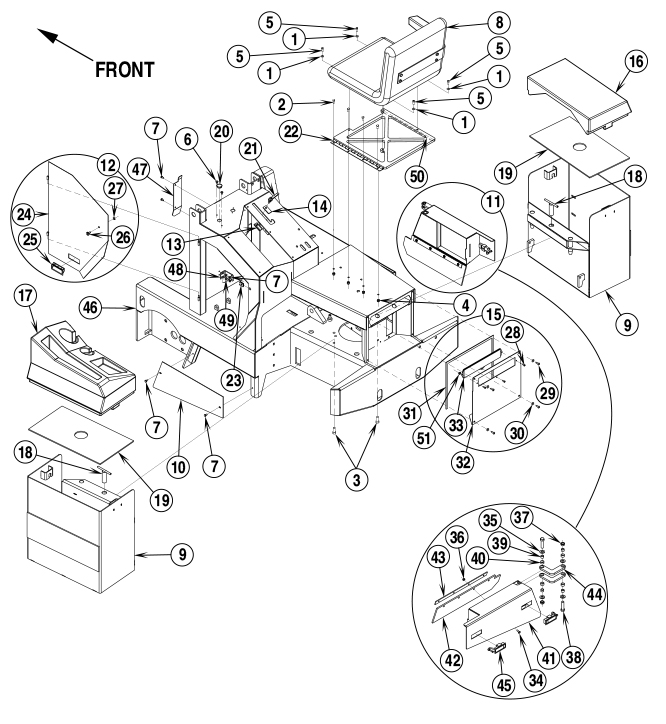

Chassis System

Nilfisk Retriever 4600 Chassis System

Reference # Part # Description Add to Cart
1 56001939 Flat Washer 5/16 Buy Now
2 56002035 Hex Screw 5/16-18 x .62 Buy Now
3 56002666 Hex Screw 1/2-13 CALL TO ORDER
4 56002701 Hex Nut 5/16-18 Buy Now
5 56003447 Screw 5/16-18 x .50 Buy Now
6 56009248 Hex Screw 1/4-20 x .75 CALL TO ORDER
7 56009033 Hex Screw 1/4-20 cx .50 Buy Now
8 56409021 Seat CALL TO ORDER
* 56409613 Seat Switch Buy Now
9 56416080 Battery Box CALL TO ORDER
10 56416327 Left Door CALL TO ORDER
11 56416331 Right Door Assembly CALL TO ORDER
12 56416349 Tower Door Assembly CALL TO ORDER
13 56416411 Stop Broom Buy Now
14 56416412 Stop Broom CALL TO ORDER
15 56416417 Rear Cover Assembly CALL TO ORDER
16 56416419 Battery Cover CALL TO ORDER
17 56416431 Console Cover CALL TO ORDER
18 56416562 Tee Handle CALL TO ORDER
19 56416577 Battery Shield CALL TO ORDER
20 56416593 Plug Button Buy Now
21 56416597 Adjustable Handle Buy Now
22 56416614 Seat Plate CALL TO ORDER
23 56491326 Screw Receptacle CALL TO ORDER
24 56416453 Tower Door CALL TO ORDER
25 56416455 Pull Pocket Buy Now
26 56448104 Screw Fastener Buy Now
27 56448108 Washer Retainer Buy Now
28 56009100 Screw 10-24 x .62 Buy Now
29 56009248 Screw 1/4-20 x .75 CALL TO ORDER
30 56009249 Washer Buy Now
31 56416647 Gasket CALL TO ORDER
32 56416315 Rear Cover CALL TO ORDER
33 56416418 Lens Tail Light Buy Now
34 56002155 Hex Screw 1/4-20 x .75 Buy Now
35 56001879 Washer 1/2 Buy Now
36 56002840 Hex Nut 1/4-20 Buy Now
37 56002843 Hex Nut 1/2-13 Buy Now
38 56002983 Hex Screw 1/2-13 x 2 Buy Now
39 56360627 Bushing Buy Now
40 56370878 Bearing Sleeve Buy Now
41 56416332 Right Door CALL TO ORDER
42 56416336 Right Skirt CALL TO ORDER
43 56416337 Skirt Strap CALL TO ORDER
44 56416527 Right Door Hinge CALL TO ORDER
45 56493272 Door Latch CALL TO ORDER
46 56416170 Chassis CALL TO ORDER
47 56416646 Prop Rod Deflector CALL TO ORDER
48 56416645 Switch Bracket CALL TO ORDER
49 56002098 Washer 1/4 Buy Now
50 56416650 Gasket Buy Now
51 56002768 Hex Nut 10-24 Buy Now

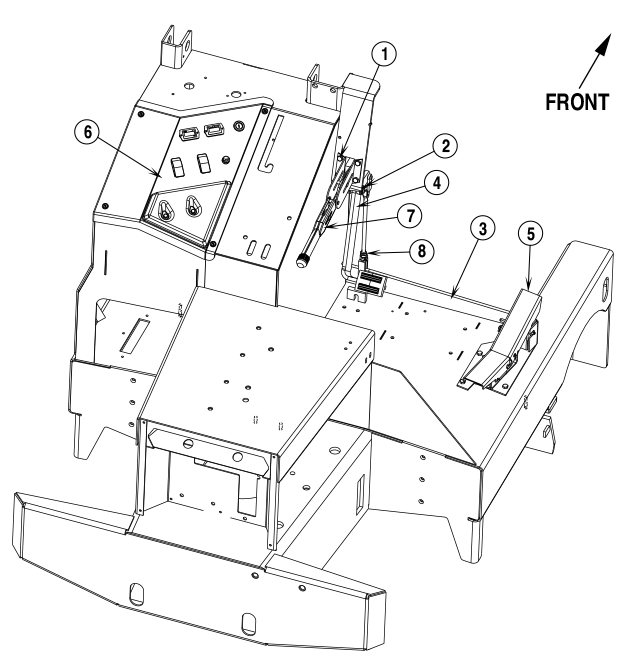

Controls System

Nilfisk Retriever Controls System

Nilfisk Retriever 4600 Controls

Reference # Part # Description Add to Cart
1 56002037 Hex Screw 5/16-18 Buy Now
* 56002701 Hex Nut 5/16-18 Buy Now
2 56003265 Ring Ret Ext Buy Now
3 56416339 Brake Yoke Assembly CALL TO ORDER
4 56416343 Brake Lever Assembly CALL TO ORDER
5 56416369 Throttle Assembly CALL TO ORDER
6 56416422 Control Panel Assembly CALL TO ORDER
7 56448200 Brake Lever CALL TO ORDER
8 56002317 Hex Nut 3/8-24 CALL TO ORDER

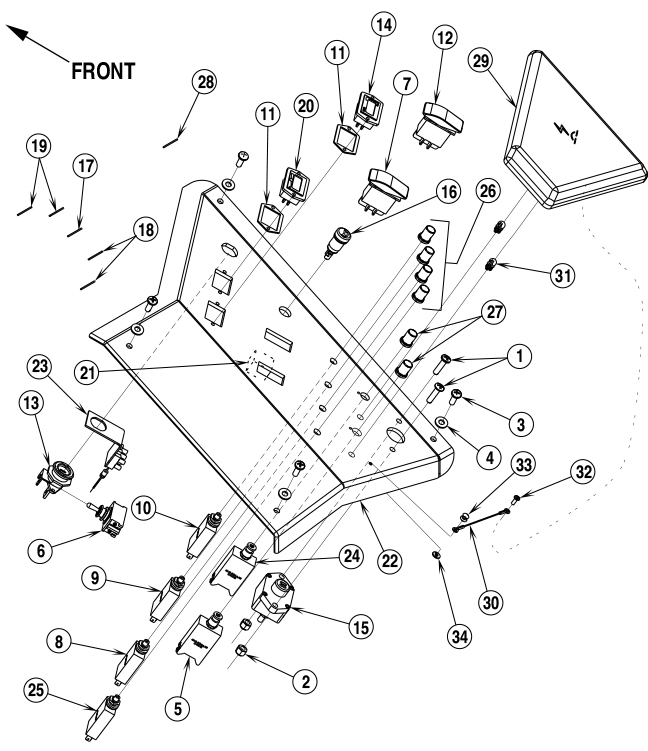

Control Panel Assembly

Nilfisk Retriever 4600 Control Panel Assembly

Nilfisk Retreiver 4600 Control Panel

Reference # Part # Description Add to Cart
1 56002292 Screw 1/4-20 x 1 Buy Now
2 56002708 Hex Nut 1/4-20 Buy Now
3 56009248 Screw 1/4-20 x .75 CALL TO ORDER
4 56009249 Washer Buy Now
5 56263260 Circuit Breaker 60A (Pump Motor) Buy Now
6 56301636 Toggle Switch Buy Now
7 56393312 Rocker Switch Buy Now
8 56329177 Circuit Breaker 6A (Aux Circuit 1) Buy Now
9 56387316 Circuit Breaker 10A (Side Broom) Buy Now
10 56387328 Circuit Breaker 5A (Aux Circuit 2) CALL TO ORDER
11 56392845 Gasket Buy Now
12 56324272 Rocker Switch (Dust Control) Buy Now
13 56393325 Bracket Keylock Buy Now
* 56393415 Key (Replacement) Buy Now
14 56393718 Hourmeter Buy Now
15 56409230 Circuit Breaker 80A (Wheel Drive) CALL TO ORDER
16 56409692 Horn Switch CALL TO ORDER
17 56416126 Dash Wiring Harness CALL TO ORDEr
18 56416151 Wire Assembly #1 CALL TO ORDER
19 56416152 Wiring Assembly #2 CALL TO ORDER
20 56416395 Fuel Gauge Battery Buy Now
21 56416416 Low Voltage Relay Module CALL TO ORDER
22 56416423 Control Panel CALL TO ORDER
23 56416424 Diode Bracket Assembly CALL TO ORDER
* 56409228 Diode (D1) CALL TO ORDER
* 56183523 Terminal Block Buy Now
* 56416425 Diode Bracket CALL TO ORDER
24 56452193 Circuit Breaker 40A (Main Broom) Buy Now
25 56454538 Circuit Breaker 15A (Dust Control) Buy Now
26 56459367 Boot Reset Button Buy Now
27 56459368 Boot Reset Button CALL TO ORDER
28 56260959 Wire Assembly (White) CALL TO ORDER
29 56416635 Circuit Breaker Cover CALL TO ORDER
30 56416669 Cable CALL TO ORDER
31 56416630 Fastener Ball Buy Now
32 56003196 Screw 6-18 x .38 Buy Now
33 56003293 Rivet .125 x .39/.50 Buy Now
34 56002006 Flat Washer Buy Now

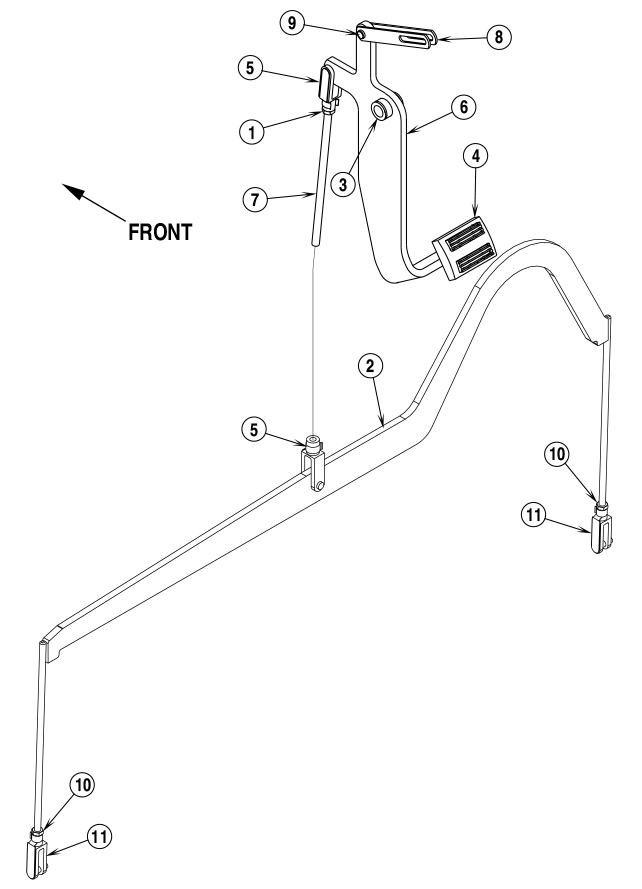

Brake Lever - Yoke Assemblies

Nilfisk Retriever 4600 Brake And Yoke Assemblies

Nilfisk Brake Lever and Yoke

Reference # Part # Description Add to Cart
1 56002317 Hex Nut 3/8-24 CALL TO ORDER
2 56416340 Brake Yoke CALL TO ORDER
3 56171095 Flange Bearing Buy Now
4 56365002 Rubber Pad Buy Now
5 56416088 Clevis Assembly CALL TO ORDER
6 56416344 Brake Lever CALL TO ORDER
7 56416345 Brake Rod CALL TO ORDER
8 56416348 Linkage Handbrake CALL TO ORDER
9 56455357 Pin CALL TO ORDER
* 56003144 Pin Cotter 1/16 x 1/2 Buy Now
10 56001884 Hex Nut 5/16-24 Buy Now
11 56416089 Clevis Assembly Buy Now

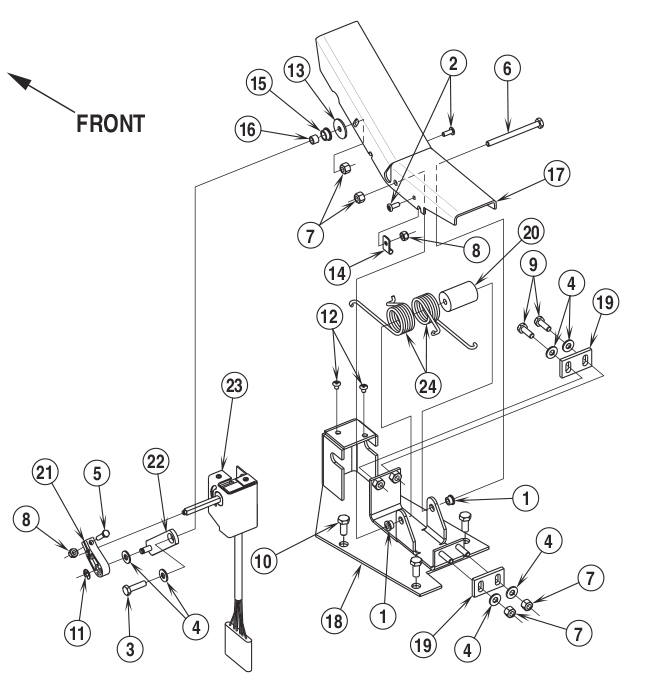

Throttle Assembly

Nilfisk Retriver 4600 Throttle Assembly

Nilfisk Retriever 4600 Throttle

Reference # Part # Description Add to Cart
1 56756318 Bearing Flange Buy Now
2 56001993 Screw 10-24 x .50 Buy Now
3 56002093 Hex Screw 1/4-20 x 1 Buy Now
4 56002098 Flat Washer 1/4 Buy Now
5 56002425 Hex Screw 10-24 x .88 Buy Now
6 56002603 Hex Screw 1/4-20 x 3.0 Buy Now
7 56002708 Hex Nut 1/4-20 Buy Now
8 56002768 Hex Nut 10-24 Buy Now
9 56002948 Hex Screw 1/4-20 x .75 Buy Now
10 56002956 Hex Screw 5/16-18 x .75 Buy Now
11 56003268 Ring Buy Now
12 56003479 Screw M5 x .8 x 6mm Buy Now
13 56009060 Flat Washer Buy Now
14 56220507 P-Clamp Buy Now
15 56324505 Bearing Flange Buy Now
16 56368989 Bushing Buy Now
17 56409369 Pedal CALL TO ORDER
18 56409375 Pedal Mount CALL TO ORDER
19 56409377 Slide Plate Buy Now
20 56409378 Nylon Spacer Buy Now
21 56409471 Lever Throttle Buy Now
22 56409610 Link Buy Now
23 56416169 Electronic Throttle Buy Now
24 56468243 Idler Spring Buy Now

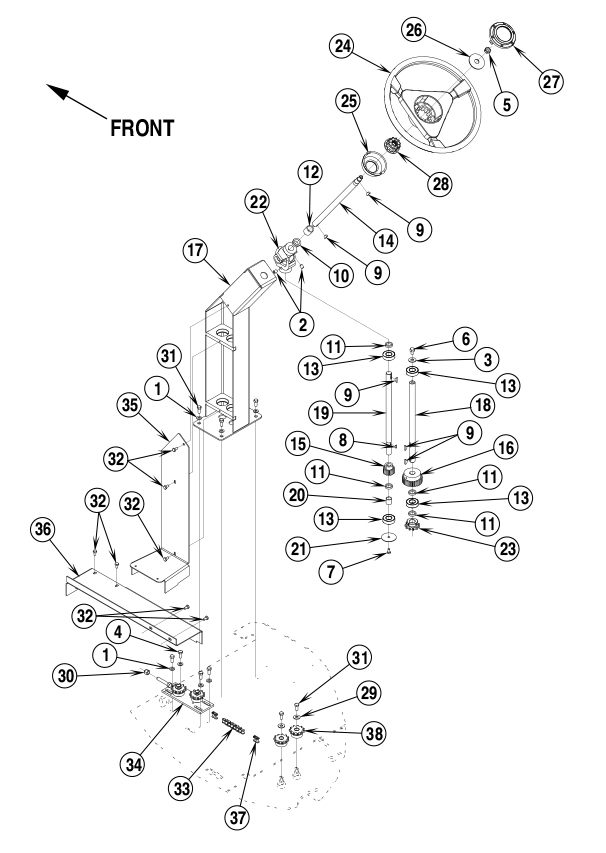

Steering System

Nilfisk Retriever 4600 Steering System

Nilfisk Retriever 4600 Steering System

Reference # Part # Description Add to Cart
1 56001939 Flat Washer 5/16 Buy Now
2 56001958 Lock Screw 3/8-16 x .50 Buy Now
3 56002055 Flat Washer 3/8 Buy Now
4 56002956 Lock Screw 5/16-18 x .75 Buy Now
5 56002868 Hex Nut 1/2-20 Buy Now
6 56003023 Hex Screw 3/8-16 x .5 Buy Now
7 56003039 Hex Screw 1/4-20 x .50 Buy Now
8 56003226 Key .50 x .12 Buy Now
9 56003228 Key .75 x .19 Buy Now
10 56250414 Bearing Flange Buy Now
11 56366315 Spacer CALL TO ORDER
12 56409755 Bearing Sleeve CALL TO ORDER
13 56416038 Ball Bearing CALL TO ORDER
14 56416065 Upper Shaft CALL TO ORDER
15 56416539 Gear Spur CALL TO ORDER
* 56002015 Lock Screw 10-24 x .25 Buy Now
16 56416540 Gear Spur CALL TO ORDER
* 56001841 Screw 1/4-20 x .25 Buy Now
17 56416551 Steering Column CALL TO ORDER
18 56416554 Steering Shaft CALL TO ORDER
19 56416555 Steering Shaft CALL TO ORDER
20 56416557 Sleeve CALL TO ORDER
21 56416558 Retainer Disc CALL TO ORDER
22 56454081 Universal Joint Buy Now
23 56471148 Sprocket Buy Now
* 56001841 Screw 1/4-20 x .25 Buy Now
24 56497306 Steering Wheel Buy Now
25 56497308 Cap Buy Now
26 56497542 Washer CALL TO ORDER
27 56497543 Cap Buy Now
28 56497560 Wheel Adapter Buy Now
29 56002220 Flat Washer 5/16 Buy Now
30 56002769 Hex Nut 3/8-16 Buy Now
31 56002956 Hex Screw 5/16-18 x .75 Buy Now
32 56009033 Hex Screw 1/4-20 x .50 Buy Now
33 56416205 Upper Roller Chain CALL TO ORDER
34 56416559 Tensioner Assembly CALL TO ORDER
* 56416561 Tensioner CALL TO ORDER
* 56454079 Sprocket Assembly Buy Now
* 56002956 Hex Screw 5/16-18 x .75 Buy Now
* 56002220 Flat Washer 5/16 Buy Now
35 56416571 Chain Guard CALL TO ORDER
36 56416572 Chain Guard CALL TO ORDER
37 56445096 Link Connector Buy Now
38 56454079 Sprocket Assembly Buy Now
* 56101737 Fitting 1/4-23 Buy Now





Drive Wheel System

Nilfisk Retriever 4600 Drive Wheel System

Nilfisk Retriever 4600 Drive Wheel

Reference # Part # Description Add to Cart
1 56002221 Hex Screw 5/16-18 x 1 Buy Now
2 56003381 Hex Screw M8-1.25 x 80mm CALL TO ORDER
3 56003382 Hex Screw M12-1.75 x 25mm CALL TO ORDER
4 56003384 Lug Nut Buy Now
5 56003398 Hex Screw M8-1.25 x 80mm Buy Now
6 56416024 Drive Wheel Gearbox CALL TO ORDER
* 56501001 Lube Gear SAE 90 CALL TO ORDER
7 56416058 Rear Wheel Assembly CALL TO ORDER
8 56416296 Steering Clamp CALL TO ORDER
9 56416297 Wheel Drive Motor Assembly CALL TO ORDER
* 56416167 Motor CALL TO ORDER
* 56416656 Carbon Brush CALL TO ORDER
* 56409746 Brush Spring Buy Now
* 56416299 O-Ring Buy Now
* 56003083 Key 4mm x 6.5mm CALL TO ORDER
* 56003086 Hex Nut M14-1.50 CALL TO ORDER
10 56416522 Steering Plate CALL TO ORDER

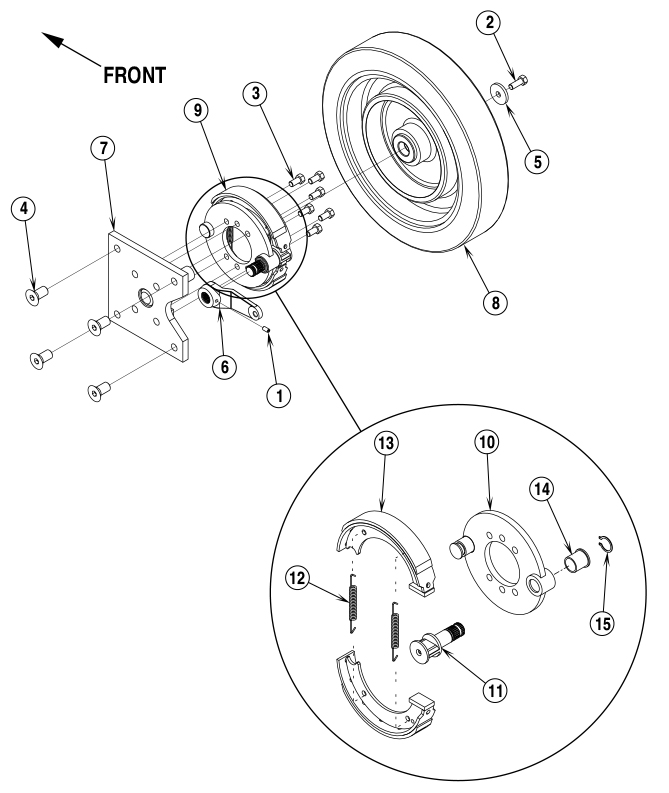

Front Wheel System

Nilfisk Retriever 4600 Front Wheel System

Nilfisk Retriever 4600 Front Wheel System

Reference # Part # Description Add to Cart
1 56002119 Screw 1/4-20 x .50 Buy Now
2 56002947 Screw 3/8-16 x 1.0 Buy Now
3 56003079 Screw 3/8-16 x .75 Buy Now
4 56003399 Screw 5/8-11 x 1.25 CALL TO ORDER
5 56367117 Washer .40 x 1.5 x .18 Buy Now
6 56416011 Brake Arm CALL TO ORDER
7 56416055 Spindle CALL TO ORDER
8 56416112 Front Wheel Assembly CALL TO ORDER
* 56479430 Bearing Ball Buy Now
* 56416111 Tire Buy Now
* 56416029 Hub CALL TO ORDER
9 56463613 Brake Assembly (#10-15) CALL TO ORDER
10 56463612 Plate CALL TO ORDER
11 56409683 Cam CALL TO ORDER
12 56409491 Spring CALL TO ORDER
13 56409490 Shoe Brake CALL TO ORDER
14 56409472 Bearing Flange CALL TO ORDER
15 56003108 Retainer Ring Buy Now





Hydraulic System

Nilfisk Retriever 4600 Hydraulic System

Nilfisk Retriever 4600 Hydraulic System

Reference # Part # Description Add to Cart
* 56416063 Direction Control Valve Assembly (1-16) CALL TO ORDER
1 56900343 Tee W/Nut Buy Now
2 56900303 Elbow 90 W/Nut Buy Now
3 56900013 O-Ring Connector Buy Now
4 56001874 Hex Screw 1/4-20 x 2.0 Buy Now
5 56002098 Washer SAE 1/4 Buy Now
6 56416032 Directional Control Valve CALL TO ORDER
7 56002708 Hex Nut 1/4-20 Buy Now
8 56378534 Knob Buy Now
9 56416428 Lever CALL TO ORDER
10 56002832 Hex Nut 10-24 Buy Now
11 56416394 Bushing CALL TO ORDER
12 56002504 Hex Screw 10-24 x .75 Buy Now
13 56416246 U-Clip Valve Buy Now
14 56900103 Elbow O-Ring Buy Now
15 56900003 O-Ring Connector Buy Now
16 56900011 O-Ring Connector Buy Now
* 56416120 Lift Cylinder Assembly (17-20) CALL TO ORDER
17 56003258 Exterior Ring Buy Now
18 56462706 Cylinder Short Pin CALL TO ORDER
19 56900101 Elbow O-Ring Buy Now
20 56100038 Hopper Cylinder CALL TO ORDER
* 56416095 Hydraulic Reservoir Assembly (21-30, 61) CALL TO ORDER
21 56416094 Hydraulic Reservoir CALL TO ORDER
22 56416509 Hold Down Strap CALL TO ORDER
23 56009018 Hex Screw 1/4-20 x .75 Buy Now
24 56416480 Hose Connector CALL TO ORDER
25 56244969 Hose Clamp Buy Now
26 56416090 Intank Filter Assembly CALL TO ORDER
* 56416302 Filter Element CALL TO ORDER
* 56416303 Breather Element CALL TO ORDER
27 56009251 Wave Washer CALL TO ORDER
28 56002221 Hex Screw 5/16-18 x 1.0 Buy Now
29 56416478 Suction Hose Assembly CALL TO ORDER
* 56416083 Suction Hose CALL TO ORDER
* 56416321 Dust Boot CALL TO ORDER
* 56131601 Hose Clamp SAE #16 Buy Now
30 56329145 Clamp Hose SAE #24 Buy Now
* 56416430 Hydraulic Pump / Motor (31-35) CALL TO ORDER
31 56002667 Hex Screw 5/16-18 x .75 Buy Now
32 56416203 Motor 2.5HP CALL TO ORDER
* 56416610 Carbon Brush CALL TO ORDER
* 56416611 Brush Spring CALL TO ORDER
* 56416609 Brush Ring Assembly CALL TO ORDER
33 56900113 Elbow O-Ring Buy Now
34 56416030 Gear Pump CALL TO ORDER
* 56416658 Seal Kit CALL TO ORDER
35 56002254 Hex Screw 3/8-24 x 1.25 Buy Now
* 56416121 Hopper Door Cylinder Assembly (36-39) Buy Now
36 56900110 Elbow O-Ring Buy Now
37 56416202 Hopper Dump Door Cylinder Buy Now
38 56486733 Pin Buy Now
39 56002529 Pin Cotter 1/8 x 1.0 Buy Now
40 56900401 Elbow Buy Now
41 56416490 Sleeve CALL TO ORDER
42 56492753 Tube Clamp CALL TO ORDER
43 56001833 Hex Screw 1/4-20 x 1.5 Buy Now
44 56002708 Hex Nut 1/4-20 Buy Now
45 56416483 Hydraulic Hose CALL TO ORDER
46 56416484 Hydraulic Hose CALL TO ORDER
47 56416485 Hydraulic Hose CALL TO ORDER
48 56416481 Hydraulic Hose CALL TO ORDER
49 56416486 Hydraulic Hose CALL TO ORDER
50 56416487 Hydraulic Hose CALL TO ORDER
51 56416488 Hydraulic Hose CALL TO ORDER
52 56416489 Hydraulic Hose CALL TO ORDER
* 56416122 Check Valve Assembly CALL TO ORDER
53 56002603 Hex Screw 1/4-20 x 3.0 Buy Now
54 56002708 Hex Nut 1/4-20 Buy Now
55 56416056 Cylinder Relief Valve CALL TO ORDER
56 56900103 Elbow 90 O-Ring Buy Now
57 56900153 Elbow 45 O-Ring W/Nut Buy Now
58 56900343 Tee Buy Now
59 56900523 Elbow 90 Long O-Ring CALL TO ORDER
60 56416657 Replacement Switch CALL TO ORDER
61 56416657 Washer 5/16 CALL TO ORDER





Hopper System

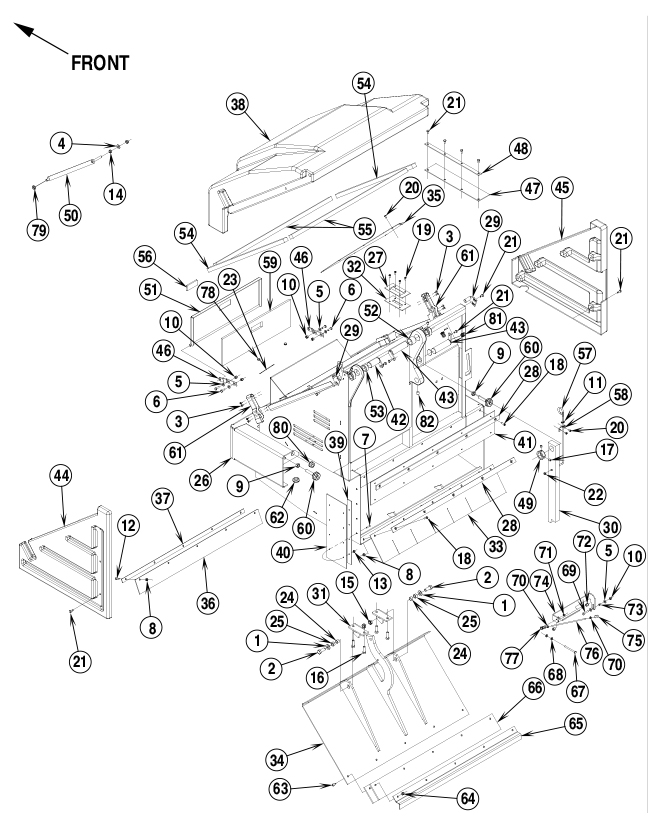

Nilfisk Retriever 4600 Hopper System

Nilfisk Retriever 4600 Hopper System

Reference # Part # Description Add to Cart
1 56001879 Washer 1/2 Buy Now
2 56002665 Hex Screw 1/2-13 x 1.25 CALL TO ORDER
3 56002043 Screw 10-24 x .38 Buy Now
4 56002063 Washer 3/8 Buy Now
5 56002098 Washer 1/4 Buy Now
6 56002155 Hex Screw 1/4-20 x .75 Buy Now
7 56002417 Screw 10-24 x .88 Buy Now
8 56002491 Hex Nut 1/4-20 Buy Now
9 56009016 Hex Nut 1/2-13 Buy Now
10 56002708 Hex Nut 1/4-20 Buy Now
11 56416666 Flange Bearing CALL TO ORDER
12 56002807 Hex Screw 1/4-20 x .75 Buy Now
13 56002836 Hex Nut 10-24 Buy Now
14 56002841 Hex Nut 3/8-16 Buy Now
15 56002843 Hex Nut 1/2-13 Buy Now
16 56002947 Hex Screw 3/8-16 x 1.00 Buy Now
17 56003081 Screw 3/8-16 x.38 Buy Now
18 56003086 Screw 1/4-20 x .88 Buy Now
19 56009029 Screw 10-24 x .50 Buy Now
20 56009030 Screw 10-24 x .38 Buy Now
21 56009033 Hex Screw 1/4-20 x .50 Buy Now
22 56009132 Nut 1/4 Buy Now
23 56330682 Gasket CALL TO ORDER
24 56360627 Bushing Buy Now
25 56370878 Bearing Sleeve Buy Now
26 56416240 Hopper CALL TO ORDER
27 56416241 Boot Plate CALL TO RDER
28 56416242 Hopper Strap CALL TO ORDER
29 56416247 Hopper Cover Hinge CALL TO ORDER
30 56416250 Hopper Prop CALL TO ORDER
31 56416253 Hinge Buy Now
32 56416257 Hopper Boot CALL TO ORDER
33 56416258 Hopper Skirt (Standard) CALL TO ORDER
* 56416667 Hopper Skirt (Optional) CALL TO ORDER
34 56416262 Hopper Door CALL TO ORDER
35 56416268 Access Panel CALL TO ORDER
36 56416271 Blade CALL TO ORDER
37 56416273 Blade Strap CALL TO ORDER
38 56416275 Hopper Cover CALL TO ORDER
39 56416291 Vertical Strap CALL TO ORDER
40 56416293 Vertical Seal CALL TO ORDER
41 56416294 Horizontal Seal CALL TO ORDER
42 56416308 Left Hinge Pin Buy Now
43 56416309 Right Hinge Pin Buy Now
44 56416319 Left Panel CALL TO ORDER
45 56416320 Right Panel CALL TO ORDER
46 56416365 Hinge Plate CALL TO ORDER
47 56416459 Blade CALL TO ORDER
48 56416460 Strap CALL TO ORDER
49 56416498 Collar Hopper Hinge Buy Now
50 56416512 Prop Rod CALL TO ORDER
51 56416518 Litter Door CALL TO ORDER
52 56416535 Bearing Sleeve CALL TO ORDER
53 56416536 Bearing Sleeve CALL TO ORDER
54 56416541 Gasket .75 x 1.0 CALL TO ORDER
55 56416542 Gasket .75 x 1.0 CALL TO ORDER
56 56416586 Lift & Turn Latch CALL TO ORDER
57 56416590 Pull Rod CALL TO ORDER
58 56416592 Pull Rod Guide CALL TO ORDER
59 56416617 Litter Door Gasket CALL TO ORDER
60 56449221 Bumper 1.43 Dia. Buy Now
61 56462746 Latch Buy Now
62 56760212 Grommet Buy Now
63 56002897 Screw 1/4-20 x 1.25 Buy Now
64 56002491 Hex Nut 1/4-20 Buy Now
65 56416264 Z Angle CALL TO ORDER
66 56416263 Hopper Door Blade CALL TO ORDER
67 56002397 Screw 1/4-20 x 1.25 Buy Now
68 56009087 Hex Nut 1/4-20 Buy Now
69 56001878 Hex Screw 1/4-20 x 1.25 Buy Now
70 56001987 Hex Nut 10-32 Buy Now
71 56002873 Hex Nut 10-32 Buy Now
72 56416665 Bearing Flange CALL TO ORDER
73 56379298 Bushing Buy Now
74 56416638 Lever CALL TO ORDER
75 56416641 Nut CALL TO ORDER
76 56416642 Rod CALL TO ORDER
77 56488290 Rod End Buy Now
78 56416668 Bumper Self Adhesive Buy Now
79 56009123 Nut 3/8 Buy Now
80 56453254 Grommet CALL TO ORDER
81 56323067 Strain Relief Buy Now
82 56002021 Screw 5/16-18 x .38 Buy Now





Dust Control System

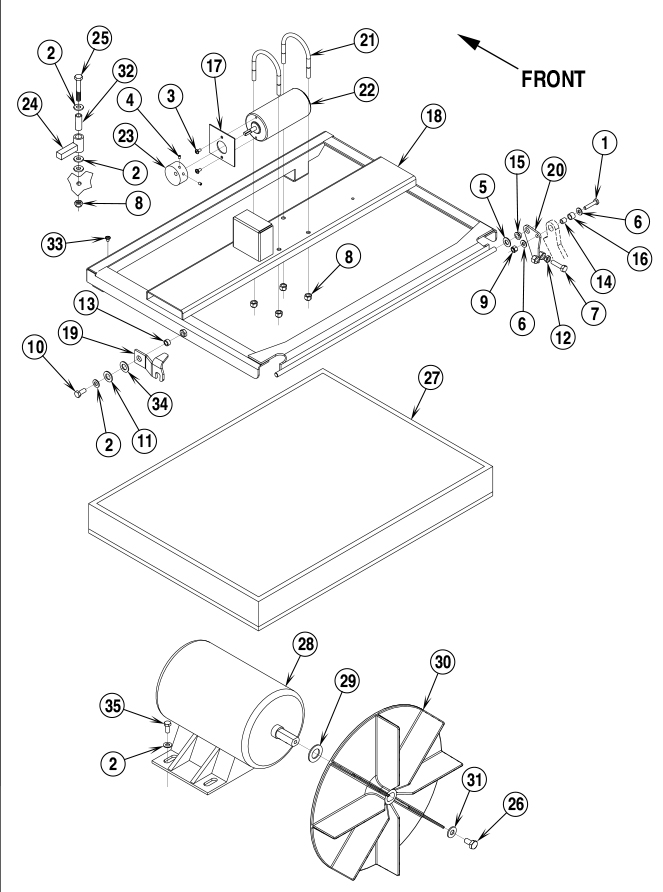

Nilfisk Retriever 4600 Dust Control System

Nilfisk Retriever 4600 Dust Control System

Reference # Part # Description Add to Cart
1 56002093 Hex Screw 1/4-20 x 1 Buy Now
2 56001939 Washer 5/16 Buy Now
3 56002001 Screw 10-32 x .38 Buy Now
4 56002015 Screw 20-24 x .25 Buy Now
5 56002063 Washer 3/8 Buy Now
6 56002098 Washer 1/4 Buy Now
7 56002187 Hex Screw 5/16-18 x 1.25 Buy Now
8 56002701 Hex Nut 5/16-18 Buy Now
9 56002708 Hex Nut 1/4-20 Buy Now
10 56002956 Hex Screw 5/16-18 x .75 Buy Now
11 56009003 Washer .51 x .93 Buy Now
12 56009086 Hex Nut 5/16-18 Buy Now
13 56320595 Bushing .32 x .50 x .28 Buy Now
14 56321532 Bushing .25 x .37 x .40 Buy Now
15 56416675 Bushing Flange Buy Now
16 56370754 Bearing Sleeve Buy Now
17 56416280 Shaker Shield CALL TO ORDER
18 56416289 Filter Clamp Buy Now
19 56416511 Shaker Latch Buy Now
20 56416625 Shaker Hinge Buy Now
21 56468329 U-Bolt Buy Now
22 56467307 Shaker Motor CALL TO ORDER
23 56416671 Eccentric CALL TO ORDER
24 56416674 Filter Clamp Buy Now
25 56002721 Screw 5/16-28 x 2.00 Buy Now
26 56003039 Screw 1/4-20 x .50 Buy Now
27 56416618 Filter Assembly Buy Now
28 56416020 Impeller Motor CALL TO ORDER
* 56416595 Carbon Brush CALL TO ORDER
29 56416613 Washer .56 x 1 x .06 CALL TO ORDER
30 56416021 Impeller CALL TO ORDER
31 56002098 Washer 1/4 Buy Now
32 56300241 Bushing Buy Now
33 56002453 Screw 10-24 x .25 Buy Now
34 56009001 Washer .51 x .90 x .008 Buy Now
35 56003073 Screw 5/16-18 x 1.00 Buy Now





Main Broom System

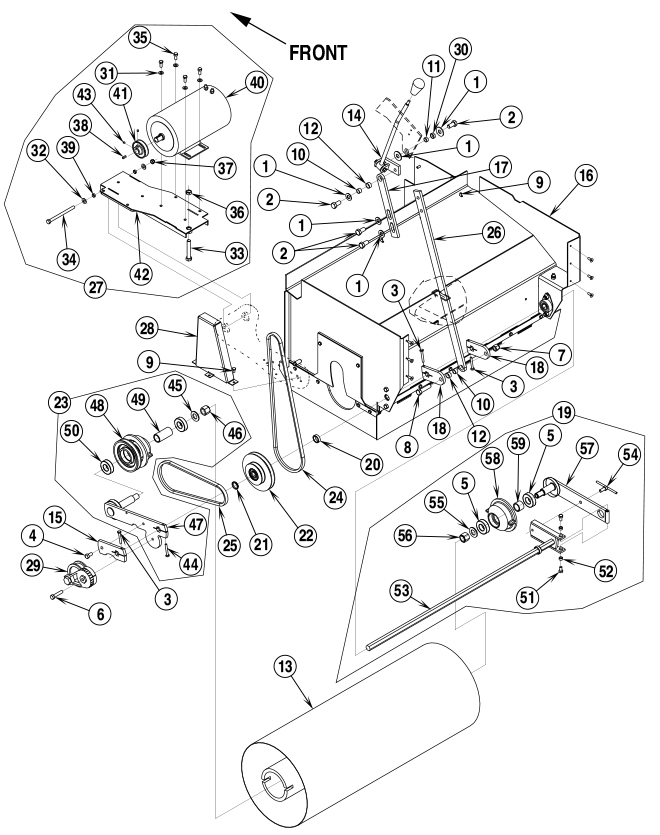

Nilfisk Retriever 4600 Main Broom System

Nilfisk Retriever 4600 Main Broom System

Reference # Part # Description Add to Cart
1 56001879 Washer 1/2 Buy Now
2 56001895 Hex Screw 1/2-13 x 1.0 Buy Now
3 56003484 Hex Screw 1/4-20 x 1.75 Buy Now
4 56002127 Hex Screw 3/8-16 x .75 Buy Now
5 56479430 Ball Bearing Buy Now
6 56002684 Hex Screw 3/8-16 x 1.75 Buy Now
7 56002770 Nut 1/2-13 Buy Now
8 56002983 Screw 1/2-13 x 2.0 Buy Now
9 56009033 Hex Screw 1/4-20 x .50 Buy Now
10 56360627 Bushing Buy Now
11 56365030 Bushing .50 x .62 x .27 Buy Now
12 56370878 Bearing Sleeve Buy Now
13 56416093 Main Broom Buy Now
14 56416096 Main Broom Lever Assembly CALL TO ORDER
* 56002035 Screw 5/16-18 x .62 Buy Now
* 56320595 Bushing .32 x .50 .28 Buy Now
* 56364527 Knob Buy Now
* 56416370 Lever CALL TO ORDER
* 56487929 Lever Weld't CALL TO ORDER
15 56416101 Hex Broom Arm CALL TO ORDER
16 56416351 Scroll Assembly CALL TO ORDER
17 56416372 Lift Link CALL TO ORDER
18 56416373 Lift Shaft CALL TO ORDER
19 56416375 Broom Arm Assembly CALL TO ORDER
20 56416376 Shaft Spacer CALL TO ORDER
21 56416377 Shaft Spacer CALL TO ORDER
22 56416384 Idler Pulley Assembly CALL TO ORDER
* 56416087 Bearing Buy Now
* 56416288 Idler Pulley CALL TO ORDER
23 56416385 Drive Lug Assembly CALL TO ORDER
24 56416391 Broom Motor Belt Buy Now
25 56416392 Broom Idler Belt Buy Now
26 56416456 Lift Link CALL TO ORDER
27 56416492 MP Plate Assembly CALL TO ORDER
28 56416528 Belt Guard CALL TO ORDER
29 56416574 Idler Belt CALL TO ORDER
30 56478781 Bearing Sleeve Buy Now
31 56001939 Washer 5/16 Buy Now
32 56002063 Washer 3/8 Buy Now
33 56002217 Screw 1/2-13 x 3 Buy Now
34 56002506 Screw 3/8-16 x 5 Buy Now
35 56002667 Screw 5/16-18 x .75 Buy Now
36 56009016 Nut 1/2-13 Buy Now
37 56002841 Nut 3/8-16 Buy Now
38 56003238 Key .19 x .78 Buy Now
39 56385356 Bushing CALL TO ORDER
40 56416033 Motor CALL TO ORDER
* 56416636 Carbon Brush CALL TO ORDER
41 56416360 Motor Pulley CALL TO ORDER
42 56416493 MP Plate CALL TO ORDER
43 56002086 Screw 5/16-18 x .25 Buy Now
44 56003484 Screw 1/4-20 x 1.75 Buy Now
45 56002141 Washer 3/4 Buy Now
46 56002862 Nut 3/4-10 Buy Now
47 56416386 Broom Arm CALL TO ORDER
48 56416389 Drive Pulley Assembly CALL TO ORDER
* 56002056 Pin .25 x 1.25 Buy Now
* 56416287 Drive Pulley CALL TO ORDER
* 56470636 Idler Lug CALL TO ORDER
49 56416390 Spacer CALL TO ORDER
50 56479430 Ball Bearing Buy Now
51 56002035 Screw 5/16-18 x .62 Buy Now
52 56320595 Bushing Buy Now
53 56416100 Right Hex Arm CALL TO ORDER
54 56416382 Broom Arm Nut Buy Now
* 56416378 Idler Assembly CALL TO ORDER
55 56002141 Washer 3/4 Buy Now
56 56002862 Hex Nut 3/4-10 Buy Now
57 56416379 Broom Arm CALL TO ORDER
58 56470636 Idler Lug CALL TO ORDER
59 56470728 Bushing 1 x 1.2 x .9 CALL TO ORDER





Main Broom System (Scroll Assembly

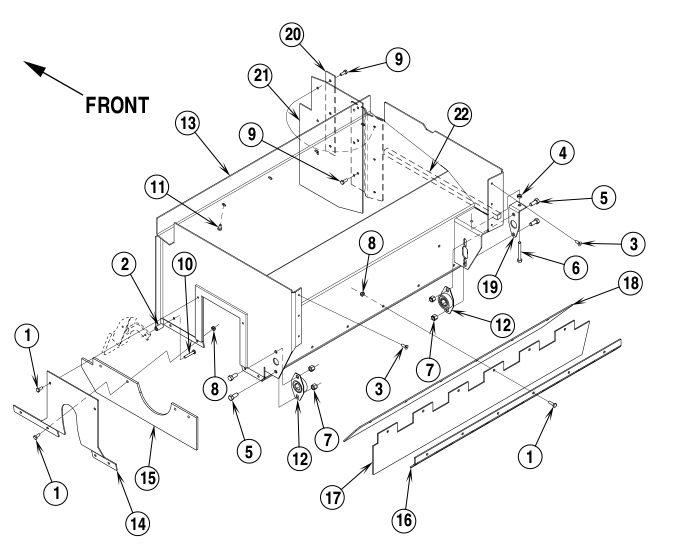

Nilfisk Retriever 4600 Main Broom System (Scroll Assembly)

Nilfisk Retriever 4600 Main Broom System (Scroll Assembly)

Reference # Part # Description Add to Cart
1 56002155 Screw 1/4-20 x .75 Buy Now
2 56416633 Bushing CALL TO ORDER
3 56001881 Screw 1/4-20 x .75 Buy Now
4 56002025 Nut 5/16-18 Buy Now
5 56002271 Screw 3/8-16 x .88 Buy Now
6 56002488 Screw 5/16-18 x 2.5 Buy Now
7 56002769 Nut 3/8-16 Buy Now
8 56002840 Nut 1/4-20 Buy Now
9 56009018 Screw 1/4-20 x .75 Buy Now
10 56009028 Screw 1/4-20 x 1.5 Buy Now
11 56009033 Screw 1/4-20 x .5 Buy Now
12 56416086 Bearing Flange CALL TO ORDER
13 56416352 Broom Housing CALL TO ORDER
14 56416358 Left Access Plate CALL TO ORDER
15 56416359 Left Skirt CALL TO ORDER
16 56416362 Rear Skirt Strap CALL TO ORDER
17 56416363 Rear Skirt CALL TO ORDER
18 56416364 Rear Skirt CALL TO ORDER
19 56416465 Broom Adjuster CALL TO ORDER
20 56416620 Vertical Strap CALL TO ORDER
21 56416621 Right Housing Skirt CALL TO ORDER
22 56416632 Gasket CALL TO ORDER





Side Broom System

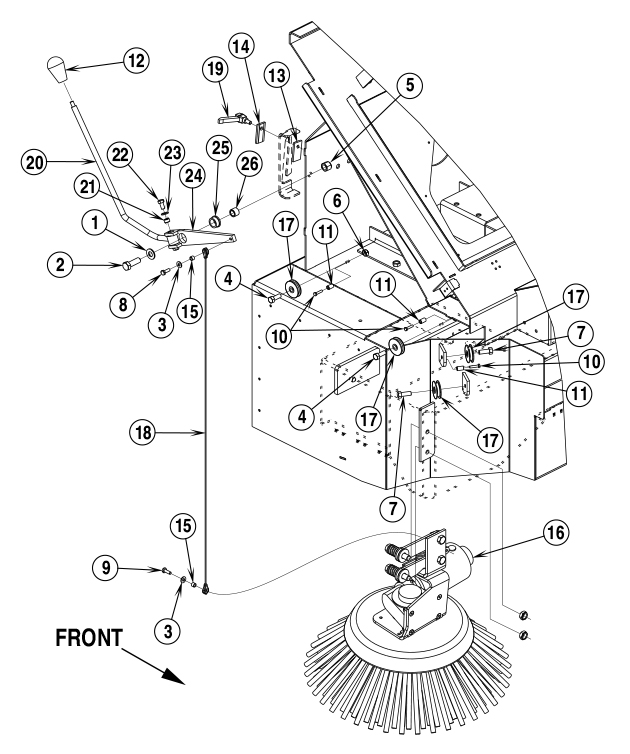

Nilfisk Retriever 4600 Side Broom System

Nilfisk Retriever 4600 Side Broom System

Reference # Part # Description Add to Cart
1 56001879 Washer 1/2 Buy Now
2 56001968 Screw 1/2-13 x 1.5 Buy Now
3 56002098 Washer 1/4 Buy Now
4 56002663 Screw 3/8-16 x 1 Buy Now
5 56002770 Nut 1/2-13 Buy Now
6 56002841 Nut 3/8-16 Buy Now
7 56002947 Screw 3/8=16 x 1 Buy Now
8 56002948 Screw 1/4-20 x .75 Buy Now
9 56009018 Screw 1/4-20 x .75 Buy Now
10 56009038 Screw 10-24 x .88 Buy Now
11 56200239 Bushing CALL TO ORDER
12 56364527 Knob Buy Now
13 56416411 Broom Stop Buy Now
14 56416412 Broom Stop CALL TO ORDER
15 56453849 Bushing Buy Now
16 56416500 Side Broom Assembly CALL TO ORDER
17 56416546 Shielded Pulley Buy Now
18 56416591 Side Broom Cable CALL TO ORDER
19 56416597 Adjustable Handle Buy Now
20 56416474 Lever CALL TO ORDER
* 56416473 Lever Assembly CALL TO ORDER
21 56320595 Bushing Buy Now
22 56002929 Screw 5/16-18 x .62 Buy Now
23 56001939 Washer 5/16 Buy Now
24 56416470 Lever CALL TO ORDER
25 56250414 Bearing Flange Buy Now
26 56416662 Bushing Buy Now

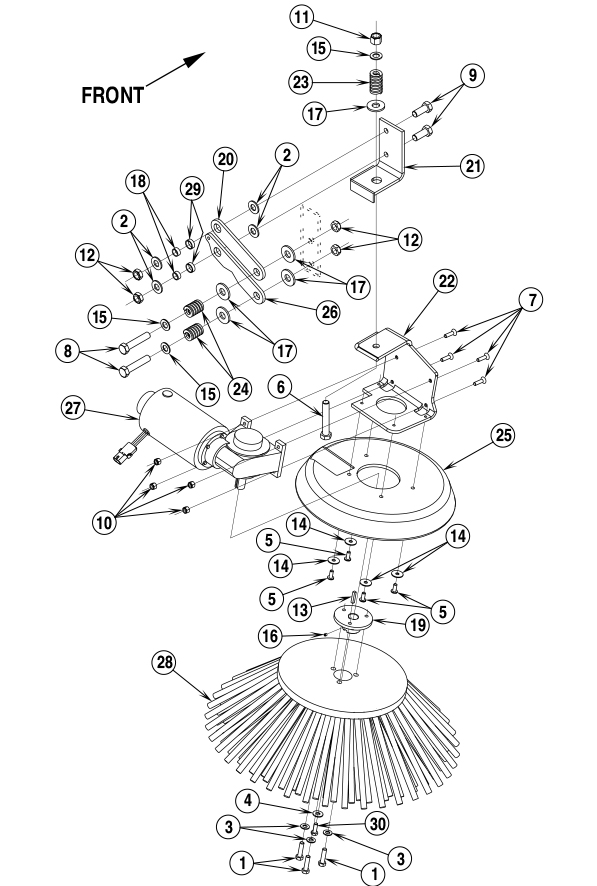

Side Broom Assembly

Nilfisk Retriever 4600 Side Broom Assembly

Nilfisk Retriever 4600 Side Broom Assembly

Reference # Part # Description Add to Cart
1 56009256 Screw 5/16-18 x 1.38 Buy Now
2 56001879 Washer 1/2 Buy Now
3 56001939 Washer 5/16 Buy Now
4 56002098 Washer 1/4 Buy Now
5 56002066 Screw 1/4-20 x .62 Buy Now
6 56002355 Screw 1/2-13 x 3 Buy Now
7 56002457 Screw 1/4-20 x 1 Buy Now
8 56002533 Screw 1/2-13 x 2.5 Buy Now
9 56002665 Screw 1/2-13 x 1.25 CALL TO ORDER
10 56002708 Nut 1/4-20 Buy Now
11 56002770 Nut 1/2-13 Buy Now
12 56002843 Nut 1/2-13 Buy Now
13 56003239 Key Buy Now
14 56009002 Washer .26 x .90 x .06 Buy Now
15 56009017 Washer .51 x .93 Buy Now
16 56009084 Screw 10-24 x .19 Buy Now
17 56009115 Washer .59 x .37 Buy Now
18 56365030 Bushing Buy Now
19 56416023 Hub CALL TO ORDER
20 56416499 Side Broom Link CALL TO ORDER
21 56416501 Side Broom Buy Now
22 56416504 Side Broom CALL TO ORDER
23 56416507 Spring Die CALL TO ORDER
24 56416508 Spring Die Buy Now
25 56416538 Broom Guard Buy Now
26 56416547 Side Broom Link Buy Now
27 56416578 Gearmotor Assembly Buy Now
* 56416608 Carbon Brush CALL TO ORDER
28 56462252 Side Broom Buy Now
29 56478781 Bearing Sleeve Buy Now
30 56002948 Screw 1/4-20 x .75 Buy Now

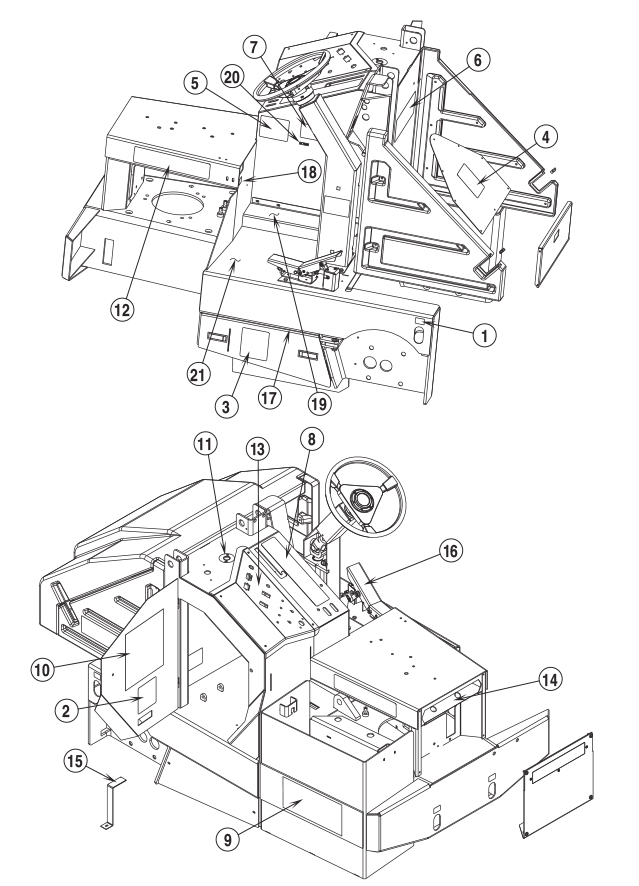

Decal System

Nilfisk Retriever 4600 Decal System

Nilfisk Retriever 4600 Decal System

Reference # Part # Description Add to Cart
1 56015370 Tie Down Decal Buy Now
2 56015424 Hydraulic Warning Buy Now
3 56015425 Warning Broom Decal Buy Now
4 56015426 Warning Fan Decal Buy Now
5 56015427 Warning Tip Over Decal Buy Now
6 56015428 Warning Hopper Decal Buy Now
7 56016053 Wear Items 4600 Decal CALL TO ORDER
8 56016054 Hopper Lift/Door Decal CALL TO ORDER
9 56016636 4600 Decal CALL TO ORDER
10 56416649 Schematic Pack CALL TO ORDER
* 56416124 Electrical Schematic CALL TO ORDER
* 56416537 Hydraulic Schematic CALL TO ORDER
11 56016060 Emergency Disconnect Decal CALL TO ORDER
12 56016061 Battery Config Decal CALL TO ORDER
13 56016062 Control Panel Decal CALL TO ORDER
14 56016097 Reflective Decal CALL TO ORDER
15 56016125 Important Decal CALL TO ORDER
16 56449958 Pedal Mat CALL TO ORDER
17 56016163 No Step Decal Buy Now
18 56016324 Charger Decal Buy Now
19 56416600 Guard Mat CALL TO ORDER
20 56023147 Decal CALL TO ORDER
21 56416548 Floor Mat CALL TO ORDER

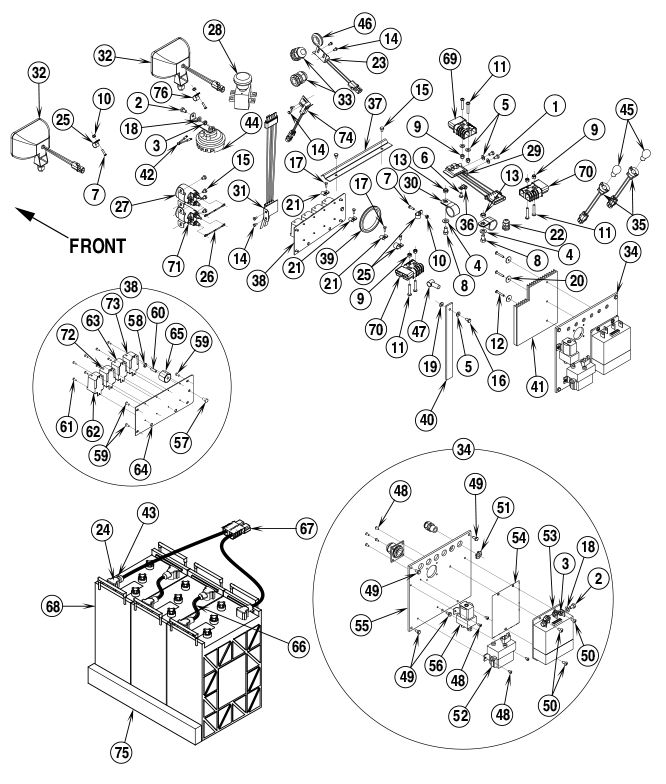

Electrical System

Nilfisk Retriever 4600 Electrical System

Nilfisk Retriever 4600 Electrical System

Reference # Part # Description Add to Cart
1 56001854 Screw 1/4-20 x .50 Buy Now
2 56001862 Screw 5/16-18 x .50 Buy Now
3 56009086 Nut 5/16-18 Buy Now
4 56002063 Washer 3/8 Buy Now
5 56002098 Washer 1/4 Buy Now
6 56002145 Screw 1/4-20 x .50 Buy Now
7 56002192 Screw 10-24 x .75 Buy Now
8 56002234 Screw 3/8-16 x .62 Buy Now
9 56002708 Nut 1/4-20 Buy Now
10 56002768 Nut 10-24 Buy Now
11 56002786 Screw 1/4-20 x 1.50 Buy Now
12 56002824 Screw 10-24 x 1.25 Buy Now
13 56002841 Nut 3/8-16 Buy Now
14 56009012 Screw 10-24 x .38 Buy Now
15 56009019 Screw 1/4-20 x .38 Buy Now
16 56009033 Screw 1/4-20 x .50 Buy Now
17 56009039 Screw 10-24 x .50 Buy Now
18 56009052 Washer 5/16 Buy Now
19 56009064 Washer 1/4 Buy Now
20 56009096 Washer .19 x .87 x .06 Buy Now
21 56300152 P-Clamp CALL TO ORDER
22 56323067 Strain Relief Buy Now
23 56372088 Side Broom Switch Buy Now
24 56372673 Battery Post Boot Buy Now
25 56442011 P-Clamp Buy Now
26 56389265 Diode Buy Now
27 56395450 Broom Motor Solenoid Contactor Buy Now
28 56409384 Emergency Disconnect Switch CALL TO ORDER
29 56409387 Charger Interlock Switch CALL TO ORDER
30 56409463 1.25" Hose Support Clamp Buy Now
31 56416161 High Speed Limit Lock Out Switch CALL TO ORDER
32 56416168 Headlamp CALL TO ORDER
* 56482642 Replacement Bulb (#32) CALL TO ORDER
33 56416406 Strain Relief CALL TO ORDER
34 56416413 Speed Control Assembly CALL TO ORDER
35 56416462 Socket CALL TO ORDER
36 56416463 .25" Hose Support Clamp CALL TO ORDER
37 56416475 Wireway CALL TO ORDER
38 56416497 Relay Panel Assembly CALL TO ORDER
39 56416516 Grommet Buy Now
40 56416517 Static Strap Buy Now
41 56416543 Heat Sync CALL TO ORDER
42 56454662 Varistor CALL TO ORDER
43 56478246 Cable Tie Buy Now
44 56482365 Horn Buy Now
45 56482379 Light Bulb CALL TO ORDER
46 56486116 Grommet Buy Now
47 56492305 Rubber Boot Buy Now
48 56009030 Screw 10-24 x .38 Buy Now
49 56009033 Screw 1/4-20 x .50 Buy Now
50 56009062 Screw 1/4-20 x .50 Buy Now
51 56009095 Nut 1/2-14 Buy Now
52 56416677 Reverse / Forward Contactor CALL TO ORDEr
53 56416164 Speed Controller CALL TO ORDER
54 56416165 Thermal Pad CALL TO ORDER
55 56416545 Heat Sync CALL TO ORDER
56 56454806 Main Contactor Buy Now
57 56001861 Screw 1/4-20 x .38 Buy Now
58 56002561 Nut 1/4-20 Buy Now
59 56009012 Screw 10-24 x .38 Buy Now
60 56009020 Stud Buy Now
61 56009032 Screw 6-32 x .38 Buy Now
62 56261219 Pump interlock Relay CALL TO ORDER
63 56416157 Shaker Relay CALL TO ORDER
64 56416306 Relay Panel CALL TO ORDER
65 56469858 Insulated Standoff Buy Now
66 56409485 Battery Cable Buy Now
67 56416153 Battery Connector Assembly CALL TO ORDER
69 56416149 Charger Connector Assembly CALL TO ORDER
70 56416145 Interconnecting Connector Assembly CALL TO ORDER
71 56395450 Pump Motor Solenoid Contactor Buy Now
72 56416157 Side Broom Relay CALL TO ORDER
73 56416157 Impeller Motor Relay CALL TO ORDER
74 56372088 Main Broom Switch Buy Now
75 56409498 Battery Spacer CALL TO ORDER
76 56328064 P-Clamp Buy Now
* 56416125 Main Wiring Harness CALL TO ORDER
* 56416588 Beacon Kit CALL TO ORDER
* 56409244 Back-Up Alarm Kit CALL TO ORDER
* 56416624 Charge Plug Adapter CALL TO ORDER
