Nilfisk Encore R
Frame Assembly

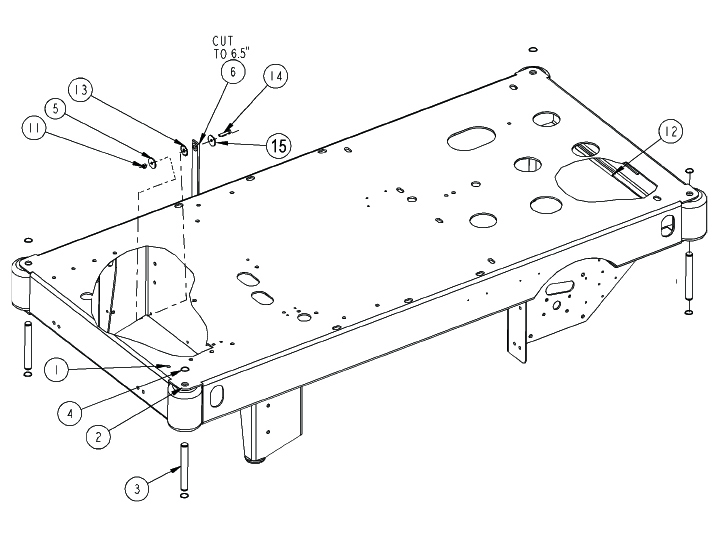

Nilfisk Encore R Frame Assembly
| 1 |
7-27-07223 |
Main Frame Weldment |
Call to Order |
| 2 |
7-66-05011-1 |
Bumper Roller |
Call to Order |
| 3 |
7-70-05175 |
Roller Bumper Pin |
Buy Now |
| 4 |
2-00-00540 |
Retaining Ring |
Buy Now |
| 5 |
2-00-03266 |
Fan Washer |
Buy Now |
| 6 |
56416517 |
Static Strap |
Buy Now |
| 11 |
2-00-00641 |
Nut |
Call to Order |
| 12 |
7-21-04050 |
Edging |
Call to Order |
| 13 |
2-00-03829 |
Lock Washer |
Buy Now |
| 14 |
2-00-02587 |
Cap Screw |
Buy Now |
| 15 |
2-00-00447 |
Flat Washer |
Buy Now |

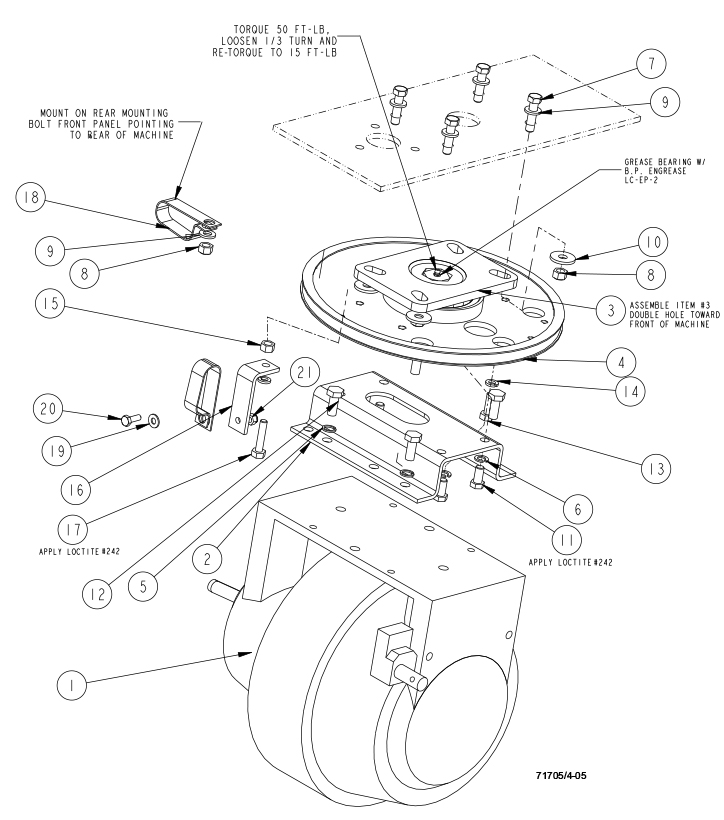

Front Wheel Drive
Nilfisk Encore R Front Wheel Drive
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
0785-091 |
Drive Assembly |
Call to Order |
| 2 |
7-58-05281 |
Drive Bracket |
Call to Order |
| 3 |
56109177 |
Steering Pivot Assembly |
Call to Order |
| 4 |
7-13-05065 |
Steering Chain |
Buy Now |
| 5 |
2-00-02311 |
Lock Washer |
Buy Now |
| 6 |
2-00-02310 |
Lock Washer |
Buy Now |
| 7 |
2-00-00234 |
Screw |
Call to Order |
| 8 |
2-95-04182 |
Nut |
Call to Order |
| 9 |
2-00-00402 |
Washer |
Buy Now |
| 10 |
2-00-03266 |
Fan Washer |
Buy Now |
| 11 |
2-00-04625 |
Screw |
Buy Now |
| 12 |
2-00-05006 |
Bolt |
Call to Order |
| 13 |
2-00-02708 |
Screw |
Call to Order |
| 14 |
2-00-00530 |
Lock Washer |
Buy Now |
| 15 |
2-00-02360 |
Nut |
Buy Now |
| 16 |
8-31-07013 |
Motor Lead Wire Hanger |
Call to Order |
| 17 |
2-00-02709 |
Screw |
Buy Now |
| 18 |
2-00-05253 |
Double Wire Clamp |
Buy Now |
| 19 |
2-00-03702 |
Washer |
Call to Order |
| 20 |
2-00-00221 |
Bolt |
Buy Now |
| 21 |
2-00-00641 |
Nut |
Call to Order |
Rear Wheel Assembly

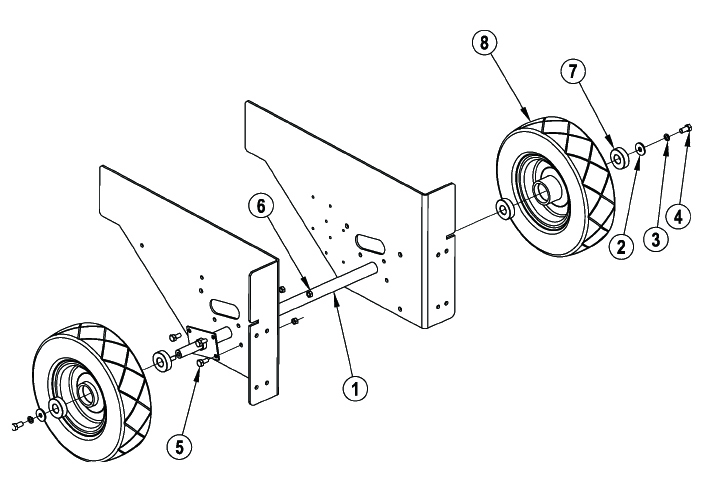

Nilfisk Encore R Rear Wheel Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-03-09019 |
Rear Wheel Axle |
Call to Order |
| 2 |
2-00-01803 |
Washer |
Buy Now |
| 3 |
2-00-02310 |
Lock Washer |
Buy Now |
| 4 |
2-00-00232 |
Bolt |
Call to Order |
| 5 |
2-00-00208 |
Screw |
Call to Order |
| 6 |
2-00-00644 |
Nut |
Call to Order |
| 7 |
2-00-01139 |
Bearing |
Buy Now |
| 8 |
7-89-08265 |
Rear Wheel |
Call to Order |

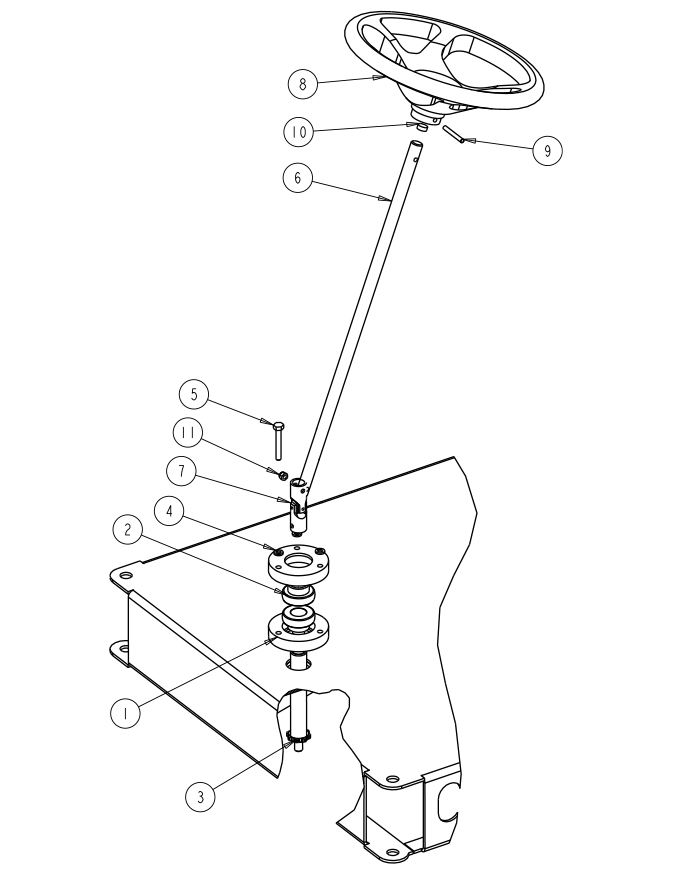

Steering
Nilfisk Encore R Steering
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-25-06031 |
Steering Mount Flange |
Call to Order |
| 2 |
2-00-05159 |
Bearing |
Call to Order |
| 3 |
7-70-05182 |
Steering Shaft |
Call to Order |
| 4 |
2-00-00530 |
Lock Washer |
Buy Now |
| 5 |
2-00-00227 |
Screw |
Buy Now |
| 6 |
7-70-05176 |
Steering Wheel Shaft |
Call to Order |
| 7 |
7-37-00001 |
Universal Joint |
Buy Now |
| 8 |
7-89-08083 |
Steering Wheel |
Call to Order |
| 9 |
2-00-05417 |
Roll Pin |
Buy Now |
| 10 |
7-75-01196 |
Steering Wheel Spacer |
Call to Order |
| 11 |
2-00-00641 |
Fiber Insert Nut |
Call to Order |

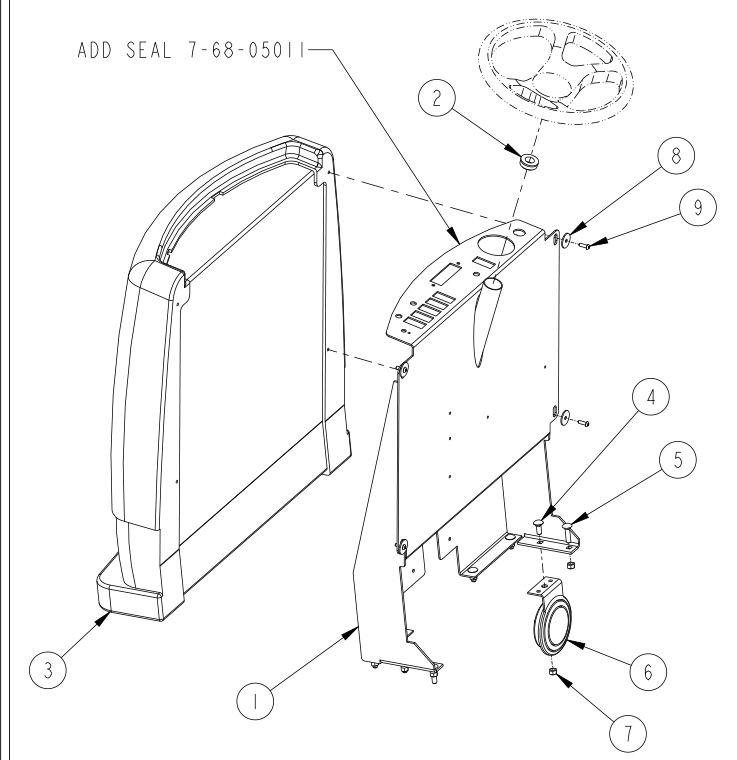

Console 1
Nilfisk Encore R Console 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-52-00192 |
Front Control Panel |
Call to Order |
| 2 |
8-06-01084 |
Plastic Bearing |
Call to Order |
| 3 |
7-33-05121 |
Console |
Call to Order |
| 4 |
2-00-03855 |
Carriage Bolt |
Buy Now |
| 5 |
2-00-03750 |
Carriage Bolt |
Buy Now |
| 6 |
8-32-09008 |
Horn |
Call to Order |
| 7 |
2-95-04182 |
Nut |
Call to Order |
| 8 |
2-00-00447 |
Flat Washer |
Buy Now |
| 9 |
2-00-04880 |
Screw |
Buy Now |

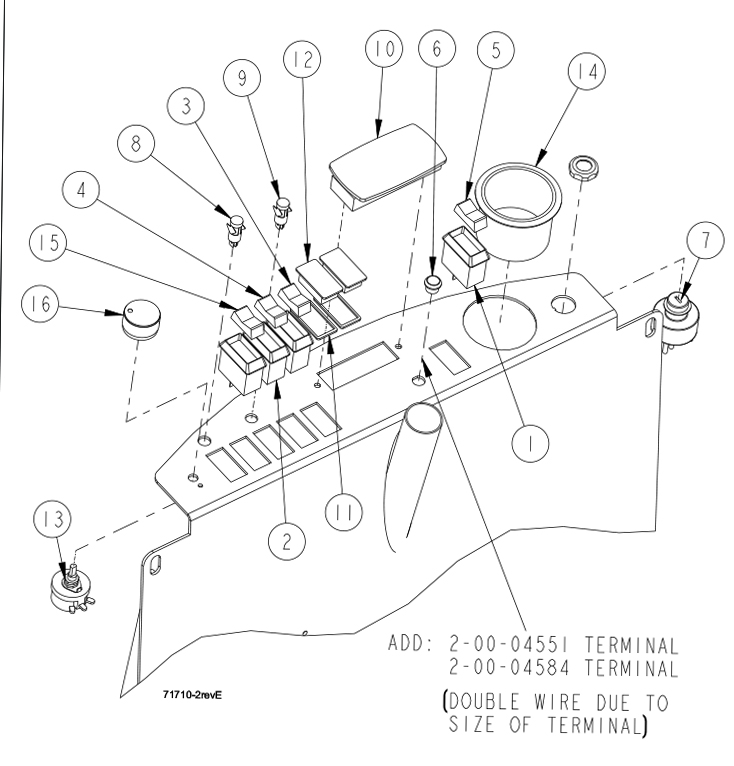

Console 2
Nilfisk Encore R Console 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
2-00-05845 |
Switch Body |
Call to Order |
| 2 |
2-00-05846 |
Scrub Pressure Switch Body |
Call to Order |
| 3 |
2-00-05842 |
Squeegee Actuator |
Call to Order |
| 4 |
2-00-05843 |
Scrub Pressure Actuator |
Buy Now |
| 5 |
2-00-05834 |
Forward/Reverse Actuator |
Buy Now |
| 6 |
2-00-05870 |
Switch |
Buy Now |
| 7 |
8-82-00041 |
Key Switch |
Buy Now |
| 8 |
7-40-05037 |
Red Light |
Call to Order |
| 9 |
7-40-05038 |
Amber Light |
Buy Now |
| 10 |
7-64-05018 |
Interface |
Buy Now |
| 11 |
2-00-05869 |
Switch Gasket |
Buy Now |
| 12 |
2-00-05868 |
Sealed Panel Switch Plug |
Buy Now |
| 13 |
0795-280 |
Solution Flow Assembly |
Buy Now |
| 14 |
7-32-03026 |
Cup Holder |
Call to Order |
| 15 |
2-00-05844 |
Scrub Mode Actuator |
Call to Order |
| 16 |
7-39-00028 |
Solution Flow Module Knob |
Call to Order |
Console 3

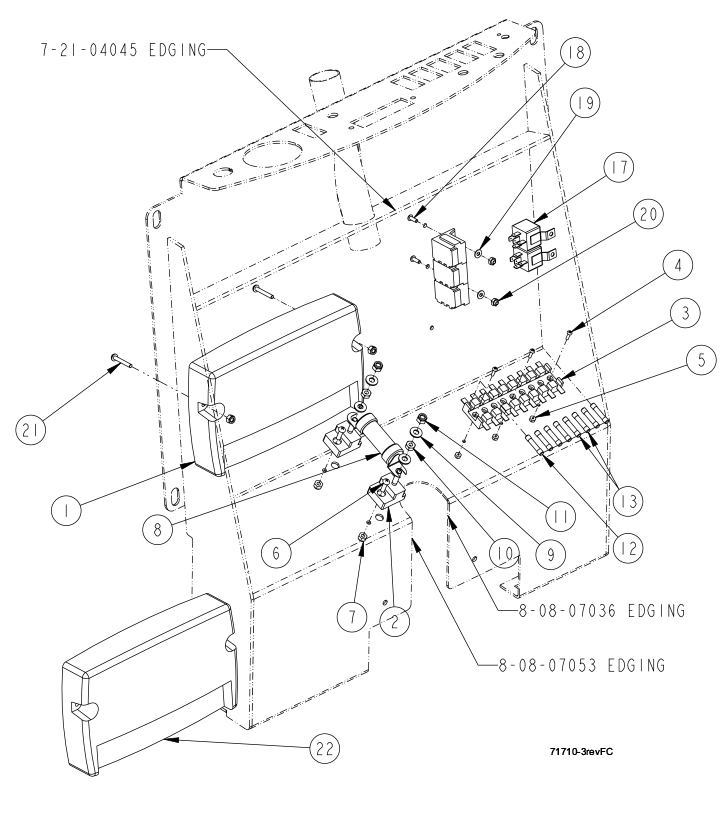

Nilfisk Encore R Console 3
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-64-05019 |
Motor Controller |
Buy Now |
| 2 |
8-06-05004 |
Terminal Block |
Call to Order |
| 3 |
2-00-05862 |
Fuse Block |
Call to Order |
| 4 |
2-00-00093 |
Screw |
Call to Order |
| 5 |
2-00-00645 |
Nut |
Call to Order |
| 6 |
2-00-00056 |
Screw |
Buy Now |
| 7 |
2-00-01246 |
Nut |
Call to Order |
| 8 |
8-28-05021 |
Fuse |
Call to Order |
| 9 |
2-00-03702 |
Washer |
Call to Order |
| 10 |
2-00-00594 |
Nut |
Buy Now |
| 11 |
2-00-00641 |
Fiber Insert Nut |
Call to Order |
| 12 |
2-00-05860 |
Glass Fuse |
Call to Order |
| 13 |
2-00-05861 |
Glass Fuse |
Call to Order |
| 14 |
0795-169 |
Machine Harness |
Call to Order |
| 15 |
0795-175 |
Motor Wire Assembly |
Buy Now |
| 16 |
0795-176 |
Power Harness |
Call to Order |
| 17 |
8-64-00019 |
Relay |
Buy Now |
| 18 |
2-00-00044 |
Screw |
Buy Now |
| 19 |
2-00-00460 |
Flat Washer |
Buy Now |
| 20 |
2-00-01372 |
Nut |
Buy Now |
| 21 |
2-00-00071 |
Screw |
Call to Order |
| 22 |
7-64-05022 |
Motor Controller |
Call to Order |
Scrub Deck Lift

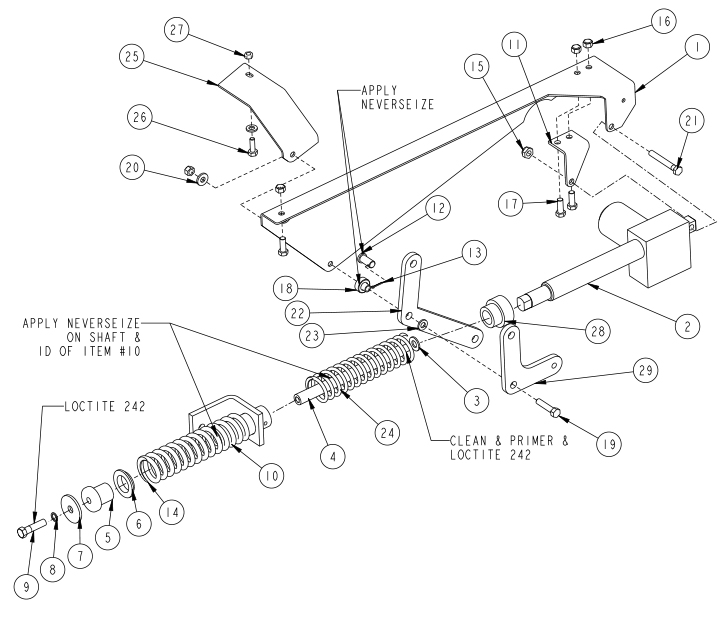

Nilfisk Encore R Scrub Deck Lift
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-81-00264 |
Actuator Support |
Call to Order |
| 2 |
0782-182 |
Actuator |
Call to Order |
| 3 |
2-00-00405 |
Flat Washer |
Call to Order |
| 4 |
7-66-00203 |
Brush Spring Rod |
Buy Now |
| 5 |
7-09-01157 |
Bushing |
Call to Order |
| 6 |
7-23-03120 |
Spring Guide Washer |
Buy Now |
| 7 |
2-00-05414 |
Flat Washer |
Buy Now |
| 8 |
2-00-02311 |
Lock Washer |
Buy Now |
| 9 |
2-00-02611 |
Bolt |
Buy Now |
| 10 |
7-03-04238 |
Pivot Arm |
Call to Order |
| 11 |
7-57-05069 |
Brush Actuator Pivot |
Call to Order |
| 12 |
7-55-08158 |
Brush Lift Pivot Pin |
Buy Now |
| 13 |
2-00-02428 |
Cotter Pin |
Call to Order |
| 14 |
7-76-00128 |
Deck Lift Spring |
Call to Order |
| 15 |
2-00-00643 |
Lock Nut |
Call to Order |
| 16 |
2-95-04182 |
Nut |
Call to Order |
| 17 |
2-00-00233 |
Bolt |
Call to Order |
| 18 |
7-09-01159 |
Deck Actuator Pivot Bushing |
Call to Order |
| 19 |
2-00-00235 |
Screw |
Call to Order |
| 20 |
2-00-04801 |
Flat Washer |
Buy Now |
| 21 |
2-00-04699 |
Screw |
Buy Now |
| 22 |
7-03-04239 |
Deck Arm |
Call to Order |
| 23 |
2-00-00402 |
Washer |
Buy Now |
| 24 |
7-76-00129 |
Deck Lift Actuator Spring |
Call to Order |
| 25 |
7-08-02053 |
Deck Lift Bracket |
Call to Order |
| 26 |
2-00-02708 |
Screw |
Call to Order |
| 27 |
2-00-00644 |
Nut |
Call to Order |
| 28 |
7-75-01272 |
Spring Spacer |
Call to Order |
| 29 |
7-03-04244 |
Actuator Arm |
Call to Order |

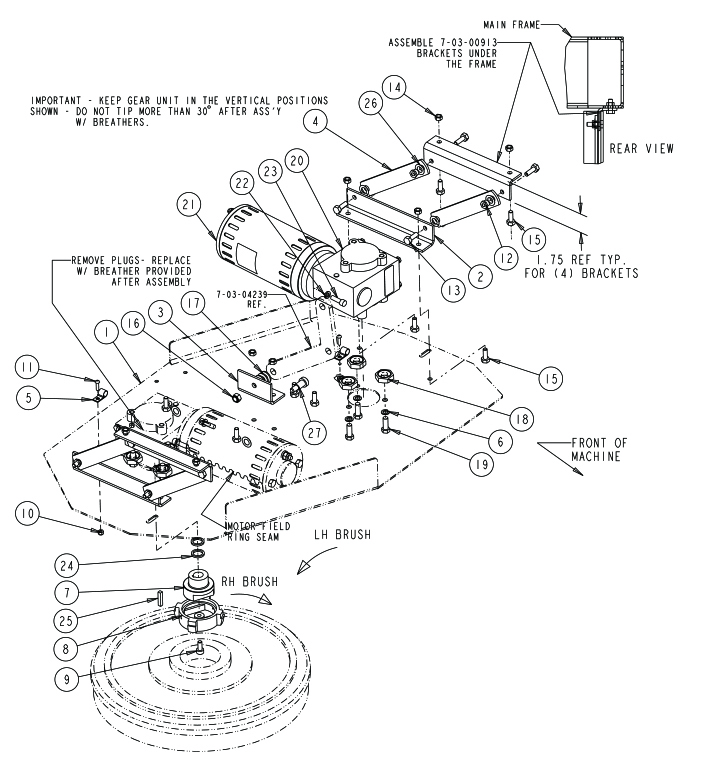

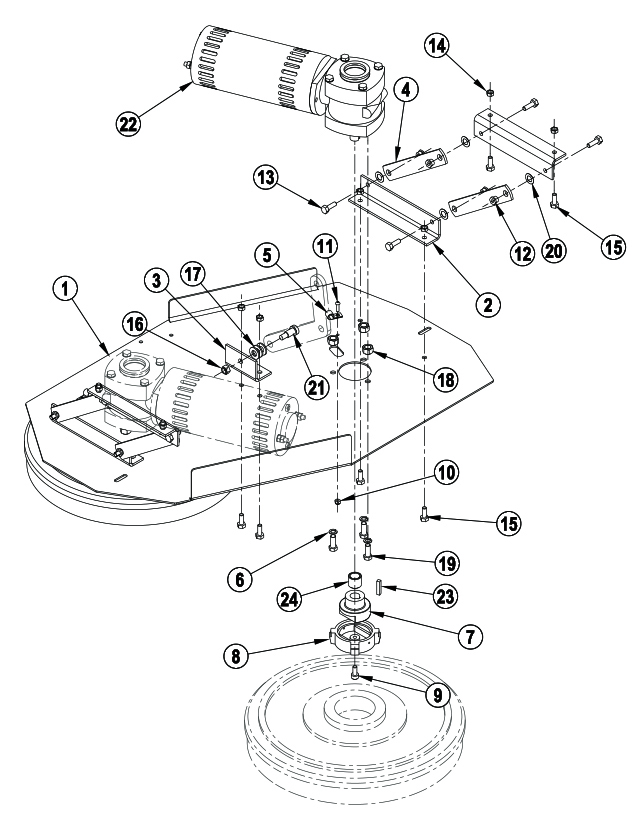

Scrub Deck Assembly - 34" (before SN180311)

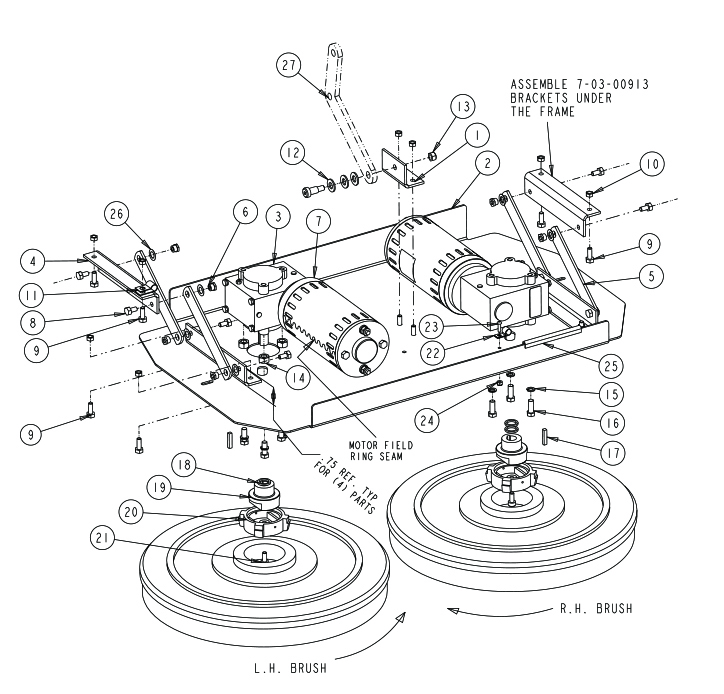

Nilfisk Encore R Srub Deck Assembly - 34" (before SN180311)
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-27-07191-1 |
Scrub Deck |
Call to Order |
| 2 |
7-08-00913 |
Brush Arm Bracket |
Call to Order |
| 3 |
7-08-00914 |
Brush Load Bracket |
Buy Now |
| 4 |
7-03-04176 |
Brush Frame Link |
Call to Order |
| 5 |
2-00-04602 |
Clamp |
Call to Order |
| 6 |
2-00-02310 |
Lock Washer |
Buy Now |
| 7 |
7-33-09034 |
Brush Driver Hub |
Buy Now |
| 8 |
7-20-00006 |
Brush Driver |
Buy Now |
| 9 |
2-00-03214 |
Cap Screw |
Buy Now |
| 10 |
2-00-01246 |
Nut |
Call to Order |
| 11 |
2-00-00056 |
Screw |
Buy Now |
| 12 |
7-23-03056 |
Nut |
Buy Now |
| 13 |
2-00-02708 |
Screw |
Call to Order |
| 14 |
2-00-00644 |
Nut |
Call to Order |
| 15 |
2-00-01255 |
Screw |
Call to Order |
| 16 |
2-00-05297 |
Nut |
Buy Now |
| 17 |
2-00-00405 |
Flat Washer |
Call to Order |
| 18 |
2-00-00596 |
Nut |
Buy Now |
| 19 |
2-00-00233 |
Bolt |
Call to Order |
| 20 |
0785-088 |
Educer Assembly |
Call to Order |
| 21 |
0782-144 |
Rush Motor |
Call to Order |
| 22 |
2-00-00530 |
Lock Washer |
Buy Now |
| 23 |
2-00-00809 |
Screw |
Buy Now |
| 24 |
2-00-03169 |
Spacer |
Call to Order |
| 25 |
2-00-00706 |
Key |
Buy Now |
| 26 |
2-00-03382 |
Spring Washer |
Buy Now |
| 27 |
2-00-05401 |
Screw |
Buy Now |
| - |
7-06-05008 |
Ferrite Block |
Call to Order |

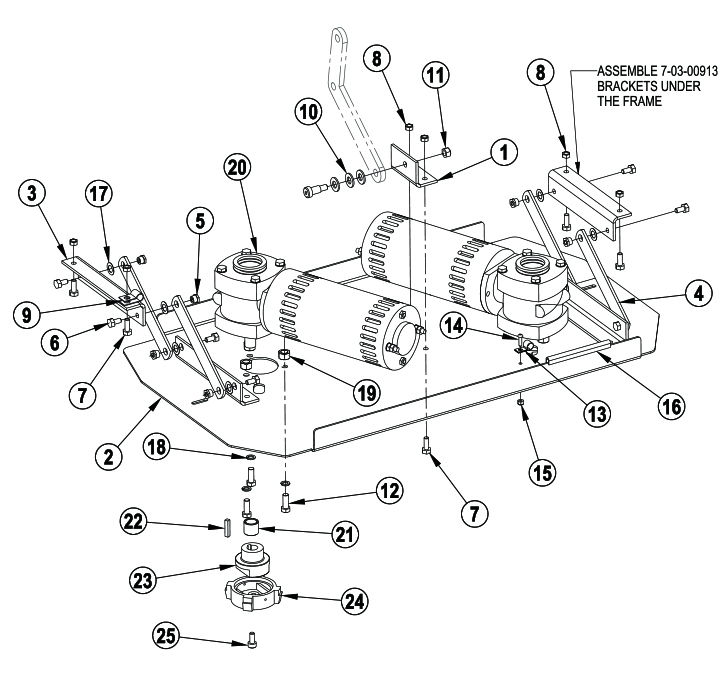

Scrub Deck Assembly - 34" (after SN180310)
Nilfisk Encore R Scrub Deck Assembly - 34" (after SN180310)
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-27-07244 |
Scrub Deck |
Call to Order |
| 2 |
7-08-00913 |
Brush Arm Bracket |
Call to Order |
| 3 |
7-08-00914 |
Brush Load Bracket |
Buy Now |
| 4 |
7-03-04176 |
Brush Frame Link |
Call to Order |
| 5 |
2-00-04602 |
Clamp |
Call to Order |
| 6 |
2-00-02310 |
Lock Washer |
Buy Now |
| 7 |
7-33-09034 |
Brush Driver Hub |
Buy Now |
| 8 |
7-20-00006 |
Brush Driver |
Buy Now |
| 9 |
2-00-03214 |
Cap Screw |
Buy Now |
| 10 |
2-00-01246 |
Nut |
Call to Order |
| 11 |
2-00-00056 |
Screw |
Buy Now |
| 12 |
7-23-03056 |
Nut |
Buy Now |
| 13 |
2-00-02708 |
Screw |
Call to Order |
| 14 |
2-00-00644 |
Nut |
Call to Order |
| 15 |
2-00-01255 |
Screw |
Call to Order |
| 16 |
2-00-05297 |
Nut |
Buy Now |
| 17 |
2-00-00405 |
Flat Washer |
Call to Order |
| 18 |
2-00-00596 |
Nut |
Buy Now |
| 19 |
2-00-00233 |
Bolt |
Call to Order |
| 20 |
2-00-03382 |
Spring Washer |
Buy Now |
| 21 |
2-00-05401 |
Screw |
Buy Now |
| 22 |
0785-100 |
Brush Motor |
Call to Order |
| 23 |
2-00-00706 |
Key |
Buy Now |
| 24 |
7-75-01273 |
Spacer |
Call to Order |
| - |
7-06-05008 |
Ferrite Block |
Call to Order |

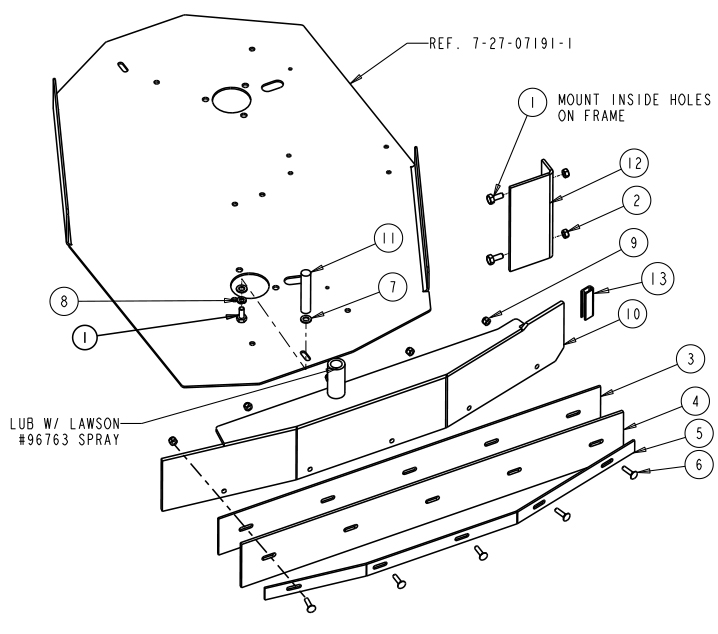

Side Squeegee Assembly - 34" (Left)
Nilfisk Encore R Side Squeegee Assembly (Left)
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
2-00-00208 |
Screw |
Call to Order |
| 2 |
2-00-00644 |
Nut |
Call to Order |
| 3 |
7-77-00119 |
Inner Rubber Side Squeegee |
Buy Now |
| 4 |
7-77-00120 |
Outer Rubber Side Squeegee |
Buy Now |
| 5 |
7-13-07183 |
Side Squeegee Clamp |
Call to Order |
| 6 |
2-00-02196 |
Carriage Bolt |
Buy Now |
| 7 |
2-00-00409 |
Flat Washer |
Call to Order |
| 8 |
2-00-00530 |
Lock Washer |
Buy Now |
| 9 |
2-00-00641 |
Fiber Insert Nut |
Call to Order |
| 10 |
7-86-08074 |
Welded Side Squeegee Tool |
Call to Order |
| 11 |
7-55-08180 |
Side Squeegee Lock Pin |
Buy Now |
| 12 |
7-08-01169 |
Side Squeegee Bracket |
Call to Order |
| 13 |
7-21-04042 |
Edging |
Call to Order |
Side Squeegee Assembly - 34" (Right)
Clarke Focus 2 Rider Scrub System - 28-34 Skirt Assemblies
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
2-00-00409 |
Flat Washer |
Call to Order |
| 2 |
2-00-00530 |
Lock Washer |
Buy Now |
| 3 |
2-00-00208 |
Screw |
Call to Order |
| 4 |
7-77-00118 |
Inner Rubber Side Squeegee |
Buy Now |
| 5 |
7-77-00121 |
Outer Rubber Side Squeegee |
Buy Now |
| 6 |
7-13-07182 |
Side Squeegee Clamp |
Call to Order |
| 7 |
2-00-02196 |
Carriage Bolt |
Buy Now |
| 8 |
2-00-00641 |
Nut |
Call to Order |
| 9 |
7-89-08023 |
Wheel |
Buy Now |
| 10 |
2-00-00216 |
Bolt |
Call to Order |
| 11 |
2-00-00402 |
Washer |
Buy Now |
| 12 |
2-00-02369 |
Nut |
Buy Now |
| 13 |
2-00-02310 |
Lock Washer |
Buy Now |
| 14 |
2-00-02360 |
Nut |
Buy Now |
| 15 |
2-00-00644 |
Nut |
Call to Order |
| 16 |
7-86-08075 |
Welded Side Squeegee Tool |
Call to Order |
| 17 |
7-55-08180 |
Side Squeegee Lock Pin |
Buy Now |
| 18 |
7-08-01169 |
Side Squeegee Bracket |
Call to Order |
| 19 |
7-21-04042 |
Edging |
Call to Order |
Rear Squeegee Assembly - 34"
Nilfisk Encore R Rear Squeegee Assembly
Scrub Deck Assembly - 38" (before SN180311)
Nilfisk Encore R Scrub Deck Assembly - 38"
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-08-01149 |
Scrub Deck Bracket |
Call to Order |
| 2 |
7-27-07192-1 |
Scrub Deck |
Call to Order |
| 3 |
0785-088 |
Reducer Assembly |
Call to Order |
| 4 |
7-08-00913 |
Brush Arm Bracket |
Call to Order |
| 5 |
7-03-04176 |
Brush Frame Link |
Call to Order |
| 6 |
7-23-03056 |
Nut |
Buy Now |
| 7 |
0782-144 |
Brush Motor |
Call to Order |
| 8 |
2-00-00213 |
Screw |
Buy Now |
| 9 |
2-00-01255 |
Screw |
Call to Order |
| 10 |
2-00-00644 |
Nut |
Call to Order |
| 11 |
2-00-04873 |
Cable Clamp |
Call to Order |
| 12 |
2-00-00405 |
Flat Washer |
Call to Order |
| 13 |
2-00-05297 |
Nut |
Buy Now |
| 14 |
2-00-00596 |
Nut |
Buy Now |
| 15 |
2-00-02310 |
Lock Washer |
Buy Now |
| 16 |
2-00-00233 |
Bolt |
Call to Order |
| 17 |
2-00-00706 |
Square Key |
Buy Now |
| 18 |
2-00-03169 |
Spacer |
Call to Order |
| 19 |
7-33-09034 |
Hub Brush Driver |
Buy Now |
| 20 |
7-20-00006 |
Brush Driver |
Buy Now |
| 21 |
2-00-03214 |
Screw |
Buy Now |
| 22 |
2-00-04602 |
Clamp |
Call to Order |
| 23 |
2-00-00056 |
Screw |
Buy Now |
| 24 |
2-00-01246 |
Nut |
Call to Order |
| 25 |
8-21-04016 |
Bumper |
Buy Now |
| 26 |
2-00-03382 |
Spring Washer |
Buy Now |
| 27 |
7-03-04239 |
Deck Arm |
Call to Order |
| - |
7-06-05008 |
Ferrite Block |
Call to Order |
Scrub Deck Assembly - 38" (after SN180310)
Nilfisk Encore R Scrub Deck Assembly - 38"
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-08-01149 |
Scrub Deck Bracket |
Call to Order |
| 2 |
7-27-07245 |
Scrub Deck |
Call to Order |
| 3 |
7-08-00913 |
Brush Arm Bracket |
Call to Order |
| 4 |
7-03-04176 |
Brush Frame Link |
Call to Order |
| 5 |
7-23-03056 |
Nut |
Buy Now |
| 6 |
2-00-00213 |
Screw |
Buy Now |
| 7 |
2-00-01255 |
Screw |
Call to Order |
| 8 |
2-00-00644 |
Hex Nut |
Call to Order |
| 9 |
2-00-04873 |
Cable Clamp |
Call to Order |
| 10 |
2-00-00405 |
Flat Washer |
Call to Order |
| 11 |
2-00-05297 |
Nut |
Buy Now |
| 12 |
2-00-00233 |
Bolt |
Call to Order |
| 13 |
2-00-04602 |
Clamp |
Call to Order |
| 14 |
2-00-00056 |
Screw |
Buy Now |
| 15 |
2-00-01246 |
Nut |
Call to Order |
| 16 |
8-21-04016 |
Bumper |
Buy Now |
| 17 |
2-00-03382 |
Spring Washer |
Buy Now |
| 18 |
2-00-02310 |
Lock Washer |
Buy Now |
| 19 |
2-00-00596 |
Nut |
Buy Now |
| 20 |
0785-100 |
Beveled Gear Motor |
Call to Order |
| 21 |
7-75-01273 |
Spacer |
Call to Order |
| 22 |
2-00-00706 |
Square Key |
Buy Now |
| 23 |
7-33-09034 |
Hub Brush Driver |
Buy Now |
| 24 |
7-20-00006 |
Brush Driver |
Buy Now |
| 25 |
2-00-03214 |
Screw |
Buy Now |
| - |
7-06-05008 |
Ferrite Block |
Call to Order |

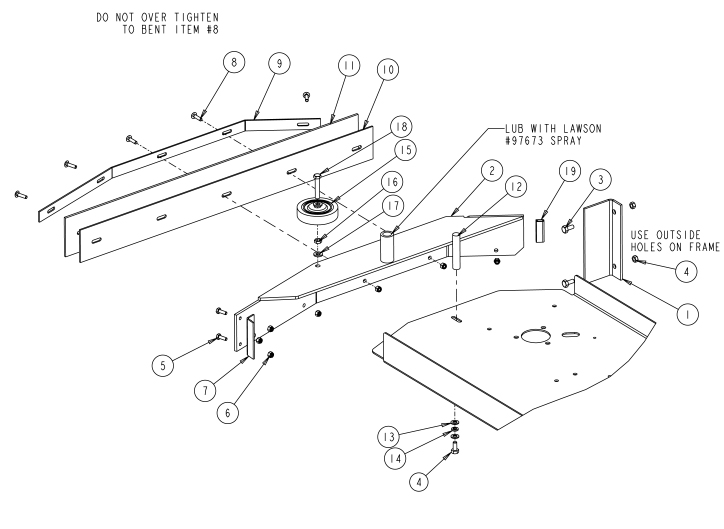

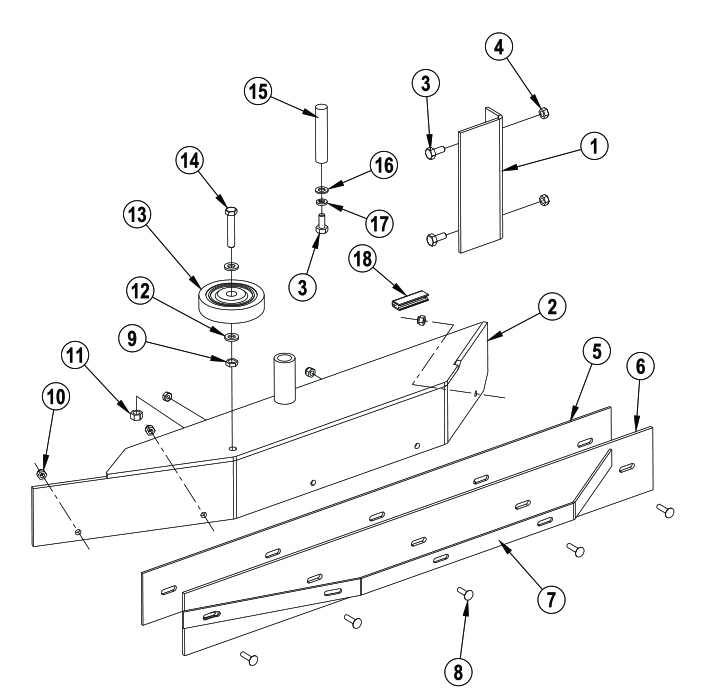

Side Squeegee Assembly - 38" (Left)
Nilfisk Encore R Side Squeegee Assembly - 38" (Left)
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-08-01169 |
Side Squeegee Bracket |
Call to Order |
| 2 |
7-86-08076 |
Welded Side Squeegee Tool |
Call to Order |
| 3 |
2-00-00208 |
Screw |
Call to Order |
| 4 |
2-00-00644 |
Nut |
Call to Order |
| 5 |
7-77-00118 |
Inner Rubber Side Squeegee |
Buy Now |
| 6 |
7-77-00121 |
Outer Rubber Side Squeegee |
Buy Now |
| 7 |
7-13-07182 |
Side Squeegee Clamp |
Call to Order |
| 8 |
2-00-02196 |
Carriage Bolt |
Buy Now |
| 9 |
2-00-02369 |
Nut |
Buy Now |
| 10 |
2-00-00641 |
Fiber Insert Nut |
Call to Order |
| 11 |
2-00-02360 |
Nut |
Buy Now |
| 12 |
2-00-00402 |
Washer |
Buy Now |
| 13 |
7-89-08023 |
Wheel |
Buy Now |
| 14 |
2-00-00216 |
Bolt |
Call to Order |
| 15 |
7-55-08180 |
Side Squeegee Lock Pin |
Buy Now |
| 16 |
2-00-00409 |
Flat Washer |
Call to Order |
| 17 |
2-00-00530 |
Lock Washer |
Buy Now |
| 18 |
7-21-04042 |
Edging |
Call to Order |
Side Squeegee Assembly - 38" (Right)
Nilfisk Encore R Side Squeegee Assembly - 38" (Right)
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-08-01169 |
Side Squeegee Bracket |
Call to Order |
| 2 |
7-86-08075 |
Side Squeeegee Tool |
Call to Order |
| 3 |
2-00-00208 |
Screw |
Call to Order |
| 4 |
2-00-00644 |
Nut |
Call to Order |
| 5 |
2-00-00221 |
Bolt |
Buy Now |
| 6 |
2-00-00641 |
Nut |
Call to Order |
| 7 |
7-08-07106 |
Squeegee Spacer Bracket |
Call to Order |
| 8 |
2-00-02196 |
Carriage Bolt |
Buy Now |
| 9 |
7-13-07182 |
Side Squeegee Clamp |
Call to Order |
| 10 |
7-77-00118 |
Inner Rubber Side Squeegee |
Buy Now |
| 11 |
7-77-00121 |
Outer Rubber Side Squeegee |
Buy Now |
| 12 |
7-55-08180 |
Side Squeegee Lock Pin |
Buy Now |
| 13 |
2-00-00409 |
Flat Washer |
Call to Order |
| 14 |
2-00-00530 |
Lock Washer |
Buy Now |
| 15 |
7-89-08023 |
Wheel |
Buy Now |
| 16 |
2-00-02369 |
Nut |
Buy Now |
| 17 |
2-00-00402 |
Washer |
Buy Now |
| 18 |
2-00-00216 |
Bolt |
Call to Order |
| 19 |
7-21-04042 |
Edging |
Call to Order |

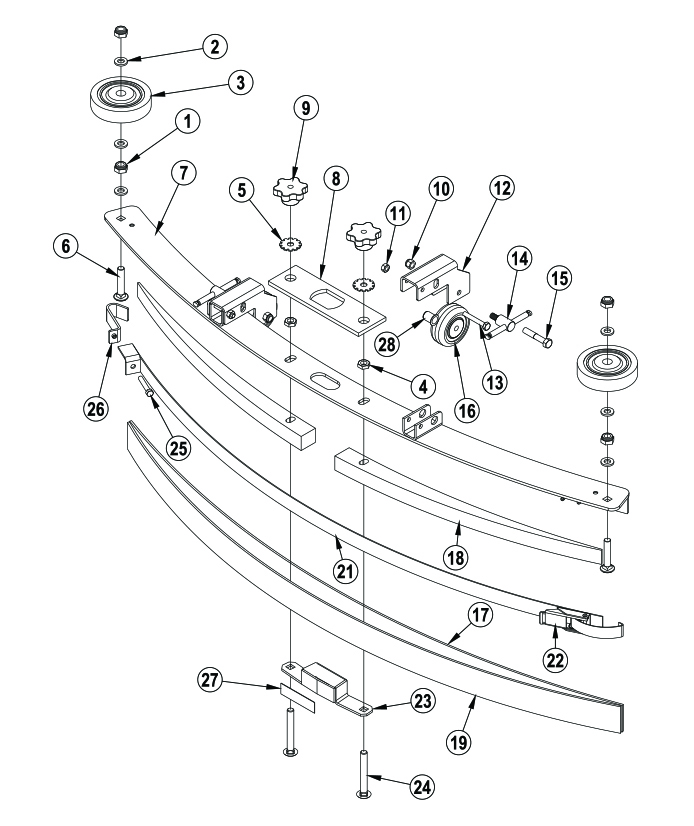

Rear Squeegee Assembly - 38"
Nilfisk Encore R Rear Squeegee Assembly - 38"
| Reference # |
Part # |
Description |
Add to Cart |
| - |
56109400 |
Squeegee Assembly |
Buy Now |
| 1 |
2-00-00643 |
Nut |
Call to Order |
| 2 |
2-00-00402 |
Washer |
Buy Now |
| 3 |
7-89-08023 |
Wheel |
Buy Now |
| 4 |
81301A |
Jam Nut |
Buy Now |
| 6 |
56003608 |
Carriage Screw |
Buy Now |
| 7 |
69675A |
Squeegee Frame Weldment |
Call to Order |
| 8 |
7-29-00243 |
Squeegee Gasket |
Buy Now |
| 9 |
25201B |
Clamping Knob |
Buy Now |
| 10 |
920110 |
Lock Nut |
Buy Now |
| 11 |
81104A |
Lock Nut |
Buy Now |
| 12 |
65975A |
Wheel Mount Bracket |
Buy Now |
| 13 |
85702A |
Screw |
Buy Now |
| 14 |
64905A |
T Handle |
Buy Now |
| 15 |
85816A |
Screw |
Call to Order |
| 16 |
59971A |
Guide Wheel |
Buy Now |
| 17 |
30718A |
Inner Ribbed Blade |
Buy Now |
| 18 |
38715A |
Squeegee Spacer |
Buy Now |
| 19 |
30935A |
Outer Blade |
Buy Now |
| 20 |
170932 |
Rivet |
Buy Now |
| 21 |
62444A |
Clamp Weldment |
Buy Now |
| 22 |
55722A |
Holding Latch |
Buy Now |
| 23 |
62712A |
Air Duct |
Buy Now |
| 24 |
80011A |
Screw |
Buy Now |
| 25 |
86004A |
Screw |
Buy Now |
| 26 |
62421A |
End Clamp |
Buy Now |
| 27 |
37016A |
Grip Pad |
Buy Now |
| 28 |
54766A |
Threaded Insert |
Buy Now |

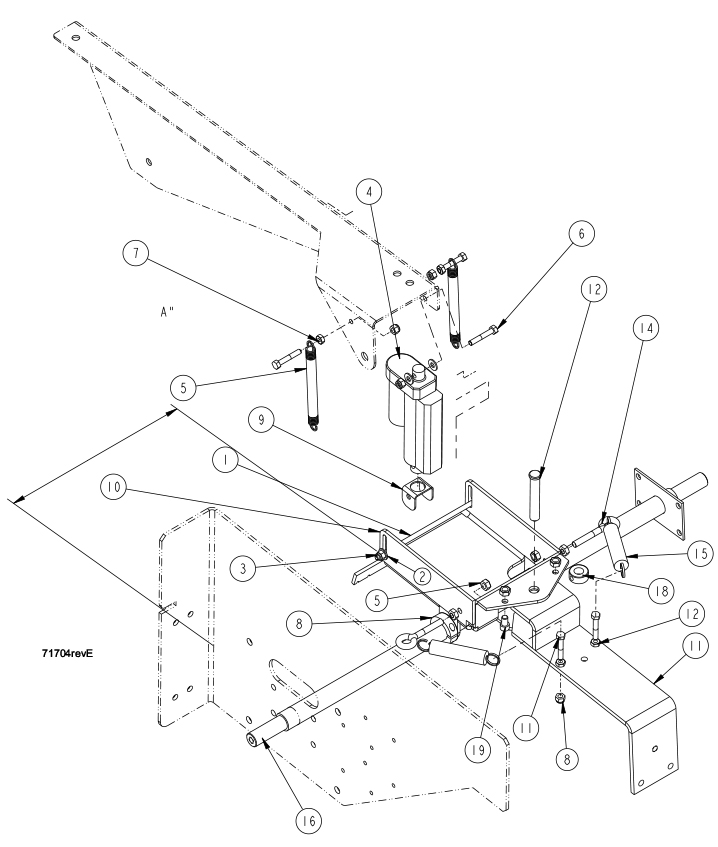

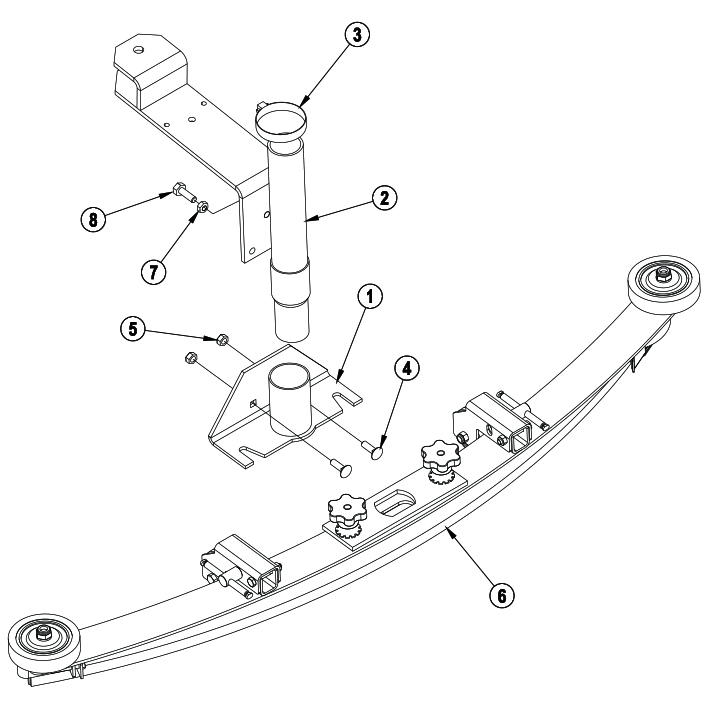

Squeegee Lift Assembly
Nilfisk Encore R Squeegee Lift Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-80-05081 |
Threaded Rod |
Buy Now |
| 2 |
2-00-03702 |
Washer |
Call to Order |
| 3 |
2-00-00641 |
Nut |
Call to Order |
| 4 |
0782-139 |
Actuator |
Call to Order |
| 5 |
7-76-00102 |
Transmission Centering Spring |
Buy Now |
| 6 |
2-00-00203 |
Screw |
Buy Now |
| 7 |
2-00-00594 |
Nut |
Buy Now |
| 8 |
2-00-04321 |
Setscrew Collar |
Call to Order |
| 9 |
7-08-02021 |
Squeegee Actuator Bracket |
Call to Order |
| 10 |
7-08-01136 |
Squeegee Lift Bracket |
Call to Order |
| 11 |
7-03-04235 |
Rear Squeegee Arm |
Call to Order |
| 12 |
2-00-05484 |
Rear Squeegee Pivot Pin |
Buy Now |
| 13 |
2-00-00644 |
Nut |
Call to Order |
| 14 |
2-00-05920 |
Eye Bolt |
Buy Now |
| 15 |
7-76-00126 |
Spring |
Call to Order |
| 16 |
7-03-09015 |
Rear Wheels Axle |
Call to Order |
| 17 |
2-00-00585 |
Nut |
Call to Order |
| 18 |
2-00-03589 |
Collar |
Buy Now |
| 19 |
2-00-03335 |
Screw |
Buy Now |
Squeegee Lift Assembly - Continued
Nilfisk Encore R Squeegee Lift Assembly - Continued
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-25-02096 |
Square Weldment Fitting |
Call to Order |
| 2 |
7-33-02377 |
Hose |
Buy Now |
| 3 |
2-00-02216 |
Hose Clamp |
Buy Now |
| 4 |
2-00-00196 |
Carriage Bolt |
Buy Now |
| 5 |
2-00-00644 |
Nut |
Call to Order |
| 6 |
56109399 |
34" Squeegee Assembly |
Buy Now |
| 6 |
56109400 |
38" Squeegee Assembly |
Buy Now |
| 7 |
2-00-00585 |
Nut |
Call to Order |
| 8 |
2-00-02708 |
Screw |
Call to Order |

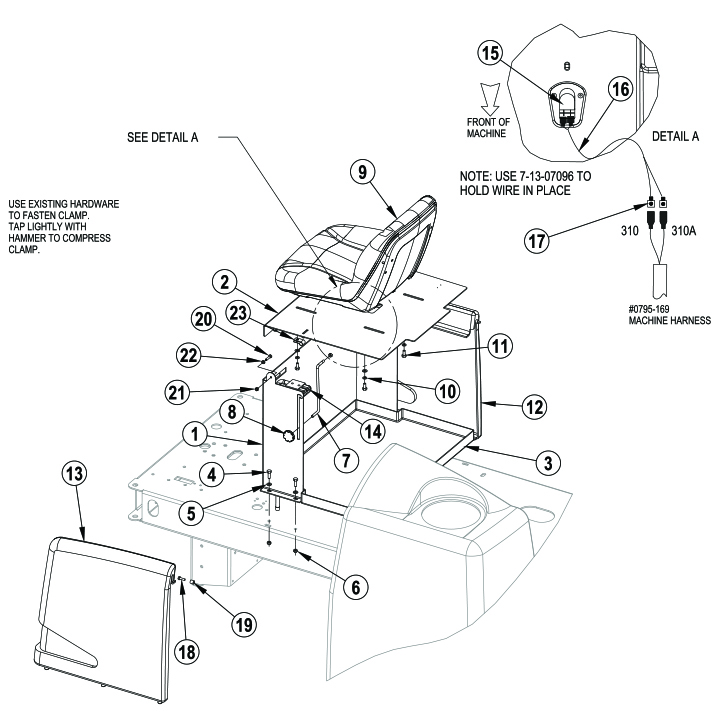

Seat Assembly
Nilfisk Encore R Seat Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-52-00195 |
Seat Weldment Panel |
Call to Order |
| 2 |
7-16-07500 |
Seat Deck Weldment |
Call to Order |
| 3 |
8-51-05016 |
Battery Pan |
Call to Order |
| 4 |
2-00-02708 |
Screw |
Call to Order |
| 5 |
2-00-00409 |
Flat Washer |
Call to Order |
| 6 |
2-00-00644 |
Nut |
Call to Order |
| 7 |
7-66-00186 |
Seat Panel Rod |
Call to Order |
| 8 |
7-39-00006 |
Knob |
Call to Order |
| 9 |
8-69-00022 |
Seat |
Call to Order |
| 10 |
2-00-00530 |
Lock Washer |
Buy Now |
| 11 |
2-00-00208 |
Screw |
Call to Order |
| 12 |
7-16-07405 |
Cover |
Call to Order |
| 13 |
7-16-07404 |
Side Cover |
Call to Order |
| 14 |
0795-176 |
Anderson Battery Cable |
Call to Order |
| 15 |
7-82-00050 |
Switch |
Buy Now |
| 16 |
56109403 |
Wire Harness |
Call to Order |
| 17 |
2-00-04551 |
Terminal |
Buy Now |
| 18 |
2-00-01490 |
Screw |
Buy Now |
| 19 |
8-75-01205 |
Spacer |
Call to Order |
| 20 |
2-00-02588 |
Bolt |
Call to Order |
| 21 |
2-00-00641 |
Nut |
Call to Order |
| 22 |
2-00-00594 |
Nut |
Buy Now |
| 23 |
2-00-04873 |
Cable Clamp |
Call to Order |

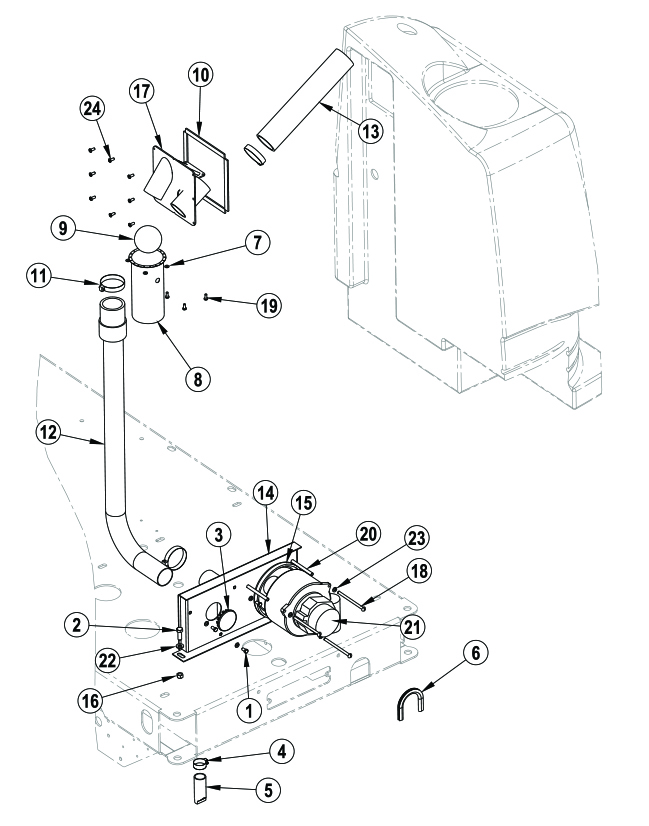

Vacuum Assembly
Nilfisk Encore R Vacuum Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
2-00-00219 |
Bolt |
Call to Order |
| 2 |
2-00-00233 |
Bolt |
Call to Order |
| 3 |
2-00-04431 |
Cap |
Call to Order |
| 4 |
2-00-02220 |
Hose Clamp |
Buy Now |
| 5 |
8-88-00016 |
Dust Unloader Valve |
Call to Order |
| 6 |
7-21-04050 |
Frame Edging |
Call to Order |
| 7 |
2-00-00466 |
Flat Washer |
Buy Now |
| 8 |
7-10-04008 |
Float Cage |
Buy Now |
| 9 |
7-26-04012 |
Recovery Float |
Buy Now |
| 10 |
7-29-00281 |
Gasket |
Buy Now |
| 11 |
2-00-02216 |
Hose Clamp |
Buy Now |
| 12 |
7-33-02373 |
Flexible Hose |
Call to Order |
| 13 |
7-33-02408 |
Flexible Hose |
Call to Order |
| 14 |
7-48-00033-1 |
Vacuum Manifold |
Call to Order |
| 15 |
2-22-00003 |
Mounting Ring Motor |
Buy Now |
| 16 |
2-95-04182 |
Nut |
Call to Order |
| 17 |
7-58-05327 |
Plate |
Call to Order |
| 18 |
2-00-05395 |
Screw |
Buy Now |
| 19 |
2-00-03940 |
Screw |
Buy Now |
| 20 |
7-75-01184 |
Spacer |
Buy Now |
| 21 |
56377470 |
Vac Fan |
Call to Order |
| - |
56377001 |
Carbon Brush Set |
Buy Now |
| 22 |
2-00-00402 |
Washer |
Buy Now |
| 23 |
2-00-00518 |
Washer |
Buy Now |
| 24 |
56009191 |
Screw |
Buy Now |

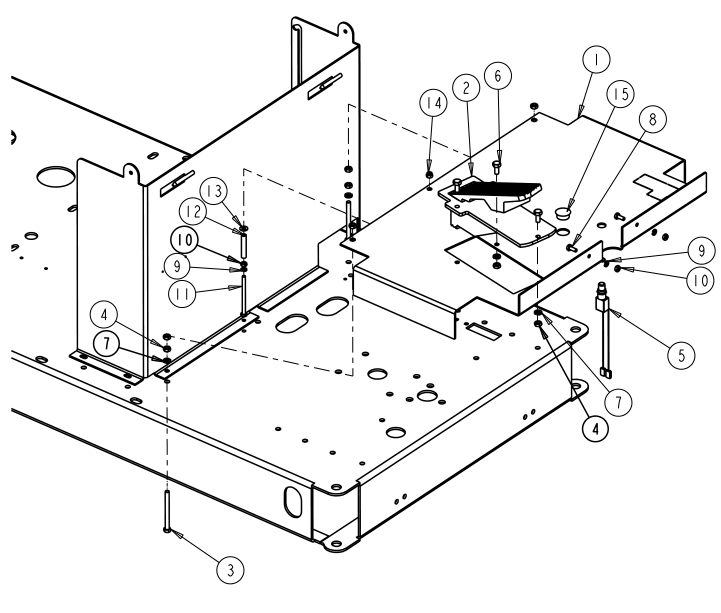

Forward/Reverse Pedal Assembly
Nilfisk Encore R Forward/Reverse Pedal Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-52-00191 |
Floor Panel |
Call to Order |
| 2 |
7-55-00038 |
Fwd/Rev Pedal |
Call to Order |
| 3 |
2-00-05164 |
Screw |
Call to Order |
| 4 |
2-00-00585 |
Nut |
Call to Order |
| 5 |
8-82-00030 |
Push Button Switch |
Buy Now |
| 6 |
2-00-00208 |
Screw |
Call to Order |
| 7 |
2-00-00530 |
Washer |
Buy Now |
| 8 |
2-00-00220 |
Screw |
Buy Now |
| 9 |
2-00-00518 |
Washer |
Buy Now |
| 10 |
2-00-00594 |
Nut |
Buy Now |
| 11 |
2-00-04596 |
Screw |
Buy Now |
| 12 |
8-75-01203 |
Spacer |
Call to Order |
| 13 |
2-00-03702 |
Washer |
Call to Order |
| 14 |
2-00-00641 |
Nut |
Call to Order |
| 15 |
2-00-05530 |
Hole Plug |
Buy Now |

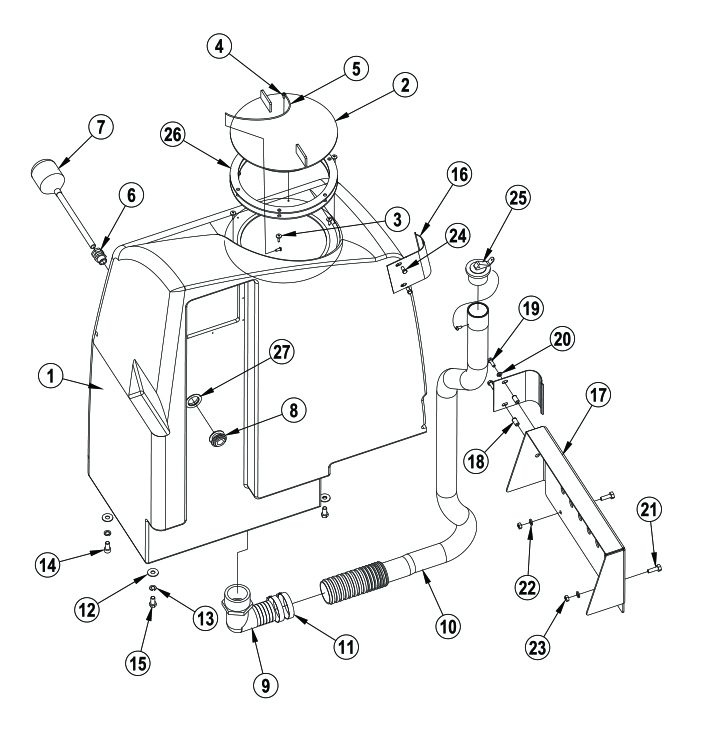

Recovery Tank Assembly
Nilfisk Encore R Recovery Tank Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-83-04211 |
Recovery Tank |
Call to Order |
| 2 |
7-16-07399 |
Tank Access Cover |
Buy Now |
| 3 |
2-00-01994 |
Screw |
Buy Now |
| 4 |
2-00-03466 |
Screw |
Buy Now |
| 5 |
7-13-05064 |
Chain |
Call to Order |
| 6 |
7-09-01122 |
Bushing |
Call to Order |
| 7 |
0775-164 |
Float Switch |
Buy Now |
| 8 |
7-09-01124 |
Bulkhead Fitting |
Call to Order |
| 9 |
2-00-05900 |
Barbed Elbow Fitting |
Buy Now |
| 10 |
7-33-02591 |
Drain Hose Assembly |
Buy Now |
| 11 |
2-00-02216 |
Hose Clamp |
Buy Now |
| 12 |
2-00-03979 |
Flat Washer |
Buy Now |
| 13 |
2-00-02310 |
Washer |
Buy Now |
| 14 |
2-00-03044 |
Screw |
Call to Order |
| 15 |
2-00-00232 |
Bolt |
Call to Order |
| 16 |
7-08-01138 |
Drain Hose Bracket |
Call to Order |
| 17 |
7-30-05114 |
Vac Motor Guard |
Call to Order |
| 18 |
2-00-05261 |
Threaded Insert |
Buy Now |
| 19 |
2-00-00221 |
Bolt |
Buy Now |
| 20 |
2-00-00518 |
Washer |
Buy Now |
| 21 |
2-00-00206 |
Bolt |
Buy Now |
| 22 |
2-00-00530 |
Lock Washer |
Buy Now |
| 23 |
2-00-00585 |
Nut |
Call to Order |
| 24 |
2-00-00219 |
Bolt |
Call to Order |
| 25 |
7-25-02033 |
Hose Plug |
Buy Now |
| 26 |
7-29-00277 |
Tank Lid Gasket |
Call to Order |
| 27 |
56003770 |
Washer |
Call to Order |

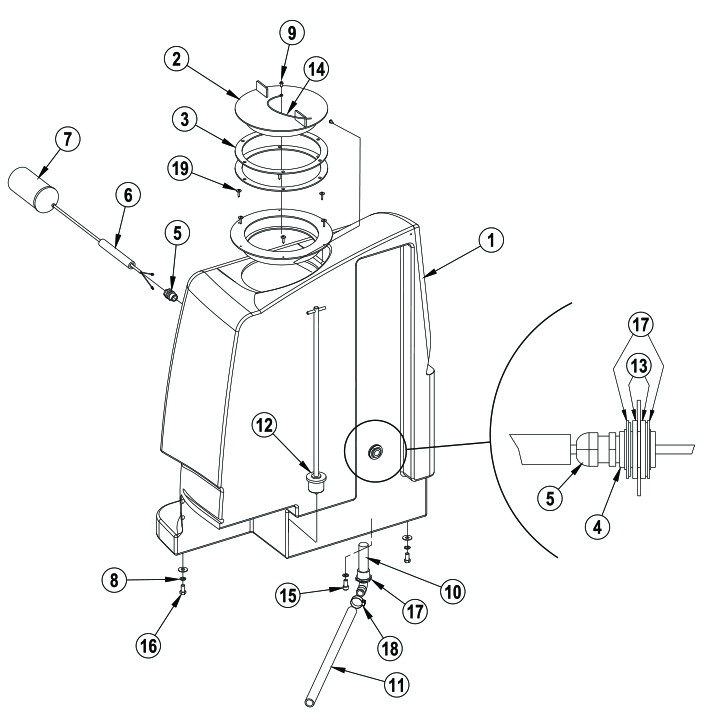

Solution Tank Assembly
Nilfisk Encore R Solution Tank Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-83-04174 |
Solution Tank |
Call to Order |
| 2 |
7-16-07399 |
Tank Access Cover |
Buy Now |
| 3 |
7-29-00277 |
Tank Lid Gasket |
Call to Order |
| 4 |
7-09-01124 |
Bulkhead Fitting |
Call to Order |
| 5 |
7-09-01122 |
Bushing |
Call to Order |
| 6 |
7-87-02191 |
Float Switch Tube |
Buy Now |
| 7 |
0775-217 |
Float Altered Switch |
Call to Order |
| 8 |
2-00-02310 |
Lock Washer |
Buy Now |
| 9 |
2-00-03466 |
Screw |
Buy Now |
| 10 |
7-24-04056 |
Solution Filter |
Buy Now |
| 11 |
7-33-02233 |
Hose |
Buy Now |
| 12 |
7-25-02095 |
Drain Plug Assembly |
Buy Now |
| 13 |
7-29-00225 |
Gasket |
Call to Order |
| 14 |
7-13-05064 |
Chain |
Call to Order |
| 15 |
2-00-03044 |
Screw |
Call to Order |
| 16 |
2-00-00232 |
Bolt |
Call to Order |
| 17 |
56003770 |
Washer |
Call to Order |
| 18 |
2-00-02220 |
Hose Clamp |
Buy Now |
| 19 |
2-00-01994 |
Screw |
Buy Now |

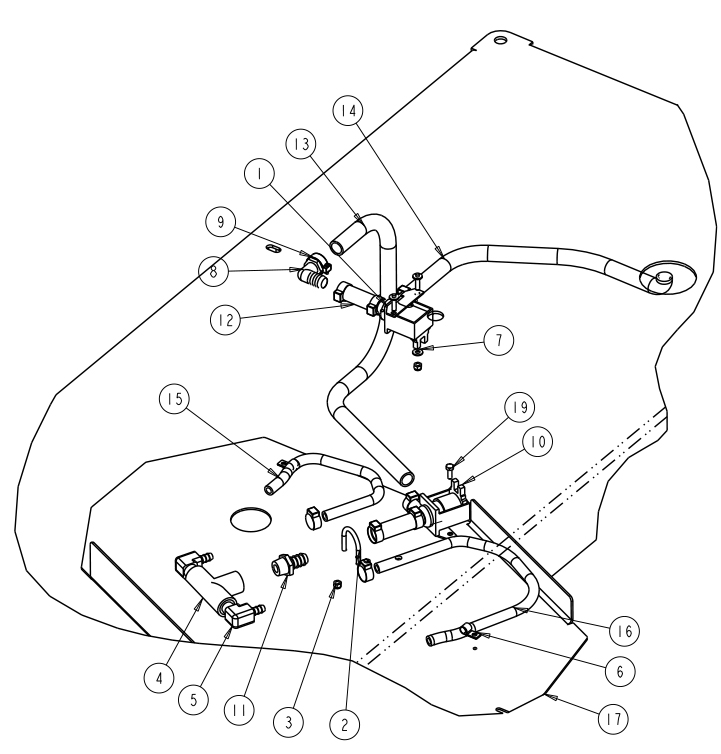

Solution Control
Nilfisk Encore R Solution Control
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
7-88-00073 |
Solution Valve |
Buy Now |
| 2 |
8-13-07003 |
Bolt |
Call to Order |
| 3 |
2-00-00641 |
Fiber Insert Nut |
Call to Order |
| 4 |
7-25-02037 |
Plastic Fitting |
Call to Order |
| 5 |
2-00-05378 |
Barb Fitting |
Call to Order |
| 6 |
2-00-04602 |
Clamp |
Call to Order |
| 7 |
2-00-03702 |
Washer |
Call to Order |
| 8 |
2-00-05380 |
Elbow Fitting |
Call to Order |
| 9 |
2-00-02220 |
Hose Clamp |
Buy Now |
| 10 |
7-88-00084 |
Solution Valve |
Buy Now |
| 11 |
7-25-02052 |
Pipe Fitting |
Buy Now |
| 12 |
7-33-02394 |
Solution Feed Hose |
Call to Order |
| 13 |
7-33-02374 |
Solution Feed Hose |
Call to Order |
| 14 |
7-33-02394 |
Solution Feed Hose |
Call to Order |
| 15 |
7-33-02376 |
Solution Feed Hose |
Call to Order |
| 16 |
7-33-02379-1 |
Solution Feed Hose |
Call to Order |
| 17 |
7-27-07191-1 |
Scrub Deck |
Call to Order |
| 18 |
2-00-00641 |
Fiber Insert Nut |
Call to Order |
| 19 |
2-00-00221 |
Bolt |
Buy Now |
