Nilfisk BRV900

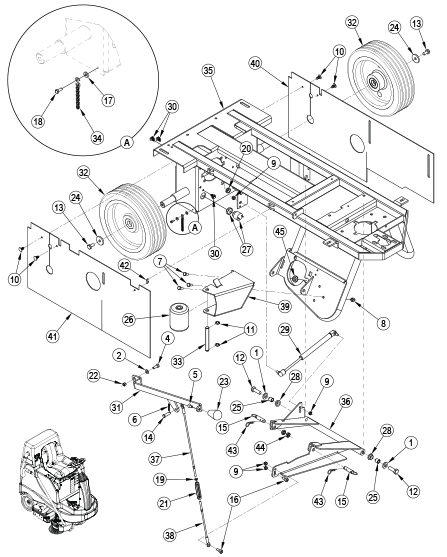

Chassis

Nilfisk BRV900 Chassis

Reference # Part # Description Add to Cart
1 56001879 Flat Washer Buy Now
2 56001939 Flat Washer Buy Now
4 56002037 Screw Buy Now
5 56002476 Screw Buy Now
6 56002529 Cotter Pin Buy Now
7 56002667 Screw Buy Now
8 56002701 Hex Nylock Nut Buy Now
9 56002826 Hex Nylock Nut Buy Now
10 56003263 Rivet Buy Now
11 56003264 Ring Buy Now
12 56003412 Screw Buy Now
13 56003442 Screw Buy Now
14 56003589 Clevis Pin Buy Now
15 56003671 Ring Pin Buy Now
16 56003730 Screw Buy Now
17 56009011 Washer Buy Now
18 56009012 Screw Buy Now
19 56009087 Nut Buy Now
20 56158690 Grommet Buy Now
21 56206814 Turnbuckle Buy Now
22 56320595 Bushing Buy Now
23 56364527 Knob Buy Now
24 56367117 Washer Buy Now
25 56367206 Bushing Buy Now
26 56407006 Roller Wheel Buy Now
27 56412177 Horn/Backup Alarm Buy Now
28 56420160 Flange Bearing Buy Now
29 56422179 Gas Cylinder Buy Now
30 56507793 Conduit Clip Buy Now
31 56601381 Lift Lever Weldment Buy Now
32 56382693 Wheel Buy Now
33 56601580 Pin Buy Now
34 56601716 Ground Chain Buy Now
35 56602021 Chassis Weldment Call to Order
36 56602034 Linkage Weldment Call to Order
37 56602127 Wire Rope Assembly Call to Order
38 56602128 Wire Rope Assembly Call to Order
39 56602129 Roller Bracket Call to Order
40 56602140 Left Skirt Buy Now
41 56602141 Right Skirt Call to Order
42 56745391 S Hook Buy Now
43 56002959 Cotter Hair Pin Buy Now
44 56481456 Bushing Buy Now
45 56157376 Grommet Buy Now

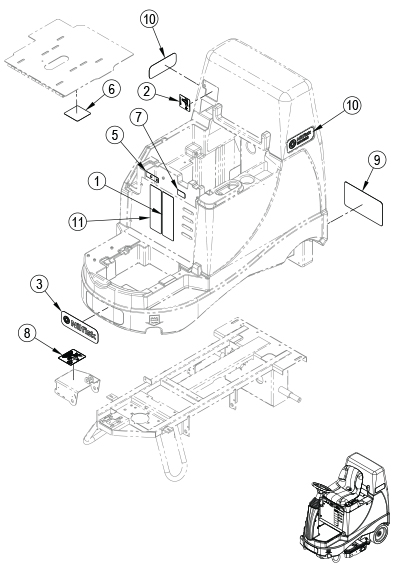

Decals

Nilfisk BRV900 Decals

Reference # Part # Description Add to Cart
1 56014601 Caution Buy Now
2 56016619 Wand Buy Now
3 56016731 Nilfisk Buy Now
5 56601414 Circuit Breaker Buy Now
6 56601416 Battery Wiring Buy Now
7 56601418 Decal Buy Now
8 56602014 Instruction Call to Order
9 56602015 Hepa Call to Order
10 56602253 BRV900 Call to Order
11 56602265 Hepa Warning Call to Order

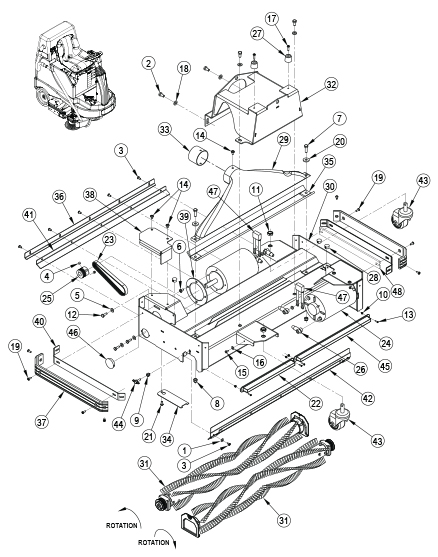

Deck

Nilfisk BRV900 Deck

Reference # Part # Description Add to Cart
1 56001954 Washer Buy Now
2 56002035 Screw Buy Now
3 56002043 Screw Buy Now
4 56002086 Screw Buy Now
5 56002098 Washer Buy Now
6 56002145 Screw Buy Now
7 56002221 Screw Buy Now
8 56002701 Nut Buy Now
9 56002491 Nut Buy Now
10 56002838 Nut Buy Now
11 56002843 Nut Buy Now
12 56002948 Screw Buy Now
13 56003127 Screw Buy Now
14 56003603 Screw Buy Now
15 56009011 Washer Buy Now
16 56009012 Screw Buy Now
17 56009043 Screw Buy Now
18 56009052 Washer Buy Now
19 56009082 Screw Buy Now
20 56009122 Washer Buy Now
21 56009204 Screw Buy Now
22 56052964 Carpet Magnet Buy Now
23 56249040 Belt Buy Now
24 56315061 Motor Buy Now
- 56412287 Motor Brush/Spring Kit Buy Now
- 56380003 Motor Brush/Spring Kit Buy Now
25 56407433 Sheave Buy Now
26 56409538 Terminal Insulator Buy Now
27 56601388 Up Stop Mount Buy Now
28 56601683 Plug-Cap Buy Now
29 56602037 Tube Intake Call to Order
30 56602052 Housing Weldment Call to Order
31 56382720 Brush Assembly Buy Now
- 56262647 Block Bearing Buy Now
- 56382873 Block Bearing Buy Now
32 56602060 Deck Bracket Weldment Call to Order
33 56602095 Tube-Duct Call to Order
34 56602109 Cover Pulley Buy Now
35 56602113 Gasket Intake Call to Order
36 56602154 Clamping Bar Buy Now
37 56602166 Bumper Buy Now
38 56602168 Cover Belt Call to Order
39 56602176 Motor Plate Buy Now
40 56602196 Strap Call to Order
41 56602198 Rear Deflector Buy Now
42 56602239 Divider Plate Assembly Buy Now
43 56602242 Caster Buy Now
44 56602244 T-Knob Assembly Buy Now
45 56643426 Carpet Magnet Buy Now
46 56744814 Cap Plug Buy Now
47 56602249 Capacitor Assembly Call to Order
48 56382879 Bumper Plate Call to Order

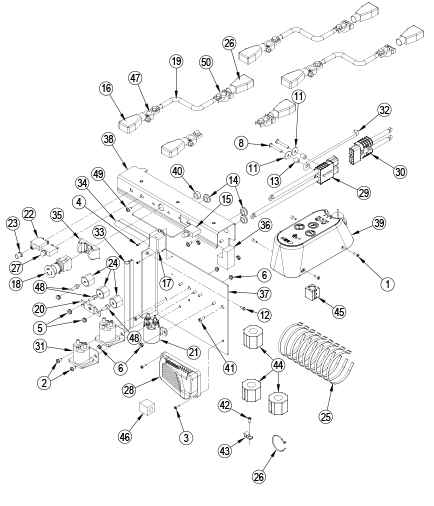

Electrical System

Nilfisk BRV900 Electrical System

Reference # Part # Description Add to Cart
1 56002099 Screw Buy Now
2 56002145 Screw Buy Now
3 56002146 Screw Buy Now
4 56002539 Screw Buy Now
5 56002561 Nut Buy Now
6 56002840 Nut Buy Now
8 56002997 Screw Buy Now
9 56009012 Screw Buy Now
11 56009060 Washer Buy Now
13 56046309 Phenolic Spacer Buy Now
14 56157376 Grommet Buy Now
15 56315255 Circuit Breaker Buy Now
16 20005171 Bat Terminal Cover Call to Order
17 56396286 Relay Call to Order
18 56407130 Emergency Disconnect Buy Now
19 56409485 Battery Cable Buy Now
20 56412089 Fuse Buy Now
21 56412179 Contactor Buy Now
22 56454429 Circuit Breaker Buy Now
23 56459369 Boot Reset Button Buy Now
24 56469858 Electrical Mount Buy Now
25 56477613 Cable Tie Buy Now
26 20005173 Bat Terminal Cover Call to Order
27 56507644 Circuit Breaker Buy Now
28 56601061 Speed Controller Buy Now
29 56601171 Connector Assembly Buy Now
30 56601172 Connector Assembly Buy Now
- 56601175 Traction Drive Harness Buy Now
31 56601183 Contactor Buy Now
32 56601215 Seat Prop Rod Buy Now
33 56601251 Gasket Buy Now
34 56601252 Gasket Buy Now
- 56601431 Cable Assembly Buy Now
35 56601434 Emergency Button Guard Buy Now
36 56601600 Foam Insert Buy Now
- 56602023 Harness Main Call to Order
37 56602036 Panel Electric Call to Order
38 56602066 Panel Call to Order
39 56602105 Interface Panel Assembly Buy Now
- 56602233 Interface Panel Kit Call to Order
- 56303553 Key Switch Buy Now
- 56303526 Replacement Key Set Buy Now
40 56900144 Cap Plug Buy Now
41 56002927 Screw Buy Now
42 56009029 Screw Buy Now
43 56172017 Clamp Buy Now
44 56601687 Ferrite Bead Buy Now
45 56602252 Ferrite Bead Call to Order
46 40849A Suppressor Buy Now
47 L08812063 Battery Clamp Positive Buy Now
48 83302A Stud Buy Now
49 56009069 Screw Buy Now
50 L08812064 Battery Clamp Negative Buy Now

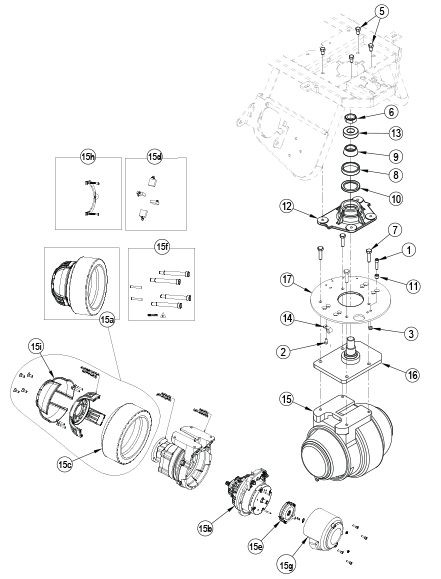

Front Wheel Assembly

Nilfisk BRV900 Front Wheel Assembly

Reference # Part # Description Add to Cart
1 56002131 Screw Buy Now
2 56009033 Screw Buy Now
3 56002826 Nut Buy Now
4 56002840 Nut Buy Now
5 56003040 Screw Buy Now
6 56003220 Nut Buy Now
7 56003491 Screw Buy Now
8 56158143 Bearing Cup Buy Now
9 56158151 Bearing Cone Buy Now
10 56171081 Shaft Seal Buy Now
11 56244941 Bushing Buy Now
12 56314032 Bearing Block Buy Now
13 56378380 Bearing Ball Buy Now
14 56486112 Clamp Buy Now
15 56601050 Motor/Drive Wheel Buy Now
15a 56601472 Drive Motor Tire with Hub Kit Buy Now
15b 56601473 Drive Motor Buy Now
15c 56601471 Tire Buy Now
15d 56601509 Carbon Brush Kit Buy Now
15e 56601507 Electromagnetic Brake Buy Now
15f 56422174 Tire Puller Kit Buy Now
15g 56504482 Cover Drive Motor Buy Now
15h 56380310 Brake Lever Kit Buy Now
15i 56504481 Cover Gearbox Motor Buy Now
16 56601077 Spindle Weld Buy Now
17 56314116 Plate Steering Buy Now

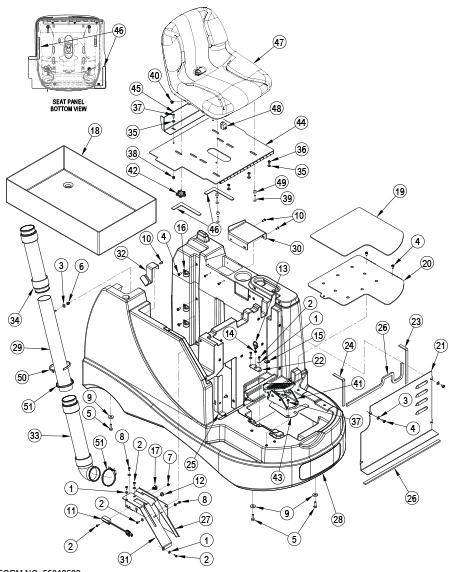

Solution System

Nilfisk BRV900 Solution System

Reference # Part # Description Add to Cart
1 56001954 Washer Buy Now
2 56001993 Screw Buy Now
3 56002098 Washer Buy Now
4 56002145 Screw Buy Now
5 56002221 Screw Buy Now
6 56002708 Nut Buy Now
7 56002832 Nut Buy Now
8 56009029 Screw Buy Now
9 56009122 Washer Buy Now
10 56009191 Screw Buy Now
11 56305053 Proximity Sensor Buy Now
12 56321540 Grommet Buy Now
13 56380132 Turn Latch Buy Now
14 56380137 Retainer Buy Now
15 56380141 Clamp Nut Buy Now
16 56410097 P Clamp Buy Now
17 56507793 Conduit Clip Buy Now
18 56601213 Battery Box Buy Now
19 56601246 Mat Buy Now
20 56601339 Charger Cover Weldment Buy Now
21 56601387 Electrical Cover Panel Call to Order
22 56601511 Plate Call to Order
23 56601569 Gasket Buy Now
24 56601570 Gasket Buy Now
25 56601670 Weldment Call to Order
26 56601685 Gasket Buy Now
27 56601714 Handle Cover Weldment Buy Now
28 56602097 Solution Tank Call to Order
29 56602098 Tube Weldment Call to Order
30 56602110 Panel Accessory Call to Order
31 56602116 Handle Cover - Top Panel Call to Order
32 56602161 Bracket - Handle Call to Order
33 56602189 Hose Assembly Buy Now
34 56602194 Hose Assembly Buy Now
35 56002098 Washer Buy Now
36 56002145 Screw Buy Now
37 56002507 Screw Buy Now
38 56002708 Nut Buy Now
39 56001834 Screw Buy Now
40 56315382 Conduit Clip Buy Now
41 56601052 Footpedal Assembly Buy Now
42 56601271 Knob Buy Now
43 56601601 Footpedal Plate Buy Now
44 56602134 Seat Panel Weldment Call to Order
45 56602188 Bracket Call to Order
46 56602245 Pad Panel Call to Order
47 56383187 Seat Buy Now
48 78200050 Switch Call to Order
49 56383230 Flanged Bushing Seat Buy Now
50 56477613 Cable Tie Buy Now
51 56602257 Ratchet Lock Band Call to Order

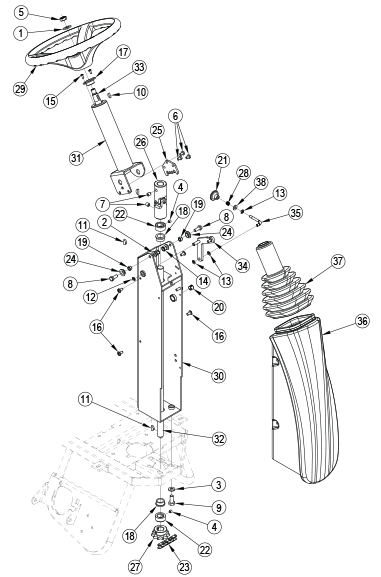

Steering Column Assembly

Nilfisk BRV900 Steering Column Assembly

Reference # Part # Description Add to Cart
1 56001879 Washer Buy Now
2 56001939 Washer Buy Now
3 56002063 Washer Buy Now
4 56002086 Screw Buy Now
5 56002843 Nut Buy Now
6 56002933 Screw Buy Now
7 56003081 Screw Buy Now
8 56003179 Screw Buy Now
9 56003186 Screw Buy Now
10 56003227 Key Buy Now
11 56003228 Key Buy Now
12 56003261 Ring Buy Now
13 56003268 Ring Buy Now
14 56003389 Nut Buy Now
15 56009051 Screw Call to Order
16 56009062 Screw Buy Now
17 56100393 Bushing Buy Now
18 56250414 Flange Bearing Buy Now
19 56320595 Bushing Buy Now
20 56601683 Plug Cap Buy Now
21 56362778 Knob Buy Now
22 56367095 Shaft Collar Buy Now
23 56412198 Roller Chain Buy Now
24 56413211 Flange Bearing Buy Now
25 56413658 Steering Column Ratchet Buy Now
26 56454081 Universal Joint Buy Now
27 56471148 Sprocket Buy Now
28 56578222 Compression Spring Buy Now
29 56601060 Steering Wheel Buy Now
30 56601163 Column Weldment Call to Order
31 56601169 Upper Column Weldment Buy Now
32 56601223 Lower Steering Shaft Buy Now
33 56601224 Upper Steering Shaft Buy Now
34 56601284 Steering Pawl Weldment Buy Now
35 56601292 Pull Lever Buy Now
36 56601484 Lower Column Shroud Buy Now
37 56601500 Steering Boot Buy Now

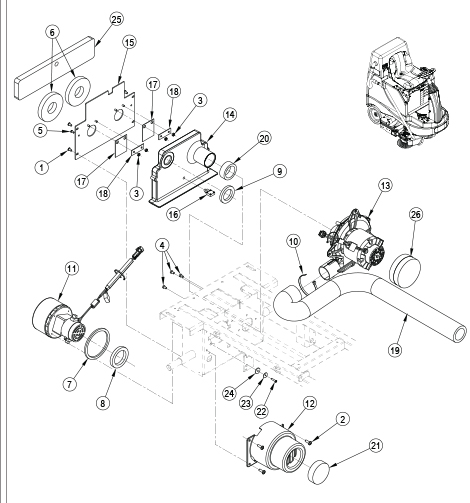

Vacuum Fan Assembly

Nilfisk BRV900 Vacuum Fan Assembly

Reference # Part # Description Add to Cart
1 56002145 Screw Buy Now
2 56002507 Screw Buy Now
3 56002840 Nut Buy Now
4 56003812 Screw Buy Now
5 56009191 Screw Buy Now
6 56602261 Gasket Call to Order
7 56212143 Vacuum Gasket Buy Now
8 56314760 Vacuum Gasket Buy Now
9 56397307 Vacuum Gasket Buy Now
10 56477613 Cable Tie Buy Now
11 56601488 Vac Motor with Suppression Buy Now
- 56397098 Carbon Brush Set Buy Now
12 56602018 Cover Vac Motor Call to Order
13 56382840 Motor Vac Call to Order
- 56602136 Carbon Brush Set Buy Now
14 56602039 Panel Vac Call to Order
15 56602040 Cover Vac Panel Call to Order
16 56602048 Switch Vacuum Call to Order
17 56602074 Flapper Call to Order
18 56602112 Strap Buy Now
19 56602147 Foam Tube Assembly Buy Now
20 56602240 Gasket Buy Now
21 9096672000 Filter Buy Now
22 962954 Screw Buy Now
23 56009096 Washer Buy Now
24 56111384 Bushing Buy Now
25 56602247 Foam Pad Call to Order
26 56382838 Filter Clean Air Intake Buy Now
