Nilfisk BR 1100 & 1300

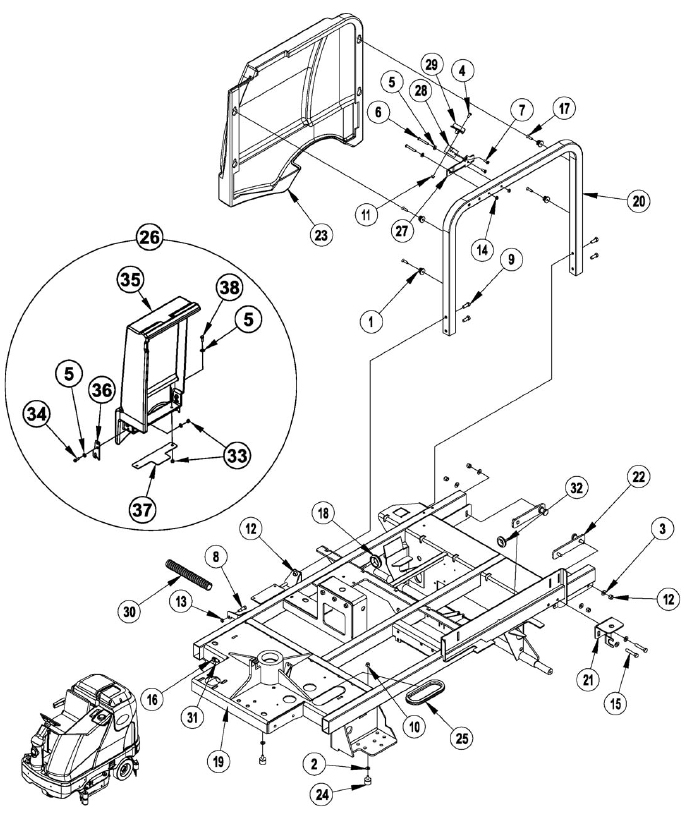

Chassis
Nilfisk BR 1100 & 1300 Chassis

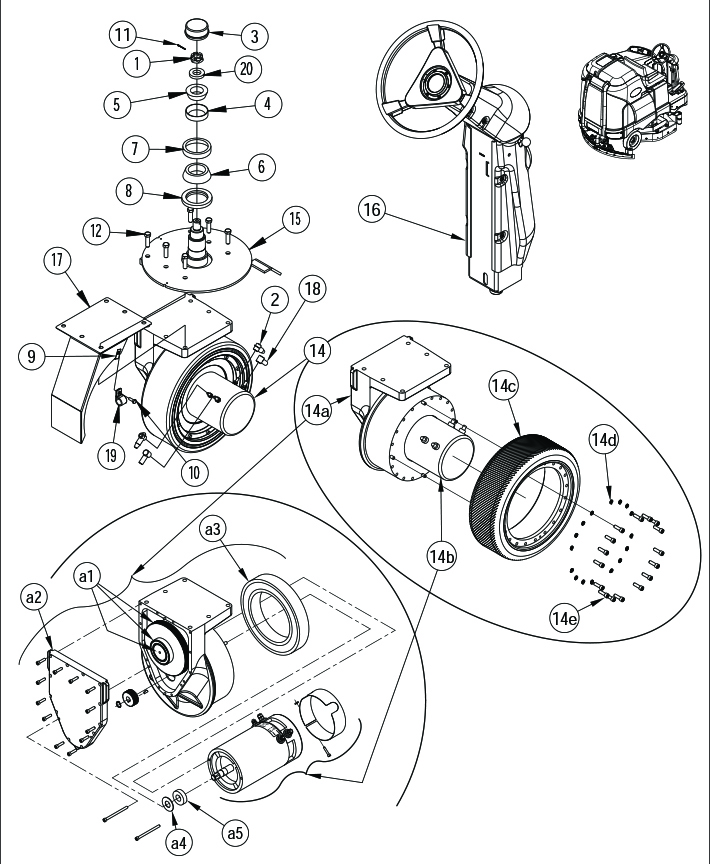

Drive Wheel System
Nilfisk BR 1100 & 1300 Drive Wheel System

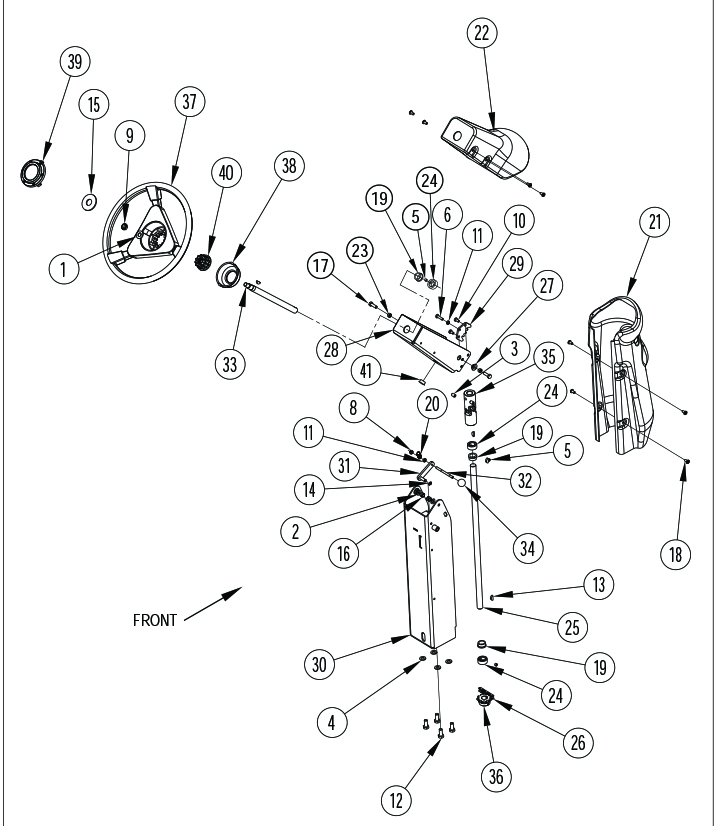

Drive Wheel System - Steering Assembly
Nilfisk BR 1100 & 1300 Drive Wheel System - Steering Assembly

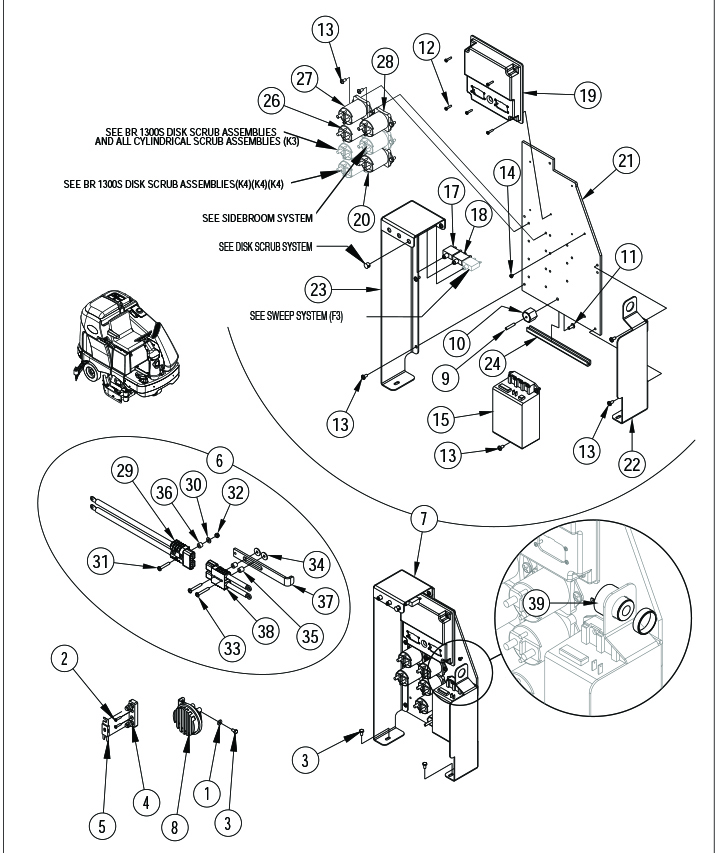

Electrical System
Nilfisk BR 1100 & 1300 Electrical System

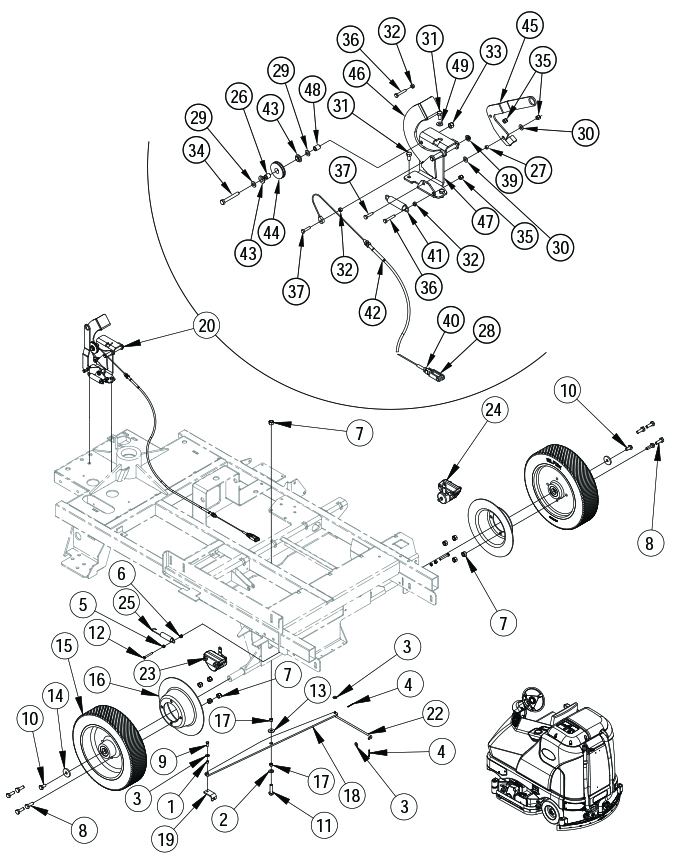

Rear Wheel System
Nilfisk BR 1100 & 1300 Rear Wheel System

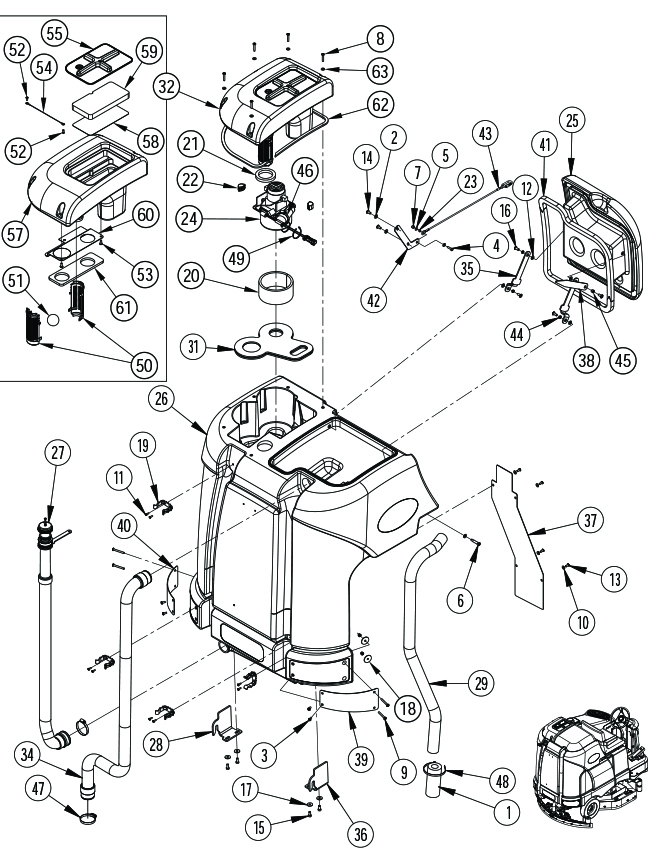

Recovery System
Nilfisk BR 1100 & 1300 Recovery System

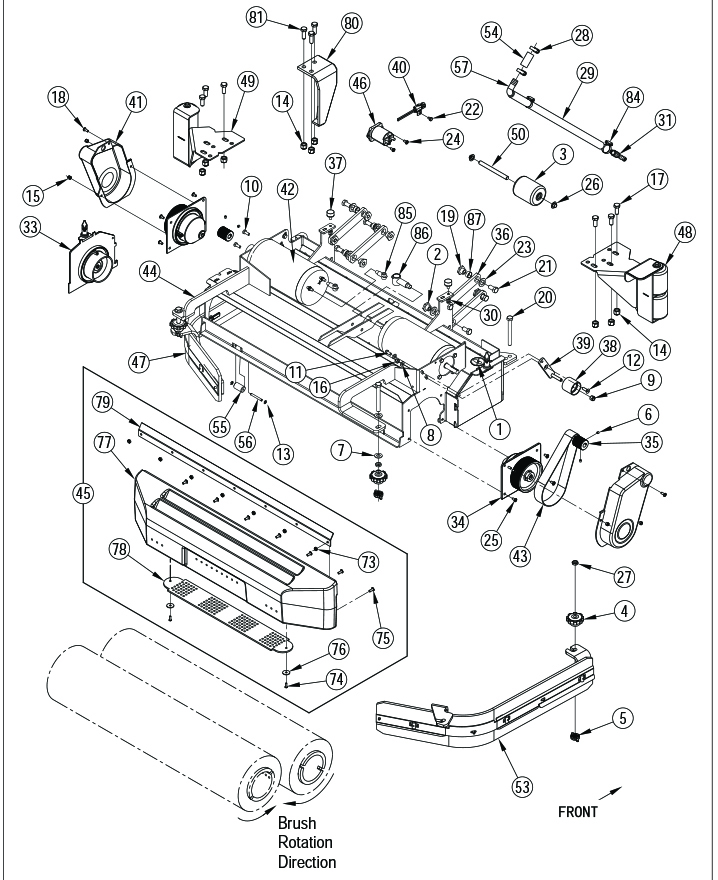

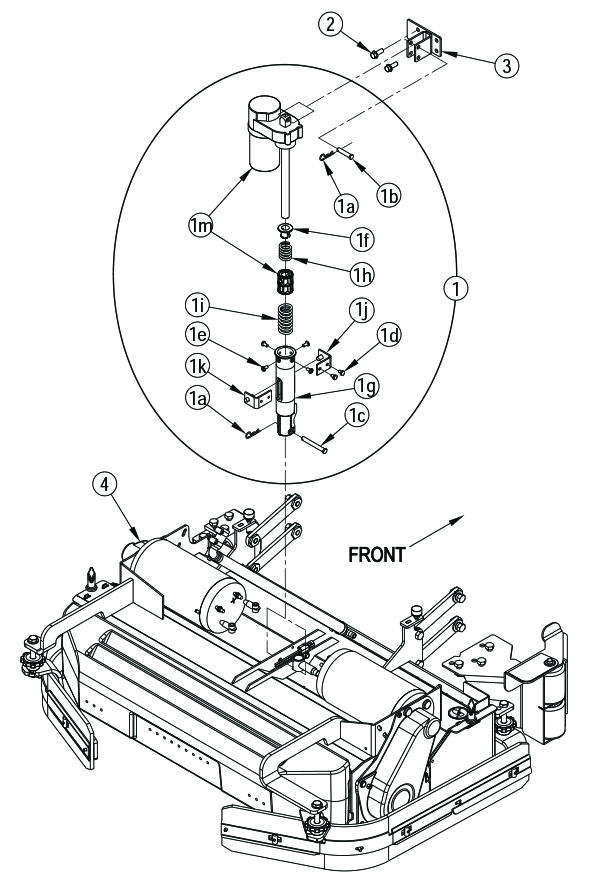

Scrub System - Cylindrical
Nilfisk BR 1100 & 1300 Scrub System - Cylindrical
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56383970 |
Deck Actuator Kit |
Buy Now |
| 1a |
56003120 |
Cotter Hair Pin |
Buy Now |
| 1b |
56003597 |
Clevis Pin |
Buy Now |
| 1c |
56003704 |
Clevis Pin |
Buy Now |
| 1d |
56009019 |
Screw |
Buy Now |
| 1e |
56009062 |
Screw |
Buy Now |
| 1f |
56383887 |
Actuator Spring Cap |
Buy Now |
| 1g |
56412262 |
Housing Spring |
Buy Now |
| 1h |
56413828 |
Upper Housing Spring |
Buy Now |
| 1i |
56413829 |
Lower Housing Spring |
Buy Now |
| 1j |
56420019 |
Nut Retainer |
Buy Now |
| 1k |
56420020 |
Nut Retainer |
Buy Now |
| 1m |
56383970 |
Deck Actuator Kit |
Buy Now |
| 2 |
56002256 |
Screw |
Buy Now |
| 3 |
56413455 |
Mount Weldment |
Buy Now |
| 4 |
56413788 |
Scrub Assembly |
Buy Now |
| 4 |
56413792567 |
Scrub Assembly |
Call to Order |

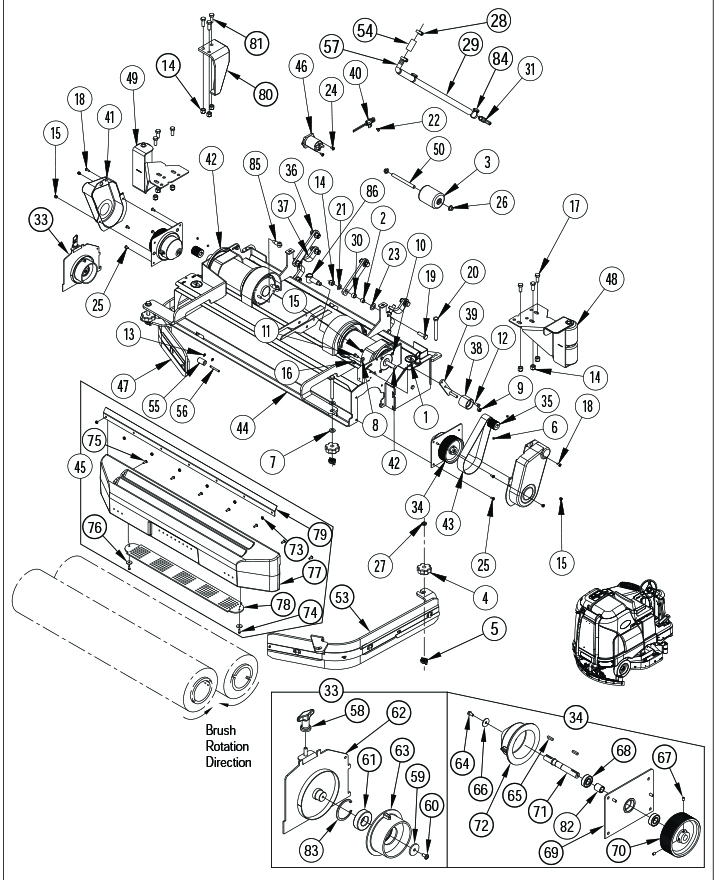

Scrub System - Cylindrical - Scrub Assembly Before SN1000038193
Nilfisk BR 1100 & 1300 Scrub System - Cylindrical - Scrub Assembly Before SN1000038193
Scrub System - Cylindrical - Scrub Assembly After SN1000038193
Nilfisk BR 1100 & 1300 Scrub System - Cylindrical - Scrub Assembly After SN1000038193

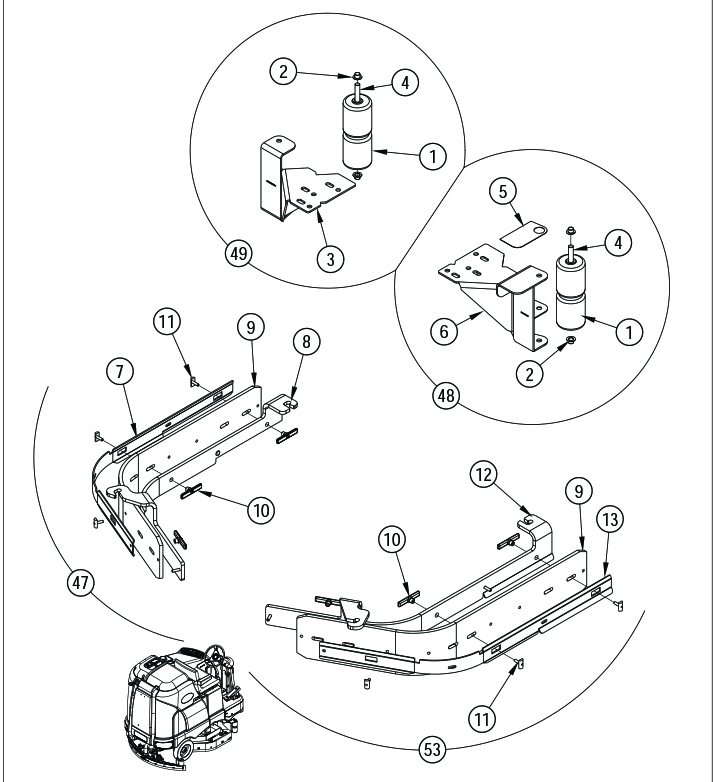

Scrub System - Cylindrical - Skirt and Bumper Assembly
Nilfisk BR 1100 & 1300 Scrub System - Cylindrical - Skirt and Bumper Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56407006 |
Roller Wheel |
Buy Now |
| 2 |
56009097 |
Push Cap Nut |
Buy Now |
| 3 |
56413967 |
Left Guard Weldment |
Buy Now |
| 4 |
56413590 |
Pin |
Buy Now |
| 5 |
56413721 |
Grip Surface |
Buy Now |
| 6 |
56413968 |
Right Guard Weldment |
Buy Now |
| 7 |
56413860 |
Skirt Strap |
Buy Now |
| 8 |
56413969 |
Left Bracket Weldment |
Buy Now |
| 8 |
56413970 |
Left Bracket Weldment |
Buy Now |
| 9 |
56413654 |
Linatex Skirt |
Buy Now |
| - |
56413820 |
Gum Rubber Skirt |
Buy Now |
| - |
56413743 |
Polyurethane Skirt |
Buy Now |
| 10 |
56413717 |
Thumb Nut |
Buy Now |
| 11 |
56413850 |
Skirt Retainer Assembly |
Buy Now |
| 12 |
56413971 |
Right Bracket Weldment |
Buy Now |
| 13 |
56413857 |
Right Skirt Strap |
Buy Now |
| 47 |
56413871 |
Left Skirt Assembly |
Buy Now |
| 47 |
56413556 |
Left Skirt Assembly |
Buy Now |
| 48 |
56413578 |
Right Guard Assembly |
Buy Now |
| 49 |
56413584 |
Left Guard Assembly |
Buy Now |
| 53 |
56413609 |
Right Skirt Assembly |
Buy Now |

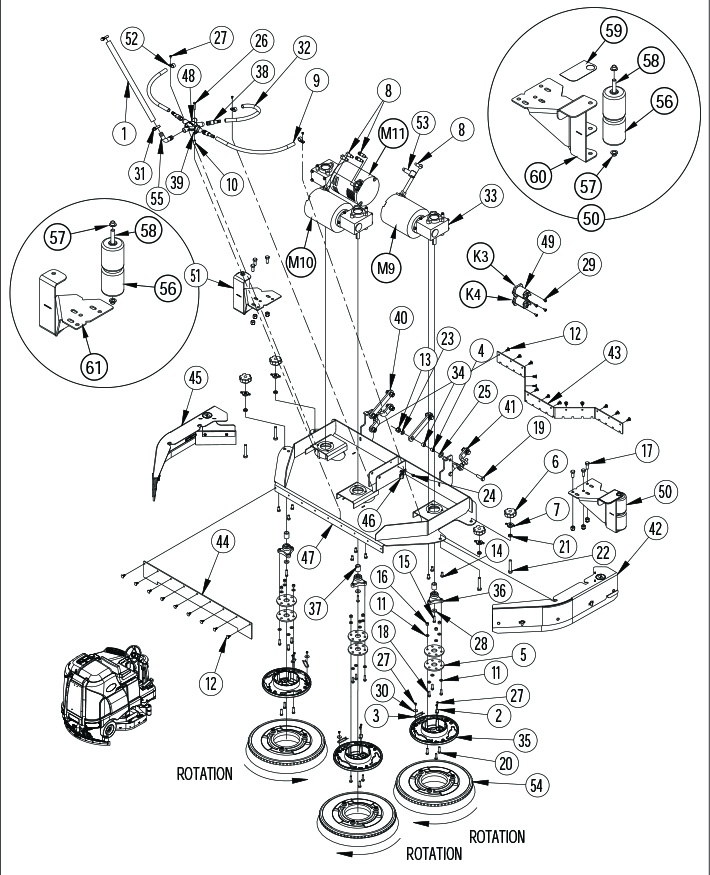

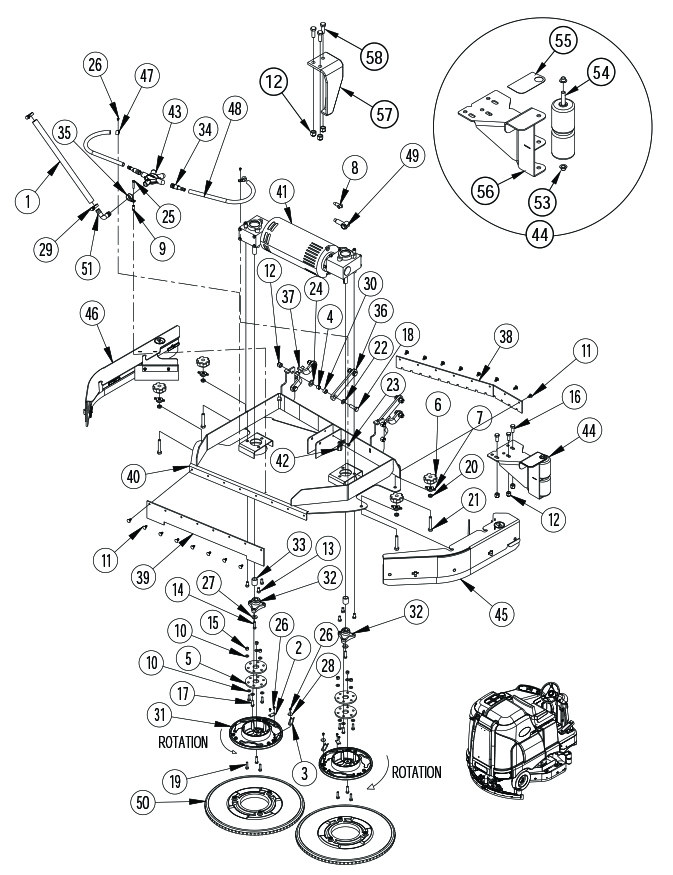

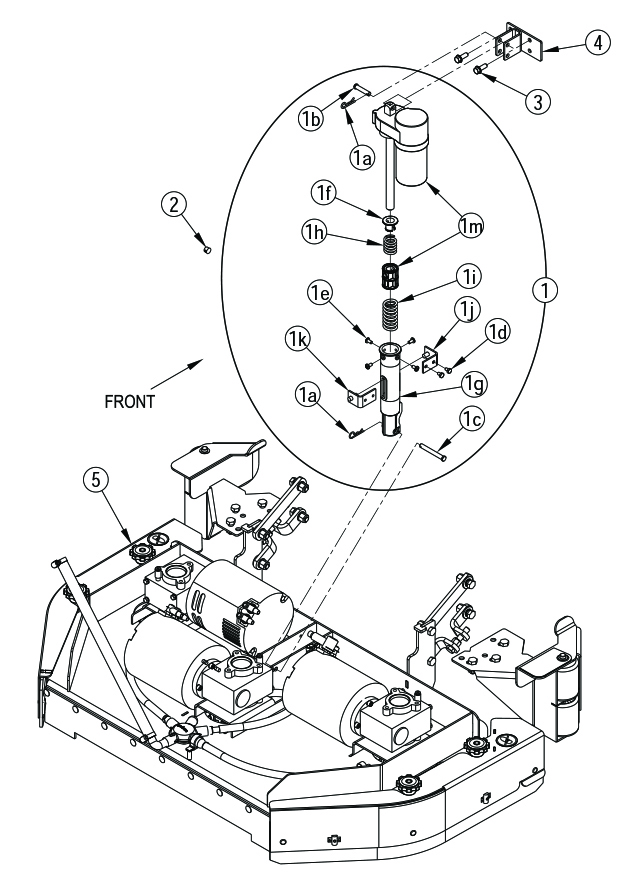

Scrub System - Disk
Nilfisk BR 1100 & 1300 Scrub System - Disk
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56383970 |
Deck Actuator Kit |
Buy Now |
| 1a |
56003120 |
Cotter Hair Pin |
Buy Now |
| 1b |
56003597 |
Clevis Pin |
Buy Now |
| 1c |
56003704 |
Clevis Pin |
Buy Now |
| 1d |
56009019 |
Screw |
Buy Now |
| 1e |
56009062 |
Screw |
Buy Now |
| 1f |
56383887 |
Actuator Spring Cap |
Buy Now |
| 1g |
56412262 |
Housing Spring |
Buy Now |
| 1h |
56413828 |
Upper Housing Spring |
Buy Now |
| 1i |
56413829 |
Lower Housing Spring |
Buy Now |
| 1j |
56420019 |
Nut Retainer |
Buy Now |
| 1k |
56420020 |
Nut Retainer |
Buy Now |
| 1m |
56383970 |
Deck Actuator Kit |
Buy Now |
| 2 |
56323560 |
Cap Plug |
Buy Now |
| 3 |
56002256 |
Screw |
Buy Now |
| 4 |
56413455 |
Mount Weldment |
Buy Now |
| 5 |
56413793 |
Scrub Assemlby |
Buy Now |
| 5 |
56413791 |
Scrub Assembly |
Buy Now |
Scrub System - Disk - BR1100S Scrub Assembly
Nilfisk BR 1100 & 1300 Scrub System - Disk - BR1100S Scrub Assembly
Scrub System - Disk - BR1300S Scrub Assembly
Nilfisk BR 1100 & 1300 Scrub System - Disk - BR1300S Scrub Assembly

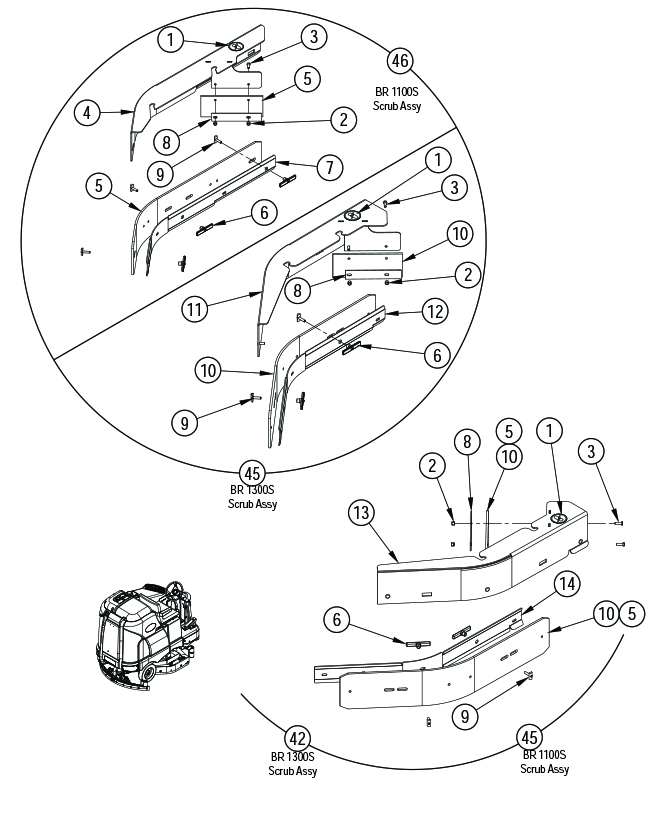

Scrub System - Disk - Skirt Assembly
Nilfisk BR 1100 & 1300 Scrub System - Disk - Skirt Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56016163 |
No Step Decal |
Buy Now |
| 2 |
56003426 |
Nut |
Buy Now |
| 3 |
56003454 |
Screw |
Buy Now |
| 4 |
56413980 |
Skirt Weldment |
Buy Now |
| 5 |
56413768 |
Linatex Kit |
Buy Now |
| - |
56413767 |
Gum Rubber Kit |
Buy Now |
| - |
56413754 |
Polyurethane Kit |
Buy Now |
| 6 |
56413717 |
Thumb Nut |
Buy Now |
| 7 |
56413981 |
Left Strap |
Buy Now |
| 8 |
56413991 |
Strap |
Buy Now |
| 9 |
56413850 |
Skirt Retainer Assembly |
Buy Now |
| 10 |
56413770 |
Linatex Kit |
Buy Now |
| - |
56413769 |
Gum Rubber Kit |
Buy Now |
| - |
56413755 |
Polyurethane Kit |
Buy Now |
| 11 |
56413982 |
Left Skirt Weldment |
Buy Now |
| 12 |
56413983 |
Left Strap |
Buy Now |
| 13 |
56413984 |
Right Disk Skirt Weldment |
Buy Now |
| 14 |
56413985 |
Right Strap |
Buy Now |
| 42 |
56413307 |
Right Skirt Assembly (BR1300) |
Buy Now |
| 45 |
56413381 |
Left Skirt Assembly (BR1300) |
Buy Now |
| 45 |
56413737 |
Right Skirt Assembly (BR1100) |
Buy Now |
| 46 |
56413738 |
Left Skirt Assembly (BR1100) |
Buy Now |
Solution System
Nilfisk BR 1100 & 1300 Solution System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56255076 |
Pipe Cap |
Buy Now |
| 2 |
56368776 |
Rubber Washer |
Buy Now |
| 3 |
56407162 |
Filter |
Buy Now |
| 4 |
56900273 |
Barb |
Buy Now |
| 5 |
56001954 |
Washer |
Buy Now |
| 6 |
56001993 |
Screw |
Buy Now |
| 7 |
56002037 |
Screw |
Buy Now |
| 8 |
56002066 |
Screw |
Buy Now |
| 9 |
56002826 |
Nut |
Buy Now |
| 10 |
56003119 |
Screw |
Buy Now |
| 11 |
56003718 |
Screw |
Buy Now |
| 12 |
56009033 |
Screw |
Buy Now |
| 13 |
56009057 |
Washer |
Buy Now |
| 14 |
56009294 |
Washer |
Buy Now |
| 15 |
56009206 |
Screw |
Buy Now |
| 16 |
56112771 |
Hose Clamp |
Buy Now |
| 17 |
56392193 |
Hose |
Buy Now |
| 18 |
56413876 |
Hose |
Buy Now |
| 19 |
56413081 |
Solution Tank |
Call to Order |
| 20 |
56413975 |
Front Bumper |
Buy Now |
| 21 |
56413157 |
Touch Pad Assembly |
Buy Now |
| 21 |
56381083 |
Touch Pad Assembly |
Buy Now |
| - |
56383138 |
Panel Assembly |
Buy Now |
| 22 |
56413976 |
Lid Mount |
Buy Now |
| 23 |
56413421 |
Pedal Assembly |
Buy Now |
| 24 |
56413482 |
Clip |
Buy Now |
| 25 |
56413510 |
Solenoid Valve Assembly |
Buy Now |
| 26 |
56413581 |
Shutoff Valve |
Buy Now |
| 27 |
56413594 |
Electrical Cover Assembly Panel |
Buy Now |
| 28 |
56413619 |
Seat Mounting Assembly |
Buy Now |
| - |
56003032 |
Screw |
Buy Now |
| - |
56003119 |
Screw |
Buy Now |
| - |
56109291 |
Seat Assembly |
Buy Now |
| - |
56409613 |
Seat Switch |
Buy Now |
| - |
56409536 |
Strap |
Buy Now |
| - |
56323260 |
Hose Support Clamp |
Buy Now |
| - |
56002507 |
Screw |
Buy Now |
| 29 |
56413977 |
Floor Plate |
Buy Now |
| 30 |
56413653 |
Bumper Mount Plate |
Buy Now |
| 31 |
56413669 |
Liquid Level Switch |
Buy Now |
| 32 |
56413683 |
Solution Lid Assembly |
Buy Now |
| - |
56413682 |
Solution Lid Gasket |
Buy Now |
| 33 |
56413811 |
Gasket |
Buy Now |
| 34 |
56413839 |
Hose Clamp |
Buy Now |
| 35 |
56342319 |
Clamp |
Buy Now |
| 36 |
56900292 |
Adapter Barb |
Buy Now |
| 37 |
1450372000 |
Key Switch |
Call to Order |
| - |
1462887000 |
Replacement Key |
Buy Now |
| 38 |
56413862 |
Chemical Metering Assembly |
Buy Now |
| 38 |
56381105 |
Chemical Metering Assembly |
Buy Now |
| 39 |
76900008 |
Seat |
Call to Order |
| 40 |
56003603 |
Screw |
Buy Now |
| 41 |
56323260 |
Hose Support Clamp |
Buy Now |
| 42 |
56109274 |
Strap |
Buy Now |
| 43 |
78200050 |
Switch |
Call to Order |
| 44 |
56109300 |
Seat Slide |
Buy Now |
| 45 |
70304250 |
Arm Rest Option |
Call to Order |
| 46 |
56009096 |
Washer |
Buy Now |

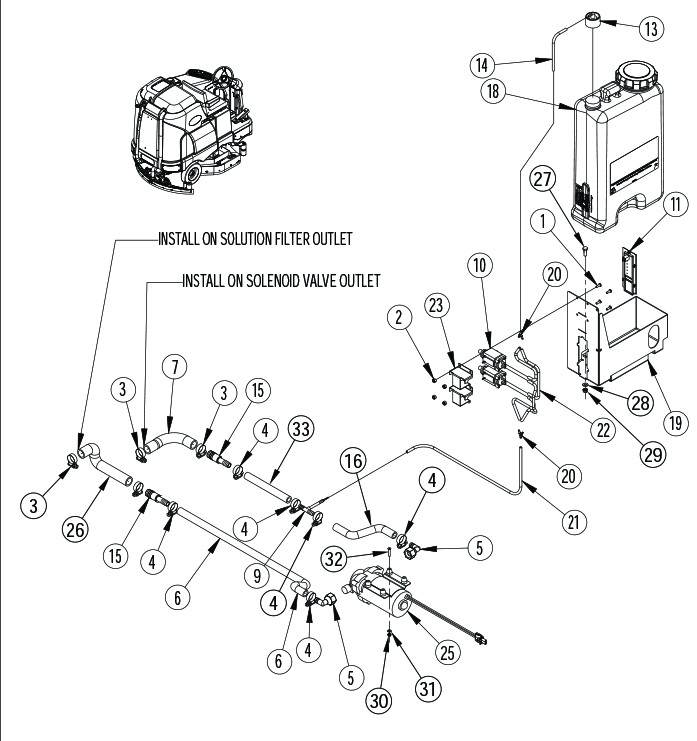

Solution System - Chemical Metering Kit
Nilfisk BR 1100 & 1300 Scrub System - Disk - Skirt Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| - |
56413862 |
Chemical Metering Assembly |
Buy Now |
| - |
56381105 |
Chemical Metering Assembly |
Buy Now |
| 1 |
56002003 |
Screw |
Buy Now |
| 2 |
56002808 |
Nut |
Buy Now |
| 3 |
56112771 |
Hose Clamp |
Buy Now |
| 4 |
56219932 |
Hose Clamp |
Buy Now |
| 5 |
56261246 |
Elbow |
Buy Now |
| 6 |
56412275 |
Spiral Hose |
Buy Now |
| 7 |
56305762 |
Spiral Hose |
Buy Now |
| 9 |
56314983 |
Tee Assembly |
Buy Now |
| 10 |
56314984 |
Detergent Pump |
Buy Now |
| 11 |
56315340 |
Chemical Sensor Assembly |
Buy Now |
| 13 |
56315523 |
Dry Break Cap |
Buy Now |
| 14 |
56315524 |
Chemical Resistant Hose |
Buy Now |
| 15 |
56315625 |
Coupler Barb |
Buy Now |
| 16 |
56262180 |
Spiral Hose |
Buy Now |
| 18 |
56413999 |
Chemical Assembly Bottle |
Buy Now |
| 18 |
56111855 |
Chemical Assembly Bottle |
Buy Now |
| 19 |
56413330 |
Chemical Meter Mount Plate |
Buy Now |
| 20 |
56413691 |
Barb Fitting |
Buy Now |
| 21 |
56413692 |
Chemical Resistant Hose |
Buy Now |
| 22 |
56413693 |
Chemical Resistant Hose |
Buy Now |
| 23 |
56413775 |
Pump Mount Bracket |
Buy Now |
| 25 |
56413810 |
Solution Control Pump |
Buy Now |
| 26 |
56481452 |
Spiral Hose |
Buy Now |
| 27 |
56002507 |
Screw |
Buy Now |
| 28 |
56002098 |
Washer |
Buy Now |
| 29 |
56002708 |
Nut |
Buy Now |
| 30 |
56002768 |
Nut |
Buy Now |
| 31 |
56001954 |
Washer |
Buy Now |
| 32 |
56002136 |
Screw |
Buy Now |
| 33 |
56412276 |
Spiral Hose |
Buy Now |
| - |
56478246 |
Cable Tie |
Buy Now |

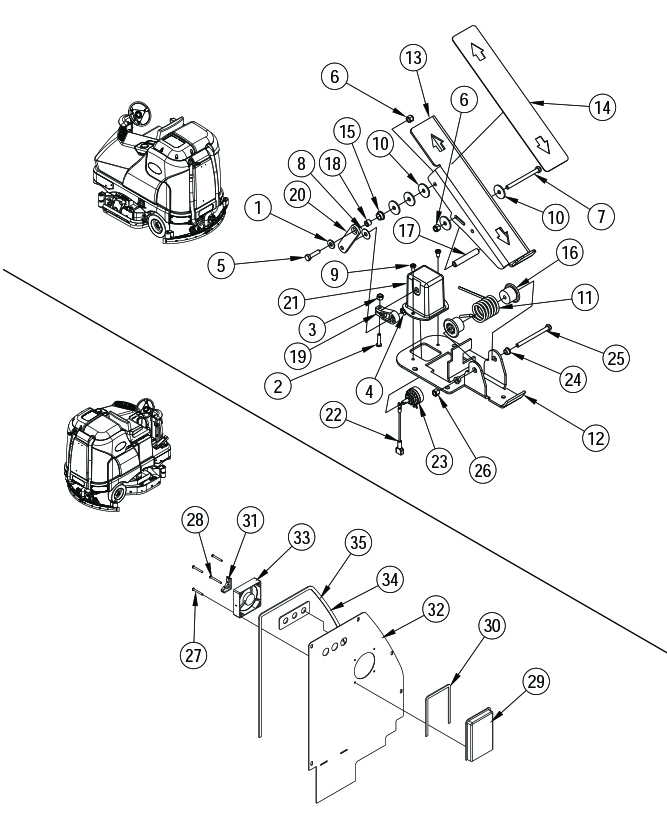

Solution System - Drive Pedal & Electrical Panel Assembly
Nilfisk BR 1100 & 1300 Solution System - Drive Pedal & Electrical Panel Assembly

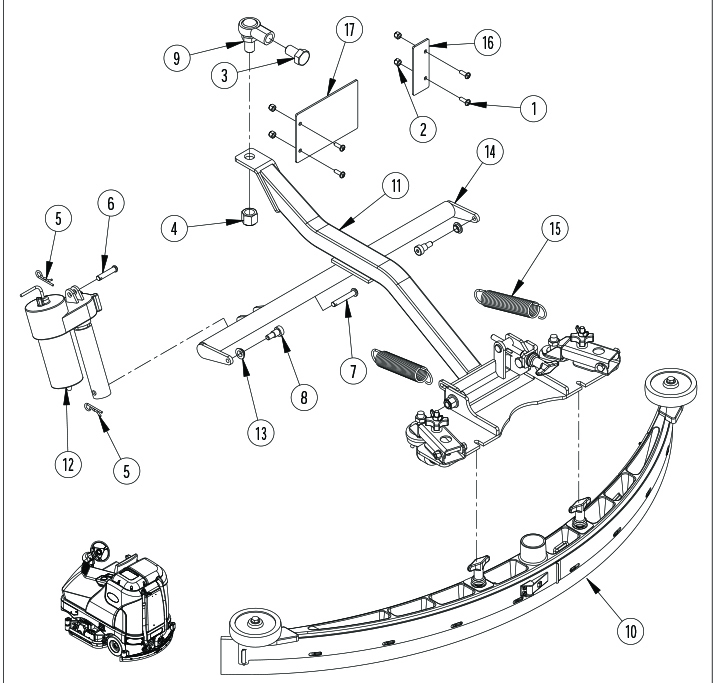

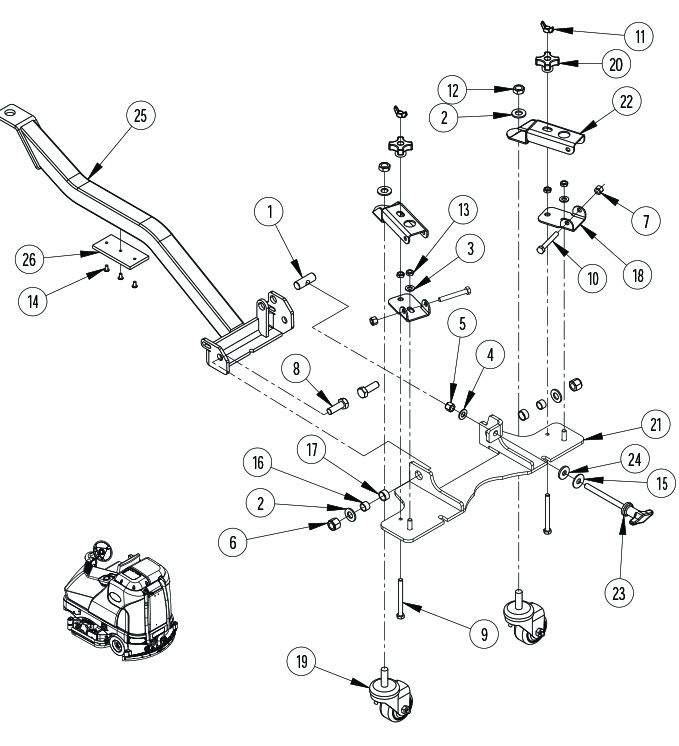

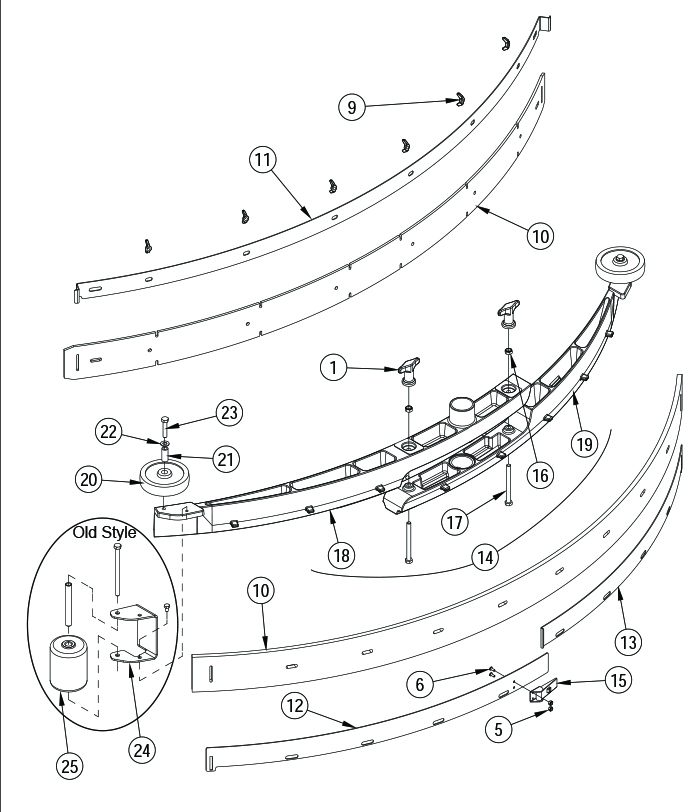

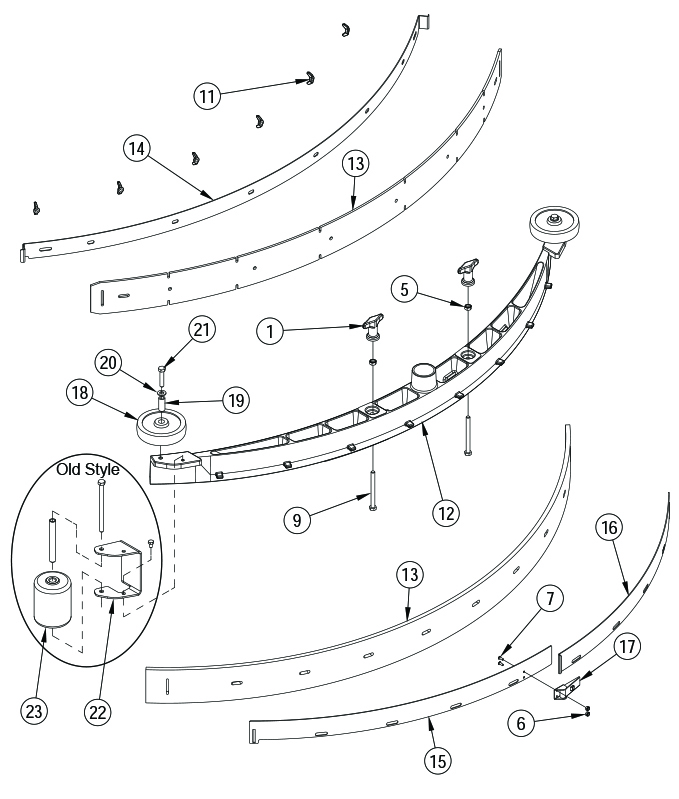

Squeegee System
Nilfisk BR 1100 & 1300 Squeegee System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56002957 |
Screw |
Buy Now |
| 2 |
56002491 |
Nut |
Buy Now |
| 3 |
56002739 |
Screw |
Buy Now |
| 4 |
56002863 |
Nut |
Buy Now |
| 5 |
56003222 |
Cotter Hair Pin |
Buy Now |
| 6 |
56003597 |
Clevis Pin |
Buy Now |
| 7 |
56003656 |
Clevis Pin |
Buy Now |
| 8 |
56003912 |
Screw |
Buy Now |
| 9 |
56380431 |
Ball Joint |
Buy Now |
| 10 |
56413038 |
Squeegee Assembly |
Buy Now |
| 10 |
56413739 |
Squeegee Assembly |
Buy Now |
| 10 |
56413641 |
Squeegee Assembly |
Buy Now |
| 11 |
56383111 |
Squeegee Arm Assembly |
Buy Now |
| 12 |
56413111 |
Actuator |
Buy Now |
| 13 |
56413211 |
Flange Bearing |
Buy Now |
| 14 |
56413994 |
Squeegee Lift Arm Weldment |
Buy Now |
| 15 |
56412216 |
Extension Spring |
Buy Now |
| 16 |
56413776 |
Small Stop Plate |
Buy Now |
| 17 |
56413778 |
Large Stop Plate |
Buy Now |
| - |
56413777 |
Medium Stop Plate |
Buy Now |
Squeegee System - Squeegee Arm Assembly
Nilfisk BR 1100 & 1300 Scrub System - Disk - Skirt Assembly
Squeegee System - Squeegee Assembly BR1100S
Nilfisk BR 1100 & 1300 Scrub System - Disk - Skirt Assembly
Squeegee System - Squeegee Assembly BR1300S
Nilfisk BR 1100 & 1300 Squeegee System - Squeegee Assembly BR1300S
| Reference # |
Part # |
Description |
Add to Cart |
| - |
56413641 |
Squeegee Assembly |
Buy Now |
| 1 |
56370711 |
Thumb Nut |
Buy Now |
| 5 |
56002907 |
Nut |
Buy Now |
| 6 |
56002909 |
Screw |
Buy Now |
| 9 |
56009111 |
Wing Nut |
Buy Now |
| 10 |
56413766 |
Linatex Squeegee Blade Kit |
Buy Now |
| 10 |
56413765 |
Gum Rubber Squeegee Blade Kit |
Buy Now |
| 10 |
56413747 |
Polyurethane Squeegee Blade Kit |
Buy Now |
| 11 |
56109620 |
Front Strap |
Buy Now |
| 12 |
56109621 |
Left Rear Strap |
Buy Now |
| 13 |
56109677 |
Right Rear Strap |
Buy Now |
| 14 |
56413679 |
Squeegee Cast Assembly |
Buy Now |
| 15 |
56471194 |
Latch Assembly |
Buy Now |
| 16 |
56002851 |
Nut |
Buy Now |
| 17 |
56003481 |
Screw |
Buy Now |
| 18 |
56413645 |
Cast Top Squeegee |
Call to Order |
| 19 |
56413644 |
Cast Bottom Squeegee |
Call to Order |
| 20 |
56111639 |
Wheel |
Buy Now |
| 21 |
56109581 |
Bushing |
Buy Now |
| 22 |
56001939 |
Washer |
Buy Now |
| 23 |
56003437 |
Screw |
Buy Now |
| 24 |
56407375 |
Bracket |
Buy Now |
| 25 |
56407006 |
Roller Wheel |
Buy Now |
Sweep System

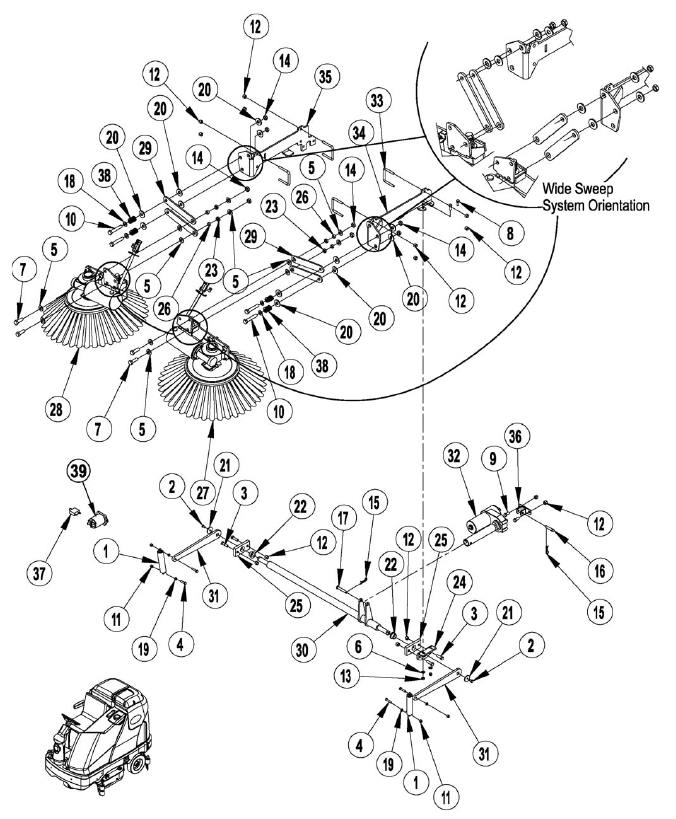

Nilfisk BR 1100 & 1300 Sweep System
Sweep System - Side Broom Assembly

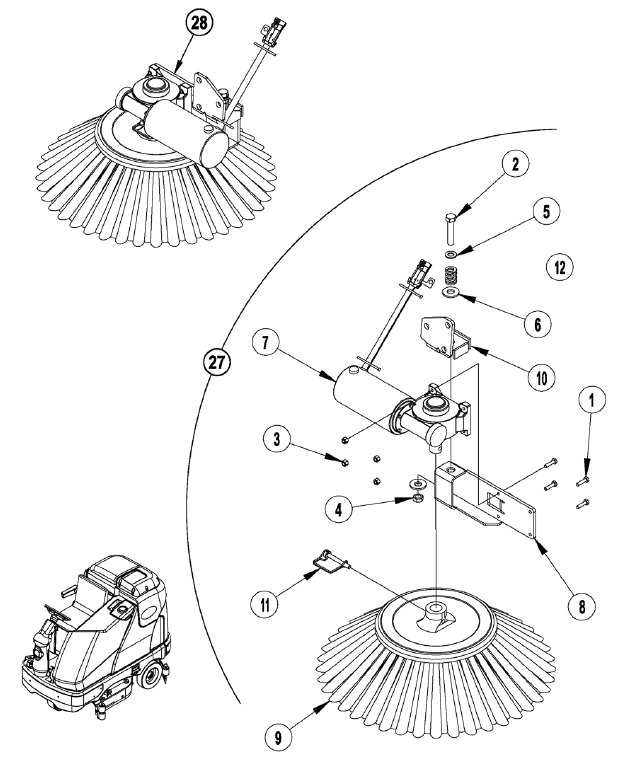

Nilfisk BR 1100 & 1300 Sweep System - Side Broom Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56002093 |
Screw |
Buy Now |
| 2 |
56002533 |
Screw |
Buy Now |
| 3 |
56002708 |
Nut |
Buy Now |
| 4 |
56002843 |
Nut |
Buy Now |
| 5 |
56009017 |
Washer |
Buy Now |
| 6 |
56009115 |
Washer |
Buy Now |
| 7 |
56413695 |
Left Gearmotor Assembly |
Buy Now |
| 7 |
56413696 |
Right Gearmotor Assembly |
Buy Now |
| - |
52803A |
Carbon Brush |
Call to Order |
| 8 |
56413051 |
Left Sidebroom Bracket Weldment |
Call to Order |
| 8 |
56413062 |
Right Sidebroom Bracket Weldment |
Call to Order |
| 9 |
56413056 |
Standard Sidebroom |
Buy Now |
| 9 |
56380335 |
Commercial Option Sidebroom |
Buy Now |
| 10 |
56413142 |
Left Sidebroom Spring Mount Weldment |
Call to Order |
| 10 |
56413143 |
Right Sidebroom Spring Mount Weldment |
Call to Order |
| 11 |
56413845 |
Pin |
Buy Now |
| 12 |
56416508 |
Die Spring |
Buy Now |
| 27 |
56413039 |
Left Side Broom Assembly |
Buy Now |
| 28 |
56413040 |
Right Side Broom Assembly |
Buy Now |
