Karcher Puzzi 8/1
Tank

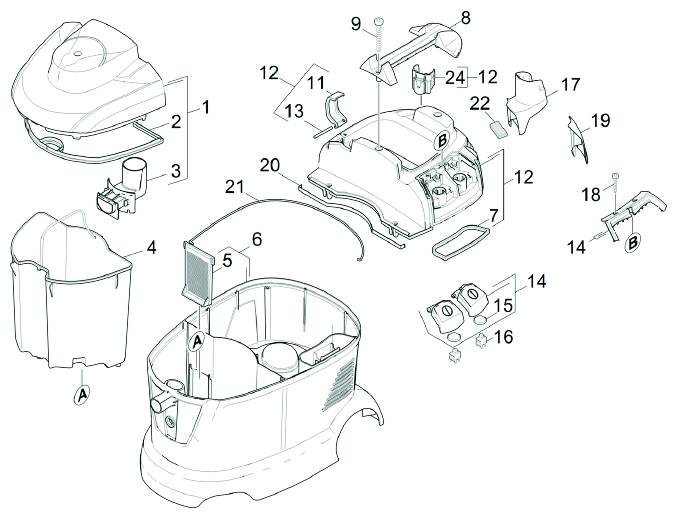

Karcher Puzzi 8/1 Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
40640060 |
Cover Complete - Only for Replacement |
Buy Now |
| 2 |
53636810 |
Seal Cover |
Buy Now |
| 3 |
50331430 |
Elbow |
Call to Order |
| 4 |
40706320 |
Tank Complete - Only for Replacement |
Buy Now |
| 5 |
57340990 |
Strainer |
Buy Now |
| 6 |
46050030 |
Housing Complete |
Call to Order |
| 7 |
63684130 |
Seal Switch |
Call to Order |
| 8 |
53218530 |
Handhold |
Buy Now |
| 9 |
73031540 |
Screw |
Buy Now |
| 11 |
50372000 |
Hook |
Call to Order |
| 12 |
40690350 |
Cover Complete |
Call to Order |
| 13 |
73140400 |
Straight Pin |
Call to Order |
| 14 |
43240280 |
Pushbutton Complete - Only for Replacement |
Buy Now |
| 15 |
53944610 |
Protection Part |
Buy Now |
| 16 |
66304370 |
Switch On/Off |
Buy Now |
| 17 |
50331690 |
Holder Floor Nozzle |
Call to Order |
| 18 |
73030840 |
Screw |
Buy Now |
| 19 |
50692460 |
Covering Cap Cover |
Call to Order |
| 20 |
62732750 |
Foamed Material |
Call to Order |
| 21 |
62730370 |
Rubber Seal String |
Buy Now |
| 22 |
53637190 |
Seal |
Call to Order |
| 24 |
50339900 |
Clip |
Buy Now |
Individual Parts
Karcher Puzzi 8/1 Individual Parts
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
50505910 |
Plate |
Call to Order |
| 2 |
54434370 |
Hose Stem |
Buy Now |
| 3 |
44090010 |
Nipple Complete |
Buy Now |
| 4 |
28892460 |
O-Ring Seal Set |
Buy Now |
| 5 |
63627970 |
O-Ring Seal |
Call to Order |
| 6 |
63898840 |
Hose Clip |
Call to Order |
| 7 |
54436730 |
Hose |
Buy Now |
| 8 |
63885560 |
Hose Clamp |
Call to Order |
| 9 |
64735310 |
Motor Pump |
Buy Now |
| 10 |
54434390 |
Hose Stem |
Call to Order |
| 11 |
52501520 |
Seal Pump |
Call to Order |
| 12 |
64357070 |
Castor |
Buy Now |
| 13 |
73030840 |
Screw |
Buy Now |
| 14 |
45152780 |
Wheel Complete - Only for Replacement |
Call to Order |
| 15 |
73030860 |
Screw |
Buy Now |
| 16 |
50503530 |
Frame |
Call to Order |
| 17 |
43630280 |
Seal Frame - Only for Replacement |
Buy Now |
| 18 |
73031290 |
Screw |
Buy Now |
| 19 |
50345050 |
Retaining Bracket Cable |
Call to Order |
| 20 |
66482220 |
Cable with Plug |
Call to Order |
| 21 |
63100040 |
Hexagon Nut |
Buy Now |
| 22 |
53631080 |
Joint Ring |
Buy Now |
| 23 |
54429240 |
Piece of Tube |
Buy Now |
| 24 |
54432460 |
Hose Stem |
Buy Now |
| 25 |
64140270 |
Filter |
Buy Now |
| 26 |
73062360 |
Screw |
Call to Order |
| 27 |
50339280 |
Plug Fixing |
Call to Order |
| 28 |
66443860 |
Terminal Clamp |
Call to Order |
| 29 |
63431190 |
Lock Washer |
Buy Now |
| 33 |
54436690 |
Insulating Hose |
Buy Now |
| 34 |
48393920 |
Electrical Small Parts |
Buy Now |
Vacuum Motor

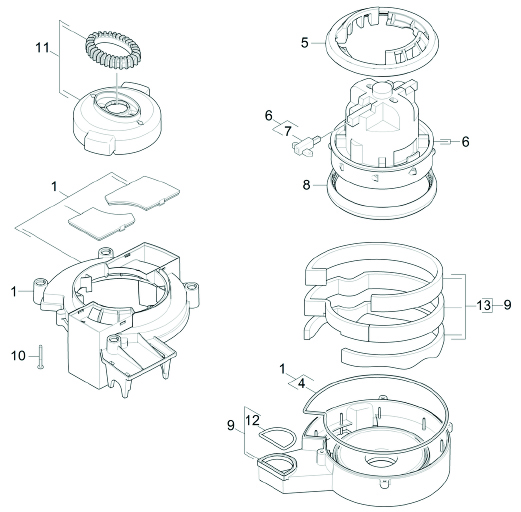

Karcher Puzzi 8/1 Vacuum Motor
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
40690190 |
Covering Cap Blower - Only for Replacement |
Call to Order |
| 4 |
94390650 |
Rubber Seal String |
Buy Now |
| 5 |
53636640 |
Seal Vacuum Motor Above |
Buy Now |
| 6 |
64902270 |
Vacuum Motor with Thermal Overload Prote |
Buy Now |
| 7 |
66102850 |
Carbon Brush Set |
Call to Order |
| 8 |
53636820 |
Seal Motor |
Call to Order |
| 9 |
46920340 |
Air Circulation - Only for Replacement |
Buy Now |
| 10 |
73030850 |
Screw |
Buy Now |
| 11 |
46050970 |
Housing |
Call to Order |
| 12 |
94390640 |
Rubber Seal String |
Buy Now |
| 13 |
22860090 |
Insulating Mat Set |
Call to Order |
Accessories

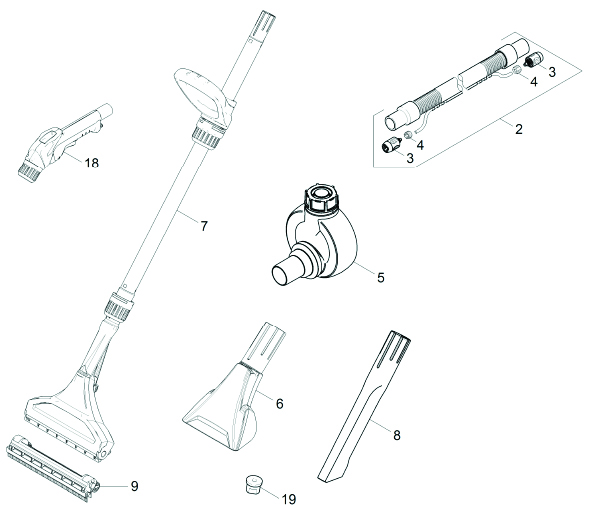

Karcher Puzzi 8/1 Accessories
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
63948260 |
Suction Hose Complete |
Buy Now |
| 2 |
63943750 |
Suction Hose |
Buy Now |
| 3 |
44460230 |
Hose Coupling Complete - Only for Replacement |
Buy Now |
| 4 |
63948270 |
Union Nut |
Buy Now |
| 5 |
40069070 |
Metering Unit Antifoaming Agent |
Buy Now |
| 6 |
41300010 |
Upholstery Nozzle Complete Packaged |
Buy Now |
| 7 |
41300070 |
Set Carpet Nozzle |
Call to Order |
| 8 |
41300100 |
Crevice Nozzle Complete |
Buy Now |
| 9 |
47620140 |
Hard Surface Adapter |
Buy Now |
| 18 |
41300000 |
Handhold Complete |
Buy Now |
| 19 |
64151660 |
Nozzle Mouthpiece |
Call to Order |
Metering Unit Antifoaming Agent

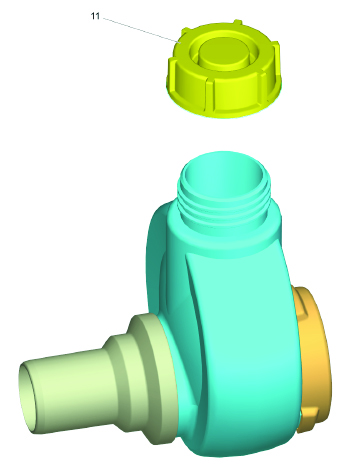

Karcher Puzzi 8/1 Metering Unit Antifoaming Agent
| Reference # |
Part # |
Description |
Add to Cart |
| 11 |
63941060 |
Screw Cap |
Call to Order |
Upholstery Nozzle

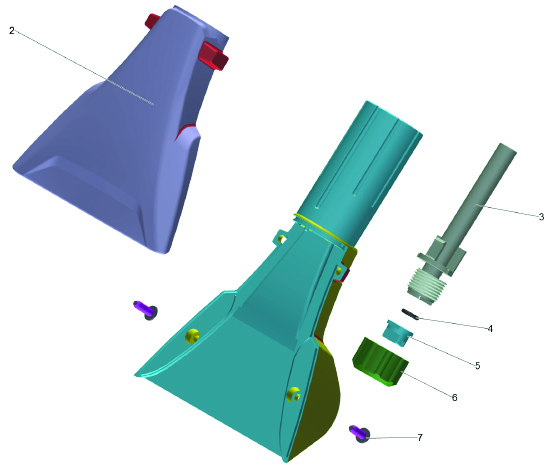

Karcher Puzzi 8/1 Upholstery Nozzle
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
51300200 |
Upholstery Nozzle Top Part |
Call to Order |
| 3 |
54010070 |
Nozzle Holder |
Call to Order |
| 4 |
63621130 |
O-Ring Seal |
Call to Order |
| 5 |
64159280 |
Nozzle Mouthpiece |
Call to Order |
| 6 |
53100430 |
Nut |
Buy Now |
| 7 |
73031160 |
Screw |
Call to Order |
Set Carpet Nozzle Complete

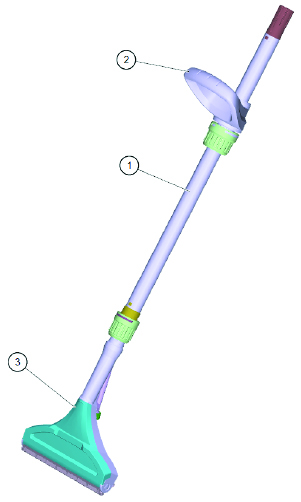

Karcher Puzzi 8/1 Set Carpet Nozzle Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
40250040 |
Suction Tube Complete |
Buy Now |
| 2 |
43210010 |
Handhold Pipe Complete |
Buy Now |
| 3 |
41300080 |
Carpet Nozzle Flexible |
Buy Now |
Suction Tube Complete Packaged

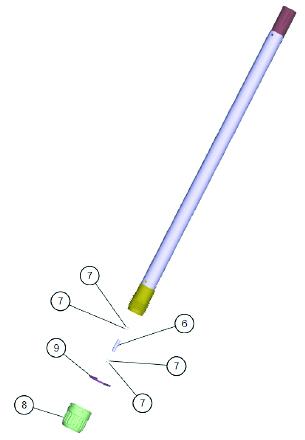

Karcher Puzzi 8/1 Suction Tube Complete Packaged
| Reference # |
Part # |
Description |
Add to Cart |
| 6 |
51270210 |
Extension |
Buy Now |
| 7 |
63635740 |
O-Ring Seal |
Call to Order |
| 8 |
53100000 |
Union Nut |
Call to Order |
| 9 |
50310290 |
Tension Ring |
Call to Order |
Handhold Pipe Complete

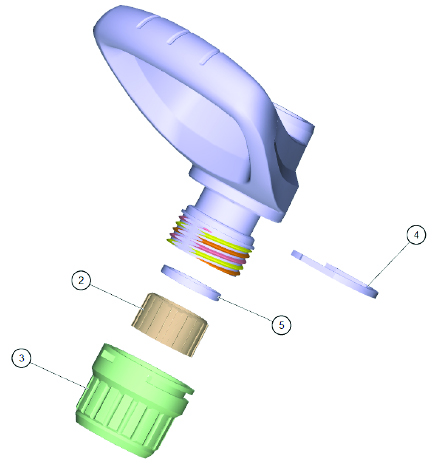

Karcher Puzzi 8/1 Handhold Pipe Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
54010050 |
Insert Rubber |
Call to Order |
| 3 |
53100020 |
Union Nut Handhold |
Call to Order |
| 4 |
50370190 |
Clip Hand Grip |
Call to Order |
| 5 |
51140030 |
Spacer Ring |
Call to Order |
Carpet Nozzle Flexible

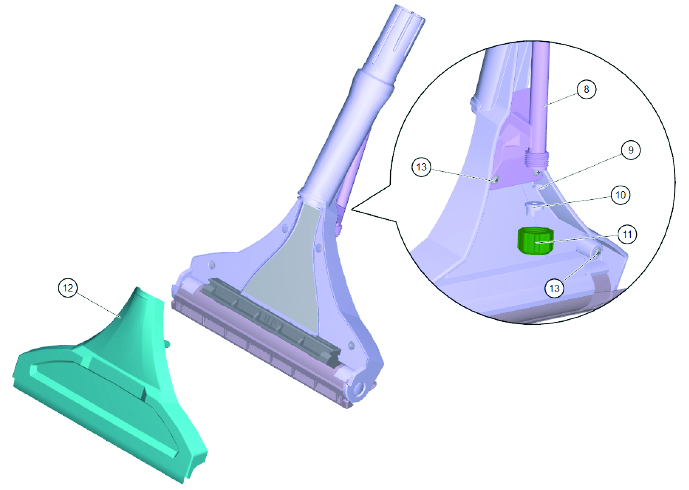

Karcher Puzzi 8/1 Carpet Nozzle Flexible
| Reference # |
Part # |
Description |
Add to Cart |
| 8 |
56670010 |
Nozzle Holder |
Call to Order |
| 9 |
63621130 |
O-Ring Seal |
Call to Order |
| 10 |
64151650 |
Nozzle Mouthpiece |
Buy Now |
| 11 |
53100430 |
Nut |
Buy Now |
| 12 |
57770160 |
Carpet Nozzle Covering Cap |
Call to Order |
| 13 |
73031170 |
Screw |
Call to Order |
Crevice Nozzle Complete Packaged

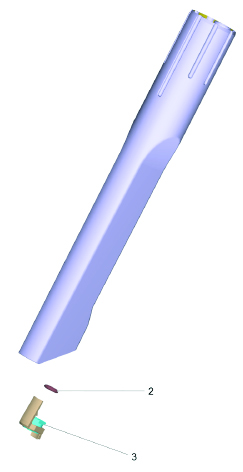

Karcher Puzzi 8/1 Crevice Nozzle Complete Packaged
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
63632420 |
O-Ring Seal |
Buy Now |
| 3 |
47650000 |
Spraying Nozzle Set |
Call to Order |
Spraying Nozzle Set

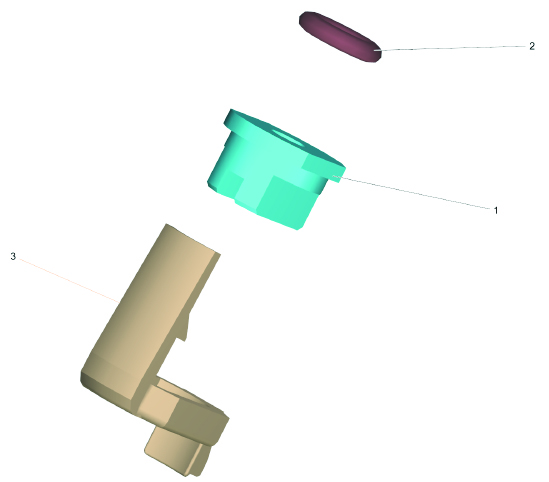

Karcher Puzzi 8/1 Spraying Nozzle Set
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
64159280 |
Nozzle Mouthpiece |
Call to Order |
| 2 |
63632420 |
O-Ring Seal |
Buy Now |
| 3 |
50320260 |
Crevice Nozzle Clip |
Call to Order |
Handhold Complete Packaged

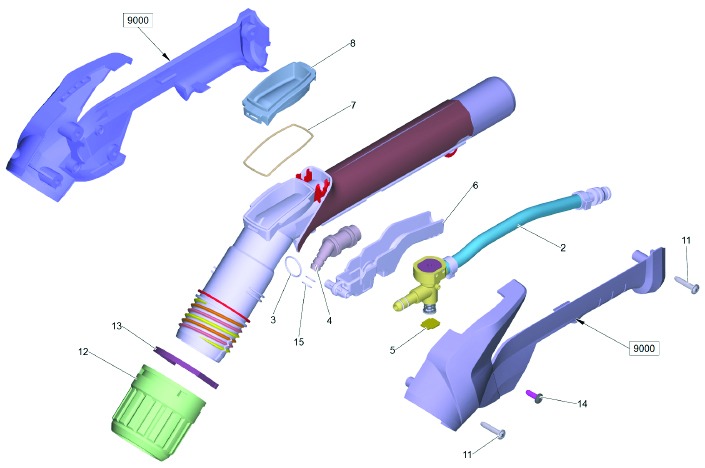

Karcher Puzzi 8/1 Handhold Complete Packaged
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
45800020 |
Solution Cover Cord |
Call to Order |
| 3 |
63624020 |
Solution Tank Cover |
Call to Order |
| 4 |
54530000 |
Grommet Grip |
Call to Order |
| 5 |
50071620 |
40" Nylobraid Hose |
Call to Order |
| 6 |
53240000 |
15" Nylobraid Hose |
Call to Order |
| 7 |
53630290 |
Hosebarb |
Call to Order |
| 8 |
53840020 |
Scrubber Tank Hinge |
Call to Order |
| 11 |
73031170 |
Hex Nylock Nut |
Call to Order |
| 12 |
53100000 |
Screw |
Call to Order |
| 13 |
50310290 |
Screw |
Call to Order |
| 14 |
73031160 |
Mesh Strainer |
Call to Order |
| 15 |
63624720 |
Solution Trim Tank |
Call to Order |
| 9000 |
43210380 |
Cushion Clamp |
Call to Order |
Valve Complete

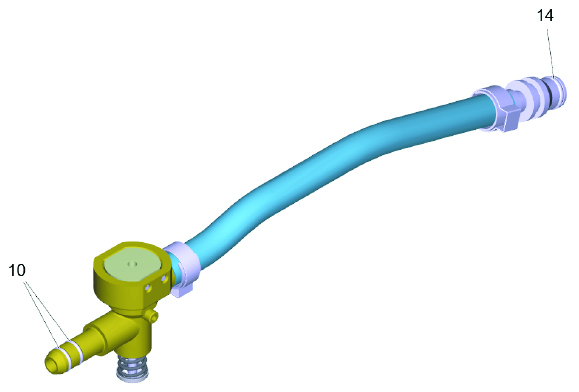

Karcher Puzzi 8/1 Valve Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
63635740 |
O-Ring Seal |
Call to Order |
| 14 |
63629230 |
O-Ring Seal |
Call to Order |
