Karcher NT 22

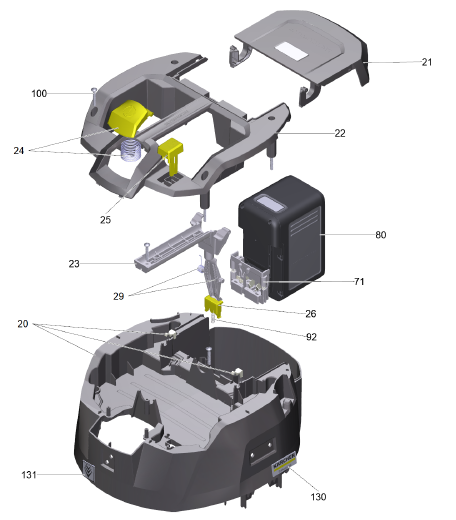

All Body

Karcher NT 22 All Body

Reference # Part # Description Add to Cart
20 40716000 Set Cover for Replacement Call to Order
21 50695490 Cover Plate Battery Call to Order
22 53223023 Handle Cover for Replacement Call to Order
23 53223030 Handhold Bottom Call to Order
24 43240260 Pushbutton Complete Call to Order
25 53241880 Pushbutton De-Dusting Call to Order
26 53242030 Unlocking Button battery Call to Order
29 40715990 Lock Element Battery Call to Order
71 40513543 Contact Carrier Ejector Call to Order
80 24450750 Battery Power Call to Order
92 63301600 Pressure Spring Call to Order
100 73030860 Screw Buy Now
130 53855010 Label Logo Call to Order
131 53855060 Label Signet Call to Order

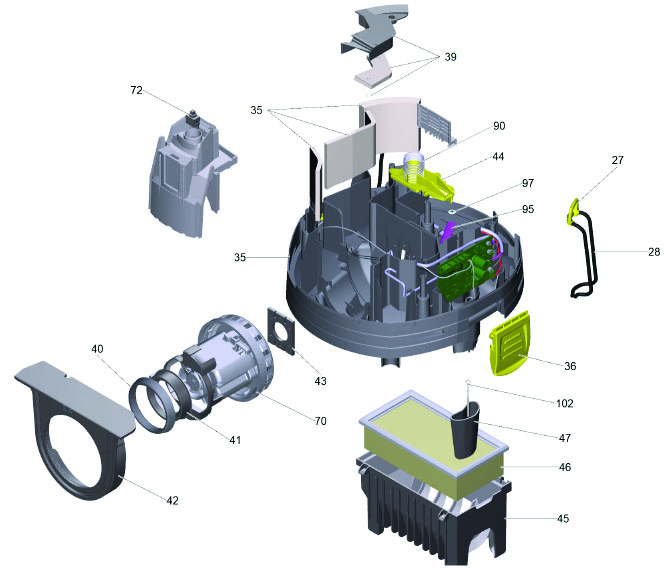

Mechanical

Karcher NT 22 Mechanical

Reference # Part # Description Add to Cart
27 50342940 Handle Rope Call to Order
28 69076750 Loop Call to Order
35 40716010 Set Base Plate Call to Order
36 50340210 Strap Closure Call to Order
39 40716020 Set Canal Exhaust Air Call to Order
40 53638250 Seal vacuum Motor Above Call to Order
41 50530120 Ring Adapter Call to Order
42 53632770 Seal Vacuum Motor Center Call to Order
43 53633480 Seal Motor Bottom Call to Order
44 50362550 Flap De-Dusting Call to ORder
45 57310580 Filter Cassette Call to Order
46 69041560 Flat-Pleated Filter Packaged Buy Now
47 50444070 Bracket Probe Call to Order
72 66303960 Switch Call to Order
90 53325230 Spring Switch Call to Order
95 53321200 Spring Hinge Call to Order
97 63431450 Lock Washer Call to Order
102 51073170 Probe Call to Order

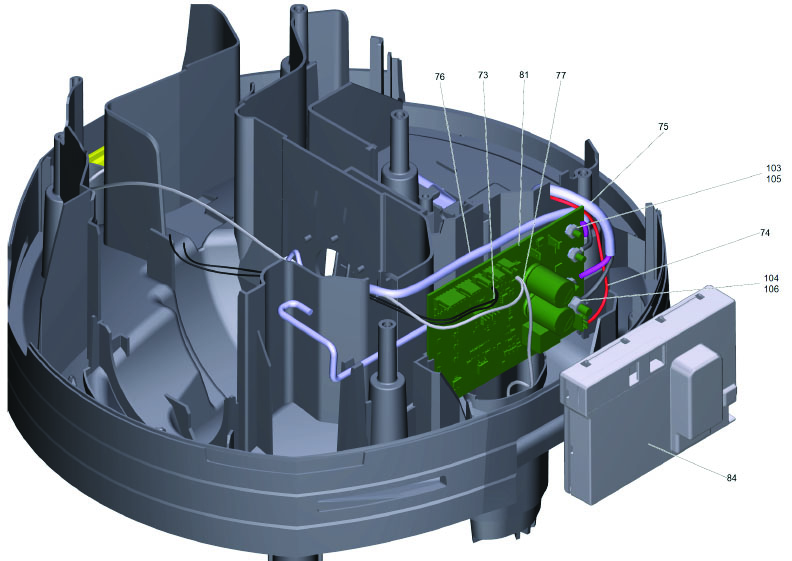

Electrical

Karcher NT 22 Electrical

Reference # Part # Description Add to Cart
73 66509010 Cable Main Switch Call to Order
74 66509020 Cable Battery Electronics Call to Order
75 66509030 Cable Battery Control System Call to Order
76 66508420 Cable Turbine Call to Order
77 66509330 Cable Prone Call to Order
81 46831983 Control System Electronics Call to Order
84 56051273 Housing Electronics Call to Order
103 73110010 Hexagon Nut Buy Now
104 73110020 Hexagon Nut Buy Now
105 66456640 Spring Washer Call to Order
106 73130020 Spring Washer Call to Order

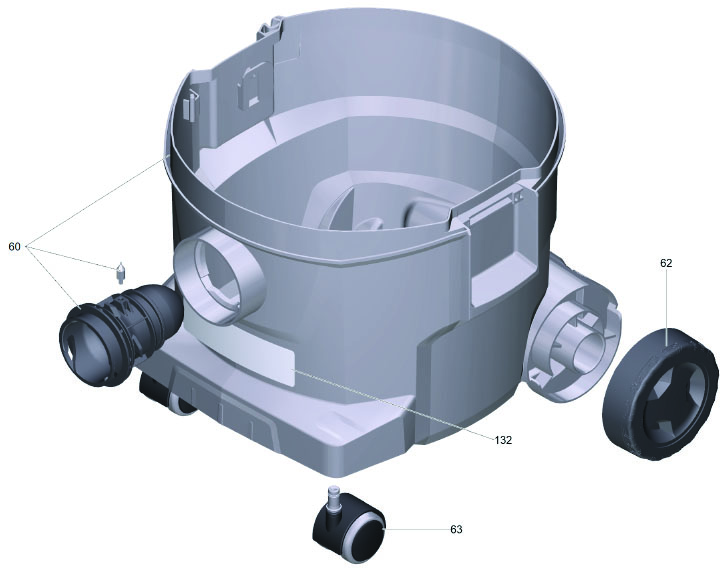

Wheel Hose Attachment

Karcher NT 22 Wheel Hose Attachment

Reference # Part # Description Add to Cart
60 40716030 Set Box Call to Order
62 55152240 Wheel Call to Order
63 64354200 Double Castor Call to Order
132 53928370 Label Call to Order

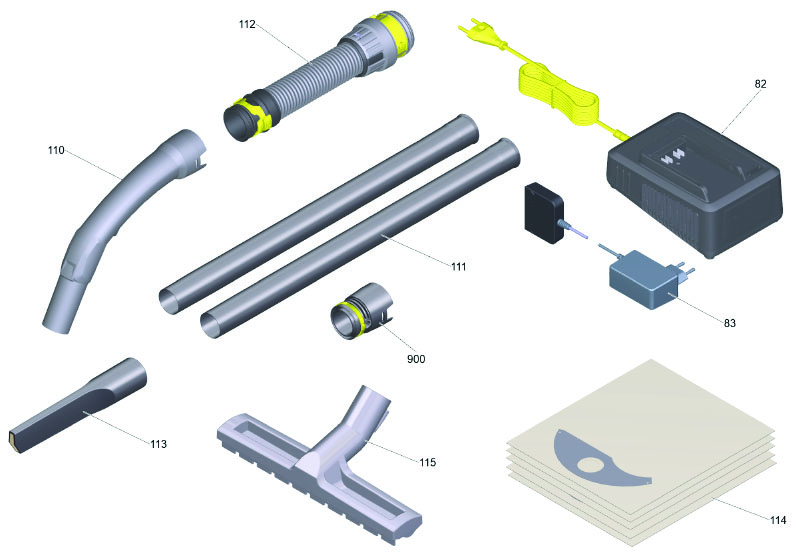

Attachments

Karcher NT 22 Attachments

Reference # Part # Description Add to Cart
82 24450530 Battery Charger Call to Order
110 28891990 Elbow Packaged Call to Order
111 54811100 Suction Tube Call to Order
112 44400853 Suction Hose Call to Order
113 28891590 Crevice Nozzle Buy Now
114 69074690 Filter Bag Fleece Buy Now
115 28892630 Floor Tool Call to Order
900 28893120 Adapter Old Packaged Call to Order

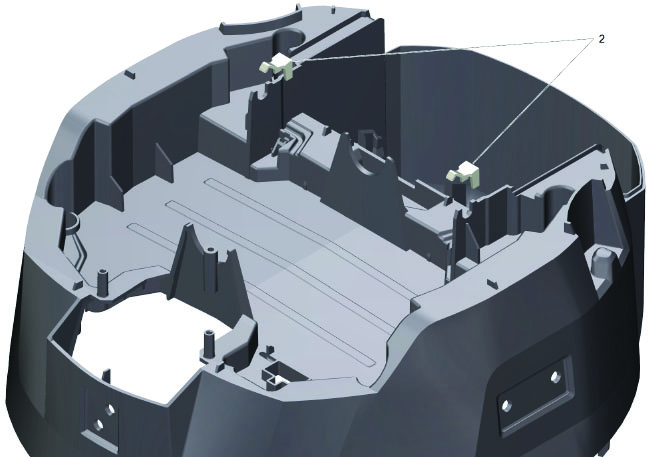

Set Cover

Karcher NT 22 Set Cover

Reference # Part # Description Add to Cart
2 54811110 Closure Element Call to Order

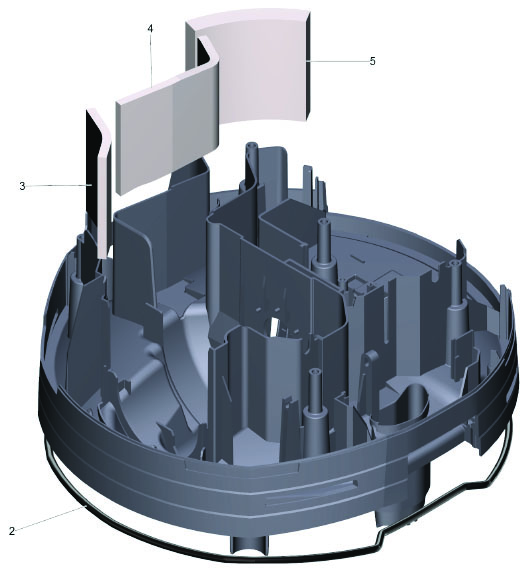

Base Plate

Karcher NT 22 Base Plate

Reference # Part # Description Add to Cart
2 62730790 Seal String Call to Order
3 62860480 Insulation Mat Motor Call to Order
4 62860490 Insulation Mat Exhaust Air Call to Order
5 62860500 Foam Call to Order

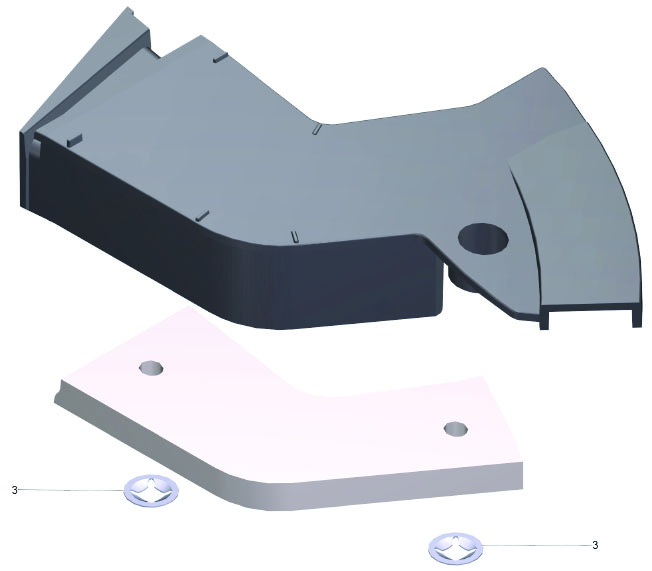

Exhaust Air Canal

Karcher NT 22 Exhaust Air Canal

Reference # Part # Description Add to Cart
3 63431450 Lock Washer Call to Order

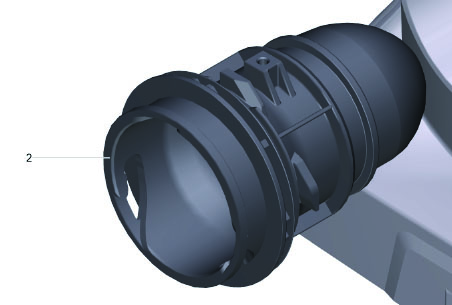

Hose Attachment

Karcher NT 22 Hose Attachment

Reference # Part # Description Add to Cart
2 50340980 Suction Nipple Electrically Conducting Call to Order
3 53169740 Bolt Electrically Conducting Call to Order

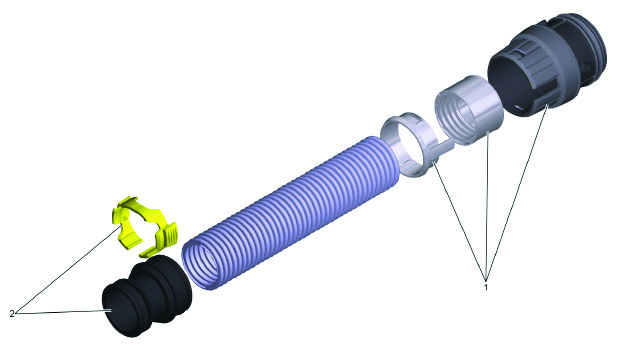

Hose Repair Set

Karcher NT 22 Hose Repair Set

Reference # Part # Description Add to Cart
1 44401450 Repair Set Call to Order
2 44401460 Repair Set Call to Order

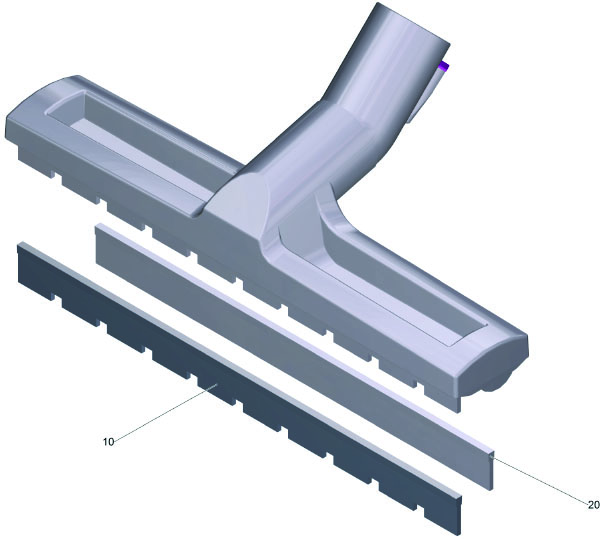

Floor Tool

Karcher NT 22 Floor Tool

Reference # Part # Description Add to Cart
10 69032780 Brush Strips Set Buy Now
20 69032770 Set Suction Lips Buy Now
