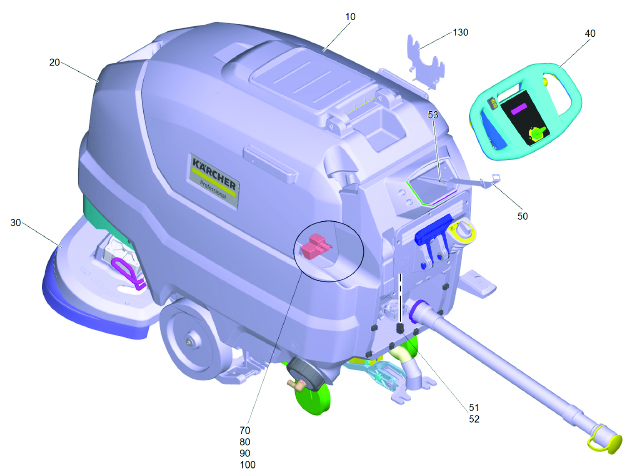

Karcher BD 80/100 W

BD 80/100 Classic

Karcher BD 80/100 Classic

Reference # Part # Description Add to Cart
10 - Waste Water Tank Complete Call to Order
20 - Clean Water Tank Complete Call to Order
30 97531280 Brush-Head Complete Call to Order
40 - Assembly Group Control Panel Call to Order
50 97634590 Plate Plug Control Panel Call to Order
51 63301140 Adapter Call to Order
52 68820020 Cable Call to Order
53 73031080 Screw Buy Now
70 66445300 Battery Clamp Call to Order
80 50352390 Covering Cap Battery Terminal Call to Order
90 66443480 Nut with Flange Buy Now
100 66443630 Fuse Replacement Buy Now

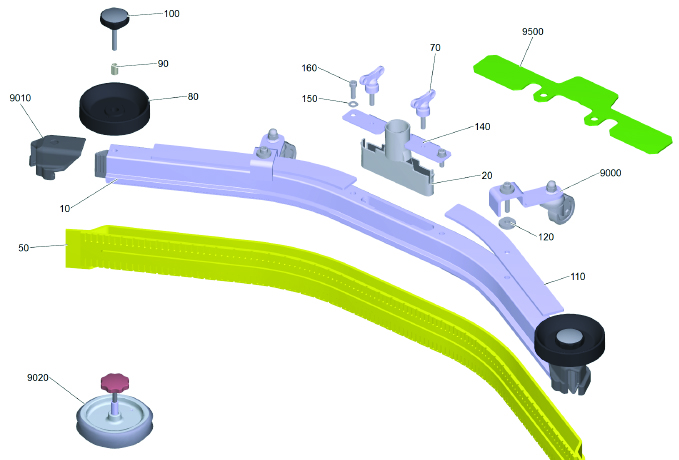

120 47771020 Suction Bar Curved Buy Now
130 97530880 Holder Suction Bar Complete Call to Order
9500 26441140 Reversion Kit Call to Order
9502 66543670 Battery Charger Maintenance Buy Now

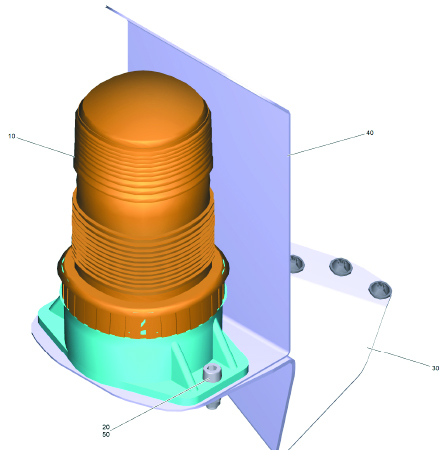

9520 26641400 Add-On Kit Revolving Signal Light Call to Order
9540 26442580 Add-On Kit Buzzer Call to Order
9550 28150920 Battery Kit Call to Order
9551 26381620 Mounting Kit Battery Kit Call to Order
9560 28150950 Battery Kit Call to Order
9561 26381970 Mounting Kit Battery Kit Buy Now

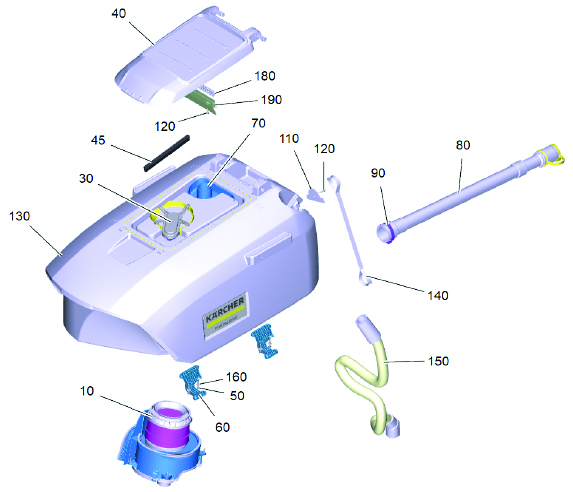

Waste Water Tank

Karcher BD 80/100 Waste Water Tank

Reference # Part # Description Add to Cart
10 97531050 Turbine Complete Call to Order
30 97530010 Float Regulator Complete Buy Now
40 97554790 Cap of Tank Waste Water Replacement Buy Now
45 97554820 Sealing Profile Replacement Buy Now
50 73031100 Screw Call to Order
60 50356100 Swivel Arm Tank Call to Order
70 50375910 Tank Bulk Waste Call to Order
80 97531110 Drain Hose Complete Buy Now
90 63887130 Hose Clip Buy Now
110 97634070 Plate Fixing Strap Call to Order
120 73031080 Screw Buy Now
130 40355580 Dirty Water Tank Complete Call to Order
140 97634080 Strap Waste Water Tank Call to Order
150 97634800 Suction Hose Buy Now
160 73122820 Washer Buy Now
180 97638720 Sealing Profile Baffle Plate Call to Order
190 97638710 Bulkhead Cover Waste Water Tank Call to Order

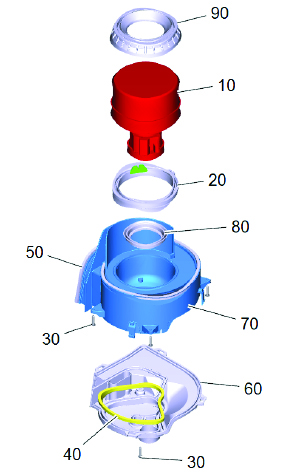

Turbine Complete

Karcher BD 80/100 Turbine Complete

Reference # Part # Description Add to Cart
10 40350060 Vacuum Motor Replacement Buy Now
20 50392740 Joint Ring Turbine Call to Order
30 73031090 Screw Buy Now
40 62731960 Seal String Cellular Rubber Buy Now
50 62731960 Seal String Cellular Rubber Buy Now
60 50392260 Cover Plate Turbine Call to Order
70 50392310 Enclosure Turbine Call to Order
80 53633950 Seal Buy Now
90 50353330 Bearing Vacuum Motor Buy Now

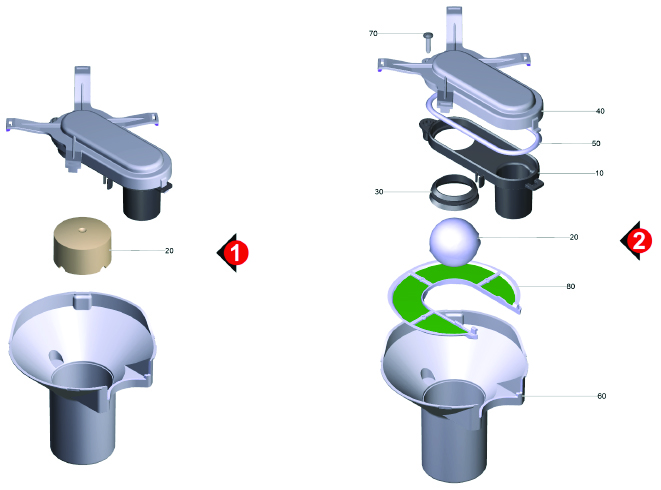

Float Regulator Complete

Karcher BD 80/100 Float Regulator Complete

Reference # Part # Description Add to Cart
10 97630030 Float Regulator Bottom Part Buy Now
20 97630340 Cone Float Regulator Buy Now
20 97633330 Floater Ball Buy Now
30 97630040 Seal Float Regulator Buy Now
40 97630050 Cover Float Regulator Buy Now
50 97630440 Seal String Cellular Rubber Float Buy Now
60 97630470 Suction Beam Retraction Buy Now
70 73031080 Screw Buy Now
80 97633830 Strainer Float Regulator Buy Now





Cap of Tank Waste Water Replacement

Karcher BD 80/100 Cap of Tank Waste Water Replacement

Reference # Part # Description Add to Cart
20 97554820 Sealing Profile Replacement Buy Now
30 97639720 Sealing Profile Baffle Plate Call to Order
40 97638710 Bulkhead Cover Waste Water Tank Call to Order
50 73031080 Screw Buy Now

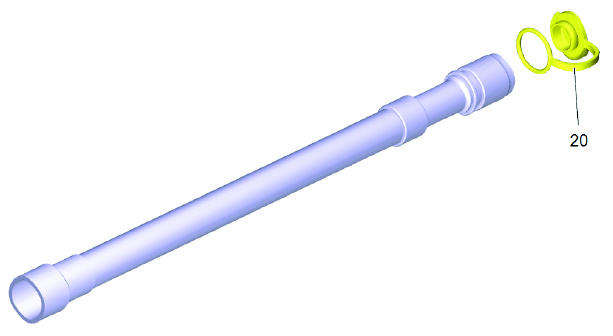

Drain Hose Complete

Karcher BD 80/100 Drain Hose Complete

Reference # Part # Description Add to Cart
10 50362490 Cover Plate Drain Hose Buy Now

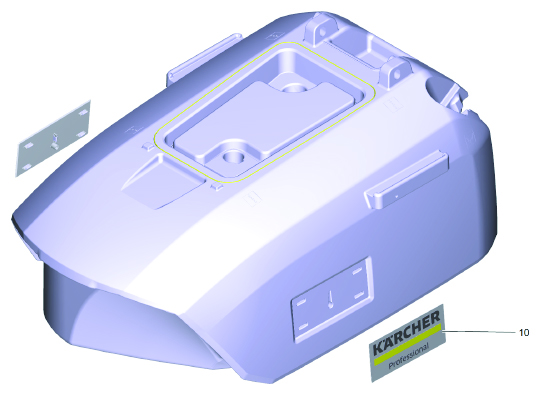

Dirty Water Tank Complete

Karcher BD 80/100 Dirty Water Tank Complete

Reference # Part # Description Add to Cart
10 43850010 Label with Clamp Logo Call to Order

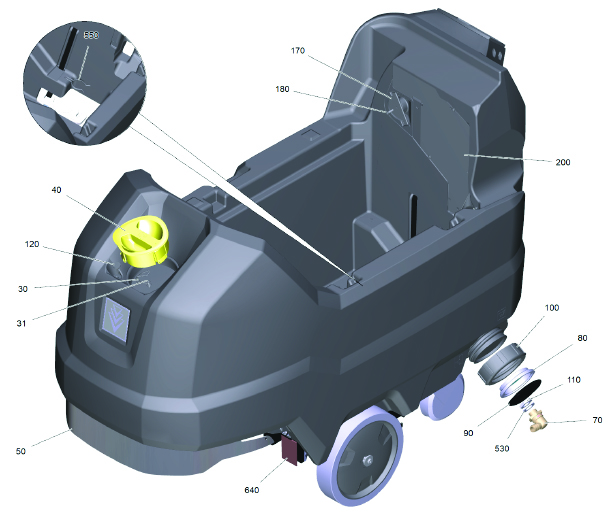

Clean Water Tank Complete 1

Karcher BD 80/100 Clean Water Tank Complete 1

Reference # Part # Description Add to Cart
30 97634250 Wire Bracket Hose Call to Order
31 73032021 Screw Call to Order
40 97639250 Cover Fresh Water Metering Call to Order
50 97634280 Covering Cap Front Plate Call to Order
70 63951633 Angle Bushing Buy Now
80 50353760 Filter Discharge Buy Now
90 50353420 Hose Connection Fresh Water Discharge Buy Now
100 50353410 Cover Fresh Water Tank Discharge Buy Now
110 63100040 Hexagon Nut Buy Now
120 50353580 Mounting Rope Cover Fresh Water Tank Buy Now
170 97634070 Plate Fixing Strap Call to Order
180 73031080 Screw Buy Now
200 97634440 Plate Cover Cable Harness Call to Order
530 55152530 Seal Buy Now
640 97636490 Adhesive Tape Onesided Call to Order

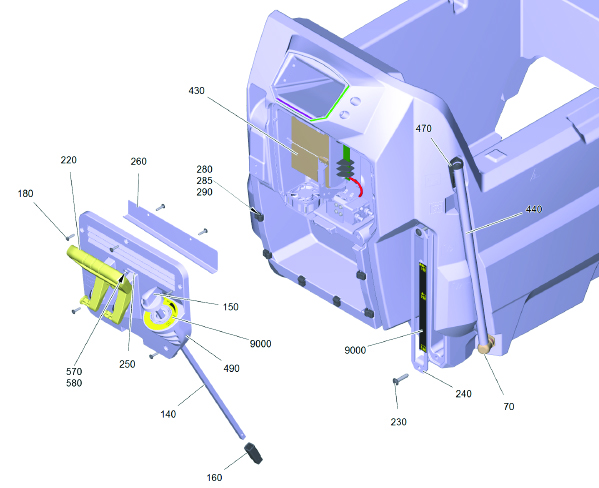

Clean Water Tank Complete 2

Karcher BD 80/100 Clean Water Tank Complete 2

Reference # Part # Description Add to Cart
70 63951633 Angle Bushing Buy Now
140 97634430 Bar Water Ball Valve Call to Order
150 50354040 Handle Buy Now
160 50354590 Coupler Piece Ball Valve Buy Now
180 73031080 Screw Buy Now
220 97635470 Lever Suction Bar Aluminum Buy Now
230 63033150 Screw Buy Now
240 40355610 Plate Adjustment Brush-Head Call to Order
250 67630040 Cylinder Magnet Call to Order
260 97634400 Plate Gutter Electronics Call to Order
280 67630020 Fixing Mains Call to Order
285 97634290 Accessories Call to Order
290 73031260 Countersunk Screw Call to Order
430 - Electronics Complete Call to Order
440 97634540 Hose Display Fresh Water Call to Order
470 40355630 Bracket Level Replacement Call to Order
570 73030310 Screw Call to Order
580 73122930 Washer Call to Order
9000 28857390 Set Label Call to Order

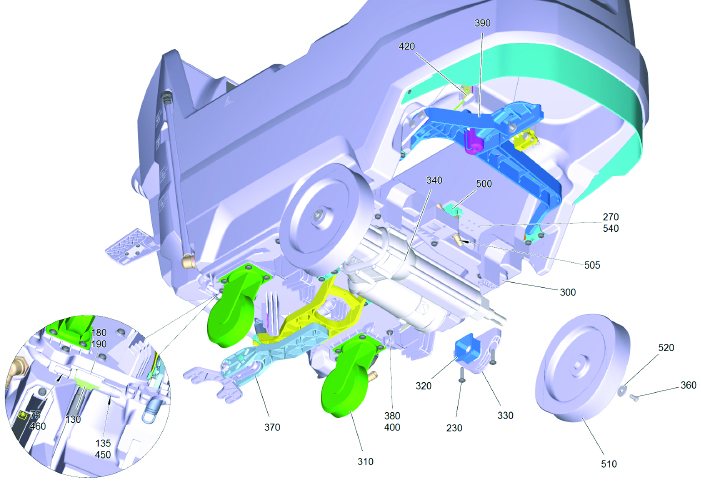

Clean Water Tank Complete 3

Karcher BD 80/100 Clean Water Tank Complete 3

Reference # Part # Description Add to Cart
130 97630840 Ball Valve Buy Now
135 63908920 Spiral Hose Buy Now
160 50354590 Coupler Piece Ball Valve Buy Now
180 73031080 Screw Buy Now
190 97634420 Plate Fixing Ball Valve Call to Order
230 63033150 Screw Buy Now
270 97634460 Plate Carrier Plug Call to Order
300 97633930 Chassis Frame Buy Now
310 97636080 Castor Swede Call to Order
320 97634220 Rubber Bearing Wheel Drive Motor Call to Order
330 97634110 Fixing Gear Call to Order
340 67630000 Direct Current Motor Call to Order
360 73062180 Cylinder Head Screw Buy Now
370 - Suction Bar Lifting Completely Call to Order
380 73032750 Screw Call to Order
390 - Conscription Brush-Head Assembly Call to Order
400 73120170 Washer Call to Order
420 - Micro Switch Call to Order
450 63892010 Hose Stem Call to Order
500 64720073 Solenoid Valve Call to Order
505 63908920 Spiral Hose Buy Now
510 44350060 Wheel for Replacement Call to Order
520 97636760 Washer Wheel Call to Order
540 65947090 Cable Tie Call to Order

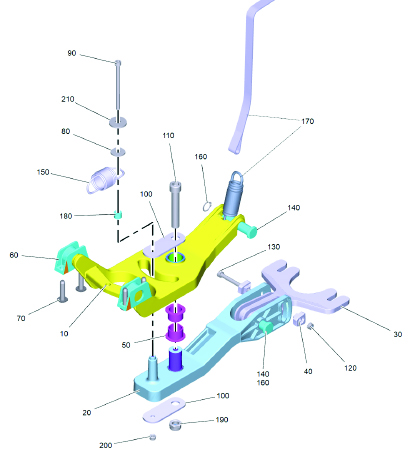

Suction Bar Lifting Complete

Karcher BD 80/100 Suction Bar Lifting Complete

Reference # Part # Description Add to Cart
10 97634000 Conscription Suction Bar Call to Order
20 97634010 Swivel Arm Suction Bar Call to Order
30 97634020 Rocker Suction Bar Buy Now
40 97634160 Fixing Suction Bar Angle Call to Order
50 64030470 Plain Bearing Call to Order
60 50355760 Bearing Sleeve Call to Order
70 63033150 Screw Buy Now
80 73122660 Washer Call to Order
90 73062770 Cylinder Head Screw Call to Order
100 97635700 Sheet Metal Clamping Screws Call to Order
110 73061460 Cylinder Head Screw Call to Order
120 7311450 Hexagon Nut Call to Order
130 73060320 Cylinder Head Screw Call to Order
140 97634470 Bolt Call to Order
150 67630050 Extension Spring Call to Order
160 73430360 Locking Ring Call to Order
170 97531130 Assembly Group Strap Extension Spring Buy Now
180 97635710 Bush Spring Call to Order
190 73110260 Hexagon Nut Call to Order
200 73114220 Hexagon Nut Call to Order
210 73122680 Washer Buy Now

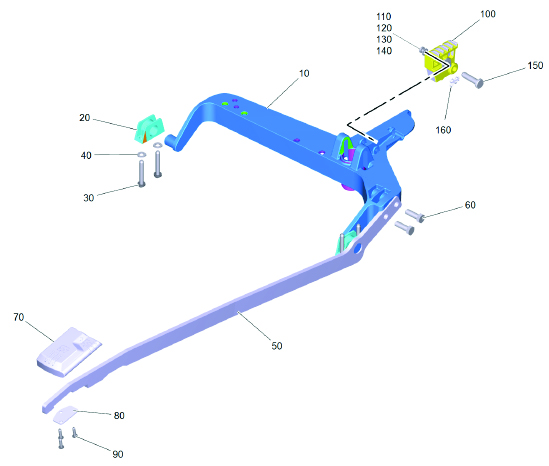

Conscription Brush-Head Assembly

Karcher BD 80/100 Conscription Brush-Head Assembly

Reference # Part # Description Add to Cart
10 50355730 Suspension Brush-Head Buy Now
20 50355760 Bearing Sleeve Call to Order
30 73032750 Screw Call to Order
40 73120170 Washer Call to Order
50 97634490 Plate Lifting Brush-Head Call to Order
60 73044170 Hexagonal Head Screw Buy Now
70 97634200 Pedal Handhold Brush-Head Call to Order
80 97634500 Plate Fixing Pedal Call to Order
90 73031080 Screw Buy Now
100 50359940 Groove Stone Buy Now
110 73061330 Screw Call to Order
120 73431070 Shim Ring Call to Order
130 73115120 Hexagon Nut Call to Order
140 73122600 Washer Call to Order
150 73162100 Bolt Call to Order
160 60350470 Spring Clip Double Buy Now

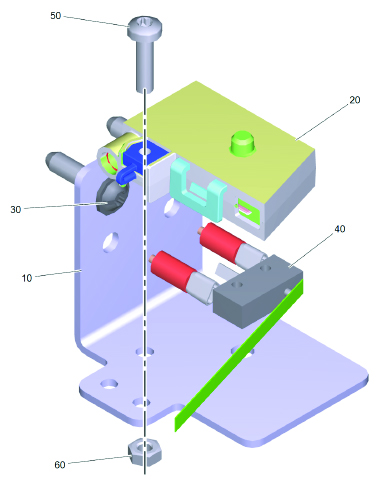

Micro Switch Brush-Head Assembly

Karcher BD 80/100 Micro Switch Brush-Head Assembly

Reference # Part # Description Add to Cart
10 97634510 Plate Holder Switch Call to Order
20 50609980 Housing Micro Switch Buy Now
30 73031080 Screw Buy Now
40 66303980 Micro Switch Call to Order
50 73060590 Screw Call to Order
60 73110010 Hexagon Nut Buy Now

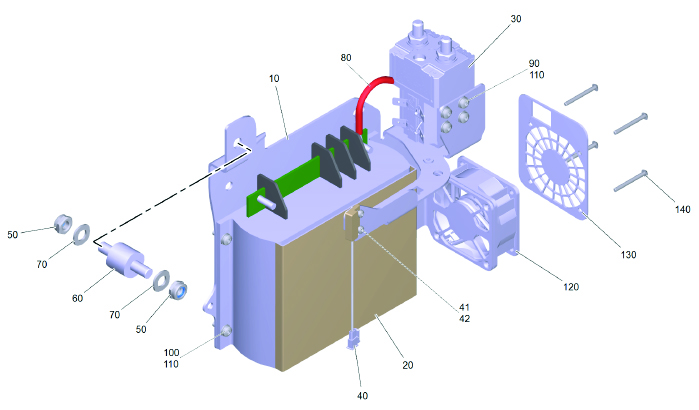

Electronics Complete

Karcher BD 80/100 Electronics Complete

Reference # Part # Description Add to Cart
10 97634040 Electronics Plate Call to Order
20 46831880 Electronics Power Buy Now
30 66330583 Relay Call to Order
40 66307630 Switch Level Call to Order
41 73063500 Screw Call to Order
42 73110000 Hexagon Nut Buy Now
50 73114270 Hexagon Nut Call to Order
60 66520330 Isolator Buy Now
70 73120170 Washer Call to Order
80 48230840 Cable Harness Machine Call to Order
90 73062360 Screw Call to Order
100 73060570 Screw Call to Order
110 73120010 Washer Call to Order
120 67630030 Blower Call to Order
130 97634340 Plate Electronics Ventilating Fan Call to Order
140 73062620 Screw Call to Order

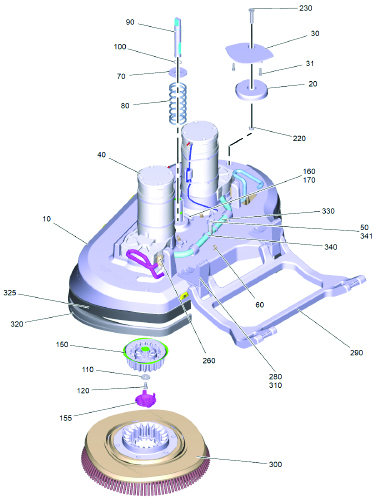

Brush Head Complete 1

Karcher BD 80/100 Brush Head Complete 1

Reference # Part # Description Add to Cart
10 97633940 Brush-Head Aluminum Call to Order
20 50393120 Deflector Roll Call to Order
30 97634120 Holder Deflector Roll Worked Call to Order
31 73060900 Screw Buy Now
40 67630010 Direct Current Motor Call to Order
50 63884080 T-Hose Nozzle Call to Order
60 66506050 Cable Tie with Clip Call to Order
70 97634380 Ring Pressure Spring Call to Order
80 97634350 Pressure Spring Call to Order
90 97634370 Slide of Press Brush-Head Call to Order
100 73430070 Locking Ring Call to Order
110 73122680 Washer Buy Now
120 73043950 Hexagonal Head Screw Call to Order
150 50375370 Retainer Transmission Buy Now
155 50374900 Guide Water Call to Order
160 73430010 Locking Ring Buy Now
170 97634560 Bolt Call to Order
220 73114320 Hexagon Nut Call to Order
230 73063920 Cylinder Head Screw Call to Order
260 97630760 Extension Spring Buy Now
280 97634170 Fixing Connecting Rod Brush-Head Call to Order
290 97633850 Connecting Rod Call to Order
300 47625910 Disc Brush Complete Buy Now
310 73062950 Cylinder Head Screw Call to Order
320 97634570 Splash-Proof Profile Brush-Head Buy Now
325 97635760 Strip Brush Buy Now
330 63908920 Spiral Hose Buy Now
340 66414740 Cable Tape Call to Order
341 73730210 Hose Clip Call to Order

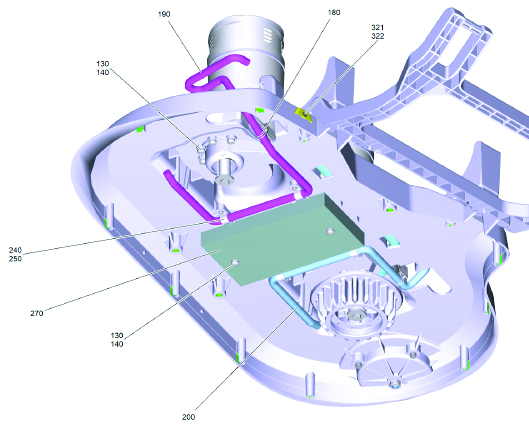

Brush-Head Complete 2

Karcher BD 80/100 Brush-Head Complete 2

Reference # Part # Description Add to Cart
130 97631940 Screw Buy Now
140 73120260 Washer Buy Now
180 63885590 Hose Clip Buy Now
190 97634310 Retaining Bracket Discharge Left Call to Order
200 97634300 Retaining Bracket Discharge Right Call to Order
240 73061080 Cylinder Head Screw Buy Now
250 63736890 Pipe Clamp Call to Order
270 97634360 Add-On Weight Call to Order
321 97637420 Fixing Splash Guard Brush-Head Call to Order
322 73050480 Countersunk Screw Call to Order

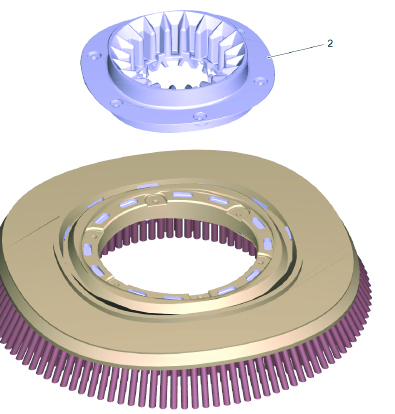

Disc Brush Complete

Karcher BD 80/100 Disc Brush Complete

Reference # Part # Description Add to Cart
2 50330020 Retainer Brush Buy Now

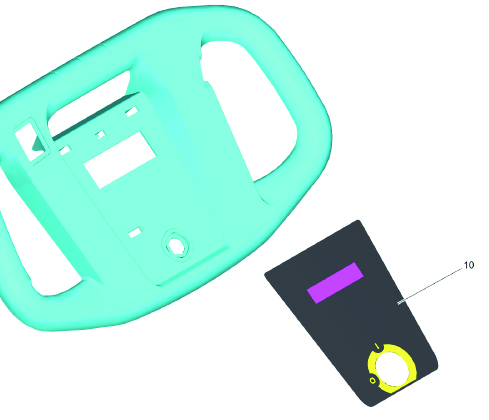

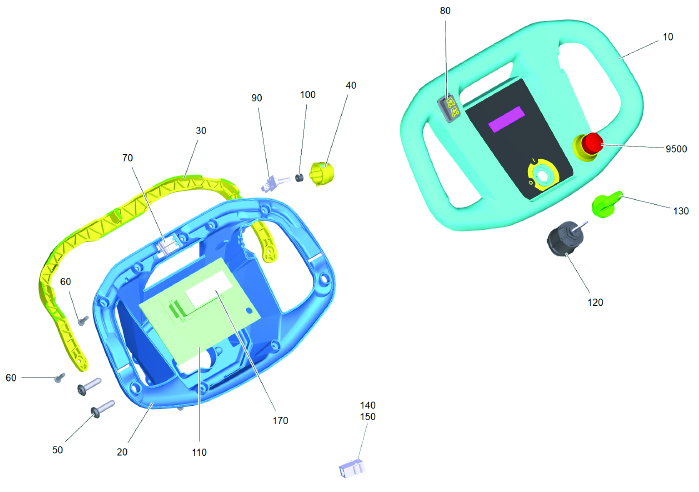

Assembly Group Control Panel

Karcher BD 80/100 Assembly Group Control Panel

Reference # Part # Description Add to Cart
10 40355600 Control Panel Top Part Buy Now
20 97633970 Control Panel Bottom Part Buy Now
30 97633980 Dead Man's Switch Call to Order
40 97635730 Turning Knob Speed Printed Call to Order
50 63033150 Screw Buy Now
60 73031080 Screw Buy Now
70 97630510 Micro Switch Buy Now
80 97639280 Switch Direction of Travelling Call to Order
90 46832030 Control System Potentiometer Circuit Board Buy Now
100 63889580 Hose Buy Now
110 46831890 Electronics Operating Element Buy Now
120 66301060 Key Switch Buy Now
130 50323260 Cap Buy Now
140 48230850 Cable Harness Operating Element Call to Order
150 63301140 Adapter Call to Order
170 50391880 Plate Display Call to Order
9500 26441390 Add-On Kit Emergency Stop Call to Order





Control Panel Top Part

Karcher BD 80/100 Control Panel Top Part

Reference # Part # Description Add to Cart
10 97634330 Foil Control Panel Call to Order





Key Switch

Karcher BD 80/100 Key Switch

Reference # Part # Description Add to Cart
9000 66002100 Key Only for Replacement Buy Now





Add-On Kit Emergency Stop

Karcher BD 80/100 Add-On Kit Emergency Stop

Reference # Part # Description Add to Cart
10 66003440 Pushbutton Emergency Stop Buy Now
15 66001140 Switch Buy Now
20 66841050 Adapter Cable Emergency Stop Call to Order
20 66842700 Adapter Cable Emergency Stop Call to Order





Suction Bar Curved

Karcher BD 80/100 Suction Bar Curved

Reference # Part # Description Add to Cart
10 - Suction Bar-Pre Assembled Call to Order
20 50336010 Suction Nipple Buy Now
50 40371380 Rubber Lip Set Standard Buy Now
50 40371400 Rubber Lip Set Oil Resistant Buy Now
50 41810060 Rubber Lip Set Linatex Call to Order
50 62730000 Rubber Lip Set Oil Resistant Buy Now
50 62730110 Rubber Lip Set Call to Order
50 62730140 Rubber Lip Set Anti Stripe Oil Resistant Buy Now
70 53050080 Wing Screw Buy Now
80 55153460 Deflector Roll Suction Bar Buy Now
90 50942310 Sleeve Suction Bar Buy Now
100 63212430 Star Grip Stainless Steel Buy Now
110 97635530 Plate Weight Suction Bar Call to Order
120 73122770 Washer Call to Order
140 51005590 Suction Bar Support Plate Buy Now
150 73120170 Washer Call to Order
160 73061420 Cylinder Head Screw Buy Now
9000 40352810 Conversion Kit Support Roller Deep Buy Now
9001 40353170 Support Roller Metal Replacement Buy Now
9010 28852840 End Pieces Set Call to Order
9020 44350050 Deflector Roll Suction Bar Complete Buy Now
9500 51283390 Additional Weight Suction Bar Buy Now
9510 40356190 Set Deflector Roll Stack Formation Call to Order





Suction Bar Pre-Assembled

Karcher BD 80/100 Suction Bar Pre-Assembled

Reference # Part # Description Add to Cart
20 50335780 End Piece Inside Left Buy Now
30 50335790 End Piece Inside Right Buy Now





Conversion Kit Support Roller Deep

Karcher BD 80/100 Conversion Kit Support Roller Deep

Reference # Part # Description Add to Cart
10 51016260 Housing With Additional Weight Buy Now
20 64351790 Castor for Thread Deflector Buy Now
30 53325540 Pressure Spring Buy Now
40 63212400 Star Grip With Inscription Buy Now
50 73060680 Cylinder Head Screw Call to Order
60 73113820 Cap Nut Call to Order
70 69965260 Serrated Locking Washer Buy Now





Support Roller Metal Replacement

Karcher BD 80/100 Support Roller Metal Replacement

Reference # Part # Description Add to Cart
20 64351790 Castor for Thread Deflector Buy Now
30 73122610 Washer Call to Order
40 73061120 Cylinder Head Screw Call to Order
50 73062340 Cylinder Head Screw Buy Now
60 73113820 Cap Nut Call to Order
70 69965260 Serrated Locking Washer Buy Now





Deflector Roll Suction Bar Complete

Karcher BD 80/100 Deflector Roll Suction Bar Complete

Reference # Part # Description Add to Cart
10 63211700 Star Grip Call to Order
20 64353420 Wheel Gummed Call to Order
30 50944960 Sleeve Suction Bar Call to Order





Set Deflector Roll Stack Formation

Karcher BD 80/100 Set Deflector Roll Stack Formation

Reference # Part # Description Add to Cart
20 64353420 Wheel Gummed Call to Order
30 63212440 Turning Knob Call to Order
40 73430830 Locking Ring Buy Now
50 51156280 Washer Buy Now





Add-On Kit Revolving Signal Light

Karcher BD 80/100 Add-On Kit Revolving Signal Light

Reference # Part # Description Add to Cart
10 97636740 Revolving Signal Light Call to Order
20 73111240 Hexagon Nut Call to Order
30 97635690 Bracket Revolving Signal Light Call to Order
40 97636050 Protection Lamp Plate Call to Order
50 73061820 Screw Call to Order





Mounting Kit Battery Kit

Karcher BD 80/100 Mounting Kit Battery Kit

Reference # Part # Description Add to Cart
10 66519030 Cable Battery Call to Order
30 97636990 Distance Holder Batteries Call to Order
