Karcher BD 50/70 R
Fresh Water Tank Complete
Karcher BD 50/70 Fresh Water Tank Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40392733 |
Fresh Water Tank Packaged |
Call to Order |
| 20 |
40392580 |
Ball Valve Complete |
Call to Order |
| 30 |
50340990 |
Cover Fresh Water Metering RM |
Call to Order |
| 40 |
40392560 |
Throttle Pedal Complete |
Call to Order |
| 50 |
40392430 |
Covering Cap Suction Bar Complete |
Call to Order |
| 60 |
50353410 |
Cover Fresh Water Tank Discharge |
Buy Now |
| 70 |
50353420 |
Hose Connection Fresh Water Discharge |
Buy Now |
| 80 |
50353760 |
Filter Discharge |
Buy Now |
| 90 |
63951633 |
Angle Bushing |
Buy Now |
| 100 |
63100040 |
Hexagon Nut |
Buy Now |
| 110 |
55152530 |
Seal |
Buy Now |
| 120 |
60390300 |
Washer |
Call to Order |
| 130 |
66414780 |
Clamp |
Call to Order |
| 140 |
73031080 |
Screw |
Buy Now |
| 150 |
50391343 |
Covering Cap Electronics |
Call to Order |
| 160 |
40392770 |
Covering Cap Control Panel |
Call to Order |
| 170 |
50391353 |
Covering Cap Steering Pillar |
Call to Order |
| 180 |
50050050 |
Fixing Plate Suction Bar |
Buy Now |
| 180 |
77779990 |
Stockpiling Discontinued |
Call to Order |
| 190 |
40371420 |
Key Complete Key Switch |
Call to Order |
| 200 |
60371430 |
Key Switch Bottom Part Complete |
Call to Order |
| 201 |
56410080 |
Nut with Shaft |
Call to Order |
| 210 |
50354370 |
Rotary Controller |
Buy Now |
| 220 |
63919130 |
Elbow Nipple |
Buy Now |
| 230 |
50356080 |
Wire Protecting Sleeve |
Buy Now |
| 240 |
50391420 |
Hose Level Silicon |
Call to Order |
| 250 |
50353580 |
Mounting Rope Cover Fresh Water Tank |
Buy Now |
| 260 |
60350720 |
Sphere Level Indicator |
Buy Now |
| 270 |
60390190 |
Flanged Bearing |
Call to Order |
| 280 |
50391450 |
Strap |
Buy Now |
| 290 |
63738760 |
Hose Clip |
Call to Order |
| 300 |
50391530 |
Plate Air Circulation |
Call to Order |
| 310 |
73031100 |
Screw |
Call to Order |
| 320 |
73031290 |
Screw |
Buy Now |
| 330 |
50391613 |
Foil Control Panel |
Call to Order |
| 340 |
50391623 |
Foil Water Quantity |
Call to Order |
| 350 |
63903240 |
Hose |
Buy Now |
| 360 |
48230310 |
Cable Harness Control Panel |
Call to Order |
| 370 |
50391070 |
Retaining Plate |
Call to Order |
| 380 |
73122770 |
Washer |
Call to Order |
| 390 |
73122780 |
Washer |
Buy Now |
| 400 |
48229870 |
Cable Harness Control System Fresh Water |
Call to Order |
| 410 |
43850040 |
Label with Clamp Signet |
Buy Now |
| 410 |
53963720 |
Label Signet |
Call to Order |
| 420 |
73120030 |
Washer |
Call to Order |
| 430 |
73060900 |
Screw |
Buy Now |
| 440 |
73110030 |
Hexagon Nut |
Buy Now |
| 450 |
66414740 |
Cable Tape |
Call to Order |
| 460 |
50351670 |
Sleeve |
Call to Order |
| 470 |
50391760 |
Joint Ring Steering Pillar |
Call to Order |
| 9000 |
66485050 |
Plug Two-Pole |
Call to Order |
| 9001 |
66485080 |
Handhold Plug |
Call to Order |

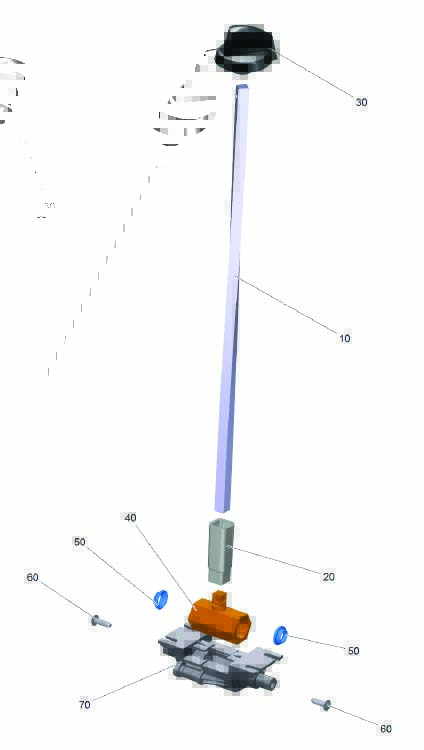

Ball Valve Complete
Karcher BD 50/70 Ball Valve Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50391430 |
Bar Ball Valve |
Call to Order |
| 20 |
50354590 |
Coupler Piece Ball Valve |
Buy Now |
| 30 |
50354040 |
Handle |
Buy Now |
| 40 |
64135860 |
Ball Valve Without Handhold |
Buy Now |
| 50 |
50357700 |
Seal Ball Valve |
Buy Now |
| 60 |
73031070 |
Screw |
Buy Now |
| 70 |
50391363 |
Holder Ball Valve Straight |
Call to Order |
Throttle Pedal Complete
Karcher BD 50/70 Throttle Pedal Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
63210460 |
Coating Pedal |
Buy Now |
| 20 |
50358910 |
Shaft Gas Pedal |
Call to Order |
| 30 |
40393060 |
Holder Throttle Pedal |
Call to Order |
| 30 |
77779990 |
Stockpiling Discontinued |
Call to Order |
| 40 |
63301900 |
Extension Spring |
Buy Now |
| 50 |
63300010 |
Potentiometer Shafts Sensor |
Buy Now |
| 60 |
73122890 |
Washer |
Buy Now |
| 70 |
73063800 |
Cylinder Head Screw |
Call to Order |
| 80 |
50392590 |
Plate Throttle Pedal Bottom |
Call to Order |
| 80 |
77779990 |
Stockpiling Discontinued |
Call to Order |
| 90 |
73062110 |
Screw |
Call to Order |
| 100 |
73120670 |
Washer |
Call to Order |
| 110 |
73115160 |
Hexagon Nut |
Call to Order |
| 120 |
50391460 |
Plate Throttle Pedal Above |
Call to Order |
| 130 |
73060670 |
Screw |
Call to Order |
| 140 |
66506050 |
Cable Tie with Clip |
Call to Order |
Covering Cap Suction Bar Complete
Karcher BD 50/70 Covering Cap Suction Bar Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40130103 |
Conscription Suction Bar Reinforced |
Buy Now |
| 20 |
50609980 |
Housing Micro Switch |
Buy Now |
| 30 |
66303980 |
Micro Switch |
Buy Now |
| 50 |
50354530 |
Axle Lever Suction Bar |
Buy Now |
| 60 |
40392740 |
Suction Beam Retraction |
Buy Now |
| 70 |
66835770 |
Cable Suction Bar |
Call to Order |
| 80 |
73122640 |
Washer |
Call to Order |
| 90 |
73031070 |
Screw |
Buy Now |
| 130 |
50391170 |
Covering Cap Connecting Link Suction Bar |
Call to Order |
| 140 |
50391623 |
Foil Water Quantity |
Call to Order |
| 9000 |
40392750 |
Knob Suction Beam Retraction |
Call to Order |

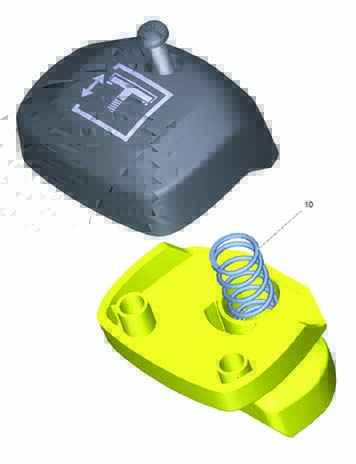

Knob Suction Beam Retraction
Karcher BD 50/70 Knob Suction Beam Retraction
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
60390210 |
Pressure Spring |
Buy Now |

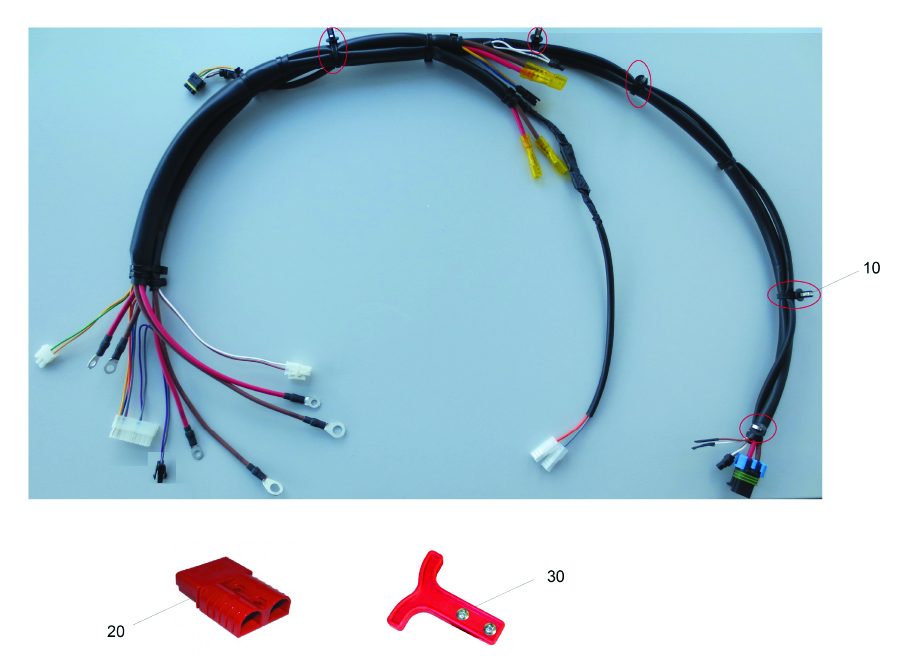

Cable Harness Control System Fresh Water
Karcher BD 50/70 Cable Harness Control System Fresh Water
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
66506050 |
Cable Tie with Clip |
Call to Order |
| 20 |
66485050 |
Plug Two-Pole |
Call to Order |
| 30 |
66485080 |
Handhold Plug |
Call to Order |

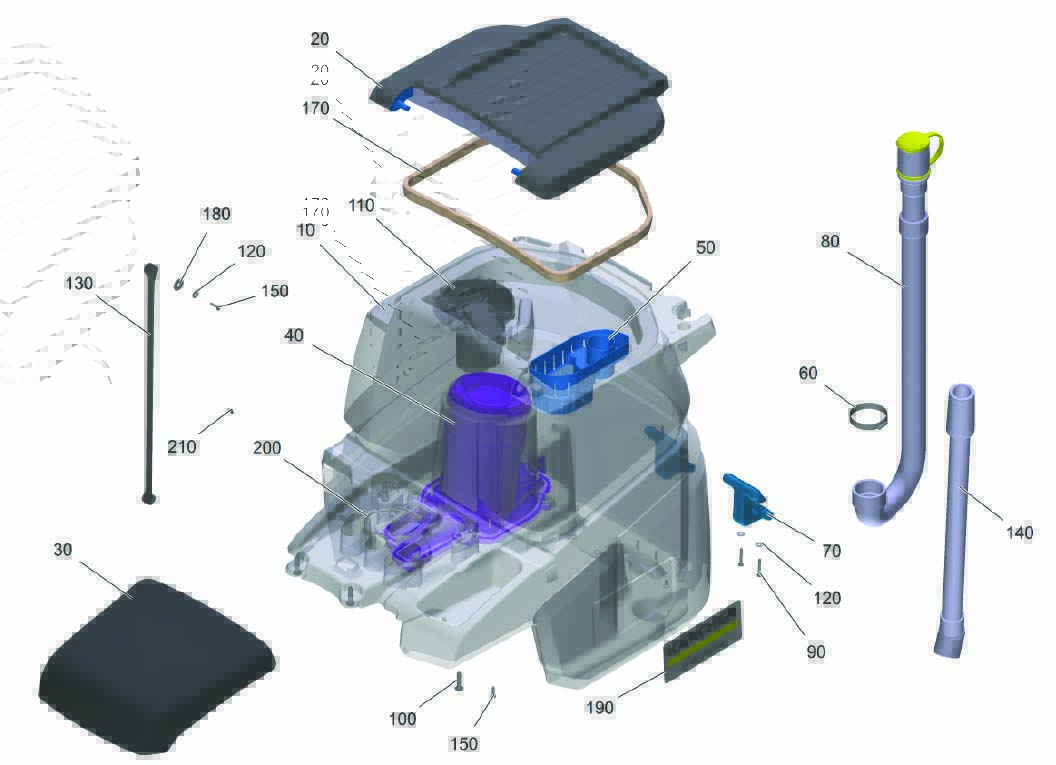

Waste Water Tank Complete
Karcher BD 50/70 Waste Water Tank Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40392780 |
Waste Water Tank |
Call to Order |
| 20 |
50390953 |
Cover Waste Water Tank |
Buy Now |
| 30 |
40392643 |
Seat Complete |
Buy Now |
| 40 |
40392490 |
Vacuum Motor Enclosure Complete |
Call to Order |
| 50 |
50375910 |
Tank Bulk Waste Yellow |
Call to Order |
| 60 |
63887130 |
Hose Clip |
Buy Now |
| 70 |
50356100 |
Swivel Arm Tank |
Call to Order |
| 80 |
40393403 |
Drain Hose Complete |
Buy Now |
| 90 |
73031100 |
Screw |
Call to Order |
| 100 |
63033150 |
Screw |
Buy Now |
| 110 |
97530010 |
Float Regulator Complete |
Buy Now |
| 120 |
73122780 |
Washer |
Buy Now |
| 130 |
97630550 |
Strap Suction Bar |
Buy Now |
| 140 |
63924710 |
Suction Hose |
Call to Order |
| 150 |
73031080 |
Screw |
Buy Now |
| 170 |
63660580 |
Sealing Profile |
Buy Now |
| 180 |
73122770 |
Washer |
Call to Order |
| 190 |
53963730 |
Label Logo |
Call to Order |
| 200 |
48230300 |
Cable Harness Waste Water |
Call to Order |
| 210 |
66490380 |
Cable Tie |
Call to Order |

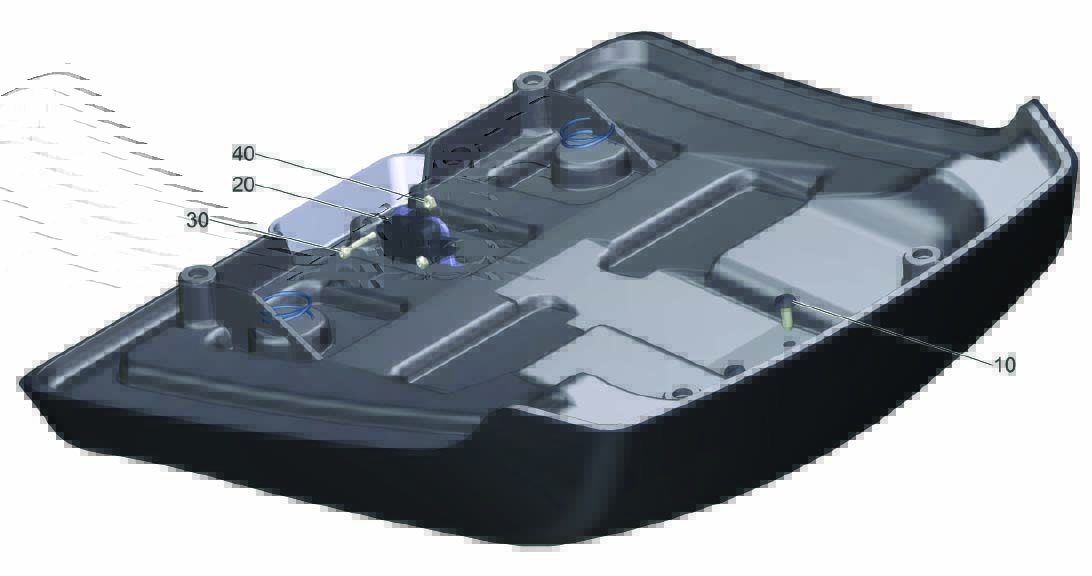

Seat Complete
Karcher BD 50/70 Seat Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
73030970 |
Screw |
Call to Order |
| 20 |
66318540 |
Micro Switch |
Buy Now |
| 30 |
73064060 |
Cylinder Head Screw |
Call to Order |
| 40 |
73110000 |
Hexagon Nut |
Buy Now |

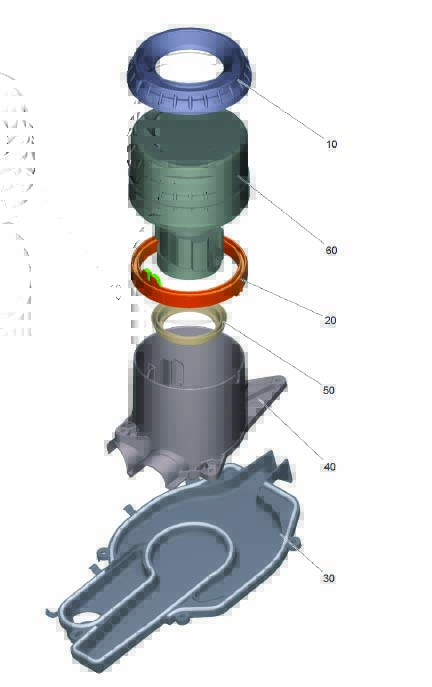

Vacuum Motor Enclosure Complete
Karcher BD 50/70 Vacuum Motor Enclosure Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50353330 |
Bearing Vacuum Motor |
Buy Now |
| 20 |
50353320 |
Joint Ring Turbine |
Buy Now |
| 30 |
50391710 |
Air Circulation Above Foamed |
Call to Order |
| 40 |
50340320 |
Air Circulation Turbine Bottom |
Buy Now |
| 50 |
53633950 |
Seal |
Buy Now |
| 60 |
40350060 |
Vacuum Motor Replacement |
Buy Now |

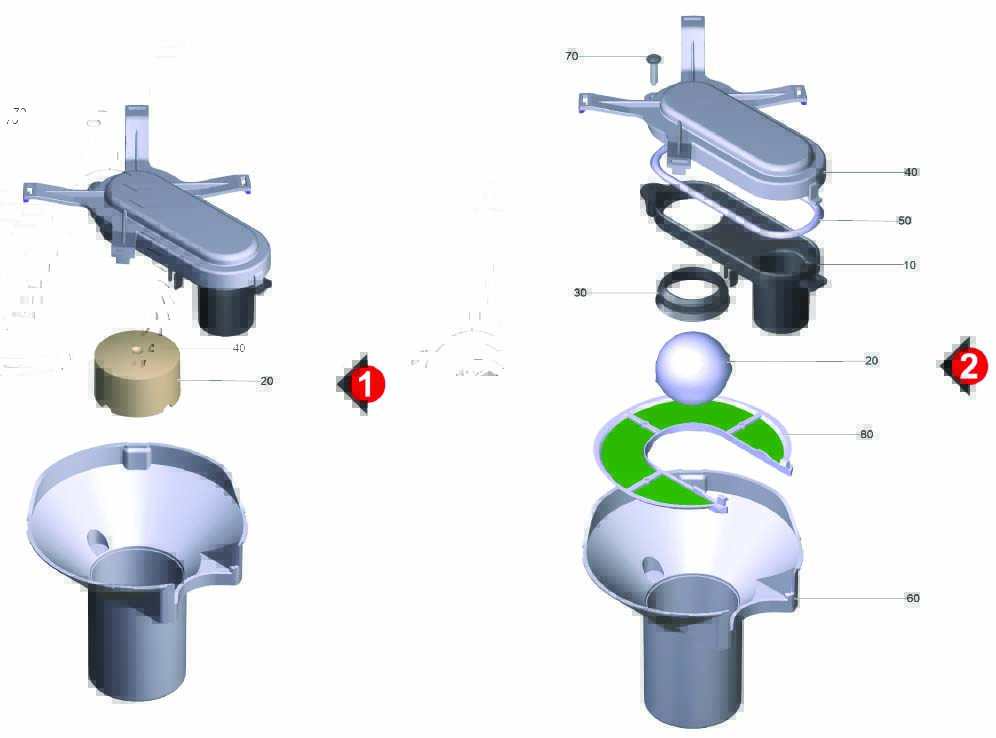

Float Regulator Complete
Karcher BD 50/70 Float Regulator Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
97630030 |
Float Regulator Bottom Part |
Buy Now |
| 20 |
97630340 |
Cone Float Regulator |
Buy Now |
| 20 |
97633330 |
Floater Ball |
Buy Now |
| 30 |
97630040 |
Seal Float Regulator |
Buy Now |
| 40 |
97630050 |
Cover Float Regulator |
Buy Now |
| 50 |
97630440 |
Seal String Cellular Rubber Float |
Buy Now |
| 60 |
97630470 |
Float Cage |
Buy Now |
| 70 |
73031080 |
Screw |
Buy Now |
| 80 |
97633830 |
Strainer Float Regulator |
Buy Now |

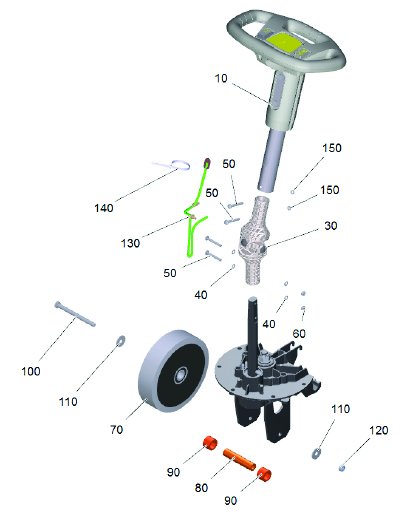

Steering Complete
Karcher BD 50/70 Steering Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40392520 |
Steering Above Complete |
Call to Order |
| 20 |
40392440 |
Steering Complete Bottom |
Call to Order |
| 30 |
40392413 |
Hooke's Joint |
Call to Order |
| 40 |
73120030 |
Washer |
Call to Order |
| 50 |
73061310 |
Screw |
Call to Order |
| 60 |
73114250 |
Hexagon Nut |
Buy Now |
| 70 |
60390263 |
Wheel |
Call to Order |
| 80 |
50391390 |
Shaft Wheel |
Call to Order |
| 90 |
50391400 |
Sleeve |
Call to Order |
| 100 |
73041230 |
Hexagonal Head Screw |
Call to Order |
| 110 |
73122850 |
Washer |
Call to Order |
| 120 |
73114230 |
Hexagon Nut |
Call to Order |
| 130 |
66835780 |
Cable Steering Wheel |
Call to Order |
| 140 |
66414640 |
Cable Tie |
Call to Order |
| 150 |
73112000 |
Hexagon Nut |
Call to Order |

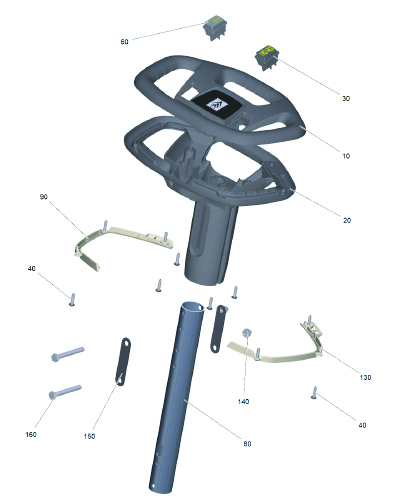

Steering Above Complete
Karcher BD 50/70 Steering Above Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40392790 |
Steering Wheel |
Call to Order |
| 20 |
50372930 |
Steering Wheel Bottom Part |
Buy Now |
| 30 |
66324820 |
Switch Two-Pole |
Buy Now |
| 40 |
73031080 |
Screw |
Buy Now |
| 60 |
66324750 |
Pushbotton Two-Pole Hooter |
Buy Now |
| 80 |
50391060 |
Steering Pillar |
Call to Order |
| 90 |
50391310 |
Screen Steering Wheel Right |
Call to Order |
| 130 |
50391320 |
Screen Steering Wheel Left |
Call to Order |
| 140 |
73116200 |
Cap Nut |
Call to Order |
| 150 |
50391380 |
Shim |
Call to Order |
| 160 |
73044020 |
Hexagonal Head Screw |
Call to Order |

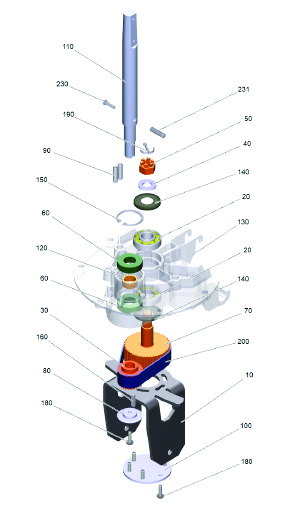

Steering Complete Bottom
Karcher BD 50/70 Steering Complete Bottom
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50391140 |
Retainer Wheel |
Call to Order |
| 20 |
74013040 |
Taper Roller Bearing |
Call to Order |
| 30 |
50391120 |
Belt Pulley |
Call to Order |
| 40 |
50391730 |
Washer |
Call to Order |
| 50 |
73110450 |
Castle Nut |
Call to Order |
| 60 |
74011330 |
Ball Bearing |
Call to Order |
| 70 |
50391110 |
Bolt Belt Pulley |
Call to Order |
| 80 |
50391090 |
Washer |
Call to Order |
| 90 |
73143590 |
Straight Pin |
Call to Order |
| 100 |
50391100 |
Washer |
Call to Order |
| 110 |
50391010 |
Shaft Steering |
Call to Order |
| 120 |
50391080 |
Sleeve |
Call to Order |
| 130 |
50391180 |
Retainer Steering |
Call to Order |
| 140 |
60390113 |
Joint Ring |
Call to Order |
| 150 |
73431140 |
Locking Ring |
Call to Order |
| 160 |
73180790 |
Parallel Key |
Call to Order |
| 180 |
63040530 |
Screw |
Call to Order |
| 190 |
73163520 |
Cotter |
Buy Now |
| 200 |
60390123 |
Toothed Belt |
Call to Order |
| 230 |
73061830 |
Screw |
Call to Order |
| 231 |
73141550 |
Straight Pin |
Call to Order |

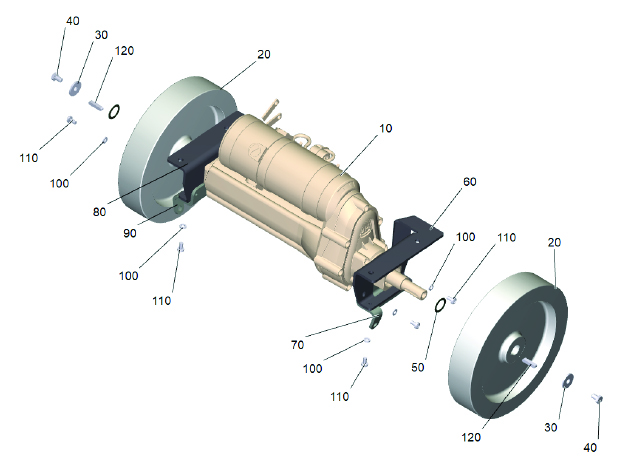

Transmission Complete
Karcher BD 50/70 Transmission Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40392810 |
Drive Axle Differential |
Call to Order |
| 20 |
44350000 |
Wheel Complete |
Buy Now |
| 20 |
44350060 |
Wheel Complete for Replacement |
Call to Order |
| 30 |
73122680 |
Washer |
Buy Now |
| 40 |
63041760 |
Hexagonal Head Screw |
Call to Order |
| 50 |
73431220 |
Shim Ring |
Call to Order |
| 60 |
50391630 |
Fixing Bracket Left |
Call to Order |
| 70 |
50391640 |
Angle Left |
Call to Order |
| 80 |
50391650 |
Fixing Bracket Right |
Call to Order |
| 90 |
50391660 |
Angle Right |
Call to Order |
| 100 |
73130180 |
Spring Washer |
Call to Order |
| 110 |
73061920 |
Screw |
Call to Order |
| 120 |
73180310 |
Parallel Key |
Call to Order |
| 130 |
73181110 |
Parallel Key |
Call to Order |

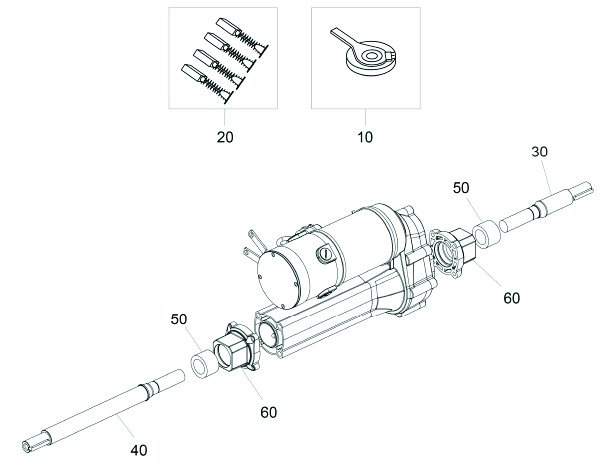

Drive Axle Differential 300W
Karcher BD 50/70 Drive Axle Differential 300W
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
66134930 |
Brake for Drive Axle |
Buy Now |
| 20 |
66134940 |
Carbon Brush Set |
Buy Now |
| 30 |
97556960 |
Drive Shaft for Replacement |
Buy Now |
| 40 |
97556970 |
Drive Shaft for Replacement |
Buy Now |
| 50 |
97556980 |
Bearing for Replacement |
Buy Now |
| 60 |
97556990 |
Bearing Housing for Replacement |
Buy Now |

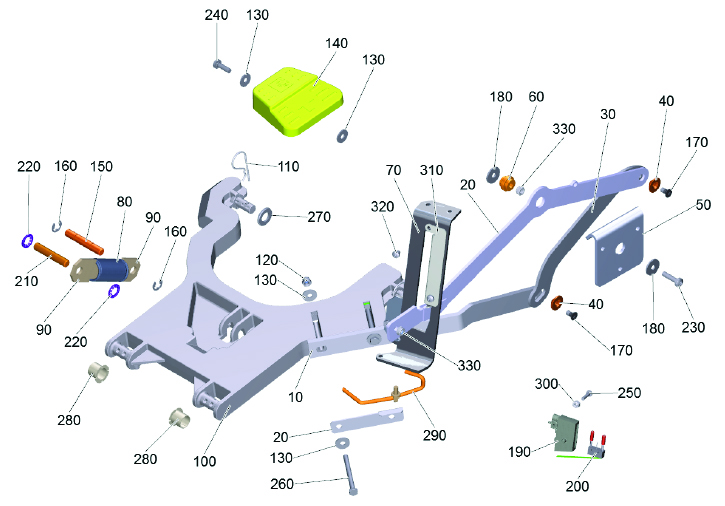

Lifting Device Brush-Head
Karcher BD 50/70 Lifting Device Brush-Head
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50390990 |
Strap Lever |
Buy Now |
| 20 |
40392910 |
Lever Complete |
Buy Now |
| 30 |
50391000 |
Strap Connection |
Buy Now |
| 40 |
50391240 |
Plain Bearing |
Buy Now |
| 50 |
50135710 |
Plate Retainer Batteries |
Call to Order |
| 60 |
50391280 |
Sleeve Retainer |
Buy Now |
| 70 |
40392720 |
Locking Plate Complete |
Call to Order |
| 80 |
53329620 |
Pressure Spring |
Call to Order |
| 90 |
50097630 |
Plate Holder Spring |
Call to Order |
| 100 |
50390980 |
Lever Brush-Head |
Call to Order |
| 110 |
73164540 |
Spring Clip |
Call to Order |
| 120 |
73115120 |
Hexagon Nut |
Call to Order |
| 130 |
73122760 |
Washer |
Call to Order |
| 140 |
50391303 |
Pedal Brush-Head |
Call to Order |
| 150 |
50356060 |
Bolt |
Call to Order |
| 160 |
73433030 |
Locking Ring |
Call to Order |
| 170 |
73050720 |
Countersunk Screw |
Call to Order |
| 180 |
73122600 |
Washer |
Call to Order |
| 190 |
50609980 |
Housing Micro Switch |
Buy Now |
| 200 |
66303980 |
Micro Switch |
Buy Now |
| 210 |
53171850 |
Bolt Bearing Rocker |
Call to Order |
| 220 |
63432530 |
Quick-Fastener |
Call to Order |
| 230 |
73060940 |
Screw |
Call to Order |
| 240 |
73060920 |
Screw |
Call to Order |
| 250 |
73060590 |
Screw |
Call to Order |
| 260 |
73042320 |
Hexagonal Head Screw |
Call to Order |
| 270 |
73120400 |
Washer |
Call to Order |
| 280 |
60390203 |
Plain Bearing |
Call to Order |
| 290 |
66835593 |
Cable Micro Switch Brush-Head |
Call to Order |
| 300 |
73110020 |
Hexagon Nut |
Buy Now |
| 310 |
50391840 |
Sheet Metal Component |
Call to Order |
| 320 |
73062130 |
Screw |
Buy Now |
| 330 |
73114250 |
Hexagon Nut |
Buy Now |
| 340 |
50391930 |
Angle |
Buy Now |

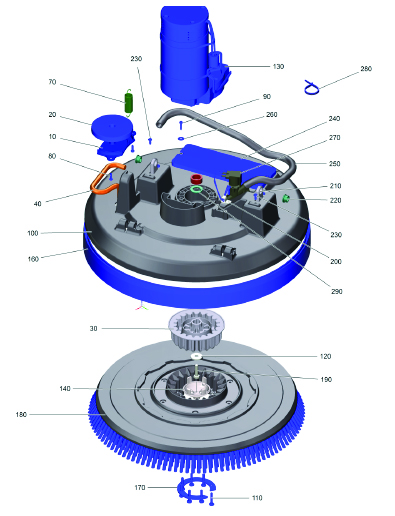

Brush Head Complete 1
Karcher BD 50/70 Brush-Head Complete
Valve
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50354980 |
Fixing Deflector Roll |
Buy Now |
| 20 |
50354990 |
Deflector Roll |
Buy Now |
| 30 |
50375370 |
Retainer Transmission |
Buy Now |
| 40 |
40392800 |
Retaining Bracket Discharge |
Call to Order |
| 70 |
63300200 |
Extension Spring |
Call to Order |
| 80 |
73031040 |
Screw |
Buy Now |
| 90 |
73032120 |
Screw |
Buy Now |
| 100 |
50391223 |
Covering Cap Brush-Head |
Call to Order |
| 110 |
73063790 |
Screw |
Call to Order |
| 120 |
73122680 |
Washer |
Buy Now |
| 130 |
40392820 |
Gear Motor |
Call to Order |
| 140 |
50374900 |
Guide Water |
Call to Order |
| 160 |
50391413 |
Splash-Proof Profile Brush-Head |
Buy Now |
| 170 |
50391790 |
Threaded Plate |
Buy Now |
| 180 |
49050260 |
Disc Brush |
Buy Now |
| 190 |
63040410 |
Hexagonal Head Screw |
Call to Order |
| 200 |
63738770 |
Hose Clip |
Buy Now |
| 210 |
50391550 |
Suspension Brush-Head |
Calll to Order |
| 220 |
60390170 |
Bearing Bush |
Call to Order |
| 230 |
73030380 |
Screw |
Call to Order |
| 240 |
50391570 |
Weight |
Call to Order |
| 250 |
63908920 |
Spiral Hose |
Buy Now |
| 260 |
73122820 |
Washer |
Buy Now |
| 270 |
64720073 |
Solenoid Valve |
Call to Order |
| 280 |
66414740 |
Cable Tape |
Call to Order |
| 290 |
50391900 |
Washer |
Call to Order |

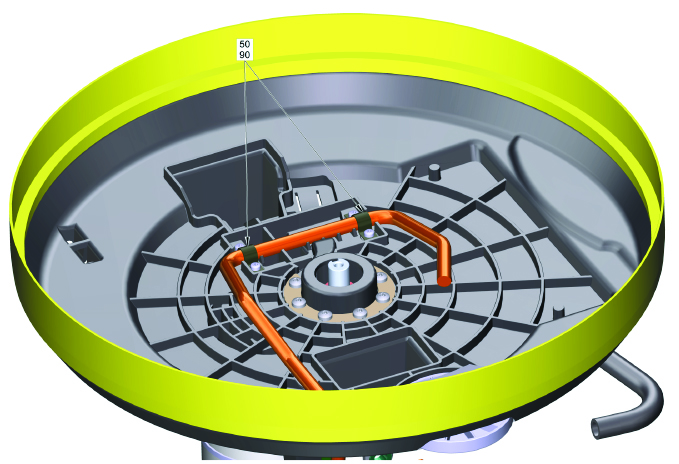

Brush Head Complete 2
Karcher BD 50/70 Brush Head Complete 2
| Reference # |
Part # |
Description |
Add to Cart |
| 50 |
63736890 |
Pipe Clamp |
Call to Order |
| 90 |
73032120 |
Screw |
Buy Now |
Disc Brush Complete
Karcher BD 50/70 Disc Brush Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
50330020 |
Retainer Brush |
Buy Now |

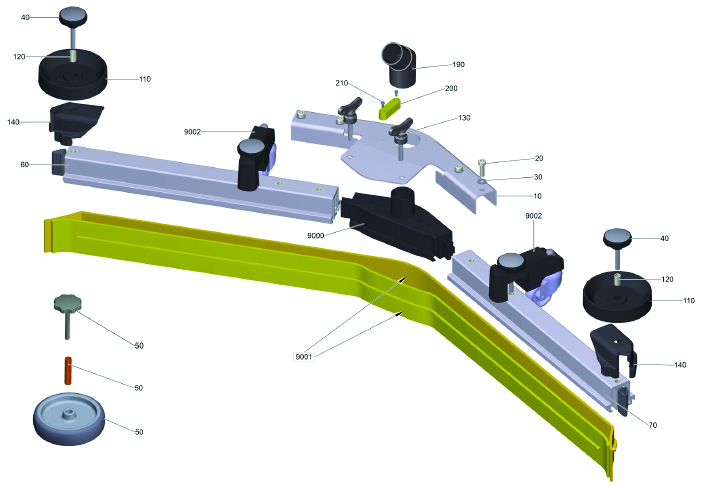

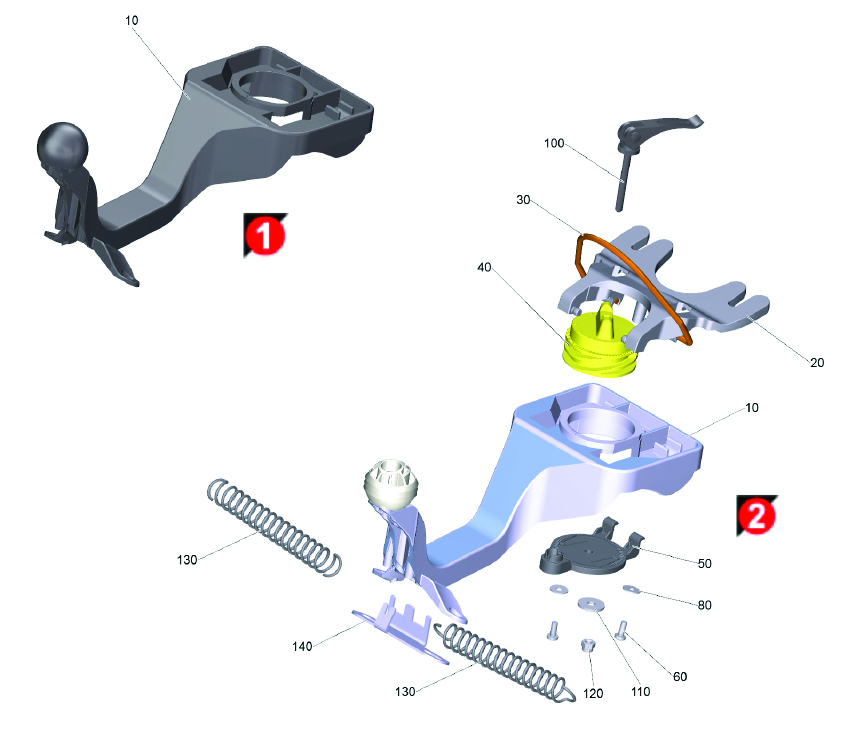

Holder Suction Bar 1
Karcher BD 50/70 Holder Suction Bar 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40371393 |
Holder Suction Bar |
Call to Order |
| 10 |
77779990 |
Stockpiling Discontinued |
Call to Order |
| 20 |
50361280 |
Rocker Suction Bar Steel |
Call to Order |
| 30 |
50359400 |
Wire Retaining Bracket Suction Beam |
Buy Now |
| 40 |
50352920 |
Adjusting Knob Suction Bar Toothing |
Buy Now |
| 50 |
50352930 |
Covering Cap Suction Bar Toothing |
Buy Now |
| 60 |
63060030 |
Screw |
Buy Now |
| 80 |
73122820 |
Washer |
Buy Now |
| 100 |
60350110 |
Eccentric Lever |
Buy Now |
| 110 |
73122600 |
Washer |
Call to Order |
| 120 |
73115120 |
Hexagon Nut |
Call to Order |
| 130 |
63304090 |
Extension Spring |
Buy Now |
| 140 |
50391860 |
Plate |
Call to Order |
Holder Suction Bar 2

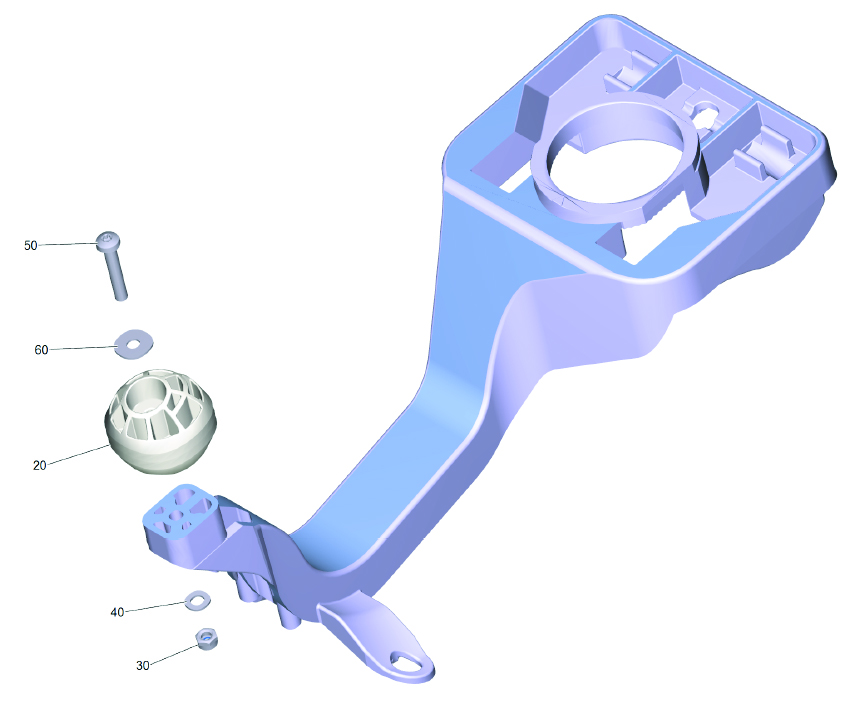

Karcher BD 50/70 Holder Suction Bar 2
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50375790 |
Sphere Suction Bar Suspension |
Call to Order |
| 30 |
73114310 |
Hexagon Nut |
Buy Now |
| 40 |
73120520 |
Washer |
Call to Order |
| 50 |
73061840 |
Screw |
Call to Order |
| 60 |
73122820 |
Washer |
Buy Now |

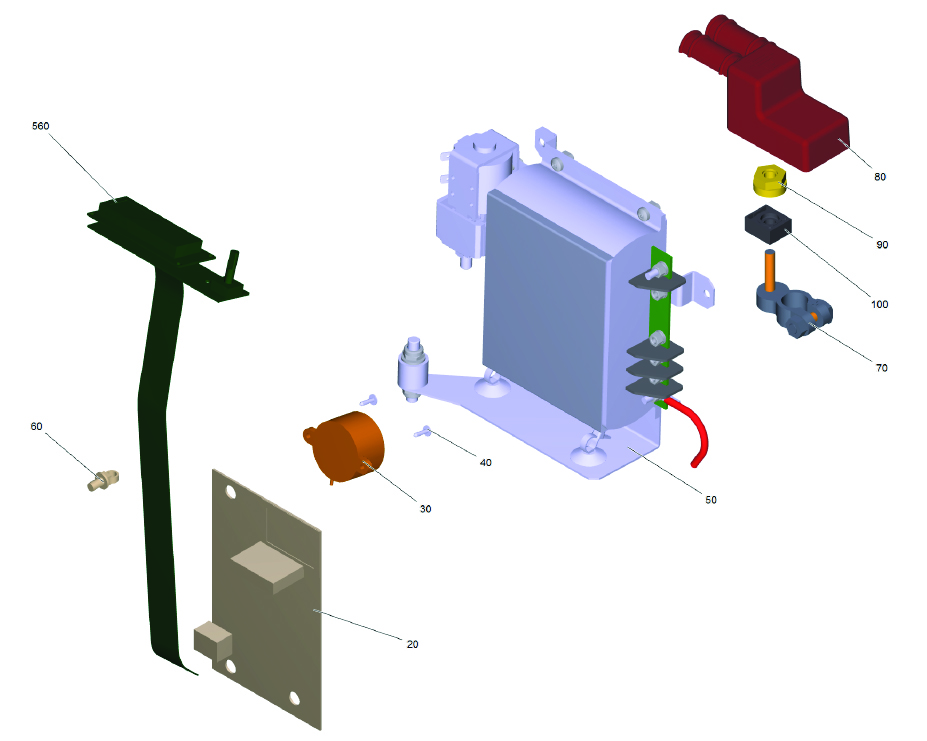

Electronic Components
Karcher BD 50/70 Electronic Components
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
46831160 |
Control Panel Circuit Board |
Buy Now |
| 30 |
66307520 |
Buzzer with Bush |
Buy Now |
| 40 |
73032420 |
Screw |
Call to Order |
| 50 |
46830930 |
Control System Complete |
Call to Order |
| 60 |
66506050 |
Cable Tie with Clip |
Call to Order |
| 70 |
66445300 |
Battery Clamp |
Call to Order |
| 80 |
50352390 |
Covering Cap Battery Terminal |
Call to Order |
| 90 |
66443480 |
Nut with Flange |
Buy Now |
| 100 |
66443630 |
Fuse Replacement |
Buy Now |
| 560 |
46830850 |
Electronics with Display |
Buy Now |
| 9000 |
40352640 |
Adapter Cable |
Buy Now |
Control System Complete
Karcher BD 50/70 Control System Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50391560 |
Plate Electronics |
Call to Order |
| 20 |
66330583 |
Relay |
Call to Order |
| 30 |
46831003 |
Electronic Control |
Call to Order |
| 40 |
73114270 |
Hexagon Nut |
Call to Order |
| 50 |
66520330 |
Isolator |
Buy Now |
| 60 |
66502650 |
Cable Tie with Fixing |
Call to Order |
| 70 |
73060580 |
Screw |
Buy Now |
| 80 |
48229870 |
Cable Harness Control System Fresh Water |
Call to Order |
| 90 |
73062360 |
Screw |
Call to Order |
| 100 |
73120010 |
Washer |
Call to Order |
| 110 |
73120170 |
Washer |
Call to Order |
| 130 |
73110650 |
Hexagon Nut |
Buy Now |
| 140 |
73120520 |
Washer |
Call to Order |
| 150 |
73130160 |
Spring Washer |
Call to Order |
Cable Harness Control System Fresh Water
Karcher BD 50/70 Cable Harness Control System Fresh Water
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
66506050 |
Cable Tie with Clip |
Call to Order |
| 20 |
66485050 |
Plug Two-Pole |
Call to Order |
| 30 |
66485080 |
Handhold Plug |
Call to Order |

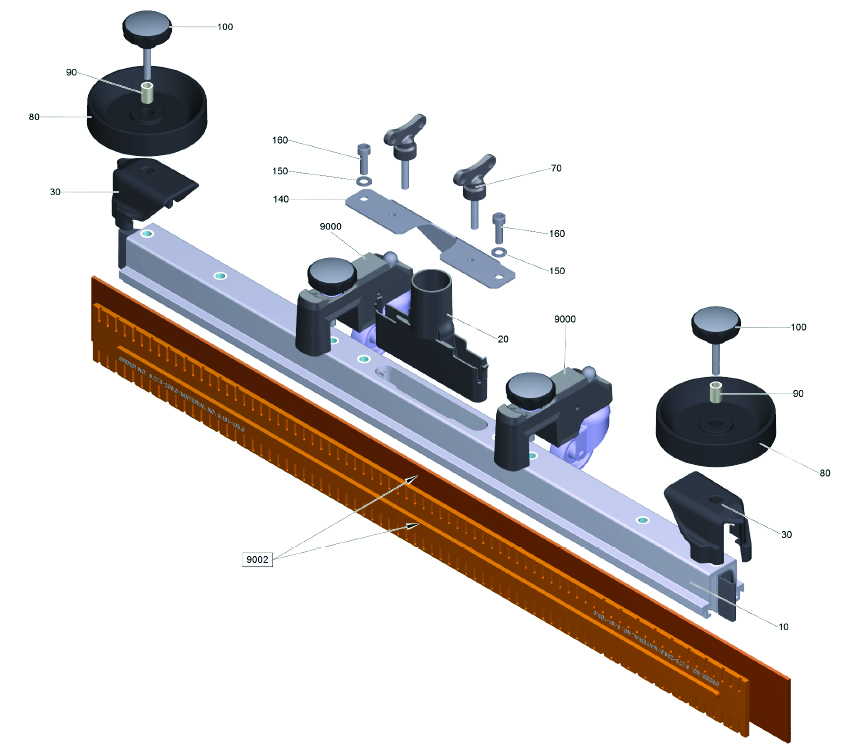

Suction Bar Straight 1
Karcher BD 50/70 Suction Bar Straight 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40353010 |
Suction Bar Pre-Assembled Straight |
Call to Order |
| 20 |
50336010 |
Suction Nipple |
Buy Now |
| 30 |
28852940 |
End Pieces Spare Parts Set |
Buy Now |
| 70 |
53050080 |
Wing Screw |
Buy Now |
| 80 |
55153460 |
Deflector Roll Suction Bar |
Buy Now |
| 90 |
50942310 |
Sleeve Suction Bar |
Buy Now |
| 100 |
63212430 |
Star Grip Stainless Steel |
Buy Now |
| 140 |
51005590 |
Suction Bar Support Plate |
Buy Now |
| 150 |
73120170 |
Washer |
Call to Order |
| 160 |
73061420 |
Cylinder Head Screw |
Buy Now |
| 9000 |
40352810 |
Conversion Kit Support Roller Deep |
Buy Now |
| 9000 |
40353390 |
Roller Suction Bar |
Buy Now |
| 9002 |
62732070 |
Rubber Lip Set Oil Resistant |
Buy Now |
| 9002 |
62732130 |
Rubber Lip Set Standard |
Buy Now |
| 9002 |
62732290 |
Rubber Lip Set Anti Stripe Oil Resistant |
Buy Now |
| 9002 |
62732900 |
Blades for Textured Floors |
Buy Now |
| 9500 |
40356190 |
Set Deflector Roll Stack Formation |
Call to Order |

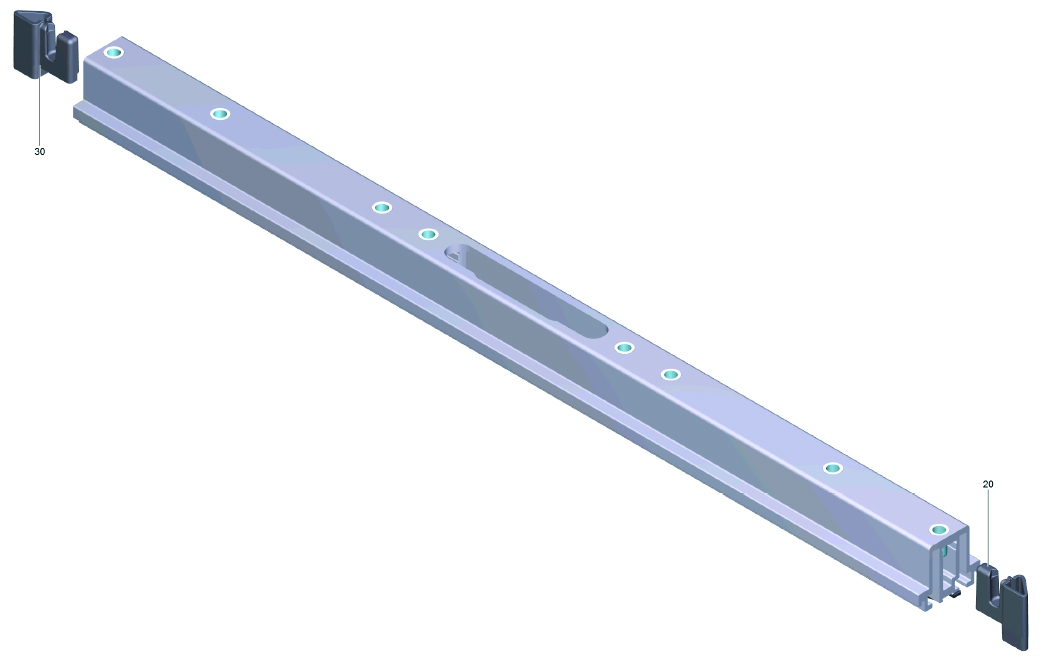

Suction Bar Straight 2
Karcher BD 50/70 Suction Bar Straight 2
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50335780 |
End Piece Inside Left |
Buy Now |
| 30 |
50335790 |
End Piece Inside Right |
Buy Now |

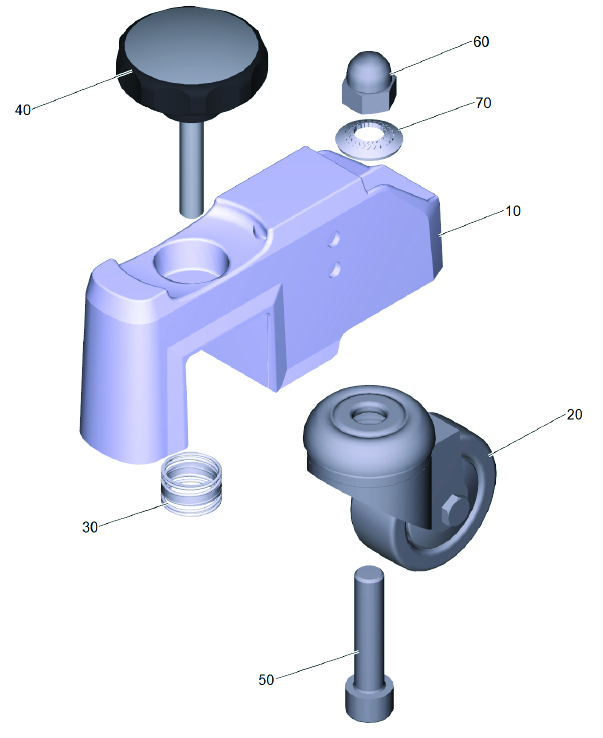

Conversion Kit Support Roller Deep
Karcher BD 50/70 Conversion Kit Support Roller Deep
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
51016260 |
Housing with Additional Weight |
Buy Now |
| 20 |
64351790 |
Castor for Thread Deflector |
Buy Now |
| 30 |
53325540 |
Pressure Spring |
Buy Now |
| 40 |
63212400 |
Star Grip with Inscription |
Buy Now |
| 50 |
73060680 |
Cylinder Head Screw |
Call to Order |
| 60 |
73113820 |
Cap Nut |
Call to Order |
| 70 |
69965260 |
Serrated Locking Washer |
Buy Now |

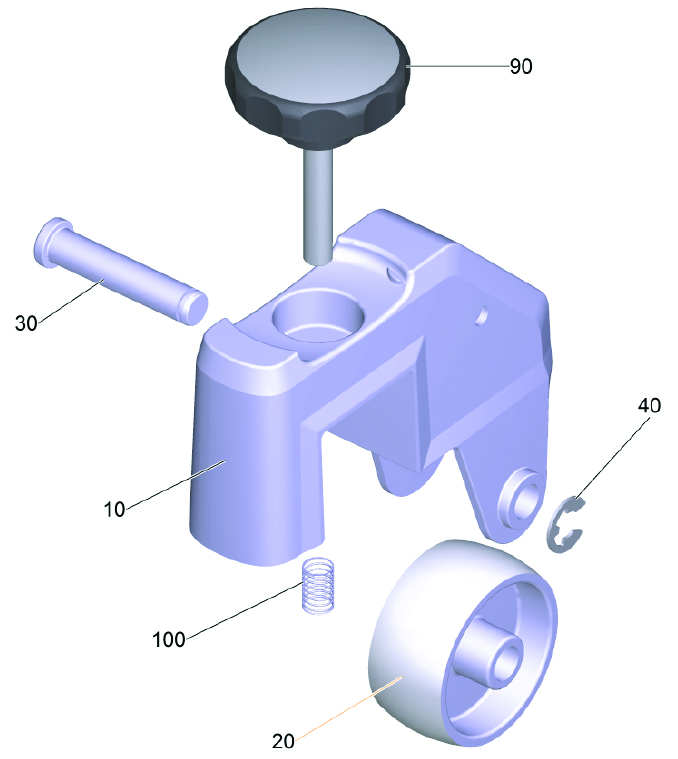

Roller Suction Bar
Karcher BD 50/70 Roller Suction Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
51011390 |
Roller Holder Weight |
Buy Now |
| 20 |
64354010 |
Wheel D54 |
Buy Now |
| 30 |
53177810 |
Bolt Roller |
Buy Now |
| 40 |
73433030 |
Locking Ring |
Call to Order |
| 90 |
63212400 |
Star Grip with Inscription |
Buy Now |
| 100 |
53325040 |
Pressure Spring |
Buy Now |

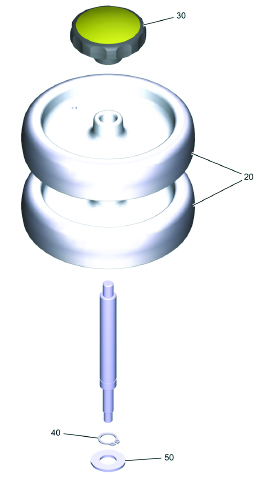

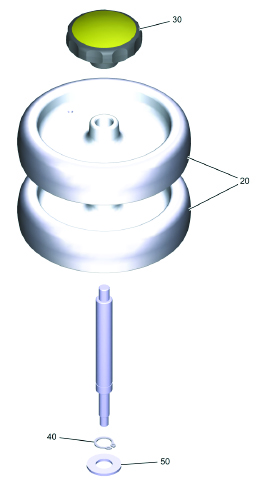

Set Deflector Roll Stack Formation
Karcher BD 50/70 Set Deflector Roll Stack Formation
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
64353420 |
Wheel Gummed |
Call to Order |
| 30 |
63212240 |
Turning Knob |
Buy Now |
| 40 |
73430830 |
Locking Ring |
Buy Now |
| 50 |
51156280 |
Washer |
Buy Now |
Suction Bar V Shaped
Karcher BD 50/70 Suction Bar V Shaped
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40440030 |
Holder Complete |
Call to Order |
| 20 |
73061420 |
Cylinder Head Screw |
Buy Now |
| 30 |
73120170 |
Washer |
Call to Order |
| 40 |
63212430 |
Star Grip Stainless Steel |
Buy Now |
| 50 |
44350050 |
Deflector Roll Suction Bar Complete |
Buy Now |
| 60 |
40351620 |
Profile Pre-Assembled Right |
Call to Order |
| 70 |
40351630 |
Profile Pre-Assembled Left |
Call to Order |
| 110 |
55153460 |
Deflector Roll Suction Bar |
Buy Now |
| 120 |
50942310 |
Sleeve Suction Bar |
Buy Now |
| 130 |
53050080 |
Wing Screw |
Buy Now |
| 140 |
28852940 |
End Pieces Spare Parts Set |
Buy Now |
| 190 |
50340560 |
Angle Adapter Pipe |
Buy Now |
| 200 |
68030710 |
Level |
Call to Order |
| 210 |
73050190 |
Countersunk Screw |
Call to Order |
| 210 |
73060560 |
Screw |
Call to Order |
| 9000 |
40340070 |
Suction Nipple Complete |
Call to Order |
| 9001 |
62730230 |
Rubber Lip Set Corrugated Oil Resistant |
Buy Now |
| 9002 |
40351710 |
Support Roller Complete Replacement |
Buy Now |
| 9003 |
40355570 |
Support Roller Complete Replacement |
Call to Order |
| 9500 |
40356190 |
Set Deflector Roll Stack Formation |
Call to Order |

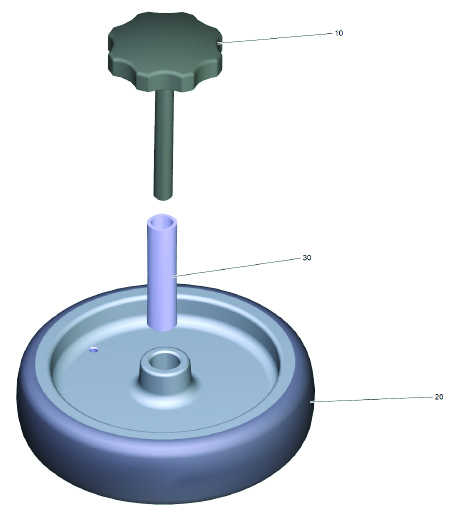

Deflector Roll Suction Bar Complete
Karcher BD 50/70 Deflector Roll Suction Bar Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
63211700 |
Star Grip |
Call to Order |
| 20 |
64353420 |
Wheel Gummed |
Call to Order |
| 30 |
50944960 |
Sleeve Suction Bar |
Call to Order |

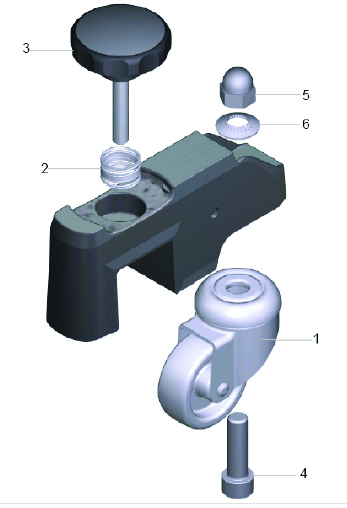

Support Roller Complete Replacement 1
Karcher BD 50/70 Support Roller Complete Replacement 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
64351790 |
Castor for Thread Deflector |
Buy Now |
| 2 |
53325540 |
Pressure Spring |
Buy Now |
| 3 |
63212400 |
Star Grip with Inscription |
Buy Now |
| 4 |
73060740 |
Cylinder Head Screw |
Call to Order |
| 5 |
73113820 |
Cap Nut |
Call to Order |
| 6 |
69965260 |
Serrated Locking Washer |
Buy Now |

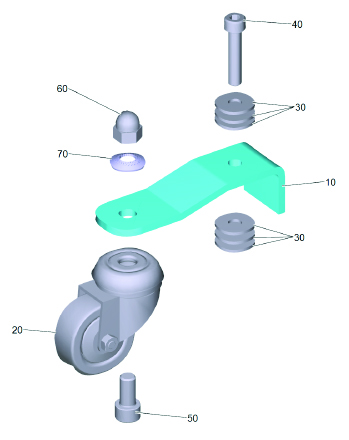

Support Roller Complete Replacement 2
Karcher BD 50/70 Support Roller Complete Replacement 2
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50135470 |
Retaining Plate Castor Suction Bar |
Call to Order |
| 20 |
64351790 |
Castor for Thread Deflector |
Buy Now |
| 30 |
73122890 |
Washer |
Buy Now |
| 40 |
73061140 |
Cylinder Head Screw |
Call to Order |
| 50 |
73062340 |
Cylinder Head Screw |
Buy Now |
| 60 |
73113820 |
Cap Nut |
Call to Order |
| 70 |
69965260 |
Serrated Locking Washer |
Buy Now |
Set Deflector Roll Stack Formation
Karcher BD 50/70 Set Deflector Roll Stack Formation
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
64353420 |
Wheel Gummed |
Call to Order |
| 30 |
63212240 |
Turning Knob |
Buy Now |
| 40 |
73430830 |
Locking Ring |
Buy Now |
| 50 |
51156280 |
Washer |
Buy Now |

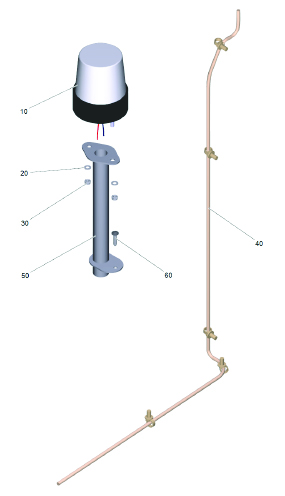

Add-On Kit Revolving Signal Light
Karcher BD 50/70 Add-On Kit Revolving Signal Light
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40392940 |
Revolving Signal Light |
Call to Order |
| 20 |
73120020 |
Washer |
Buy Now |
| 30 |
73114210 |
Hexagon Nut |
Call to Order |
| 40 |
48229923 |
Adapter Cable Revolving Signal Light |
Call to Order |
| 50 |
40392660 |
Holder Revolving Signal Light |
Call to Order |
| 60 |
73031080 |
Screw |
Buy Now |

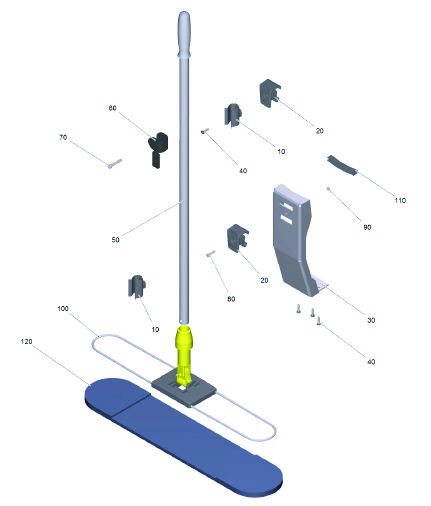

Add-On Kit Pre-Sweep Unit
Karcher BD 50/70 Add-On Kit Pre-Sweep Unit
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
69800780 |
Holder Handhold |
Buy Now |
| 20 |
50354880 |
Adapter Homebase |
Buy Now |
| 30 |
50391813 |
Retaining Plate |
Call to Order |
| 40 |
73031080 |
Screw |
Buy Now |
| 50 |
60390230 |
Handle Mop |
Call to Order |
| 60 |
50391820 |
Plate Anti-Twist Prevention |
Buy Now |
| 70 |
73060250 |
Cylinder Head Screw |
Buy Now |
| 80 |
73061580 |
Cylinder Head Screw |
Call to Order |
| 90 |
73114310 |
Hexagon Nut |
Buy Now |
| 100 |
69990920 |
Metal Dust Mop Holder |
Call to Order |
| 110 |
63680180 |
Edge Protection |
Buy Now |
| 120 |
69991480 |
Dust Mop Acrylic |
Call to Order |

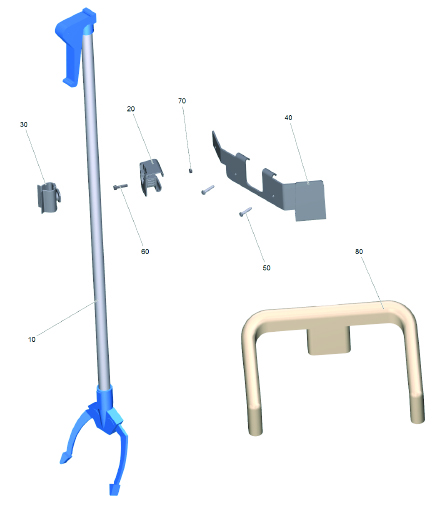

Add-On Kit Liner Holder
Karcher BD 50/70 Add-On Kit Liner Holder
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
69991130 |
Pliers Bulk Waste |
Call to Order |
| 20 |
50354880 |
Adapter Homebase |
Buy Now |
| 30 |
69800780 |
Holder Handhold |
Buy Now |
| 40 |
50391720 |
Blank Holder Homebase |
Call to Order |
| 50 |
73031050 |
Screw |
Call to Order |
| 60 |
73061580 |
Cylinder Head Screw |
Call to Order |
| 70 |
73114310 |
Hexagon Nut |
Buy Now |
| 80 |
69992350 |
Bin Liner Holder |
Call to Order |

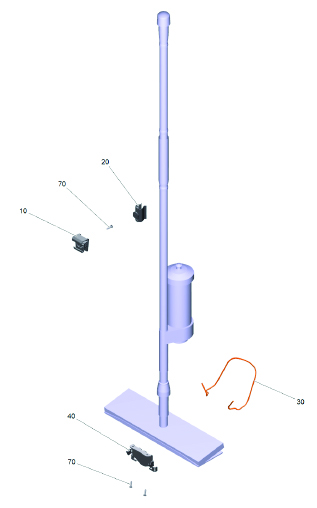

Add-On Kit Mop Holder
Karcher BD 50/70 Add-On Kit Mop Holder
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50354880 |
Adapter Homebase |
Buy Now |
| 20 |
69800780 |
Holder Handhold |
Buy Now |
| 30 |
50391750 |
Wire Bracket |
Call to Order |
| 40 |
50391740 |
Mop Retaining Plate |
Call to Order |
| 70 |
73031080 |
Screw |
Buy Now |

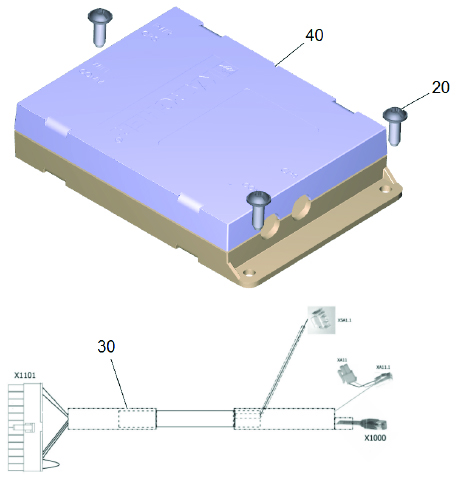

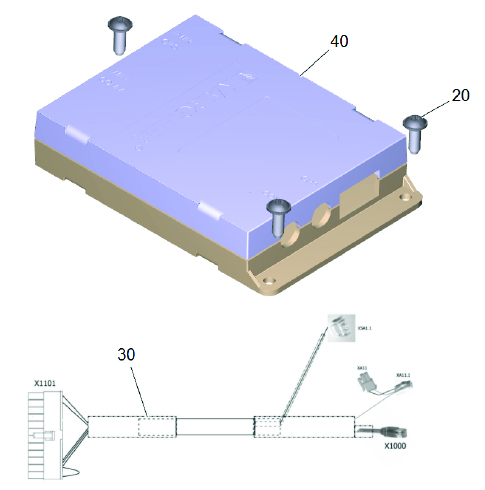

Reversion Kit Fleet Services
Karcher BD 50/70 Reversion Kit Fleet Services
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
73031060 |
Screw |
Call to Order |
| 30 |
48230320 |
Cable Harness |
Call to Order |
| 40 |
26442130 |
Fleet Services |
Call to Order |

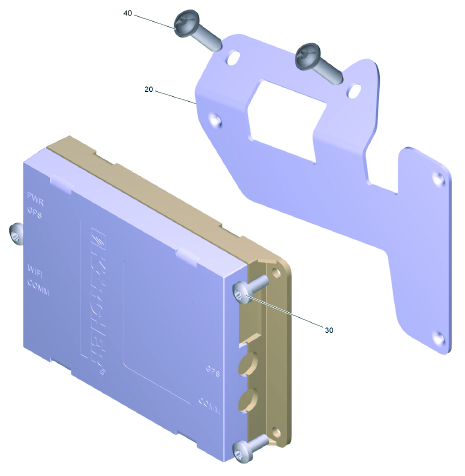

Fleet Services B110R
Karcher BD 50/70 Fleet Services B110R
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50394310 |
Retaining Plate Fleet Management Module |
Call to Order |
| 30 |
73062060 |
Screw |
Call to Order |
| 40 |
73031080 |
Screw |
Buy Now |
Reversion Kit Fleet Services NA
Karcher BD 50/70 Reversion Kit Fleet Services NA
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
73031060 |
Screw |
Call to Order |
| 30 |
48230320 |
Cable Harness |
Call to Order |
| 40 |
26442140 |
Fleet Services |
Call to Order |
Fleet Services B110R NA
Karcher BD 50/70 Fleet Services B110R NA
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50394310 |
Retaining Plate Fleet Management Module |
Call to Order |
| 30 |
73062060 |
Screw |
Call to Order |
| 40 |
73031080 |
Screw |
Buy Now |
