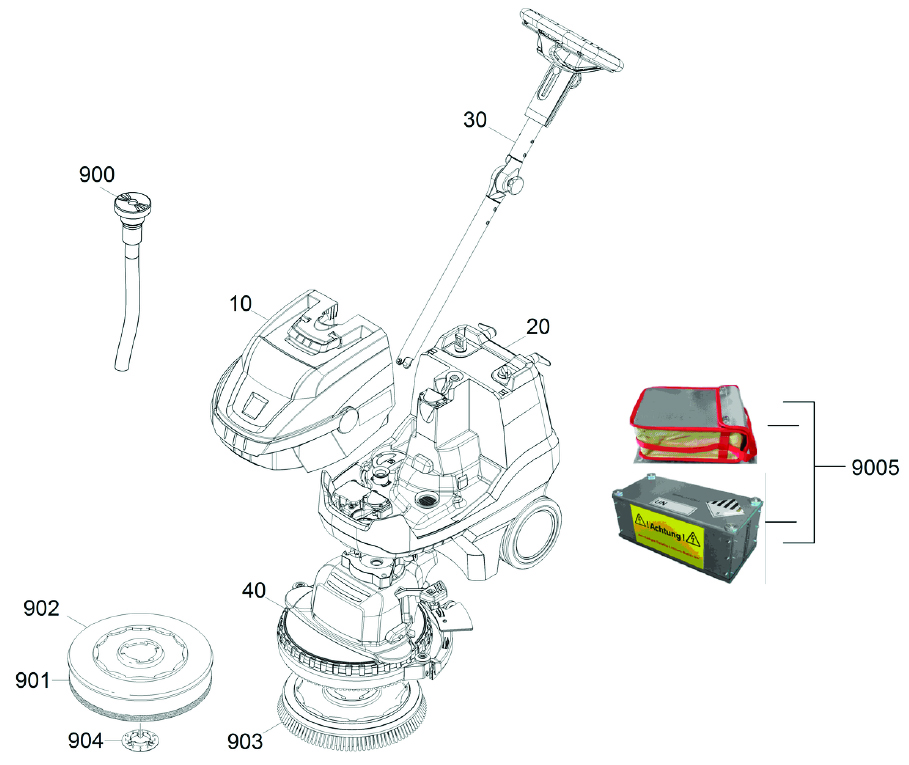

BD 38/12 C BP Complete
Karcher BD 38/12 C BP Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40370220 |
Waste Water Tank Complete |
Buy Now |
| 20 |
- |
Chassis Complete |
Call to Order |
| 30 |
- |
Steering Pillar Complete |
Call to Order |
| 40 |
- |
Brush Head |
Call to Order |
| 50 |
48229360 |
Cable Harness Floor Cleaner |
Buy Now |
| 50 |
48231940 |
Cable Harness |
Call to Order |
| 900 |
66801240 |
Hose Fresh Water Complete |
Buy Now |
| 901 |
69050600 |
Slip Microfiber Set |
Buy Now |
| 901 |
63712510 |
Diamond Pad Yellow |
Buy Now |
| 901 |
63712500 |
Diamond Pad White |
Call to Order |
| 901 |
63712350 |
Diamond Pad Green |
Buy Now |
| 901 |
63690030 |
Pad Red |
Buy Now |
| 901 |
63690020 |
Pad Green |
Buy Now |
| 901 |
63690010 |
Pad Black |
Buy Now |
| 902 |
69071500 |
Disk Pad |
Buy Now |
| 903 |
69071510 |
Disc Brush Middle Red |
Buy Now |
| 903 |
69071520 |
Disc Brush Hard Black |
Buy Now |
| 903 |
69071530 |
Disc Brush Soft Nature |
Buy Now |
| 903 |
69071540 |
Dish Brush Very Soft White |
Buy Now |
| 904 |
51220150 |
Centerlock |
Call to Order |
| 9005 |
66520000 |
Tank |
Buy Now |

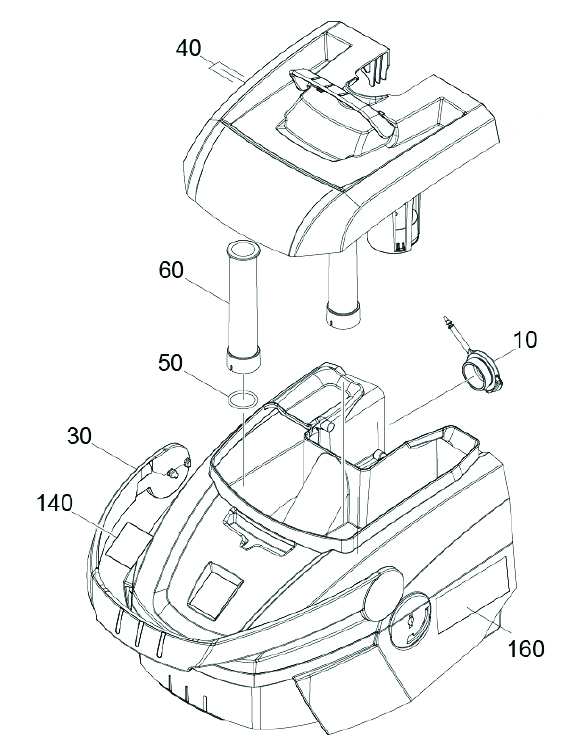

BD 38/12 C BP Waste Water Tank Complete
Karcher BD 38/12 C BP Waste Water Tank Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50373350 |
Cover Discharge |
Buy Now |
| 30 |
50372570 |
Carrier Handle |
Buy Now |
| 40 |
40370000 |
Cover Replacement |
Buy Now |
| 50 |
63621080 |
O-Ring |
Buy Now |
| 60 |
50372960 |
Suction Tube |
Buy Now |
| 140 |
53855170 |
Label Signet |
Call to Order |
| 160 |
53855120 |
Label Logo |
Call to Order |

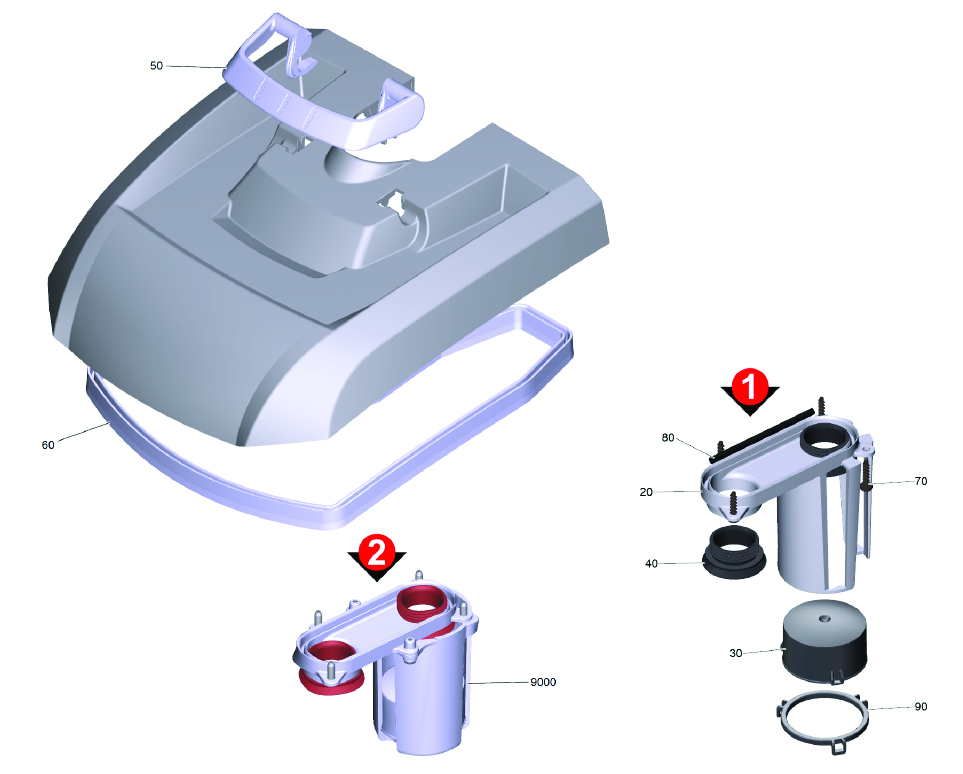

BD 38/12 C BP Cover Waste Water Tank Replacement
Karcher BD 38/12 C BP Cover Waste Water Tank Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50372970 |
Float Retainer |
Buy Now |
| 30 |
40352520 |
Float Replacement |
Buy Now |
| 40 |
50504150 |
Joint Ring |
Buy Now |
| 50 |
50372990 |
Closure Handhold |
Buy Now |
| 60 |
50375270 |
Seal Cover Oil Resistant |
Call to Order |
| 70 |
73032120 |
Screw |
Buy Now |
| 80 |
62730370 |
Seal String Cellular |
Buy Now |
| 90 |
50374210 |
Cover Float Cage |
Buy Now |
| 9000 |
26392920 |
Conversion Kit Float |
Call to Order |

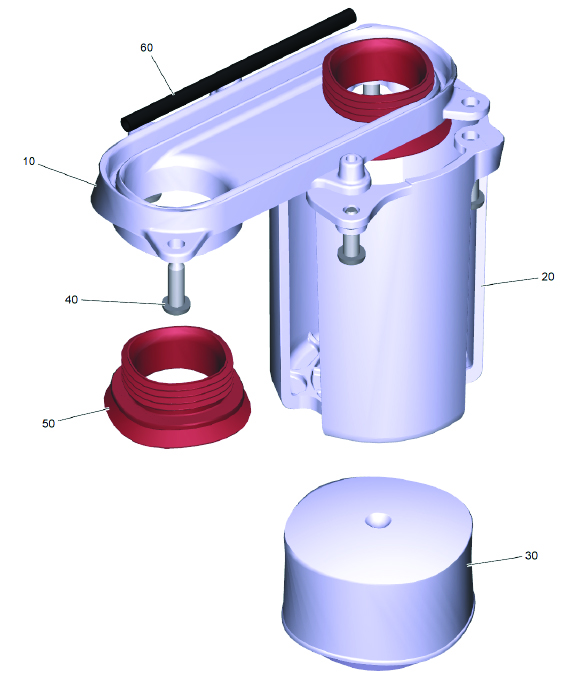

BD 38/12 C BP Conversion Kit Float
Karcher BD 38/12 C BP Conversion Kit Float
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50378610 |
Float Retainer |
Call to Order |
| 20 |
50378620 |
Float Cage |
Call to Order |
| 30 |
40356070 |
Float Replacement |
Call to Order |
| 40 |
73031040 |
Screw |
Buy Now |
| 50 |
50504150 |
Joint Ring |
Buy Now |
| 60 |
62730370 |
Seal String Cellular |
Buy Now |

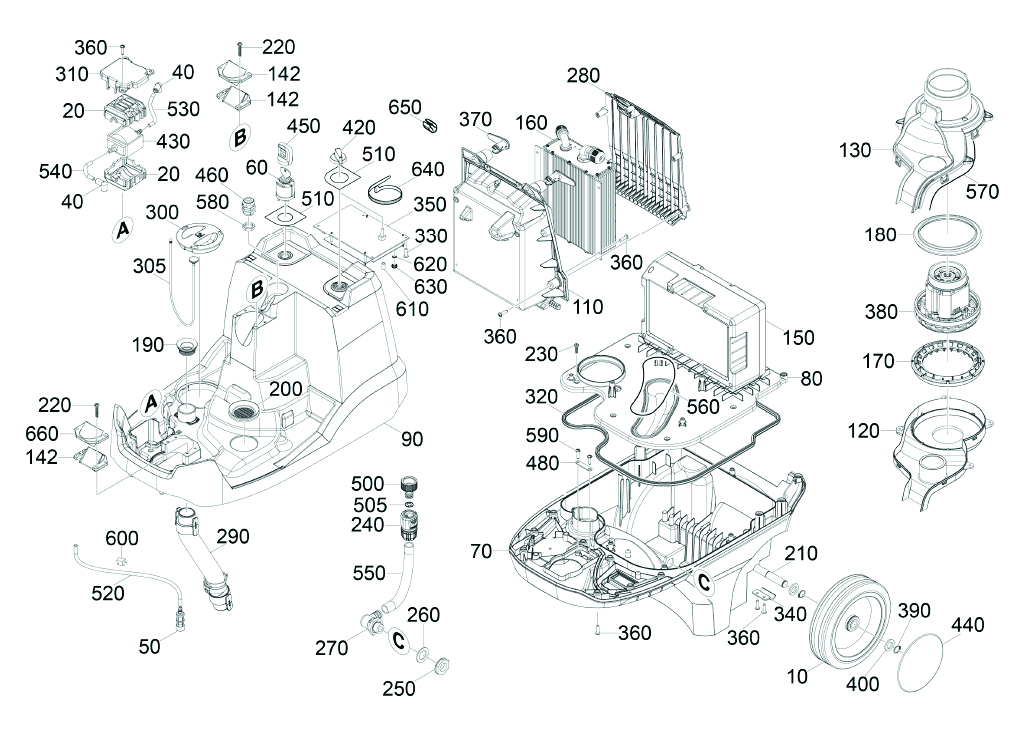

BD 38/12 C BP Chassis
Karcher BD 38/12 C BP Chassis
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
64354120 |
Wheel D 200 |
Buy Now |
| 20 |
40355990 |
Bearing Pump |
Call to Order |
| 20 |
50504080 |
Bearing Pump |
Buy Now |
| 40 |
50504110 |
Angle Bushing Water Distribution |
Buy Now |
| 50 |
57316640 |
Filter with Weight |
Buy Now |
| 60 |
66301060 |
Key Switch |
Buy Now |
| 70 |
50372780 |
Fresh Water Tank Bottom Part |
Buy Now |
| 80 |
50372790 |
Fresh Water Tank Top Part |
Buy Now |
| 90 |
50372800 |
Covering Cap Appliance |
Buy Now |
| 110 |
50372860 |
Covering Cap Battery Charger |
Buy Now |
| 120 |
50372870 |
Reatiner Vac Motor Bottom |
Buy Now |
| 130 |
50372880 |
Retainer Vac Motor Above |
Buy Now |
| 142 |
50370450 |
Half Shell Bearing Steering Pillar |
Buy Now |
| 150 |
66544230 |
Battery Li-Ion |
Call to Order |
| 160 |
66540030 |
Battery Charger |
Buy Now |
| 170 |
57316570 |
Bearing Turbine |
Call to Order |
| 180 |
90790240 |
Seal Motor Above |
Buy Now |
| 190 |
50504150 |
Joint Ring |
Buy Now |
| 200 |
53633440 |
Joint Ring |
Buy Now |
| 210 |
50373040 |
Axle Wheels |
Buy Now |
| 220 |
73030860 |
Screw |
Buy Now |
| 230 |
73032120 |
Screw |
Buy Now |
| 240 |
46453320 |
Hose Connector |
Buy Now |
| 250 |
63100040 |
Hexagon Nut |
Buy Now |
| 260 |
55152530 |
Seal |
Buy Now |
| 270 |
63951633 |
Angle Bushing |
Buy Now |
| 280 |
50373060 |
Covering Cap Battery Charger |
Buy Now |
| 290 |
40370580 |
Suction Hose Complete |
Buy Now |
| 300 |
50512940 |
Cover Plate Tank |
Buy Now |
| 305 |
50353580 |
Mounting Rope Cover |
Buy Now |
| 310 |
50373070 |
Pump Cover |
Buy Now |
| 310 |
50378670 |
Cover Plate Pump |
Call to Order |
| 320 |
50378600 |
Form Seal |
Call to Order |
| 330 |
73030950 |
Screw |
Buy Now |
| 340 |
50373090 |
Fixing Axle |
Buy Now |
| 350 |
28162110 |
Electric Equipment |
Buy Now |
| 360 |
73031080 |
Screw |
Buy Now |
| 370 |
50446610 |
Catch for Cable |
Buy Now |
| 380 |
64903120 |
Blower Motor |
Buy Now |
| 390 |
73430150 |
Locking Ring |
Buy Now |
| 400 |
50109770 |
Sheet Metal Ring |
Buy Now |
| 420 |
50370140 |
Rotary Controller |
Buy Now |
| 430 |
64730590 |
Vibrating Piston Pump |
Call to Order |
| 430 |
64735800 |
Pump |
Buy Now |
| 440 |
64358600 |
Wheel Cap |
Buy Now |
| 450 |
50323260 |
Cap |
Buy Now |
| 460 |
66484000 |
Cable Gland |
Buy Now |
| 480 |
66475130 |
Strain Relief |
Buy Now |
| 500 |
64650310 |
Connection |
Buy Now |
| 505 |
63431470 |
Quick-Fastener |
Buy Now |
| 510 |
50373510 |
Label |
Buy Now |
| 520 |
63882160 |
Hose |
Buy Now |
| 530 |
63882160 |
Hose |
Buy Now |
| 540 |
63882160 |
Hose |
Buy Now |
| 550 |
50373580 |
Hose Discharge |
Buy Now |
| 560 |
62730370 |
Seal String Rubber |
Buy Now |
| 570 |
62730370 |
Seal String Rubber |
Buy Now |
| 580 |
66484160 |
Locknut |
Buy Now |
| 590 |
73030260 |
Screw |
Buy Now |
| 600 |
63738620 |
U-Fastening |
Buy Now |
| 610 |
63889580 |
Hose |
Buy Now |
| 620 |
73122300 |
Serrated Lock Washer |
Buy Now |
| 630 |
73110010 |
Hexagon Nut |
Buy Now |
| 640 |
66414580 |
Cable Tape |
Buy Now |
| 650 |
50339380 |
Plug |
Buy Now |
| 660 |
50370150 |
Covering Cap Joint |
Buy Now |

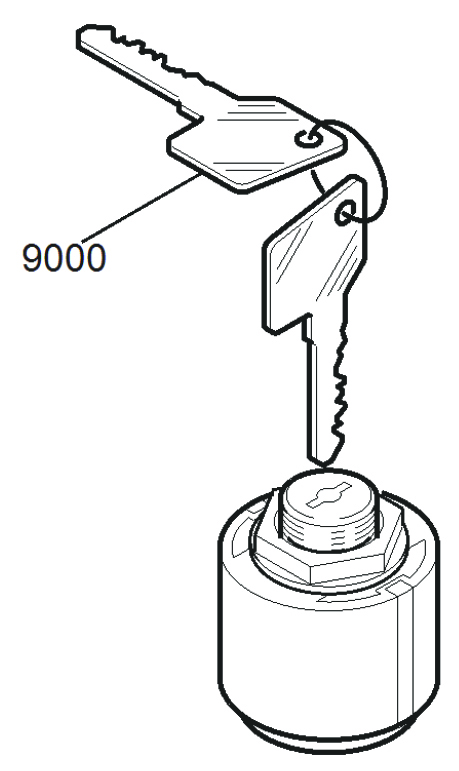

BD 38/12 C BP Key Switch
Karcher BD 38/12 C BP Key Switch
| Reference # |
Part # |
Description |
Add to Cart |
| 9000 |
66002100 |
Key Only for Replacement |
Buy Now |

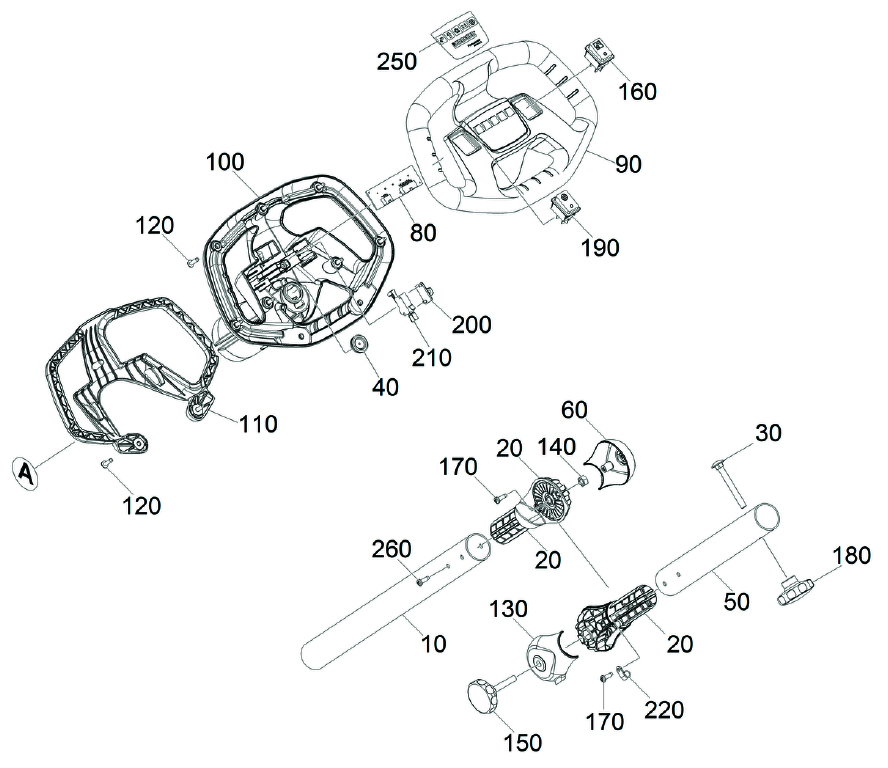

BD 38/12 C BP Steering Pillar
Karcher BD 38/12 C BP Steering Pillar
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50370460 |
Steering Pillar Bottom |
Buy Now |
| 20 |
50374390 |
Joint Steering Pillar |
Buy Now |
| 30 |
73031630 |
Saucer-Head Screw |
Call to Order |
| 40 |
53651090 |
Profile Gasket |
Buy Now |
| 50 |
50372910 |
Steering Pillar Above |
Buy Now |
| 60 |
50372950 |
Covering Cap Joint |
Buy Now |
| 80 |
66831140 |
Diode Board |
Buy Now |
| 90 |
50372940 |
Steering Wheel Top Part |
Buy Now |
| 100 |
50372930 |
Steering Wheel Bottom Part |
Buy Now |
| 110 |
50373190 |
Retaining Bracket Switch |
Buy Now |
| 120 |
73031080 |
Screw |
Buy Now |
| 130 |
50373240 |
Covering Cap Joint Cable Gland |
Buy Now |
| 140 |
73110040 |
Hexagon Nut |
Buy Now |
| 150 |
63211790 |
Star Grip |
Buy Now |
| 160 |
66325420 |
Switch Pump |
Buy Now |
| 170 |
73032960 |
Countersunk Screw |
Call to Order |
| 180 |
63211770 |
Turning Knob Yellow |
Buy Now |
| 190 |
66325430 |
Switch |
Buy Now |
| 200 |
50506540 |
Retainer Micro Switch |
Buy Now |
| 210 |
66318180 |
Switch |
Buy Now |
| 220 |
63733430 |
Pipe Clamp |
Buy Now |
| 230 |
50373370 |
Joint Part Steering Pillar |
Buy Now |
| 250 |
50370910 |
Foil Control Panel |
Buy Now |
| 260 |
73030580 |
Countersunk Screw |
Buy Now |
| 280 |
53329810 |
Pressure Spring |
Buy Now |

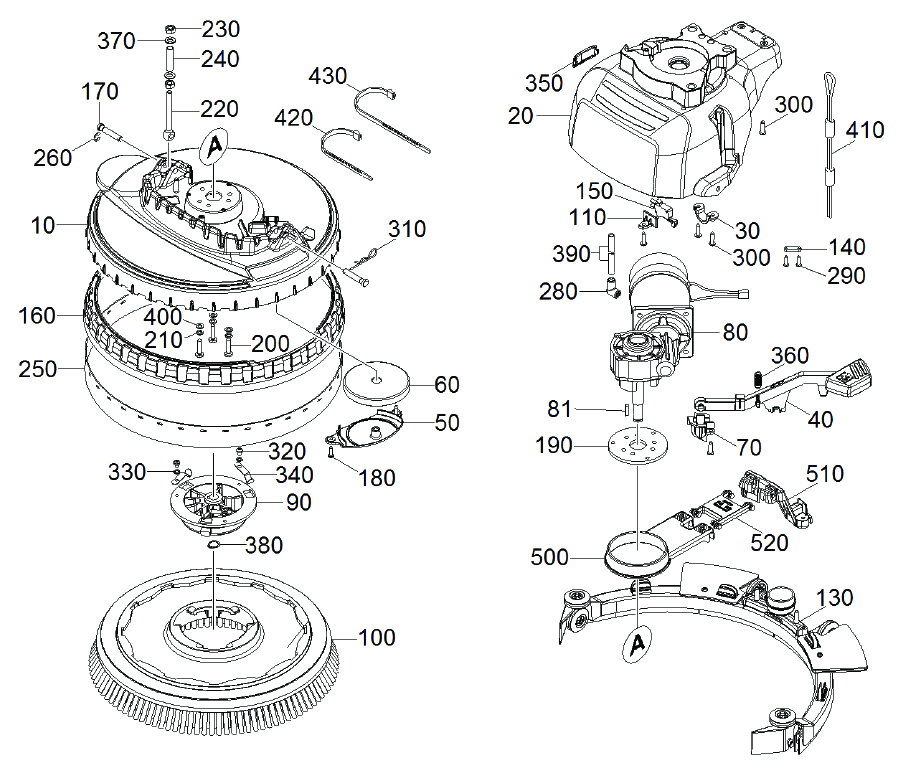

BD 38/12 C BP Brush Head
Karcher BD 38/12 C BP Brush Head
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50370200 |
Cover Disk |
Buy Now |
| 20 |
50370210 |
Cover |
Buy Now |
| 30 |
50370260 |
Cable Guide |
Buy Now |
| 40 |
50370230 |
Pedal Suction Bar |
Buy Now |
| 50 |
50354980 |
Fixing Deflector Roll |
Buy Now |
| 60 |
50354990 |
Deflector Roll |
Buy Now |
| 70 |
50370250 |
Pedal Bearing |
Buy Now |
| 80 |
66134140 |
Motor Rotomag |
Buy Now |
| 81 |
73181090 |
Parallel Key |
Buy Now |
| 90 |
66801900 |
Flange Worked |
Buy Now |
| 100 |
69071510 |
Disc Brush Red |
Buy Now |
| 110 |
50506540 |
Micro Switch Retainer |
Buy Now |
| 130 |
40370670 |
Suction Bar Replacement |
Buy Now |
| 140 |
66475130 |
Strain Relief |
Buy Now |
| 150 |
66318180 |
Switch |
Buy Now |
| 160 |
50370510 |
Splash Guard |
Buy Now |
| 170 |
50370630 |
Bolt |
Buy Now |
| 180 |
73031040 |
Screw |
Buy Now |
| 190 |
50370580 |
Blank Holder |
Buy Now |
| 200 |
63060040 |
Screw |
Buy Now |
| 210 |
73120200 |
Serrated Lock Washer |
Buy Now |
| 220 |
63737000 |
Eye Screw |
Buy Now |
| 230 |
73110040 |
Hexagon Nut |
Buy Now |
| 240 |
50370900 |
Sleeve |
Buy Now |
| 250 |
50370520 |
Splash-Proof Profile |
Buy Now |
| 260 |
73433000 |
Lock Washer |
Buy Now |
| 280 |
50504110 |
Angle Bushing Water Distribution |
Buy Now |
| 290 |
73030260 |
Screw |
Buy Now |
| 300 |
73031080 |
Screw |
Buy Now |
| 310 |
63130020 |
Spring Clip |
Buy Now |
| 320 |
73062130 |
Screw |
Buy Now |
| 330 |
73120410 |
Serrated Lock Washer |
Buy Now |
| 340 |
53370330 |
Plate Spring |
Buy Now |
| 350 |
50373670 |
Access Cover |
Buy Now |
| 360 |
63300110 |
Extension Spring |
Buy Now |
| 370 |
73120040 |
Washer |
Buy Now |
| 380 |
73430150 |
Locking Ring |
Buy Now |
| 390 |
63882160 |
Hose |
Buy Now |
| 400 |
73120260 |
Washer |
Buy Now |
| 410 |
50373910 |
Cord Suction Beam Retraction |
Buy Now |
| 420 |
66414630 |
Cable Tie |
Buy Now |
| 430 |
66486380 |
Cable Tie |
Buy Now |
| 500 |
50370280 |
Bearing Suction Bar Disk |
Buy Now |
| 510 |
50370300 |
Bracket Suction Bar |
Buy Now |
| 520 |
50370290 |
Joint Suction Beam Retraction |
Buy Now |

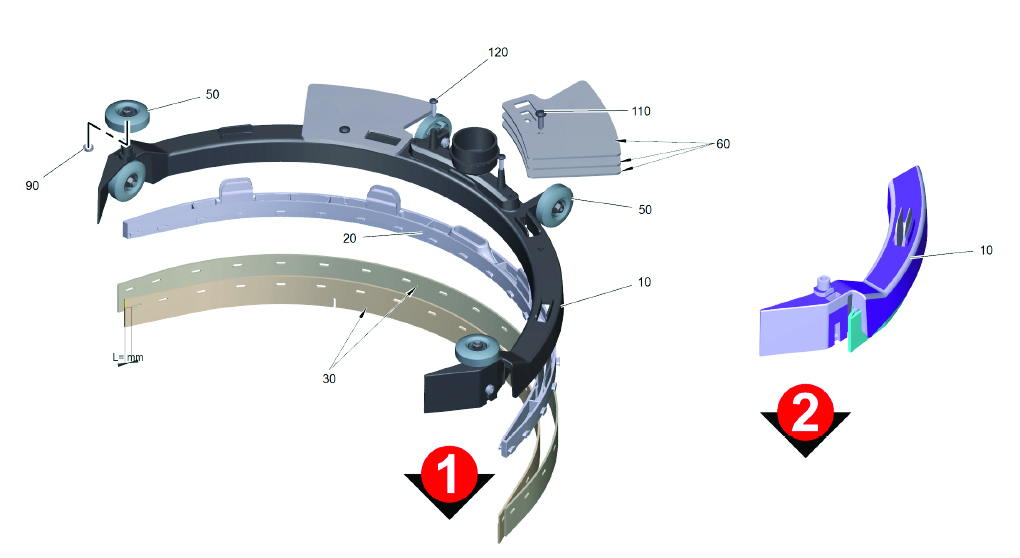

BD 38/12 C BP Suction Bar Replacement Version 1
Karcher BD 38/12 C BP Suction Bar Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40371190 |
Suction Bar |
Call to Order |
| 10 |
77779990 |
Stockpiling Discontinued |
Call to Order |
| 20 |
77779990 |
Stockpiling Discontinued |
Call to Order |
| 30 |
40370590 |
Suction Lip Set |
Buy Now |
| 50 |
40370570 |
Set Wheel Suction Bar |
Buy Now |
| 60 |
50370530 |
Weight Suction Bar |
Call to Order |
| 90 |
- |
Lock Washer |
Call to Order |
| 110 |
73031070 |
Screw |
Buy Now |
| 120 |
73031290 |
Screw |
Buy Now |

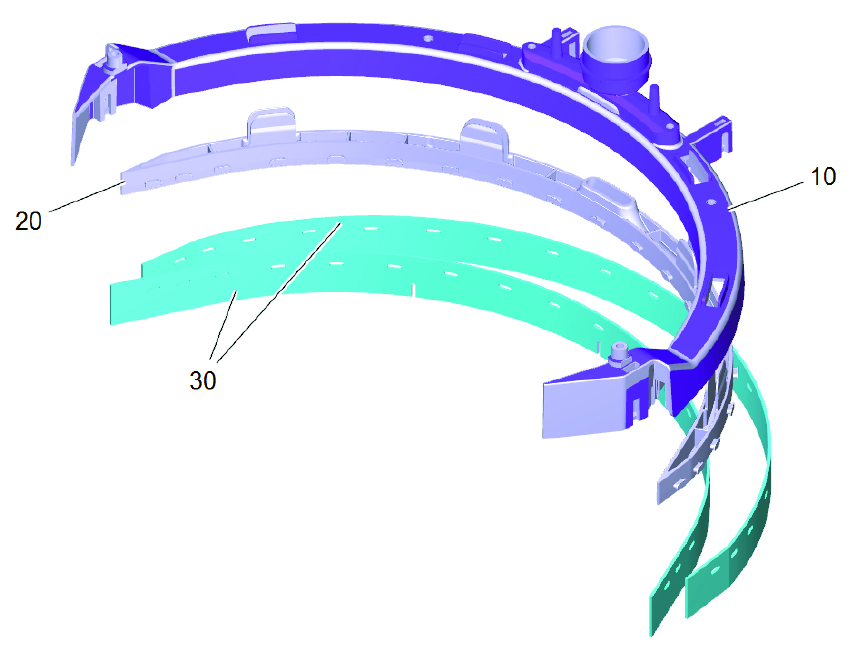

BD 38/12 C BP Suction Bar Spare Parts Version 2
Karcher BD 38/12 C BP Suction Bar Spare Parts
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50375160 |
Suction Bar External Part |
Buy Now |
| 20 |
50375170 |
Suction Bar Internal Part |
Buy Now |
| 30 |
40371180 |
Suction Lip Set - Urethane |
Buy Now |
| 30 |
40371300 |
Suction Lip Set - Gum Rubber |
Buy Now |

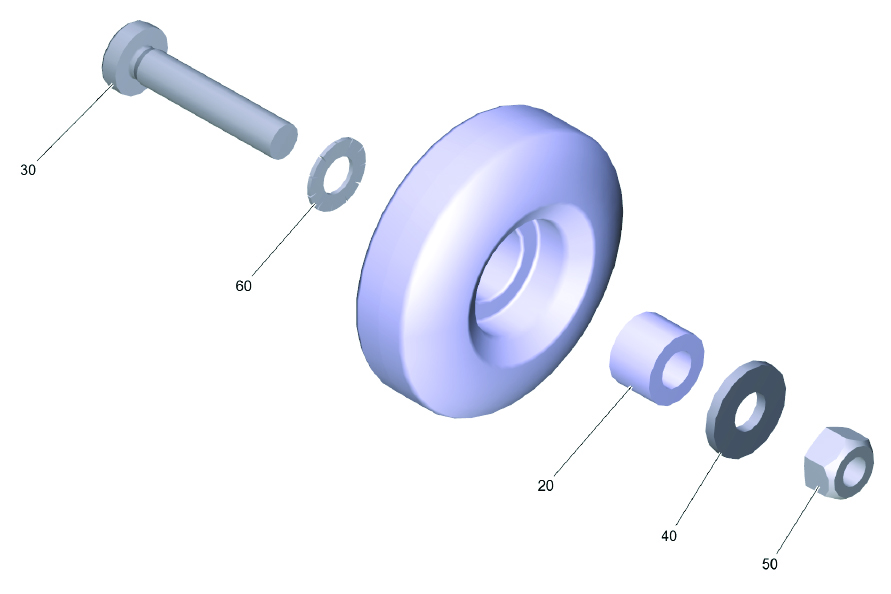

BD 38/12 C BP Set Wheel Suction Bar
Karcher BD 38/12 C BP Set Wheel Suction Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50370180 |
Sleeve |
Buy Now |
| 30 |
73064040 |
Screw |
Call to Order |
| 40 |
50330790 |
Washer |
Buy Now |
| 50 |
73114310 |
Hexagon Nut |
Buy Now |
| 60 |
73120410 |
Serrated Lock Washer |
Buy Now |
