Clarke MP 1800

Assembly

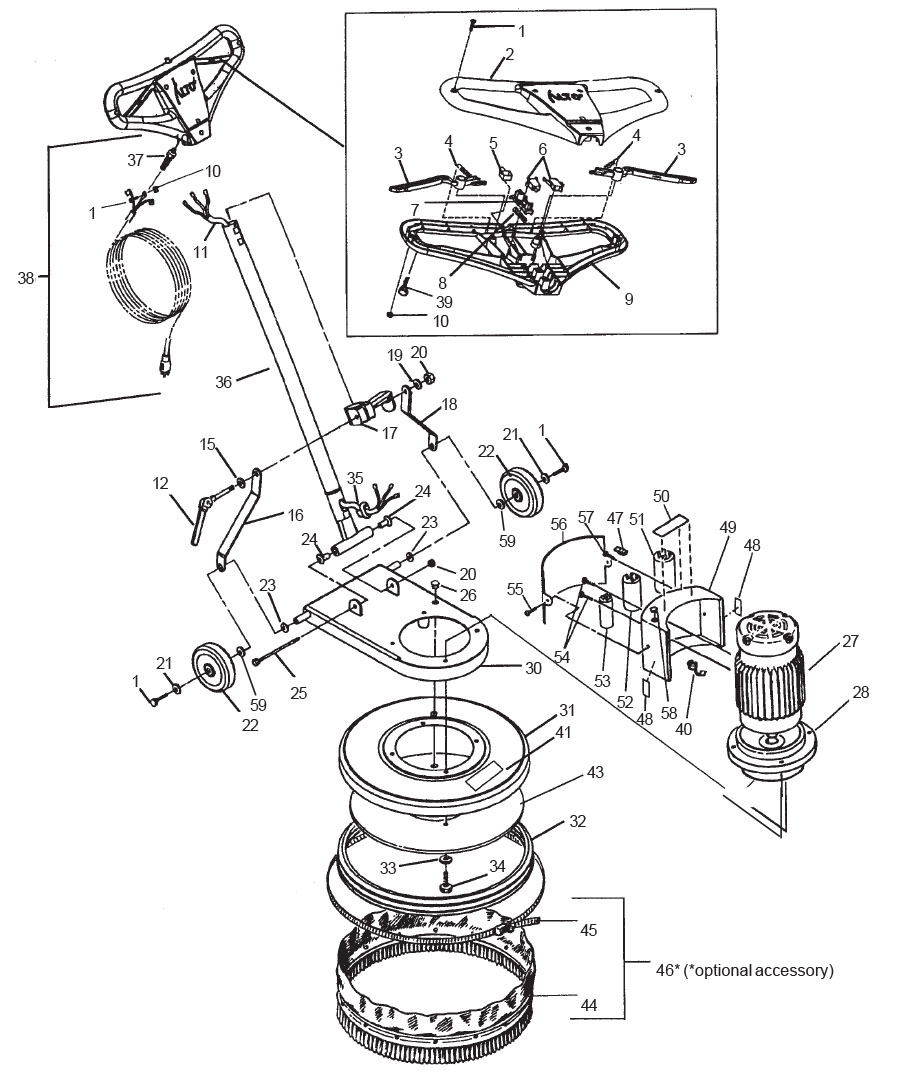

Clarke MP 1800 Assembly

1	85383A	Screw	Buy Now
2	50779A	Front Handle	Buy Now
3	50798A	Switch Lever	Buy Now
4	50820A	Extension Spring	Buy Now
5	50806A	Interlock Button	Buy Now
6	40109A	Switch	Buy Now
7	50799A	Main Interlock	Buy Now
8	50821A	Compression Spring	Buy Now
9	50780A	Rear Handle	Buy Now
10	920722	Nut	Buy Now
11	50871A	Interconnect Cord	Call to Order
12	56109699	Cam Assembly with Grip	Buy Now
15	980349	Wear Cam Washer	Buy Now
16	52348A	Right Arm Link	Buy Now
17	50781A	Handle Clamp	Buy Now
18	52349A	Left Arm Link	Buy Now
19	980645	Flat Washer	Buy Now
20	920342	Nut	Buy Now
21	87035A	Washer	Buy Now
22	50793A	Wheel	Buy Now
23	87050A	Washer	Buy Now
24	50794A	Nylon Bushing	Buy Now
25	80087A	Screw	Buy Now
26	57120A	Button Plug	Call to Order
27	40170A	Motor	Call to Order
28	50979A	Gearbox	Call to Order
29	50823A	Motor Cover	Buy Now
30	50790A	Main Frame	Buy Now
31	50786A	Brush Shield	Buy Now
32	50783A	Bumper	Buy Now
33	980652	Lock Washer	Buy Now
34	85739A	Screw	Buy Now
35	50796A	Cord Bushing	Buy Now
36	50795A	Handle Tube	Buy Now
37	50797A	Strain Relief	Buy Now
38	50870A	Cord Assembly	Call to Order
39	962957	Screw	Buy Now
40	51523A	Strain Relief Bushing	Buy Now
41	77378A	Clarke Label	Call to Order
42	170686	Lock Nut	Buy Now
43	50853A	Weight	Buy Now
44	18446A	Skirt	Buy Now
45	50831A	Clamp	Buy Now
46	10088A	Dust Skirt Kit	Buy Now
47	170667	Wire Nut	Buy Now
48	77234A	Warning Label	Buy Now
49	22906A	Motor Enclosure	Call to Order
50	77195A	Warning Label	Buy Now
51	41314A	Capacitor Start	Call to Order
52	53397A	Capacitor Run	Call to Order
53	47378A	Start Switch	Buy Now
54	962892	Screw	Buy Now
55	962727	Screw	Buy Now
56	62667A	Enclosure Cover	Buy Now
57	85833A	Ground Screw	Buy Now
58	57165A	Nylon Plug	Buy Now
59	80189A	Wave Washer	Buy Now
NI	50026B	Solution Tank	Buy Now

Gearbox

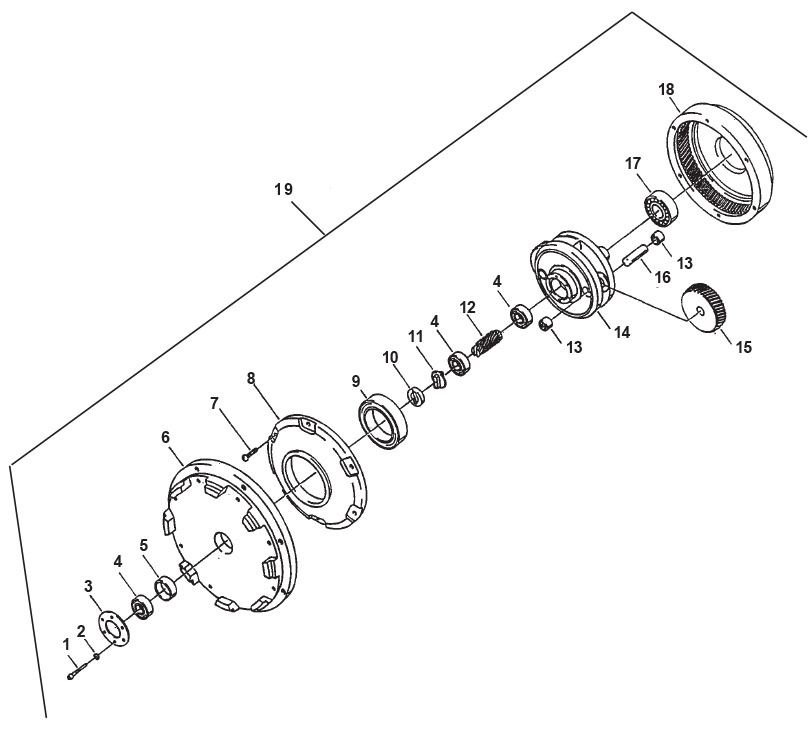

Clarke MP 1800 Gearbox

Reference #	Part #	Description	Add to Cart
1	962966	Screw	Buy Now
2	980650	Lock Washer	Buy Now
3	56922A	Bearing Retainer	Buy Now
4	902606	Ball Bearing	Buy Now
5	58520A	Sleeve Spacer	Buy Now
6	-	Endshield	Call to Order
7	962794	Screw	Buy Now
8	54858A	Housing Cover	Call to Order
9	902736	Bearing	Buy Now
10	58314A	Retainer	Buy Now
11	442473	Coupling	Buy Now
12	58313A	Pinion Gear	Buy Now
13	902737	Needle Bearing	Call to Order
14	-	Cage	Call to Order
15	54408A	Idler Gear	Call to Order
16	58312A	Shaft	Buy Now
17	902654	Ball Bearing	Buy Now
18	54856A	Drive Housing	Call to Order
19	50979A	Gearbox Assembly	Call to Order
NI	503802	Grease	Buy Now
