Clarke MA30

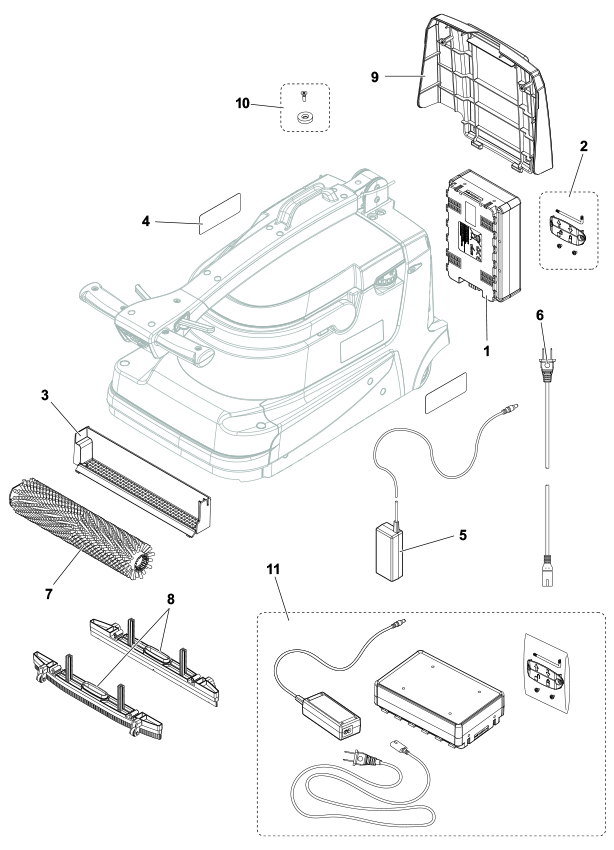

Body
Clarke MA30 Body
| 1 |
9100002070 |
Battery |
Buy Now |
| 2 |
9100002059 |
Battery Handle |
Buy Now |
| 3 |
9100001964 |
Mini Container |
Buy Now |
| 4 |
9100002025 |
Clarke Decals |
Buy Now |
| 5 |
9100002058 |
Battery Charger |
Buy Now |
| 6 |
9100002008 |
Power Supply Cable |
Buy Now |
| 7 |
9100002066 |
White Nylon Brush |
Buy Now |
| 7 |
9100002067 |
Grey Hard Grit Brush |
Buy Now |
| 7 |
9100002068 |
Microfiber Brush |
Buy Now |
| 7 |
9100002069 |
Black Nylon Brush |
Buy Now |
| 8 |
9100002063 |
Grey Rubber Squeegee |
Call to Order |
| 8 |
9100002064 |
Squeegee |
Buy Now |
| 9 |
9100002027 |
Rear Cover Kit |
Buy Now |
| 10 |
9100002028 |
Round Magnet Kit |
Buy Now |
| 11 |
9100002057 |
Battery Pack |
Buy Now |

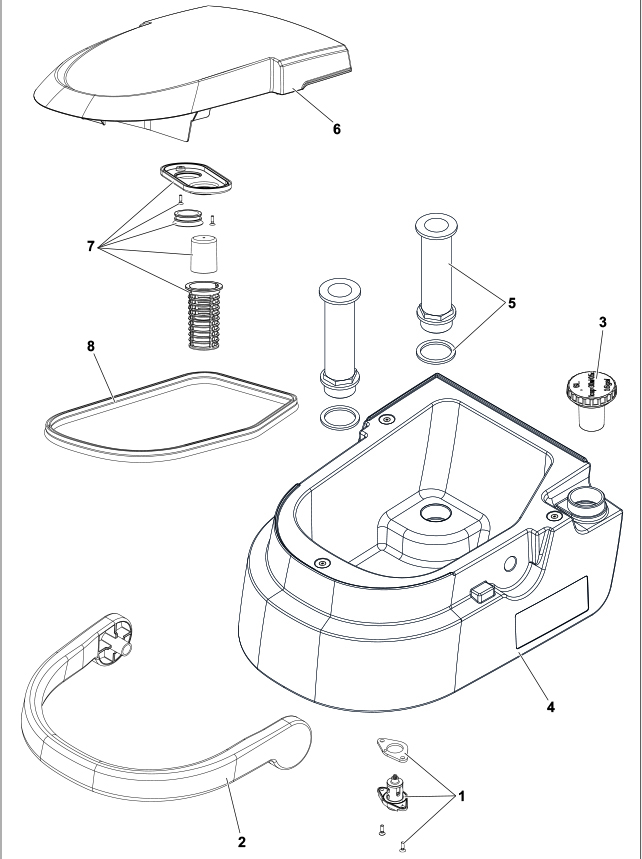

Solution & Recovery Tank
Clarke MA30 Solution & Recovery Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100002029 |
Solution Tank Valve Kit |
Buy Now |
| 2 |
9100002012 |
Plastic Handle |
Buy Now |
| 3 |
9100001990 |
Plastic Cap |
Buy Now |
| 4 |
9100002031 |
Water Tank |
Buy Now |
| 5 |
9100002032 |
Plastic Pipe |
Buy Now |
| 6 |
9100002034 |
Tank Cover |
Buy Now |
| 7 |
9100002035 |
Float Cage |
Buy Now |
| 8 |
9100001993 |
Bulb Gasket |
Buy Now |

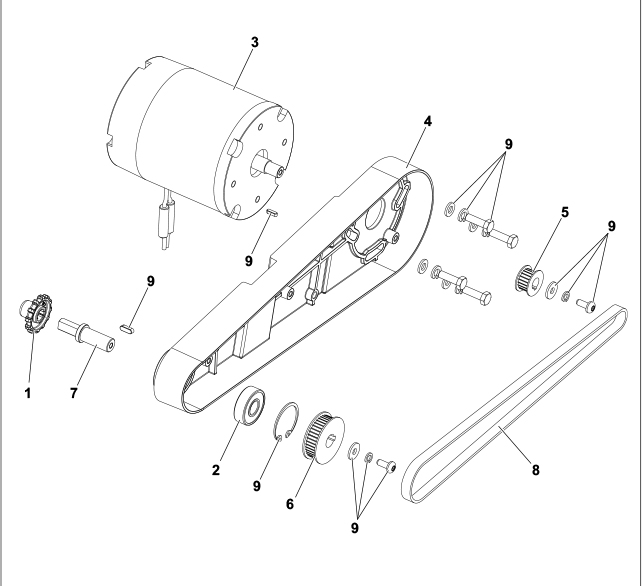

Brush Motor
Clarke MA30 Brush Motor
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100001957 |
Hub Traction Brush |
Buy Now |
| 2 |
9100002018 |
Bearing Ball |
Buy Now |
| 3 |
9100001966 |
Motor Brush |
Buy Now |
| 4 |
9100001967 |
Brush Motor Support |
Buy Now |
| 5 |
9100001968 |
Pulley Timing Belt |
Buy Now |
| 6 |
9100001969 |
Pulley Timing Belt |
Buy Now |
| 7 |
9100001970 |
Shaft |
Buy Now |
| 8 |
9100001971 |
Timing Belt |
Buy Now |
| 9 |
9100002036 |
Hardware Brush Motor Kit |
Buy Now |

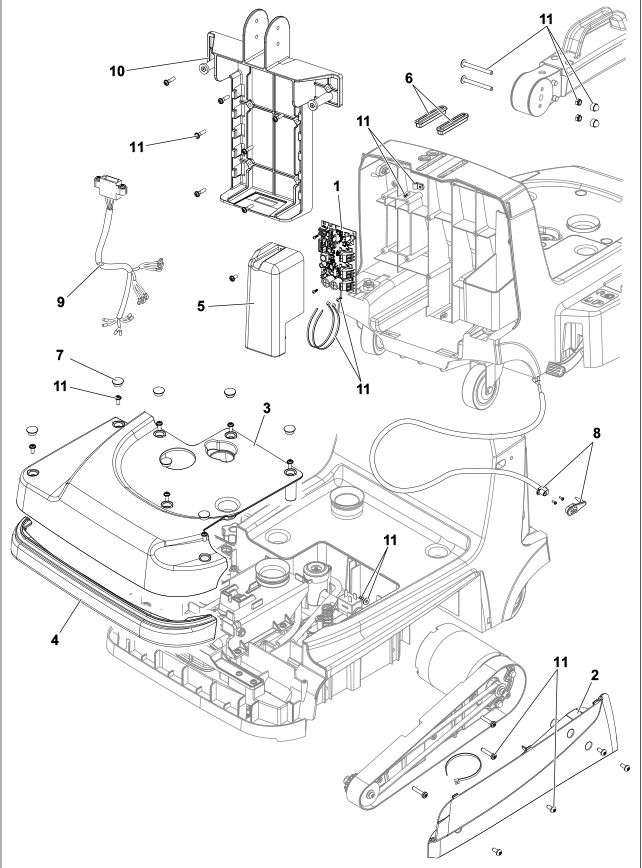

Chassis - Fixing and Cover
Clarke MA30 Chassis - Fixing and Cover
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100001960 |
Main Controller |
Call to Order |
| 2 |
9100002011 |
Belt Casing |
Buy Now |
| 3 |
9100002010 |
Upper Casing |
Buy Now |
| 4 |
9100001988 |
Front Bumper |
Buy Now |
| 5 |
9100001991 |
Plastic Cover |
Buy Now |
| 6 |
9100001994 |
Rubber Gasket |
Buy Now |
| 7 |
9100002019 |
Plastic Clamp |
Buy Now |
| 8 |
9100002037 |
Harness Battery Charger Kit |
Buy Now |
| 9 |
9100002038 |
Harness Battery Kit |
Buy Now |
| 10 |
9100002039 |
Handle Fixing Kit |
Buy Now |
| 11 |
9100002040 |
Hardware Chassis Kit |
Buy Now |

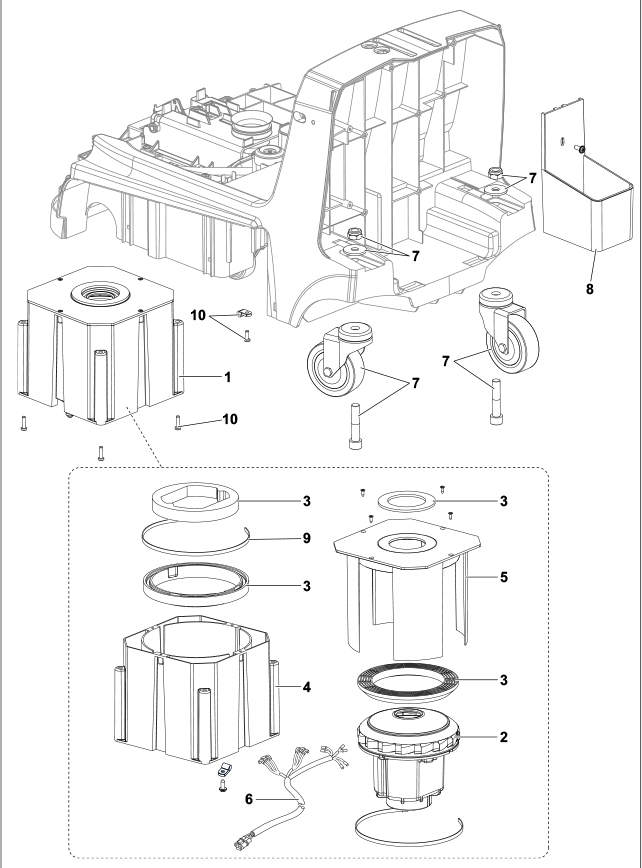

Chassis - Vacuum & Rear Wheels
Clarke MA30 Chassis - Vacuum & Rear Wheels
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100002041 |
Vacuum Motor |
Buy Now |
| 2 |
9100001987 |
Vacuum Motor |
Buy Now |
| 3 |
9100002042 |
Sealings Motor Vacuum Kit |
Buy Now |
| 4 |
9100001983 |
External Support |
Buy Now |
| 5 |
9100001989 |
Internal Support |
Buy Now |
| 6 |
9100001996 |
Vacuum Motor Harness |
Buy Now |
| 7 |
9100002045 |
Wheels Castor Kit |
Buy Now |
| 8 |
9100001992 |
Plastic Contaiiner |
Buy Now |
| 9 |
1466337000 |
Tie Cable |
Buy Now |
| 10 |
9100002046 |
Hardware Vacuum and Rear Wheels Kit |
Buy Now |

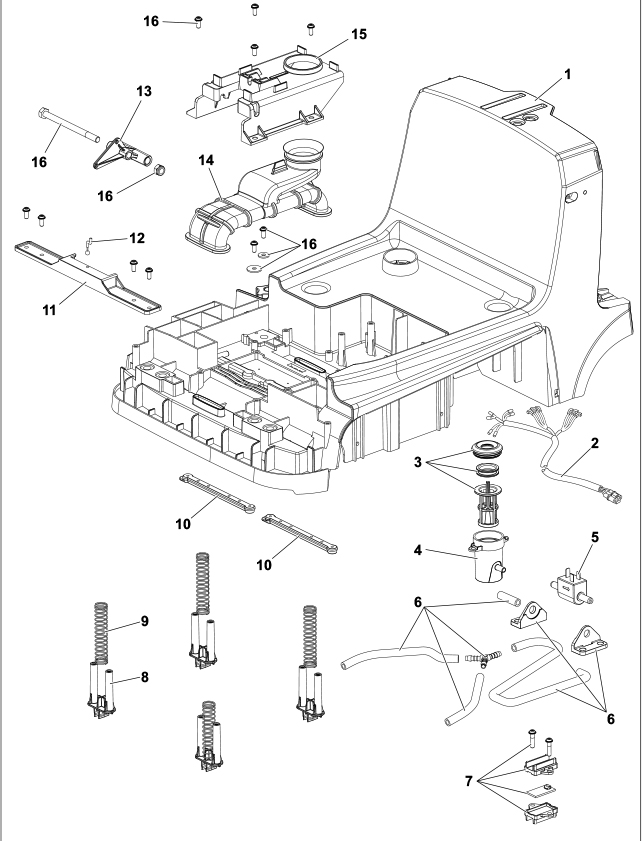

Chassis - Solution & Vac Chamber
Clarke MA30 Chassis - Solution & Vac Chamber
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100002009 |
Plastic Chassis |
Buy Now |
| 2 |
9100001995 |
Water Harness |
Buy Now |
| 3 |
9100002047 |
Plastic Filter |
Buy Now |
| 4 |
9100001997 |
Plastic Support |
Buy Now |
| 5 |
9100001981 |
Water Pump |
Buy Now |
| 6 |
9100002048 |
Hoses Kit |
Buy Now |
| 7 |
9100002049 |
Water Flow Kit |
Buy Now |
| 8 |
9100001977 |
Squeegee Holder |
Buy Now |
| 9 |
9100001984 |
Compress Spring |
Buy Now |
| 10 |
9100001975 |
Water Spray Dispenser |
Buy Now |
| 11 |
9100001978 |
Squeegee Lifter Plate |
Buy Now |
| 12 |
9100001980 |
Metal Hook |
Buy Now |
| 13 |
9100001979 |
Lifting Squeegee Rod |
Buy Now |
| 14 |
9100001974 |
Vacuuming Rubber Chamber |
Buy Now |
| 15 |
9100001976 |
Plastic Support |
Buy Now |
| 16 |
9100002044 |
Hardware Solution Vac Chamber Kit |
Buy Now |

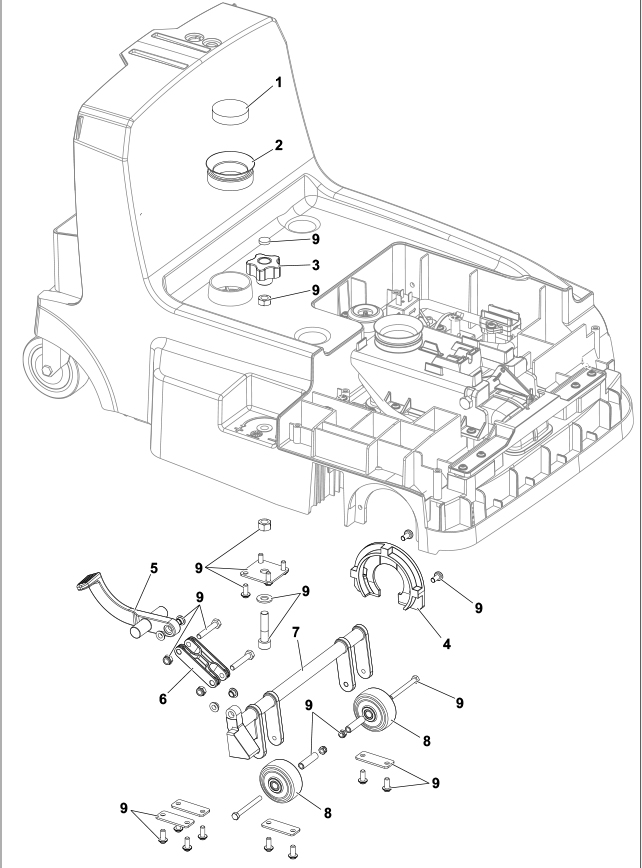

Chassis - Pedal Wheels
Clarke MA30 Chassis - Pedal Wheels
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100001278 |
Vacuum Motor Filter |
Buy Now |
| 2 |
9100001958 |
Gasket |
Buy Now |
| 3 |
9100002017 |
Knob |
Buy Now |
| 4 |
9100001973 |
Brush Hooking Support |
Buy Now |
| 5 |
9100001982 |
Plastic Lever |
Buy Now |
| 6 |
9100001962 |
Pedal |
Buy Now |
| 7 |
9100001961 |
Fixed Wheels Support |
Buy Now |
| 8 |
9100000559 |
Wheel |
Buy Now |
| 9 |
9100002043 |
Hardware Pedal Wheels Kit |
Buy Now |

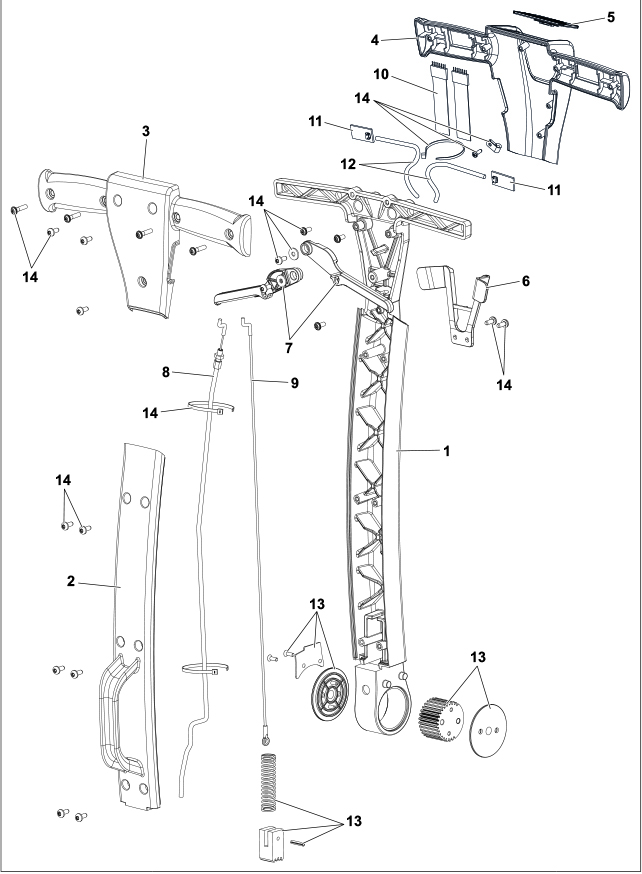

Handle Bar
Clarke MA30 Handle Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100001999 |
Handle Bar |
Buy Now |
| 2 |
9100002015 |
Plastic Cover |
Buy Now |
| 3 |
9100002014 |
Lower Cover |
Buy Now |
| 4 |
9100002013 |
Upper Cover |
Buy Now |
| 5 |
9100001985 |
Controller User Interface |
Buy Now |
| 6 |
9100002005 |
Lock Lever |
Buy Now |
| 7 |
9100002003 |
Handle Lever |
Buy Now |
| 8 |
9100002002 |
Lifting Squeegee Cable |
Buy Now |
| 9 |
9100001998 |
Handle Adjusting Cable |
Buy Now |
| 10 |
9100001986 |
Handle Bar Harness |
Buy Now |
| 11 |
9100002016 |
Capacitive Sensor |
Buy Now |
| 12 |
9100002006 |
Handle Bar Harness |
Buy Now |
| 13 |
9100002020 |
Lock Handle Kit |
Buy Now |
| 14 |
9100002021 |
Hardware Handle Bar Kit |
Buy Now |
