Clarke MA10

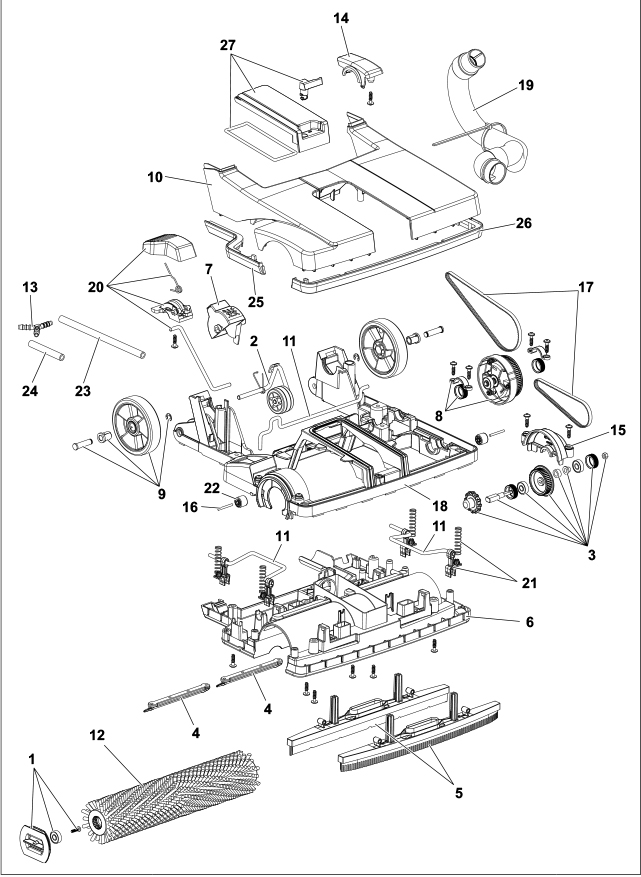

Nozzle Head
Clarke MA10 Nozzle Head
| 1 |
107413503 |
Key Lock |
Buy Now |
| 2 |
107413471 |
Axle Height Adjustment Roller |
Buy Now |
| 3 |
107413495 |
Brush Mounting |
Buy Now |
| 4 |
107413493 |
Dosing Bridge |
Buy Now |
| 5 |
107411867 |
Squeegee Kit |
Buy Now |
| 5 |
107411868 |
Squeegee Carpet Kit |
Buy Now |
| 6 |
- |
Nozzle Head Chassis |
Call to Order |
| 7 |
107413522 |
Squeegee Pedal |
Buy Now |
| 8 |
107413487 |
Clutch Overload |
Buy Now |
| 9 |
107413515 |
Rear Wheel |
Buy Now |
| 10 |
- |
Top Cover Chassis |
Call to Order |
| 11 |
107413520 |
Squeegee Lifter |
Buy Now |
| 12 |
107411860 |
White Cylinder Brush |
Buy Now |
| 12 |
107411861 |
Black Cylinder Brush |
Buy Now |
| 12 |
107411862 |
Microfiber Cylinder Brush |
Buy Now |
| 12 |
107411863 |
Carpet Cylinder Brush |
Buy Now |
| 13 |
- |
Y-Connector |
Call to Order |
| 14 |
107414818 |
Bearing Cover |
Buy Now |
| 15 |
107413476 |
Brush Bearing Cover |
Buy Now |
| 16 |
- |
Axle for Support Roller |
Call to Order |
| 17 |
107413477 |
Bando Belt |
Buy Now |
| 18 |
- |
Frame for Chassis |
Call to Order |
| 19 |
107413478 |
Hose Air Channel |
Buy Now |
| 20 |
107413512 |
Parking Pedal |
Buy Now |
| 21 |
107413521 |
Body Squeegee Lifter |
Buy Now |
| 22 |
- |
Support Roller |
Call to Order |
| 23 |
- |
Silicone Hose |
Call to Order |
| 24 |
- |
Silicone Hose |
Call to Order |
| 25 |
- |
Right Bumper |
Call to Order |
| 26 |
- |
Left Bumper |
Call to Order |
| 27 |
107413488 |
Cover for Squeegee Channel |
Buy Now |
| K1 |
107413509 |
Nozzle Head |
Buy Now |
| K2 |
107413526 |
Top Cover Chassis |
Buy Now |

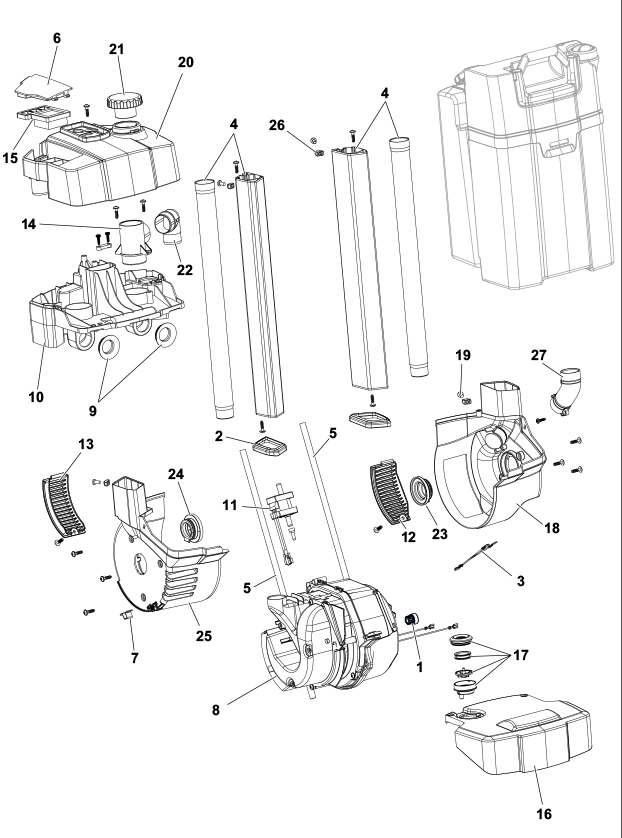

Body Complete
Clarke MA10 Body Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
107413535 |
Cog Wheel |
Buy Now |
| 2 |
107414820 |
Sealing |
Buy Now |
| 3 |
107414814 |
Wire Fastons |
Buy Now |
| 4 |
107414816 |
Aluminum Profile with Tubes |
Buy Now |
| 5 |
107413523 |
Silicone Hose |
Buy Now |
| 6 |
107413505 |
Filter Lid |
Buy Now |
| 7 |
- |
P-Clip |
Call to Order |
| 8 |
107416434 |
Motor Housing |
Buy Now |
| 9 |
107413499 |
Gasket |
Buy Now |
| 10 |
- |
Flow Base |
Call to Order |
| 11 |
107416429 |
Dosing Pump |
Buy Now |
| 12 |
- |
Motor Lid for Outlet |
Call to Order |
| 13 |
- |
Turbine Lid for Outlet |
Call to Order |
| 14 |
- |
Adapter Top Cover |
Call to Order |
| 15 |
107413496 |
Filter |
Buy Now |
| 16 |
107414822 |
Top Cover Base |
Buy Now |
| 17 |
107413497 |
Solution Filter |
Buy Now |
| 18 |
- |
Left Body |
Call to Order |
| 19 |
107413508 |
Bolt |
Buy Now |
| 20 |
- |
Top Cover |
Call to Order |
| 21 |
107413486 |
Cap for Spot Cleaning |
Buy Now |
| 22 |
- |
Adapter Tube |
Call to Order |
| 23 |
- |
Left Bearing |
Call to Order |
| 24 |
- |
Right Bearing |
Call to Order |
| 25 |
- |
Right Body |
Call to Order |
| 26 |
107413529 |
T-Nut |
Buy Now |
| 27 |
107413479 |
Bend for Suction Hose |
Buy Now |
| K1 |
107416425 |
Right Body RAL |
Buy Now |
| K2 |
107416426 |
Left Body RAL |
Buy Now |
| K3 |
107416437 |
Clarke Top Cover |
Buy Now |

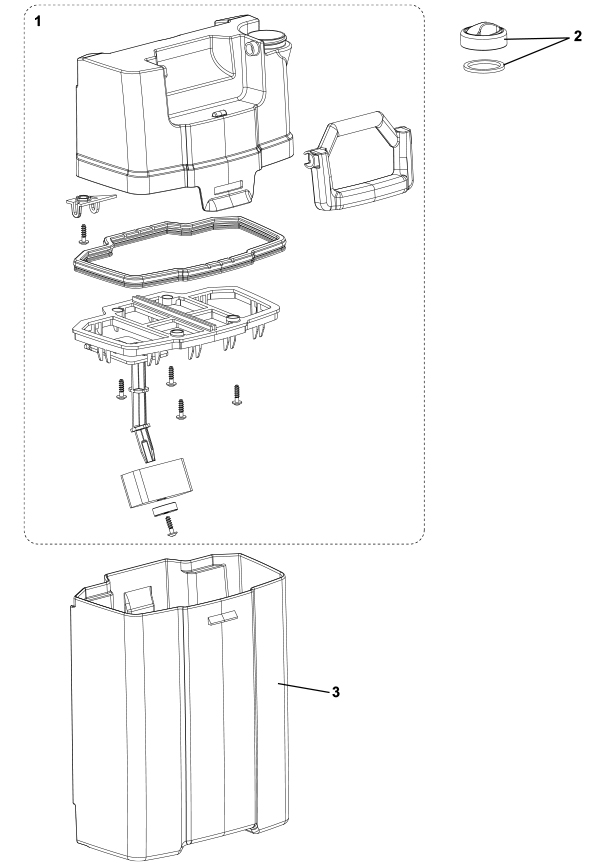

Recovery Tank
Clarke MA10 Recovery Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
107413528 |
Top Recovery Tank |
Buy Now |
| 2 |
107413484 |
Cap for Recovery Tank |
Buy Now |
| 3 |
107413514 |
Recovery Tank |
Buy Now |

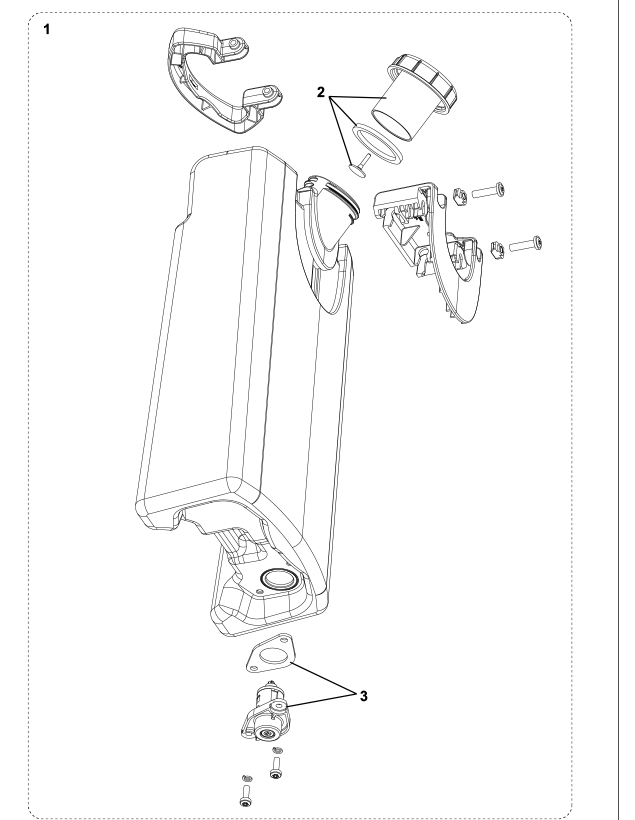

Solution Tank
Clarke MA10 Solution Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
107413518 |
Solution Tank |
Buy Now |
| 2 |
107413485 |
Solution Tank Cap |
Buy Now |
| 3 |
107413532 |
Solution Tank Valve |
Buy Now |

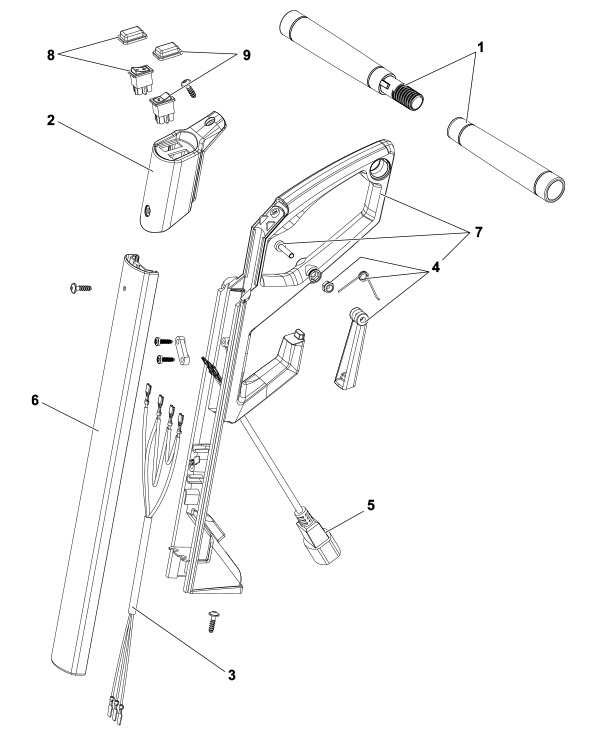

Handle Complete
Clarke MA10 Handle Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
107413470 |
Handle |
Buy Now |
| 2 |
107416436 |
User Interface Cover |
Buy Now |
| 3 |
107413482 |
Cable |
Buy Now |
| 4 |
107413480 |
Carabina and Spring for Handle |
Buy Now |
| 5 |
107413489 |
Detachable Cord Plug |
Buy Now |
| 6 |
107413472 |
Aluminum Tube |
Buy Now |
| 7 |
107416432 |
Handle Scrubber |
Buy Now |
| 8 |
107413516 |
Main Switch |
Buy Now |
| 9 |
107413517 |
Pump Switch |
Buy Now |
