Clarke Focus 2 Mid

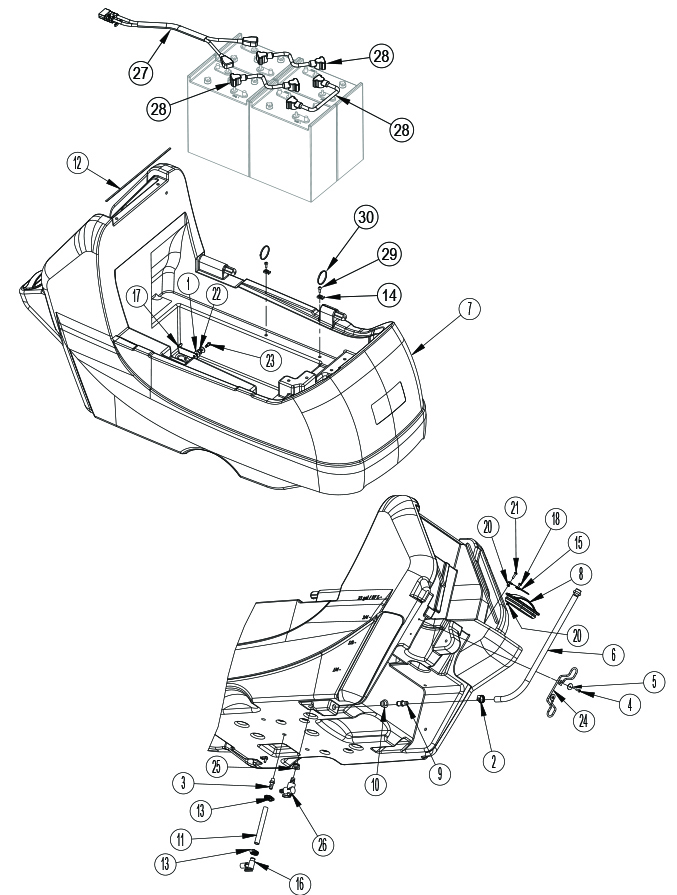

Solution Tank Assembly
Clarke Focus 2 Mid Solution Tank Assembly

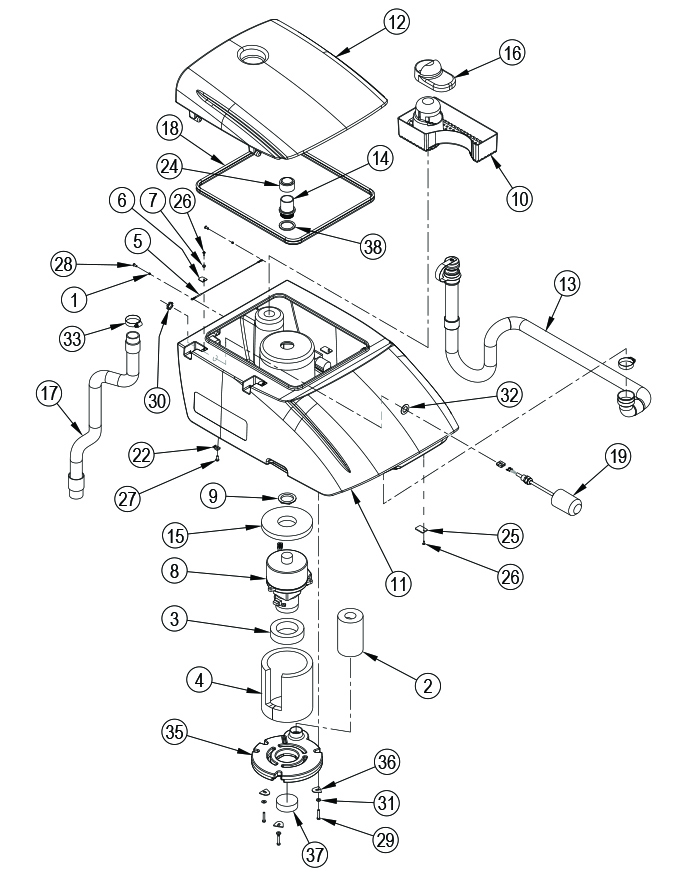

Recovery Tank Assembly
Clarke Focus 2 Mid Recovery Tank Assembly

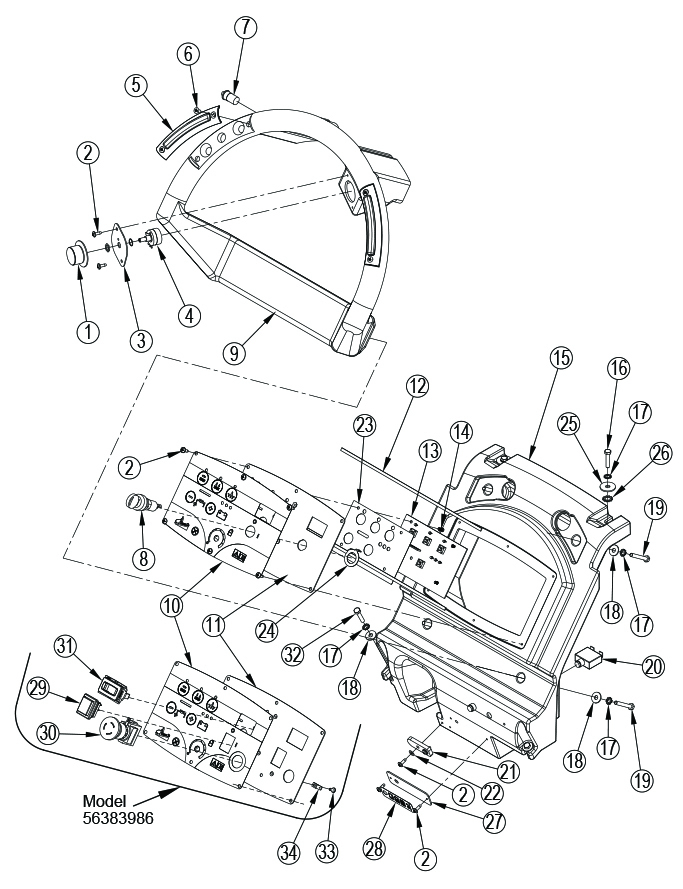

Handle Assembly
Clarke Focus 2 Mid Handle Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
50962A |
Speed Control Knob |
Buy Now |
| 2 |
962957 |
Screw |
Buy Now |
| 3 |
61922A |
Potentiometer Retainer |
Buy Now |
| 4 |
41078A |
Potentiometer Harness Assembly |
Buy Now |
| 5 |
11131A |
Control Handle Assembly Switch |
Buy Now |
| 6 |
80192A |
Screw |
Buy Now |
| 7 |
52556A |
Push Button Switch |
Buy Now |
| 8 |
1462888000 |
Key Switch |
Buy Now |
| 9 |
30785A |
Control Handle |
Buy Now |
| 10 |
71425A |
Decal Control |
Buy Now |
| - |
71484A |
Control Panel Label |
Buy Now |
| - |
56383990 |
Control Panel Label |
Buy Now |
| 11 |
61929A |
Control Panel |
Buy Now |
| 11 |
56383991 |
Control Panel |
Buy Now |
| 12 |
39886A |
Console Gasket |
Buy Now |
| 13 |
56382501 |
Function Board Service Kit |
Buy Now |
| 14 |
50267A |
Screw |
Buy Now |
| 15 |
30784A |
Control Housing |
Buy Now |
| 15 |
56383904 |
Control Housing |
Buy Now |
| 16 |
87902A |
Screw |
Call to Order |
| 17 |
980614 |
Washer |
Buy Now |
| 18 |
87007A |
Washer Control Shaft |
Buy Now |
| 19 |
88628A |
Screw |
Call to Order |
| 20 |
41431B |
Breaker Circuit |
Buy Now |
| 20 |
41422B |
Breaker Circuit |
Buy Now |
| 21 |
39888A |
Drain Hose Retainer |
Buy Now |
| 22 |
980643 |
Washer |
Buy Now |
| 23 |
30831A |
Insulator |
Buy Now |
| 24 |
61948A |
Tab Ground Washer |
Buy Now |
| 25 |
980205 |
Washer |
Buy Now |
| 26 |
980666 |
Washer |
Buy Now |
| 27 |
56383897 |
LED Bracket |
Buy Now |
| 28 |
56383503 |
Charger LED Decal |
Buy Now |
| 29 |
47316B |
Rocker Switch |
Buy Now |
| 30 |
56407130 |
Emergency Disconnect |
Buy Now |
| 31 |
912226 |
Meter Hour |
Buy Now |
| 32 |
80410A |
Screw |
Call to Order |
| 33 |
56001818 |
Screw |
Buy Now |
| 34 |
56384028 |
Stud Mount Tab |
Call to Order |
| - |
56469384 |
Receptacle Tab |
Buy Now |
| - |
56384026 |
Jumper Harness |
Call to Order |
| - |
56384027 |
Rocker Harness |
Call to Order |
| - |
41063A |
Key Switch Harness |
Buy Now |
| - |
56469382 |
Term |
Buy Now |
| - |
56394259 |
Prop Decal |
Buy Now |

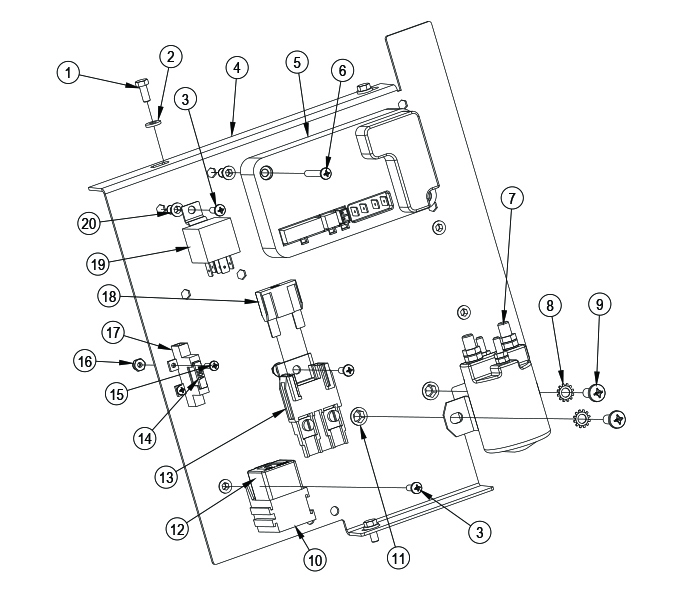

Electrical Box Assembly
Clarke Focus 2 Mid Electrical Box Assembly

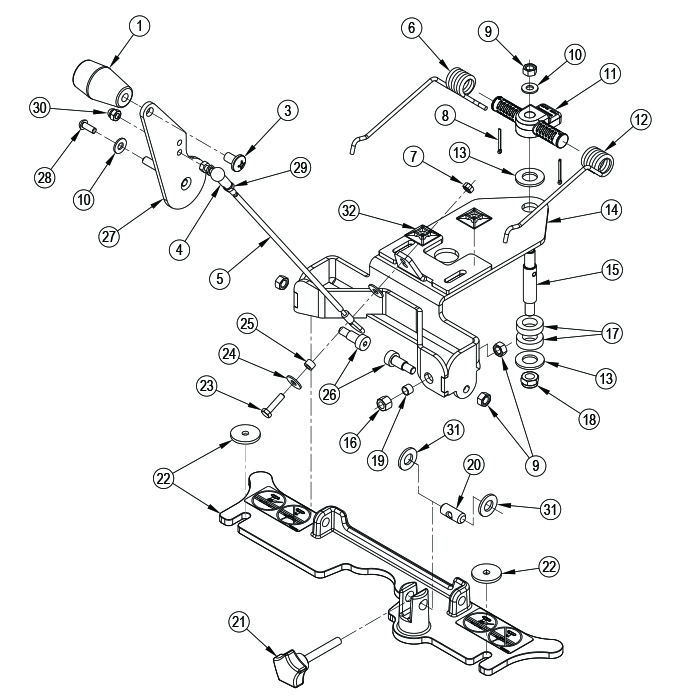

Squeegee Lift Holder Assembly
Clarke Focus 2 Mid Squeegee Lift Holder Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
52557A |
Lift Knob |
Buy Now |
| 3 |
85389A |
Screw |
Buy Now |
| 4 |
1458479000 |
Ball Joint |
Buy Now |
| 5 |
9097366000 |
Lift Cable |
Buy Now |
| 6 |
9096537000 |
Squeegee Left Spring |
Buy Now |
| 7 |
80199A |
Nut |
Buy Now |
| 8 |
925044 |
Cotter Pin |
Buy Now |
| 9 |
80198A |
Nut |
Buy Now |
| 10 |
980651 |
Flat Washer |
Call to Order |
| 11 |
9100000515 |
Squeegee Spring Support |
Call to Order |
| 12 |
9096538000 |
Squeegee Right Spring |
Buy Now |
| 13 |
87613A |
Flat Washer |
Buy Now |
| 14 |
61953A |
Squeegee Support Plate |
Buy Now |
| 15 |
9096497000 |
Squeegee Mounting Pin |
Buy Now |
| 16 |
80163A |
Hex Nut |
Call to Order |
| 17 |
38708A |
Spacer |
Buy Now |
| 18 |
80223A |
Nylock Nut |
Buy Now |
| 19 |
L08602422 |
Spacer |
Buy Now |
| 20 |
L08601509 |
Pin |
Buy Now |
| 21 |
54699A |
Knob |
Buy Now |
| 22 |
56384513 |
Squeegee Bracket Kit |
Buy Now |
| 23 |
964054 |
Screw |
Buy Now |
| 24 |
87007A |
Washer |
Buy Now |
| 25 |
1462258000 |
Spacer |
Buy Now |
| 26 |
9096495000 |
Socket Head Screw |
Buy Now |
| 27 |
61952A |
Squeegee Lift Lever |
Buy Now |
| 28 |
80179A |
Screw |
Buy Now |
| 29 |
80171A |
Hex Nut |
Buy Now |
| 30 |
88640A |
Acorn Nut |
Buy Now |
| 31 |
80424A |
Flat Washer |
Buy Now |
| 32 |
9096635000 |
Self-Adhesive Sideburns |
Buy Now |

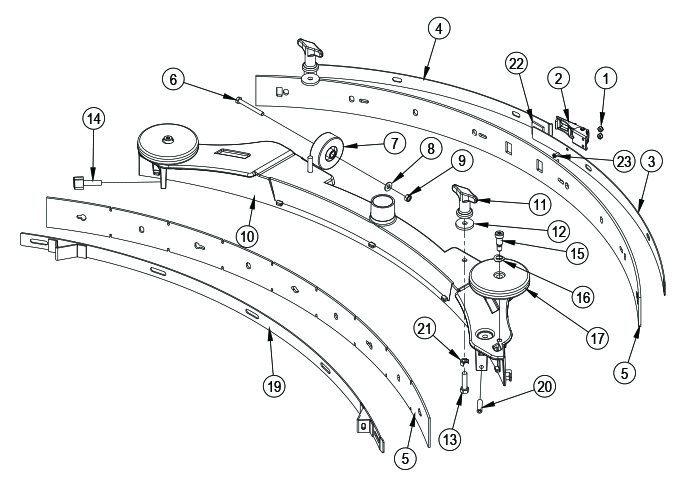

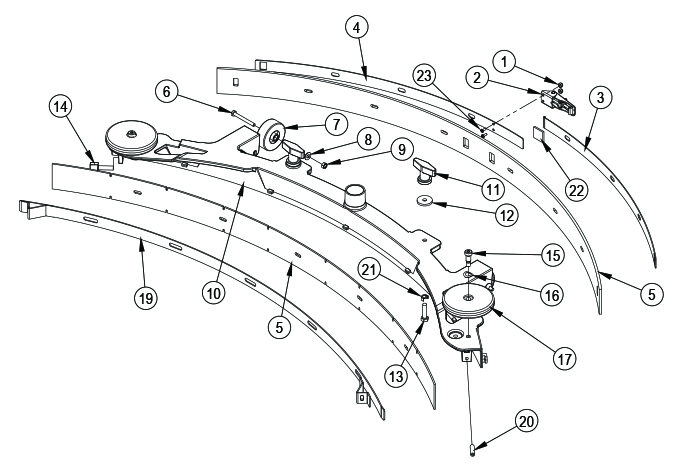

Squeegee Assembly
Clarke Focus 2 Mid Squeegee Assembly

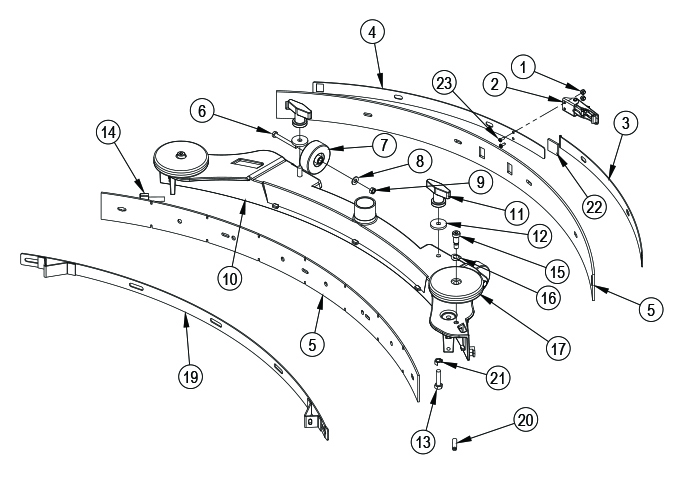

Squeegee Assembly
Clarke Focus 2 Mid Squeegee Assembly
Squeegee Assembly
Clarke Focus 2 Mid Squeegee Assembly

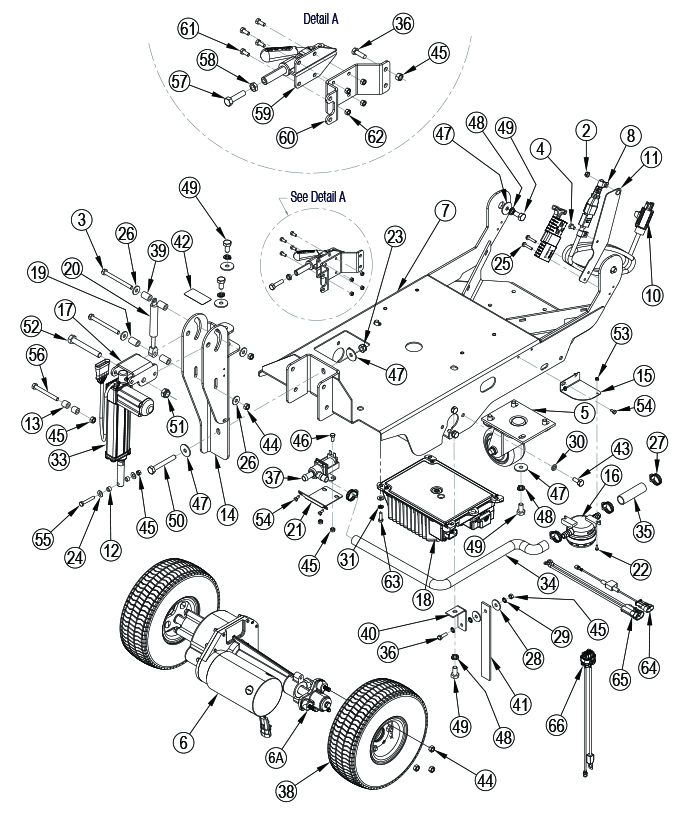

Frame Assembly
Clarke Focus 2 Mid Frame Assembly

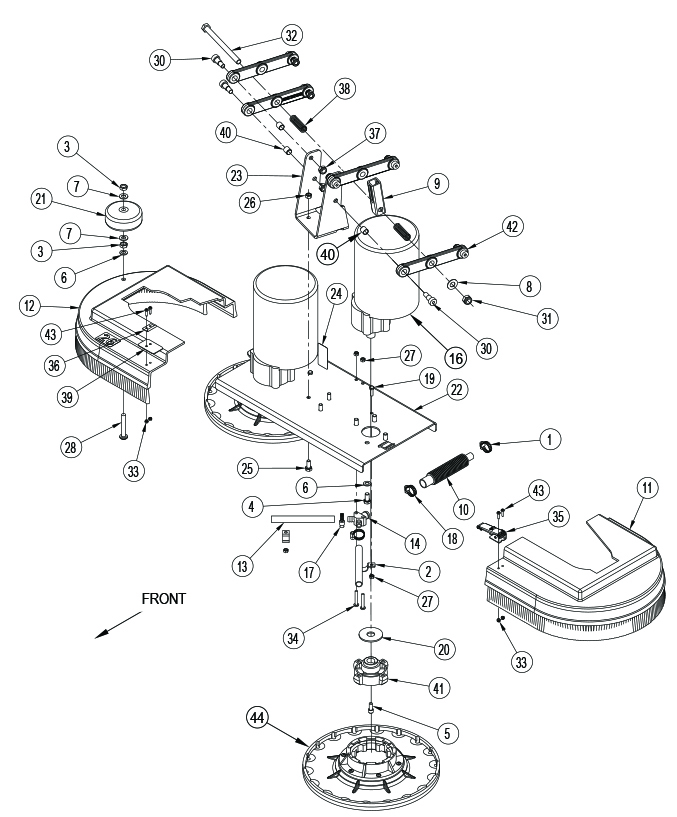

Brush Head Assembly
Clarke Focus 2 Mid Brush Head Assembly

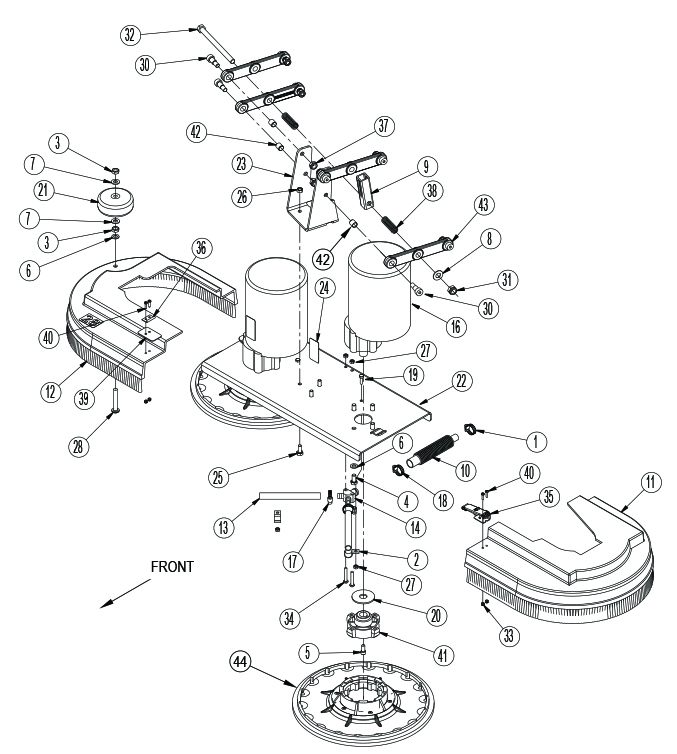

Brush Head Assembly
Clarke Focus 2 Mid Brush Head Assembly

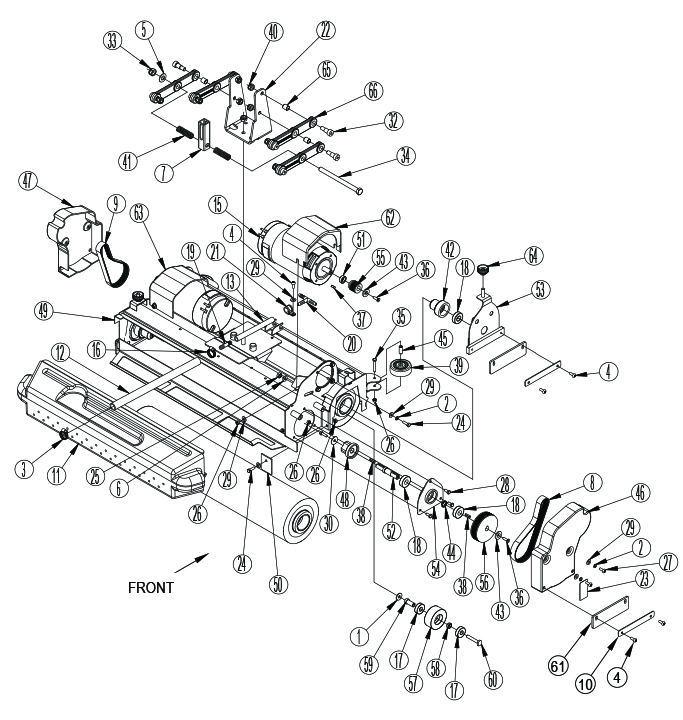

Brush Head Assembly
Clarke Focus 2 Micro Rider Magic Deck Assembly

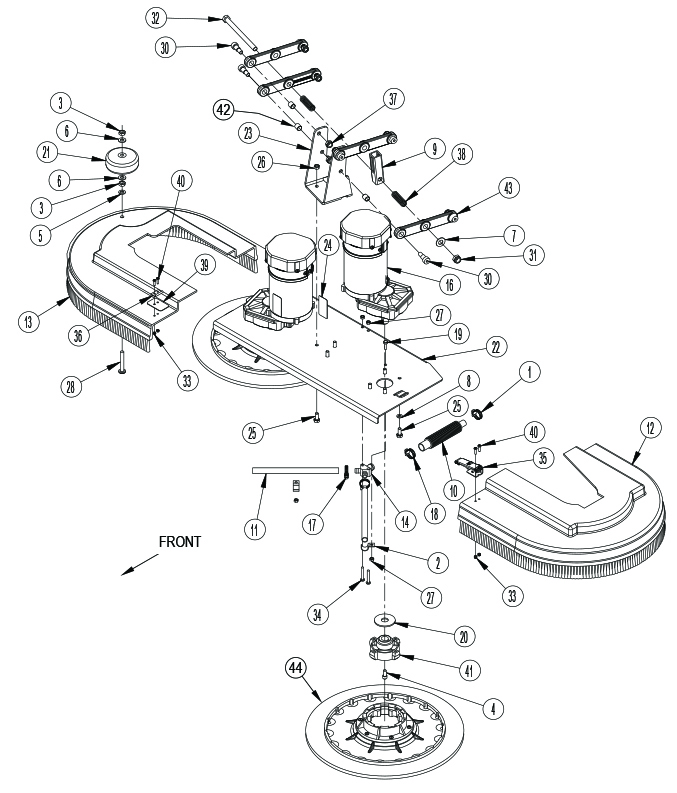

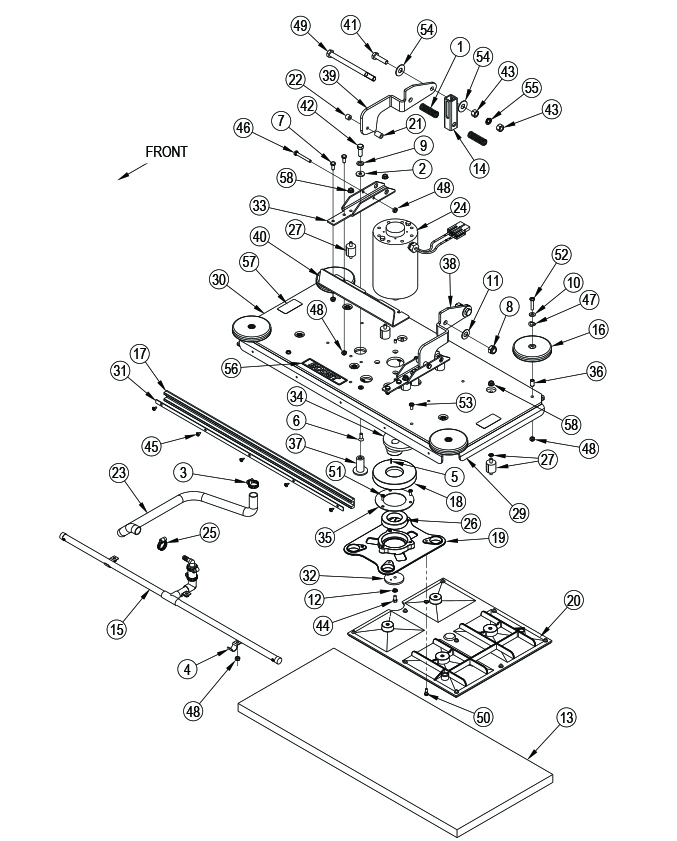

Brush Head Assembly
ChariotClarke Focus 2 Mid Brush Head Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
E04016 |
Spring |
Buy Now |
| 2 |
170860 |
Flat Washer |
Buy Now |
| 3 |
722030 |
Hose Clamp |
Buy Now |
| 4 |
782002 |
Manifold Clamp |
Buy Now |
| 5 |
925589 |
Roll Pin |
Buy Now |
| 6 |
56001881 |
Screw |
Buy Now |
| 7 |
96213 |
Screw |
Buy Now |
| 8 |
88618A |
Nylon Insert Nut |
Call to Order |
| 9 |
980638 |
Lock Washer |
Buy Now |
| 10 |
980646 |
Flat Washer |
Call to Order |
| 11 |
980648 |
Plain Washer |
Call to Order |
| 12 |
980657 |
Lock Washer |
Buy Now |
| 13 |
997001 |
Red Pad |
Buy Now |
| 14 |
56109717 |
Tube Jack Motor |
Buy Now |
| 15 |
10309A |
Tube Drip |
Buy Now |
| 16 |
30048A |
Wheel Guide |
Buy Now |
| 17 |
30206A |
Bumper |
Buy Now |
| 18 |
- |
Shield Boost Bearing |
Call to Order |
| 19 |
56381491 |
Driver Plate |
Buy Now |
| 20 |
56383375 |
Flex Plate Assembly |
Buy Now |
| 21 |
30670A |
Nylon Spacer |
Buy Now |
| 22 |
30671A |
Nylon Spacer |
Buy Now |
| 23 |
30680A |
Solution Hose |
Buy Now |
| 24 |
56390072 |
Motor |
Buy Now |
| - |
56412287 |
Carbon Brush Motor Replacement Kit |
Buy Now |
| 25 |
50248A |
Hose Clamp |
Buy Now |
| 26 |
50736A |
Bearing |
Buy Now |
| 27 |
56382991 |
Isolator Boost Kit |
Buy Now |
| 29 |
61425A |
Bumper Retainer |
Buy Now |
| 30 |
61724A |
Eccentric Retainer |
Buy Now |
| 31 |
56381724 |
Upper Plate |
Buy Now |
| 32 |
61733B |
Lift Bracket |
Buy Now |
| 33 |
- |
Eccentric |
Call to Order |
| 34 |
61775A |
Bearing Retainer |
Buy Now |
| 35 |
61782A |
Guide Wheel Sleeve |
Buy Now |
| 36 |
56381532 |
Short Stud Stabilizer |
Buy Now |
| 37 |
61935A |
Right Lift Arm |
Buy Now |
| 38 |
61936A |
Left Lift Arm |
Buy Now |
| 39 |
61938A |
Front Guard |
Buy Now |
| 40 |
80054A |
Screw |
Call to Order |
| 41 |
80103A |
hex Bolt |
Buy Now |
| 42 |
80162A |
Hex Nut |
Buy Now |
| 43 |
56002155 |
Screw |
Buy Now |
| 44 |
80296A |
Screw |
Buy Now |
| 45 |
80298A |
Screw |
Buy Now |
| 46 |
80317A |
Bowed Washer |
Buy Now |
| 47 |
81217A |
Hex Nut |
Buy Now |
| 48 |
88619A |
Screw |
Buy Now |
| 49 |
56381989 |
Shoulder Bolt |
Buy Now |
| 50 |
84237A |
Screw |
Buy Now |
| 51 |
85301A |
Screw |
Buy Now |
| 52 |
85395A |
Screw |
Buy Now |
| 53 |
87607A |
Nylon Washer |
Buy Now |
| 54 |
88612A |
Lock Washer |
Buy Now |
| 55 |
56381702 |
Boost Embossed Decal |
Buy Now |
| 56 |
81220A |
Serrated Flange Nut |
Buy Now |
| 57 |
71017A |
Moving Parts Label |
Buy Now |

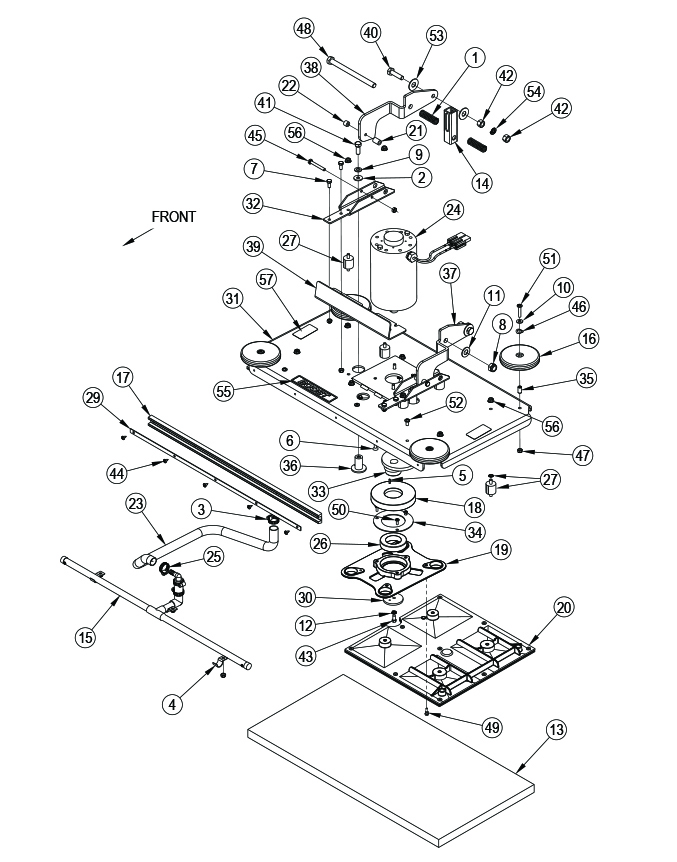

Brush Head Assembly
Clarke Focus 2 Mid Brush Head Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
E04016 |
Spring |
Buy Now |
| 2 |
170860 |
Flat Washer |
Buy Now |
| 3 |
722030 |
Hose Clamp |
Buy Now |
| 4 |
782002 |
Manifold Clamp |
Buy Now |
| 5 |
925589 |
Roll Pin |
Buy Now |
| 6 |
56001881 |
Screw |
Buy Now |
| 7 |
962139 |
Screw |
Buy Now |
| 8 |
88618A |
Nylon Insert Nut |
Call to Order |
| 9 |
980638 |
Lock Washer |
Buy Now |
| 10 |
980646 |
Flat Washer |
Call to Order |
| 11 |
980648 |
Plain Washer |
Call to Order |
| 12 |
980657 |
Lock Washer |
Buy Now |
| 13 |
997004 |
Red Pad |
Buy Now |
| 14 |
56109717 |
Tube Jack Motor |
Buy Now |
| 15 |
10343A |
Tube Drip |
Buy Now |
| 16 |
30048A |
Wheel Guide |
Buy Now |
| 17 |
30306A |
Bumper Front |
Buy Now |
| 18 |
- |
Shield Boost Bearing |
Call to Order |
| 19 |
56381491 |
Plate Driver |
Buy Now |
| 20 |
56383376 |
Flex Plate Assembly |
Buy Now |
| 21 |
30670A |
Nylon Spacer |
Buy Now |
| 22 |
30671A |
Nylon Spacer |
Buy Now |
| 23 |
30680A |
Solution Hose |
Buy Now |
| 24 |
56390072 |
Motor |
Buy Now |
| - |
56412287 |
Brush Motor Replacement Kit |
Buy Now |
| 25 |
50248A |
Hose Clamp |
Buy Now |
| 26 |
50736A |
Bearing |
Buy Now |
| 27 |
56382991 |
Isolator Boost Kit |
Buy Now |
| 29 |
56381719 |
Upper Boost Plate |
Buy Now |
| 30 |
56381720 |
Upper Boost Weight |
Buy Now |
| 31 |
61327A |
Bumper Retainer |
Buy Now |
| 32 |
61724A |
Eccentric Retainer |
Buy Now |
| 33 |
61733B |
Lift Bracket |
Buy Now |
| 34 |
- |
Eccentric |
Call to Order |
| 35 |
61775A |
Bearing Retainer |
Buy Now |
| 36 |
61782A |
Guide Wheel Sleeve |
Buy Now |
| 37 |
56381531 |
Stud Stabilizer |
Buy Now |
| 38 |
61935A |
Right Lift Arm |
Buy Now |
| 39 |
61936A |
Left Lift Arm |
Buy Now |
| 40 |
61938A |
Front Guard |
Buy Now |
| 41 |
80054A |
Screw |
Call to Order |
| 42 |
80103A |
Hex Bolt |
Buy Now |
| 43 |
80162A |
Hex Nut |
Buy Now |
| 44 |
56002155 |
Screw |
Buy Now |
| 45 |
80296A |
Screw |
Buy Now |
| 46 |
80298A |
Hex Cap Screw |
Buy Now |
| 47 |
80317A |
Bowed Washer |
Buy Now |
| 48 |
81217A |
Nut |
Buy Now |
| 49 |
88619A |
Screw |
Buy Now |
| 50 |
56381989 |
Shoulder Bolt |
Buy Now |
| 51 |
84237A |
Screw |
Buy Now |
| 52 |
85301A |
Screw |
Buy Now |
| 53 |
85395A |
Screw |
Buy Now |
| 54 |
87607A |
Nylon Washer |
Buy Now |
| 55 |
88612A |
Lock Washer |
Buy Now |
| 56 |
56381702 |
Boost Embossed Decal |
Buy Now |
| 57 |
71017A |
Moving Parts Label |
Buy Now |
| 58 |
81220A |
Serrated Flange Nut |
Buy Now |
Brush Head Assembly (Cylindrical)
Clarke Focus 2 Mid Brush Head Assembly (Cylindrical)
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
170860 |
Flat Washer |
Buy Now |
| 2 |
170892 |
Lock Washer |
Buy Now |
| 3 |
722030 |
Hose Clamp |
Buy Now |
| 4 |
964007 |
Screw |
Buy Now |
| 5 |
980648 |
Plain Washer |
Call to Order |
| 6 |
980651 |
Flat Washer |
Call to Order |
| 7 |
56109717 |
Tube Jack Motor |
Buy Now |
| 8 |
9095760000 |
Belt |
Buy Now |
| 9 |
9095761000 |
Belt |
Buy Now |
| 10 |
9095769000 |
Splash Guard Fix Plate |
Buy Now |
| 11 |
9096225000 |
Container Dirt |
Buy Now |
| 12 |
30680A |
Solution Hose |
Buy Now |
| 13 |
30835A |
Clear Hose |
Buy Now |
| 14 |
40645A |
Housing Connector |
Buy Now |
| 15 |
41086A |
Electric Motor |
Buy Now |
| 16 |
50248A |
Hose Clamp |
Buy Now |
| 17 |
51126A |
Bearing |
Buy Now |
| 18 |
56106070 |
Bearing Ball |
Buy Now |
| 19 |
52414A |
Straight Hosebarb Union |
Buy Now |
| 20 |
53181A |
Hosebarb |
Buy Now |
| 21 |
54779A |
Steel Clamp |
Buy Now |
| 22 |
61926A |
Head Lift Bracket |
Buy Now |
| 23 |
71017A |
Moving Parts Label |
Buy Now |
| 24 |
80195A |
Screw |
Buy Now |
| 25 |
80198A |
Nylock Nut |
Buy Now |
| 26 |
80199A |
Nylock Nut |
Buy Now |
| 27 |
80208A |
Screw |
Buy Now |
| 28 |
80214A |
Screw |
Call to Order |
| 29 |
87026A |
Flat Washer |
Buy Now |
| 30 |
87039A |
Fender Washer |
Buy Now |
| 32 |
56003883 |
Screw |
Buy Now |
| 33 |
88618A |
Nylon Insert Nut |
Call to Order |
| 34 |
88619A |
Screw |
Buy Now |
| 35 |
88626A |
Screw |
Buy Now |
| 36 |
88642A |
Screw |
Buy Now |
| 37 |
88645A |
Key Square |
Buy Now |
| 38 |
88646A |
Key Square |
Buy Now |
| 39 |
L08602460 |
Roller Bumper |
Buy Now |
| 40 |
80223A |
Nylock Nut |
Buy Now |
| 41 |
E04016 |
Spring |
Buy Now |
| 42 |
56115273 |
Idler Hub |
Buy Now |
| 43 |
1455828000 |
Spacer |
Buy Now |
| 44 |
1461232000 |
Spacer |
Buy Now |
| 45 |
9095710000 |
Spacer |
Buy Now |
| 46 |
9095724000 |
Cover Crankcase Belt Right |
Buy Now |
| 47 |
9095725000 |
Cover Crankcase Belt Left |
Buy Now |
| 48 |
9095728000 |
Hub Brush |
Buy Now |
| 49 |
9095751000 |
Cylinder Deck Frame |
Buy Now |
| 50 |
9095752000 |
Splash Guard |
Buy Now |
| 51 |
9095754000 |
Spacer |
Buy Now |
| 52 |
9095755000 |
Pin Brush Pulley |
Buy Now |
| 53 |
9095756000 |
Support Brush |
Call to Order |
| 54 |
9095757000 |
Support Brush Pulley |
Buy Now |
| 55 |
9095758000 |
Pulley |
Buy Now |
| 56 |
9095759000 |
Poly-V Pulley |
Buy Now |
| 57 |
9095762000 |
Roller Belt Tensioner |
Buy Now |
| 58 |
9095764000 |
Spacer |
Buy Now |
| 59 |
9095765000 |
Bushing Collar |
Buy Now |
| 60 |
9095766000 |
Pin |
Buy Now |
| 61 |
9095770000 |
Splash Guard |
Buy Now |
| 62 |
9095802000 |
Crankcase Motor Protection Right |
Buy Now |
| 63 |
9095803000 |
Crankcase Motor Protection Left |
Buy Now |
| 64 |
9095964000 |
Knob |
Buy Now |
| 65 |
56112548 |
Bushing |
Buy Now |
| 66 |
56382618 |
Lever Kit |
Buy Now |

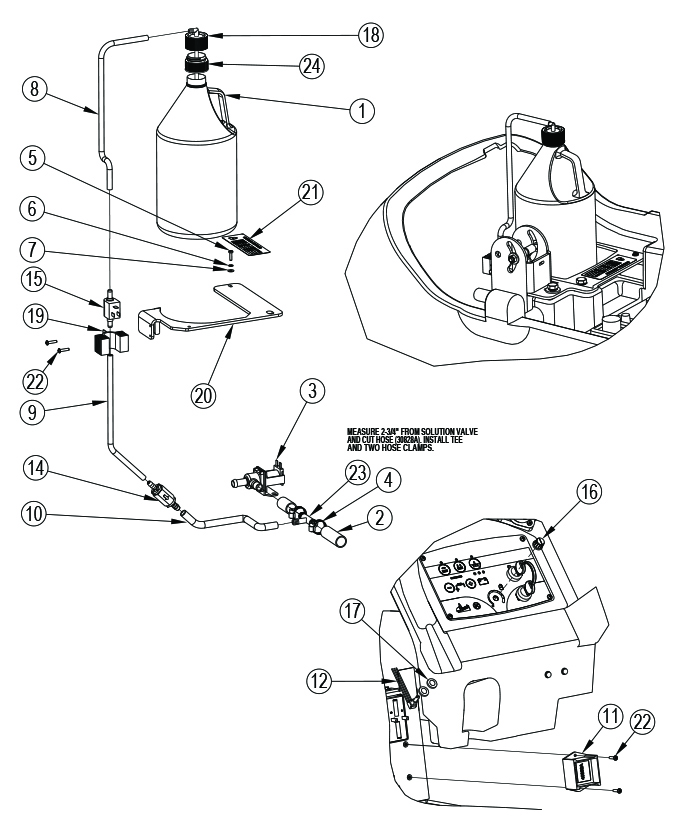

Chemical Mixing Kit
Clarke Focus 2 Mid Chemical Mixing Kit
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Cleaning Solution Bottle |
Call to Order |
| 2 |
- |
Frame Assembly |
Call to Order |
| 3 |
- |
Valve |
Call to Order |
| 4 |
722030 |
Hose Clamp |
Buy Now |
| 5 |
964002 |
Screw |
Buy Now |
| 6 |
980621 |
External Tooth Lock Washer |
Buy Now |
| 7 |
980982 |
Flat Washer |
Buy Now |
| 8 |
39725A |
Clear Hose |
Buy Now |
| 9 |
39726A |
Clear Hose |
Buy Now |
| 10 |
39727A |
Clear Hose |
Buy Now |
| 11 |
40850A |
Chemical Module |
Buy Now |
| 12 |
41084A |
Chemical Harness |
Buy Now |
| 13 |
53186A |
Wire Tie |
Buy Now |
| 14 |
53719A |
Check Valve |
Buy Now |
| 15 |
53721A |
Chemical Pump |
Buy Now |
| 16 |
53736A |
Adjustment Knob |
Buy Now |
| 17 |
87618A |
Flat Washer |
Buy Now |
| 18 |
54778A |
Cap Adapter |
Buy Now |
| 19 |
61772A |
Pump Bracket |
Buy Now |
| 20 |
61954B |
Bottle Support |
Buy Now |
| 21 |
71489A |
Chemical Settings Label |
Buy Now |
| 22 |
962027 |
Screw |
Buy Now |
| 23 |
88644A |
Reducing Tee |
Buy Now |
| 24 |
9097023000 |
Adapter |
Buy Now |
