Clarke FM15

Assembly

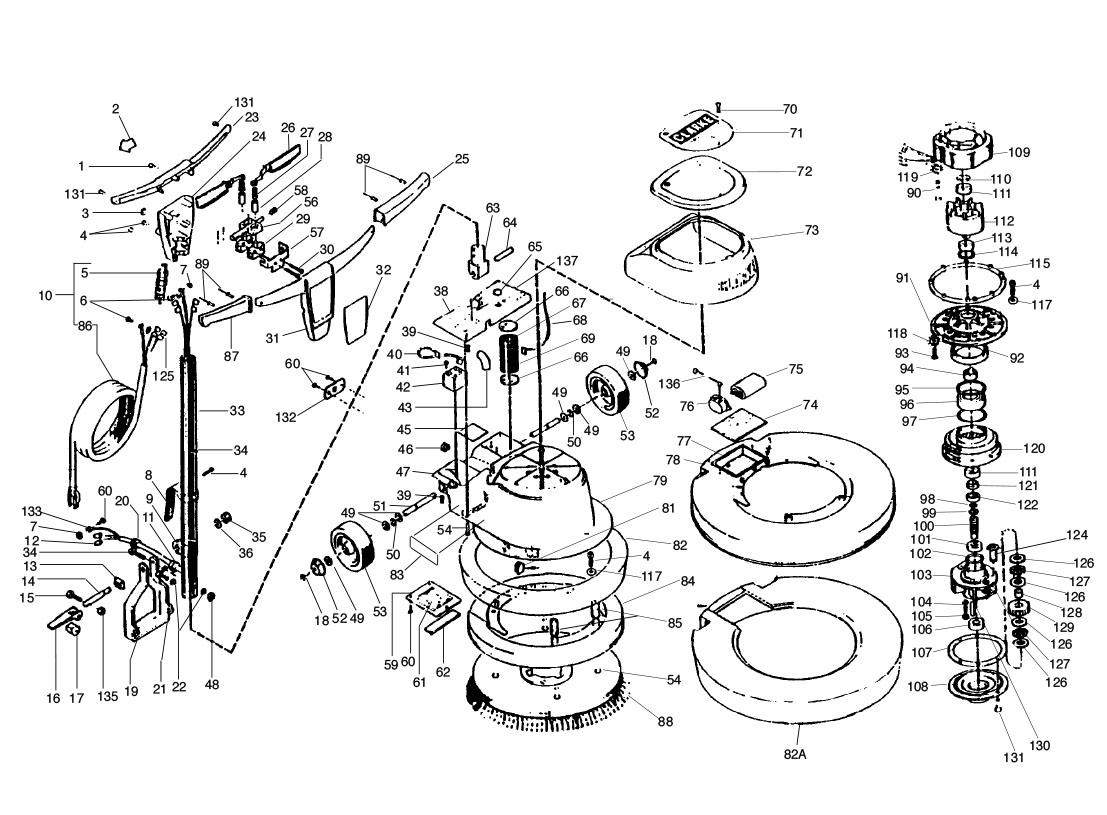

Clarke FM15 Assembly

1	962391	Screw	Buy Now
2	445178	Interlock Label	Call to Order
3	501302	Button Plug	Call to Order
4	962289	Screw	Buy Now
5	467504	Strain Relief	Buy Now
5	497504	Strain Relief	Call to Order
6	962015	Screw	Buy Now
7	980675	Washer	Buy Now
8	504540	Cord Hook	Buy Now
9	502040	Handle Tube Clamp	Call to Order
10	908275	Cord Assembly	Call to Order
10	908279	Cord Assembly	Call to Order
11	627561	Strain Relief	Buy Now
12	911178	Connector	Call to Order
13	743850	Handle Lock Guide	Call to Order
14	501346	Cam Lock Bolt	Call to Order
15	960969	Shoulder Screw	Buy Now
16	503942	Cam Lock Handle	Call to Order
17	508546	Clamp Stop	Call to Order
18	962823	Screw	Call to Order
19	500342	Handle Arm	Call to Order
20	857557	Strain Relief	Call to Order
21	85812A	Screw	Buy Now
22	980652	Washer	Buy Now
23	24507A	Handle & Switch Housing	Call to Order
24	22109A	Switch Housing Cover	Call to Order
24	22116A	Switch Housing Cover	Call to Order
25	34612A	Left Handle Grip	Call to Order
26	505140	Switch Lever	Call to Order
27	508340	Switch Lever Spring	Call to Order
28	500241	Switch Adapter	Call to Order
29	911690	Switch	Buy Now
30	84807A	Screw	Buy Now
31	24508A	Switch Front Cover	Call to Order
32	70038A	Switch Label	Call to Order
32	70039A	Switch Label	Call to Order
32	70040A	Switch Label	Call to Order
32	70041A	Switch Label	Call to Order
33	68318A	Handle Tube	Call to Order
34	41925A	Interconnecting Handle Cord	Call to Order
35	980648	Washer	Call to Order
36	920365	Nylock Nut	Buy Now
38	22105A	Main Housing Cover	Call to Order
39	962233	Screw	Call to Order
40	911736	Lead Assembly	Call to Order
41	962606	Lead Assembly	Call to Order
42	507572	Relay	Call to Order
42	507502	Relay	Buy Now
43	504740	Elbow Insulator	Call to Order
44	930093	Rivet	Buy Now
46	501142	Bushing	Call to Order
47	501141	Link Arm Bushing	Buy Now
48	920110	Nut	Buy Now
49	980215	Wheel Thrust Washer	Buy Now
50	167308	Retaining Ring	Call to Order
