Clarke FM 40

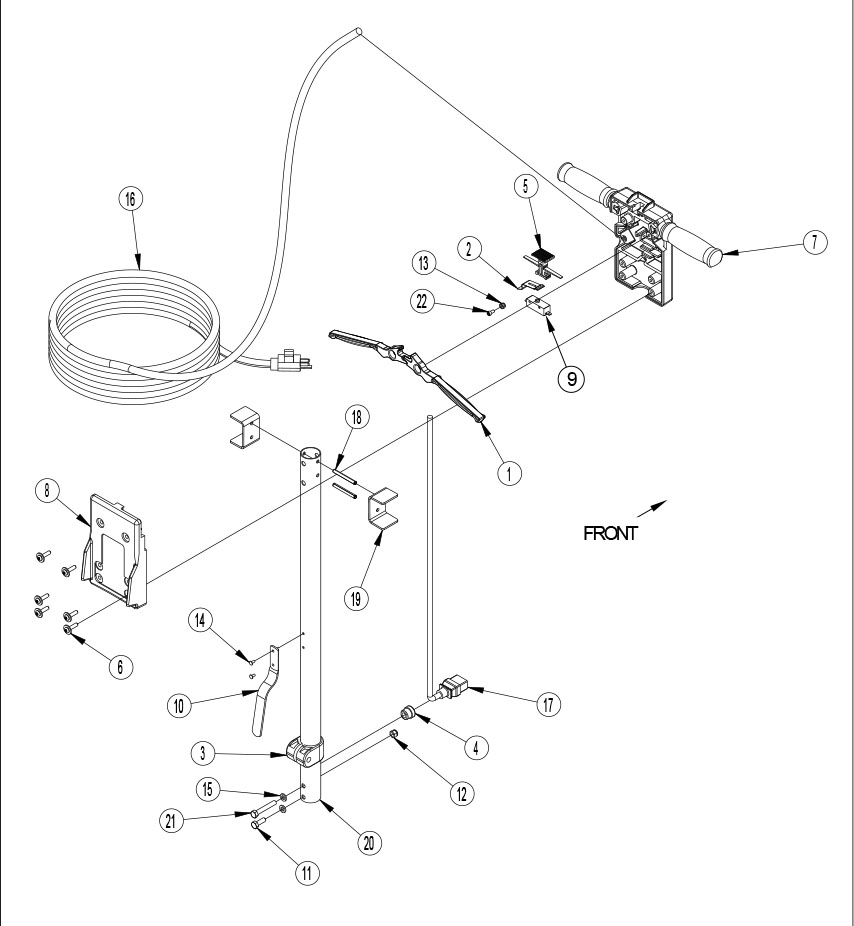

Handle Assembly
Clarke FM 40 Handle Assembly

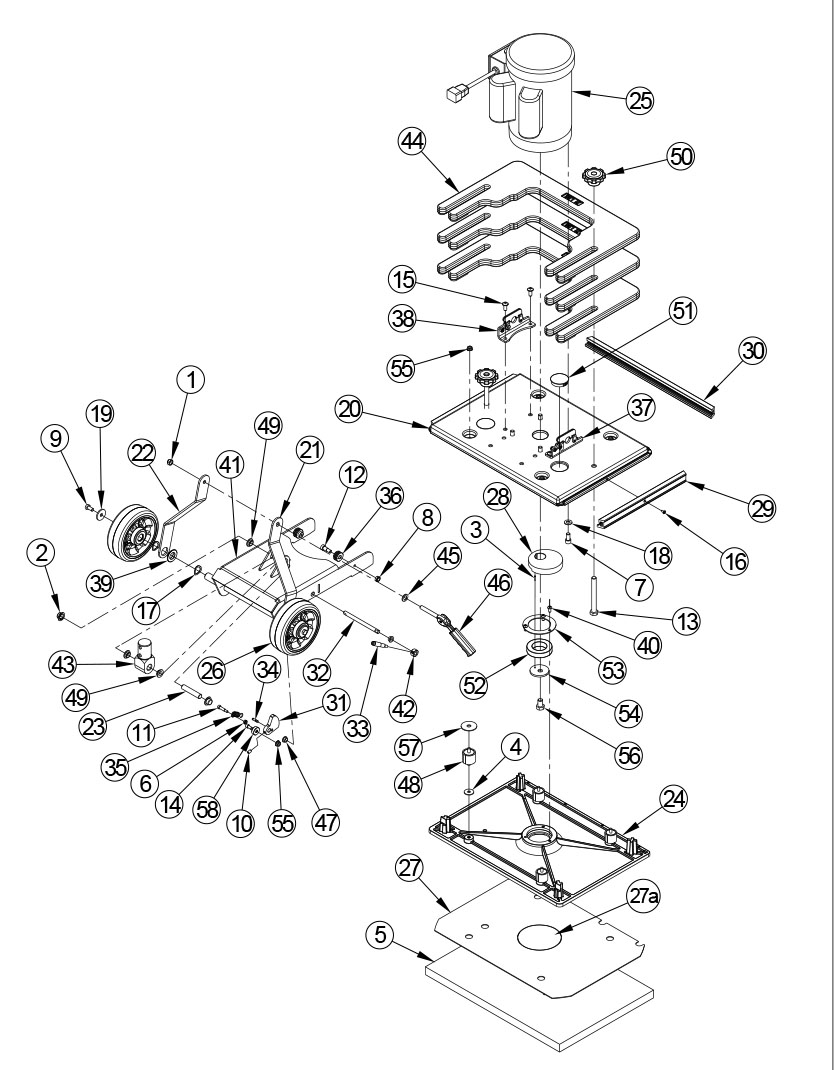

Base Assembly 1
Clarke FM 40 Base Assembly 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56002841 |
Nut |
Buy Now |
| 2 |
920346 |
Palnut |
Buy Now |
| 3 |
925589 |
Roll Pin |
Buy Now |
| 4 |
56009002 |
Flat Washer |
Buy Now |
| 5 |
997020 |
Boost Red Pad |
Buy Now |
| 6 |
56002832 |
Nut |
Buy Now |
| 7 |
86112A |
Screw |
Buy Now |
| 8 |
56002851 |
Nut |
Buy Now |
| 9 |
56002929 |
Screw |
Buy Now |
| 10 |
56002930 |
Screw |
Buy Now |
| 11 |
56003972 |
Screw |
Buy Now |
| 12 |
56003818 |
Screw |
Buy Now |
| 13 |
56003910 |
Screw |
Call to Order |
| 14 |
56002115 |
Screw |
Buy Now |
| 15 |
56003968 |
Screw |
Buy Now |
| 16 |
56003969 |
Screw |
Buy Now |
| 17 |
56009021 |
Washer |
Buy Now |
| 18 |
56009112 |
Washer |
Buy Now |
| 19 |
56009294 |
Washer |
Buy Now |
| 20 |
56105630 |
Main Frame |
Buy Now |
| 21 |
56105774 |
Right Link Arm |
Buy Now |
| 22 |
56105773 |
Left Link Arm |
Buy Now |
| 23 |
56105637 |
Handle Pin |
Buy Now |
| 24 |
56105639 |
Orbital Base |
Buy Now |
| 25 |
56385093 |
Motor |
Buy Now |
| - |
56385700 |
Start Motor Capacitor |
Call to Order |
| - |
56385096 |
Relay Motor |
Buy Now |
| - |
56385102 |
Run Motor Capacitor |
Buy Now |
| - |
56385103 |
Thermal Motor Switch |
Call to Order |
| - |
56385101 |
Motor Cord |
Call to Order |
| 26 |
56105651 |
Wheel |
Buy Now |
| 27 |
56105652 |
Orbital Base Grip |
Buy Now |
| 27a |
56105728 |
Center Grip |
Buy Now |
| 28 |
56105654 |
Eccentric Ranger |
Buy Now |
| 29 |
56105661 |
Side Bumper |
Buy Now |
| 30 |
56105662 |
Front Bumper |
Buy Now |
| 31 |
56105665 |
Cam Lock |
Buy Now |
| 32 |
56105666 |
Shaft Lift |
Buy Now |
| 33 |
56105755 |
Lift Lever Assembly |
Buy Now |
| 34 |
56105670 |
Groove Pin |
Buy Now |
| 35 |
56105671 |
Lift Spring |
Buy Now |
| 36 |
56105673 |
Release Bushing |
Buy Now |
| 37 |
56105681 |
Right Latch Assembly |
Buy Now |
| 38 |
56105685 |
Left Latch Assembly |
Buy Now |
| 39 |
56105694 |
Link Arm Bushing |
Buy Now |
| 40 |
87700A |
Screw |
Buy Now |
| 41 |
56105699 |
Wheel Chassis Weldment |
Buy Now |
| 42 |
56105700 |
Shaft Collar |
Buy Now |
| 43 |
56105711 |
Handle Tube Tongue |
Buy Now |
| 44 |
56105713 |
Weight Assembly |
Buy Now |
| 45 |
56105727 |
Wear Cam Washer |
Buy Now |
| 46 |
56109699 |
Cam Assembly with Grip |
Buy Now |
| 47 |
56303285 |
Bearing |
Buy Now |
| 48 |
- |
Isolator |
Call to Order |
| 49 |
56413211 |
Flange Bearing |
Buy Now |
| 50 |
56380149 |
Knob |
Buy Now |
| 51 |
56105753 |
Hole Plug |
Buy Now |
| 52 |
50736A |
Bearing |
Buy Now |
| 53 |
66981A |
Bearing Retainer |
Buy Now |
| 54 |
66982A |
Eccentric Retainer |
Buy Now |
| 55 |
81220A |
Nut |
Buy Now |
| 56 |
85718A |
Screw |
Buy Now |
| 57 |
- |
Washer |
Call to Order |
| 58 |
56105771 |
Cam Stop |
Buy Now |

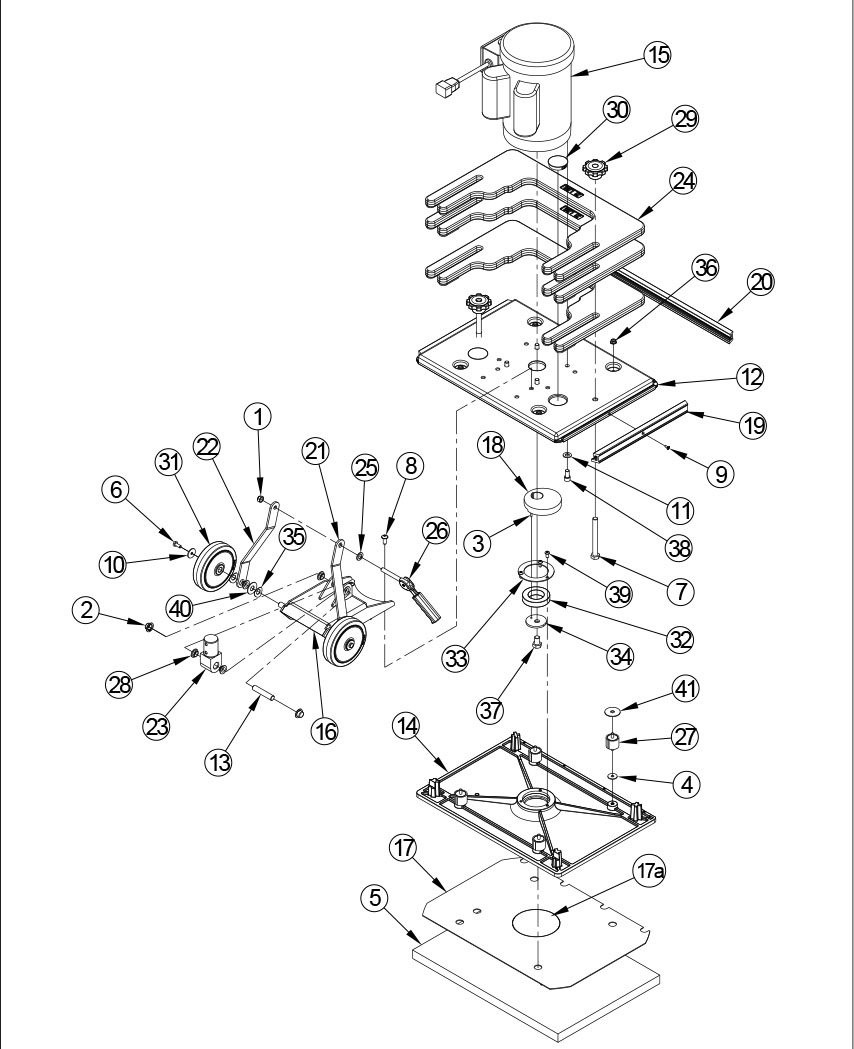

Base Assembly 2
Clarke FM 40 Base Assembly 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56002841 |
Nut |
Buy Now |
| 2 |
920346 |
Palnut |
Buy Now |
| 3 |
925589 |
Roll Pin |
Buy Now |
| 4 |
56009002 |
Flat Washer |
Buy Now |
| 5 |
997020 |
Boost Red Pad |
Buy Now |
| 6 |
56002922 |
Screw |
Buy Now |
| 7 |
56003910 |
Screw |
Call to Order |
| 8 |
56003968 |
Screw |
Buy Now |
| 9 |
56003969 |
Screw |
Buy Now |
| 10 |
56009060 |
Washer |
Buy Now |
| 11 |
56009112 |
Washer |
Buy Now |
| 12 |
56105630 |
Main Frame |
Buy Now |
| 13 |
56105637 |
Handle Pin |
Buy Now |
| 14 |
56105639 |
Orbital Base |
Buy Now |
| 15 |
56385093 |
Motor |
Buy Now |
| - |
56385700 |
Start Motor Capacitor |
Call to Order |
| - |
56385096 |
Motor Relay |
Buy Now |
| - |
56385102 |
Run Motor Capacitor |
Buy Now |
| - |
56385103 |
Thermal Motor Switch |
Call to Order |
| - |
56385101 |
Motor Cord |
Call to Order |
| 16 |
56105646 |
Wheel Chassis Weldment |
Buy Now |
| 17 |
56105652 |
Orbital Base Pad Grip |
Buy Now |
| 17a |
56105728 |
Center Grip |
Buy Now |
| 18 |
56105654 |
Eccentric Ranger |
Buy Now |
| 19 |
56105661 |
Side Bumper |
Buy Now |
| 20 |
56105662 |
Front Bumper |
Buy Now |
| 21 |
56105766 |
Right Link Arm |
Buy Now |
| 22 |
56105767 |
Left Link Arm |
Buy Now |
| 23 |
56105711 |
Handle Tube Tongue |
Buy Now |
| 24 |
56105713 |
Weight Assembly |
Buy Now |
| 25 |
56105727 |
Wear Cam Washer |
Buy Now |
| 26 |
56109699 |
Cam Assembly with Grip |
Buy Now |
| 27 |
- |
Isolator |
Call to Order |
| 28 |
56413211 |
Flange Bearing |
Buy Now |
| 29 |
56380149 |
Knob |
Buy Now |
| 30 |
56105753 |
Hole Plug |
Buy Now |
| 31 |
39857A |
Wheel |
Buy Now |
| 32 |
50736A |
Bearing |
Buy Now |
| 33 |
66981A |
Retainer Bearing |
Buy Now |
| 34 |
66982A |
Retainer Eccentric |
Buy Now |
| 35 |
80295A |
Bowed Washer |
Buy Now |
| 36 |
81220A |
Serrated Flange Nut |
Buy Now |
| 37 |
85718A |
Screw |
Buy Now |
| 38 |
86112A |
Screw |
Buy Now |
| 39 |
87700A |
Screw |
Buy Now |
| 40 |
87607A |
Washer |
Buy Now |
| 41 |
- |
Washer |
Call to Order |
