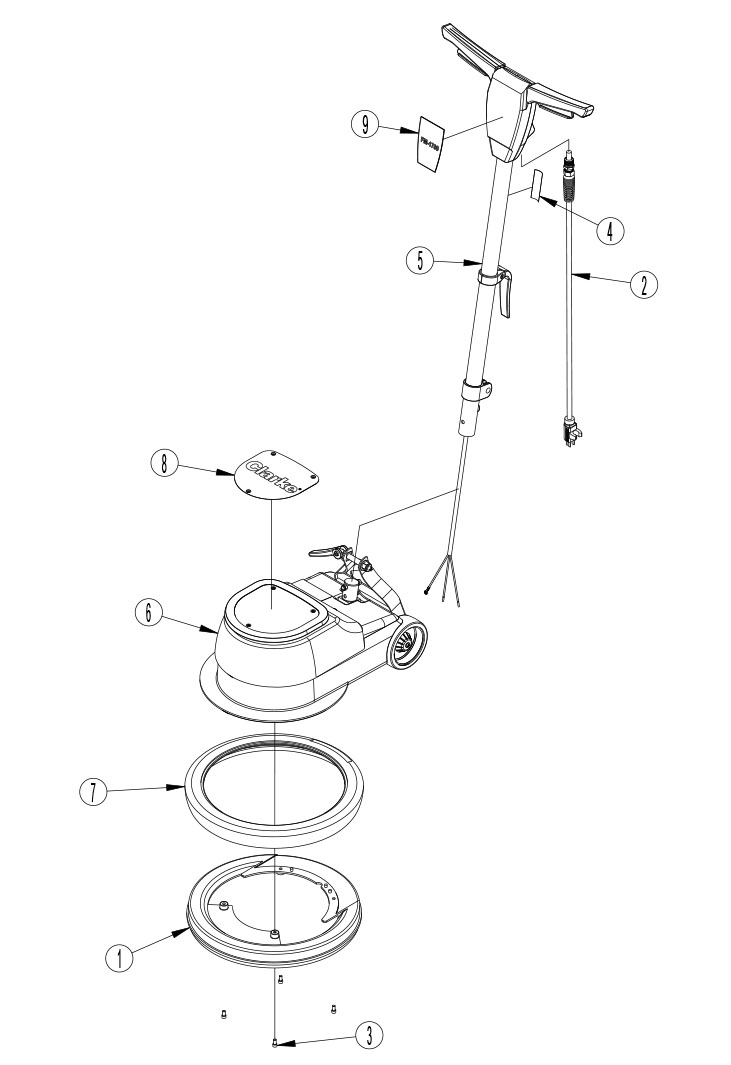

Clarke FM 17-20
Machine
Clarke FM 17-20 Machine
| 1 |
507851 |
Shield Brush |
Call to Order |
| 1 |
507861 |
Shield Brush |
Call to Order |
| 2 |
908275 |
Cord Assembly |
Call to Order |
| 2 |
56384397 |
Cord Assembly |
Call to Order |
| 3 |
962337 |
Screw |
Buy Now |
| 4 |
56380639 |
Prop 65 Decal |
Buy Now |
| 5 |
- |
Handle Assembly |
Call to Order |
| 6 |
- |
Base Assembly |
Call to Order |
| 7 |
31234B |
Bumper Brush |
Call to Order |
| 7 |
31235B |
Bumper Brush |
Call to Order |
| 8 |
70433A |
Label |
Call to Order |
| 9 |
70436A |
Switch Label |
Call to Order |
| 9 |
70437A |
Switch Label |
Call to Order |

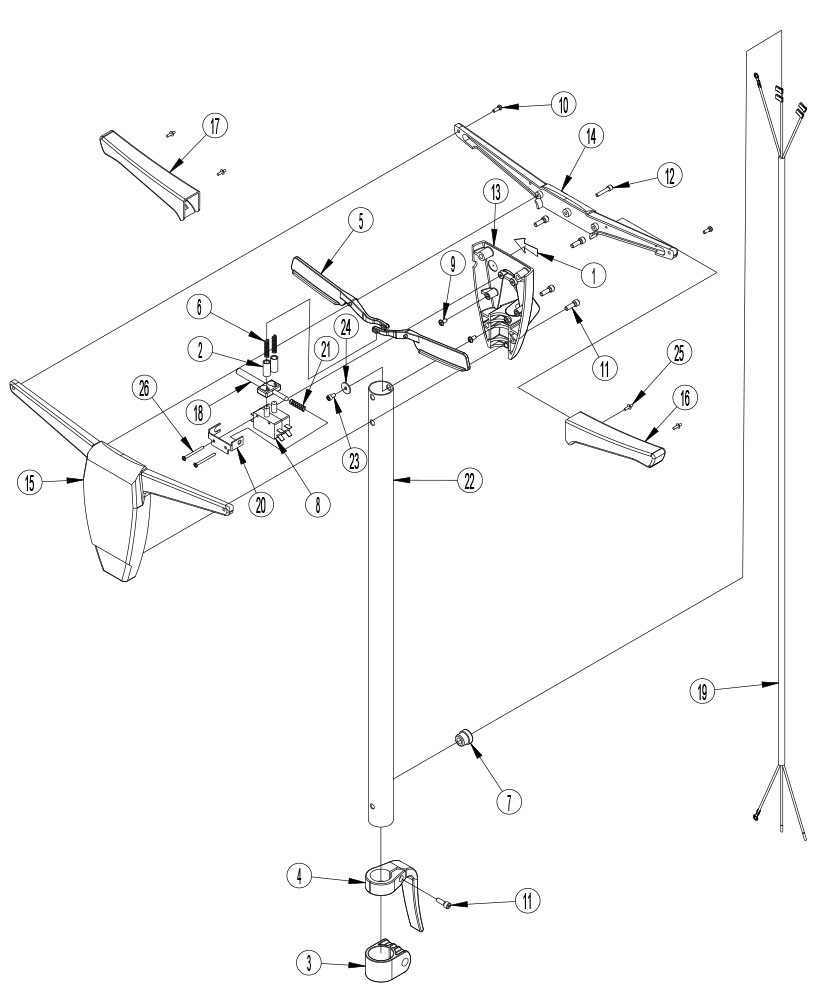

Handle Assembly 1
Clarke FM 17-20 Handle Assembly 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
445178 |
Interlock Label |
Call to Order |
| 2 |
500241 |
Adapter Switch |
Call to Order |
| 3 |
502040 |
Handle Tube Clamp |
Call to Order |
| 4 |
504540 |
Cord Hook |
Buy Now |
| 5 |
505140 |
Lever Switch |
Call to Order |
| 6 |
508340 |
Switch Lever Spring |
Call to Order |
| 7 |
627561 |
Relief Strain |
Buy Now |
| 8 |
911690 |
Switch |
Buy Now |
| 9 |
962015 |
Screw |
Buy Now |
| 10 |
962241 |
Screw |
Buy Now |
| 11 |
962289 |
Screw |
Buy Now |
| 12 |
962391 |
Screw |
Buy Now |
| 13 |
22109A |
Switch Housing Cover |
Call to Order |
| 14 |
24507A |
Housing Handle |
Call to Order |
| 15 |
24508A |
Front Switch Housing |
Call to Order |
| 16 |
34612B |
Left Handle Grip |
Call to Order |
| 17 |
34613B |
Right Handle Grip |
Call to Order |
| 18 |
38004A |
Switch Interlock Stop |
Call to Order |
| 19 |
41925A |
Interconnecting Handle Cord |
Call to Order |
| 20 |
61120A |
Switch Stop Bracket |
Call to Order |
| 21 |
67900A |
Switch Lever Spring |
Call to Order |
| 22 |
68318A |
Handle Tube |
Call to Order |
| 23 |
80290A |
Screw |
Buy Now |
| 24 |
80291A |
Flat Washer |
Buy Now |
| 25 |
83003A |
Rivet |
Buy Now |
| 26 |
84807A |
Screw |
Buy Now |

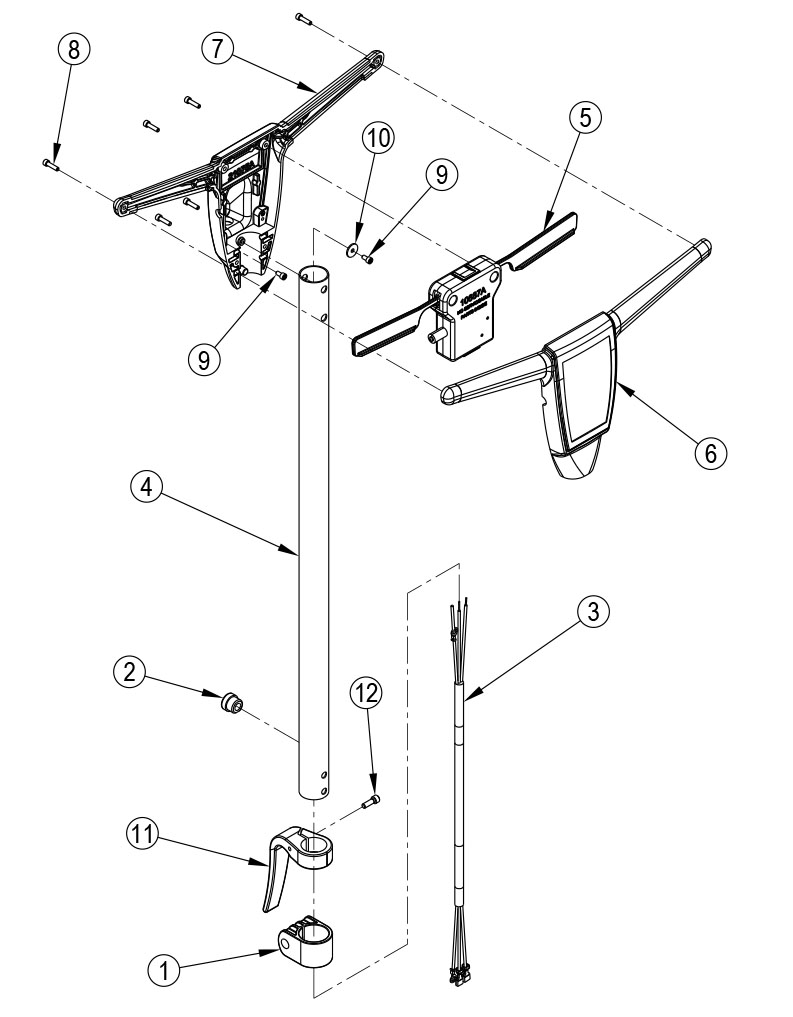

Handle Assembly 2
Clarke FM 17-20 Handle Assembly 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
502040 |
Handle Tube Clamp |
Call to Order |
| 2 |
627561 |
Strain Relief |
Buy Now |
| 3 |
56384396 |
Interconnect Cord |
Call to Order |
| 4 |
56384405 |
Handle Tube |
Call to Order |
| 5 |
10687A |
Interlock Assembly |
Buy Now |
| 6 |
21074A |
Front Handle |
Buy Now |
| 7 |
21075A |
Rear Handle |
Buy Now |
| 8 |
80284A |
Screw |
Buy Now |
| 9 |
80290A |
Screw |
Buy Now |
| 10 |
80291A |
Flat Washer |
Buy Now |
| 11 |
502040 |
Cord Hook |
Call to Order |
| 12 |
962289 |
Screw |
Buy Now |

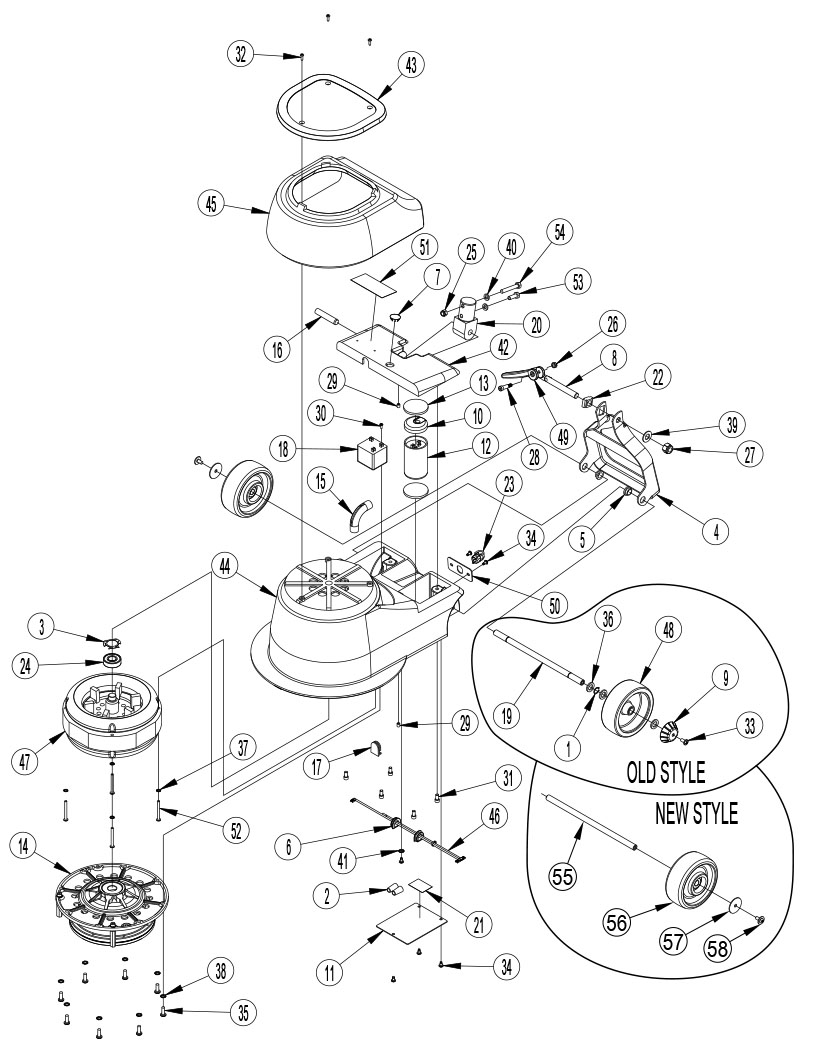

Base Assembly
Clarke FM 17-20 Base Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
167308 |
Retaining Ring |
Call to Order |
| 2 |
170667 |
Twist Wire Connector |
Buy Now |
| 3 |
318303 |
Bearing Load Spring |
Call to Order |
| 4 |
500342 |
Arm Adjusting Weldment |
Call to Order |
| 5 |
501141 |
Link Arm Bushing |
Buy Now |
| 6 |
501142 |
Bushing |
Call to Order |
| 7 |
501345 |
Plug Button |
Call to Order |
| 8 |
501346 |
Locking Cam Bolt |
Call to Order |
| 9 |
501540 |
Cap Hub |
Call to Order |
| 10 |
502304 |
Cover Capacitor |
Call to Order |
| 11 |
502342 |
Main Housing Cover |
Call to Order |
| 12 |
502402 |
Capacitor |
Call to Order |
| 13 |
502403 |
Cushion Capacitor |
Call to Order |
| 14 |
503542 |
Gear Unit Assembly |
Call to Order |
| 15 |
504740 |
Insulator Elbow |
Call to Order |
| 16 |
506740 |
Pin Handle Pivot |
Call to Order |
| 17 |
506842 |
Plug |
Call to Order |
| 18 |
507572 |
Motor Relay |
Call to Order |
| 19 |
507741 |
Shaft Wheel |
Call to Order |
| 20 |
509240 |
Handle Tube Tongue |
Buy Now |
| 21 |
509806 |
Wiring Diagram |
Call to Order |
| 22 |
743850 |
Guide Handle Lock |
Call to Order |
| 23 |
857557 |
Strain Relief |
Call to Order |
| 24 |
902550 |
Bearing Ball |
Buy Now |
| 25 |
920110 |
Nut |
Buy Now |
| 26 |
920349 |
Nut |
Buy Now |
| 27 |
920365 |
Nylock Nut |
Buy Now |
| 28 |
960969 |
Bolt Shoulder |
Buy Now |
| 29 |
962233 |
Screw |
Call to Order |
| 30 |
962330 |
Screw |
Buy Now |
| 31 |
962337 |
Screw |
Buy Now |
| 32 |
962727 |
Screw |
Buy Now |
| 33 |
962823 |
Screw |
Call to Order |
| 34 |
962826 |
Screw |
Buy Now |
| 35 |
962892 |
Screw |
Buy Now |
| 36 |
980215 |
Thrust Washer |
Buy Now |
| 37 |
980603 |
Washer |
Buy Now |
| 38 |
980614 |
Washer |
Buy Now |
| 39 |
980648 |
Washer |
Call to Order |
| 40 |
980652 |
Washer |
Buy Now |
| 41 |
980675 |
Washer |
Buy Now |
| 42 |
22105A |
Main Cover Housing |
Call to Order |
| 43 |
22106A |
Drip Cover |
Call to Order |
| 44 |
24502C |
Main Housing |
Call to Order |
| 45 |
31237B |
Bumper Main Housing |
Call to Order |
| 46 |
40254A |
Harness Wire |
Call to Order |
| 47 |
40658A |
Field and Rotor Kit |
Call to Order |
| 48 |
59961A |
Wheel |
Call to Order |
| 49 |
61912A |
Handle Cam Lock |
Call to Order |
| 50 |
66636A |
Strain Relief Plate |
Call to Order |
| 51 |
77195A |
Label |
Buy Now |
| 52 |
85310A |
Screw |
Buy Now |
| 53 |
85812A |
Screw |
Buy Now |
| 54 |
85817A |
Screw |
Buy Now |
| - |
501440 |
Locking Cam Assembly |
Call to Order |
| 55 |
56384051 |
Wheel Shaft |
Call to Order |
| 56 |
56384052 |
Wheel |
Call to Order |
| 57 |
87058A |
Retainer Washer |
Buy Now |
| 58 |
56109766 |
Screw |
Buy Now |
