Clarke BSW-28

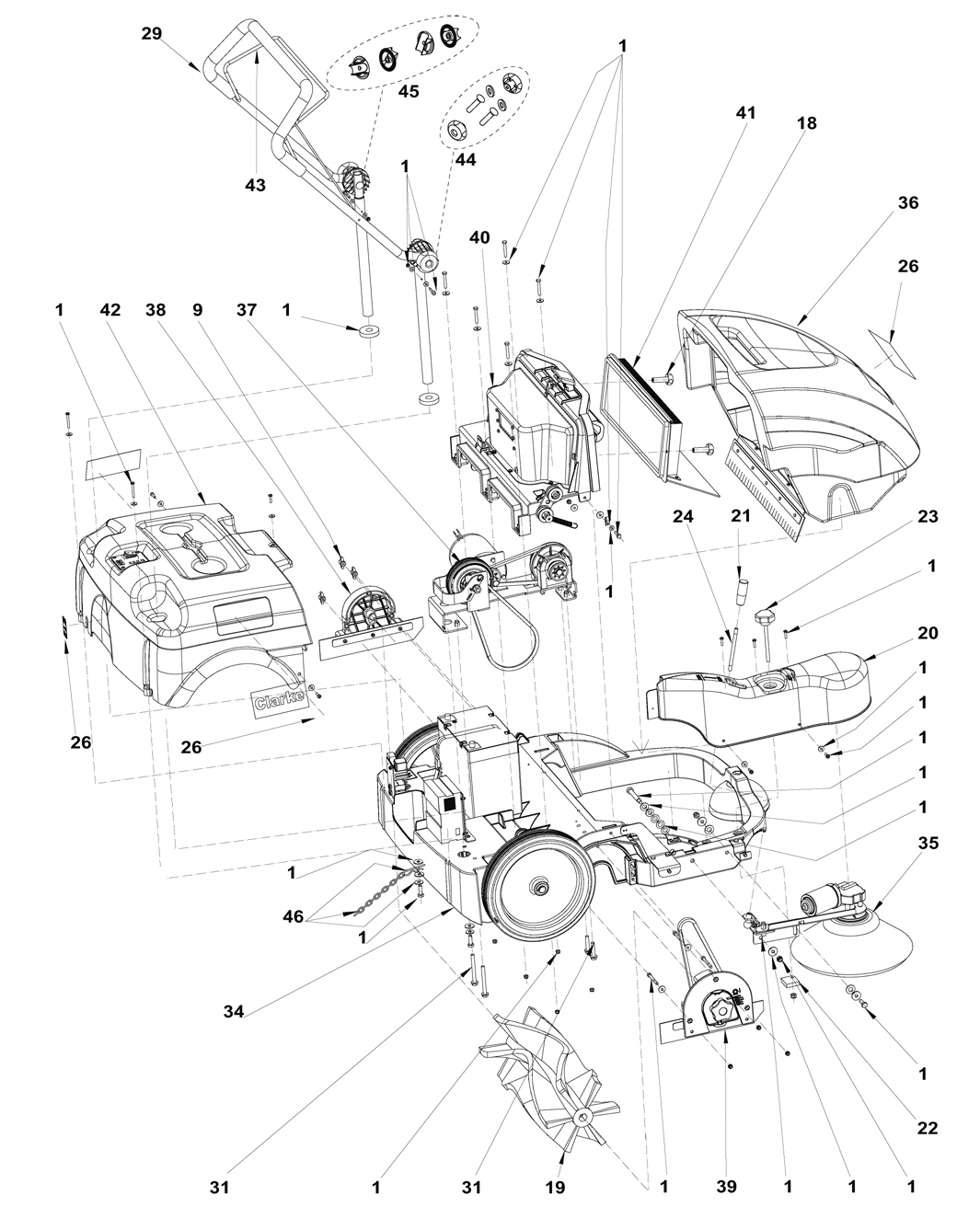

General Assembly
Clarke BSW-28 General Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1463858000 |
Hardware Main Kit |
Buy Now |
| 9 |
1450461000 |
Wing Nut M6 |
CALL TO ORDER |
| 18 |
1462991000 |
Handwheel M6 |
Buy Now |
| 19 |
1463015000 |
Main Broom |
Buy Now |
| 19* |
1463016000 |
Main Broom (Carpet) |
Buy Now |
| 20 |
1463034000 |
Side Case |
CALL TO ORDER |
| 21 |
1463037000 |
Handle |
Buy Now |
| 22 |
1463038000 |
Broom Side Adjuster Block |
Buy Now |
| 23 |
1463039000 |
Handwheel M8 |
Buy Now |
| 24 |
1463040000 |
Side Broom Lever |
Buy Now |
| 26 |
1464004000 |
Decals BSW 28 Kit |
Buy Now |
| 29 |
1463067000 |
Handle Bar |
Buy Now |
| 31 |
1463868000 |
Hardware Transmission System Kit |
Buy Now |
| 34 |
* |
Chassis System |
CALL TO ORDER |
| 35 |
* |
Side Broom Assembly |
CALL TO ORDER |
| 36 |
* |
Hopper System |
CALL TO ORDER |
| 37 |
* |
Transmission System |
CALL TO ORDER |
| 38 |
* |
Left Hatch Assembly |
CALL TO ORDER |
| 39 |
* |
Right Hatch Assembly |
CALL TO ORDER |
| 40 |
* |
Dust Control System |
CALL TO ORDER |
| 41 |
* |
Filter Assembly |
CALL TO ORDER |
| 42 |
* |
Control Panel Assembly |
CALL TO ORDER |
| 43 |
1463119000 |
Accelerator Lever |
Buy Now |
| 44 |
1463859000 |
Handle Fixing Kit |
Buy Now |
| 45 |
9095099000 |
Ratchet Handle Adjuster Kit |
Buy Now |
| 46 |
1463260000 |
Chain Kit |
Buy Now |

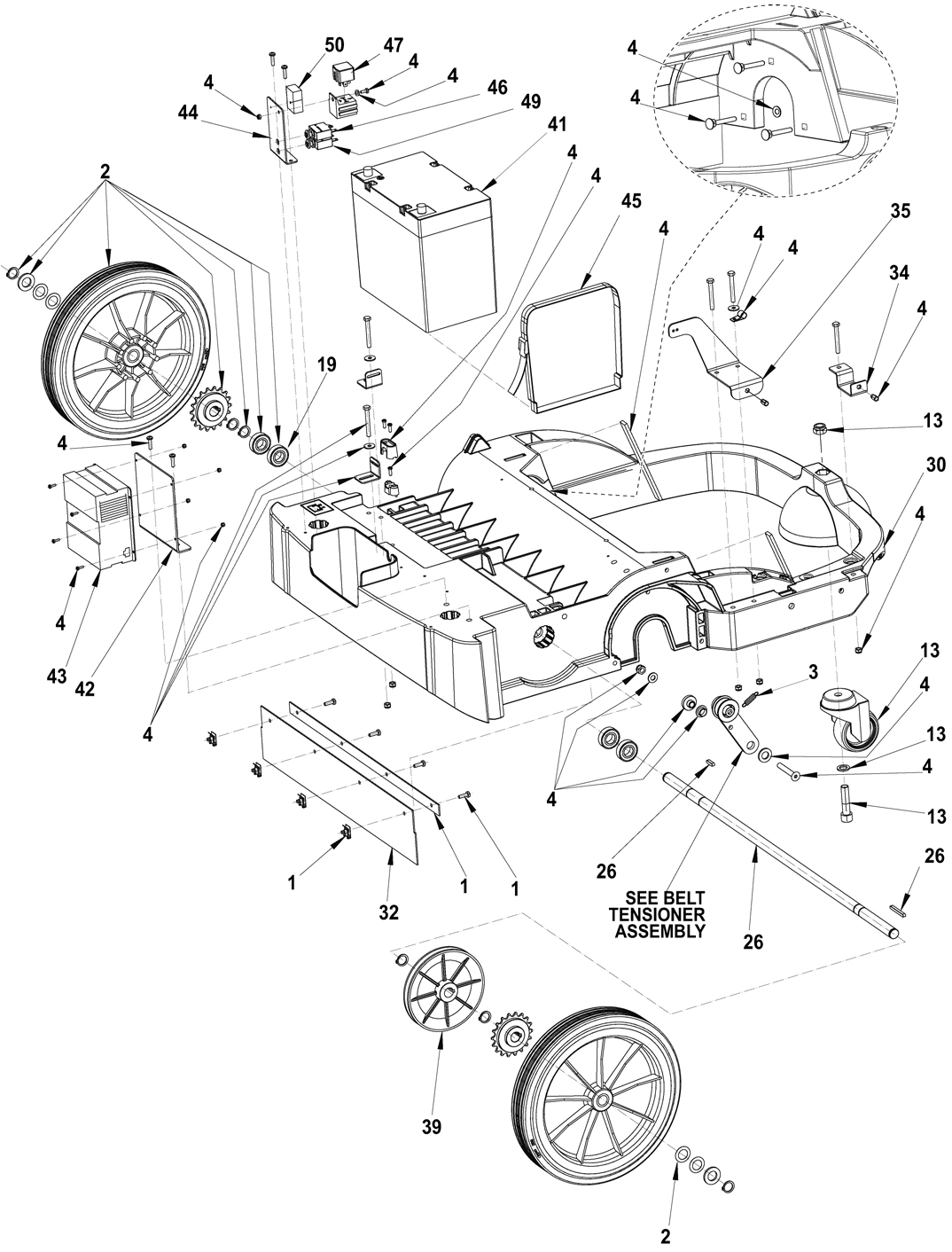

Chassis System
Clarke BSW-28 Chassis
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1463124000 |
Plates and Skirts Fixing Kit |
Buy Now |
| 2 |
1463976000 |
Wheel Blue Kit |
CALL TO ORDER |
| 3 |
1458925000 |
Spring |
Buy Now |
| 4 |
1463861000 |
Hardware Chassis System Kit |
Buy Now |
| 13 |
1463862000 |
Wheel Castor Kit |
Buy Now |
| 19 |
1458405000 |
Ball Bearing |
CALL TO ORDER |
| 26 |
1463863000 |
Shaft Wheels Kit |
Buy Now |
| 30 |
1462978000 |
Chassis |
CALL TO ORDER |
| 32 |
1463166000 |
Skirts Kit |
Buy Now |
| 34 |
1462983000 |
Carter Fixing Bracket |
Buy Now |
| 35 |
1462984000 |
Carter Fixing Bracket |
Buy Now |
| 39 |
1462998000 |
Pulley |
Buy Now |
| 41 |
40070A |
Battery 12V |
CALL TO ORDER |
| 42 |
1463050000 |
Bracket Battery Charger Fix |
Buy Now |
| 43 |
1463051000 |
Battery Charger 12V |
Buy Now |
| 44 |
1463053000 |
Electronic Comp Support |
Buy Now |
| 45 |
1463054000 |
Battery Fixing Belt |
Buy Now |
| 46 |
1463090000 |
Circuit Breaker 5A |
Buy Now |
| 47 |
1463113000 |
Relais 12V |
Buy Now |
| 49 |
9095706000 |
Circuit Breaker 30A |
Buy Now |
| 50 |
9096341000 |
Fuse Carrier |
Buy Now |
| 58 |
1463052000 |
Machine Harness |
Buy Now |
| 62 |
9096914000 |
Cable Extension |
Buy Now |
| 63 |
1459788000 |
Blade Fuse |
Buy Now |

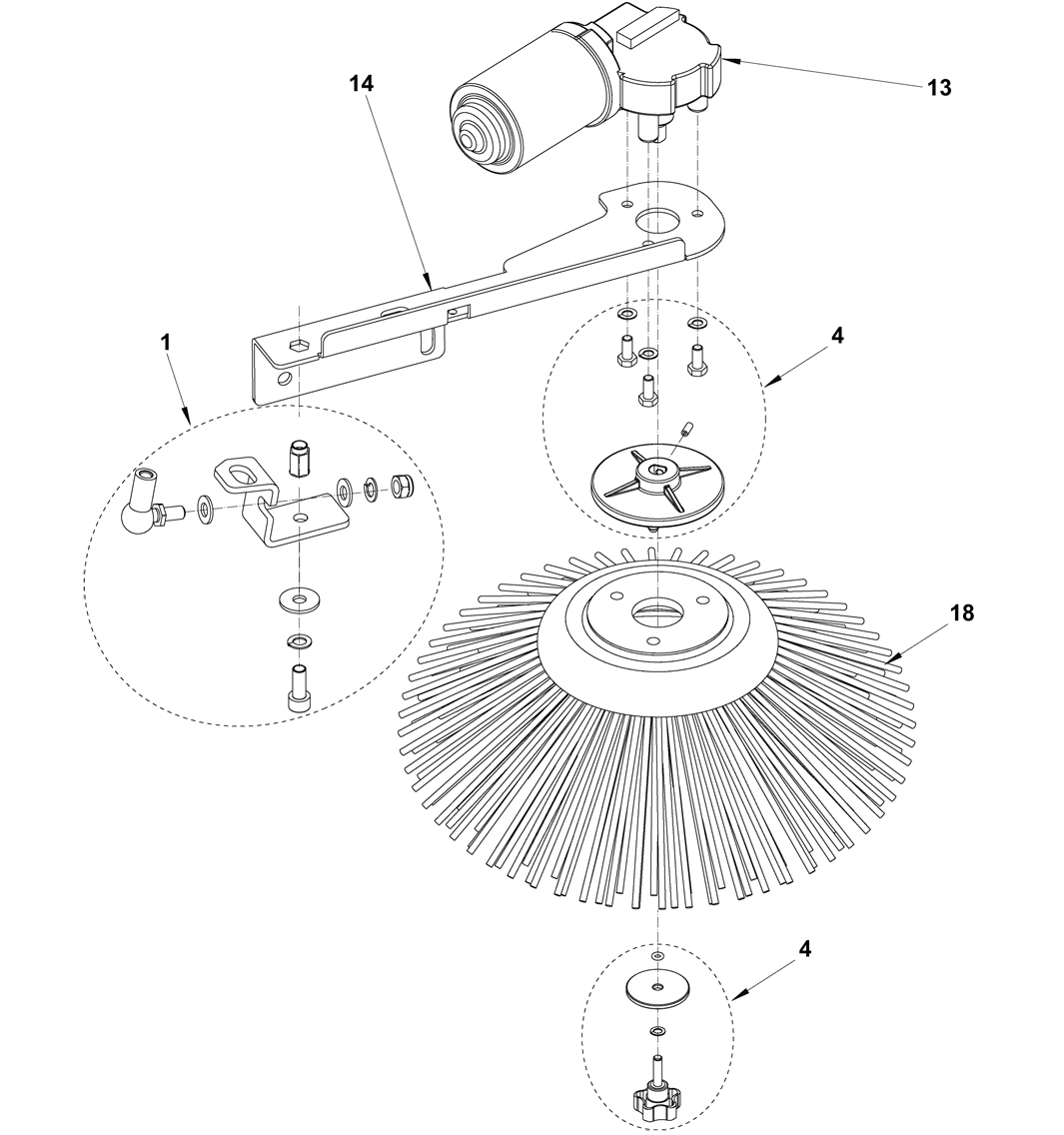

Side Broom Assembly
Clarke BSW-28 Side Broom
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1463864000 |
Hardware Side Broom Kit |
Buy Now |
| 4 |
1463865000 |
Broom Side Hub Fixing Kit |
Buy Now |
| 13 |
1463028000 |
Reduction Gear Motor |
Buy Now |
| 14 |
1463029000 |
Side Broom Support |
Buy Now |
| 18 |
1463035000 |
Side Broom 109X315 |
Buy Now |

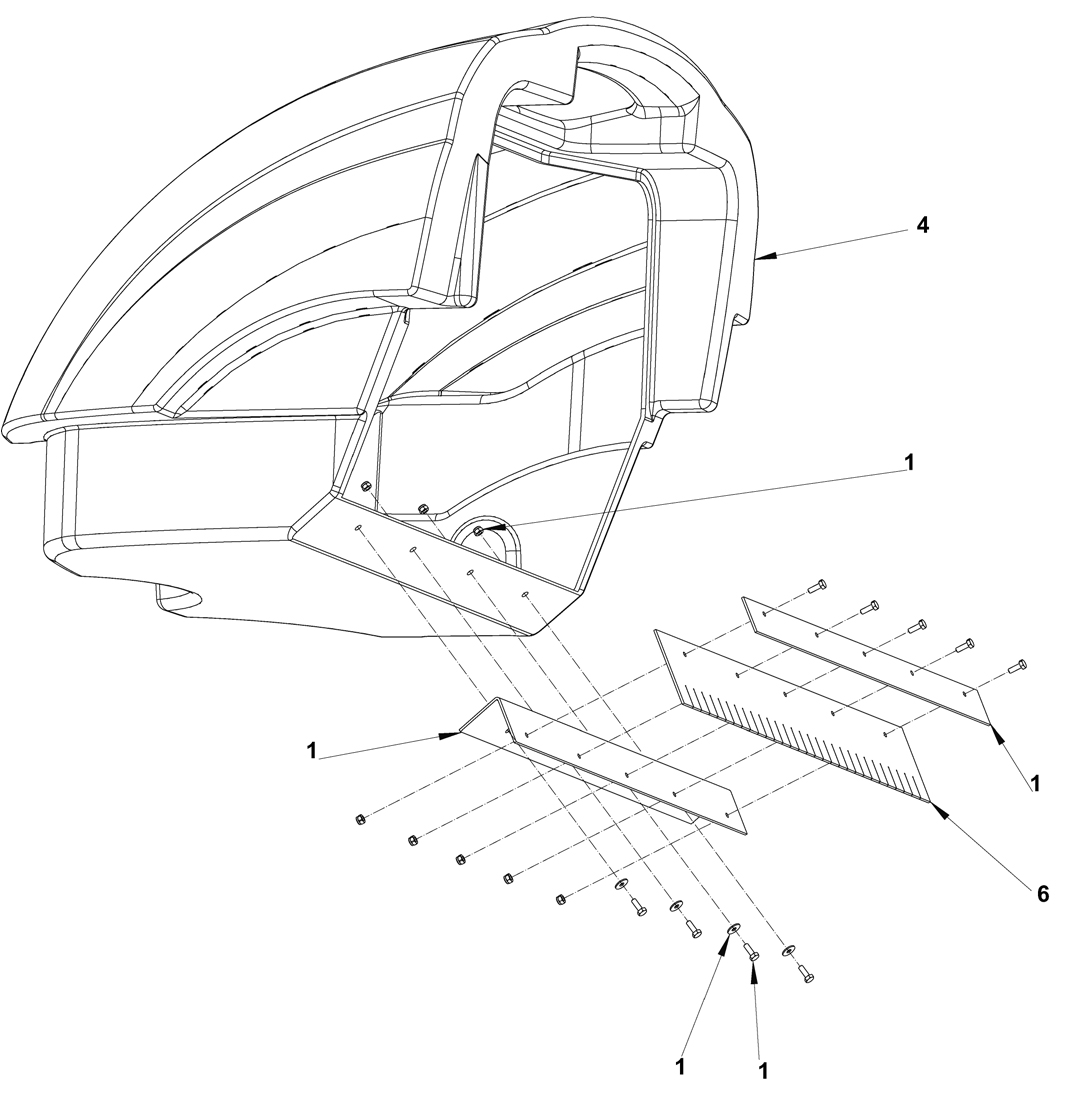

Hopper System
Clarke BSW-28 Hopper
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1463124000 |
Plates And Skirts Fixing |
Buy Now |
| 4 |
1463043000 |
Dirt Container |
CALL TO ORDER |
| 6 |
1463166000 |
Skirts Kit |
Buy Now |

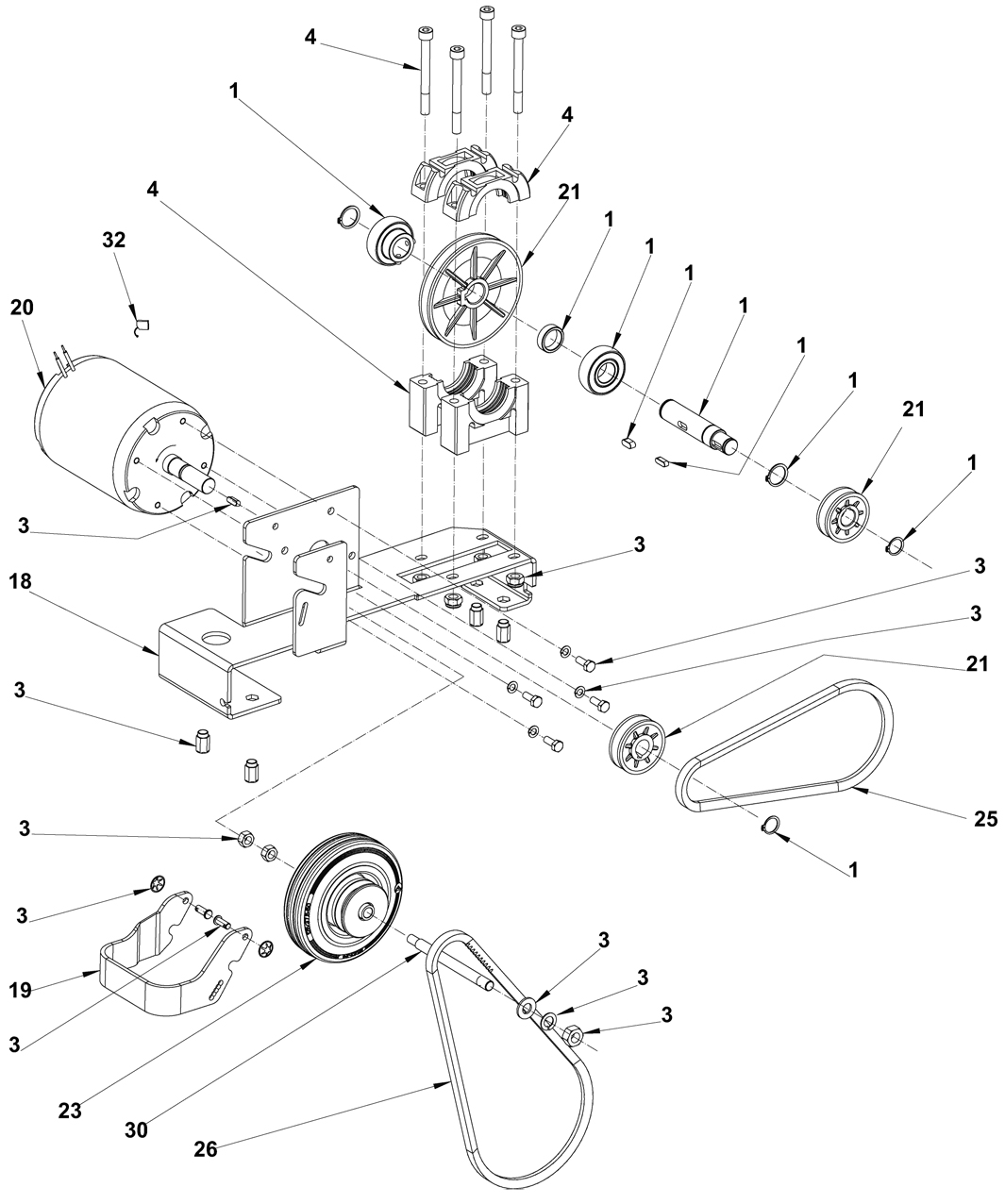

Transmission System
Clarke BSW-28 Transmission
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1463867000 |
Shaft Pulleys Kit |
Buy Now |
| 3 |
1463868000 |
Hardware Transmission System Kit |
Buy Now |
| 4 |
1463866000 |
Bearings Supports Kit |
Buy Now |
| 18 |
1463000000 |
Motor Support Plate |
Buy Now |
| 19 |
1463002000 |
Bracket |
Buy Now |
| 20 |
1463003000 |
Electric Motor 12V |
CALL TO ORDER |
| 21 |
1463869000 |
Pulley Kit |
Buy Now |
| 23 |
1463006000 |
Friction Wheel |
CALL TO ORDER |
| 25 |
1463305000 |
Belt |
Buy Now |
| 26 |
1463009000 |
Belt #2 |
CALL TO ORDER |
| 30 |
1463013000 |
Shaft |
Buy Now |
| 32 |
1463143000 |
Carbon Brush W/Cover Kit |
CALL TO ORDER |

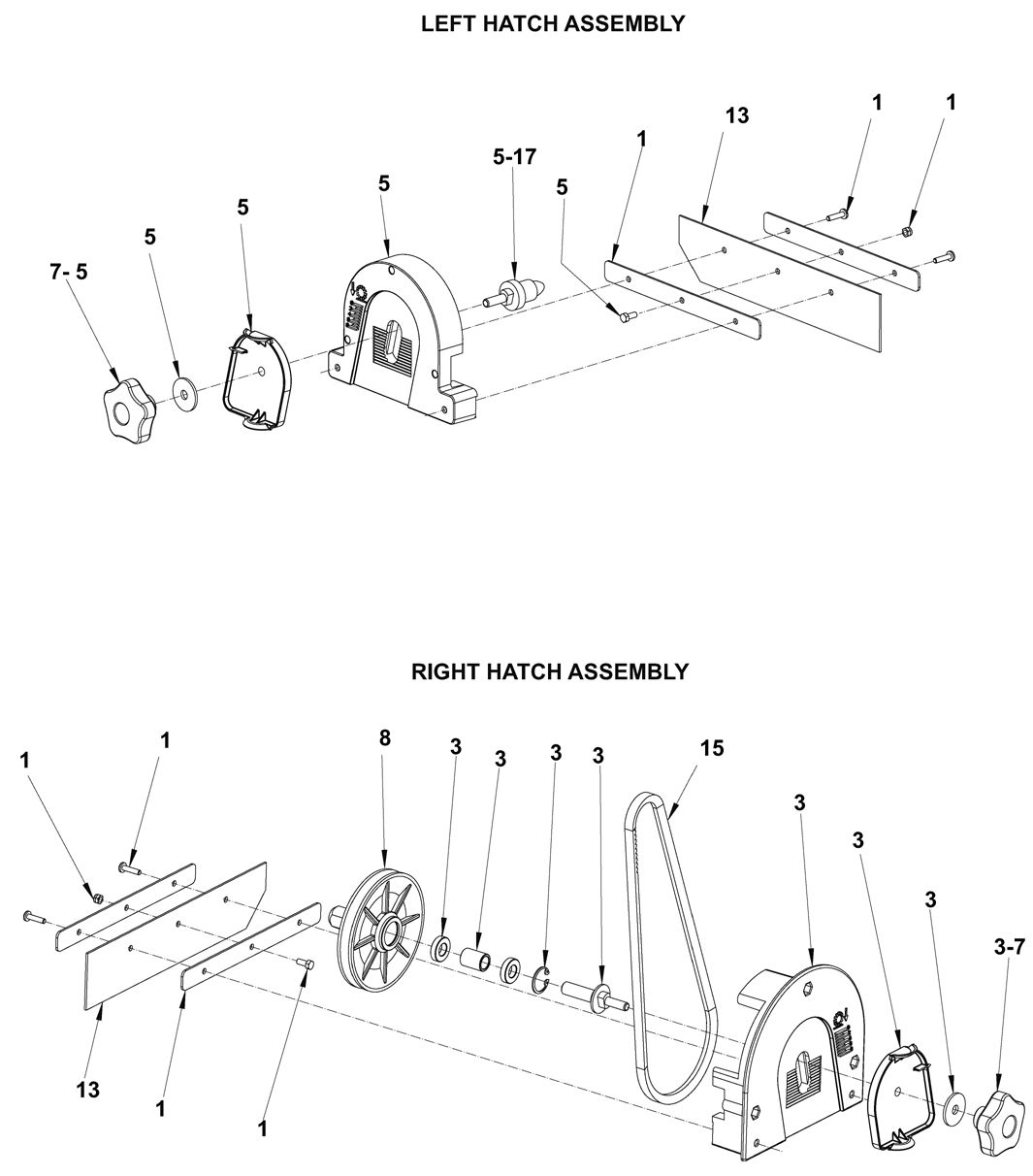

Left and Right Hatch Assemblies
Clarke BSW-28 Hatch Assemblies
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1463124000 |
Plates and Skirts Kit |
Buy Now |
| 3 |
1463870000 |
Right Hatch Fixing Kit |
Buy Now |
| 5 |
1463871000 |
Left Hatch Fixing Kit |
Buy Now |
| 7 |
1461852000 |
Handwheel |
Buy Now |
| 8 |
1463014000 |
Pulley |
Buy Now |
| 13 |
1463166000 |
Skirts Kit |
Buy Now |
| 15 |
1463027000 |
Belt |
Buy Now |
| 17 |
1463020000 |
Main Broom Pin |
Buy Now |

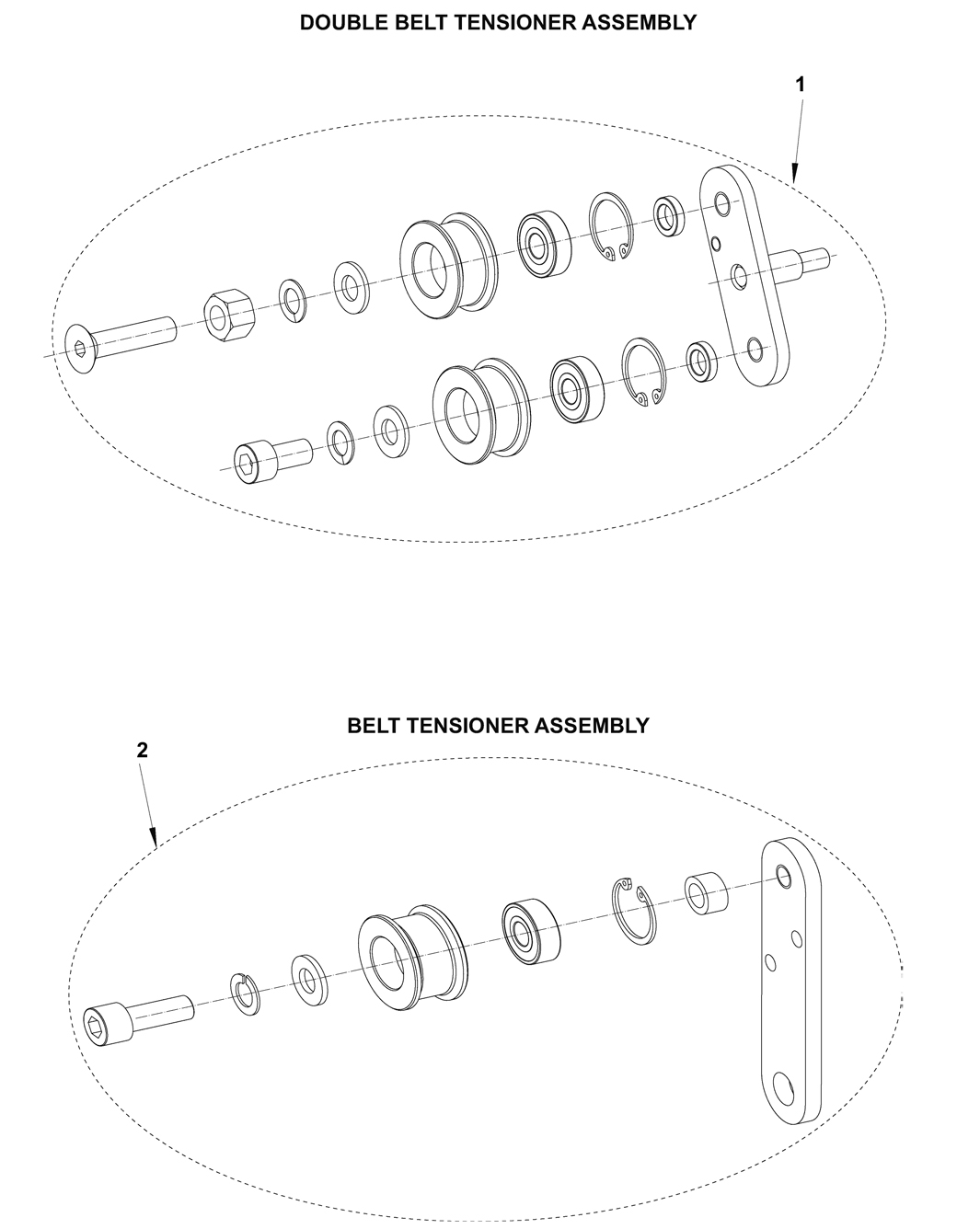

Belt Tensioner Assembly
Clarke BSW-28 Belt Tensioner
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1463872000 |
Belt Tensioner Double Kit |
Buy Now |
| 2 |
1463873000 |
Belt Tensioner Kit |
Buy Now |

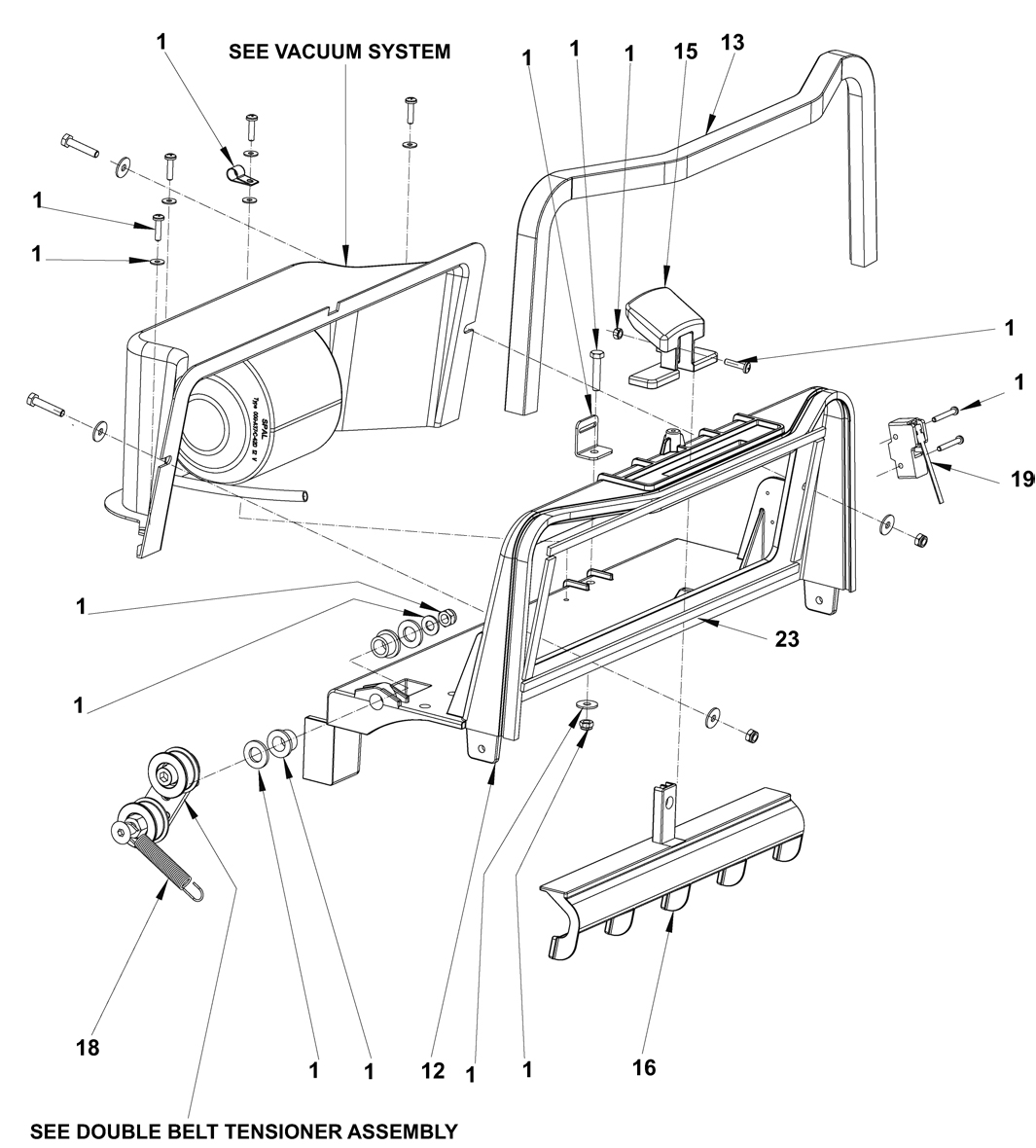

Dust Control System
Clarke BSW-28 Dust Control System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1463874000 |
Hardware Dust Control System |
Buy Now |
| 12 |
1462988000 |
Support Filter |
Buy Now |
| 13 |
1463747000 |
Gasket Extruded L 845MM |
Buy Now |
| 15 |
1462992000 |
Filter Shaker Handle |
Buy Now |
| 16 |
1462993000 |
Filter Shaker |
Buy Now |
| 18 |
1450274000 |
Spring |
Buy Now |
| 19 |
1459679000 |
Microswitch |
Buy Now |
| 23 |
1463176000 |
Gasket Kit |
Buy Now |

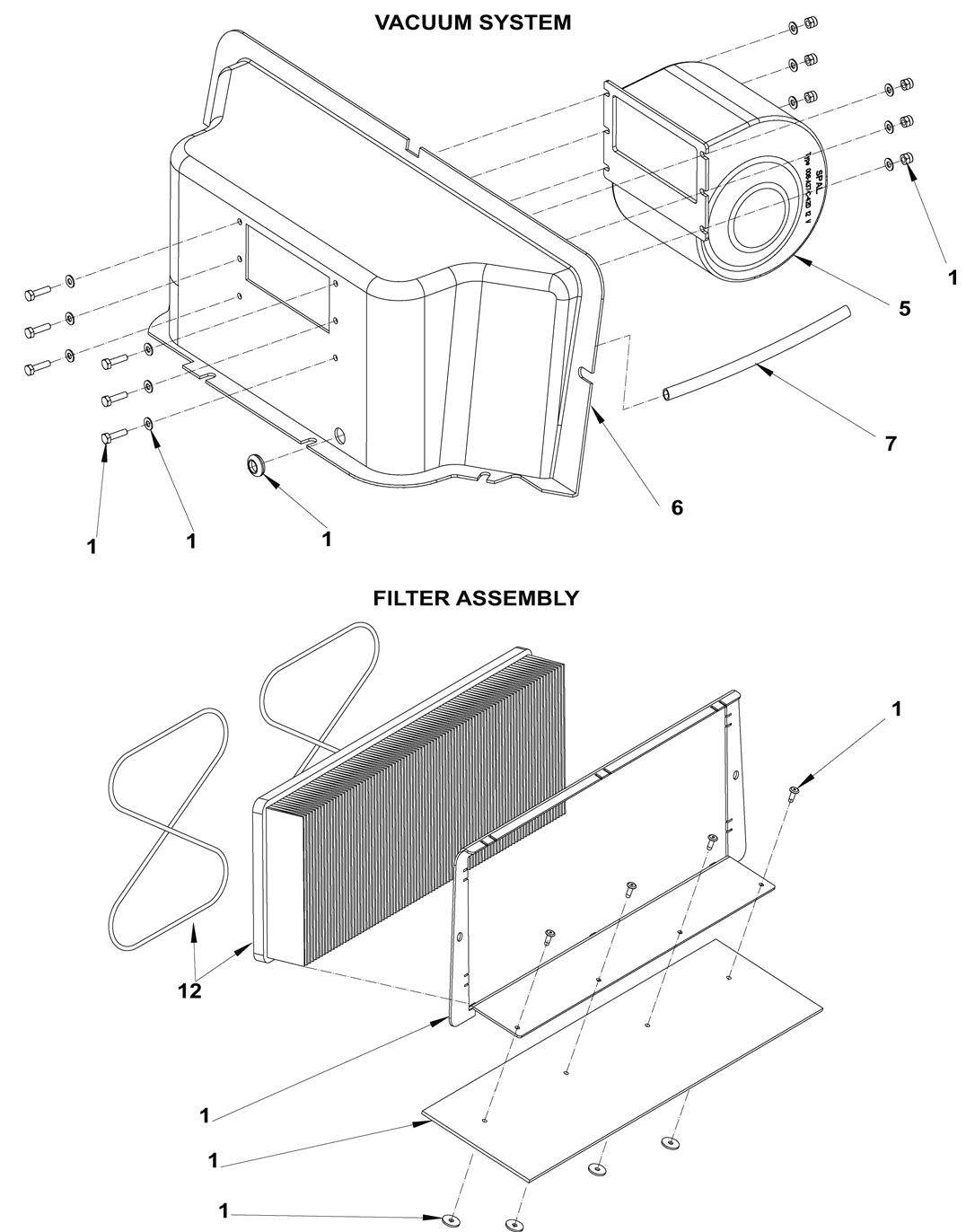

Vacuum System and Filter Assembly
Clarke BSW-28 Vacuum System and Filter Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1463875000 |
Hardware Filter Fixing Kit |
Buy Now |
| 5 |
1461804000 |
Fan 12V |
Buy Now |
| 6 |
1463055000 |
Conveyor |
Buy Now |
| 7 |
1463125000 |
Sheath |
Buy Now |
| 12 |
1463161000 |
Polyester Filter |
Buy Now |

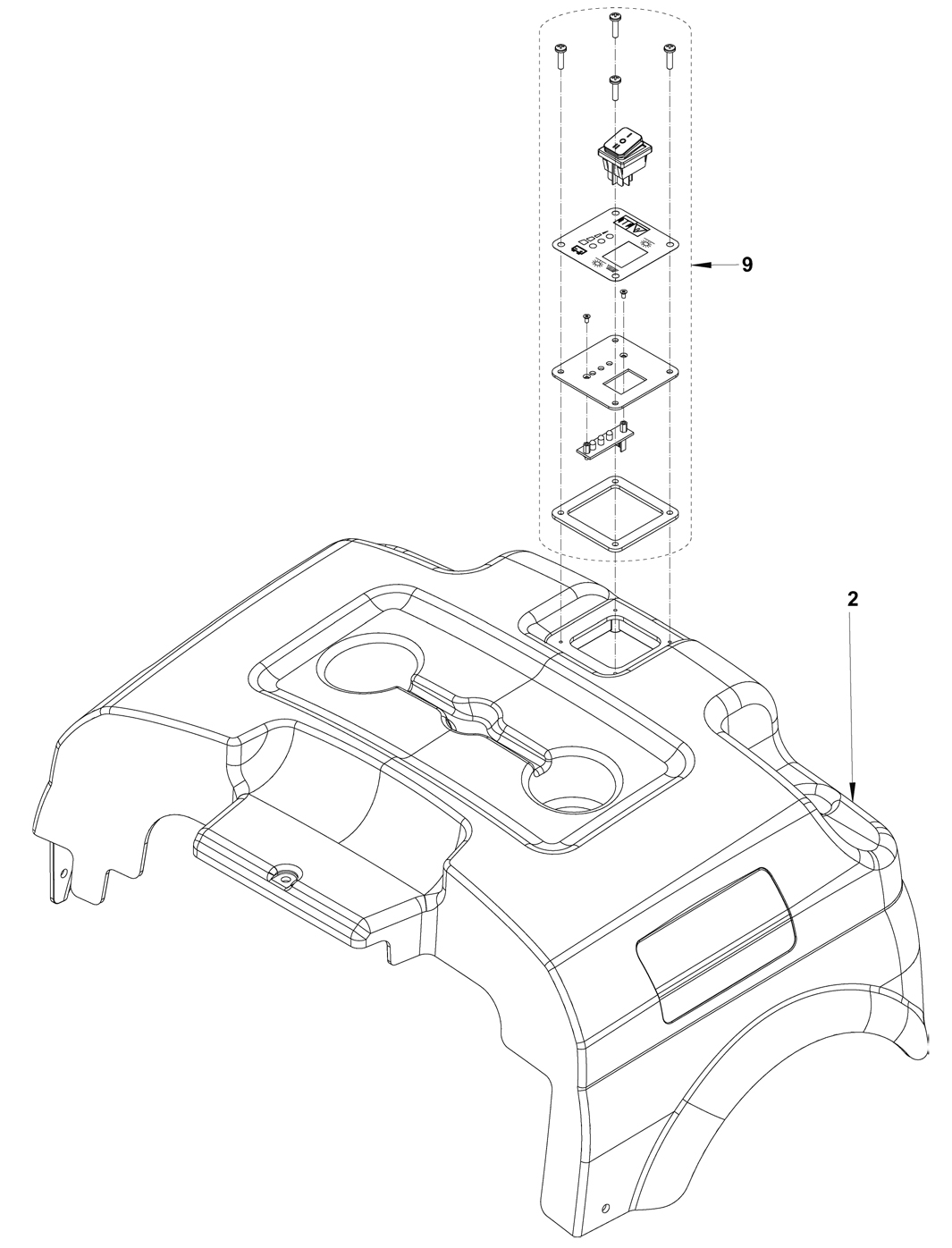

Control Panel Assembly
Clarke BSW-28 Control Panel Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
1463070000 |
Rear Bonnet |
CALL TO ORDER |
| 9 |
1463183000 |
Control Panel Kit |
Buy Now |
