Clarke BOS-18 2

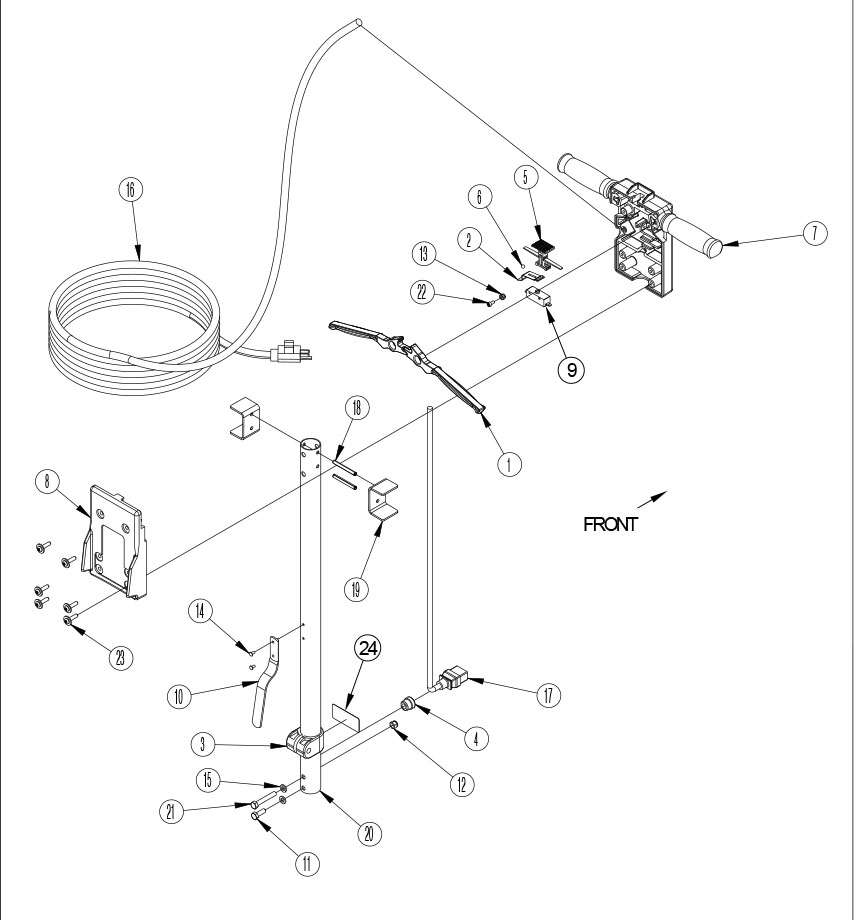

Handle Assembly

Clarke BOS-18 2 Handle Assembly

1 56201027 Handle Lever Buy Now
2 56263648 Plate Spring Buy Now
3 442001 Handle Tube Clamp Buy Now
4 627561 Strain Relief Buy Now
5 56201031 Lock Button Buy Now
6 56201592 Ball Buy Now
7 56201656 Front Handle Buy Now
8 56201657 Back Handle Buy Now
9 40949A Switch Buy Now
10 64325A Cord Hook Buy Now
11 85812A Screw Buy Now
12 920110 Lock Nut Buy Now
13 920722 Nut Call to Order
14 930005 Rivet Buy Now
15 980652 Lock Washer Buy Now
16 40760A Power Cord Buy Now
17 56382460 Interconnect Cord Buy Now
18 53834A Coiled Pin Buy Now
19 61726A Support Handle Buy Now
20 61825A Tube Handle Buy Now
21 85817A Screw Buy Now
22 80290A Screw Buy Now
23 80292A Screw Buy Now
24 56382459 Handle Release Decal Buy Now

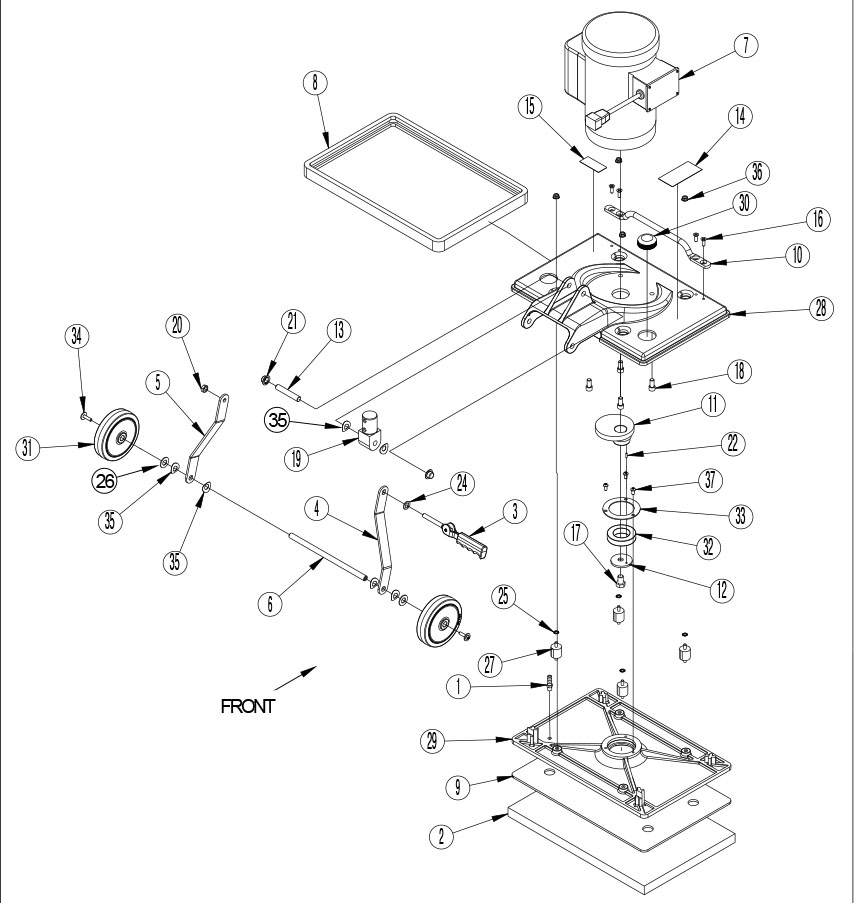

Base Assembly

Clarke BOS-18 2 Base Assembly

Reference # Part # Description Add to Cart
1 690209 Hosebarb Buy Now
2 56382759 Red Pads Buy Now
3 56109699 Cam Assembly Buy Now
4 56381766 Right Link Arm Buy Now
5 56381767 Left Link Arm Buy Now
6 56381768 Axle Shaft Buy Now
7 56382454 Motor Buy Now
- 56382457 Start Capacitor Buy Now
- 56382458 Stationary Switch Buy Now
- 56382461 Run Capacitor Buy Now
8 31224B Bumper Frame Buy Now
9 39730A Grip Face Buy Now
10 54930A Lift Handle Buy Now
11 62814A Eccentric Buy Now
12 66982A Eccentric Retainer Buy Now
13 67474A Handle Pivot Shaft Buy Now
14 77195A Label Buy Now
15 77234A Warning Plate Buy Now
16 84233A Screw Buy Now
17 85718A Screw Buy Now
18 86112A Screw Buy Now
19 509240 Handle Tube Tongue Buy Now
20 920248 Nut Buy Now
21 920346 Palnut Buy Now
22 925589 Roll Pin Buy Now
24 980349 Washer Wear Cam Buy Now
25 980614 Washer Buy Now
26 980648 Plain Washer Call to Order
27 56380193 Isolator Buy Now
28 25908A Mainframe Buy Now
29 29931A Orbital Base Buy Now
30 39734A Plug Hole Buy Now
31 39857A Wheel Buy Now
32 50736A Bearing Buy Now
33 66981A Bearing Retainer Buy Now
34 80292A Screw Buy Now
35 80295A Washer Buy Now
36 81220A Nut Buy Now
37 87700A Screw Buy Now
