Clarke BOS-18

Base Assembly

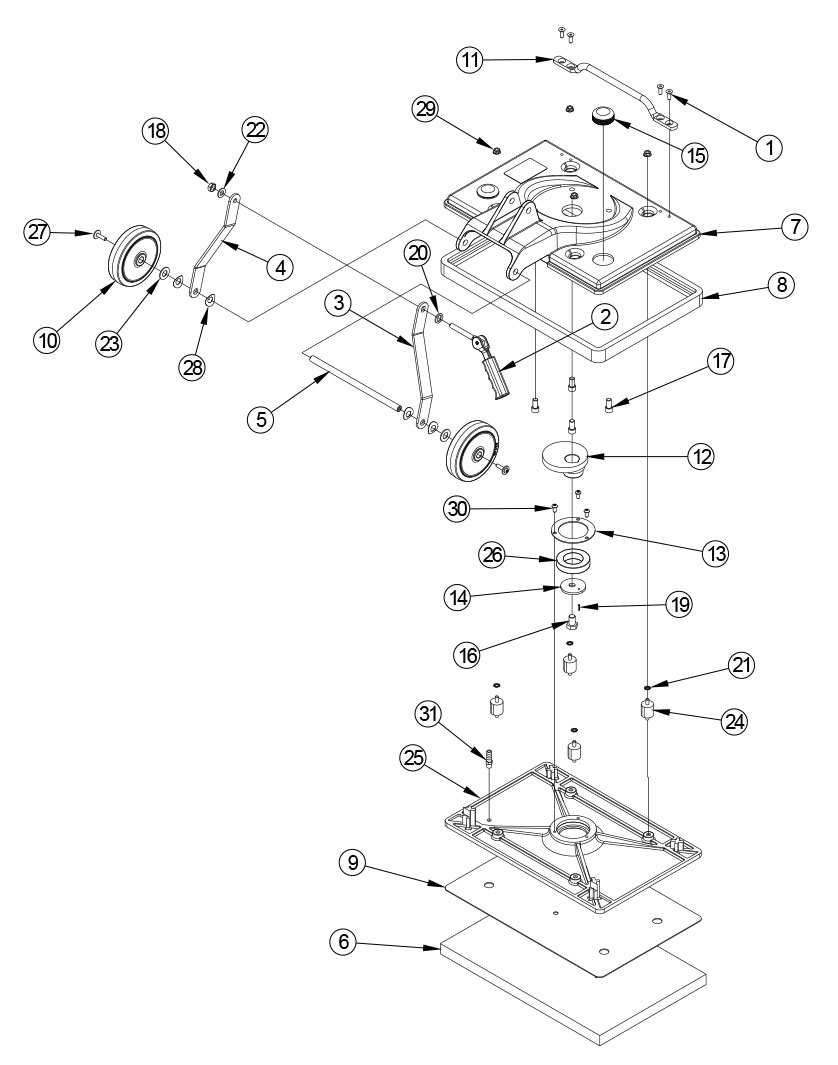

Clarke BOS-18 Base Assembly

1 962411 Screw Buy Now
2 56109699 Cam Assembly with Grip Buy Now
3 56381766 Right Arm Link Buy Now
4 56381767 Left Arm Link Buy Now
5 56381768 Axle Shaft Buy Now
6 56382759 Red Pad Buy Now
- 976558 Red Pad Buy Now
- 976550 White Pad Call to Order
- 30730A Maroon Pad Buy Now
- 976555 Black Pad Buy Now
- 56383922 Green Pad Brush Buy Now
7 25908A Mainframe Buy Now
8 31224B Bumper Frame Buy Now
9 39730A Grip Face Buy Now
10 39857A Wheel Buy Now
11 54930A Lift Handle Buy Now
12 62814A Eccentric Buy Now
13 66981A Retainer Bearing Buy Now
14 66982A Eccentric Retainer Buy Now
15 39734A Plastic Plug Hole Buy Now
16 85718A Screw Buy Now
17 86112A Screw Buy Now
18 920248 Nut Buy Now
19 925589 Roll Pin Buy Now
20 980349 Washer Wear Cam Buy Now
21 980614 Washer Buy Now
22 980645 Washer Buy Now
23 980648 Washer Call to Order
24 10666A Spring Mount Kit Buy Now
25 29931A Orbital Base Buy Now
26 50736A Bearing Buy Now
27 80292A Screw Buy Now
28 80295A Bowed Washer Buy Now
29 81220A Serrated Flange Nut Buy Now
30 87700A Screw Buy Now
31 690209 Hosebarb Buy Now





Motor Assembly

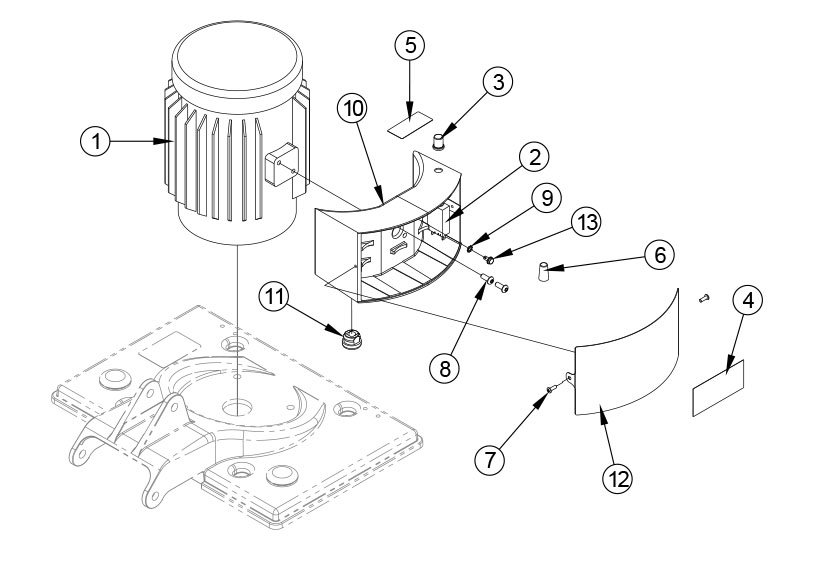

Clarke BOS-18 Motor Assembly

Reference # Part # Description Add to Cart
1 56382831 Motor Buy Now
- 40160A Starter Switch Buy Now
- 41311A Capacitor Buy Now
- 41312A Capacitor Start Buy Now
1 - Motor Call to Order
- 56380670 Starter Switch Buy Now
- 41311A Capacitor Buy Now
- 41312A Capacitor Start Buy Now
2 56454538 Circuit Breaker Buy Now
- 41419A Circuit Breaker Buy Now
- 47709A Terminal Buy Now
3 56459367 Reset Button Boot Buy Now
4 77195A Label Buy Now
5 77234A Warning Plate Buy Now
6 170667 Wire Connector Twist Buy Now
7 962727 Screw Buy Now
8 962822 Screw Buy Now
9 980603 Washer Buy Now
10 22906A Motor Start Enclosure Call to Order
11 51523A Strain Relief Bushing Buy Now
12 62667A Enclosure Cover Buy Now
13 85833A Screw Buy Now





Handle Assembly

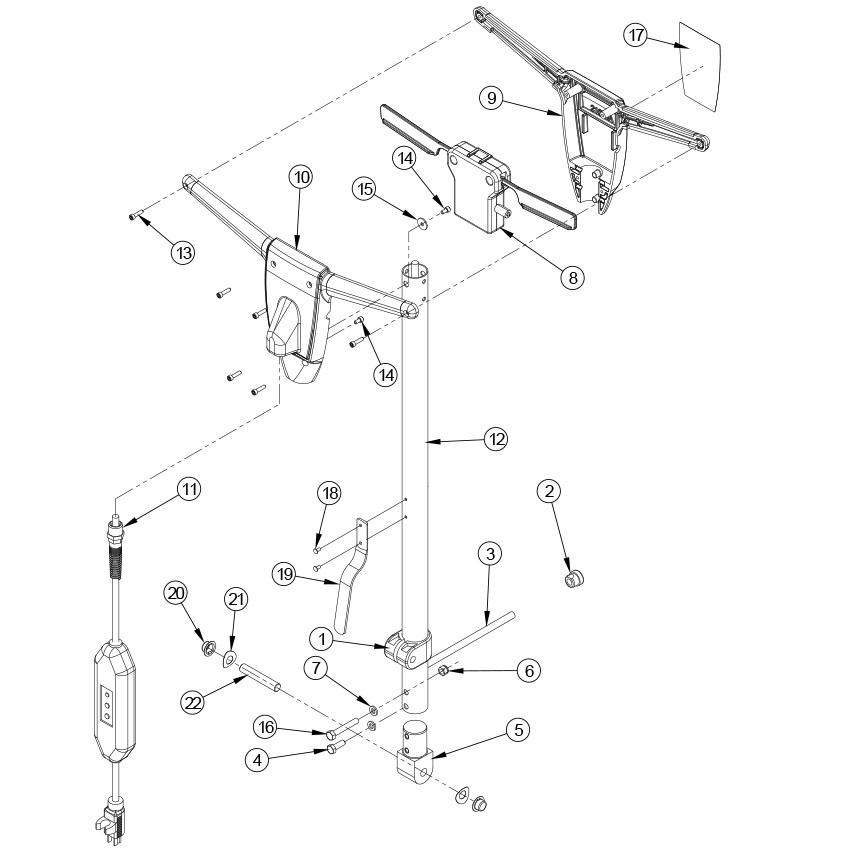

Clarke BOS-18 Handle Assembly

Reference # Part # Description Add to Cart
1 442001 Handle Tube Clamp Buy Now
2 627561 Strain Relief Buy Now
3 40522A Interconnect Cord Call to Order
4 85812A Screw Buy Now
5 509240 Handle Tube Tongue Buy Now
6 920110 Nut Buy Now
7 980652 Lock Washer Buy Now
8 10687A Interlock Assembly Buy Now
9 21074A Front Handle Buy Now
10 21075A Rear Handle Buy Now
11 41085A Cord Power Buy Now
12 61825A Handle Tube Buy Now
13 80284A Screw Buy Now
14 80290A Screw Buy Now
15 80291A Flat Washer Buy Now
16 85817A Screw Buy Now
17 71487A Handle Label Buy Now
18 930005 Rivet Buy Now
19 64325A Cord Hook Buy Now
20 920346 Palnut Buy Now
21 80295A Bowed Washer Buy Now
22 67474A Handle Pivot Shaft Buy Now





Solution Tank Assembly

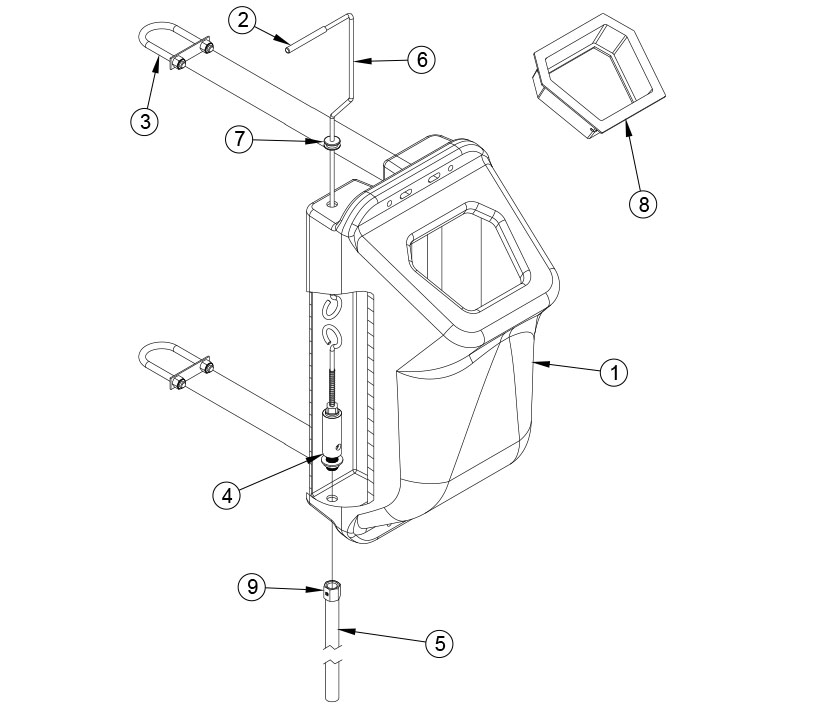

Clarke BOS-18 Solution Tank Assembly

Reference # Part # Description Add to Cart
- 50026B Tank Assembly Buy Now
1 - Tank Call to Order
2 316AB Black Cap Buy Now
3 SUB113D U-Bolt Assembly Call to Order
4 FP122 Brass Valve Buy Now
- FP122A Rebuild Kit Call to Order
5 FP123 Hose Buy Now
6 FP121B Brass Handle Call to Order
7 314AB Grommet Buy Now
8 FP486 Filter Cup Assembly Buy Now
9 318AB Hose Barb Solution Tank Buy Now
