Front Control Unit

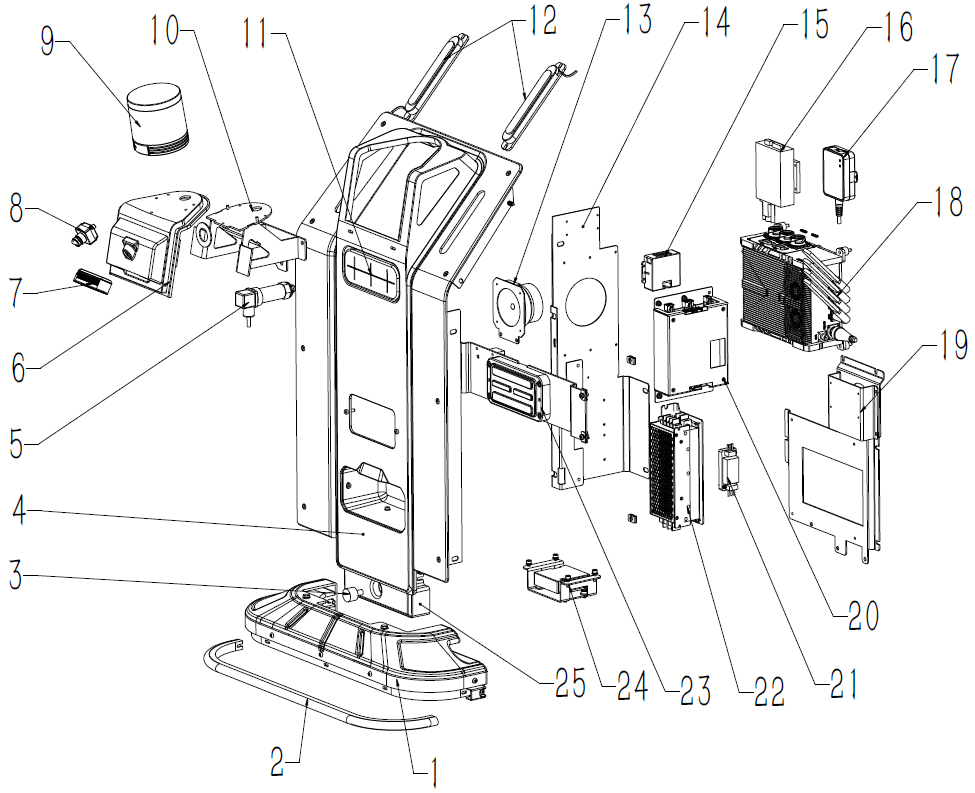

CenoBots L50 Front Control Unit

Reference #	Part #	Description	Add to Cart
1	252060307	Rotomolded Bumper	Call to Order
2	301070001	Bumper Sensor, 24VDC	Order Part
3	103070003	Supplementary/Flood Light, 10W 24VDC	Call to Order
4	252060107	Front Cover	Call to Order
5	552910017	Vacuum Sensor, 24VDC	Call to Order
6	252060108	Camera Mounting Bracket, Plastic	Call to Order
7	103130001	Front Depth Camera, 5VDC	Call to Order
8	103130000	Front Camera, 5VDC	Call to Order
9	103090003	3D LiDAR, 24VDC	Order Part
10	252010107	3D LiDAR Mounting Bracket	Call to Order
11	252010109	Auto Water Filling Port Shield, Rubber	Order Part
12	552920002	Front Indicator Light, 24VDC	Order Part
13	103070005	Speaker, 20W	Call to Order
14	252010112	Bracket	Call to Order
15	305010002	Loudspeaker Power Amplifier, 24VDC	Call to Order
16	103100003	RS-485 to RS-232 Converter, 24VDC	Call to Order
17	103100002	3D LiDAR Controller Box with LiDAR Cable, 24VDC	Call to Order
18	103080000	ACU, 24VDC	Order Part
19	252010115	Bracket	Call to Order
20	305020004	ECU, 24VDC	Order Part
21	103010004	DC-DC Converter Module, 24VDC, 50W	Call to Order
22	103010003	DC-DC Converter Module, 24VDC, 150W	Call to Order
23	251110314	Charging Plates, Automatic Charging	Call to Order
24	305010016	IMU, 24VDC	Order Part
25	252060110	Supplementary Light Housing, Plastic	Call to Order

Automatic Drain System

CenoBots SP50 Right Cover Assembly

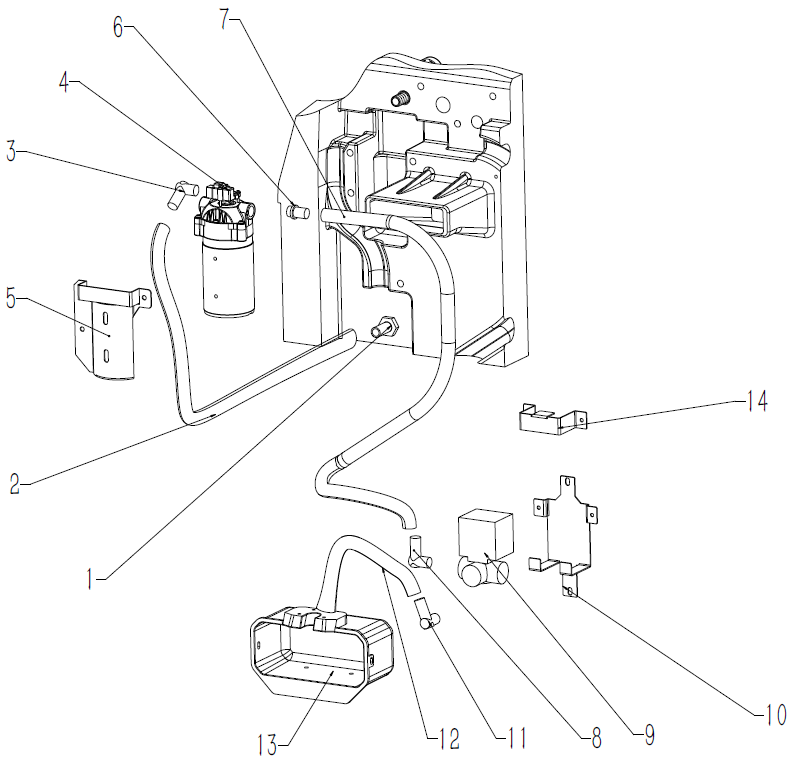

CenoBots L50 Automatic Drain System

Reference #	Part #	Description	Add to Cart
1	102050008	Connector	Call to Order
2	102050020	Automatic Drain Hose Part 1	Call to Order
3	102050018	Elbow Fitting	Call to Order
4	552920014	Drain Pump, 80W 24VDC	Order Part
5	252040046	Pump Mounting Bracket	Call to Order
6	102050019	Straight Fitting	Call to Order
7	102050031	Automatic Drain Hose Part 2	Call to Order
8	102050026	Elbow Fitting	Call to Order
9	552920012	Electric Three-way Solenoid Valve, 24VDC	Call to Order
10	252040053	Electric Three-way Solenoid Valve Mounting Bracket Part 1	Call to Order
11	102050026	Tee, Plastic	Call to Order
12	102050020	Automatic Drain Hose Part 2	Call to Order
13	252060109	Drain Port Housing	Call to Order
14	252040054	Electric Three-way Solenoid Valve Mounting Bracket Part 2	Call to Order

Solution Connection

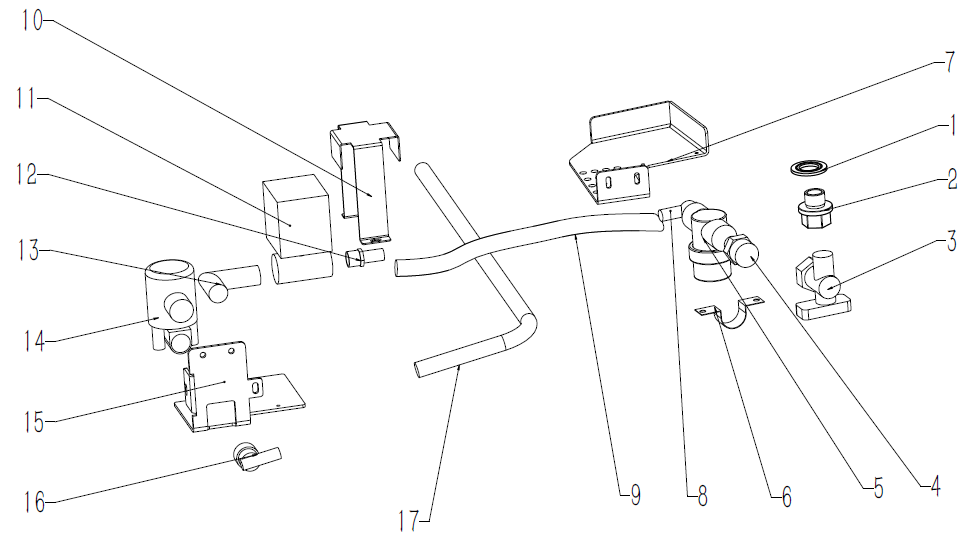

CenoBots L50 Solution Connection

CenoBots L50 Solution Connection

Reference #	Part #	Description	Add to Cart
1	102080025	O-ring	Call to Order
2	252040067	Connector	Call to Order
3	102130003	Manual Ball Valve	Call to Order
4	102050062	Straight Fitting	Call to Order
5	102100020	Solution Filter	Order Part
6	102060130	Clamp	Call to Order
7	252040066	Solution Filter Mounting Bracket	Call to Order
8	102050014	Elbow Fitting	Call to Order
9	102050029	Solution Hose	Call to Order
10	252040033	Electric Ball Valve Mounting Bracket	Call to Order
11	552920011	Electric Ball Valve, 24VDC	Order Part
12	102050015	Straight Fitting	Call to Order
13	102050016	Elbow Fitting	Call to Order
14	552920010	Solenoid Valve, 24VDC	Order Part
15	252040013	Solenoid Valve Mounting Bracket	Call to Order
16	102050017	Elbow Fitting	Call to Order
17	102050029	Solution Hose	Call to Order

Water Tank

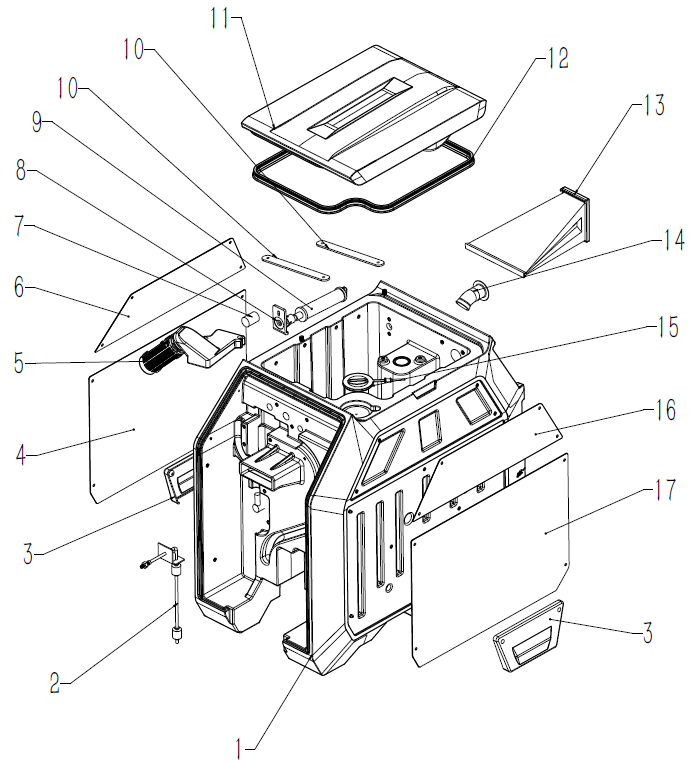

CenoBots L50 Water Tank

Reference #	Part #	Description	Add to Cart
1	252040001	Solution/Recovery Tank, PE	Call to Order
2	552040024	Recovery Tank Float Sensor, 24VDC	Call to Order
3	252060301	Wheel Cover, PE	Call to Order
4	252060305	Right Lower Cover, SUS304	Call to Order
5	102070018	Recovery Tank Float Kit	Call to Order
6	252060308	Right Upper Cover, SUS304	Call to Order
7	102100001	Vacuum Sensor Filter, G3/4	Call to Order
8	152040049	Recovery Tank Filter Base	Call to Order
9	252040050	Recovery Tank Filter	Order Part
10	252040065	Recovery Tank Lid Strap	Order Part
11	252040020	Recovery Tank Lid, PE	Call to Order
12	102080002	Recovery Tank Seal, Rubber	Order Part
13	252040034	Debris Filter Bag	Order Part
14	252040036	Bent Hose, Rubber	Call to Order
15	252040029	Solution Tank Lid, Rubber, Yellow	Call to Order
16	252060304	Left Upper Cover, SUS304	Call to Order
17	252060303	Left Lower Cover, SUS304	Call to Order

Water Tank Pt. 2

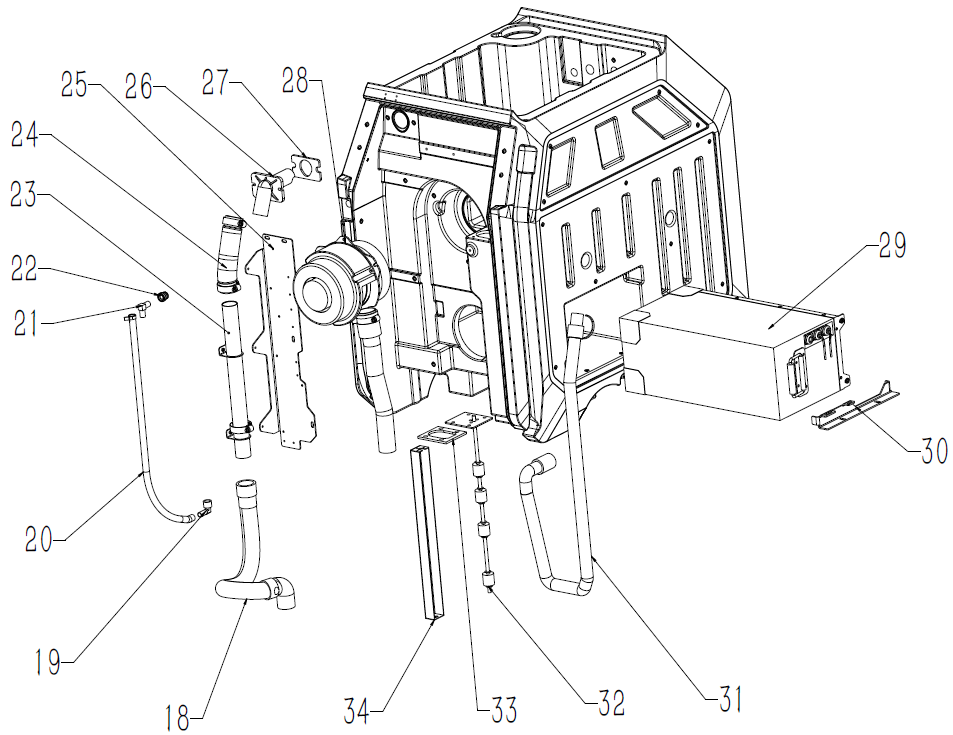

CenoBots L50 Water Tank Pt. 2

Reference #	Part #	Description	Add to Cart
18	102050024	Corrugated Vacuum Hose	Call to Order
19	102050017	Elbow Fitting	Call to Order
20	102050009	Solution Tank Water Level/Drain Hose, PVC	Call to Order
21	102050010	Elbow Fitting, Plastic	Call to Order
22	252040035	Rubber Plug	Call to Order
23	252025510	Vacuum Pipe, SUS304	Call to Order
24	252025506	Vacuum Hose, Rubber	Call to Order
25	252025002	Bracket	Call to Order
26	252040010	Tube, Plastic	Call to Order
27	252040011	Gasket, Rubber	Call to Order
28	103170010	Vacuum Motor, 370W 24VDC	Call to Order
29	103010008	Battery	Call to Order
30	252040028	Battery Hold-down Bracket	Call to Order
31	102050025	Recovery Tank Drain Hose	Order Part
32	552040027	Solution Tank Float Sensor, 24VDC	Call to Order
33	252040017	Gasket, Rubber, Solution Tank Float Sensor	Call to Order
34	252040016	Float Sensor Protective Cover, SUS304	Call to Order

Rear Control Unit

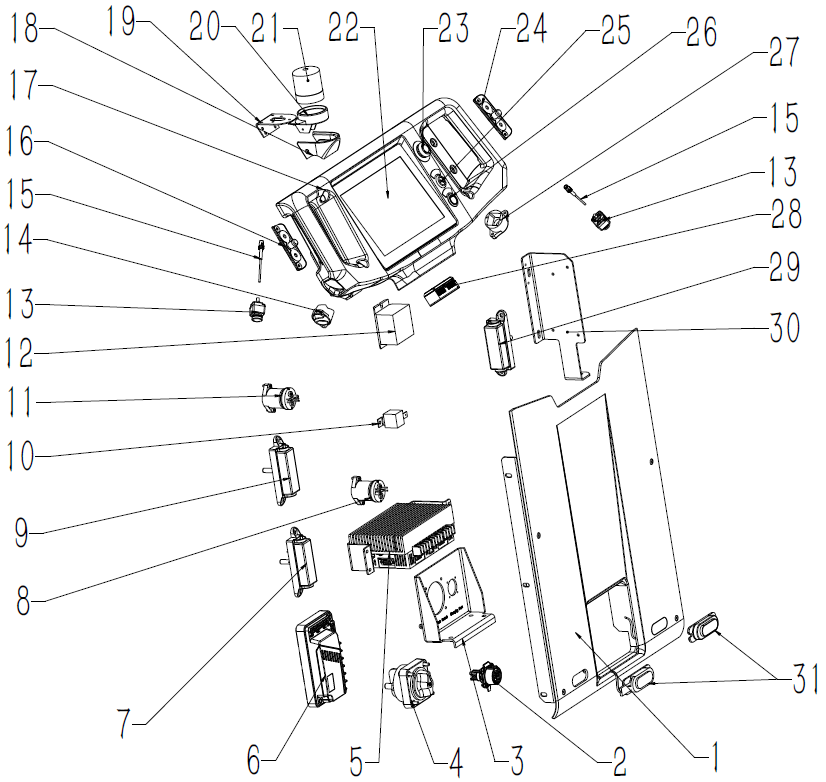

ConoBots L50 Rear Control Unit

Reference #	Part #	Description	Add to Cart
1	252060201	Rear Cover	Call to Order
2	103030094	Manual Charging Port	Call to Order
3	252025001	Pedal, Bracket	Call to Order
4	103020000	Load-break Switch, 300A	Call to Order
5	103010005	Driving Wheel Driver, 24VDC	Call to Order
6	103010006	Motor Driver, 24VDC	Call to Order
7	103040006	Fuse, 70A 24VDC	Call to Order
8	103110002	Contactor, 100A 24VDC	Call to Order
9	103040007	Fuse, 40A 24VDC	Call to Order
10	103110001	Contactor, 40A 24VDC	Order Part
11	103110002	Contactor, 100A 24VDC	Call to Order
12	103030029	Terminal Block	Call to Order
13	103130002	Camera, 5VDC	Call to Order
14	252060205	Left Camera Mounting Bracket, Plastic	Call to Order
15	103050006	Camera Cable, 3m	Order Part
16	301050002	Left Assist Power Button Assembly	Call to Order
17	252060202	Rotomolded Handle, PE	Call to Order
18	252025415	Warning Light Base Part 1, Rubbe	Call to Order
19	252025413	Warning Light Base Part 2	Call to Order
20	252025414	Warning Light Base Part 3, Rubber	Call to Order
21	552920004	Warning Light, Yellow Light, 24VDC	Order Part
22	103080001	Touch Screen, 10.1in, 24VDC	Order Part
23	552910025	Emergency Stop Button	Call to Order
24	301050001	Right Assist Power Button Assembly	Call to Order
25	552910026	Key Switch	Call to Order
26	552910005	Automatic/Manual Mode Switch	Call to Order
27	252060203	Left Camera Mounting Bracket, Plastic	Call to Order
28	103130001	Depth Camera, 5VDC	Call to Order
29	103040005	Fuse, 125A 24VDC	Call to Order
30	252025003	Fuse Mounting Bracket	Call to Order
31	552920003	Rear Indicator Light, 24VDC	Order Part

Squeegee Group

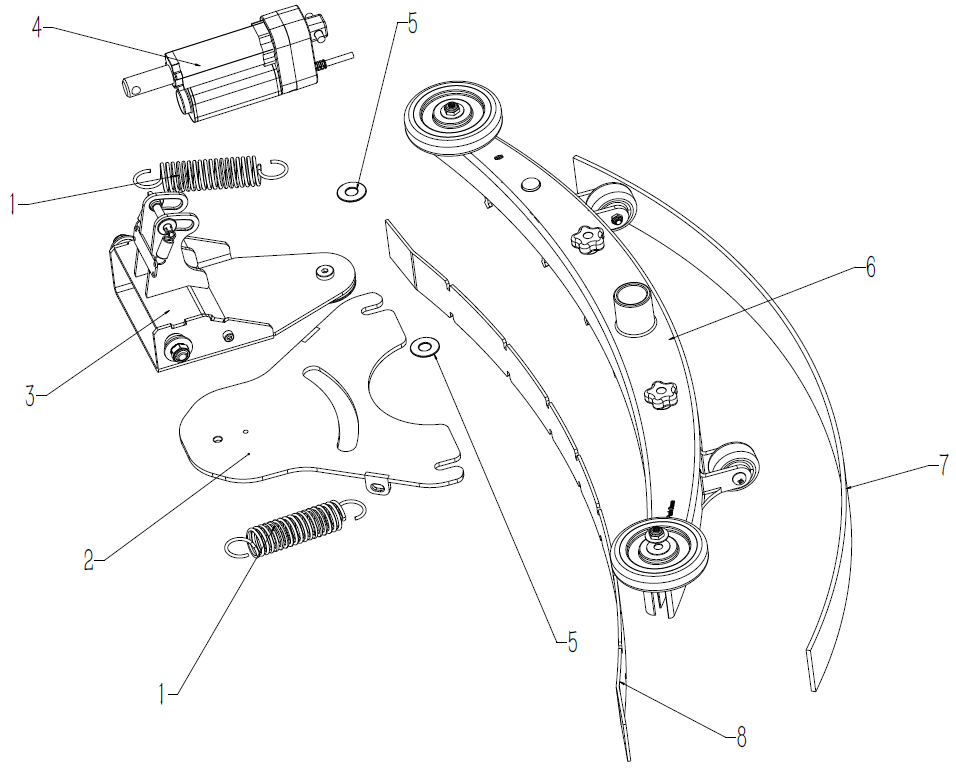

CenoBots L50 Chassis Squeegee Group

* - Indicate that this part has multiple options available. Other accessories can be found in the accessories section.

Reference #	Part #	Description	Add to Cart
1	102040022	Spring	Order Part
2	252020101	Squeegee Bracket Kit, Width	Call to Order
3	252020200	Squeegee Bracket Kit, Lift	Call to Order
4	103170004	Electric Linear Actuator, Squeegee Lifting, Stroke 50mm, 24VDC	Call to Order
5	252020003	Washer, SUS304, 70	Call to Order
6	102090005	Squeegee, 840*	Order Part
7	102090007	Rear Squeegee Blade, LINATEX®(Red), 800*	Order Part
7-2	102090003	Rear Squeegee Blade, PRIMOthane(Blue),800*	Order Part
8	102090006	Front Squeegee Blade, LINATEX®(Red), 800	Order Part
8.2	102090002	Front Squeegee Blade, PRIMOthane (Blue),800*	Order Part

Chassis

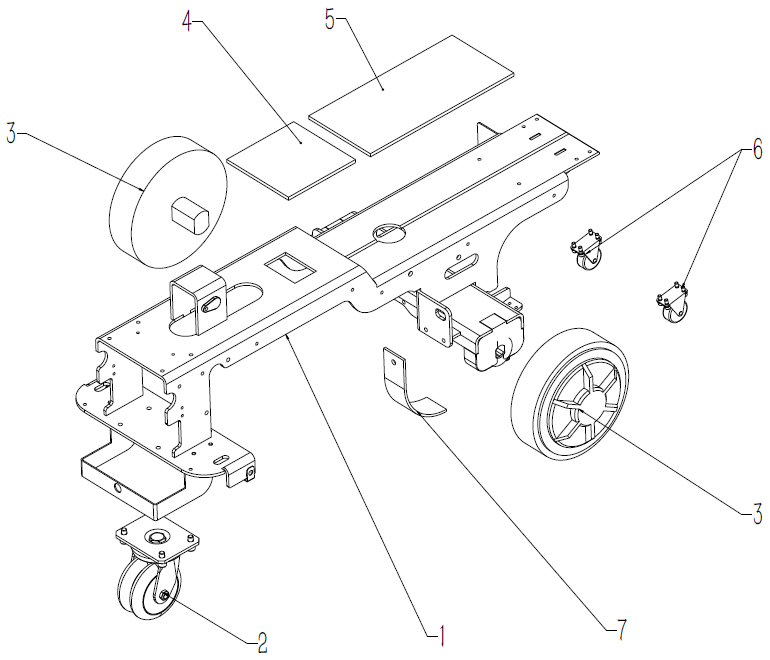

CenoBots L50 Chassis

Reference #	Part #	Description	Add to Cart
1	252010101	Main Frame	Call to Order
2	102060027	Castor, 4 inches	Call to Order
3	103170009	Drive Wheel, 8 inches, 250W 24VDC	Call to Order
4	201010002	Front Rubber Cushion	Call to Order
5	201010001	Rear Rubber Cushion	Call to Order
6	102060028	Support Wheel, 1.5 inches	Call to Order
7	252010123	Conductive Rubber Strip	Call to Order

Scrub Head

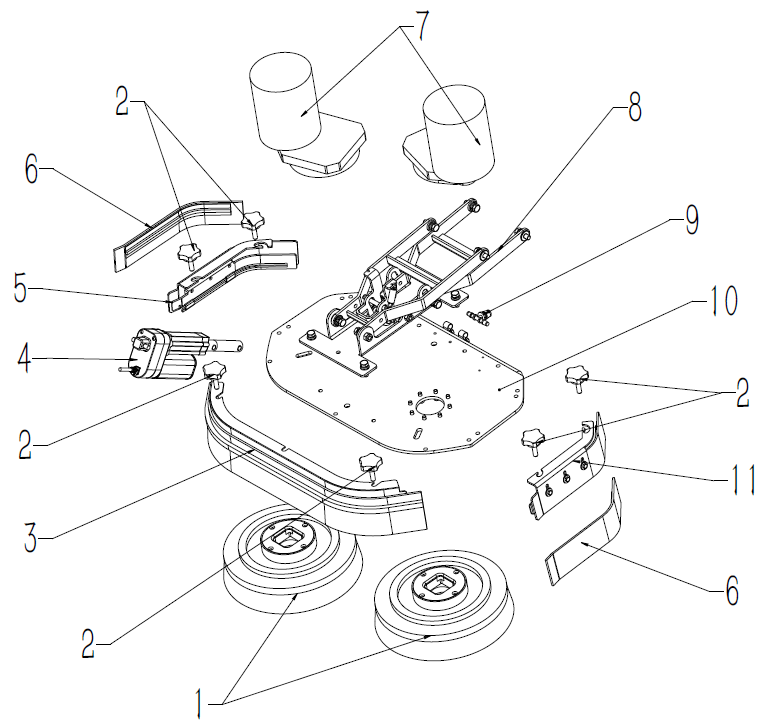

CenoBots L50 Scrub Head

* - Indicate that this part has multiple options available. Other accessories can be found in the accessories section.

Reference #	Part #	Description	Add to Cart
1	-	Disk Brush*, 9.5 inches	Call to Order
2	102060048	Knob, M8*16	Order Part
3	252030035	Front Skirt	Order Part
4	103170016	Electric Linear Actuator, Scrub Head Lifting, Stroke 80mm, 24VDC	Call to Order
5	301030015	Right Skirt Bracket	Call to Order
6	252030033	Right Skirt Blade	Order Part
7	103170015	Brush Motor, 300W, 24VDC	Call to Order
8	301060001	Lifting Structure Kit	Call to Order
9	102050043	Tee	Call to Order
10	252030011	Plate	Call to Order
11	301030014	Left Skirt Bracket	Call to Order
