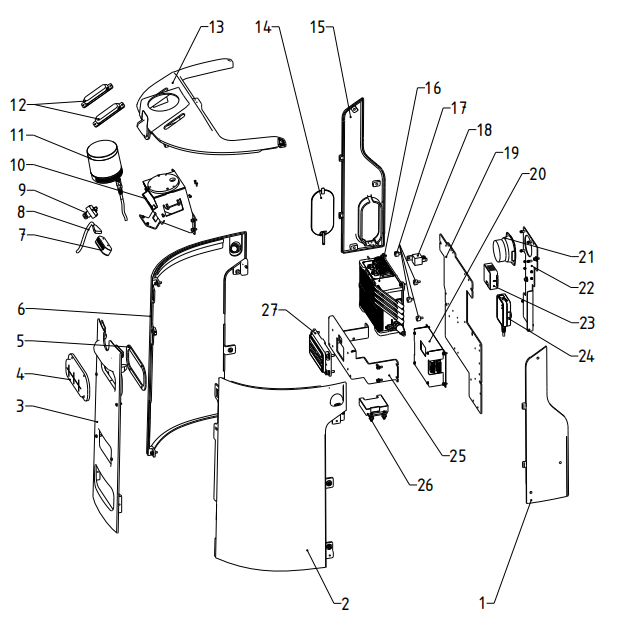

Front Control Unit

{{section_image_alt}}

CenoBots L4 Front Control Unit

Reference # Part # Description Add to Cart
1 255040048 Left Cover, Plastic Call to Order
2 255061003 Left Front Cover, Plastic Call to Order
3 255061001 Front Cover, Plastic Call to Order
4 252010109 Shield, Auto Water Filling Inlet, Rubber Order Part
5 252010127 Clamp Plate, Shield, uto Water Filling Inlet Call to Order
6 255061002 Right Front Cover, Plastic Call to Order
7 103130001 Front Depth Sensor, 5VDC Call to Order
8 103050005 Cable, Front Depth Sensor Order Part
9 103130000 Front Camera, 5VDC Order Part
10 301010021 Mounting racket, 3D LiD R Call to Order
11 103090003 3D LiD R, 24VDC Order Part
12 555061114 Front Indicator Light, 24VDC Order Part
13 255061004 Front Top Cover, Plastic Call to Order
14 301010022 Cover for the Load Switch, Plastic Call to Order
15 301010023 Right Cover, Plastic Call to Order
16 103080000 ACU, 24VDC Order Part
17 102040027 Rubber ushing, CU Call to Order
18 103110001 Contactor, 24VDC,40 Order Part
19 255010106 Mounting racket, CU and ECU Call to Order
20 305020004 ECU, 24VDC (Without Housing) Order Part
21 103070005 Speaker, 24VDC Call to Order
22 255010105 Bracket, Speaker Call to Order
23 305010002 Speaker Power mplifier (Without Housing) Call to Order
24 103100002 3D LiD R Controller ox (with Cable), 24VDC Call to Order
25 255010107 Bracket, Charging Plates Call to Order
26 305010016 IMU Sensor (Without Housing) Order Part
27 301010024 Charging Plates, utomatic Charging Call to Order

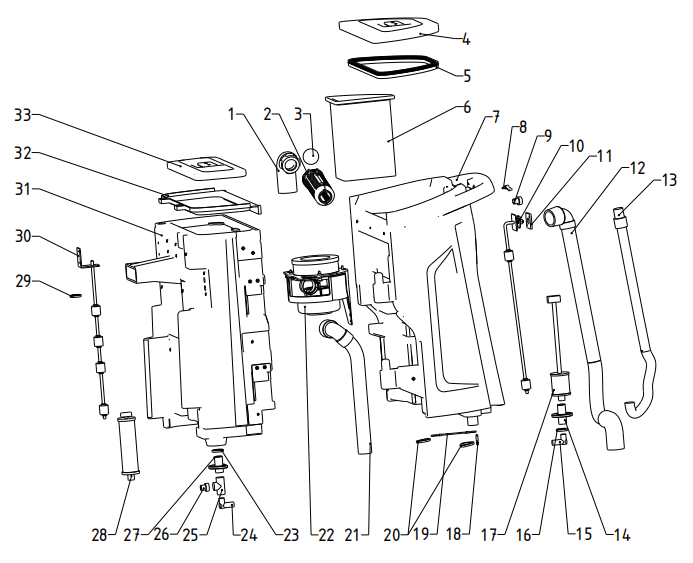

Water Tank Assembly

{{section_image_alt}}

CenoBots L4 Water Tank Assembly

Reference # Part # Description Add to Cart
1 255040097 Vacuum Hose, Tube, Rubber Call to Order
2 202100024 Cage, Float all Call to Order
3 202100026 Float all Call to Order
4 301010025 Recovery Tank Lid, PE Call to Order
5 102080014 Recovery Tank Seal Order Part
6 255040017 Debris Filter ag Order Part
7 255040005 Recovery Tank, PE Call to Order
8 102060134 Latch, Vacuum Hose Call to Order
9 555911801 Vacuum Sensor Call to Order
10 555400102 Recovery Tank Float Sensor Order Part
11 252040006 Sealing Plate, Recovery Tank Float Sensor, Rubber Call to Order
12 102050063 Vacuum Hose Order Part
13 102050081 Corrugated Recovery Tank Drain Hose Order Part
14 255040091 Straight Fitting, Recovery Tank Filter ase Call to Order
15 102050026 Elbow Fitting, G1/2-16mm Call to Order
16 255040065 O-ring Plate, Rubber Call to Order
17 255040072 Recovery Tank Filter Order Part
18 102060111 Pull Ring, Recovery Tank Call to Order
19 255040095 Limit Wire Rope, Recovery Tank Call to Order
20 102060112 Buckle, Recovery Tank, SUS 304 Call to Order
21 102050054 Muffler, Exhaust, Vacuum Motor Call to Order
22 301010026 Vacuum Motor, 24VDC (Without Plastic Housing) Call to Order
23 255040065 O-ring Plate, Rubber Call to Order
24 102050026 Elbow Fitting, G1/2-16mm Call to Order
25 102050066 Tee Fitting Call to Order
26 102050067 Straight Fitting, G1/2-16mm Call to Order
27 255040090 Straight Fitting Call to Order
28 255040077 Solution Tank Filter Order Part
29 255040070 Mark of Max. Water level, Rubber Call to Order
30 555042083 Solution Tank Float Sensor Order Part
31 255040006 Solution Tank, PE Call to Order
32 255040067 Rubber Mat, Solution Tank Call to Order
33 301010027 Solution Tank Lid, PE Call to Order

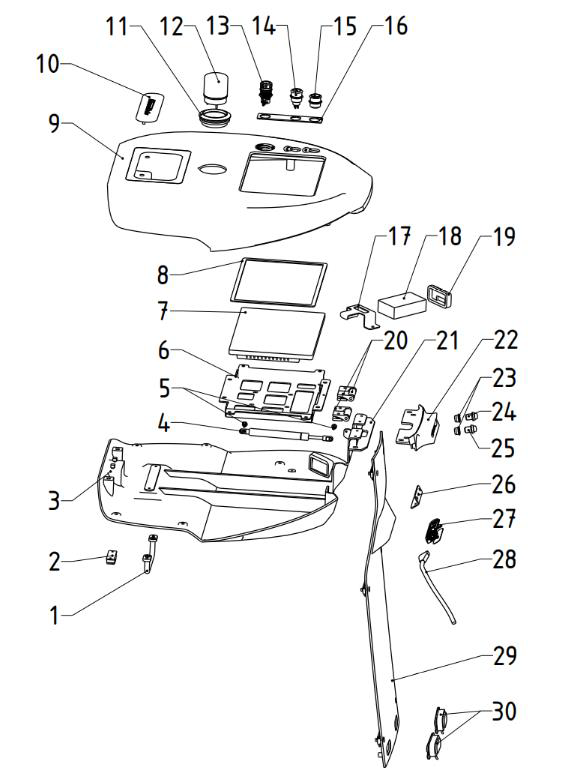

Control Panel

{{section_image_alt}}

CenoBots L4 Control Panel Assembly

Reference # Part # Description Add to Cart
1 102060124 Hanger for the Recovery Tank Lid, SUS 304 Call to Order
2 102060088 Magnet for the Machine Top Cover Call to Order
3 255063105 Lower Cover, Machine"s Top Cover Call to Order
4 102040013 Nitrogen Spring, Stroke 100mm, 80N Order Part
5 102020012 Screw for Mounting the Nitrogen Spring, M4 Call to Order
6 255063103 Mounting racket, Touch Screen Call to Order
7 103080001 Touch Screen, 24VDC Order Part
8 252060204 Seal Strip for the Touch Screen Call to Order
9 255063101 Upper Cover, Machine"s Top Cover Call to Order
10 255063102 Handle, Top Cover, SUS 304 Call to Order
11 251110415 Flashing eacon ase, Rubber Call to Order
12 103070004 Flashing eacon, Yellow, 24VDC Order Part
13 555911601 Emergency Stop Button Order Part
14 552910026 Key Switch Order Part
15 551315180 uto/Manual Switch utton Call to Order
16 252025407 Mounting racket, utton Call to Order
17 255063106 racket, Communication Module Call to Order
18 103100005 Communication Module Call to Order
19 255063107 Cover, Communication Module, Rubber Call to Order
20 102060119 Hinge, Top Cover Call to Order
21 255063001 Bracket, Hinge Call to Order
22 255063002 Cover, Handle, Rubber Call to Order
23 255062005 Seal Ring, Power ssist utton Call to Order
24 555911401 Right Power ssist utton Call to Order
25 555911501 Left Power ssist utton Call to Order
26 255062002 Mounting racket, Rear Depth Camera Call to Order
27 103130001 Rear Depth Camera Order Part
28 103050006 Cable, Rear Depth Camera Order Part
29 255062001 Machine Rear Cover Call to Order
30 252080813 Rear Indicator Light Order Part

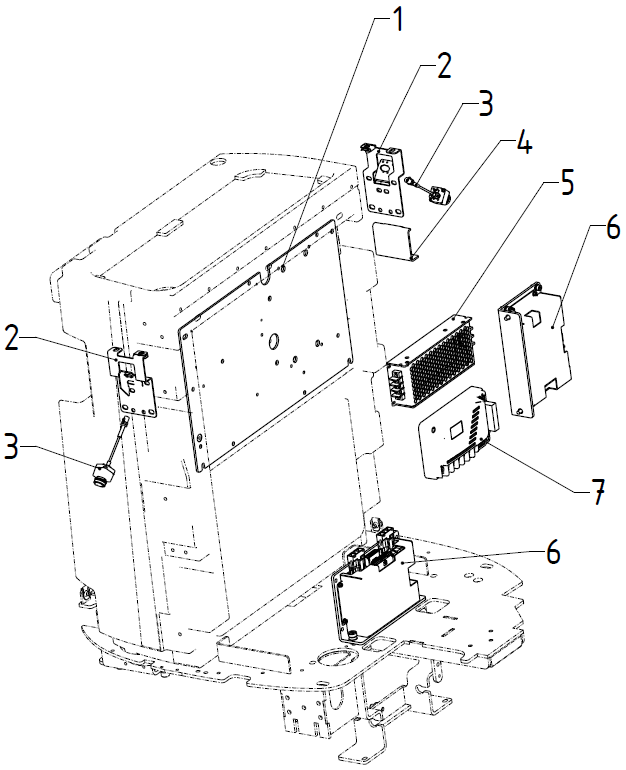

Middle Control Unit Assembly

{{section_image_alt}}

CenoBots L4 Middle Control Unit Assembly

Reference # Part # Description Add to Cart
1 255062101 Mounting racket, DC-DC, MCU Call to Order
2 255062103 Mounting racket, Right Camera Call to Order
3 103130002 Side Camera, 5VDC Order Part
4 255062105 Bracket Call to Order
5 103010003 DC-DC Converter Module, 24VDC, 100W Call to Order
6 305020003 Motor Controller, Drive Wheel, Disk rush Motor,24VDC (Without Housing) Order Part
7 103010009 Motor Controller, Pump, Vacuum Motor, 24VDC Order Part





Power System Assembly

{{section_image_alt}}

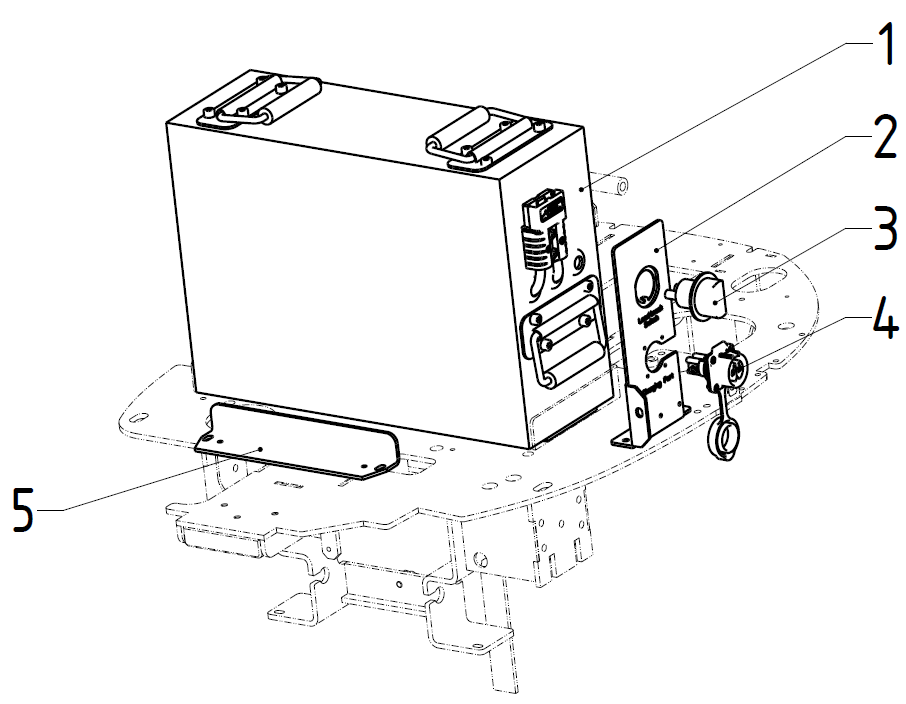

CenoBots L4 Power System Assembly

Reference # Part # Description Add to Cart
1 103010007 Lithium Iron Phosphate Battery, 25.6VDC 70 h Order Part
2 255062102 Mounting racket, Load reak Switch and Manual Charging Connector Call to Order
3 103020009 Load-break Switch, 24VDC 200 Call to Order
4 103030094 Manual Charging Connector Call to Order
5 255010104 Mounting racket, attery Call to Order

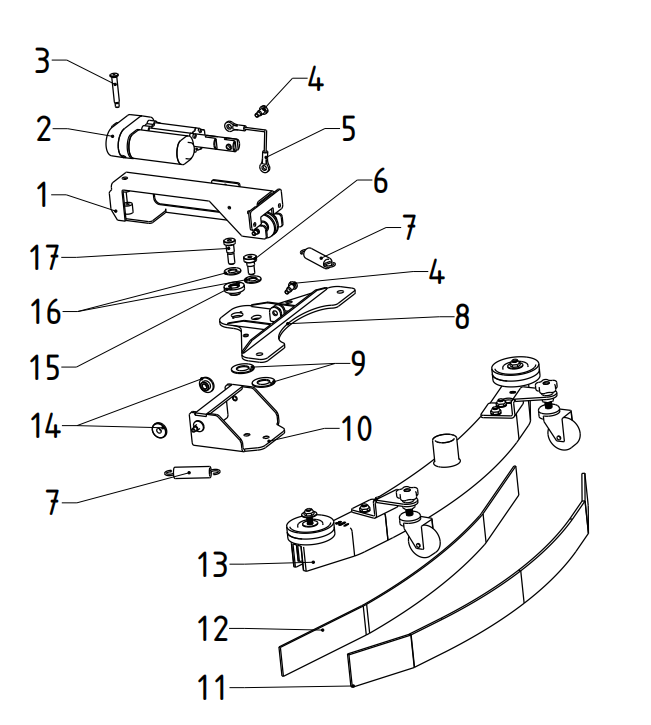

Squeegee Assembly

{{section_image_alt}}

CenoBots L4 PSqueegee Assembly

Reference # Part # Description Add to Cart
1 255020401 Mounting racket, Electric Linear ctuator Call to Order
2 103170020 Electric Linear Actuator, Stroke 35mm,24VDC Order Part
3 102020010 Pin, 8-45 Call to Order
4 102010451 Pin, 8-25 Call to Order
5 255020011 Chain Sling for Lifting Squeegee Call to Order
6 202020018 Pin, 12-8 Call to Order
7 102040028 Spring Order Part
8 255020101 racket, Squeegee, Width Call to Order
9 102030018 Washer, ? 18 Call to Order
10 255020200 racket, Squeegee, Lift Call to Order
11 255020306 Rear Squeegee lade, LIN TEX®(Red), 740* Order Part
12 255020307 Front Squeegee lade, LIN TEX®(Red), 740 * Order Part
13 102090016 Squeegee, 740mm Order Part
14 102030012 Bushing Call to Order
15 252020001 Bushing Call to Order
16 102030017 Washer, ? 12 Call to Order
17 102060035 Pin 12-14.2 Call to Order

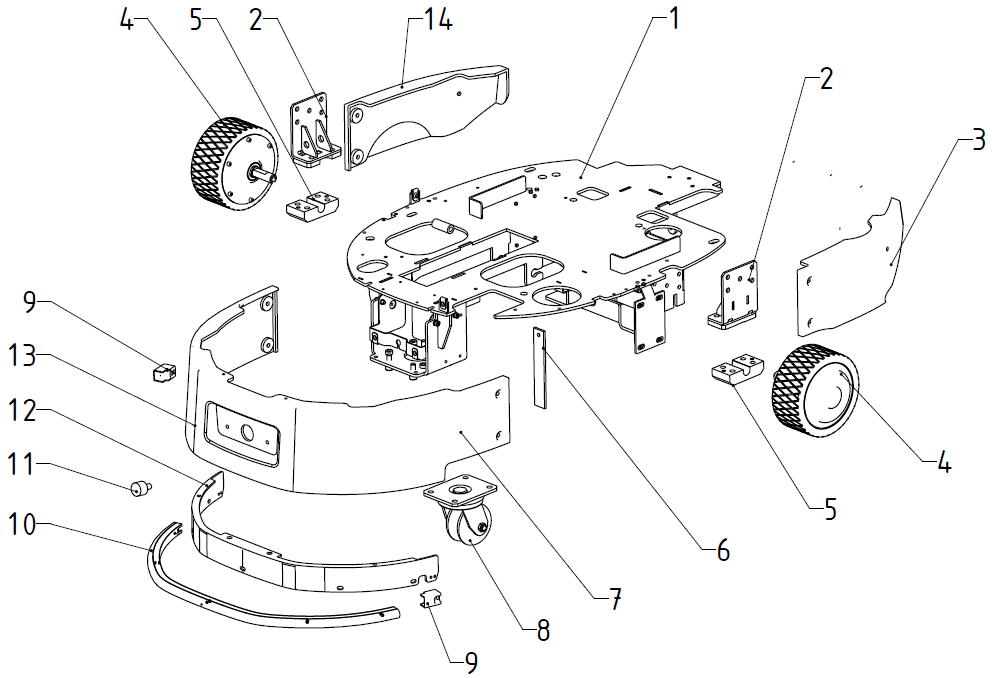

Chassis Assembly

{{section_image_alt}}

CenoBots L4 Chassis Assembly

Reference # Part # Description Add to Cart
1 255010101 Main Frame Call to Order
2 255010102 Mounting racket, Drive Whee Call to Order
3 255064203 Left Rear Cover, Chassis, PE Call to Order
4 103170034 Drive Wheel, 6in,24VDC 150W Order Part
5 251110102 Mounting Clamp, Drive Wheel Call to Order
6 255010202 Grounding Strip, Rubber Call to Order
7 255064201 Front Cover, Chassis, PE Call to Order
8 102060100 Castor, 3 inches Order Part
9 255064204 Bumper Sensor Clamp, Plastic Call to Order
10 103090016 Bumper Sensor Order Part
11 555911002 Bottom Light 24VDC 10W Call to Order
12 255064101 Mounting Bracket, Bumper Sensor Call to Order
13 255064202 Right Rear Cover, Chassis, PE Call to Order

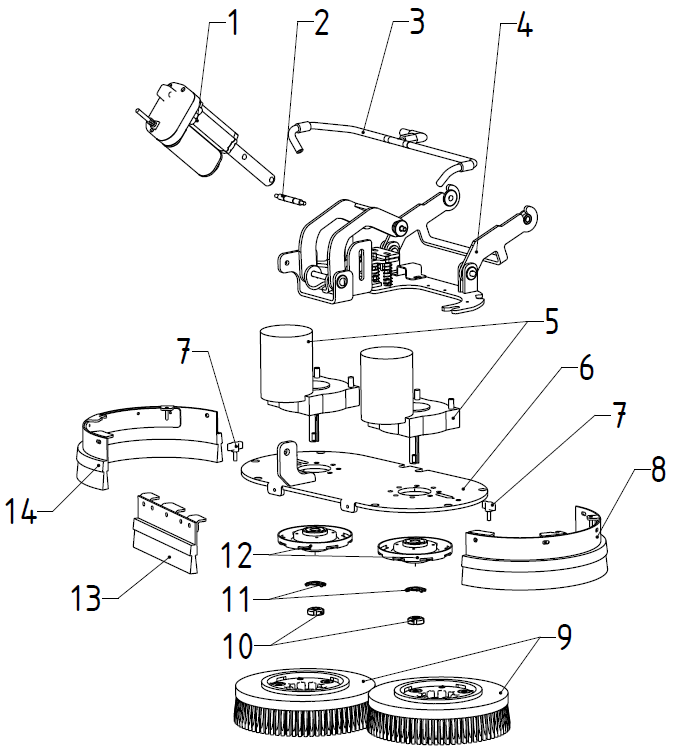

Scrub Head Assembly

{{section_image_alt}}

CenoBots L4 Scrub Head Assembly

Reference # Part # Description Add to Cart
1 103170033 Electric Linear ctuator, Stroke 70mm,24VDC Order Part
2 255030205 Pin Call to Order
3 301010028 Solution Hose, Scrub Head Call to Order
4 301010029 Lifting Structure Call to Order
5 103170019 Brush Motor, 24VDC, 200W Order Part
6 255030110 Mounting Plate, rush Motor Call to Order
7 102060109 Z-handle Knob, Side Skirt Order Part
8 301010030 Left Side Skirt Order Part
9 301030012 Disk rush* Call to Order
10 102010441 Lock Nut, rush Hub Call to Order
11 102010442 Lock Washer, rush Hub Call to Order
12 301030018 Brush Hub Call to Order
13 301010031 Front Skirt Order Part
14 301010032 Right Side Skirt Order Part





Solution Connection Assembly

{{section_image_alt}}

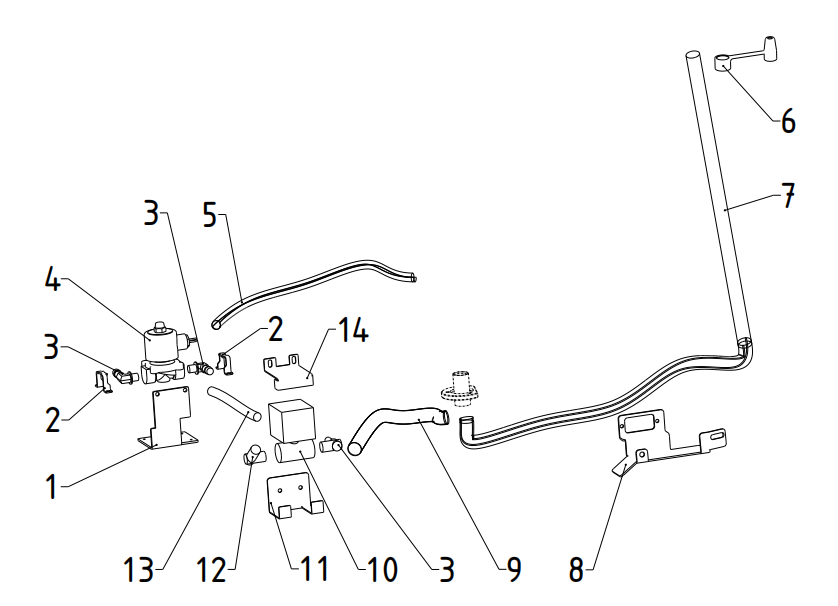

CenoBots L4 Solution Connection Assembly

Reference # Part # Description Add to Cart
1 255040085 Mounting racket Call to Order
2 255040086 Bracket, Solution Tank Drain Hose Call to Order
3 102050035 Elbow Fitting, G1/2-12 Call to Order
4 103170011 Electric Ball Valve, 24VDC Order Part
5 102050029 Solution Hose, Scrub Head, 0.58m Call to Order
6 255040099 Drain Hose Cap, Solution Tank Call to Order
7 202050066 Drain Hose, Solution Tank Call to Order
8 255040100 Drain Hose racket Call to Order
9 102050031 Solution Hose, Solution Tank, Solenoid Valve, 0.2m Call to Order
10 103170012 Solenoid Valve, 24VDC Order Part
11 255040069 Lower Mounting racket, Solenoid Valve Call to Order
12 102050026 Elbow Fitting, G1/2-16 Call to Order
13 102050029 Solution Hose, 0.18m Call to Order
14 255040054 Upper Mounting racket, Solenoid Valve Call to Order

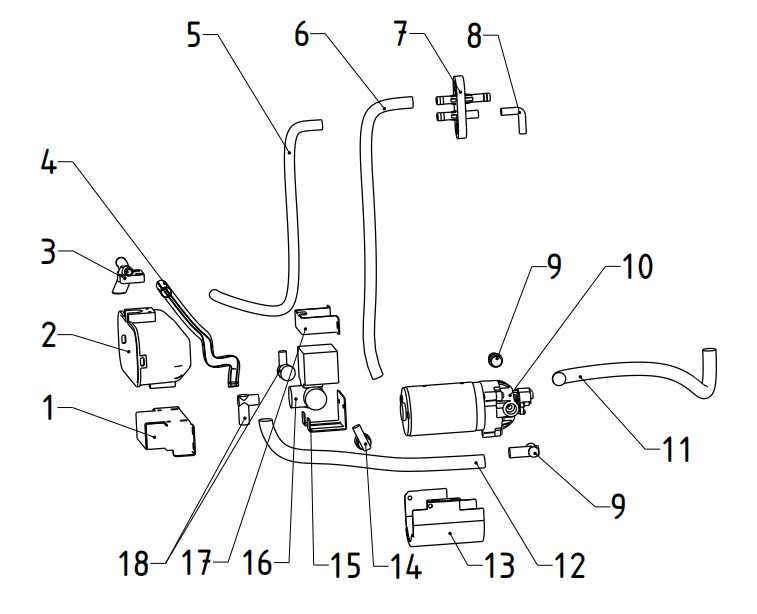

Automatic Drain Assembly

{{section_image_alt}}

CenoBots L4 Automatic Drain Assembly

Reference # Part # Description Add to Cart
1 255061102 Mounting Plate, Drain Port Housing Call to Order
2 255061005 Drain Port Housing, Plastic Call to Order
3 255061113 Y-fitting Call to Order
4 102050031 Spiral Hose, utomatic Draining, 0.74m Call to Order
5 102050029 Braided Hose, utomatic Draining, 0.48m Call to Order
6 102050029 Braided Hose, Overflow, 0.53m Call to Order
7 255050001 Overflow Fitting Call to Order
8 202050067 Overflow end Hose, Rubber Call to Order
9 202050065 Elbow Fitting, G3/8 -16 Call to Order
10 103170013 Drain Pump, 24VDC Order Part
11 102050031 Braided Hose, Recovery Tank, Pump, 0.55m Call to Order
12 102050031 Braided Hose, Pump, Electric all Valve, 0.41m Call to Order
13 255040058 Mounting racket, Pump Call to Order
14 102050035 Elbow Fitting, G1/2-12 Call to Order
15 255040031 Mounting racket, Electric all Valve Call to Order
16 103170032 Electric all Valve, 24VDC Call to Order
17 255040032 Mounting Clamp, Electric all Valve Call to Order
18 102050026 Elbow Fitting, G1/2-16 Call to Order
