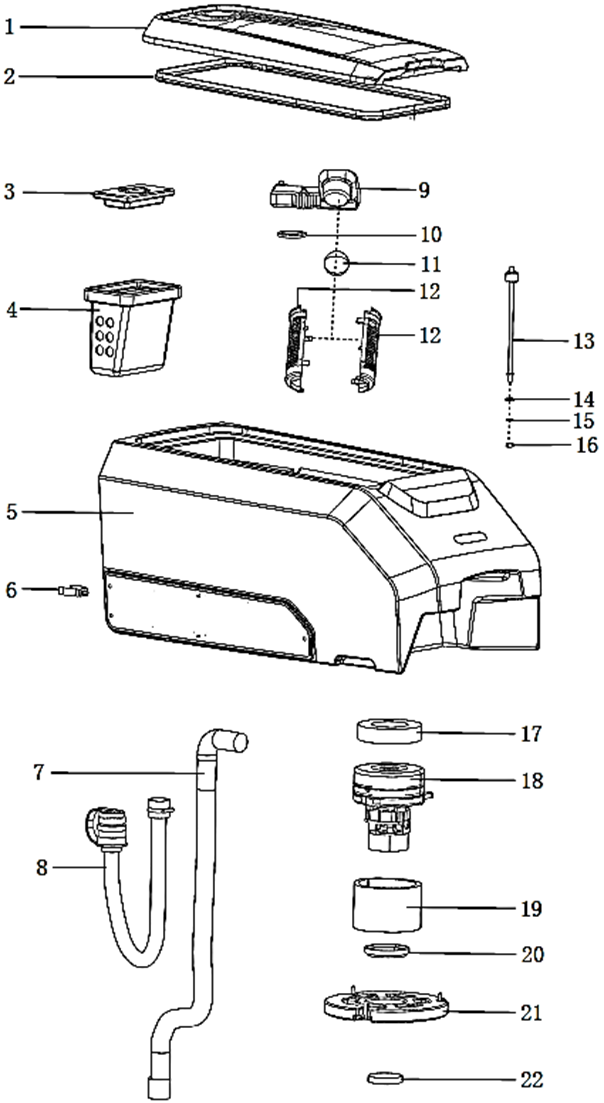

CenoBots D5 Recovery Tank Assembly

{{section_image_alt}}

Recovery Tank Assembly

Reference # Part # Description Add to Cart
1 - Recovery Tank Lid, PE Call to Order
2 - Recovery Tank Lid Seal, Rubber Order Part
3 - Debris Tray Lid Call to Order
4 301080009 Debris Tray Order Part
5 - Recovery Tank, PE Call to Order
6 - Drain Hose Clip Call to Order
7 - Vacuum Hose Order Part
8 - Drain Hose Order Part
9 - Float Mounting Bracket, PE Call to Order
10 - Gasket, Float Mounting Bracket Call to Order
11 - Float Ball Call to Order
12 - Float Cage Call to Order
13 558910800 Float Sensor Order Part
14 - Seal Gasket Call to Order
15 - Gasket Call to Order
16 - Nut Call to Order
17 - Front Gasket, Vacuum Motor Call to Order
18 103170049 Vacuum Motor, 24VDC Order Part
19 - Cylindrical Acoustic Foam, Vacuum Motor Call to Order
20 - Rear Gasket, Vacuum Motor Call to Order
21 - Bracket, Vacuum Motor Call to Order
22 - Circular Acoustic Foam, Vacuum Motor Call to Order

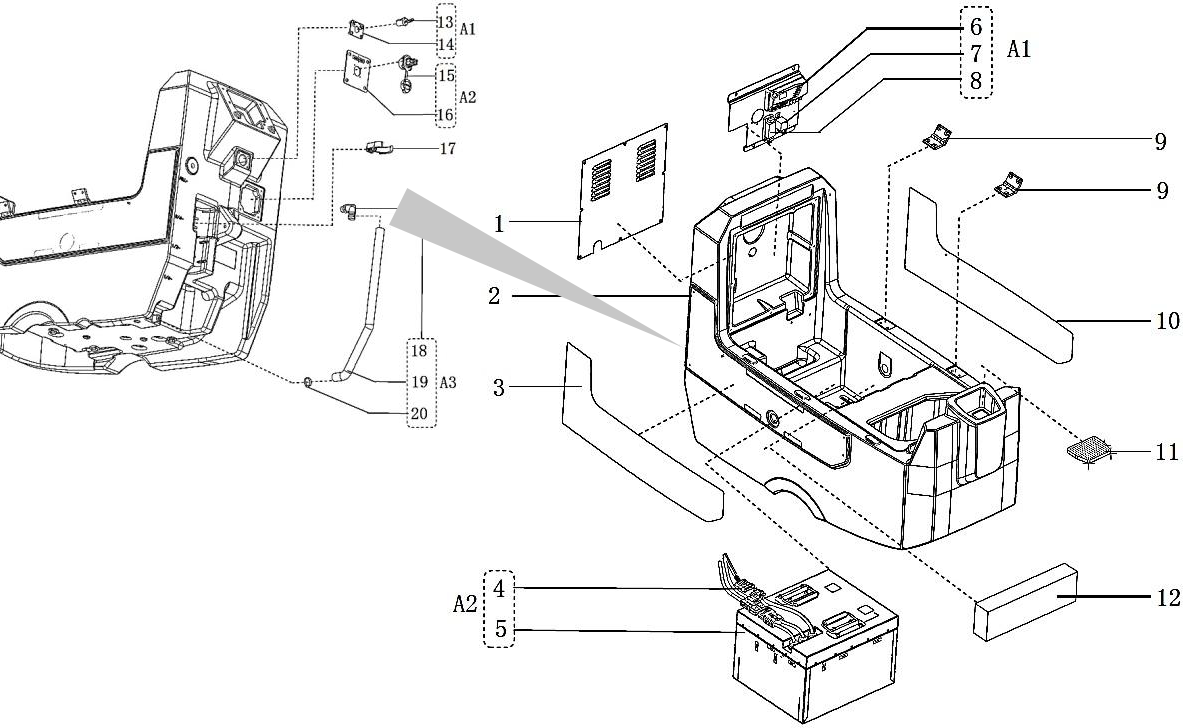

CenoBots D5 Solution Tank Assembly

{{section_image_alt}}

Solution Tank Assembly

Reference # Part # Description Add to Cart
1 - Controller Unit Cover Call to Order
2 - Solution Tank, PE Call to Order
3 - Right Cover, Recovery Tank, SUS304 Call to Order
4 103040008 Fuse, 60A Order Part
5 103010019 Lithium Iron Phosphate Battery, 25.6VDC, 100Ah Order Part
6 103010016 Motor Controller, 24VDC Order Part
7 103110004 Contactor Order Part
8 103010004 DC-DC Convertor Order Part
9 - Hinge, Recovery Tank Call to Order
10 - Left Cover, Recovery Tank, SUS304 Call to Order
11 257040007 Water Inlet Filter, Solution tank Order Part
12 - Battery Spacer Call to Order
13 558910400 Key Switch Call to Order
14 - Key Switch Mounting Bracket Order Part
15 - Charging Connector Call to Order
16 - Charging Connector Mounting Bracket Call to Order
17 - Drain Hose Clamp, Plastic Call to Order
18 - Elbow Fitting, Solution Level/Drain Hose Call to Order
19 - Solution Level/Drain Hose Call to Order
20 - Solution Level/Drain Hose Clamp, SUS304 Call to Order

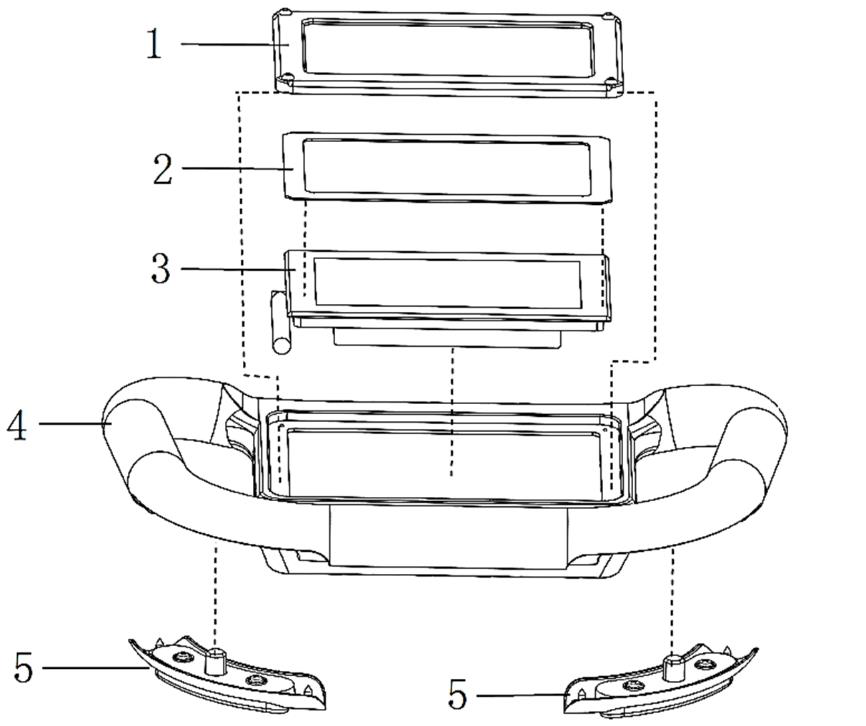

CenoBots D5 Control Panel Assembly

{{section_image_alt}}

Control Panel Assembly

Reference # Part # Description Add to Cart
1 - Clamping Block, Touch Screen Call to Order
2 - Gasket Seal, Touch Screen Call to Order
3 103080006 Touch Screen, 24VDC Order Part
4 - Handle, PE Call to Order
5 301090100 Activation Button Order Part

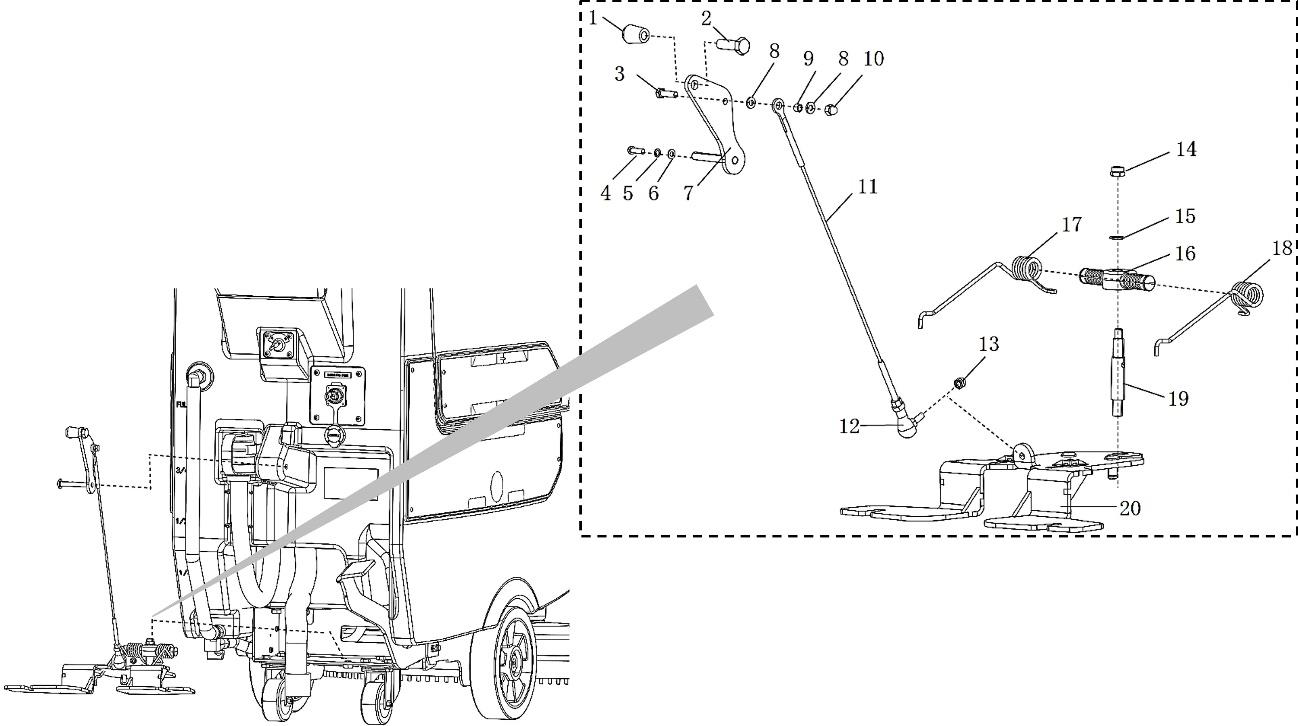

CenoBots D5 Squeegee Holder Assembly

{{section_image_alt}}

Squeegee Holder Assembly

Reference # Part # Description Add to Cart
1 - Squeegee Lifting/Lowering Knob Call to Order
2 - Screw Call to Order
3 - Screw Call to Order
4 - Screw Call to Order
5 - Spring Washer Call to Order
6 - Flat Washer Call to Order
7 - Squeegee Lifting/Lowering Lever Call to Order
8 - Flat Washer Call to Order
9 - Spacer Call to Order
10 - Nut Call to Order
11 101120001 Squeegee Lifting Cable Order Part
12 - Ball Joint Call to Order
13 - Nut Call to Order
14 - Nut Call to Order
15 - Flat Washer Call to Order
16 - Bracket, Squeegee Spring Call to Order
17 - Left Spring, Squeegee Call to Order
18 - Right Spring, Squeegee Call to Order
19 - Pin, Squeegee Support Bracket Call to Order
20 - Squeegee Support Bracket Call to Order

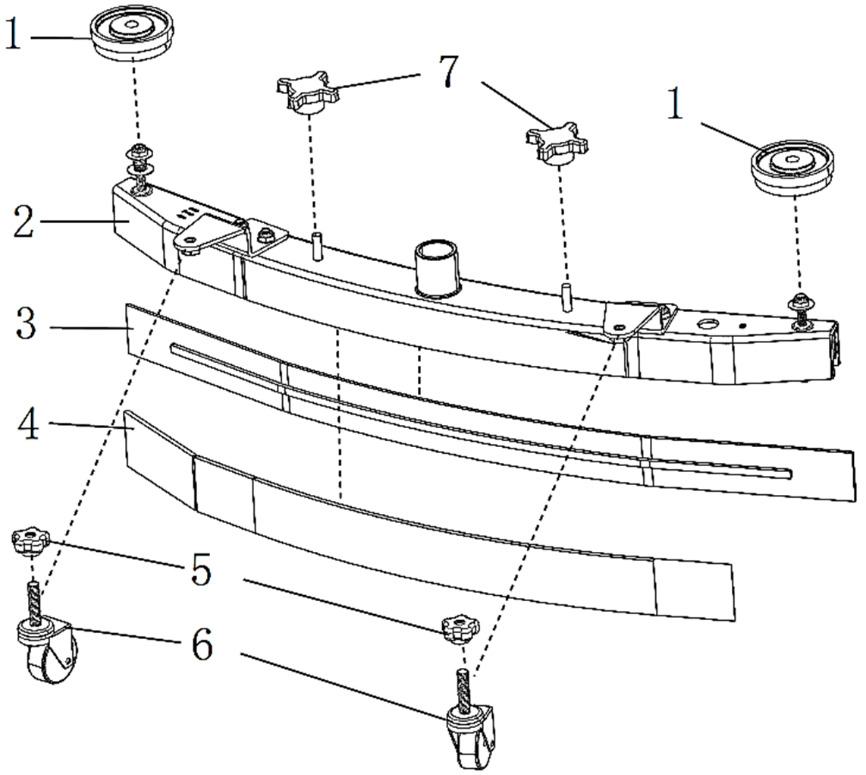

CenoBots D5 Squeegee Assembly

{{section_image_alt}}

Squeegee Assembly

Reference # Part # Description Add to Cart
1 - Roller Bumper, Squeegee Call to Order
2 102090022 Main Frame, Squeegee Order Part
3 - Front Squeegee Blade* Call to Order
4 - Rear Squeegee Blade* Call to Order
5 - Squeegee Caster Knob Call to Order
6 - Squeegee Caster Call to Order
7 - Squeegee Knob Order Part

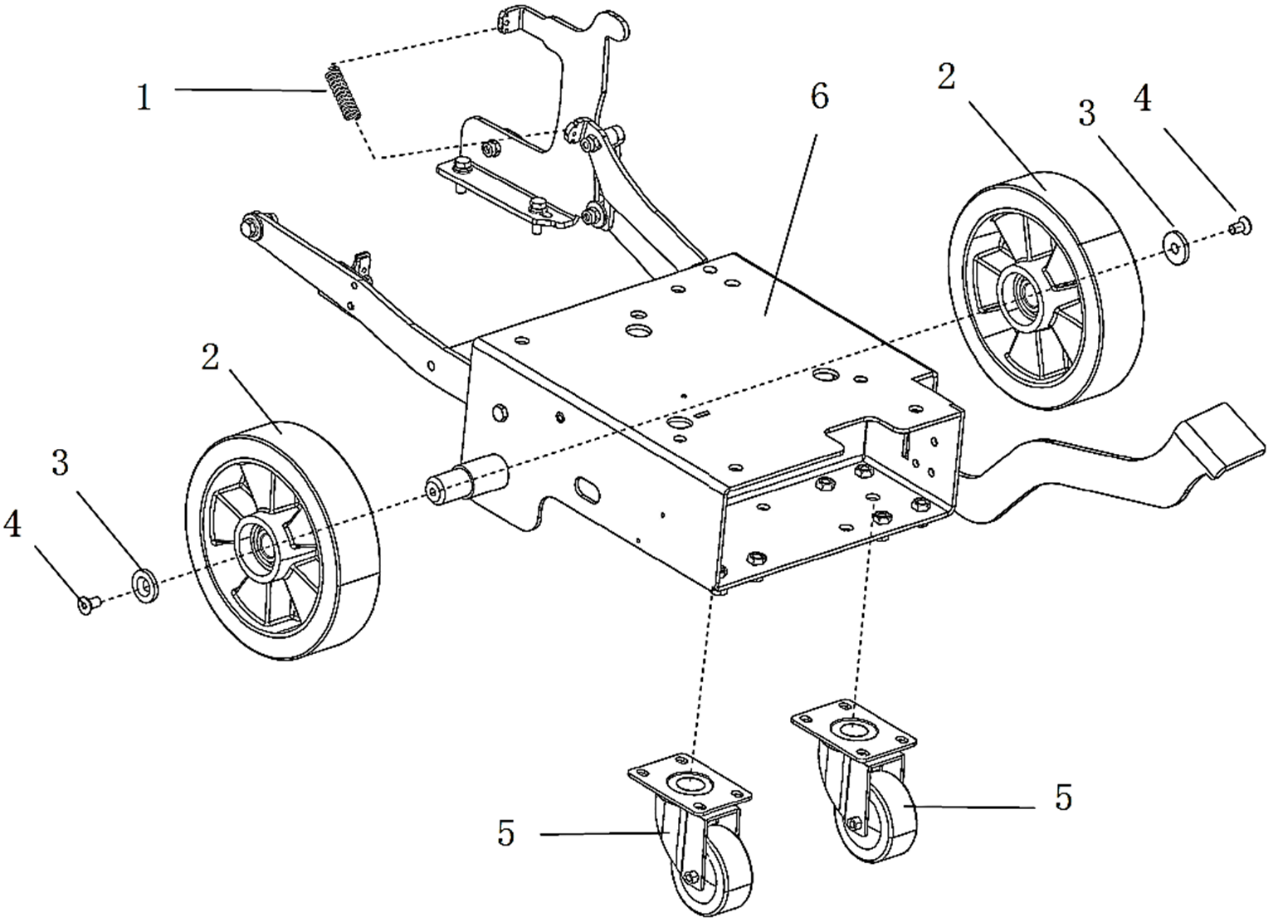

CenoBots D5 Chassis Assembly

{{section_image_alt}}

Chassis Assembly

Reference # Part # Description Add to Cart
1 - Spring, Brush Lifting Call to Order
2 101120003 Wheel Order Part
3 - Flat Washer, Wheel Call to Order
4 - Screw Call to Order
5 - Caster, Chassis Call to Order
6 - Spring, Brush Lifting Main Frame

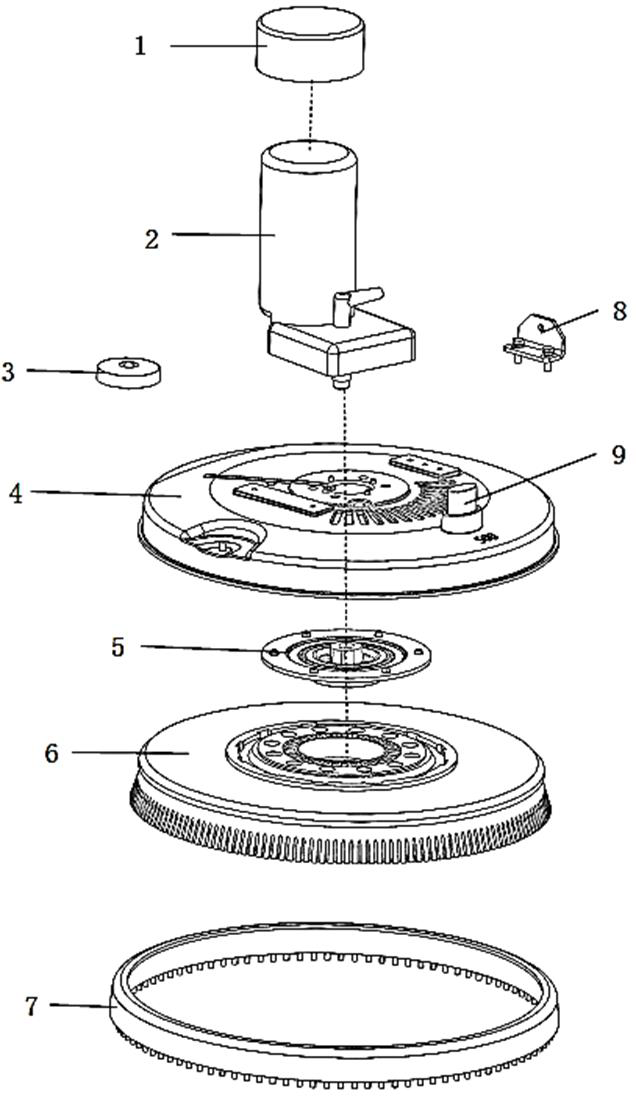

CenoBots D5 Scrub Head Assembly

{{section_image_alt}}

Scrub Head Assembly

Reference # Part # Description Add to Cart
1 102080034 Brush Motor Cover Order Part
2 103170042 Brush Motor Order Part
3 - Roller Bumper, Scrub Head Call to Order
4 - Scrub Head Housing Call to Order
5 - Brush Hub Call to Order
6 - Disk Brush* Call to Order
7 101030027 Skirt Order Part
8 - Scrub Head Mounting Bracket Call to Order
9 - Disk Brush/Pad Button Call to Order

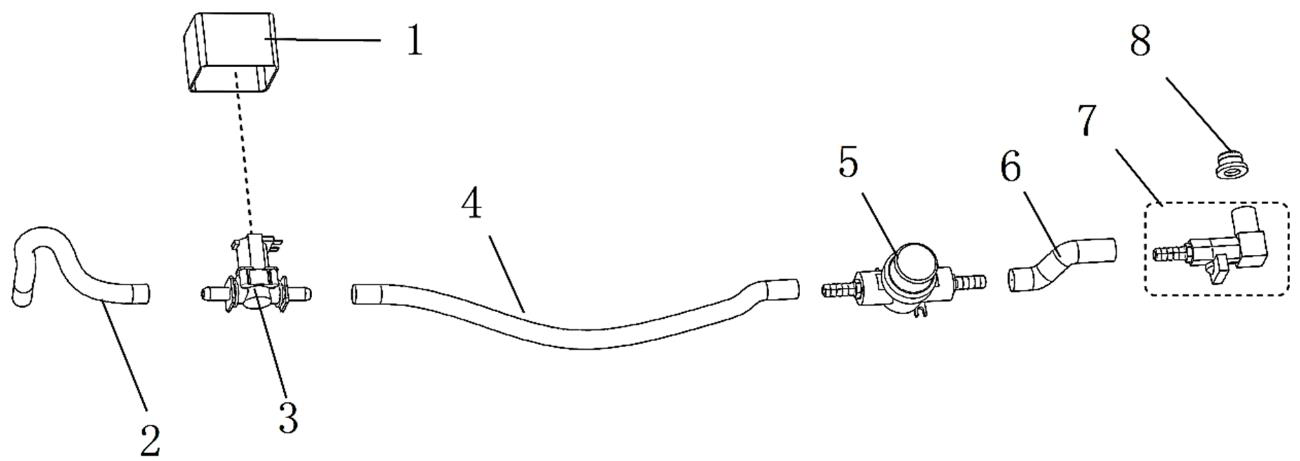

CenoBots D5 Solution Connection Assembly

{{section_image_alt}}

Solution Connection Assembly

Reference # Part # Description Add to Cart
1 - Solenoid Valve Cover, Rubber Call to Order
2 - Solution Hose Call to Order
3 103170043 Solenoid Valve, 24VDC Order Part
4 - Solution Hose Call to Order
5 101080006 Solution Filter Order Part
6 - Solution Hose Call to Order
7 301080008 Ball Valve Order Part
8 - Bushing, Ball Valve, Rubber Call to Order
