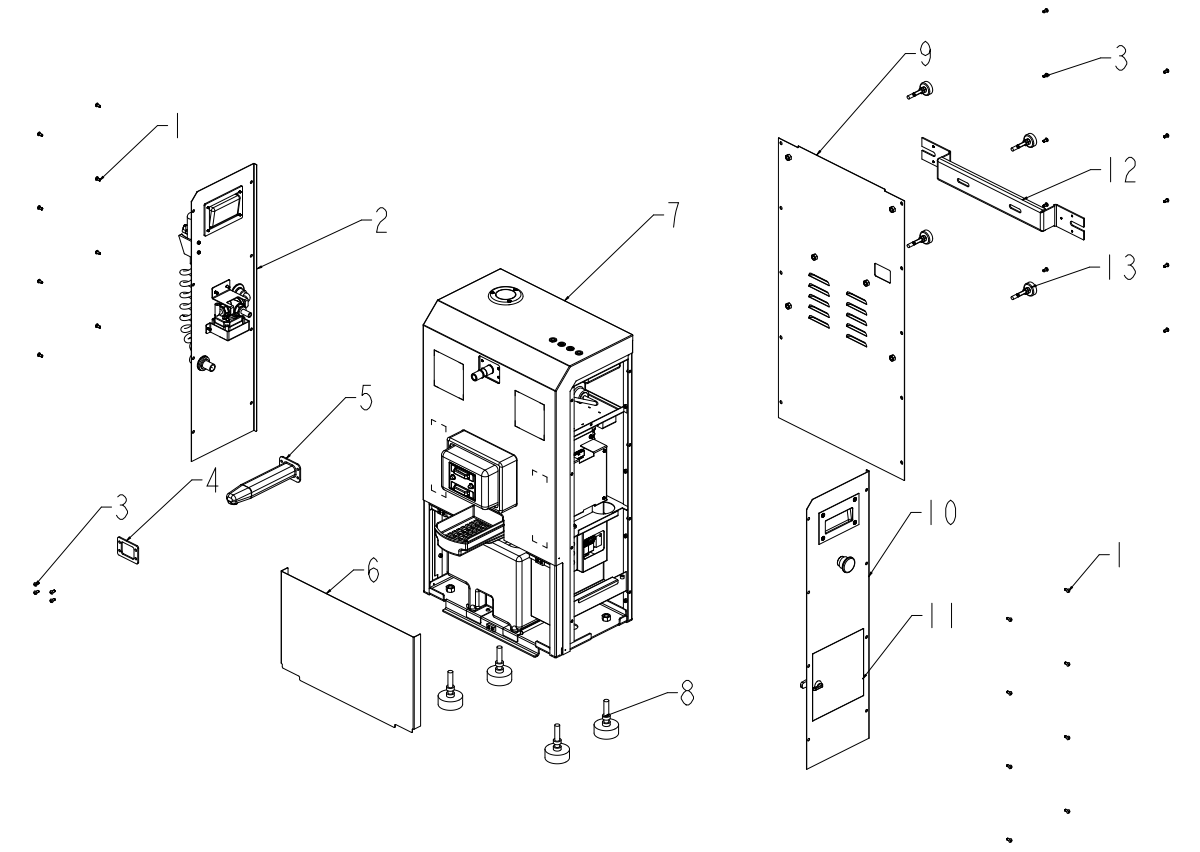

CenoBots Workstation Cover Assembly

{{section_image_alt}}

Cover Assembly

Reference # Part # Description Add to Cart
1 102010051 Screw, M5x10 Call to Order
2 - Right Panel Assembly Call to Order
3 102010417 Screw, Black, M5x10 Call to Order
4 253052040 Fixing Plate, Water Outlet Call to Order
5 253054004 Solution Outlet, Rubber Call to Order
6 253051002 Front Cover Assembly Call to Order
7 - Frame Assembly Call to Order
8 102070001 Leveling Foot, D65*M12*80 Call to Order
9 253052029 Rear Cover Assembly Call to Order
10 - Left Panel Assembly Call to Order
11 - Side Door Assembly Call to Order
12 254052020 Wall Bracket Call to Order
13 102070014 Rear Spacer Foot, D40*M8*50 Call to Order

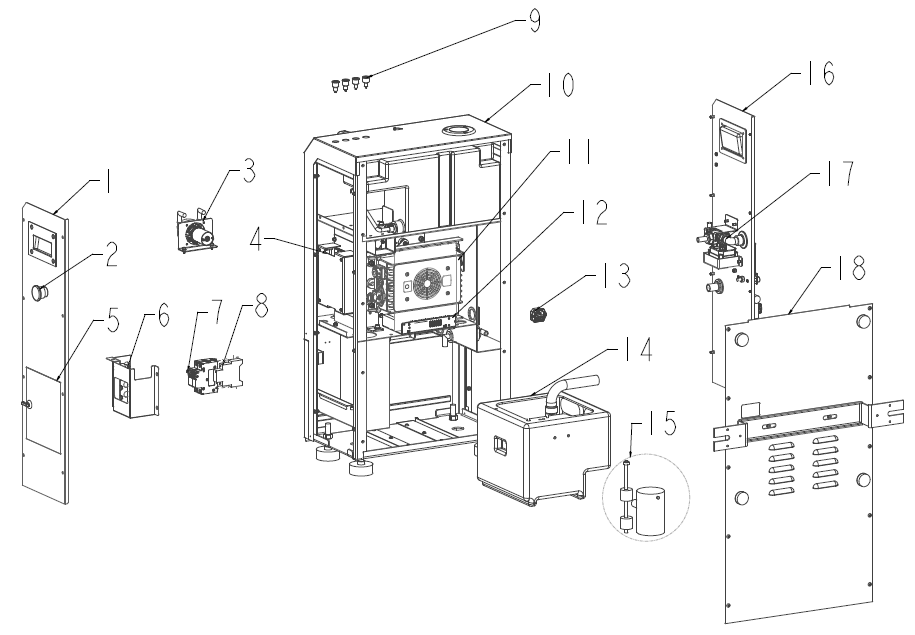

CenoBots Electronic System Assembly

{{section_image_alt}}

Electronic System Assembly

Reference # Part # Description Add to Cart
1 - Left Panel Assembly Call to Order
2 553325130 Emergency Stop Button Order Part
3 301060002 Detergent Pump Assembly Call to Order
4 301050005 CCU Assembly (with housing) Order Part
5 - Side Door Assembly Call to Order
6 - Air Circuit Breaker Cover Assembly Call to Order
7 103040000 Air Circuit Breaker Order Part
8 103110000 Charge Relay Order Part
9 553325110 LED Indicator light (with harness) Order Part
10 - Frame Assembly Call to Order
11 103010001 Built-in Charger, 28.8 V 30A Order Part
12 103010000 AC-DC Convertor, 85 ~ 264 VAC to 24VDC, 150W Order Part
13 553325500 AC Switch (with harness) Call to Order
14 - Workstation Recovery Tank Assembly Call to Order
15 553325150 Float Sensor and Drain Pump Assembly (with harness) Order Part
16 - Left Panel Assembly Call to Order
17 301080012 Electric Three-way Ball Valve Order Part
18 - Rear Cover Assembly Call to Order

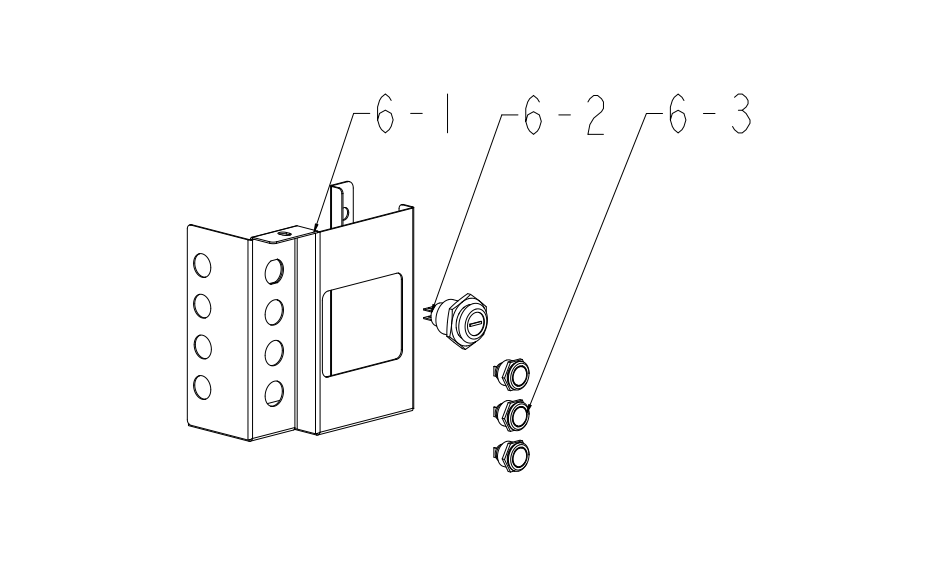

CenoBots Air Circuit Breaker Cover Assembly

{{section_image_alt}}

Air Circuit Breaker Cover Assembly

Reference # Part # Description Add to Cart
6-1 253052041 Air Circuit Breaker Cover Call to Order
6-2 553325120 Auto/manual Key Switch (with harness) Order Part
6-3 553325140 Button Switch (with harness) Order Part




CenoBots Freshwater Connector Assembly

{{section_image_alt}}

Freshwater Connector Assembly

Reference # Part # Description Add to Cart
1 102010417 Screw, Black, M5x10 Call to Order
2 253052040 Fixing Plate, Water Outlet Call to Order
3 253054004 Solution Outlet, Rubber Order Part
4 - Frame Assembly Call to Order
5 - Solution Filling Tube Call to Order
6 301080010 Upper Three-Way Assembly Call to Order
7 102050029 Freshwater Textured Hose 1, Inner Diameter 12m Call to Order
8 102050029 Freshwater Textured Hose 2, Inner Diameter 12mm Call to Order
9 - Right Panel Assembly Call to Order
10 301080011 Detergent Tank Assembly Call to Order
11 - Rear Cover Assembly Call to Order

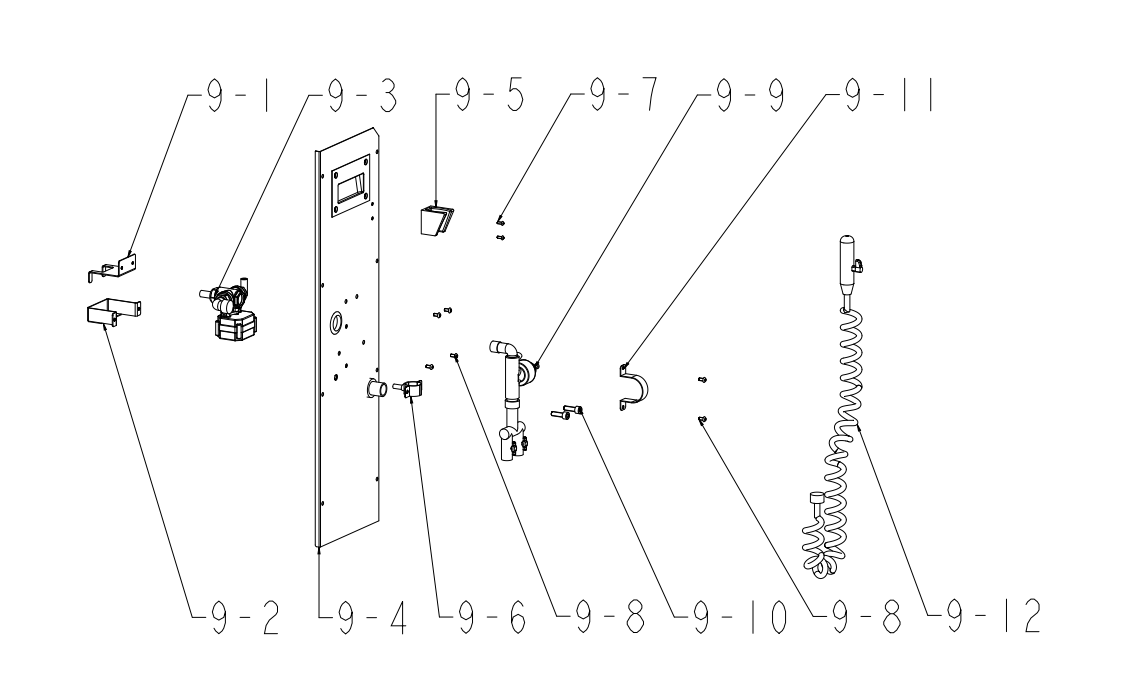

CenoBots Right Panel Assembly

{{section_image_alt}}

Right Panel Assembly

Reference # Part # Description Add to Cart
9-1 253052065 Electric Ball Valve Bracket Call to Order
9-2 253052016 Electric Ball Valve Clamp Call to Order
9-3 301080012 Electric Three-way Ball Valve Assembly Call to Order
9-4 - Right Panel Call to Order
9-5 102060092 Nozzle Bracket Call to Order
9-6 102060090 Pressure Regulator Valve Clamp, SUS304 Call to Order
9-7 102010075 Screw, Black, M4x10 Call to Order
9-8 102010051 Screw, Black, M5x10 Call to Order
9-9 301080013 Pressure Regulator Valve Assembly Call to Order
9-10 - Screw, Black, M8x25 Call to Order
9-11 102060091 Pressure Regulator Valve Clamp Call to Order
9-12 302050030 Nozzle Assembly Order Part




CenoBots Wastewater Connector Assembly

{{section_image_alt}}

Wastewater Connector Assembly

Reference # Part # Description Add to Cart
1 - Right Panel Assembly Call to Order
2 - Rear Cover Assembly Call to Order
3 - Frame Assembly Call to Order
4 253054005 Wastewater Hopper, Rubber Order Part
5 253052022 Wastewater Hopper Bracket, Metal Call to Order
6 102010272 Combination Screw, M6x16 Call to Order
7 - Workstation Recovery Tank Assembly Call to Order
8 253051002 Front Cover Assembly Call to Order
9 102060015 Wastewater Outlet Call to Order

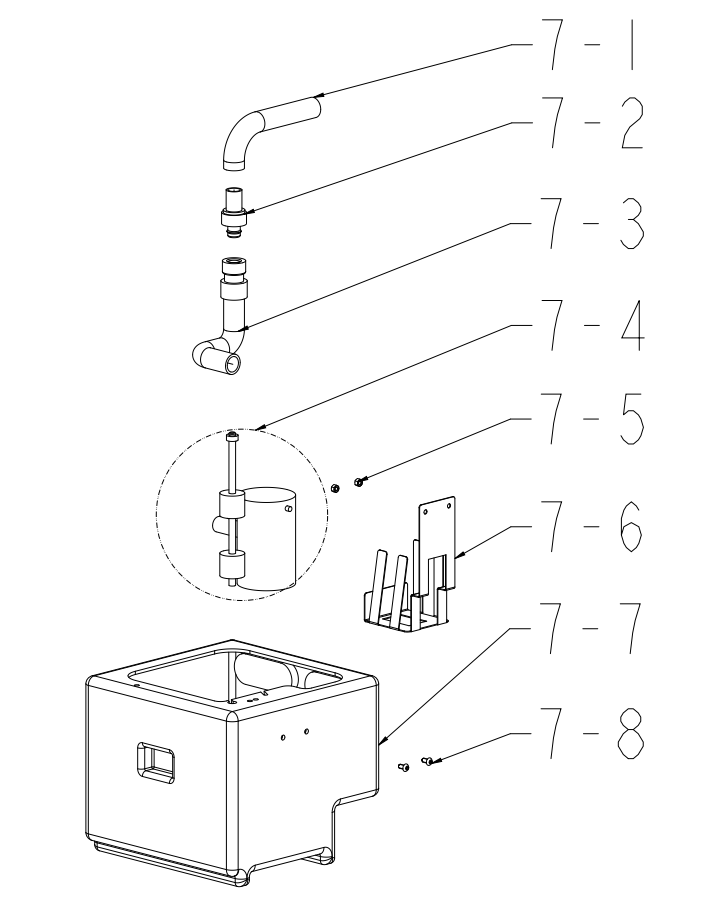

CenoBots Wastewater Connector Assembly -- Recovery Tank Assembly

{{section_image_alt}}

Recovery Tank Assembly

Reference # Part # Description Add to Cart
7-1 102050041 Wastewater Braided Hose 1 Call to Order
7-2 102060001 Push Fitting Call to Order
7-3 102050041 Wastewater Braided Hose 2 Call to Order
7-4 553325150 Float Sensor and Drain Pump Assembly (with harness) Order Part
7-5 102010147 Nylon Lock Nut, M5 Call to Order
7-6 253052019 Drain Pump Bracket Call to Order
7-7 253053002 Workstation Recovery Tank, PE Call to Order
7-8 102010417 Screw, Black, M5x10 Call to Order

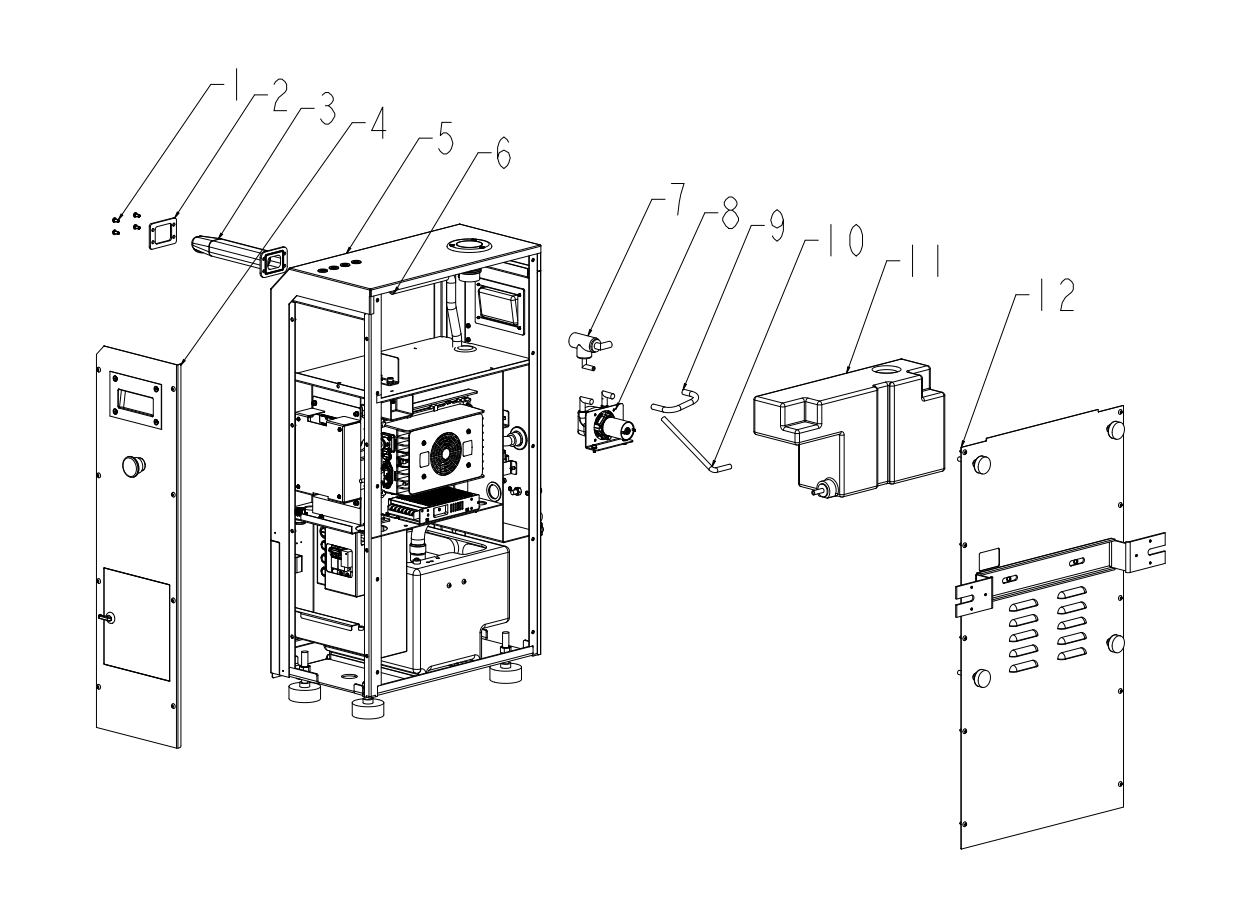

CenoBots Detergent Connector Assembly

{{section_image_alt}}

Detergent Connector Assembly

Reference # Part # Description Add to Cart
1 102010417 Screw, Black, M5x10 Call to Order
2 253052040 Fixing Plate, Water Outlet Call to Order
3 253054004 Solution Outlet, Rubber Call to Order
4 - Left Panel Assembly Call to Order
5 - Frame Assembly Call to Order
6 - Solution Filling Hose Call to Order
7 301080010 Upper Three-Way Fitting Assembly Call to Order
8 301060002 Detergent Pump Assembly Order Part
9 102050056 Detergent Hose 1 Call to Order
10 102050056 Detergent Hose 2 Call to Order
11 301080011 Detergent Tank Assembly Call to Order
12 - Rear Cover Assembly Call to Order

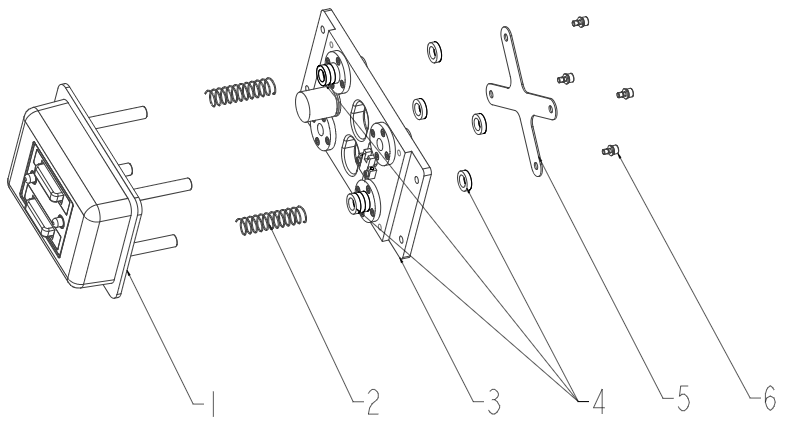

CenoBots Charging Mechanism Assembly

{{section_image_alt}}

Charging Mechanism Assembly

Reference # Part # Description Add to Cart
1 - Front Charging Plate Assembly Call to Order
2 102040002 Spring 2, Charing Mechanism Call to Order
3 301050012 Rear Charging Plate Assembly Call to Order
4 102070011 Washer, Charing Mechanism Call to Order
5 253052030 Guide Rod Connector Bracket Call to Order
6 102010019 Combination Screw, M5x10 Call to Order

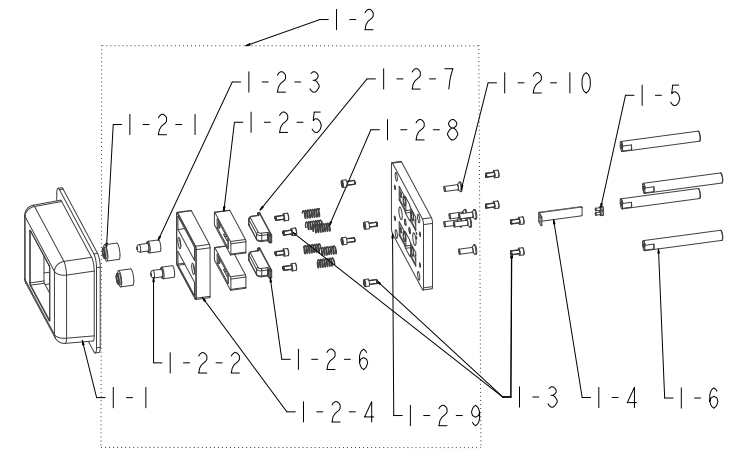

CenoBots Charging Mechanism Assembly- Front Charging Plate Assembly

{{section_image_alt}}

Front Charging Plate Assembly

Reference # Part # Description Add to Cart
1-1 253055008 Charging Enclosure, Plastic Call to Order
1-2 301100003 Charging Contact Assembly Call to Order
1-2-1 253055003 RS 485 Contact Sleeve, Plastic Call to Order
1-2-2 553325180 485- Contact (with black wiring) Call to Order
1-2-3 553325300 485+ Contact (with red wiring) Call to Order
1-2-4 253055002 Charging Connector, Plastic Call to Order
1-2-5 253055006 Charging Plate Bracket Call to Order
1-2-6 553325190 Charging Plate- (with black wiring) Call to Order
1-2-7 553325400 Charging Plate+ (with red wiring) Call to Order
1-2-8 102040001 Spring 1, Front Charging Plate Assembly Call to Order
1-2-9 253055005 Front Charging Plate, Plastic Call to Order
1-2-10 102010093 Screw, M6x20 Call to Order
1-3 102010263 Screw, M5x10, Stainless Stee Call to Order
1-4 253052013 Photoelectric Trigger Flap Call to Order
1-5 102010002 Screw, M3x6 Call to Order
1-6 102020002 Guide Rod, Front Charging Plate Assembly Call to Order

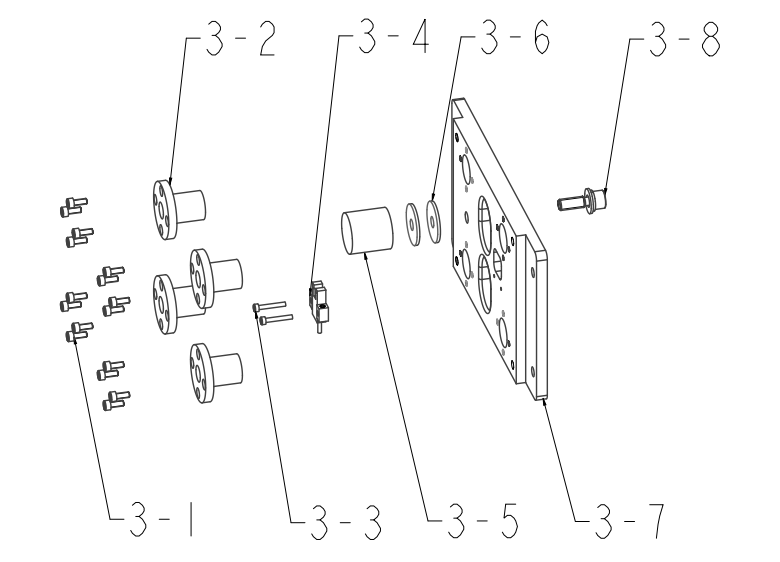

CenoBots Charging Mechanism Assembly - Rear Charging Plate Assembly

{{section_image_alt}}

Rear Charging Plate Assembly

Reference # Part # Description Add to Cart
3-1 102010263 Screw, M4x10 Call to Order
3-2 102020001 Bearing, Rear Charging Plate Assembly Call to Order
3-3 102010250 Combination Screw, M3x16 Call to Order
3-4 553325800 Slot-Type Photoelectric Sensor
Order Part
3-5 102070012 Damping Block, Rear Charging Plate Assembly Call to Order
3-6 102060079 Washer, M8*30*2 Call to Order
3-7 253055001 Rear Charging Plate Call to Order
3-8 102010280 Combination Screw, M8x30 Call to Order
