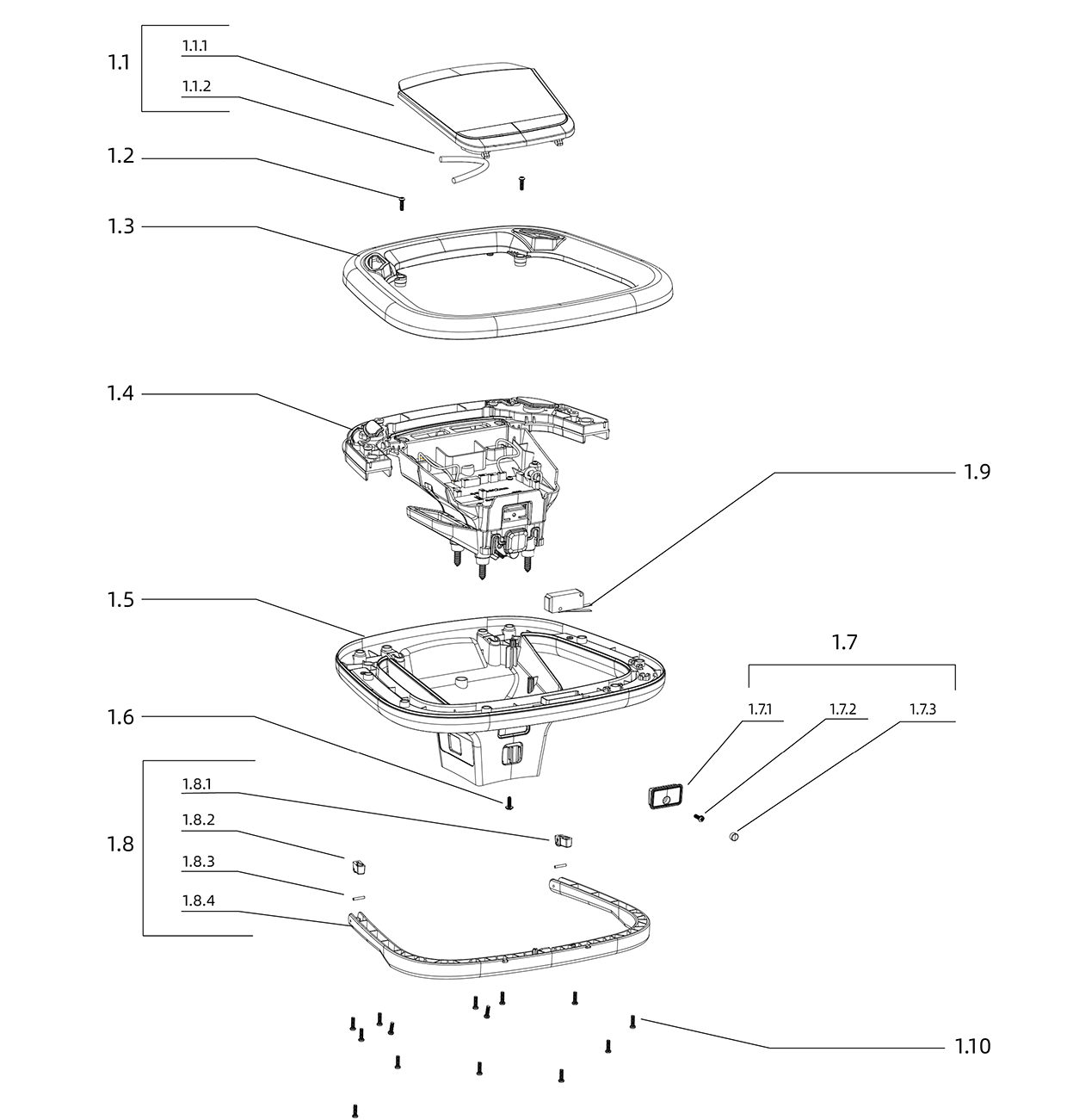

Aventurier Artist 1 Handle Assembly

{{section_image_alt}}

Handle Assembly

Reference # Part # Description Add to Cart
1.1 2.0.02.01.00143 LCD Screen Assembly Order Part
1.1.1 - LCD Screen Call to Order
1.1.2 - LCD Cable Call to Order
1.2 - Screw Call to Order
1.3 - Handle Cover Call to Order
1.4 - Handle Bracket Assembly Call to Order
1.5 - Handle Bottom Call to Order
1.6 - Screw Call to Order
1.7 2.0.02.01.00158 SIM Card Cover Assembly Call to Order
1.7.1 - Screw Call to Order
1.7.2 - crew Hole Plug Call to Order
1.7.3 - SIM Card Cove Call to Order
1.8 2.0.02.01.00157 Starting Switch Button Assembly Order Part
1.8.1 - Starting Switch Button Call to Order
1.8.2 - Starting Switch Button Axle, Right Call to Order
1.8.3 - Starting Switch Button Axle, Left Call to Order
1.8.4 - Latch Call to Order
1.9 2.0.02.01.00034 Starting Switch Call to Order
1.10 - Screw Call to Order

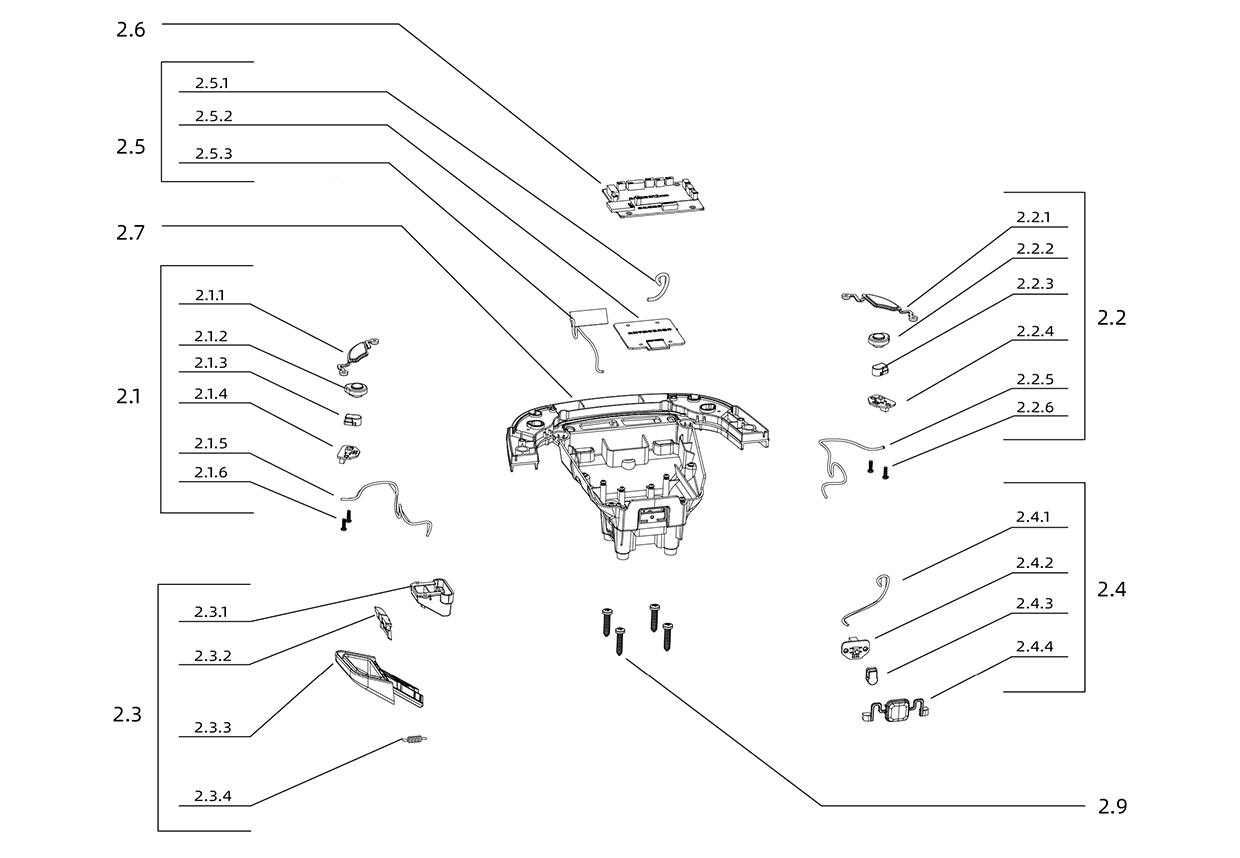

Aventurier Artist 1 Handle Bracket Assembly

{{section_image_alt}}

Handle Bracket Assembly

Reference # Part # Description Add to Cart
2.1 2.0.02.01.00155 Water Spraying Button Assembly Order Part
2.1.1 - Water Spraying Button Call to Order
2.1.2 - Button Light Call to Order
2.1.3 - Button Case Call to Order
2.1.4 - Button Board Call to Order
2.1.5 - Button Cable Call to Order
2.1.6 - Screw Call to Order
2.2 2.0.02.01.00154 Power Button Assembly Order Part
2.2.1 - Power Button Call to Order
2.2.2 - Button Light Call to Order
2.2.3 - Button Case Call to Order
2.2.4 - Button Board Call to Order
2.2.5 - Button Cable Call to Order
2.2.6 - Screw Call to Order
2.3 2.0.02.01.00159 Auxiliary Support Pull Ring Assembly Order Part
2.3.1 - Pull Ring Fixator Call to Order
2.3.2 - Pull Ring Water Proof Rubber Plug Call to Order
2.3.3 - Auxiliary Support Pull Ring Call to Order
2.3.4 - Pull Ring Tension Spring Call to Order
2.4 2.0.02.01.00156 Volume/Wi-Fi Button Assembly Order Part
2.4.1 - Volume/Wi-Fi Button Cable Call to Order
2.4.2 - Button Board Call to Order
2.4.3 - Button Board Call to Order
2.4.4 - Volume/Wi-Fi Button Call to Order
2.5 - 4G Module Assembly Call to Order
2.5.1 - 4G Module Cable Call to Order
2.5.2 - 4G Module Call to Order
2.5.3 - 4G Antennae Call to Order
2.6 2.0.02.01.00138 Upper Mainboard Order Part
2.7 - Handle Bracket Call to Order
2.9 - Screw Call to Order

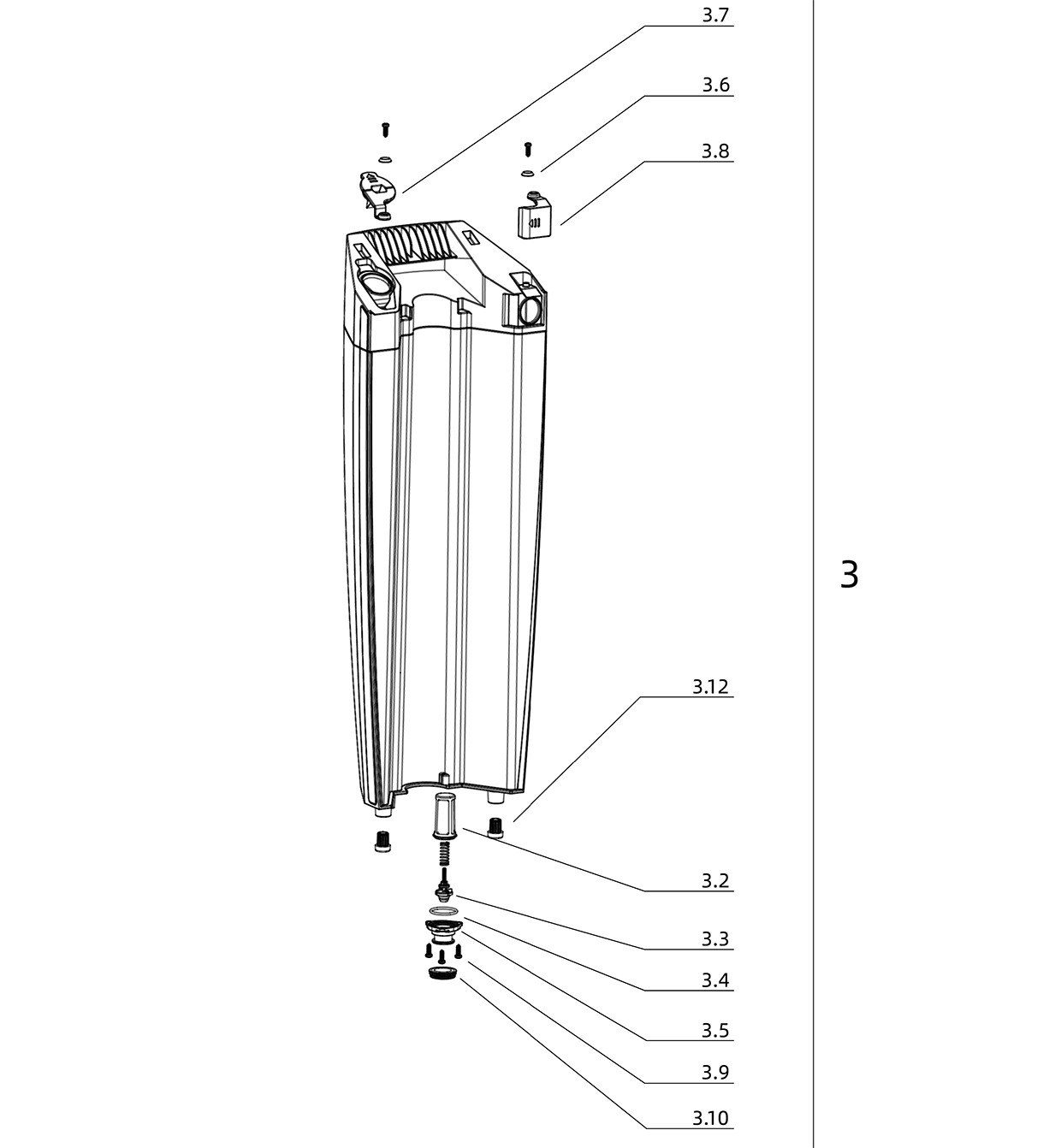

Aventurier Artist 1 Solution Tank Assembly

{{section_image_alt}}

Solution Tank Assembly

Reference # Part # Description Add to Cart
3 2.0.02.01.00014 Solution Tank, Gray, 1 pcs Order Part
3.1 - Solution Tank Chassis, Gray Call to Order
3.2 2.0.02.01.00018 Solution Tank Filter, 5 pcs Order Part
3.3 - Solution Tank Slider Washer Call to Order
3.4 - O-RING Washe Call to Order
3.5 - Filter Bottom Call to Order
3.6 - M3 Washer Call to Order
3.7 - Vertical Water Inlet Plug Call to Order
3.8 - Horizontal Water Inlet Plug Call to Order
3.9 - Screw Call to Order
3.10 - olution Tank Soft Rubber D Call to Order
3.11 - Button Spring Call to Order
3.12 - Solution Tank Soft Rubber C Call to Order

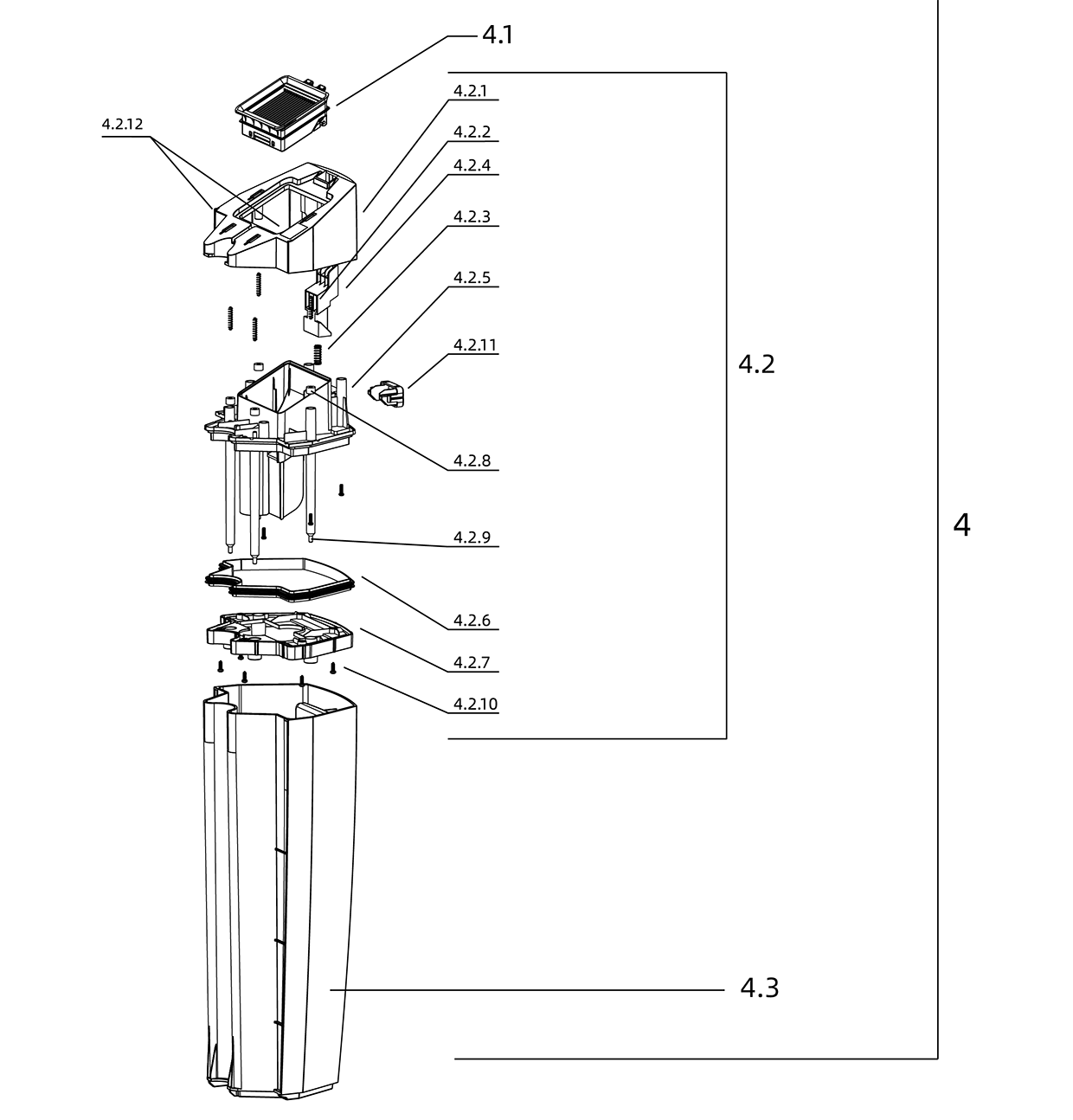

Aventurier Artist 1 Recovery Tank Assembly

{{section_image_alt}}

Recovery Tank Assembly

Reference # Part # Description Add to Cart
4 2.0.02.01.00015 Recovery Tank, Gray, 1 pcs Order Part
4.1 2.0.02.01.00020 HEPA, 1 pcs Order Part
4.2 - Recovery Tank Cover Assembly, Gray Call to Order
4.2.1 - Recovery Tank Upper Cover, Gray Call to Order
4.2.2 - Sewage Detection Rod Spring Call to Order
4.2.3 - Button Spring Call to Order
4.2.4 - Recovery Tank Button Bracket Call to Order
4.2.5 - Recovery Tank Lower Cover, Gray Call to Order
4.2.6 - Recovery Tank Seal Ring Call to Order
4.2.7 - Recovery Tank Cover, Gray Call to Order
4.2.8 - Sewage Detection Rod Seal Ring Call to Order
4.2.9 - Sewage Detection Rod Call to Order
4.2.10 - Screw Call to Order
4.2.11 - Recovery Tank Button Call to Order
4.2.12 - Tank Opening Tips Label Call to Order
4.3 - Recovery Tank Chassis Call to Order

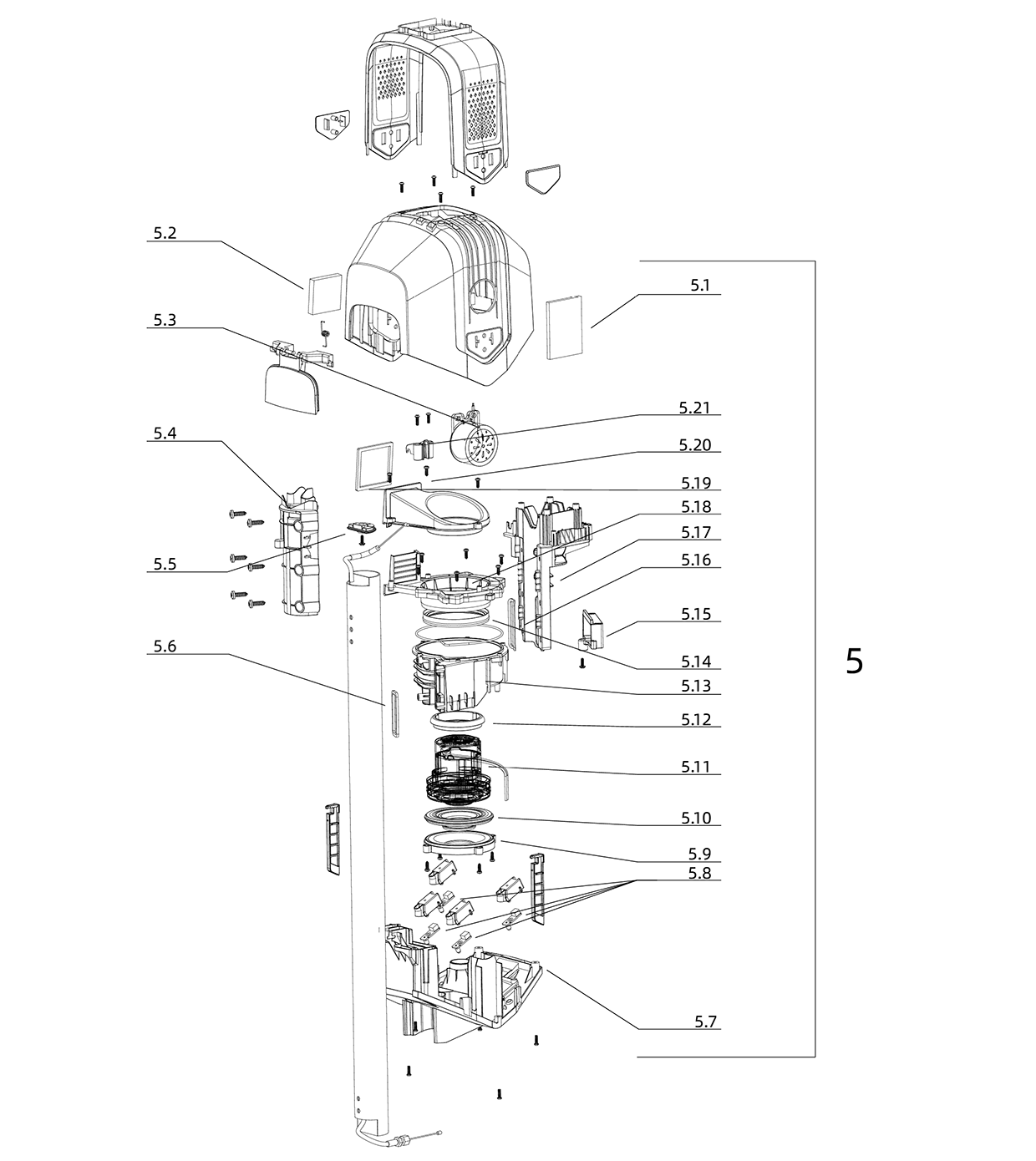

Aventurier Artist 1 Upper Body Assembly

{{section_image_alt}}

Upper Body Assembly

Reference # Part # Description Add to Cart
5 - Upper Body Assembly Call to Order
5.1 - Speaker Sponge Call to Order
5.2 - Upper Air Duct Sponge Call to Order
5.3 - Speaker Call to Order
5.4 - Suction Motor Fixator Cover Call to Order
5.5 - Suction Motor Fixator Seal Rubber Call to Order
5.6 - Air Duct Bottom Seal Rubber Call to Order
5.7 - Upper Body Bottom Cover Call to Order
5.8 2.0.02.01.00141 Sewage Volume Sensor, 4pcs Call to Order
5.9 - Air Duct Bottom Call to Order
5.10 - Air Inlet Shock Pad Call to Order
5.11 2.0.02.01.00144 Vacuum Suction Motor Order Part
5.12 - Air Duct Seal Washer Call to Order
5.13 - Suction Motor Cover Call to Order
5.14 - Air Outlet Shock Pad Call to Order
5.15 - Rubber Connector Call to Order
5.16 - Suction Motor Fixator Bottom Seal Rubber Call to Order
5.17 - Suction Motor Fixator Bottom Call to Order
5.18 - Air Duct Bracket Call to Order
5.19 - Air Duct Seal Ring Call to Order
5.20 - Air Duct Cover Call to Order
5.21 - Wire Rope Fixator Call to Order

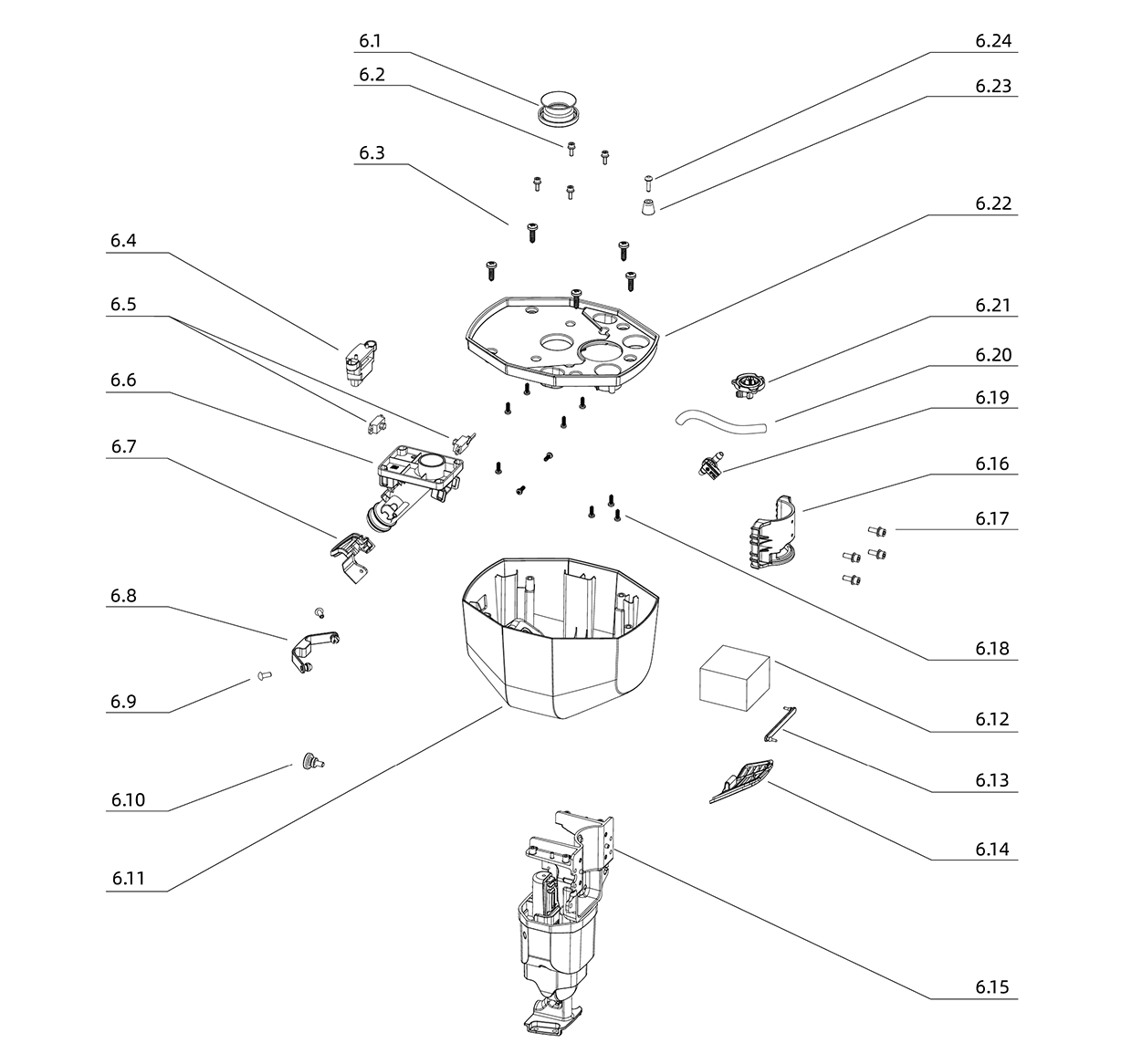

Aventurier Artist 1 Lower Body Assembly

{{section_image_alt}}

Lower Body Assembly

Reference # Part # Description Add to Cart
6 - Lower Body Assembly Call to Order
6.1 - Sewage Outlet Seal Pipe Call to Order
6.2 - Screw Call to Order
6.3 - Screw Call to Order
6.4 - Storage Limit Hole Call to Order
6.5 2.0.02.01.00149 Turbidity Sensor Order Part
6.6 - Transparent Sewage Pipe Call to Order
6.7 - Sensor Bracket Call to Order
6.8 - Wire Harness Retaining Tape Call to Order
6.9 - Tape Bolts Call to Order
6.10 - Screw Call to Order
6.11 - Lower Body Bottom Call to Order
6.12 - Lower Body Sponge Call to Order
6.13 - Air Outlet Cover Connector Call to Order
6.14 - Air Outlet Cover Call to Order
6.15 - Spherical Shaft & Support Assembly Call to Order
6.16 - Lower Body Fixator Call to Order
6.17 - Screw Call to Order
6.18 - Screw Call to Order
6.19 2.0.02.01.00150 Clean Water Volume Sensor Order Part
6.20 2.0.02.01.00153 Clean Water Pipe Order Part
6.21 - Clean Water Call to Order
6.22 - Lower Body Cover Call to Order
6.23 2.0.02.01.00019 Clean Water Filter, 5 pcs Call to Order
6.24 - Filter Blot Call to Order

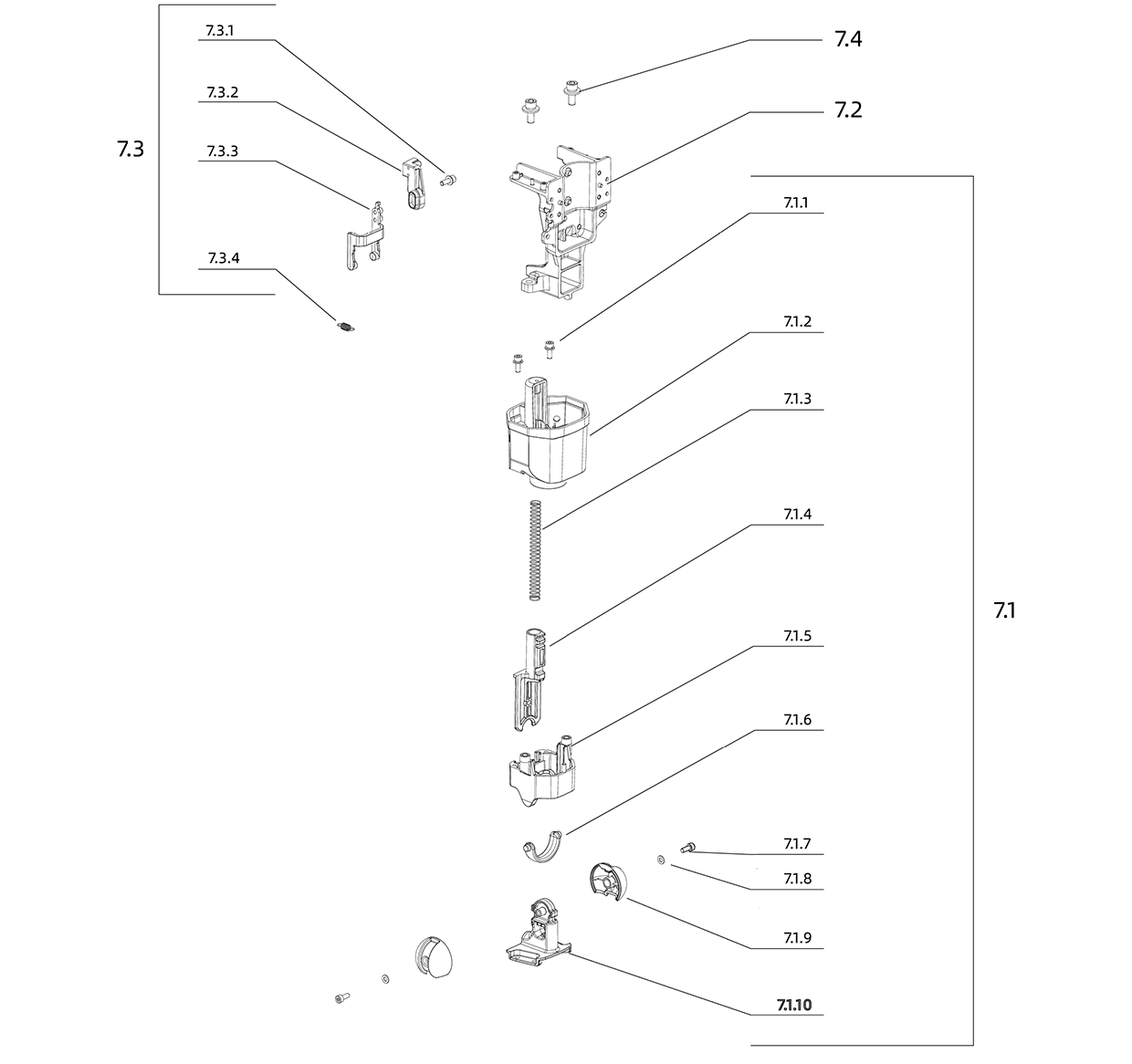

Aventurier Artist 1 Spherical Shaft & Support Assembly

{{section_image_alt}}

Spherical Shaft & Support Assembly

Reference # Part # Description Add to Cart
7 - Spherical Shaft & Support Assembly Call to Order
7.1 2.0.02.01.00024 Spherical Shaft Assembly Call to Order
7.1.1 - Screw Call to Order
7.1.2 - Spherical Shaft Outer Cover Call to Order
7.1.3 - Support Spring Call to Order
7.1.4 - Support Bar Call to Order
7.1.5 - Spherical Shaft Inner Cover Call to Order
7.1.6 - Slideway Call to Order
7.1.7 - Screw Call to Order
7.1.8 - Washer Call to Order
7.1.9 - Spherical Slideway Call to Order
7.1.10 - Spherical Shaft base Call to Order
7.2 2.0.02.01.00163 Chassis Connector Call to Order
7.3 2.0.02.01.00164 Support Hook Assembly Call to Order
7.3.1 - Screw Call to Order
7.3.2 - Support Hook Arm Call to Order
7.3.3 - Support Hook Call to Order
7.3.4 - Support Hook Tension Spring Call to Order
7.4 - Screw Call to Order

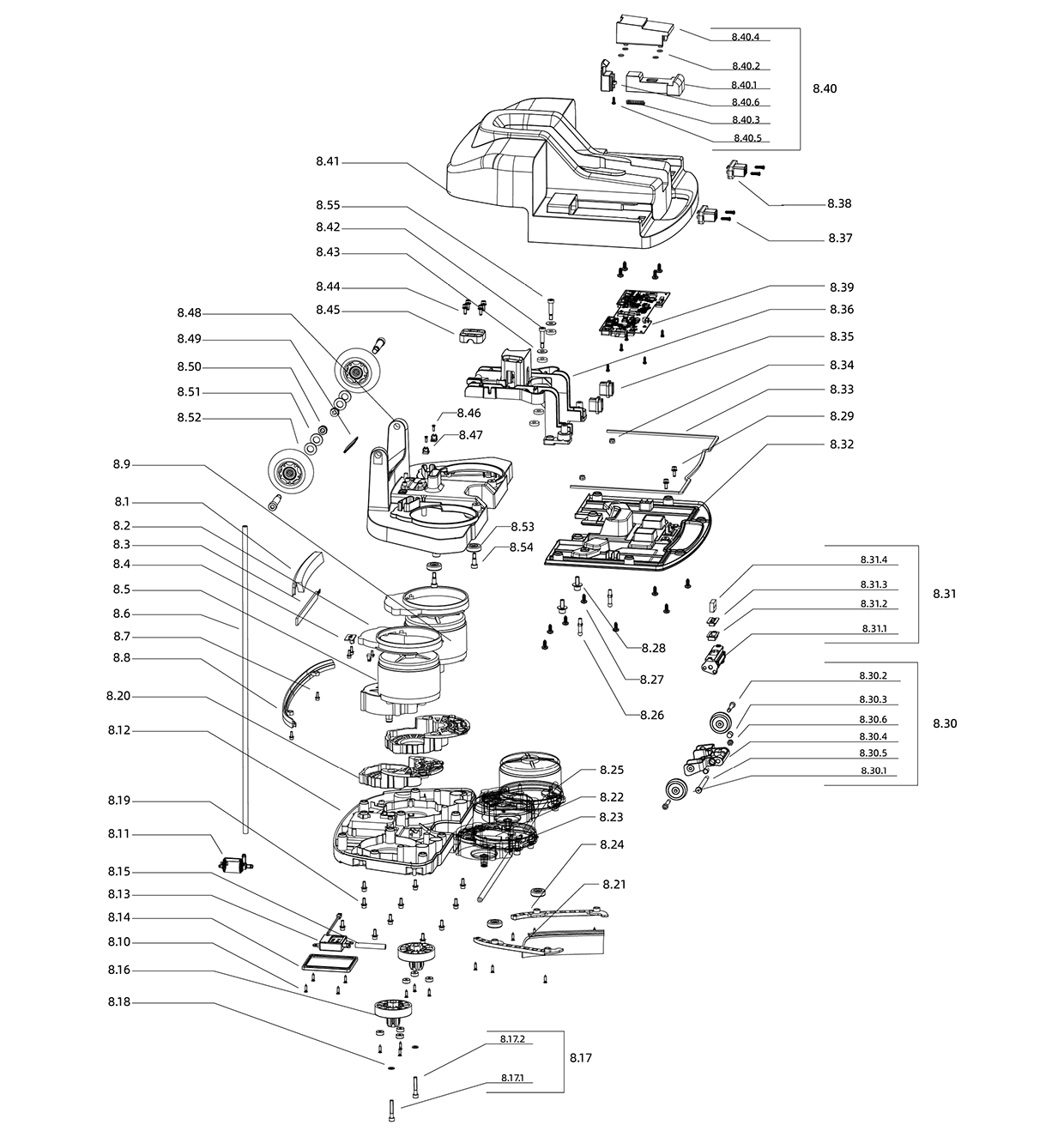

Aventurier Artist 1 Chassis Assembly

{{section_image_alt}}

Chassis Assembly

Reference # Part # Description Add to Cart
8 - Chassis Assembly Call to Order
8.1 - illuminated Cover Call to Order
8.2 - Brush Motor Shock Pad, Upper Call to Order
8.3 2.0.02.01.00142 illuminated LED Order Part
8.4 2.0.02.01.00140 Logo Board Order Part
8.5 2.0.02.01.00145 Brush Motor,Left Order Part
8.6 2.0.02.01.00153 Clean Water Pipe Order Part
8.7 - Screw Call to Order
8.8 - Bumper Call to Order
8.9 2.0.02.01.00146 Brush Motor, Right Order Part
8.10 - Screw Call to Order
8.11 2.0.02.01.00148 Solenoid Order Part
8.12 - Chassis Bottom Cover A Call to Order
8.13 2.0.02.01.00097 Sterilization Module, D66, 1 pcs Order Part
8.14 - Sterilization Module Cover Call to Order
8.15 2.0.02.01.00153 Clean Water Pipe Order Part
8.16 2.0.02.01.00161 Brush Driver Assembly Order Part
8.17 2.0.02.01.00147 Brush Motor Screews Call to Order
8.17.1 - Brush Motor Screew, Left-handed Call to Order
8.17.2 - Brush Motor Screew, Right-handed Call to Order
8.18 - Washer Call to Order
8.19 - Screw Call to Order
8.20 - Brush Motor Shock Pad, Lower Call to Order
8.21 - Splash Guard Base, Left Call to Order
8.22 2.0.02.01.00153 Clean Water Pipe Order Part
8.23 - Tee Connector Call to Order
8.24 - Splash Guard Base, Right Call to Order
8.25 2.0.02.01.00153 Clean Water Pipe Order Part
8.26 - Screw Call to Order
8.27 - Screw Call to Order
8.28 - Screw Call to Order
8.29 - Screw Call to Order
8.30 2.0.02.01.00165 Lifting Wheel Assembly Order Part
8.30.1 - Middle Size Wheels Call to Order
8.30.2 - Screw Call to Order
8.30.3 - Roller Latch Call to Order
8.30.4 - Lifting Wheel Base Call to Order
8.30.5 - Screw Call to Order
8.30.6 - Nut Call to Order
8.31 2.0.02.01.00167 Brush-only Mode Switch Assembly Order Part
8.31.1 - Brush-only Mode Switch Base Call to Order
8.31.2 - Brush-only Mode Switch Protect Cover Call to Order
8.31.3 - Brush-only Mode Switch Protect Rubber Call to Order
8.31.4 - Brush-only Mode Switch Call to Order
8.32 - Chassis Bottom Cover B Call to Order
8.33 - EVA Strip Call to Order
8.34 - Nut Call to Order
8.35 - Water Proof Plug Call to Order
8.36 - Chassis Shaft Call to Order
8.37 - Screw Call to Order
8.38 - Battery Connector Call to Order
8.39 2.0.02.01.00139 Lower Mainboard Order Part
8.40 - PUSH Button Assembly Call to Order
8.40.1 - PUSH Button Call to Order
8.40.2 - O-Ring Washer Call to Order
8.40.3 - PUSH Button Spring Call to Order
8.40.4 - Storage Hook Cover Call to Order
8.40.5 - Screw Call to Order
8.40.6 - Storage Hook Call to Order
8.41 - Chassis Upper Cover Call to Order
8.42 - Vibration Dampening Washer Call to Order
8.43 - Washer Call to Order
8.44 - Screw Call to Order
8.45 - Chassis Shaft Fixator Call to Order
8.46 - Screw Call to Order
8.47 - Cable Retaining Buckle Call to Order
8.48 - Extended Chassis Middle Cover Call to Order
8.49 - LOGO Window Call to Order
8.50 - Nut Call to Order
8.51 - Washer Call to Order
8.52 2.0.02.01.00151 Transport Support Wheel Order Part
8.53 2.0.02.01.00152 Anti-collision Side Wheel Order Part
8.54 - Screw Call to Order
8.55 - Screw Call to Order

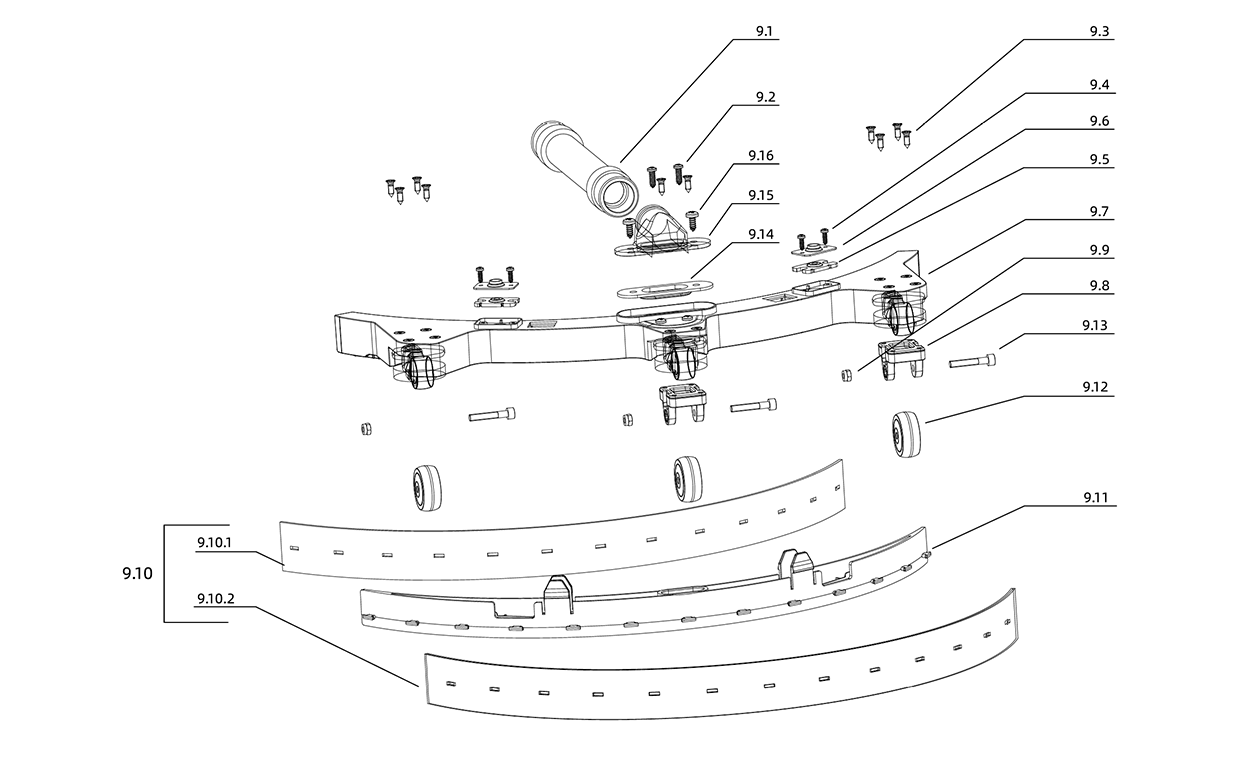

Aventurier Artist 1 Extended Squeegee Assembly

{{section_image_alt}}

Extended Squeegee Assembly

Reference # Part # Description Add to Cart
9 2.0.02.01.00080 Extended Squeegee Assembly (Directional Wheel), including Red Blade and Sewage Suction Hose, 1 pcs Call to Order
9.1 2.0.02.01.00013 Sewage Suction Hose, PVC, ?26*252, 1 pcs Order Part
9.2 - Screw Call to Order
9.3 - Screw Call to Order
9.4 - Screw Call to Order
9.5 - Squeegee Mounting Hole Rubber Call to Order
9.6 - Squeegee Mounting Hole Metal Pad Call to Order
9.7 - Squeegee Outer Bracket Call to Order
9.8 - Wheel Base Call to Order
9.9 - Nut Call to Order
9.10 2.0.02.01.00028 Extended Red Blade, 1 pair Call to Order
9.10.1 - Squeegee Front Blade Call to Order
9.10.2 - Squeegee Rear Blade Call to Order
9.11 - Squeegee Inner Bracket Call to Order
9.12 - Middle Size Wheels Call to Order
9.13 - Screw Call to Order
9.14 - Hose Connector Seal Rubber Call to Order
9.15 - Hose Connector Call to Order
9.16 - Screw Call to Order





Aventurier Artist 1 Charging Assembly

{{section_image_alt}}

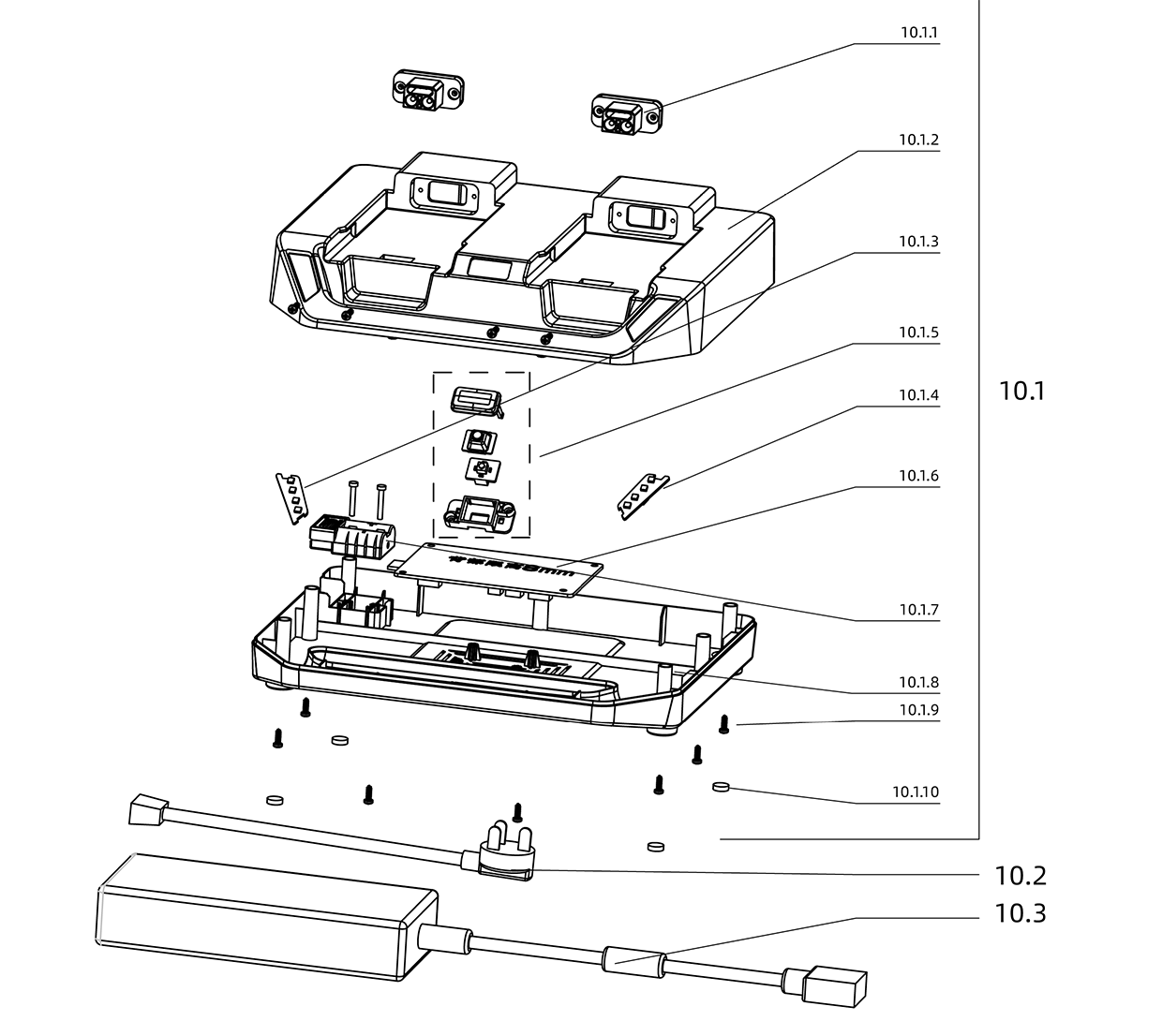

Charging Assembly

Reference # Part # Description Add to Cart
10 - Charging Assembly Call to Order
10.1 2.0.02.01.00021 Battery Charging Base, 1 pcs Order Part
10.1.1 - Battery Connector Call to Order
10.1.2 - Charging Base Upper Cover Call to Order
10.1.3 - Charging Light Assembly, Left Call to Order
10.1.4 - Charging Light Assembly, Right Call to Order
10.1.5 - Charging Base Power Button Assembly Call to Order
10.1.6 - Charging Mainboard Call to Order
10.1.7 - DC Connector Call to Order
10.1.8 - Charging Base Bottom Cover Call to Order
10.1.9 - Screw Call to Order
10.1.10 - Anti-slip Rubber Call to Order
10.2 2.0.02.01.00022 Fast Charger, AP-PN240CH02940080, 1 pcs Order Part
10.3 2.0.02.01.00137 Power Cable-US Standard 8A, 1pcs Order Part
